TROUBLESHOOTING
Changing a wheel
- If a pressure of at least 1.5 bars is not
reached within 5 minutes:

112
Changing a bulb
FRONT LIGHTS
Open the bonnet. To access the bulbs, reach
behind the headlamp unit.
Remove the protective covers to gain
access to the bulbs.
Carry out the operations in reverse order to
refit each bulb.
CHANGING A BULB
TYPES OF BULB
Various types of bulb are installed on your
vehicle. To remove them:

1. Type A
Entirely glass bulb: pull gently as it is fitted by pressure.

2. Type B
Bayonet bulb: press on the bulb then turn it anticlockwise.

3. Type C
Cylindrical bulb: move aside the contacts.

4. Type D - E
Halogen bulb: release the retaining spring from its housing.

113
7
TROUBLESHOOTING
Changing a bulb

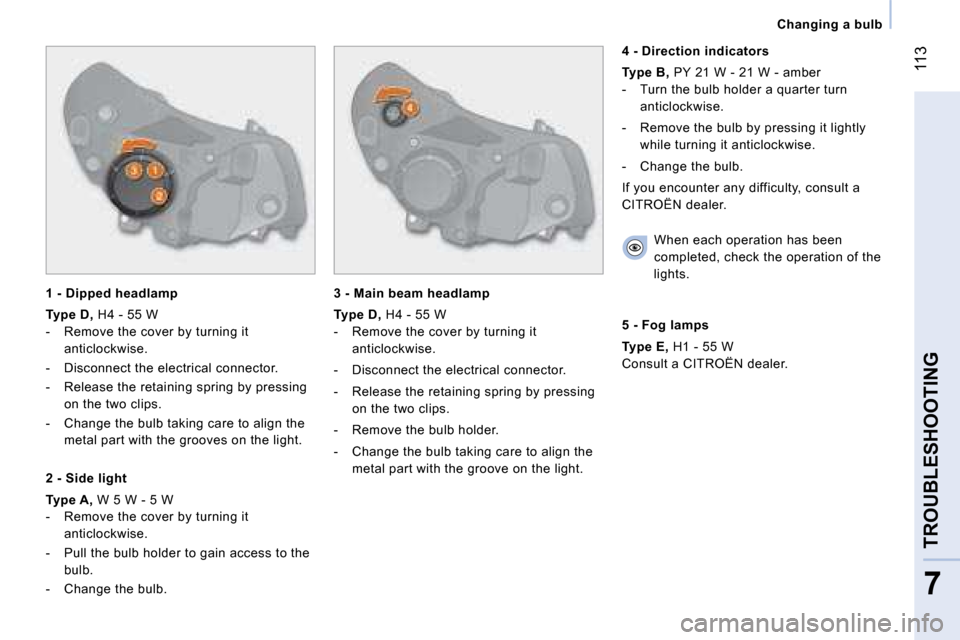

1 - Dipped headlamp

Type D, H4 - 55 W
- Remove the cover by turning it anticlockwise.
- Disconnect the electrical connector.
- Release the retaining spring by pressing on the two clips.
- Change the bulb taking care to align the metal part with the grooves on the light.
2 - Side light

Type A, W 5 W - 5 W
- Remove the cover by turning it anticlockwise.
- Pull the bulb holder to gain access to the bulb.
- Change the bulb.
3 - Main beam headlamp

Type D, H4 - 55 W
- Remove the cover by turning it anticlockwise.
- Disconnect the electrical connector.
- Release the retaining spring by pressing on the two clips.
- Remove the bulb holder.
- Change the bulb taking care to align the metal part with the groove on the light.
4 - Direction indicators

Type B, PY 21 W - 21 W - amber
- Turn the bulb holder a quarter turn anticlockwise.
- Remove the bulb by pressing it lightly while turning it anticlockwise.
- Change the bulb.
If you encounter any difficulty, consult a
CITROËN dealer.
When each operation has been
completed, check the operation of the
lights.
5 - Fog lamps

Type E, H1 - 55 W
Consult a CITROËN dealer .

114
Changing a bulb
FRONT/REAR COURTESY LIGHTS

Type C, 12 V 10 W - 10 W
- Release the courtesy light using a screwdriver.
- Remove the cover to gain access to the bulb.
- Change the bulb moving aside the two contacts.
- Ensure that the new bulbs are secured correctly between the two contacts.
- Close the protective flap.
- Fix the courtesy light in its housing and ensure that it is secured correctly.

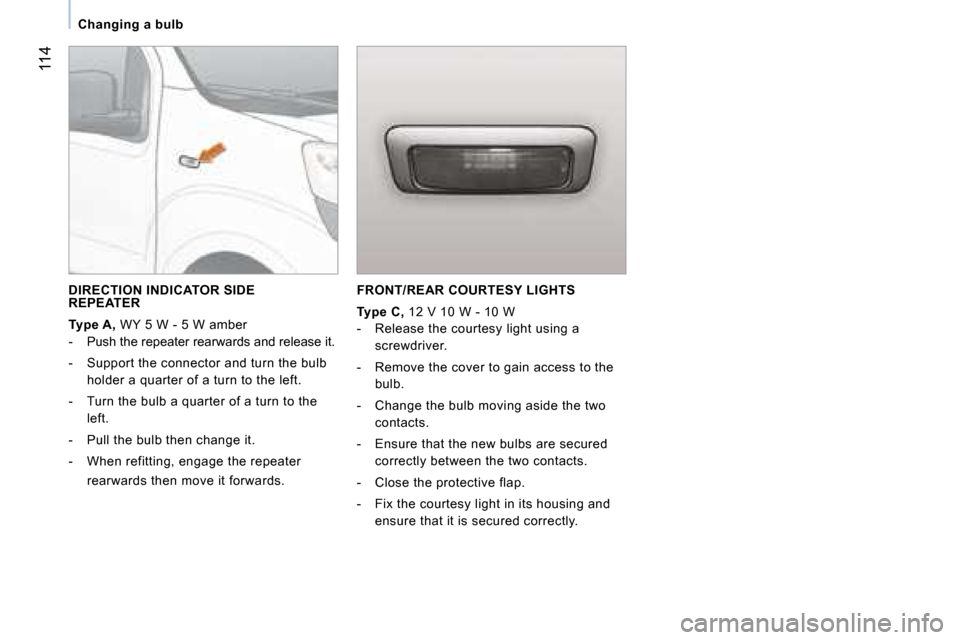

DIRECTION INDICATOR SIDEREPEATER

Type A, WY 5 W - 5 W amber
- Push the repeater rearwards and release it.
- Support the connector and turn the bulb holder a quarter of a turn to the left.
- Turn the bulb a quarter of a turn to the left.
- Pull the bulb then change it.
- When refitting, engage the repeater rearwards then move it forwards.

114
Changing a bulb
FRONT/REAR COURTESY LIGHTS

Type C, 12 V 10 W - 10 W
- Release the courtesy light using a screwdriver.
- Remove the cover to gain access to the bulb.
- Change the bulb moving aside the two contacts.
- Ensure that the new bulbs are secured correctly between the two contacts.
- Close the protective flap.
- Fix the courtesy light in its housing and ensure that it is secured correctly.
DIRECTION INDICATOR SIDEREPEATER

Type A, WY 5 W - 5 W amber
- Push the repeater rearwards and release it.
- Support the connector and turn the bulb holder a quarter of a turn to the left.
- Turn the bulb a quarter of a turn to the left.
- Pull the bulb then change it.
- When refitting, engage the repeater rearwards then move it forwards.

115
7
TROUBLESHOOTING
Changing a bulb

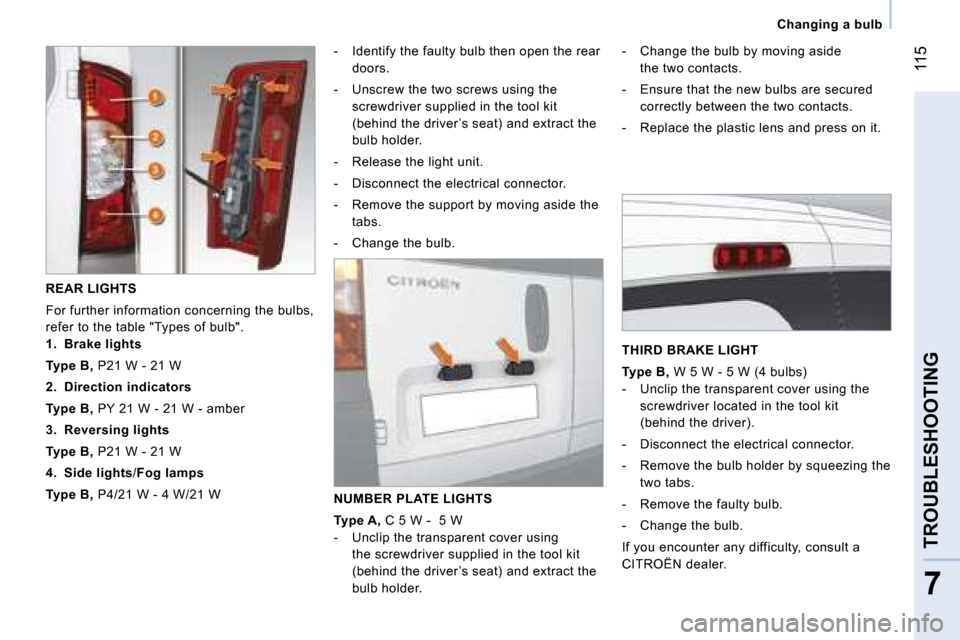

REAR LIGHTS
For further information concerning the bulbs,
refer to the table "Types of bulb".

1. Brake lights

Type B, P21 W - 21 W

2. Direction indicators

Type B, PY 21 W - 21 W - amber

3. Reversing lights

Type B, P21 W - 21 W

4. Side lights /Fog lamps

Type B, P4/21 W - 4 W/21 W - Identify the faulty bulb then open the rear
doors.
- Unscrew the two screws using the screwdriver supplied in the tool kit
(behind the driver ’s seat) and extract the
bulb holder.
- Release the light unit.
- Disconnect the electrical connector.
- Remove the support by moving aside the tabs.
- Change the bulb.
NUMBER PLATE LIGHTS

Type A, C 5 W - 5 W
- Unclip the transparent cover using the screwdriver supplied in the tool kit
(behind the driver ’s seat) and extract the
bulb holder. - Change the bulb by moving aside
the two contacts.
- Ensure that the new bulbs are secured correctly between the two contacts.
- Replace the plastic lens and press on it.
THIRD BRAKE LIGHT

Type B, W 5 W - 5 W (4 bulbs)
- Unclip the transparent cover using the screwdriver located in the tool kit
(behind the driver).
- Disconnect the electrical connector.
- Remove the bulb holder by squeezing the two tabs.
- Remove the faulty bulb.
- Change the bulb.
If you encounter any difficulty, consult a
CITROËN dealer.

116
Changing a wiper blade

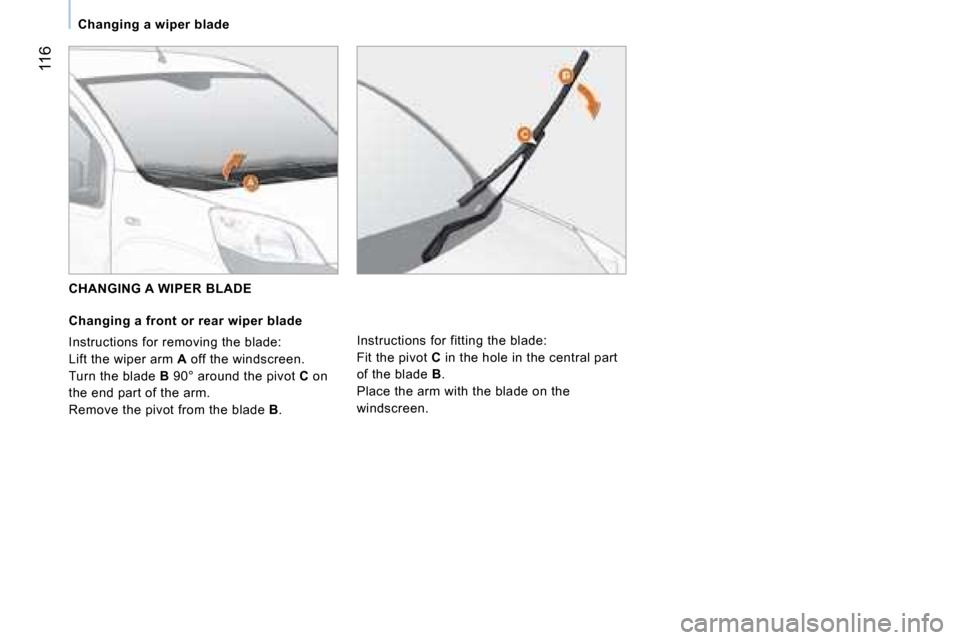

CHANGING A WIPER BLADE
Changing a front or rear wiper blade
Instructions for removing the blade:
Lift the wiper arm A off the windscreen.
Turn the blade B 90° around the pivot C on
the end part of the arm.
Remove the pivot from the blade B . Instructions for fitting the blade:
Fit the pivot
C in the hole in the central part
of the blade B .
Place the arm with the blade on the
windscreen.

117
7
TROUBLESHOOTING
Changing a fuse
CHANGING A FUSE
The two fuse boxes are placed on the fascia
panel on the driver ’s side and under the
bonnet.
Removing and fitting a fuse
Before changing a fuse, the cause of the
fault must be found and rectified. The fuse
numbers are indicated on the fuse box.
Always replace a faulty fuse with a fuse of the same rating.
- To gain access to the fascia panel fuses, remove the 2 screws using the ignition
key and move the cover aside.
- To gain access to the fuses under the bonnet, remove the battery negative
cable and the front left light connector,
then unclip the fuse box cover.
CITROËN will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying the malfunctions
resulting from the installation of accessories
not supplied and not recommended by
a CITROËN dealer and not installed
in accordance with his instructions, in
particular when the combined consumption
of all of the additional equipment connected
exceeds 10 milliamperes.

119
7
TROUBLESHOOTING
Changing a fuse
FUSES IN THE ENGINE
Identifi cation mark
Amperage
Functions
F01 60 A Control unit
F03 20 A Starter supply
F04 40 A ABS hydraulic block pump supply
F06 30 A Single speed fan assembly control
F07 40 A High speed fan assembly control
F08 30 A Air conditioning unit pump
F10 10 A Horn
F11 10 A Engine management secondary charge supply
F14 15 A Main beam headlamps
F16 7.5 A
Engine management control unit - electronic gearbox system control unit
F17 15 A Supply for ignition coil, injectors, engine manage ment central unit
F18 7.5 A Engine management control unit (1.4 HDi)
F19 7.5 A Air conditioning compressor
F20 30 A Supply for heated rear screen, electric exterior m irrors de-icing heaters
F21 15 A Engine management 1.4 petrol, relay coil T09 (HDi)
F22 20 A Engine management control unit (1.4 HDi), petrol p ump
F23 20 A ABS hydraulic block solenoid valves supply
F24 7.5 A ABS
F30 15 A Fog lamps
F81 60 A Pre-heat unit
F82 30 A
Electronic gearbox system pump - electronic gearbo x system supply
F84 10 A Electronic gearbox system control unit and valves
F85 30 A Lighter - 12 V accessories socket
F87 7.5 A Reversing lights - water in diesel sensor
