CITROEN RELAY 2020 Handbook (in English)

129
Technical data
9Dimensions
Dimension values are given in millimetres.
Va n



Your vehicle comes in 4 lengths (L1, etc.) and 3 heights (H1, etc.):
L1 L2L3L4
H1 H2 H1H2H2H3H2H3
L Overall length 4,9635,4135,9986,363
H Overall height 2,2542,524 2,2542,5242,5242,7642,5242,764
A Wheelbase 3,0003,450 4,035

130
Technical data
L1L2L3L4
H1 H2 H1H2H2H3H2H3
B Front overhang 948
C Rear overhang 1,0151,380
D Width (with/without mirrors) 2,508/2,050
E Front track width 1,810
F Rear track width 1,790
G Loading sill height 535 to 565
I Interior floor length 2,6703,1203,7054,070
J Maximum interior load height 1,6621,932 1,6621,9321,9322,1721,9322,172
K Maximum interior width 1,870
M Interior width between wheel arches 1,422
Volume (m
3) 89.5 1011.5 13151517

131
Technical data
9Rear doors

L1L2L3L4
H1 H2 H1H2H2H3H2H3
N Rear doors useable height 1,5201,790 1,5201,790 1,7902,0301,7902,030
O Rear doors useable width 1,562
Side door

132
Technical data
L1L2L3L4
H1 H2 H1H2H2 H3H2H3
P Height of the sliding side door 1,4851,755 1,4851,755 1,755
Q Width of the sliding side door 1,0751,250
Combi


L1H1 L2H2
A 751 8721,201 1,322
B 1,201 1,7431,6512,193
C -860 -860


Identification markings

A. Manufacturer's plate

This plate is located on the crossbar of the front
bumper, under the bonnet.

133
Technical data
9Identification markings

A. Manufacturer's plate

This plate is located on the crossbar of the front
bumper, under the bonnet. 1 -
European whole vehicle type approval
number
2 - Vehicle identification number (VIN)
3 - Gross vehicle weight (GVW)
4 - Gross train weight (GTW)
5.1 - Maximum weight on the front axle
5.2 - Maximum weight on the rear axle
B. Serial number on the
bodywork
C. Tyres


This label (may differ from image shown), affixed
to the driver's side door pillar, indicates:
– the tyre sizes,
– the tyre pressures when laden.
The tyre pressures must be checked when
the tyres are cold, at least monthly.
D. Paint code
This reference number is located on the front
crossmember, under the bonnet.
E. Serial number on the
bodywork
This number is located under the plastic cover, at
the sill on the right-hand side.
Glossary of labels
This section contains all of the text written on the
labels present in the vehicle.
For the Identification markings , refer to
the corresponding section.

134
Technical data
In the engine compartment

A
Original paintwork
Colour
Code
Varnish
B
FOR TROUBLESHOOTING ONLY.
C
DANGER
AUTOMATIC ENGINE STARTING. REMOVE
THE IGNITION KEY WHEN THE BONNET IS
OPEN.
D


1 - WARNING
GENUINE LUBRICANTS AND FLUIDS
Engine oil Transmission
Radiator Brakes
Screenwash Power steering
CONSULT THE
MAINTENANCE
AND WARRANTY
GUIDE. PROTECT YOUR
EYES.
2 - SAFETY
The use of genuine replacement parts, fluids
and lubricants, as well as observing the servicing
schedules, guarantees the reliability and safety
of your vehicle over time, so maintaining it in its
original condition.
3 - DANGER
KEEP OUT
OF THE
REACH OF
CHILDREN. DO NOT
APPROACH
FLAMES. DO NOT
TOUCH.
DO NOT
REMOVE
THE CAP
WHEN THE
ENGINE IS
HOT. EXPLOSION.
CORROSIVE
LIQUID.
MAY START
AUTOMATICALLY EVEN
WITH THE ENGINE
SWITCHED OFF. DO NOT
OPEN GAS
UNDER HIGH
PRESSURE.
AUTOMATIC ENGINE
STARTING. REMOVE THE
IGNITION KEY WHEN THE
BONNET IS OPEN. HIGH
VOLTAGEIn the fuel filler flap

DANGER REMOVE SLOWLY.
FUEL VAPOURS MAY CAUSE INJURY.

135
Technical data

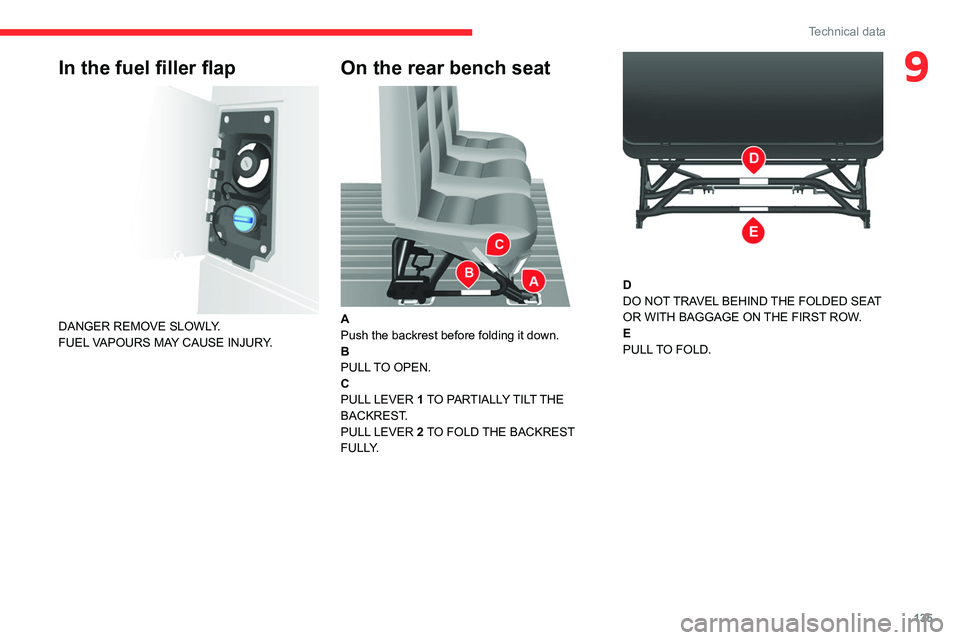

9In the fuel filler flap

DANGER REMOVE SLOWLY.
FUEL VAPOURS MAY CAUSE INJURY.
On the rear bench seat

A
Push the backrest before folding it down.
B
PULL TO OPEN.
C
PULL LEVER 1 TO PARTIALLY TILT THE
BACKREST.
PULL LEVER 2 TO FOLD THE BACKREST
FULLY.


D
DO NOT TRAVEL BEHIND THE FOLDED SEAT
OR WITH BAGGAGE ON THE FIRST ROW.
E
PULL TO FOLD.

136
Special features
Crew cab
The crew cab, available on van
versions, consists of a bench
seat, seat belts, a storage
compartment and side windows.
It is separated from the loading area by a high-
resistance partition providing comfort and safety.
Rear bench seat

This ergonomic bench seat has four seats.
Storage space

A storage space is available under the bench
seat.
From the cab, tilt the seat cushion forwards to
access it.
Do not tilt the bench seat cushion during
transport.
Do not attach anything to the cab fixing
structure.
Do not exceed the number of passengers
indicated on the registration certificate.
In the rear, the loading area is intended
for carrying goods only.
You are advised to place the goods or heavy
objects as far forwards as possible in the
loading area (towards the cab) and to secure
them by means of straps using the stowing
rings on the floor.
Child seats
Do not install child seats, booster
cushions or carry-cots on the rear seats
of the cab.
Chassis cab / Flatbed cab
The chassis cab and flatbed
cab versions are equipped with
a cab, fixed flatbed and specific
rear lamps.
These versions are also available with other
equipment:
– a double cab,
– a tipper truck.
For more information on all of its
equipment, refer to the corresponding
section.
Changing a bulb
For more information on Types of bulbs,
refer to the corresponding section.
Rear lamps

1. Direction indicators
Type B, PY21W - 21W
2. Brake lamps
Type B, P21W - 21W
3. Sidelamps
Type A, W5W - 5W
4. Reversing lamps
Type A, W16W - 16W
5. Foglamps
Type A, W16W - 16W
► Locate the faulty bulb.

137
Special features
10Rear lamps

1.Direction indicators
Type B, PY21W - 21W
2. Brake lamps
Type B, P21W - 21W
3. Sidelamps
Type A, W5W - 5W
4. Reversing lamps
Type A, W16W - 16W
5. Foglamps
Type A, W16W - 16W
► Locate the faulty bulb.


► Remove the four fixing screws from the lens
unit.
► Pull the lens unit towards you.
► Change the bulb.
Carry out the operations in reverse order to
reposition each bulb.

138
Special features
Chassis cab dimensions



Dimension values are given in millimetres.
L1 L2L2S L3L4
L Overall length 4,9085,3585,7085,9436,308
