Lève-vitres (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_3
ELECTRIC WINDOWS (3/3)
Locking and unlocking the
rear window controls
(depending on vehicle)
Press the top of switch 11 to lock the
operation of the rear electric windows
or on the bottom of switch 11 to unlock.
Safety of rear occupants
The driver can prevent op -
eration of the rear elec -
tric windows by pressing
switch 11.
Driver’s responsibility
Never leave your vehicle with the
key or remote control inside and
never leave a child (or a pet) un -
supervised, even for a short while.
They may pose a risk to themselves
or to others by starting the engine,
activating equipment such as the
electric windows or by locking the
doors. If any part of the body be -
comes trapped, reverse the direc -
tion of the window immediately by
pressing the relevant switch.
Risk of serious injury.
11
Manual window winders
Turn handle 12 to lower or raise the
window to the desired height.
12

lighting:interior ............................................. (up to the end of the DU)
courtesy light ........................................ (up to the end of the DU)
3.12
ENG_UD20688_2
Eclairage intérieur (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_3
Interior lighting
INTERIOR LIGHTING
Courtesy light
Pressing switch 1 provides:
– continuous lighting;
– or temporary lighting by opening one
of the front doors, or by opening one
of the four doors, depending on the
vehicle. The light only goes out when
the doors are correctly closed;
– no lighting.Automatic operation of interior
lighting
(depending on the vehicle)
– if the doors are unlocked using
the remote control, the lighting
is switched on for approximately
30 seconds.
– if a door is open (or not properly
closed), the lighting is switched
on for approximately 30 minutes.
– if all the doors are closed, the
lighting start to dim when the ig-
nition is switched on.
Map reading light(depending on the vehicle)
Pressing switch 2 provides:
– continuous lighting;
– no lighting.
12

mirrors .................................................. (up to the end of the DU)
sun visor ............................................... (up to the end of the DU)
grab handle ........................................... (up to the end of the DU)

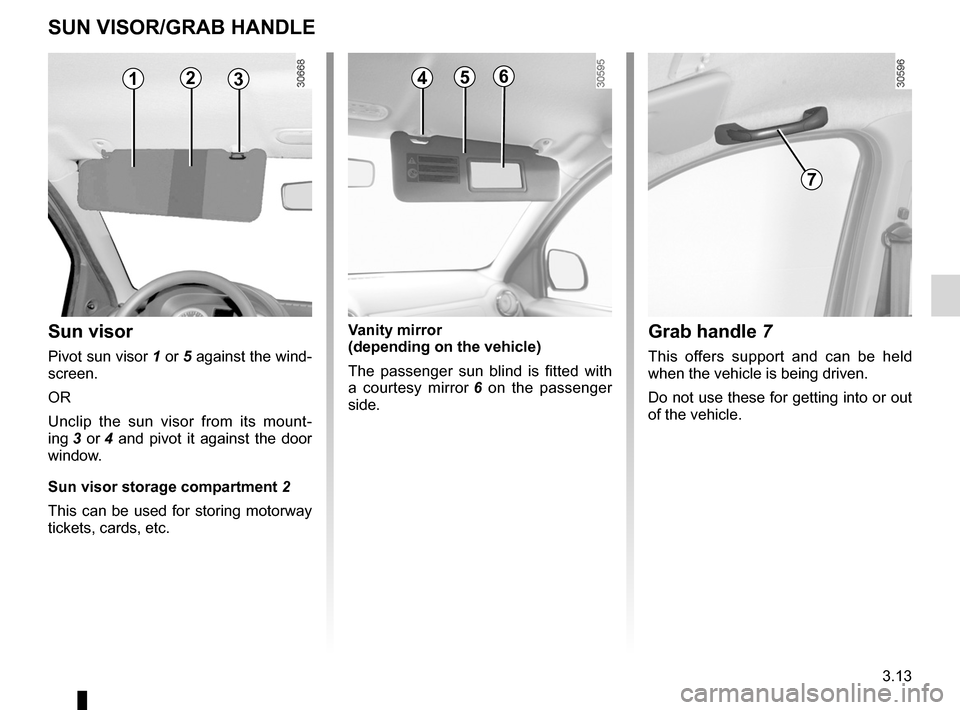

3.13
ENG_UD20689_3
Pare-soleil - Poignée de maintien (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_3
Sun visor/grab handle
Vanity mirror
(depending on the vehicle)
The passenger sun blind is fitted with
a courtesy mirror 6 on the passenger
side.Grab handle 7
This offers support and can be held
when the vehicle is being driven.
Do not use these for getting into or out
of the vehicle.
SuN VISOR/GRAB HANDLE
7
Sun visor
Pivot sun visor 1 or 5 against the wind -
screen.
OR
Unclip the sun visor from its mount -
ing 3 or 4 and pivot it against the door
window.
Sun visor storage compartment 2
This can be used for storing motorway
tickets, cards, etc.
456132

cigar lighter ........................................... (up to the end of the DU)
ashtrays ................................................ (up to the end of the DU)
accessories socket ............................... (up to the end of the DU)
3.14
ENG_UD17315_2
Cendriers - Allume-cigares (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_3
Ashtrays, Cigar lighter, Accessories socket
ASHTRAYS/CIGAR LIGHTER/ACCESSORIES SOCkET
Ashtray
It can be housed in either position 1
or 4.
Lift cover 3 to open.
Remove the ashtray to empty it.
1
23
4
If your vehicle is not fitted with a
cigar lighter and an ashtray, these
can be obtained from an approved
Dealer.
C o n n e c t a c c e s s o r i e s
with a maximum power of
120 Watts only.
Fire hazard.
Cigar lighter 2
With the ignition on, push in cigar
lighter 2.
It will spring back with a click when it is
ready. Pull it out to use. After use, re -
place it without pushing it all the way in.
OR
Accessories socket 2
It is provided for connecting acces -
sories approved by our Technical
Department with a maximum power of
120 Watts (12 V).

storage compartments .......................... (up to the end of the DU)
storage compartment ............................(up to the end of the DU)
glove box ............................................................... (current page)
fittings ................................................... (up to the end of the DU)
3.15
ENG_UD24511_4
Rangements / aménagements habitacle (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_3
This glove box can be used to store A4
format documents.
Inside the cover, section 2 has been
provided for pens, maps, etc.
Passenger compartment storage space and fittings
P ASSENGER COMPARTMENT STORAGE SPACE AND FITTINGS (1/4)
Passenger side glove box
Pull handle 1 to open it.
Precautions during use
Cover A in the bottom of the glove
box protects a socket reserved ex -
clusively for operations by the ap -
proved dealer network
You should therefore avoid keeping
liquids in this compartment (there is
a risk of liquid leaking and getting
into this socket).
Nothing should be placed on the floor area in front of the driver as such
objects may slide under the pedal during braking manoeuvres, thus ob-
structing its use.
A
1
2

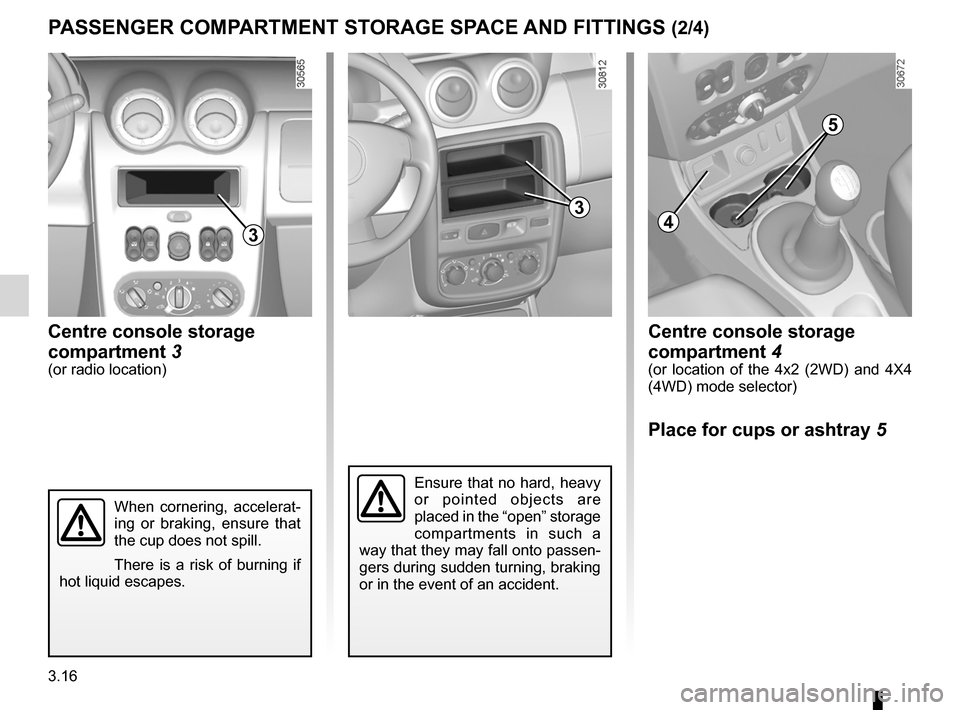

3.16
ENG_UD24511_4
Rangements / aménagements habitacle (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_3
Jaune NoirNoir texte
Centre console storage
compartment 4
(or location of the 4x2 (2WD) and 4X4
(4WD) mode selector)
Place for cups or ashtray 5
PASSENGER COMPARTMENT STORAGE SPACE AND FITTINGS (2/4)
Centre console storage
compartment 3
(or radio location)
When cornering, accelerat-
ing or braking, ensure that
the cup does not spill.
There is a risk of burning if
hot liquid escapes.
3
Ensure that no hard, heavy
or pointed objects are
placed in the “open” storage
compartments in such a
way that they may fall onto passen-
gers during sudden turning, braking
or in the event of an accident.
4
5
3

JauneNoirNoir texte
3.17
ENG_UD24511_4
Rangements / aménagements habitacle (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_3
P ASSENGER COMPARTMENT STORAGE SPACE AND FITTINGS (3/4)
Front door storage
compartments 7
Ensure that no hard, heavy
or pointed objects are
placed in the “open” storage
compartments in such a
way that they may fall onto passen-
gers during sudden turning, braking
or in the event of an accident.
Dashboard upper storage
compartment 8
(depending on the vehicle)
Nothing should be placed
on the floor area in front of
the driver as such objects
may slide under the pedal
during braking manoeuvres, thus
obstructing its use.
7
Storage compartment 6(or passenger air bag location)
6
8

3.18
ENG_UD24511_4
Rangements / aménagements habitacle (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_3
P ASSENGER COMPARTMENT STORAGE SPACE AND FITTINGS (4/4)
Front seat storage pockets 9Bottle holders 10
It can hold a 1.5 litre bottle.
Rear storage compartment 11(or location for electric rear window
control).
Ensure that no hard, heavy
or pointed objects are
placed in the “open” storage
compartments in such a
way that they may fall onto passen-
gers during sudden turning, braking
or in the event of an accident.
9
1011

rear bench seat..................................... (up to the end of the DU)
rear seats functions ......................................... (up to the end of the DU)
3.19
ENG_UD24693_4
Banquette arrière (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_3
Rear bench seat
The seatback(s) A and/or B can be
folded away to allow bulky objects to be
carried.
Folding the seatback(s) down
onto the seat base
To fold down the seatback(s)
(depending on the vehicle)
Insert buckles 1 into housings 2 before
moving the seatback(s).
Lower the rear headrests completely
(refer to the information on the “Rear
headrests” in Section 1).
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
REAR BENCH SEAT
Lower handle(s) 3.
Lower seatback(s) A and/or B.
To raise the seatback(s)
(depending on the vehicle)
Lift the seatback(s).
Check the seatbacks are securely
locked in position.
When moving the rear
bench seat, ensure that
nothing obstructs the an -
chorage points (part of the
body, a pet, gravel, cloth, toys, etc.).
When refitting the seat -
back , make sure it is cor -
rectly locked in place.
If seat covers are fitted ,
make sure these do not prevent the
seatback latch from locking in.
Make sure that the seat belts are
positioned correctly.
Reposition the headrests.
A
B
3
3
Check that the rear seat
belts are positioned and
operating correctly each
time the rear bench seat is
moved.
1
2

tailgate ................................................................... (current page)

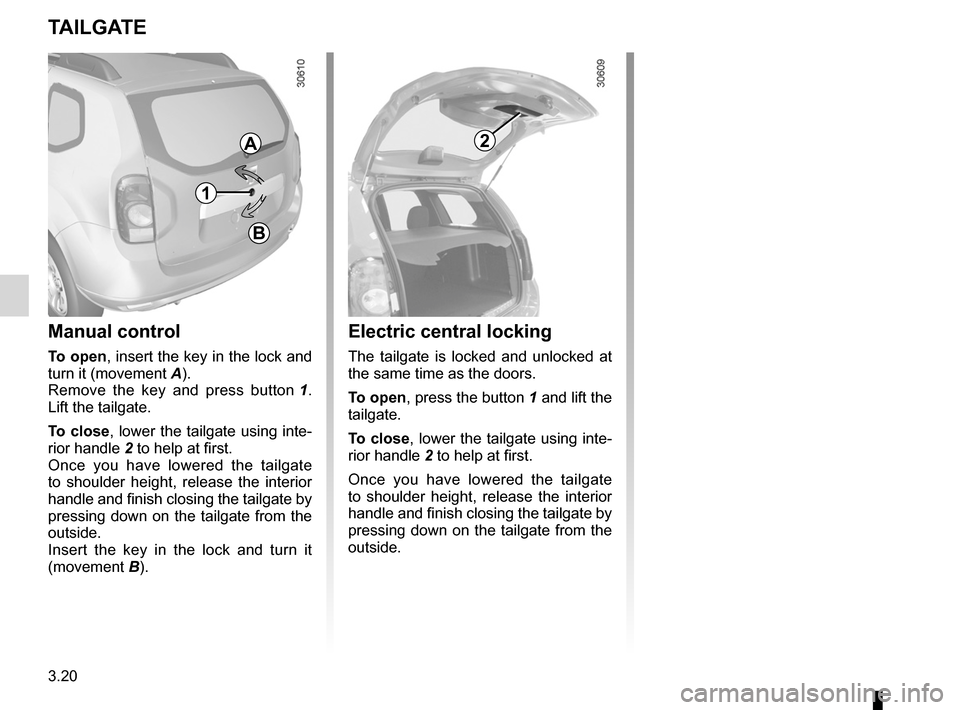

3.20
ENG_UD20574_2
Coffre à bagages (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_3
Luggage compartment
T AILGATE
Manual control
To open, insert the key in the lock and
turn it (movement A).
Remove the key and press button 1 .
Lift the tailgate.
To close, lower the tailgate using inte-
rior handle 2 to help at first.
Once you have lowered the tailgate
to shoulder height, release the interior
handle and finish closing the tailgate by
pressing down on the tailgate from the
outside.
Insert the key in the lock and turn it
(movement B).
Electric central locking
The tailgate is locked and unlocked at
the same time as the doors.
To open, press the button 1 and lift the
tailgate.
To close, lower the tailgate using inte-
rior handle 2 to help at first.
Once you have lowered the tailgate
to shoulder height, release the interior
handle and finish closing the tailgate by
pressing down on the tailgate from the
outside.
1
2A
B
