DACIA DUSTER 2010 1.G Service Manual

rear view mirrors ................................... (up to the end of the DU)
1.35
ENG_UD20568_2
Rétroviseurs (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_1
Rear view mirrors
REAR VIEW MIRRORS
Door mirrors with electrical
adjustment:
With the ignition on, move button 1:
– position A to adjust the left-hand
door mirror;
– position B to adjust the right-hand
door mirror;
0 is the neutral centre position.
Heated door mirrorsThe mirror is de-iced when the rear
screen is de-iced/demisted; refer to
the information on the “Heated rear
screen”.
Interior rear view mirror
Its position can be adjusted. When driv-
ing at night, to avoid being dazzled by
the headlights of the vehicle behind,
depress the little lever located behind
the rear view mirror 3.
3
Door mirrors with manual
adjustment
To adjust the mirror, move lever 2.
Folding door mirrors
Manually fold the mirror in the direction
of the arrows.
2
0
A
B
1

controls ................................................. (up to the end of the DU)
driver’s position .................................... (up to the end of the DU)
dashboard ............................................. (up to the end of the DU)
1.36
ENG_UD24352_3
Poste de conduite direction à gauche (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_1
Jaune NoirNoir texte
Driving position
DRIVING POSITION, LEFT-HAND DRIVE (1/4)
The fittings described DEPEND ON THE VEHICLE VERSION AND COUNTRY
12345678910111213
3332311415161718282930
27
26
24
25
2322212019

JauneNoirNoir texte
1.37
ENG_UD24352_3
Poste de conduite direction à gauche (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_1
DRIVING POSITION, LEFT-HAND DRIVE (2/4)
1 Side air vent.
2 Stalk for:
– direction indicator lights,
– exterior lights,
– front fog lights,
– rear fog light,
– horn.
3 Instrument panel.
4 Location for driver’s air bag.
5 Windscreen demister outlet.
6 Steering column stalk for wind -
screen and rear screen wash/wipe.
Information readout control.
7 Ignition switch.
8 Radio remote control.
9 Centre air vents.
10 Seat belt reminder light.
Front passenger airbag deactiva -
tion warning light.
11 Location for passenger air bag or
storage compartment.
12 Side window demister.
13 Front passenger air bag activation/
deactivation lock.
14 Glove box.
15 Location for radio or storage com-
partment.
16 Electric front window control.
17 Central window electric locking
control.
18 Hazard warning lights switch.
19 Rear window electric locking con -
trol.
20 ESP control ( 4x4 version ( 4WD))
or blanking cover.
21 Cigar lighter or accessories socket.
22 Location for ashtray or cup holder.
23 4x2 (2WD ) and 4x4 (4WD ) mode
selector or storage compartment.
24 Handbrake.
25 Electric rear-view mirror control.
26 Electric rear window control.
27 Bottle holder
28 Gear lever.
29 Heating and ventilation controls.
30 Heated rear screen control.
31 Headlight beam height adjustment
control.
32 Bonnet release.
33 Fuse box.
The fittings described DEPEND ON THE VEHICLE VERSION AND COUNTRY.

1.38
ENG_UD24352_3
Poste de conduite direction à gauche (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_1
Jaune NoirNoir texte

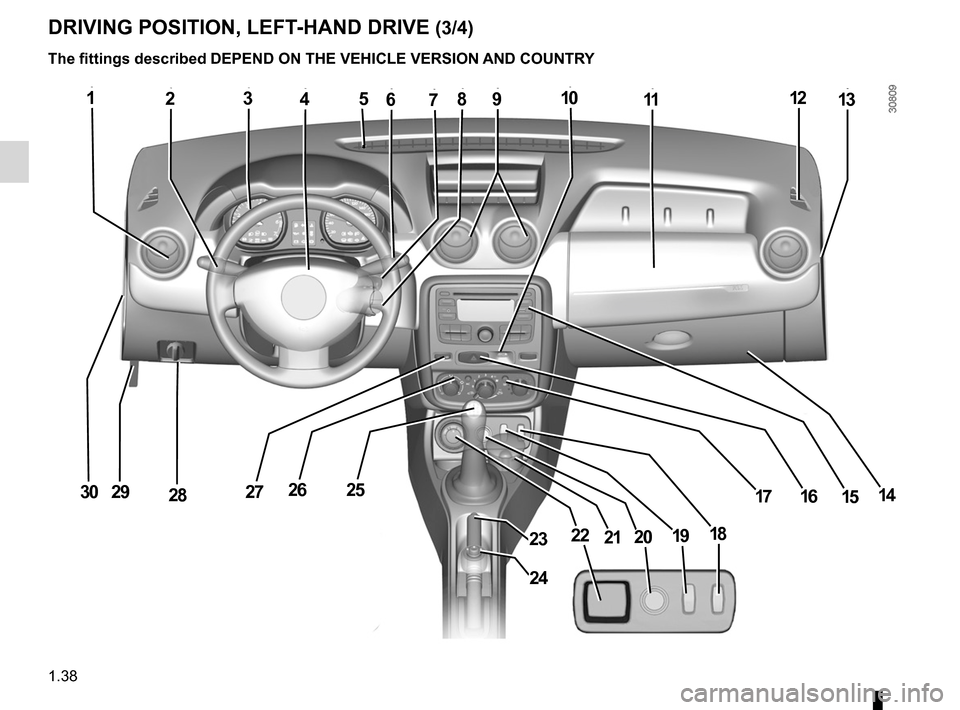

DRIVING POSITION, LEFT-HAND DRIVE (3/4)
The fittings described DEPEND ON THE VEHICLE VERSION AND COUNTRY
12345678910111213
141517302928272625
23
24
212220
16
1918

JauneNoirNoir texte
1.39
ENG_UD24352_3
Poste de conduite direction à gauche (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_1
DRIVING POSITION, LEFT-HAND DRIVE (4/4)
The fittings described DEPEND ON THE VEHICLE VERSION AND COUNTRY.
1 Side air vent.
2 Stalk for:
– direction indicator lights,
– exterior lights,
– front fog lights,
– rear fog light,
– horn.
3 Instrument panel.
4 Location for driver’s air bag.
5 Windscreen demister outlet.
6 Steering column stalk for wind -
screen and rear screen wash/wipe.
Information readout control.
7 Ignition switch.
8 Radio remote control.
9 Centre air vents.
10 Seat belt reminder light.
Front passenger airbag deactiva -
tion warning light.
11 Location for passenger air bag or
storage compartment.
12 Side window demister.
13 Front passenger air bag activation/
deactivation lock.
14 Glove box.
15 Location for radio or storage com-
partment.
16 Hazard warning lights switch.
17 Heated rear screen control.
18 Rear window electric locking con -
trol.
19 ESP control or blanking cover.
20 Cigarette lighter or accessories
socket.
21 Location for ashtray or cup holder.
22 Mode selector 4x2 (2WD ), 4x4
(4WD) or storage compartment.
23 Handbrake.
24 Electric rear-view mirror control.
25 Gear lever.
26 Heating and ventilation controls.
27 Electric central locking switch.
28 Beam height adjustment control.
29 Bonnet release control.
30 Fuse box.

control instruments ............................... (up to the end of the DU)
instrument panel ................................... (up to the end of the DU)
warning lights ........................................ (up to the end of the DU)
1.40
ENG_UD24501_4
Témoins lumineux (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_1
Jaune NoirNoir texte
Instrument panel: warning lights
#Engine oil change warning
light
This lights up on the instrument panel
when an oil change is required.
Change the oil or have it changed as
soon as possible.
Only the distance travelled between two
oil changes is taken into account; the
time interval between two oil changes
is not.
The oil should always be changed
when the first threshold is reached, i.e.
either the distance travelled or the inter-
val specified in your vehicle’s mainte -
nance document. This means you may
have to change the oil before the warn-
ing light comes on.
Refer to the information on the “Oil
change” in Section 4.
xAnti-lock braking warning
light
This light comes on when the ignition is
switched on and goes out within three
seconds. If it lights up when you are
driving, it indicates a fault in the anti -
lock braking system.
WARNING LIGHTS (1/4)
The presence and operation of the warning lights DEPEND ON THE EQUIPMENT\
AND COUNTRY.
If no lights or sounds are ap-
parent, this indicates a fault
in the instrument panel. This
indicates that it is essential
to stop immediately (as soon as traf-
fic conditions allow). Ensure that the
vehicle is correctly immobilised and
contact an approved Dealer.
Warning lights on instrument
panel A
These warning lights require you to
stop immediately, for your own safety,
as soon as traffic conditions allow.
Switch off the engine and do not re -
start it. Contact an approved dealer.
Ú À Ô
D
+x
Braking will then be as normal, without
the ABS.
Contact an approved dealer as soon as
possible.
kDipped beam headlight tell -
tale light
áMain beam headlight tell-tale
light
åAir bag warning light
This comes on when the
engine is started and goes out after a
few seconds.
If it does not come on when the igni -
tion is switched on, or comes on when
the engine is running, there is a fault in
the system.
Contact an approved dealer as soon as
possible.
A

JauneNoirNoir texte
1.41
ENG_UD24501_4
Témoins lumineux (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_1
WARNING LIGHTS (2/4)
If not, switch off the engine and allow
it to cool before checking the coolant
level and the cleanliness of the radiator.
If the level is normal, this indicates an-
other fault. Consult an approved dealer.
ÀOil pressure warning light
This goes out as soon as the
engine starts; if it lights up while driv -
ing, stop immediately and switch off the
ignition. Check the oil level.
If the level is normal, something else is
the cause. Contact an approved dealer.
êEngine immobiliser system
warning light
This light performs several functions.
Refer to the information on the “Engine
immobiliser” in Section 1.
6
Electronic fault or diesel
preheating warning light
With the ignition switched on,
this light comes on; it indicates that the
heater plugs are operating.
It goes out after preheating is sufficient
and the engine can be started.
If it remains lit or comes on when you
are driving, it indicates an electrical or
electronic fault. Contact an approved
dealer as soon as possible.
ÒElectronic fault warning
light, petrol versions
If it remains lit or comes on when you
are driving, it indicates an electrical or
electronic fault. Contact an approved
dealer as soon as possible.
ÚBattery charge warning light
It should go out as soon as the
engine starts.
If it comes on when you are driving, it
indicates that the circuit is overcharging
or has discharged. Stop and contact an
approved Dealer.
ùESP warning light
Refer to the information on the
“Electronic stability program (ESP) with
understeer control and traction control
(ASR)” in Section 2.
The presence and operation of the warning lights DEPEND ON THE EQUIPMENT\
AND COUNTRY.
’4-wheel drive mode indica
-
tor light
Refer to the information on “4WD Lock
mode” in Section 2.
‘2-wheel drive mode indica -
tor light
Refer to the information on “2WD
mode” in Section 2.
VRear screen de-icing/de -
misting indicator light
LLow fuel level warning light
It comes on when the engi -
neis started then goes out after three
seconds. If it stays on, fill up with fuel
assoon as possible.
dDirection indicator tell-tale
light
ÔCoolant temperature warn -
ing light
This goes out as soon as the engine
starts. If it comes on when driving, it in-
dicates an increase in the coolant tem-
perature. Stop and let the engine idle
for a minute or two; the temperature
should fall.

rear screendemisting ......................................................... (current page)
1.42
ENG_UD24501_4
Témoins lumineux (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_1
Jaune NoirNoir texte
WARNING LIGHTS (3/4)
The presence and operation of the warning lights DEPEND ON THE EQUIPMENT\
AND COUNTRY.
ÄToxic Fume Filter System
Warning Light
It comes on when the ignition is
switched on and then goes out.
– If it comes on continuously, consult
an approved dealer as soon as pos-
sible.
– If it flashes, reduce the engine speed
until the light stops flashing. Contact
an approved dealer as soon as pos-
sible.
Refer to the information “Advice on
antipollution, fuel economy and driving”
in Section 2.
DHandbrake on and brake cir-
cuit incident warning light
If it lights up, check that the hand brake
is fully released. If not, it indicates that
the fluid level is low in one of the cir -
cuits. It may be dangerous to continue
driving, contact an approved dealer.
fRear fog light tell-tale
ÆSTOP light
This lights up when the ignition
is switched on and goes out as soon as
the engine is started. It lights up at the
same time as other warning lights, and
is accompanied by a beep.
It requires you to stop immediately, for
your own safety, as soon as traffic con-
ditions allow.
Switch off the engine and do not restart
it.
Consult an approved dealer.
gFront fog light tell-tale
^Water in the diesel filter
warning light
If it remains lit or comes on while driv-
ing, it indicates that water is present in
the diesel filter. Contact an approved
dealer as soon as possible.
ÅDoor status warning light
This indicates the status of the doors
(or tailgate).
ÜNot used
îNot used

JauneNoirNoir texte
1.43
ENG_UD24501_4
Témoins lumineux (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_1
WARNING LIGHTS (4/4)
The presence and operation of the warning lights DEPEND ON THE EQUIPMENT\
AND COUNTRY.
Warning lights on console B
]Front passenger air bag de-
activation warning light.
Refer to the information on “Child
Safety” in Section 1.
ßFront seat belt reminder
warning light
This warning light comes on continu -
ously on the centre console when the
engine is started. If one of the seat belts
affected is not fastened, the light stays
on then, when the vehicle reaches
a speed of approximately 6 mph
(10 km/h), it flashes and a beep sounds
for approximately 90 seconds.
BB

overspeed buzzer .................................................. (current page)
control instruments ............................... (up to the end of the DU)
instrument panel ................................... (up to the end of the DU)
warning lights ........................................ (up to the end of the DU)
1.44
ENG_UD17408_2
Tableau de bord : afficheur et indicateurs (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_1
Jaune NoirNoir texte
Display and indicators
DISPLAY AND INDICATORS (1/2)
Rev counter 1 (rpm × 1 000) Speedometer 2 (km or miles
per hour)
Overspeed buzzer
Depending on the vehicle, a buzzer
sounds for approximately 10 seconds
every 30 seconds, as long as the ve -
hicle is travelling in excess of 72 mph
(120 km/h).
12
Fuel gauge 3The number of squares lit shows the
fuel level. When it is at minimum, the
squares disappear and the low fuel
level warning light comes on.
3
In 4x4 (4WD ) mode on rough ter -
rain, there is a risk that incorrect in-
formation on the fuel level may be
displayed. Wait until you are on flat
ground again for a stable reading of
the oil level squares.
