DACIA DUSTER 2010 1.G User Guide
Manufacturer: DACIA, Model Year: 2010, Model line: DUSTER, Model: DACIA DUSTER 2010 1.GPages: 200, PDF Size: 7.12 MB
Page 11 of 200
children ................................................. (up to the end of the DU)
doors ..................................................... (up to the end of the DU)
electric door locking .............................. (up to the end of the DU)
central door locking .............................. (up to the end of the DU)
1.5
ENG_UD24330_4
Verrouillage et déverrouillage des portes (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_1
Locking and unlocking the doors
LOCKING AND UNLOCKING THE DOORS (1/2)
Manual locking
From the outside
Unlock the doors using the remote con-
trol (refer to information on the “Radio
frequency remote control: use” in
Section 1) or using the key in one of the
door locks.
Depending on the vehicle, the key locks
and unlocks the driver’s door or all four
doors.
From the inside
(depending on vehicle)
Push in button 1 to lock and lift button 1
to unlock.
Child safety
To make it impossible for the rear doors
to be opened from the inside, move
lever 2 on each door and check from
the inside that the doors are securely
locked.
1
2
Page 12 of 200
1.6
ENG_UD24330_4
Verrouillage et déverrouillage des portes (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_1
LOCKING AND UNLOCKING THE DOORS (2/2)
Electric central locking
Depending on the vehicle, it can be
used to simultaneously lock or unlock
the four doors and the boot. Lock or
unlock the doors by pressing switch 3.
The front door mechanism cannot be
locked if the door is open.
Driver’s responsibility
If you decide to keep the
doors locked when you are
driving, remember that it
may be more difficult for those as -
sisting you to gain access to the
passenger compartment in the
event of an emergency.
3
3
Page 13 of 200
children ................................................. (up to the end of the DU)
doors ..................................................... (up to the end of the DU)
child safety ............................................ (up to the end of the DU)
opening the doors ................................. (up to the end of the DU)
closing the doors .................................. (up to the end of the DU)
1.7
ENG_UD20293_2
Ouverture et fermeture des portes (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_1
Opening and closing the doors
OPENING AND CLOSING THE DOORS
Opening from the outside
With the doors unlocked (refer to the
information on “Locking/unlocking the
doors” in Section 1).
Front: place your hand behind handle 1
and pull it towards you..
Rear (manual opening) : lift unlocking
button 2 from the inside and move the
door handle.
Opening from the inside
Front: pull handle 3
Rear: from the inside, lift unlocking
button 2 and pull door handle 3.
Lights-on reminder buzzer
If you have left the lights on after switch-
ing off the ignition, a warning buzzer will
sound when a front door is opened (to
prevent the battery from discharging,
etc.).
As a safety precaution,
the doors should only be
opened or closed when the
vehicle is stationary.
Driver’s responsibility
when parking or stopping
the vehicle
Never leave an animal,
child or adult who is not self-suffi -
cient alone on your vehicle, even for
a short time.
They may pose a risk to themselves
or to others by starting the engine,
activating equipment such as the
electric windows or by locking the
doors.
Also, in hot and/or sunny weather,
please remember that the tempera-
ture inside the passenger compart-
ment increases very quickly.
RISK OF DEATH OR SERIOUS
INJURY.
1
2
3
Page 14 of 200
engine immobiliser................................(up to the end of the DU)
engine immobiliser................................ (up to the end of the DU)
1.8
ENG_UD14192_1
Système antidémarrage (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_1
Engine immobiliser
ENGINE IMMOBILISER
This prevents the vehicle being
driven by anyone not in possession
of the vehicle’s coded ignition key.
Operating principle
The vehicle is automatically protected
a few seconds after the ignition is
switched off.
If the vehicle does not recognise the
coded ignition key, tell-tale light 1 will
flash continuously and the engine
cannot be started.
Any unauthorised work
carried out on the engine
immobiliser (computers,
wiring, etc.) could be dan -
gerous. Work must be carried out
by qualified personnel.
System operation
When the ignition is switched on, tell -
tale 1 lights up continuously for approx -
imately three seconds and then goes
out. The vehicle has recognised the
code. You can then start the engine.
Vehicle protection
A few seconds after the ignition has
been switched off, tell-tale light 1 will
flash constantly.
The vehicle will only be protected after
the ignition has been switched off. Operating faults
After the ignition has been switched
on, if warning light 1 continues to flash
or remains continuously lit, there is a
system operating fault.
In all cases,
it is essential to contact
an approved dealer as only they are
qualified to repair the engine immobi -
liser.
If the coded ignition key is faulty,
use the second key (supplied with
the vehicle).
1
Page 15 of 200
headrest................................................ (up to the end of the DU)
1.9
ENG_UD17266_2
Appuis-tête avant (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_1
Headrests
FRONT HEADRESTS
Adjusting the height of headrest A
Press tab 1 and simultaneously slide
the headrest to the required position.
To raise the headrests A or B
Depending on the vehicle, press tabs 1
and 2 on the head restraint guides or
on button 3 or 4 and lift the headrest to
release it (tilt the seatback backwards if
necessary).
The headrest is a safety
component. Ensure that it is
fitted and in the correct po-
sition: the top of your head
should be in line with the top of the
headrest.
1
3
To refit headrests A or B
Insert headrest rods 2 into the holes (tilt
the seatback backwards if necessary).
Push the headrest in until it locks in po-
sition.
2
A
4
B
2
Headrest B is fixed and its height
cannot be adjusted.
Page 16 of 200
headrest................................................ (up to the end of the DU)
adjusting your driving position .............. (up to the end of the DU)
1.10
ENG_UD22432_3
Appuis-tête arrière (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_1
REAR HEADRESTS
Adjusting the height of the
headrests A
Press lock tab 1 and simultaneously
slide the headrest to the required po -
sition.
To remove the headrests A
Press the tabs on the catches 1 and 4
and remove the headrest.
To remove headrest B
(depending on vehicle)
Simultaneously press the tabs on
catches 2 and 3 on each of the head -
rest rods, then remove the headrest. Position for using headrest
B
(depending on vehicle)
Raise the headrest until it locks to use
it in the high position. Simultaneously
press the tabs on catches 2 and 3 and
lower the headrest completely.
Storage position for headrest B
(depending on vehicle)
When the headrest is set at the
lowest position, this is for storage
only. It should not be in this position
when a seat is occupied.
The headrest is a safety
component. Ensure that it is
fitted and in the correct po-
sition: the top of your head
should be in line with the top of the
headrest.
To reinstall headrests A
and B (depending on the
vehicle)
Insert the rods into the holes, press the
tabs on both rods and lower the head -
rest.
ABA
A
BA
123144
Page 17 of 200
front seat adjustment ............................(up to the end of the DU)
front seats adjustment ...................................... (up to the end of the DU)
1.11
ENG_UD20680_3
Sièges avant (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_1
Front seats
FRONT SEATS
To move forwards or
backwards
Lift bar 1 to release. Release the bar
once the seat is in the correct position
and ensure that the seat is fully locked
into position.
To raise or lower the driver’s
seat surface
Depending on the vehicle, lift lever 2 ,
adjust the seat base to the desired
height, then release the lever.
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
We would advise you not to recline
the seatbacks too far to ensure that
the effectiveness of the seat belts is
not reduced.
Make sure that the seatbacks are
correctly locked in place.
Nothing should be placed on the
floor (area in front of driver) as such
objects may slide under the pedal
during braking manoeuvres, thus
obstructing its use.
4
1
2
3
Heated seats
Depending on the vehicle, with the igni -
tion on, press switch 3.
The system, which has a thermostat,
decides whether or not the heating is
needed.
To tilt the seatback
Depending on the vehicle, move the
handle or control knob 4 and tilt the
seatback to the desired position.
Page 18 of 200
adjusting your driving position .............. (up to the end of the DU)
seat belts .............................................. (up to the end of the DU)
1.12
ENG_UD22430_3
Ceintures de sécurité (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_1
Jaune NoirNoir texte
Seat belts
SEAT BELTS (1/4)
Always wear your seat belt when trav-
elling in your vehicle. You must also
comply with the legislation of the par -
ticular country you are in.
I n c o r r e c t l y a d j u s t e d o r
twisted seat belts may
cause injuries in the event
of an accident.
The seatbelt is for the use of one
person only, whether adult or child.
Even pregnant women should wear
a seat belt. In this case, ensure that
the lap belt is not exerting too much
pressure on the abdomen, but do
not allow any slack.
Before starting, adjust your driving
position and then have each occu -
pant adjust their seat belt to ensure
optimum protection.
Adjusting your driving position
(depending on the vehicle)
– Sit well back in your seat (having
removed your coat or jacket etc.).
This is essential to ensure your back
is positioned correctly;
– adjust the distance between the
seat and the pedals. Your seat
should be as far back as possible
while still allowing you to depress
the clutch pedal fully. The seatback
should be adjusted so that your arms
are slightly bent when you hold the
steering wheel;
– adjust the position of your head -
rest. For the maximum safety, your
head must be as close as possible to
the headrest;
– adjust the height of the seat. This
adjustment allows you to select the
seat position which offers you the
best possible view;
– adjust the position of the steering
wheel.
Adjusting the seat belts
Sit with your back firmly against the
seatback.
Shoulder strap 1 should be as close as
possible to the base of the neck but not
on it.
Lap belt 2 must be worn flat over the
thighs and against the pelvis. The seat
belt must be worn as close to the body
as possible. i.e.: avoid wearing heavy
clothing or keeping bulky objects under
the belts, etc.
1
2
Make sure that the rear bench seat
is locked in position correctly so that
the rear seat belts will operate effi -
ciently. Refer to the information on
the “Rear bench seat: functions” in
Section 3.
Page 19 of 200
JauneNoirNoir texte
1.13
ENG_UD22430_3
Ceintures de sécurité (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_1
SEAT BELTS (2/4)
To fasten
Unwind the belt slowly and smoothly
and ensure that buckle 4 locks into
catch 6 (check that it is locked by pulling
on buckle 4). If it jams, allow it to return
before attempting to unwind it again. If
your seat belt is completely jammed,
pull slowly, but firmly so that just over
3 cm unwinds. Allow it to return slightly
before attempting to unwind it again.
If there is still a problem, contact an ap-
proved dealer.
Adjusting the front seat belt
height
(depending on the vehicle)
Move button 7 to select the position you
require so that chest strap 3 is worn as
described above.
Make sure that the seat belt is locked
in position correctly after you have ad-
justed it.
ßSeat belt reminder light
Depending on the vehicle, it
comes on when the engine is started
if the driver’s seat belt is not fastened.
When the vehicle is being driven, it
comes on and a beep sounds for ap -
proximately 2 minutes until the driver’s
seat belt is fastened.
Unlocking
Press button 5 on catch 6; the seat belt
is wound up by the inertia reel. Guide
the buckle to facilitate this manoeuvre.
3
45
6
6
7
Page 20 of 200
1.14
ENG_UD22430_3
Ceintures de sécurité (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_1
Jaune NoirNoir texte

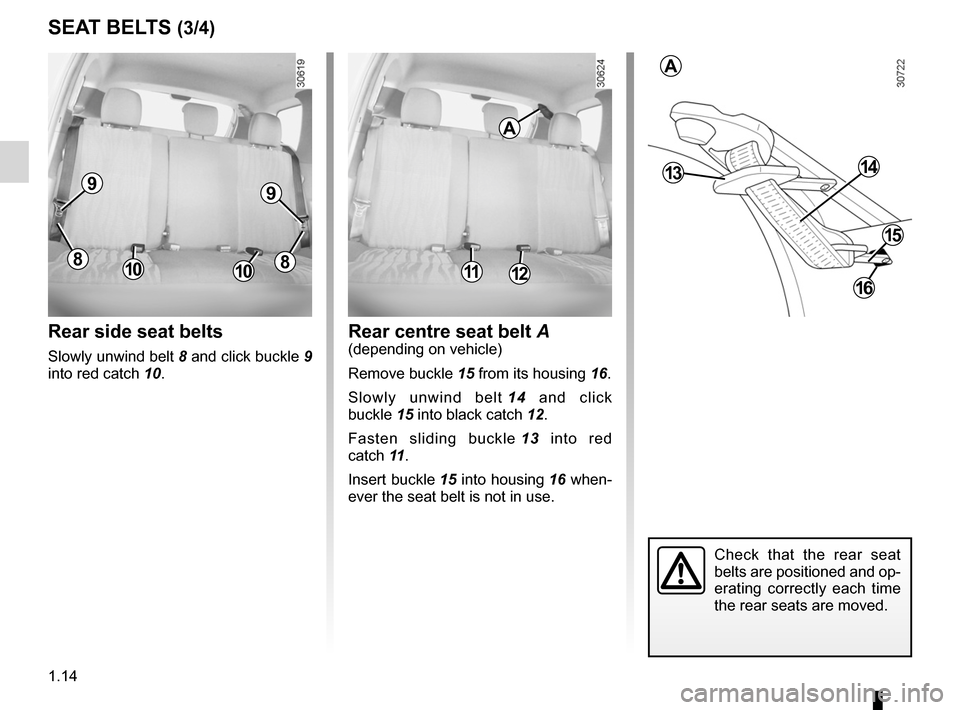

SEAT BELTS (3/4)
Rear side seat belts
Slowly unwind belt 8 and click buckle 9
into red catch 10.
Rear centre seat belt A(depending on vehicle)
Remove buckle 15 from its housing 16.
Slowly unwind belt 14 and click
buckle 15 into black catch 12.
Fasten sliding buckle 13 into red
catch 11.
Insert buckle 15 into housing 16 when -
ever the seat belt is not in use.
Check that the rear seat
belts are positioned and op-
erating correctly each time
the rear seats are moved.
88
99
10101112
A
A
13
15
16
14
