DACIA DUSTER 2012 1.G Workshop Manual

fuel level ................................................................ (current page)
Jaune NoirNoir texte
1.45
ENG_UD17408_2
Tableau de bord : afficheur et indicateurs (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_1
DISPLAY AND INDICATORS (2/2)
Coolant temperature
indicator

4
The number of squares lit depends on
the engine coolant temperature. There
is no warning unless the last three
squares light up.
Multifunction display A
Total mileage recorder, distance trav-
elled trip mileometer, clock.
OR
Trip computer and warning
system
Refer to the information on the “Trip
computer and warning system” in
Section 1.
Multifunction key 5
– Display selection
By pressing the button you can shift
from the total mileage recorder, trip
mileometer and time or vice-versa.
–

R
esetting the trip mileage re-
corder
Once the trip mileage display is se-
lected, press and hold the button.
–

Resetting the clock
R

efer to the information on the
“Clock” in Section 1.
4
5
A

control instruments ............................... (up to the end of the DU)
trip computer and warning system........ (up to the end of the DU)
warning lights........................................ (up to the end of the DU)
1.46
ENG_UD20512_3
Ordinateur de bord (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_1
Jaune NoirNoir texte
Trip computer and warning system
TRIP COMPUTER AND WARNING SYSTEM (1/4)
Display 1
General reset and trip
mileage recorder reset key

2
To reset the trip mileage recorder, the
display must show the Trip mileometer
function.
Press and hold button

2
.
Display selection key 3
Keep pressing key 3 briefly to scroll
through the following information (de-
pending on the vehicle) in sequence:
a) total mileage recorder,
b) trip mileage recorder,
c) fuel used,
d) average consumption,
e) estimated range,
f) distance travelled,
g) average speed. Refer to the table on the following
pages showing display examples.
The information display DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.
1
2
3

JauneNoirNoir texte
1.47
ENG_UD20512_3
Ordinateur de bord (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_1
Interpreting some of the
values displayed after
resetting
The values showing average fuel con-
sumption, range and average speed
will become more stable and reliable
the further you travel after pressing the
reset button.
For the first few miles after pressing the
reset key you will notice that the range
increases as you travel. This range
takes into account the average fuel con-
sumption since the last time the reset
button was pressed. Therefore, the fuel
consumption may decrease when:
–

the vehicle stops accelerating
,
–

t
he engine reaches its operating
temperature (engine cold when
reset button pressed),
–

when
driving from a built-up area
onto the open road.



Therefore,
if the average fuel con-
sumption decreases, the range
will increase.
The information display DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.
–
Y
ou may also notice that the aver-
age fuel consumption increases
when the vehicle is stationary and
the engine idling.
This is normal, since the computer
takes account of fuel used during
idling.
Manually resetting the journey pa-
rameters: with the display showing
one of the journey parameters, press
button
2 until the display is reset.
Automatically resetting the journey
parameters: the reset is automatic
when the capacity of one of the memo-
ries is exceeded.
TRIP COMPUTER AND WARNING SYSTEM (2/4)

1.48
ENG_UD20512_3
Ordinateur de bord (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_1
Jaune NoirNoir texte
TRIP COMPUTER AND WARNING SYSTEM (3/4)
The information display DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.
Examples of display
selections by repeatedly
pressing
3 Interpreting the display
a) Total mileage recorder.
b) Trip mileage recorder.
c) Fuel used since the last time the reset button was pressed.
d) Average fuel consumption
since the last time the reset button was pressed.
This value is displayed after driving 400 metres and takes into account the
distance travelled and the fuel used since the last time the reset button was
pressed.

JauneNoirNoir texte
1.49
ENG_UD20512_3
Ordinateur de bord (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_1
TRIP COMPUTER AND WARNING SYSTEM (4/4)
The information display DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.
Examples of display
selections by repeatedly
pressing
3 Interpreting the display
e) Estimated range with remaining fuel This
range takes into account the average fuel consumption since the last time
the reset button was pressed.
The value is displayed after driving around 400 metres.
f) Distance travelled since the last reset.
g) Average speed since the last reset. The value is displayed after driving around 400 metres.

variable power-assisted steering ........................... (current page)
power-assisted steering......................................... (current page)
power-assisted steering......................................... (current page)
steering wheel adjustment ...................................... (up to the end of the DU)
1.50
ENG_UD20567_3
Volant de direction/Direction assistée (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_1
Steering wheel, Power-assisted steering
STEERING WHEEL, POWER-ASSISTED STEERING
Power Assisted Steering
With the engine running, do not leave
the steering wheel at full lock while sta-
tionary as this may damage the power-
assisted steering pump.
With the engine switched off, or if there
is a system fault, it is still possible to
turn the steering wheel. The force re-
quired will be greater.
Adjusting the steering wheel
Depending on the vehicle, the steering
wheel position is adjustable.
Lift lever
1 and place the steering wheel
in the required position; raise the lever
to lock the steering wheel in place.
Make sure that the steering wheel is
correctly locked.
For safety reasons, only
adjust the steering wheel
when the vehicle is station-
ary.
Never switch off the igni-
tion when travelling down-
hill, and avoid doing so in
normal driving (assistance
is not provided).
1

clock ...................................................................... (current page)
clock ...................................................................... (current page)
1.51
ENG_UD20658_3
Tableau de bord: heure (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_1
Clock
CLOCK
Resetting the clock
With the ignition on, select display 1
showing total mileage and clock.
There are two ways to set the time:
–

Pressing
and holding button 2 allows
you to scroll through the hours and
minutes quickly;
–

short
presses on button 2 allow you
to set the time minute by minute.
If the electrical supply is cut (battery
disconnected, broken supply wire,
etc.), the clock will lose its time set-
ting.
The clock must be reset.
For your safety, we recom-
mend that you do not adjust
the clock while driving.
2
1

headlight flashers ................................. (up to the end of the DU)
horn ...................................................... (up to the end of the DU)
indicators .............................................. (up to the end of the DU)
lights: direction indicators .......................... (up to the end of the DU)
lights: hazard warning ............................... (up to the end of the DU)
indicators: direction indicators .......................... (up to the end of the DU)
hazard warning lights signal ................. (up to the end of the DU)
hazard warning lights signal ................. (up to the end of the DU)
1.52
ENG_UD24503_3
Avertisseurs sonore et lumineux (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_1
Jaune NoirNoir texte
Audible and visual signals
AUDIBLE AND VISUAL SIGNALS (1/2)
Horn
Press the end of the stalk 1.
Depending on the vehicle, press on one
of areas
2.
Headlight flasher
Pull stalk 1 towards you to flash the
headlights.
1
2
Direction indicators
Move stalk 1 parallel to the steering
wheel and in the direction you are going
to turn it.
When driving on the motorway, the
steering wheel is not usually turned suf-
ficiently to return the stalk automatically
to its starting position. There is an inter-
mediate position in which the stalk may
be held when changing lanes.
When the stalk is released, it will auto-
matically return to its starting position.
1

JauneNoirNoir texte
1.53
ENG_UD24503_3
Avertisseurs sonore et lumineux (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_1
AUDIBLE AND VISUAL SIGNALS (2/2)
33
éHazard warning lights
Press switch 3.
T
his switch activates all four direction
indicators and the side indicator lights
simultaneously.
It must only be used in an emergency to
warn drivers of other vehicles that you
have had to stop in an area where stop-
ping is prohibited or unexpected, or that
you are obliged to drive under special
conditions.

lighting:exterior ............................................ (up to the end of the DU)
lights: dipped beam headlights ................................... (current page)
lights: side lights ......................................................... (current page)
lights: main beam headlights ...................................... (current page)
lights ..................................................... (up to the end of the DU)
signals and lights .................................. (up to the end of the DU)
control instruments ............................... (up to the end of the DU)
1.54
ENG_UD14459_1
Éclairages et signalisations extérieures (H79 - Dacia)
ENG_NU_898-5_H79_Dacia_1
Jaune NoirNoir texte
Exterior lighting and signals

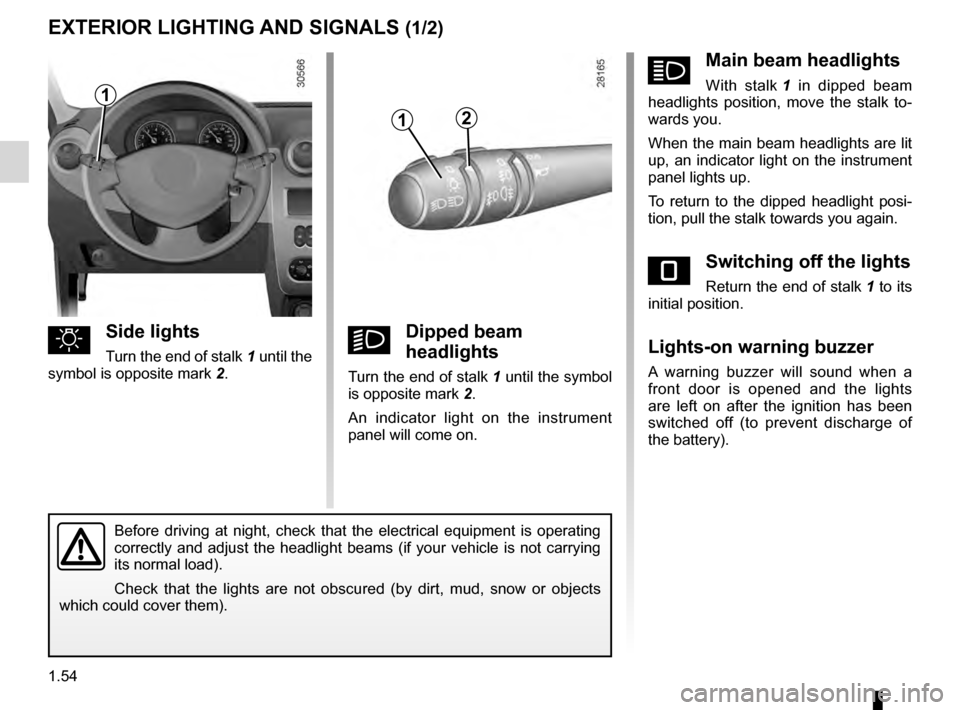

EXTERIOR LIGHTING AND SIGNALS (1/2)
uSide lights
Turn the end of stalk 1 until the
symbol is opposite mark 2 .kDipped beam
headlights
Turn the end of stalk 1 until the symbol
is opposite mark 2 .
An indicator light on the instrument
panel will come on.
áMain beam headlights
With stalk 1 in dipped beam
headlights position, move the stalk to-
wards you.
When the main beam headlights are lit
up, an indicator light on the instrument
panel lights up.
To return to the dipped headlight posi-
tion, pull the stalk towards you again.
eSwitching off the lights
Return the end of stalk 1 to its
initial position.
Lights-on warning buzzer
A warning buzzer will sound when a
front door is opened and the lights
are left on after the ignition has been
switched off (to prevent discharge of
the battery).
Before driving at night, check that the electrical equipment is operating
correctly and adjust the headlight beams (if your vehicle is not carrying
its normal load).
Check that the lights are not obscured (by dirt, mud, snow or objects
which could cover them).
12
1
