Réglage de la hauteur des faisceaux (X92 - Renault)
ENG_NU_975-3_X92_Dacia_1
Adjusting the headlight beam height

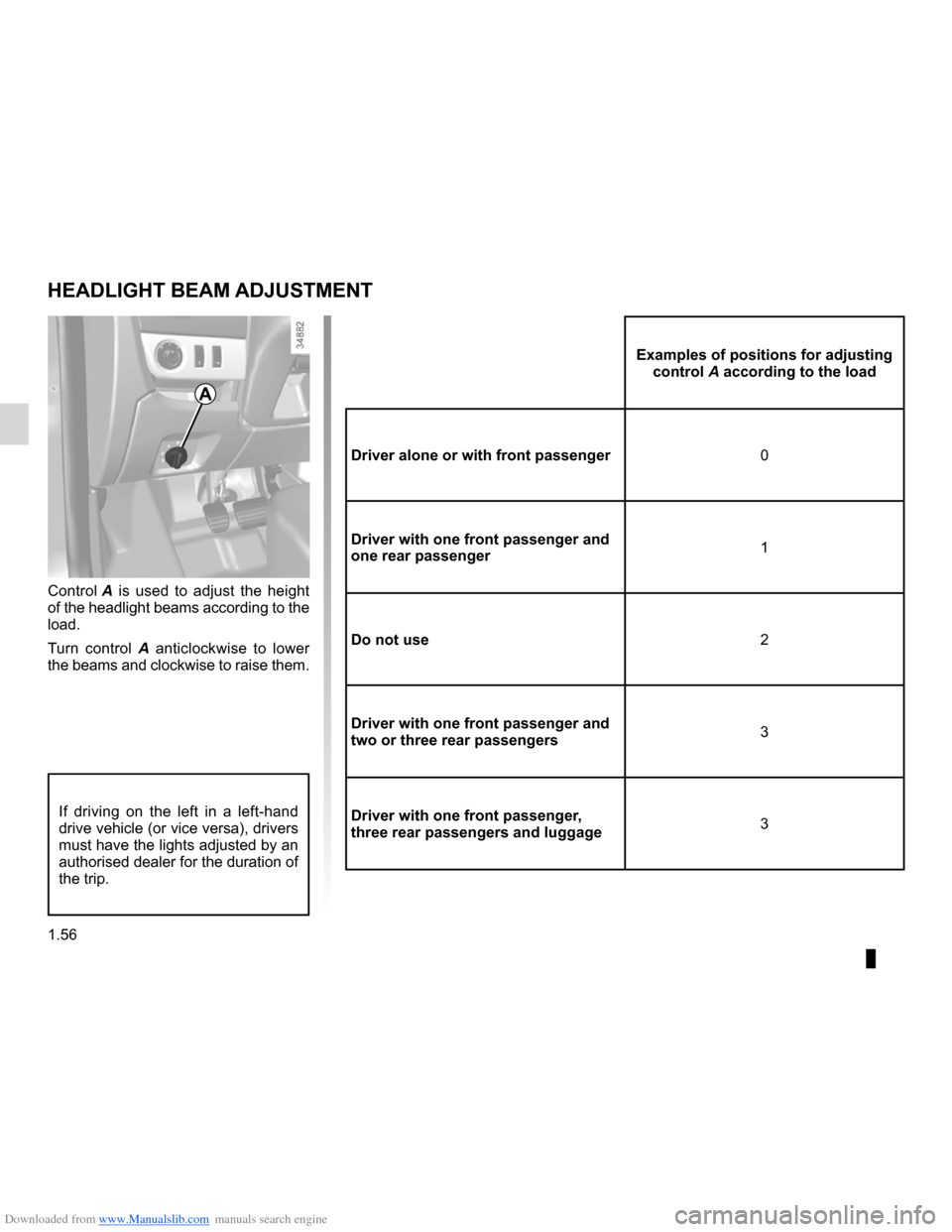

HEADLIGHT BEAM ADJUSTMENT
Control A is used to adjust the height
of the headlight beams according to the
load.
Turn control A anticlockwise to lower
the beams and clockwise to raise them.
A
If driving on the left in a left-hand
drive vehicle (or vice versa), drivers
must have the lights adjusted by an
authorised dealer for the duration of
the trip.
Examples of positions for adjusting control A according to the load
Driver alone or with front passenger 0
Driver with one front passenger and
one rear passenger 1
Do not use 2
Driver with one front passenger and
two or three rear passengers 3
Driver with one front passenger,
three rear passengers and luggage 3

Downloaded from www.Manualslib.com manuals search engine headlight flashers ................................. (up to the end of the DU)
horn ...................................................... (up to the end of the DU)
indicators .............................................. (up to the end of the DU)
lights: direction indicators .......................... (up to the end of the DU)
lights: hazard warning ............................... (up to the end of the DU)
indicators: direction indicators .......................... (up to the end of the DU)
hazard warning lights signal ................. (up to the end of the DU)
hazard warning lights signal ................. (up to the end of the DU)
horn ...................................................... (up to the end of the DU)
1.57
ENG_UD24422_1
Avertisseurs sonore et lumineux (X92 - Renault)
ENG_NU_975-3_X92_Dacia_1
Audible and visual signals
AUDIBLE AND VISUAL SIGNALS
Horn
Press the end of the stalk 1.
Headlight flasher
Pull stalk 1 towards you to flash the
headlights.
Direction indicatorsMove stalk 1 parallel to the steering
wheel and in the direction you are going
to turn it.
One-touch mode
When driving, it is possible that the
steering wheel may not be turned suf -
ficiently to return the stalk automatically
to its starting position.
In this case, briefly turn stalk 1 to the in-
termediate position, then release it: the
stalk returns to its original point and the
indicator light flashes three times.éHazard warning lights
Press switch 2.
This switch activates all four direction
indicators and the side indicator lights
simultaneously.
It must only be used in an emergency to
warn drivers of other vehicles that you
have had to stop in an area where stop-
ping is prohibited or unexpected, or that
you are obliged to drive under special
conditions.
1
1
2

Downloaded from www.Manualslib.com manuals search engine wipers ................................................... (up to the end of the DU)
windscreen washer ............................... (up to the end of the DU)
1.58
ENG_UD24423_1
Essuie-vitre / Lave-vitre avant (X92 - Renault)
ENG_NU_975-3_X92_Dacia_1
Windscreen washer/wiper, De-icing

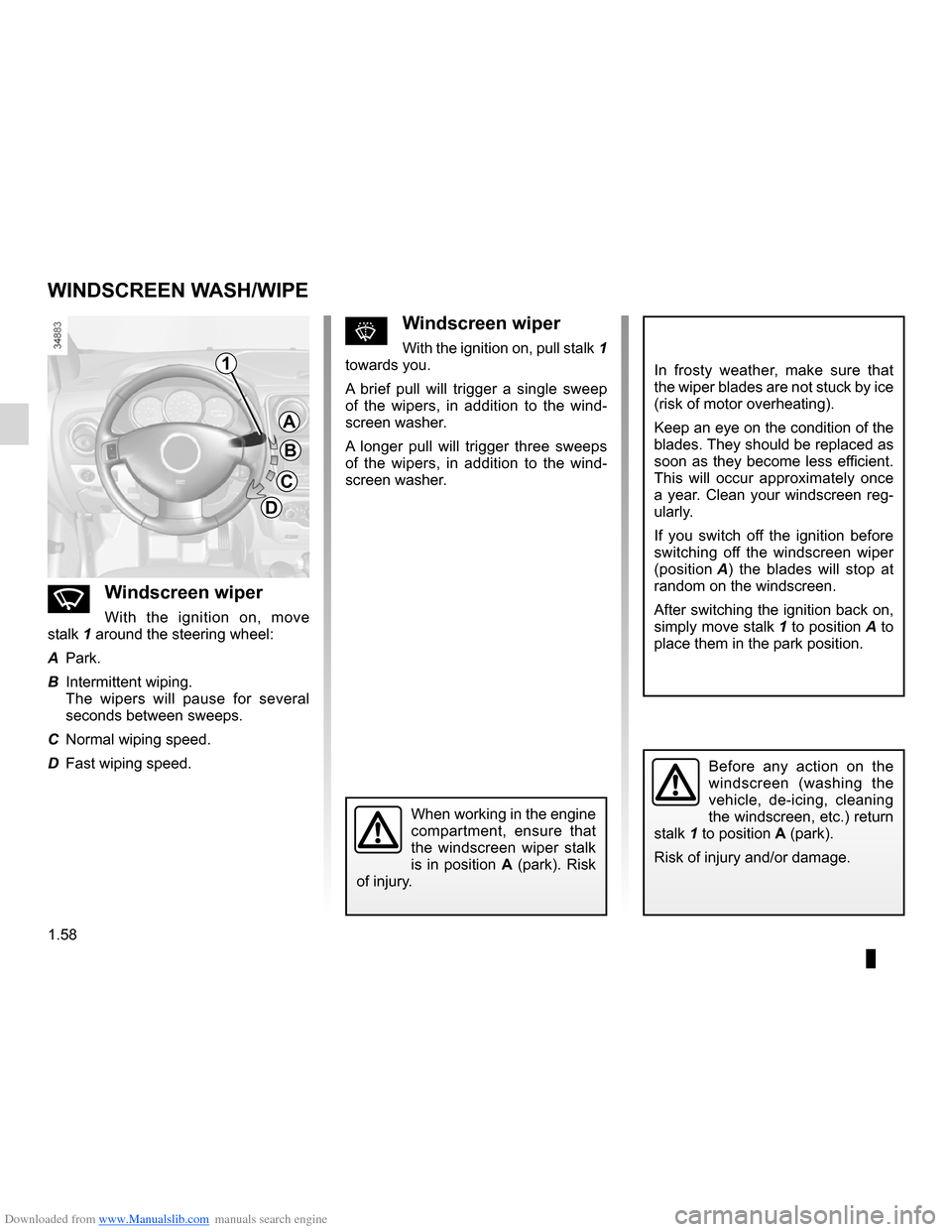

WINDSCREEN WASH/WIPE
nWindscreen wiper
With the ignition on, move
stalk 1 around the steering wheel:
A Park.
B Intermittent wiping.
The wipers will pause for several
seconds between sweeps.
C Normal wiping speed.
D Fast wiping speed.
sWindscreen wiper
With the ignition on, pull stalk 1
towards you.
A brief pull will trigger a single sweep
of the wipers, in addition to the wind -
screen washer.
A longer pull will trigger three sweeps
of the wipers, in addition to the wind -
screen washer.
In frosty weather, make sure that
the wiper blades are not stuck by ice
(risk of motor overheating).
Keep an eye on the condition of the
blades. They should be replaced as
soon as they become less efficient.
This will occur approximately once
a year. Clean your windscreen reg-
ularly.
If you switch off the ignition before
switching off the windscreen wiper
(position A ) the blades will stop at
random on the windscreen.
After switching the ignition back on,
simply move stalk 1 to position A to
place them in the park position.
Before any action on the
windscreen (washing the
vehicle, de-icing, cleaning
the windscreen, etc.) return
stalk 1 to position A (park).
Risk of injury and/or damage.
C
D1
D
C
B
A
When working in the engine
compartment, ensure that
the windscreen wiper stalk
is in position A (park). Risk
of injury.

Downloaded from www.Manualslib.com manuals search engine de-icingrear screen ...................................... (up to the end of the DU)
wipers ................................................... (up to the end of the DU)
windscreen washer ............................... (up to the end of the DU)
1.59
ENG_UD24424_1
Essuie-vitre / Lave-vitre arrière / Dégivrage (X92 - Renault)
ENG_NU_975-3_X92_Dacia_1
REAR SCREEN WASH/WIPE, DE-ICING
YRear screen wiper(depending on vehicle)
With the ignition switched on, turn the
end of stalk 2 to align the symbol with
mark 1.
pRear screen washer/
wiper
(depending on vehicle)
With the ignition switched on, turn the
end of stalk 2 to align the symbol with
mark 1.
When the stalk is released, it returns to
the rear wipe position.
VHeated rear screen
This function de-ices/demists
the rear screen and rearview mirrors
(depending on the vehicle).
With the engine running, press
switch 3. The indicator light in the
switch lights up.
Depending on the vehicle, the function
is stopped:
– automatically after 12 minutes of op-
eration;
– by pressing button 3 again.
The integrated indicator light goes off.
Before using the rear wiper, check
that no object is obstructing the
travel of the blade.
In frosty weather, make sure that
the wiper blades are not stuck by ice
(to avoid the risk of the motor over-
heating).
Keep an eye on the condition of the
blades. Replace the wiper blades as
soon as they begin to lose efficiency
(approximately once a year).
Regularly clean your rear screen.
21
3

Downloaded from www.Manualslib.com manuals search engine fuel filler cap .......................................................... (current page)
fuel tank capacity ................................................... (current page)
fuel grade ................................................................ (current page)
fuel tank ................................................ (up to the end of the DU)
fuel filler cap .......................................................... (current page)
fuel grade ............................................................... (current page)
1.60
ENG_UD24425_1
Réservoir carburant (X92 - Renault)
ENG_NU_975-3_X92_Dacia_1
Jaune NoirNoir texte
Fuel tank (filling with fuel)
FUEL TANK (1/3)
Capacity of the fuel tank: 50 litres ap-
proximately.
The cap A can be unlocked with the ig-
nition key.
For details on filling the fuel tank, refer
to the information on “Filling with fuel”.
There is a cap holder 1 on the fuel filler
flap for holding the cap when the tank is
being filled.Fuel filler cap: this is spe-
cific to the vehicle type. If
you have to replace it, make
sure the new cap is of the
same type. Contact an approved
dealer.
Never place the cap near a source
of heat or flame.
Do not wash the filler area with a
high-pressure washer.
Fuel grade
Use a high-grade fuel that complies
with the legislation in force in each
country. It must conform to the specifi-
cations given on label B inside the fuel
filler flap.
Refer to the “Engine specifications”
table in Section 6.
Vehicles running on ethanol-based
fuel
Always use unleaded petrol or fuel
containing a maximum of 85 percent
ethanol (E85).
In very cold conditions it may be difficult
or even impossible to start the engine.
To avoid this problem, use unleaded
petrol.
Note: you may notice an increase in
fuel consumption with this type of fuel.
When the fuel is changed the engine
must adjust, which may cause minor in-
conveniences for a few minutes (longer
starting times, cutting out, etc.).
1
A
Do not mix even small
amounts of petrol (un -
leaded or E85) with diesel.
Do not use ethanol-based
fuel if your vehicle is not compatible
with this fuel.
Do not add any additives to the fuel,
you risk damaging the engine.
Do not wash the filler
area with a high-pressure
washer.
B

Downloaded from www.Manualslib.com manuals search engine fuelfilling ................................................................. (current page)
JauneNoirNoir texte
1.61
ENG_UD24425_1
Réservoir carburant (X92 - Renault)
ENG_NU_975-3_X92_Dacia_1

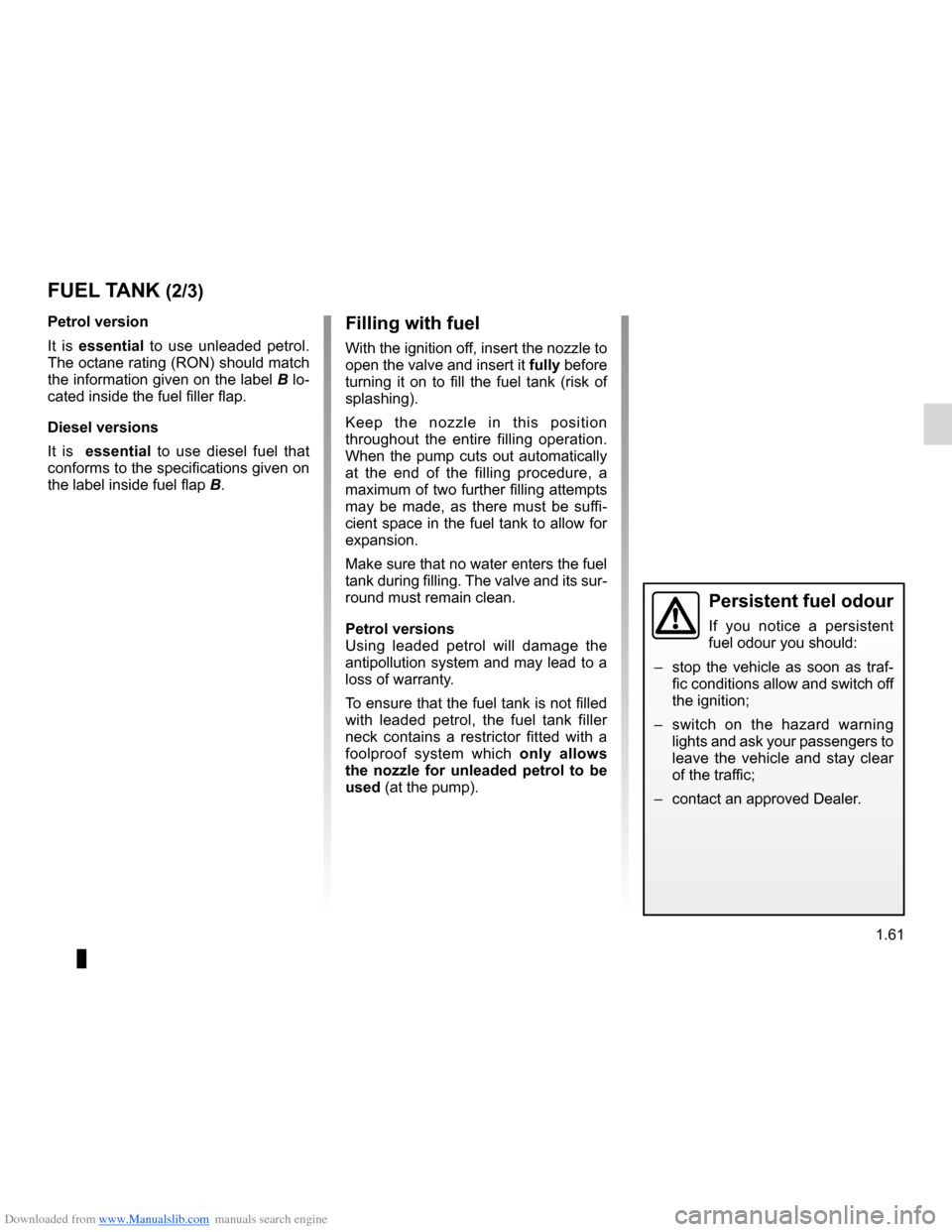

FUEL TANK (2/3)

Petrol version
It is essential to use unleaded petrol.
The octane rating (RON) should match
the information given on the label B lo-
cated inside the fuel filler flap.
Diesel versions
It is essential to use diesel fuel that
conforms to the specifications given on
the label inside fuel flap B.Filling with fuel
With the ignition off, insert the nozzle to
open the valve and insert it fully before
turning it on to fill the fuel tank (risk of
splashing).
Keep the nozzle in this position
throughout the entire filling operation.
When the pump cuts out automatically
at the end of the filling procedure, a
maximum of two further filling attempts
may be made, as there must be suffi -
cient space in the fuel tank to allow for
expansion.
Make sure that no water enters the fuel
tank during filling. The valve and its sur-
round must remain clean.
Petrol versions
Using leaded petrol will damage the
antipollution system and may lead to a
loss of warranty.
To ensure that the fuel tank is not filled
with leaded petrol, the fuel tank filler
neck contains a restrictor fitted with a
foolproof system which only allows
the nozzle for unleaded petrol to be
used (at the pump).
Persistent fuel odour
If you notice a persistent
fuel odour you should:
– stop the vehicle as soon as traf-
fic conditions allow and switch off
the ignition;
– switch on the hazard warning
lights and ask your passengers to
leave the vehicle and stay clear
of the traffic;
– contact an approved Dealer.

Downloaded from www.Manualslib.com manuals search engine practical advice ...................................................... (current page)
filter diesel filter ........................................................ (current page)
fuel priming bulb .................................................... (current page)
1.62
ENG_UD24425_1
Réservoir carburant (X92 - Renault)
ENG_NU_975-3_X92_Dacia_1
FUEL TANK (3/3)
Running out of fuel on diesel
versions
Vehicles with priming pump 2
After a breakdown caused by com -
pletely running out of fuel, the system
must be reprimed before the engine is
restarted:
Operate priming bulb 2 until the fuel
flows through the hose 3.
If the engine does not start after several
attempts, contact an approved dealer.
The engine may be hot
when working in close prox-
imity. In addition, the engine
cooling fan may come on at
any moment.
Risk of injury.
No modifications what -
soever are permitted on
any part of the fuel supply
system (computers, wiring,
fuel circuit, injector, protection
covers, etc.) as this may be danger-
ous (such work must be undertaken
by qualified Network personnel).
2
3
Vehicles without manual priming
pump
Put the ignition key in “Ignition On” (M)
position and wait a few minutes before
starting. This will enable the fuel circuit
to be primed. If the engine does not
start, repeat the procedure.

Downloaded from www.Manualslib.com manuals search engine 2.1
ENG_UD28064_3
Sommaire 2 (X92 - Renault)
ENG_NU_975-3_X92_Dacia_2
Section 2: Driving
(Advice on use relating to fuel economy and the environment)
Running in, Ignition switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.2
Starting, Stopping the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.3
Special features of petrol versions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.4
Special features of diesel versions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.5
Advice: antipollution, fuel economy and driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . 2.6
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.9
Gear lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.10
Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.11
Power-assisted steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.11
Driver correction devices and aids . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.12
Speed limiter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.15
Parking distance control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.17

Downloaded from www.Manualslib.com manuals search engine running in ............................................................... (current page)
ignition switch ........................................................ (current page)
engine immobiliser (switch) ................................... (current page)
driving .................................................................... (current page)
starting ................................................................... (current page)
2.2
ENG_UD24428_1
Rodage / Contacteur de démarrage (X92 - Renault)
ENG_NU_975-3_X92_Dacia_2
Running in, Ignition switch
RUNNING IN, IGNITION SWITCH
Petrol version
For the first 600 miles (1,000 km), do
not exceed 78 mph (130 km/h) in the
highest gear, or 3,000 to 3,500 rpm.
You may only expect top performance
from your vehicle after approximately
1,800 miles (3,000 km).
Oil change frequency: please refer to
your vehicle’s maintenance document.
Diesel version
For the first 900 miles (1,500 km) ,
do not exceed 2,500 rpm. After com -
pleting this mileage you may drive
faster, although you may only expect
top performance after approximately
3,600 miles (6,000 km).
Do not accelerate hard while the engine
is still cold and do not let the engine
over-rev.
Oil change frequency: please refer to
your vehicle’s maintenance document.
Stop and steering lock
position St
To lock: remove the key and turn the
steering wheel until the steering column
locks.
To unlock: turn the key and the steering
wheel slightly.
Accessories position A
When the ignition is switched off, any
accessories (radio, etc.) will continue to
function.
Ignition on position M
The ignition is switched on:
– petrol version: the engine may be
started.
– diesel version: the engine is pre -
heating.
Start position D
If the engine fails to start at the first at-
tempt, turn the key back before activat-
ing the starter again.
Release the key as soon as the engine
starts.

Downloaded from www.Manualslib.com manuals search engine driving ................................................... (up to the end of the DU)
starting .................................................. (up to the end of the DU)
starting the engine ................................ (up to the end of the DU)
2.3
ENG_UD28712_3
Démarrage, Arrêt du moteur (X92 - Renault)
ENG_NU_975-3_X92_Dacia_2
ÉDiesel injection
Turn the ignition key to ignition
“On” position M, and hold this position
until the preheating warning light goes
out.
Move the key to “Start” position D with-
out accelerating. Release the key as
soon as the engine starts.
Stopping the engine
With the engine idling, turn the key
back to “Stop” position St.
Starting the engine
In very cold conditions (temperatures
below –20°C): so that it is easier to
start the engine, switch on the ignition
for several seconds before starting the
engine.
Feature when starting the engine, if the
outdoor temperature is very low (below
- 10 ° C): hold down the clutch pedal
until the engine starts.
Petrol injection
– Activate the starter without de-
pressing the accelerator.
– Release the key as soon as the
engine starts.
Starting, Stopping the engine
STARTING/STOPPING THE ENGINE
Never leave your vehicle with the key or remote control inside and never leave a child (or a pet) unsupervised, even
for a short while.
The reason for this is that the child may endanger himself or others by starting the engine, activating equipment such
as the window winders for example, or locking the doors.
Risk of serious injury.
Never switch off the ignition before the vehicle has stopped completely. Once the engine has stopped, the brake servo,
power assisted steering and passive safety equipment such as air bags wi\
ll no longer operate.
The steering is locked when the key is removed.
