™Seat belt reminder light
Displayed on the central dis -
play of the dashboard.
It remains on when the engine is
started, if the driver's seat belt is not
fastened. A beep sounds for approxi -
mately 2 minutes until the seat belt is
fastened.
E l e c t r o n i c S t a b i l i t y
Program (ESP) and
traction control system (ASR) warn-
ing lights
There are several reasons for the warn-
ing light to come on: please refer to the
information on the “Electronic stability
program (ESP) with understeer control
and traction control (ASR)” in Section 2.
ÚBattery charge warning light
If it comes on when you are
driving, it indicates that the circuit has
discharged. Stop and consult an ap -
proved Dealer as soon as possible.
2 Door(s) open warning light
Refer to “Opening/closing the doors” in
Section 1.
The presence and operation of the warning lights DEPEND ON THE EQUIPMENT\
AND COUNTRY.
A
W ARNING LIGHTS (4/4)
ÐSpeed limiter warning light
Refer to the information on the
“Speed limiter” in Section 2.
^Water in the diesel filter
warning light
This lights up when the ignition is
switched on and goes out after a few
seconds.
If it comes on when driving, it indicates
the presence of water in the diesel.
Contact your approved Dealer as soon
as possible.
]Front passenger air bag de-
activated warning light
Refer to the information on “Child
safety: deactivating, activating the front
passenger airbag".
ECONot used
Not used

Downloaded from www.Manualslib.com manuals search engine overspeed buzzer .................................................. (current page)
control instruments ............................... (up to the end of the DU)
instrument panel ................................... (up to the end of the DU)
indicators: instrument panel ............................. (up to the end of the DU)
display .................................................. (up to the end of the DU)
1.46
ENG_UD24416_1
Afficheurs et indicateurs (X92 - Renault)
ENG_NU_975-3_X92_Dacia_1
Jaune NoirNoir texte
Displays and indicators

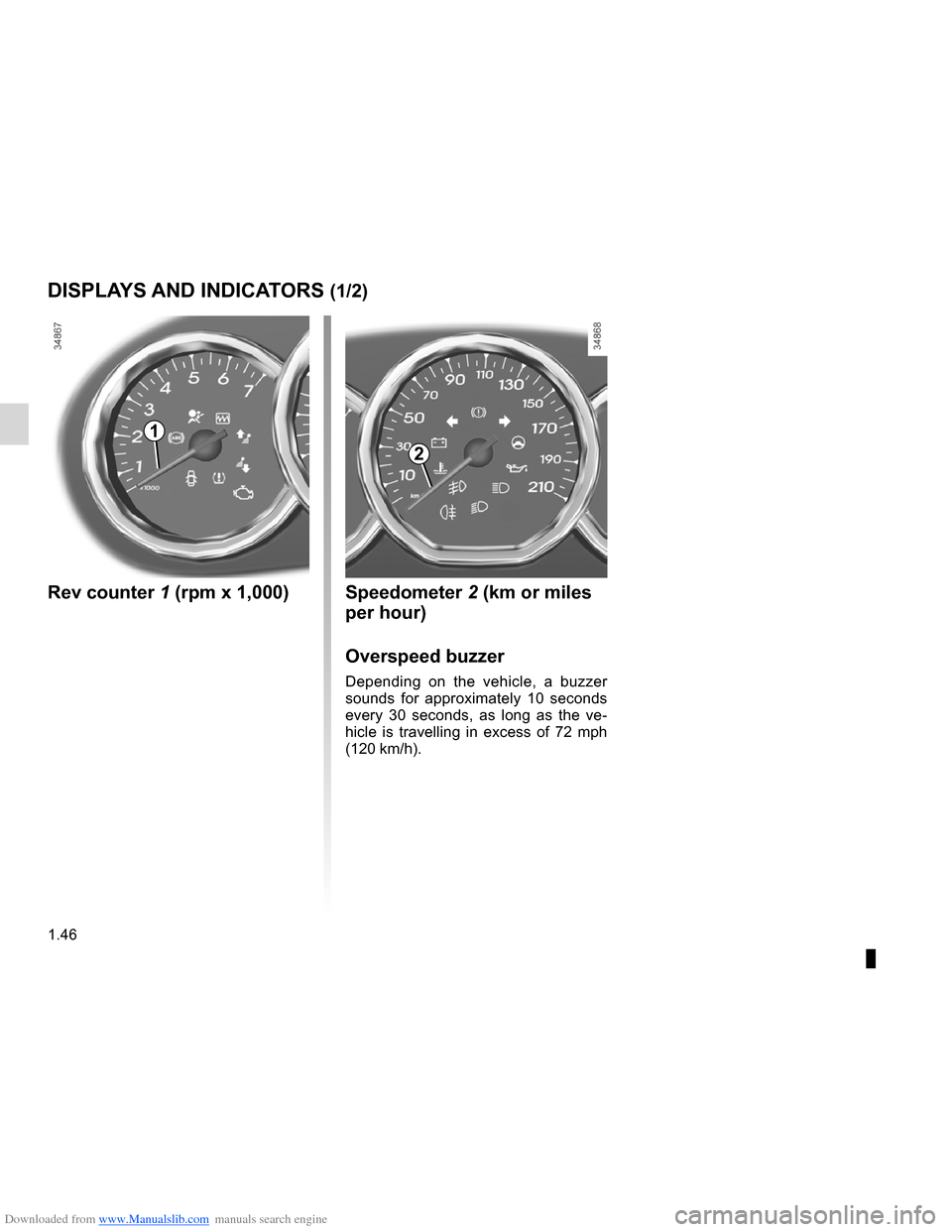

DISPLAYS AND INDICATORS (1/2)
Rev counter 1 (rpm x 1,000) Speedometer 2 (km or miles
per hour)
Overspeed buzzer
Depending on the vehicle, a buzzer
sounds for approximately 10 seconds
every 30 seconds, as long as the ve -
hicle is travelling in excess of 72 mph
(120 km/h).
1
2

Downloaded from www.Manualslib.com manuals search engine fuel level ................................................................ (current page)
JauneNoirNoir texte
1.47
ENG_UD24416_1
Afficheurs et indicateurs (X92 - Renault)
ENG_NU_975-3_X92_Dacia_1

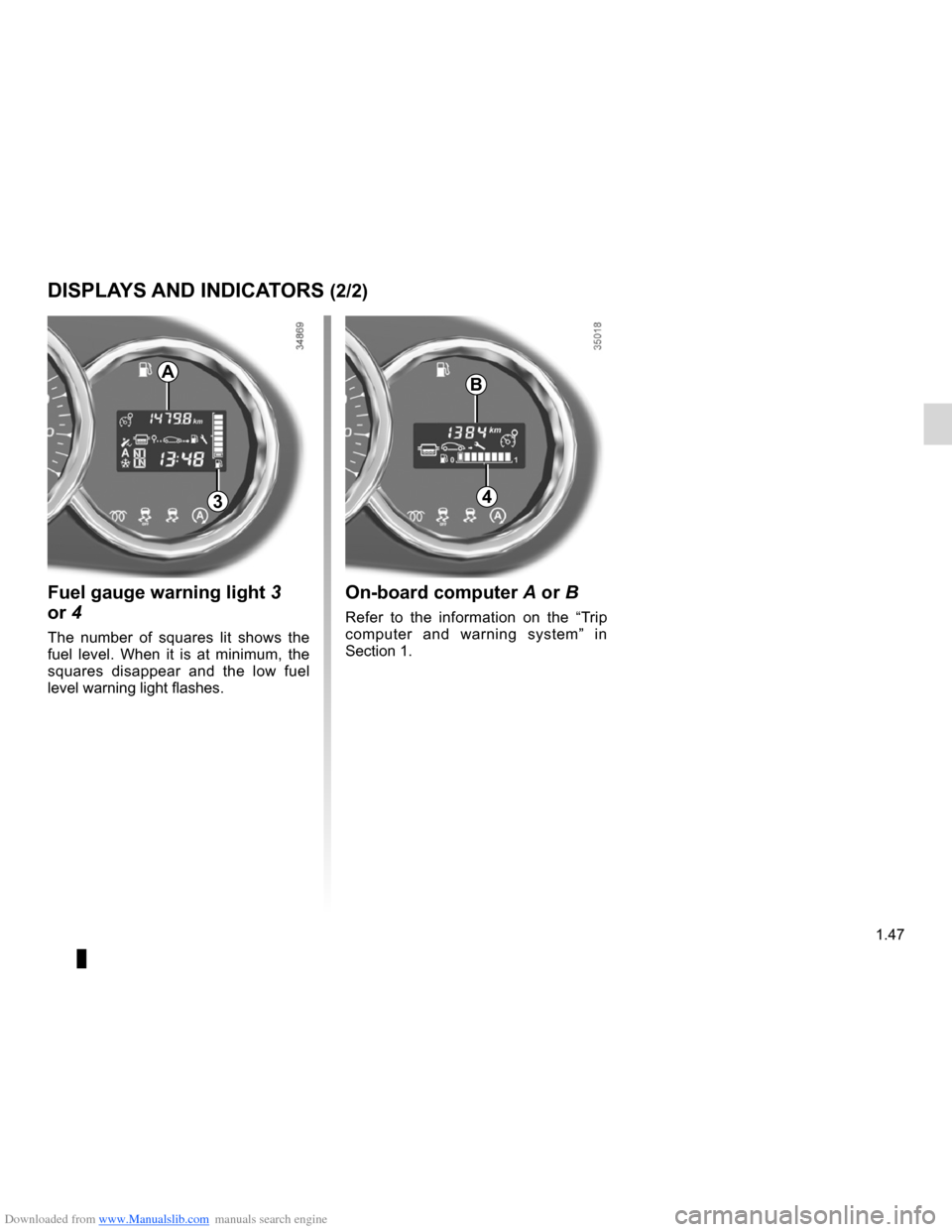

DISPLAYS AND INDICATORS (2/2)
Fuel gauge warning light 3
or 4
The number of squares lit shows the
fuel level. When it is at minimum, the
squares disappear and the low fuel
level warning light flashes.
On-board computer A or B
Refer to the information on the “Trip
computer and warning system” in
Section 1.
3
A
4
B

Downloaded from www.Manualslib.com manuals search engine trip computer and warning system........(up to the end of the DU)
warning lights ........................................ (up to the end of the DU)
instrument panel messages ..................(up to the end of the DU)
instrument panel ................................... (up to the end of the DU)
1.48
ENG_UD28182_2
Ordinateur de bord (X92 - Renault)
ENG_NU_975-3_X92_Dacia_1
Jaune NoirNoir texte
On-board computer

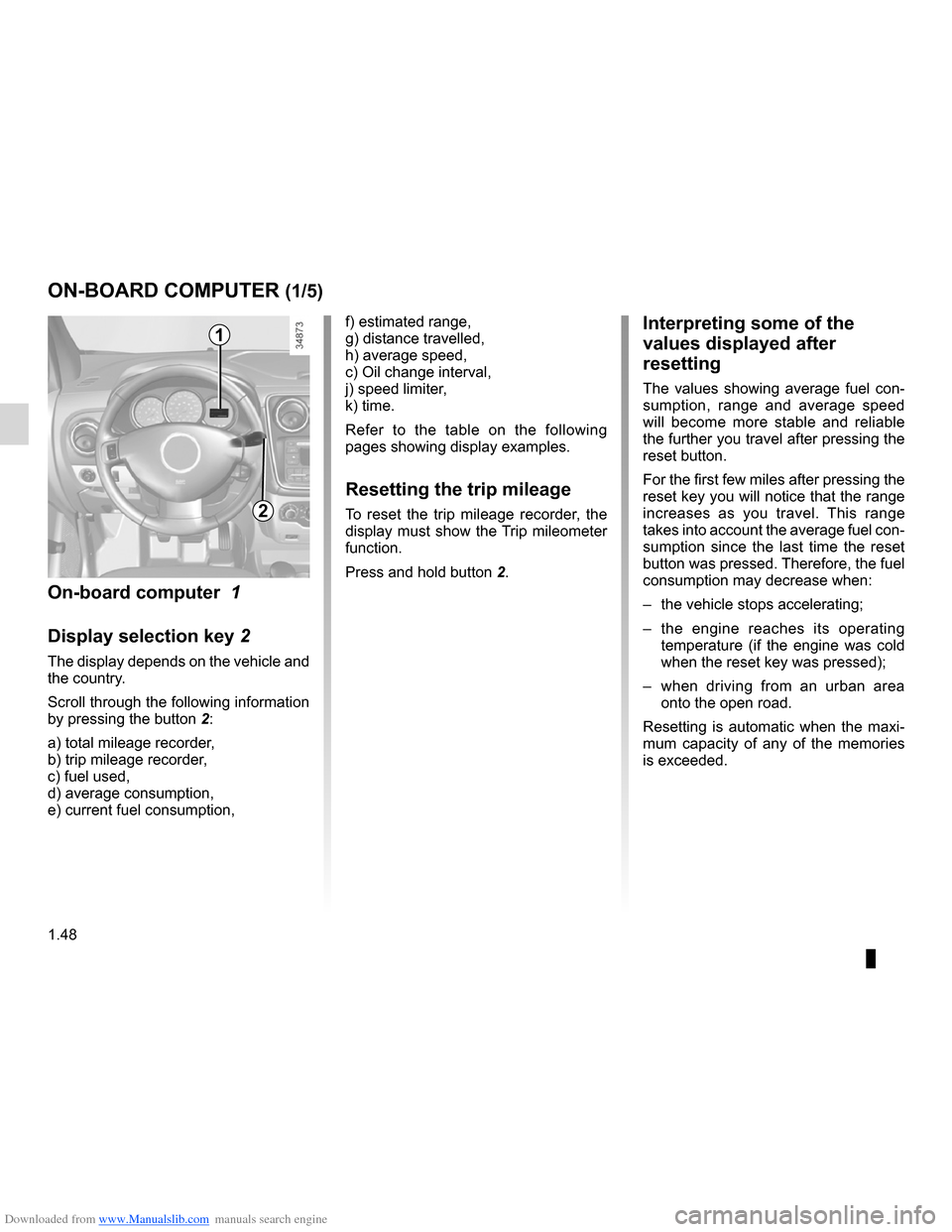

ON-BOARD COMPUTER (1/5)
Interpreting some of the
values displayed after
resetting
The values showing average fuel con-
sumption, range and average speed
will become more stable and reliable
the further you travel after pressing the
reset button.
For the first few miles after pressing the
reset key you will notice that the range
increases as you travel. This range
takes into account the average fuel con-
sumption since the last time the reset
button was pressed. Therefore, the fuel
consumption may decrease when:
– the vehicle stops accelerating;
– the engine reaches its operating
temperature (if the engine was cold
when the reset key was pressed);
– when driving from an urban area
onto the open road.
Resetting is automatic when the maxi-
mum capacity of any of the memories
is exceeded.
1
On-board computer 1
Display selection key 2
The display depends on the vehicle and
the country.
Scroll through the following information
by pressing the button 2:
a) total mileage recorder,
b) trip mileage recorder,
c) fuel used,
d) average consumption,
e) current fuel consumption,
2
f) estimated range,
g) distance travelled,
h) average speed,
c) Oil change interval,
j) speed limiter,
k) time.
Refer to the table on the following
pages showing display examples.
Resetting the trip mileage
To reset the trip mileage recorder, the
display must show the Trip mileometer
function.
Press and hold button 2.

Downloaded from www.Manualslib.com manuals search engine JauneNoirNoir texte
1.49
ENG_UD28182_2
Ordinateur de bord (X92 - Renault)
ENG_NU_975-3_X92_Dacia_1

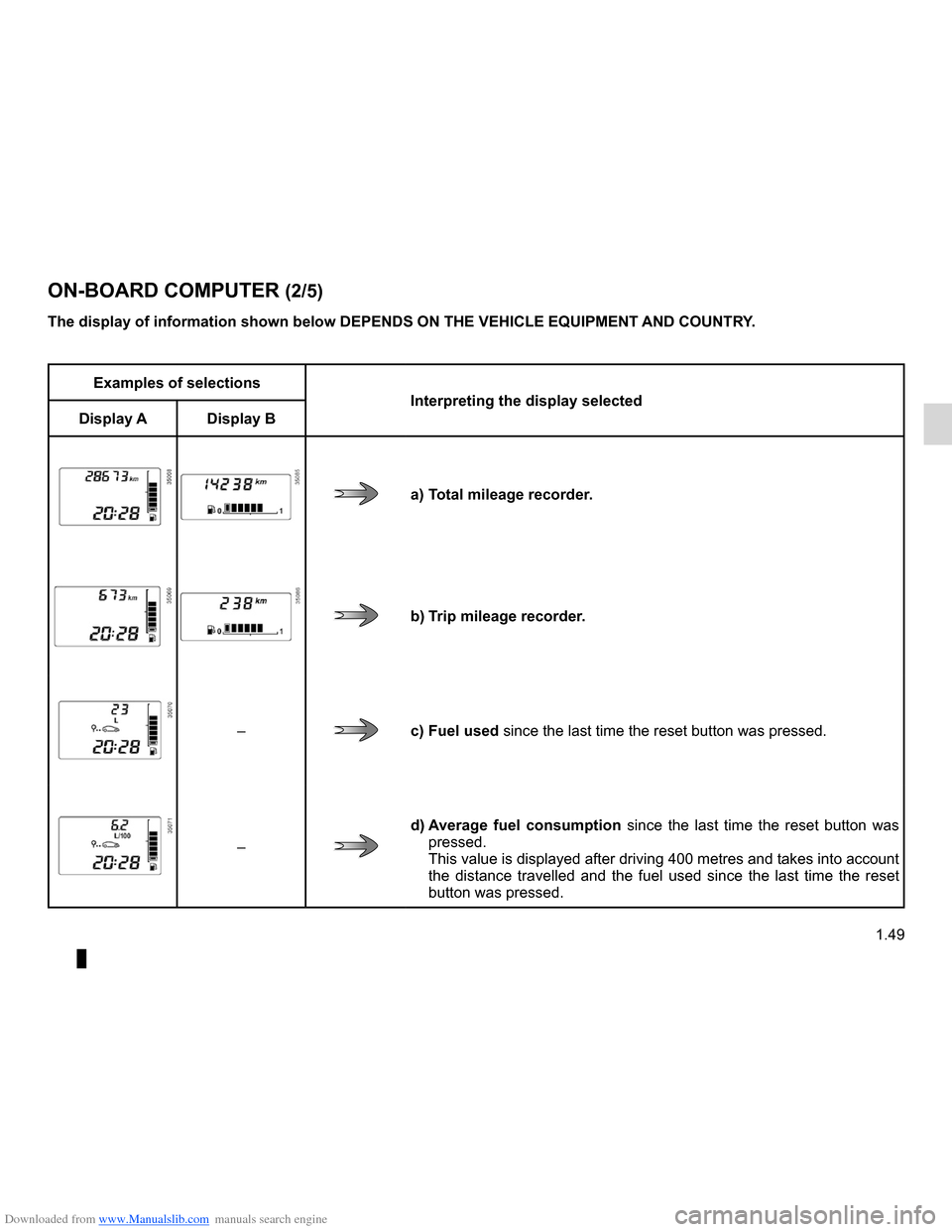

ON-BOARD COMPUTER (2/5)
The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT \
AND COUNTRY.
Examples of selections
Interpreting the display selected
Display A Display B
a) Total mileage recorder.
b) Trip mileage recorder.
–c) Fuel used since the last time the reset button was pressed.
–
d) Average fuel consumption since the last time the reset button was
pressed.
This value is displayed after driving 400 metres and takes into account
the distance travelled and the fuel used since the last time the reset
button was pressed.

Downloaded from www.Manualslib.com manuals search engine 1.50
ENG_UD28182_2
Ordinateur de bord (X92 - Renault)
ENG_NU_975-3_X92_Dacia_1
Jaune NoirNoir texte

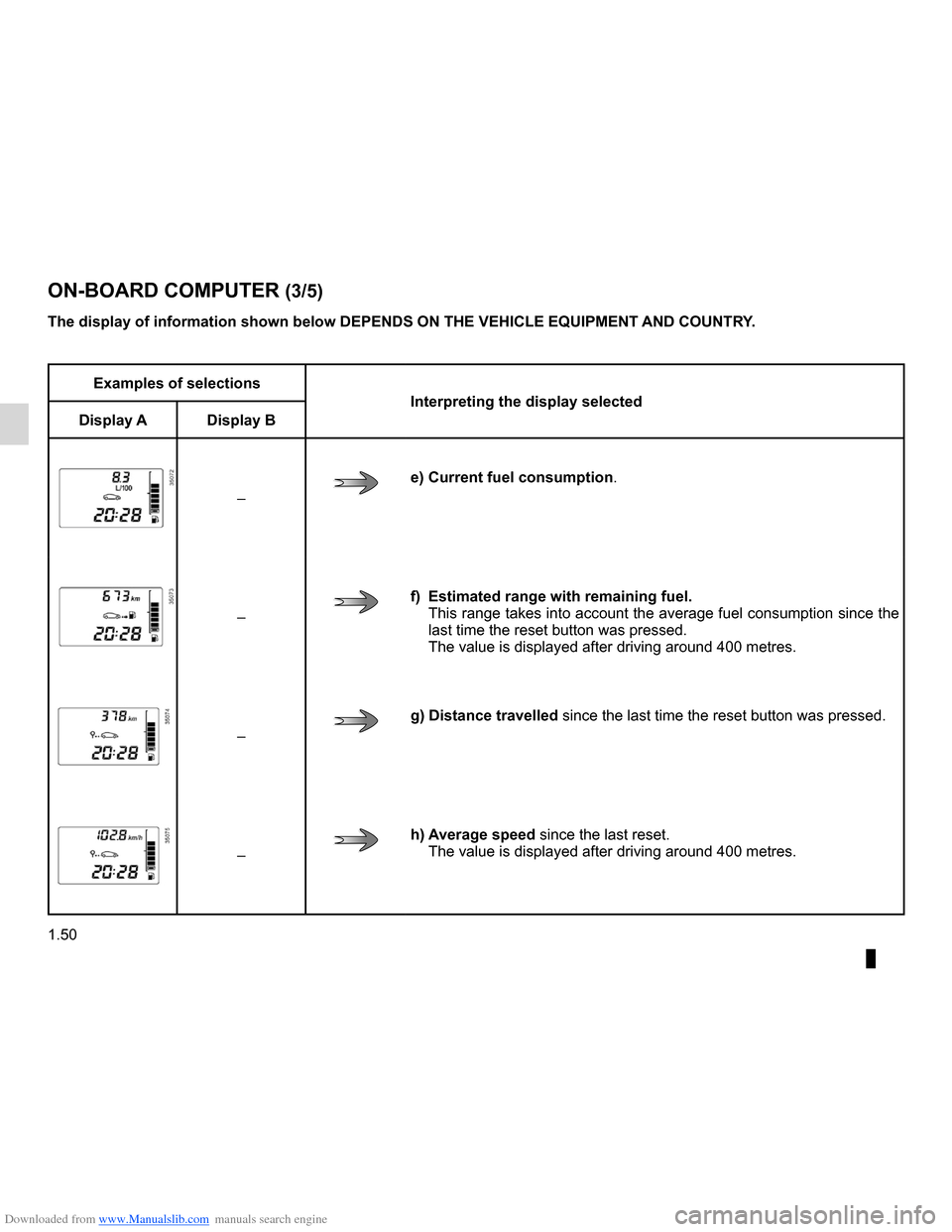

ON-BOARD COMPUTER (3/5)
Examples of selections
Interpreting the display selected
Display A Display B
–
e) Current fuel consumption .
–
f) Estimated range with remaining fuel.
This range takes into account the average fuel consumption since the
last time the reset button was pressed.
The value is displayed after driving around 400 metres.
–
g) Distance travelled since the last time the reset button was pressed.
–
h) Average speed since the last reset.
The value is displayed after driving around 400 metres.
The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT \
AND COUNTRY.

Downloaded from www.Manualslib.com manuals search engine JauneNoirNoir texte
1.51
ENG_UD28182_2
Ordinateur de bord (X92 - Renault)
ENG_NU_975-3_X92_Dacia_1
Examples of selections
Interpreting the display selected
Display A Display B
j) Mileage before service
Distance remaining until the next oil change.
There are several scenarios:
– mileage before oil change service less than 1000 miles Warning light
Ê on
the instrument panel comes on accompanied by the message “1000 miles”.
– mileage before oil change service 0 miles. Warning light
Ê on the instru-
ment panel comes on accompanied by the message “--- miles”.
The distance appears on the display for approximately 8 seconds when
the ignition is switched on as soon as the distance is less than or equal to
1000 miles .
The vehicle requires an oil change as soon as possible.
Note: depending on the vehicle, the mileage before an oil change varies according to the driving style (frequent driving at low
speed, door-to-door journeys, extensive use at idle speed, towing a trailer etc.). The distance remaining until the next oil change
can therefore decrease more quickly in some cases than the actual distan\
ce travelled.
The oil change intervals are independent of the vehicle’s maintenance schedule: please refer to your vehicle’s maintenance
document.
Resetting: to reset the mileage before an oil change, press and hold the display reset button for approximately 10 seconds until
the display shows the range permanently.
The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT \
AND COUNTRY.

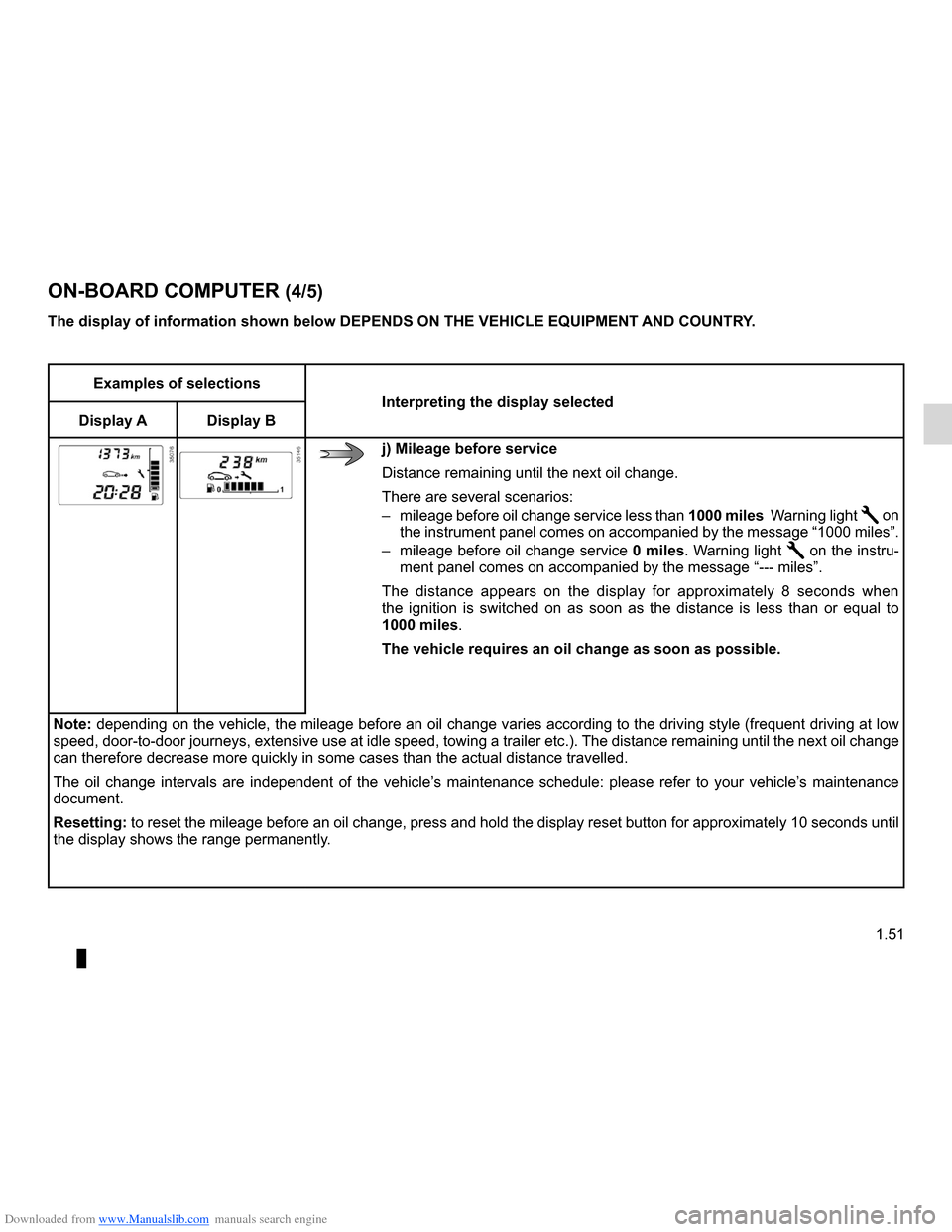

ON-BOARD COMPUTER (4/5)

Downloaded from www.Manualslib.com manuals search engine 1.52
ENG_UD28182_2
Ordinateur de bord (X92 - Renault)
ENG_NU_975-3_X92_Dacia_1
ON-BOARD COMPUTER (5/5)
The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT \
AND COUNTRY.
Examples of selections
Interpreting the display selected
Display A Display B
j) Recommended speed limiter speed (if activated).
Refer to the information on the “Speed limiter” in Section 2.
k) Time.

Downloaded from www.Manualslib.com manuals search engine clock ..................................................... (up to the end of the DU)
clock ..................................................... (up to the end of the DU)
control instruments ................................................ (current page)
steering wheel adjustment ...................................... (up to the end of the DU)
1.53
ENG_UD24418_1
Volant de direction/Heure (X92 - Renault)
ENG_NU_975-3_X92_Dacia_1
Steering wheel, Clock
STEERING WHEEL/CLOCK
Adjusting the steering wheel
Depending on the vehicle, the steering
wheel position is adjustable.
Pull lever 1 and move the steering
wheel to the required position.
Then push the lever to lock the steer -
ing wheel.
Make sure that the steering wheel is
correctly locked.
For safety reasons, carry
out any adjustments when
the vehicle is stationary.
Setting the time
Resetting the clock 2
Display the “Clock” display on the instru-
ment panel by pressing the button 3.
2
1
2
3
If the power supply is cut (battery
disconnected, supply wire cut, etc.),
the clock must be reset.
We recommend that you do not
adjust these settings while driving.
Press and hold button 3 to enter the
hour setting mode.
When only the hours flash, press
button 3 briefly, to scroll through them.
Press and hold button 3 to enter the
minute setting mode.
When only the minutes flash, press
button 3 briefly, to scroll through them.
Confirm by pressing and holding
button 3.
