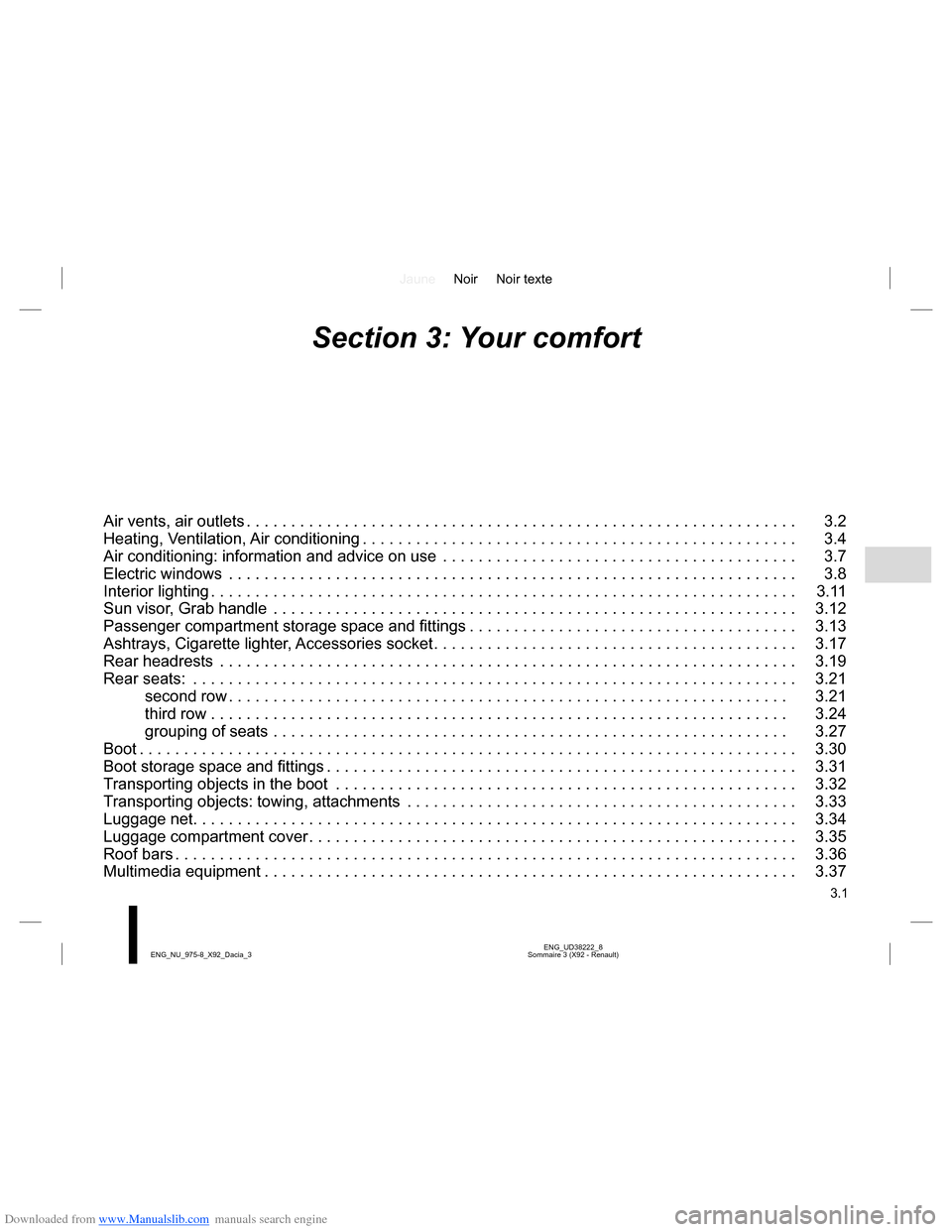

Sommaire 3 (X92 - Renault) ENG_NU_975-8_X92_Dacia_3
Section 3: Your comfort
Air vents, air outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.2
Heating, Ventilation, Air conditioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.4
Air conditioning: information and advice on use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.7
Electric windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.8
Interior lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.11
Sun visor, Grab handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.12
Passenger compartment storage space and fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.13
Ashtrays, Cigarette lighter, Accessories socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.17
Rear headrests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.19
Rear seats: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.21
second row . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.21
third row . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.24
grouping of seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.27
Boot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.30
Boot storage space and fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.31
Transporting objects in the boot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.32
Transporting objects: towing, attachments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.33
Luggage net. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.34
Luggage compartment cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.35
Roof bars . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.36
Multimedia equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.37

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.2
ENG_UD38143_3
Aérateurs, sorties air (X92 - Renault) ENG_NU_975-8_X92_Dacia_3
AIR VENTS, air outlets (1/2)
5 right-hand side window demister
outlet
6 Right-hand air vent
7 Front passenger footwell heater
outlets
8 Control panel 1 Left-hand side air vent
2 Left-hand side window demister
vent
3 Windscreen demisting vents
4 Centre air vents
12365
77
4
8

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.3
ENG_UD38143_3
Aérateurs, sorties air (X92 - Renault) ENG_NU_975-8_X92_Dacia_3
AIR VENTS, air outlets (2/2)

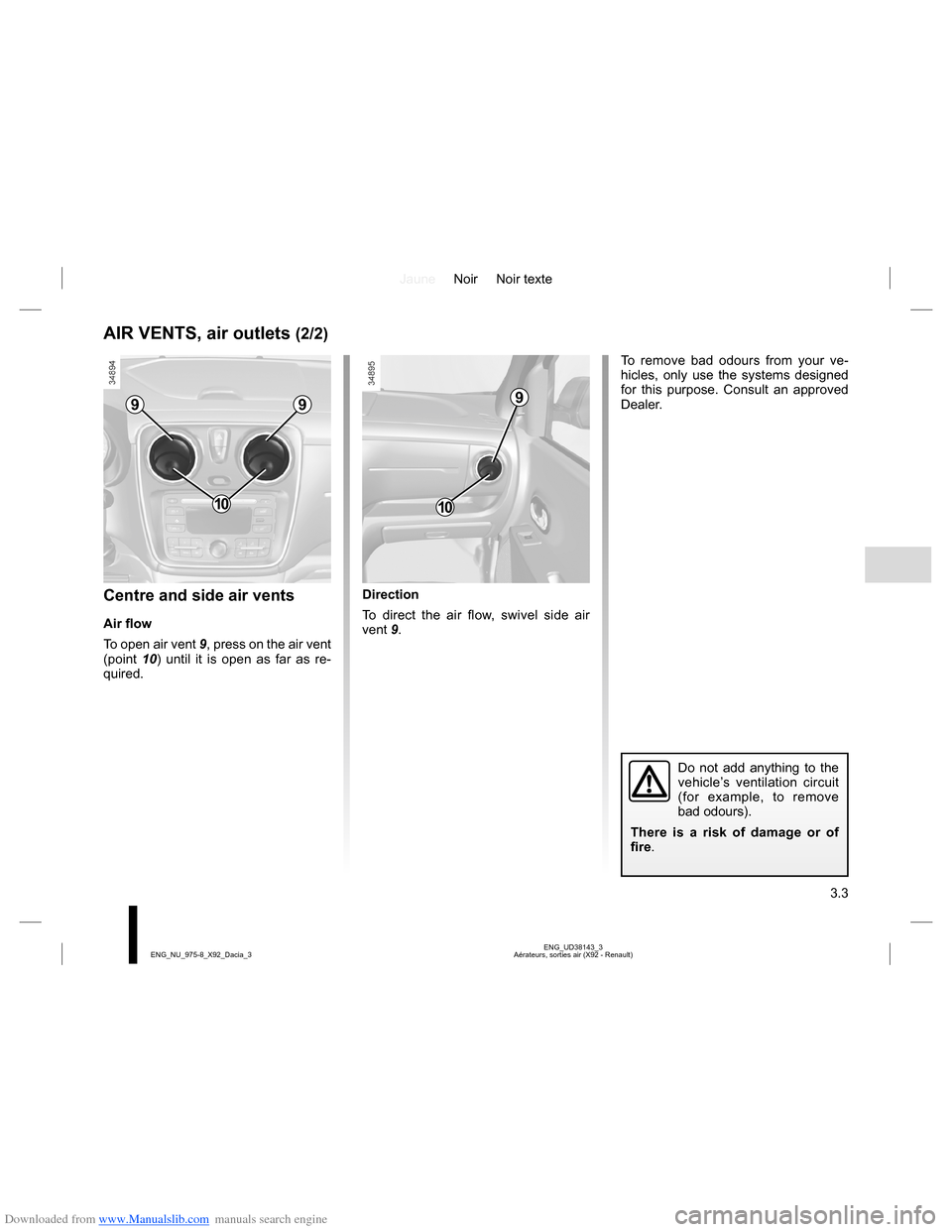

Centre and side air vents
Air flow
To open air vent 9, press on the air vent
(point 10) until it is open as far as re-
quired.
Direction
To direct the air flow, swivel side air
vent 9.
10
999
Do not add anything to the
vehicle’s ventilation circuit
(for example, to remove
bad odours).
There is a risk of damage or of
fire.
To remove bad odours from your ve-
hicles, only use the systems designed
for this purpose. Consult an approved
Dealer.
10

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.4
ENG_UD38154_2
Chauffage, Ventilation, Air Conditionné (X92 - Dacia) ENG_NU_975-8_X92_Dacia_3
HEATING, VENTILATION, AIR CONDITIONING (1/3)
Controls
The controls will depend on the vehicle
equipment level.
1 Distribution of air.
2 Switching air conditioning on or off.
3 Adjusting the ventilation fan speed.
4 Adjusting the air temperature.
5 Switching passenger compartment
isolation mode/air recirculation mode
on
Adjusting the air temperature
Turn the control 4 to obtain the desired
temperature. The further the pointer is
in the red, the more the temperature will
be increased.
Adjusting the ventilation fan
speed.
Turn control 3 from 0 to 4. The further
to the right it is positioned, the more air
is blown into the passenger compart-
ment. If you want to shut off the flow of
air completely and stop the system, set
control 3 to 0.
The system is deactivated: the ventila-
tion speed for the passenger compart-
ment air is zero (vehicle stationary),
you can however still feel a slight flow
of air when the vehicle is moving.
Information and advice on use: refer
to information on “Air conditioning: in-
formation and advice on use”.
123
5
4
Leaving this control in position 0 for
prolonged periods can lead to con-
densation forming on the side win-
dows and windscreen and problems
due to the use of non-renewed air in
the passenger compartment.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.5
ENG_UD38154_2
Chauffage, Ventilation, Air Conditionné (X92 - Dacia) ENG_NU_975-8_X92_Dacia_3
HEATING, VENTILATION, AIR CONDITIONING (2/3)
Switching passenger
compartment isolation mode/
air recirculation mode on.
Bring lever 5 to position â.
Under these conditions, air is taken
from the passenger compartment and
is recirculated, with no air being taken
from outside the vehicle.Air recirculation is used to:
– to isolate the passenger compart-
ment from the external atmosphere
(e.g. driving in polluted areas, etc.);
– to bring the passenger compartment
to the desired temperature as quickly
as possible.
Prolonged use of air recirculation
can lead to condensation form-
ing on the side windows and wind-
screen, and discomfort due to the
use of non-renewed air in the pas-
senger compartment.
You should return to normal mode
(external air) as soon as air recircu-
lation is no longer required, by turn-
ing the control 5 to the right.
31
5
Rapid demisting
Turn controls 1, 3 and 5 to positions
W:
– air from the outside;
– maximum fan speed;
– demisting.
Using the climate control increases the
speed of demisting.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.6
ENG_UD38154_2
Chauffage, Ventilation, Air Conditionné (X92 - Dacia) ENG_NU_975-8_X92_Dacia_3
HEATING, VENTILATION, AIR CONDITIONING (3/3)

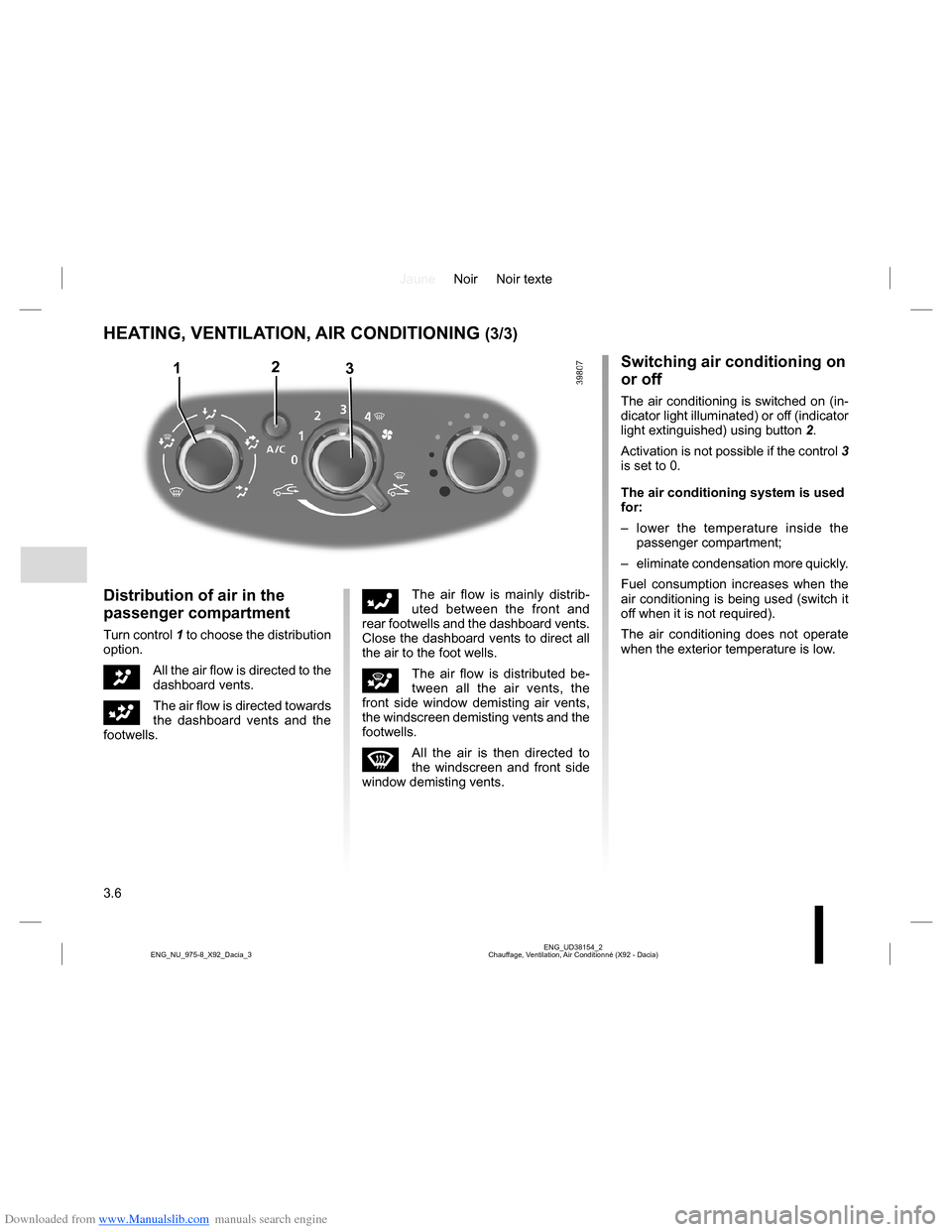

Distribution of air in the
passenger compartment
Turn control 1 to choose the distribution
option.
JAll the air flow is directed to the
dashboard vents.
GThe air flow is directed towards
the dashboard vents and the
footwells.
FThe air flow is mainly distrib-
uted between the front and
rear footwells and the dashboard vents.
Close the dashboard vents to direct all
the air to the foot wells.
iThe air flow is distributed be-
tween all the air vents, the
front side window demisting air vents,
the windscreen demisting vents and the
footwells.
WAll the air is then directed to
the windscreen and front side
window demisting vents.
Switching air conditioning on
or off
The air conditioning is switched on (in-
dicator light illuminated) or off (indicator
light extinguished) using button 2.
Activation is not possible if the control 3
is set to 0.
The air conditioning system is used
for:
– lower the temperature inside the
passenger compartment;
– eliminate condensation more quickly.
Fuel consumption increases when the
air conditioning is being used (switch it
off when it is not required).
The air conditioning does not operate
when the exterior temperature is low.
132

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.7
ENG_UD24441_1
Air conditionné : informations et conseils utilisation (X92 - Renault) ENG_NU_975-8_X92_Dacia_3
Fuel consumption
You will normally notice an increase in
fuel consumption (especially when driv-
ing in town) when the air conditioning is
operating.
For vehicles fitted with air conditioning
with no automatic mode, switch off the
system when it is not required.
Advice for reducing consumption
and helping to preserve the environ-
ment
Drive with the air vents open and the
windows closed.
If the vehicle has been parked in the
sun, open the doors for a few moments
to let the hot air escape before starting
the engine.
Maintenance
Refer to the Maintenance Document
for your vehicle for the inspection fre-
quency.
AIR CONDITIONING: information and advice on use
Operating faults
As a general rule, contact your ap-
proved dealer in the event of an oper-
ating fault.
– Reduction in de-icing, demisting
or air conditioning performance.
This may be caused by the passen-
ger compartment filter cartridge be-
coming clogged.
– No cold air is being produced.
Check that the controls are set cor-
rectly and that the fuses are sound.
Otherwise, switch off the system.
Presence of water under the
vehicle
After prolonged use of the air condi-
tioning system, it is normal for water
to be present under the vehicle. This is
caused by condensation.
Do not open the refriger-
ant fluid circuit. The fluid
may damage eyes or skin.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.8
ENG_UD36370_2
Vitres (X92 - Renault) ENG_NU_975-8_X92_Dacia_3

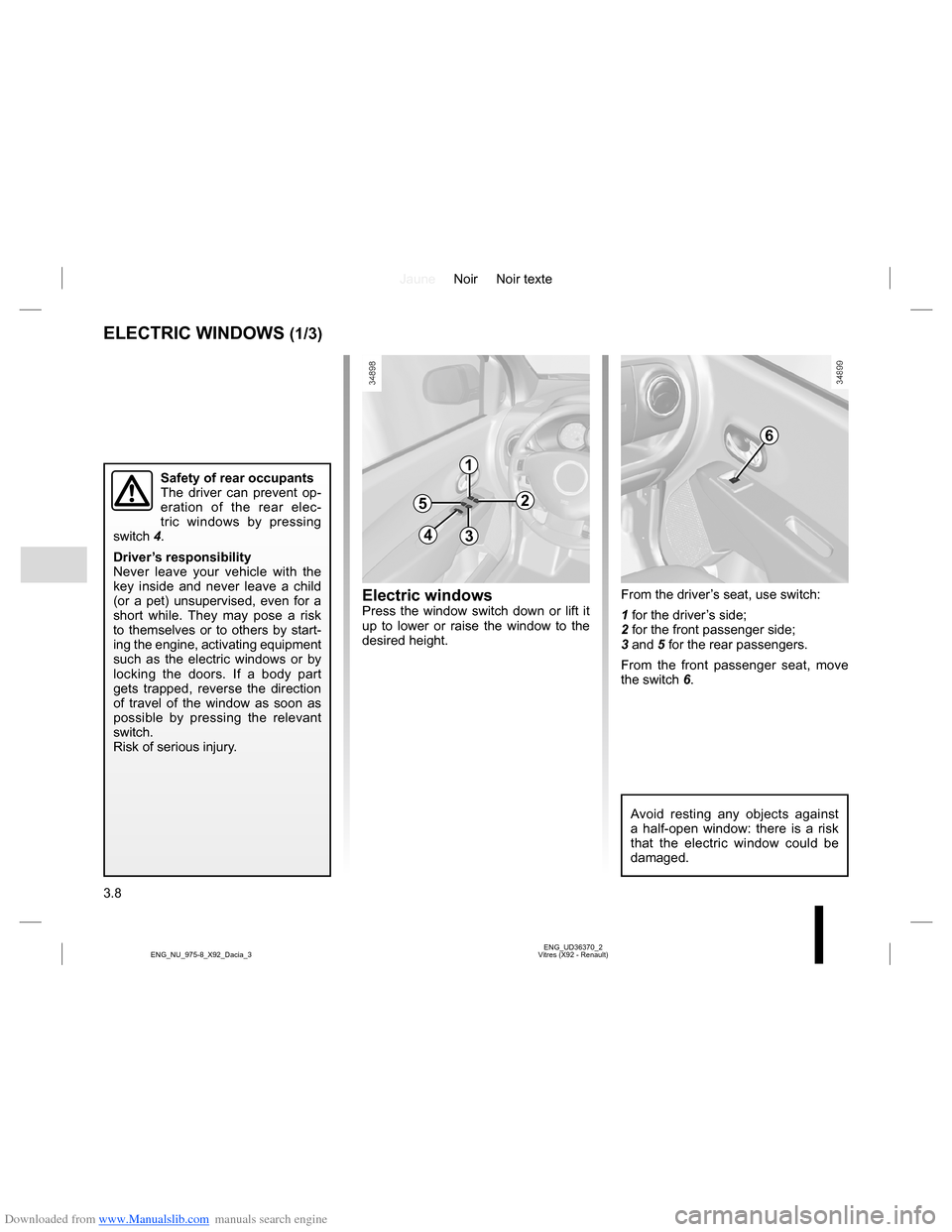

ELECTRIC WINDOWS (1/3)
Safety of rear occupants
The driver can prevent op-
eration of the rear elec-
tric windows by pressing
switch 4.
Driver’s responsibility
Never leave your vehicle with the
key inside and never leave a child
(or a pet) unsupervised, even for a
short while. They may pose a risk
to themselves or to others by start-
ing the engine, activating equipment
such as the electric windows or by
locking the doors. If a body part
gets trapped, reverse the direction
of travel of the window as soon as
possible by pressing the relevant
switch.
Risk of serious injury.1
2
4
5
3
Electric windowsPress the window switch down or lift it
up to lower or raise the window to the
desired height.From the driver’s seat, use switch:
1 for the driver’s side;
2 for the front passenger side;
3 and 5 for the rear passengers.
From the front passenger seat, move
the switch 6.
6
Avoid resting any objects against
a half-open window: there is a risk
that the electric window could be
damaged.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.9
ENG_UD36370_2
Vitres (X92 - Renault) ENG_NU_975-8_X92_Dacia_3

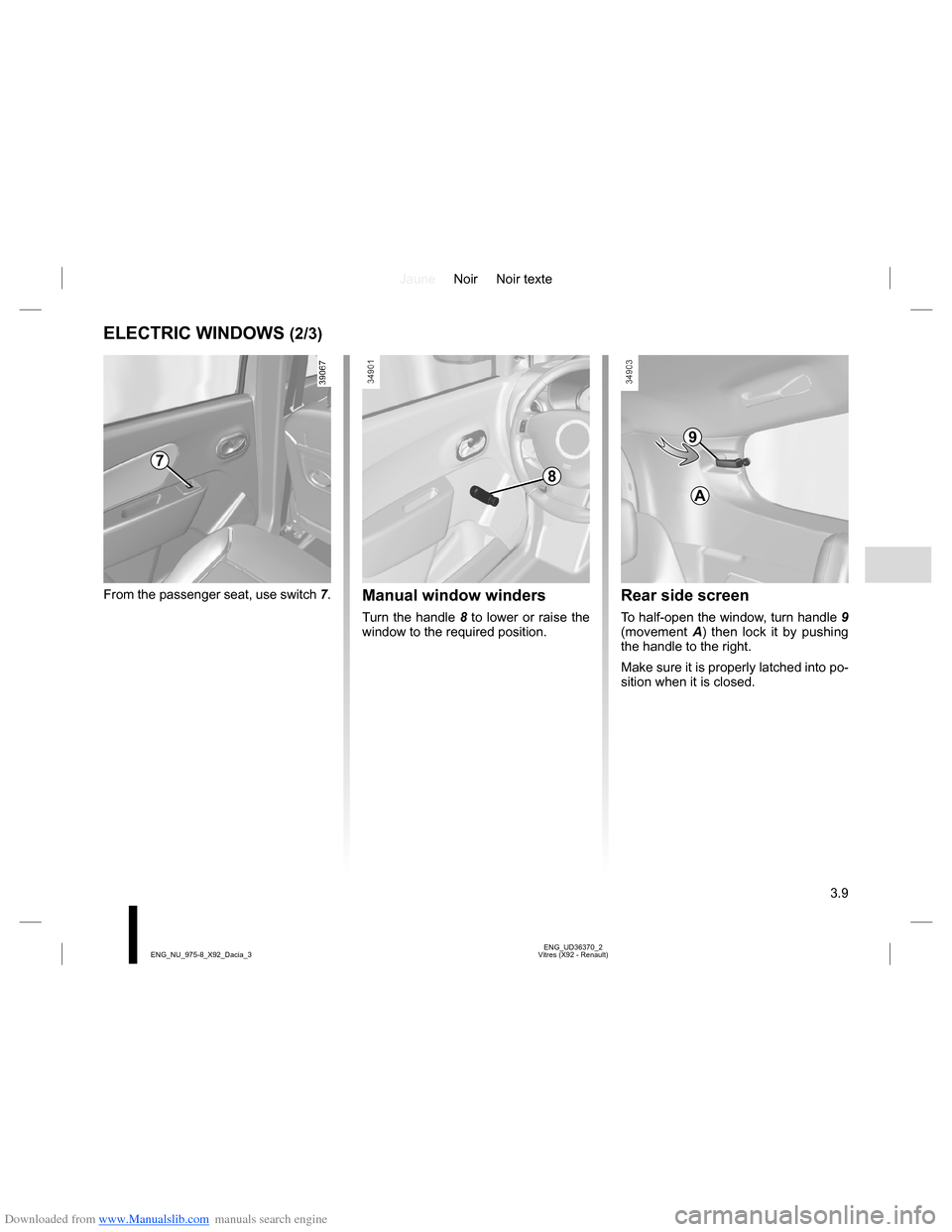

ELECTRIC WINDOWS (2/3)
8
Manual window winders
Turn the handle 8 to lower or raise the
window to the required position.
Rear side screen
To half-open the window, turn handle 9
(movement A) then lock it by pushing
the handle to the right.
Make sure it is properly latched into po-
sition when it is closed.
9
A
From the passenger seat, use switch 7.
7

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
3.10
ENG_UD36370_2
Vitres (X92 - Renault) ENG_NU_975-8_X92_Dacia_3
ELECTRIC WINDOWS (3/3)

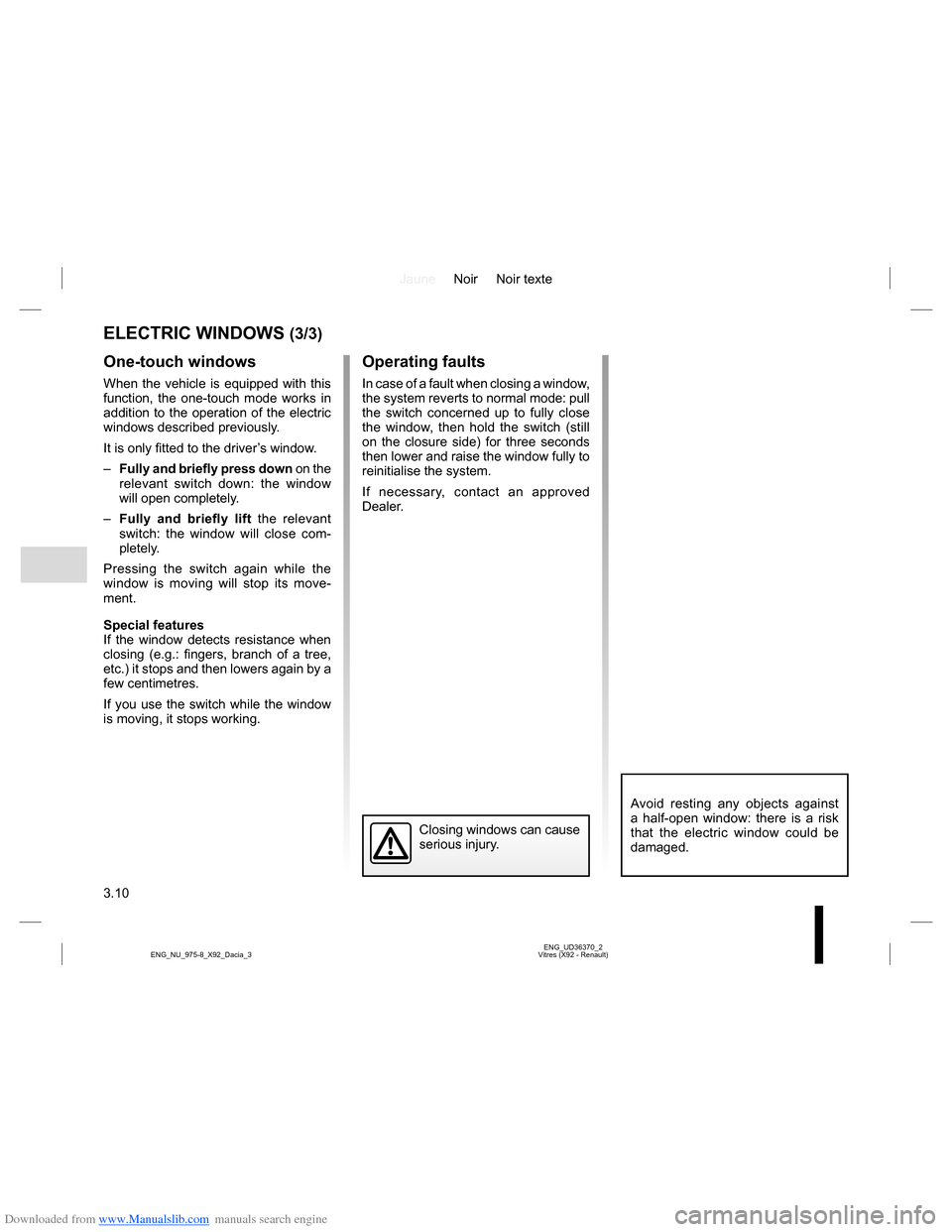

One-touch windows
When the vehicle is equipped with this
function, the one-touch mode works in
addition to the operation of the electric
windows described previously.
It is only fitted to the driver’s window.
– Fully and briefly press down on the
relevant switch down: the window
will open completely.
– Fully and briefly lift the relevant
switch: the window will close com-
pletely.
Pressing the switch again while the
window is moving will stop its move-
ment.
Special features
If the window detects resistance when
closing (e.g.: fingers, branch of a tree,
etc.) it stops and then lowers again by a
few centimetres.
If you use the switch while the window
is moving, it stops working.
Operating faults
In case of a fault when closing a window,
the system reverts to normal mode: pull
the switch concerned up to fully close
the window, then hold the switch (still
on the closure side) for three seconds
then lower and raise the window fully to
reinitialise the system.
If necessary, contact an approved
Dealer.
Closing windows can cause
serious injury.
Avoid resting any objects against
a half-open window: there is a risk
that the electric window could be
damaged.
