2.11
ENG_UD38217_2
Particularités des versions GPL (X92 - Dacia) ENG_NU_975-8_X92_Dacia_2

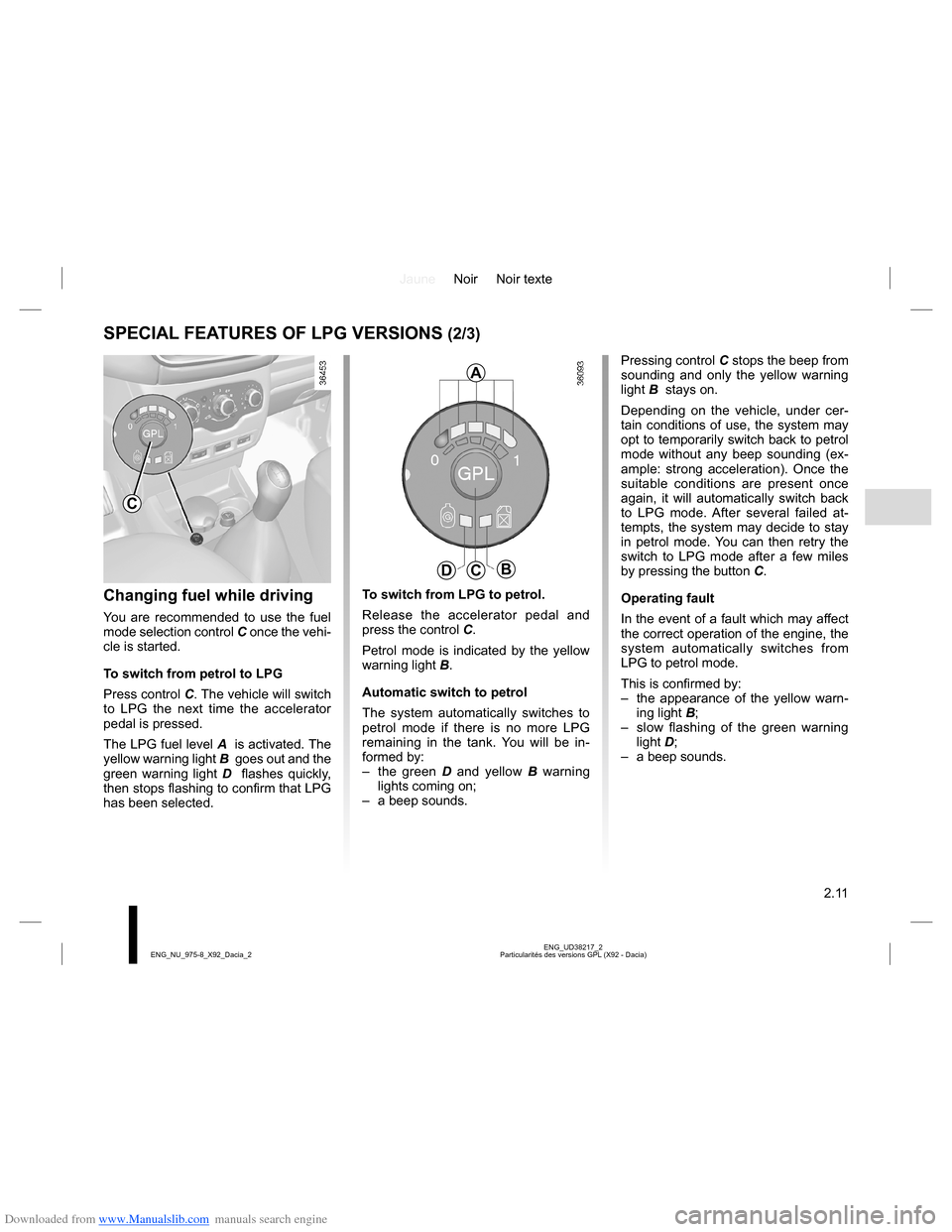

SPECIAL FEATURES OF LPG VERSIONS (2/3)
Changing fuel while driving
You are recommended to use the fuel
mode selection control C once the vehi-
cle is started.
To switch from petrol to LPG
Press control C. The vehicle will switch
to LPG the next time the accelerator
pedal is pressed.
The LPG fuel level A is activated. The
yellow warning light B goes out and the
green warning light D flashes quickly,
then stops flashing to confirm that LPG
has been selected.
To switch from LPG to petrol.
Release the accelerator pedal and
press the control C.
Petrol mode is indicated by the yellow
warning light B.
Automatic switch to petrol
The system automatically switches to
petrol mode if there is no more LPG
remaining in the tank. You will be in-
formed by:
– the green D and yellow B warning
lights coming on;
– a beep sounds.Pressing control C stops the beep from
sounding and only the yellow warning
light B stays on.
Depending on the vehicle, under cer-
tain conditions of use, the system may
opt to temporarily switch back to petrol
mode without any beep sounding (ex-
ample: strong acceleration). Once the
suitable conditions are present once
again, it will automatically switch back
to LPG mode. After several failed at-
tempts, the system may decide to stay
in petrol mode. You can then retry the
switch to LPG mode after a few miles
by pressing the button C.
Operating fault
In the event of a fault which may affect
the correct operation of the engine, the
system automatically switches from
LPG to petrol mode.
This is confirmed by:
– the appearance of the yellow warn-
ing light B;
– slow flashing of the green warning
light D;
– a beep sounds.
DCB
A
C

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
2.12
ENG_UD38217_2
Particularités des versions GPL (X92 - Dacia) ENG_NU_975-8_X92_Dacia_2
SPECIAL FEATURES OF LPG VERSIONS (3/3)
If driving under severe
conditions
If driving under severe conditions
(heavily laden vehicle, high outside
temperature, starting on a steep slope,
etc), you are recommended to switch to
petrol mode.
At temperatures close to 0°C or less, it
is recommended to use ECO mode to
maximise the use of LPG. Please refer
to the information on “Driving advice,
Eco-driving” in Section 2.
In the event of an accident
The main precautions to be taken are
the same as with petrol vehicles:
– apply the handbrake;
– stop the engine (a safety device that
stops LPG from entering the engine
is automatically triggered);
– switch off the ignition;
– observe local regulations.
LPG has a very specific
smell so you will be able to
detect any leaks easily. If
you smell gas in your vehi-
cle or immediately surrounding your
vehicle:
– switch to petrol mode immedi-
ately and make sure there are no
flames or sources of fire near the
vehicle;
– go to an authorised dealer.
Do not touch, hit or dis-
mantle any part of the LPG
system components.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
2.13
ENG_UD36360_3
Conseils de conduite, Eco conduite (X92 - X67 - Dacia) ENG_NU_975-8_X92_Dacia_2
Gear change indicator 1To obtain optimum consumption levels,
a warning light on the instrument panel
lets you know the best time to move up
or down a gear:
Š move up a gear;
‰ move down a gear.
DRIVING ADVICE, ECO-DRIVING (1/4)
Fuel consumption is accredited in ac-
cordance with a standard regulatory
method. Identical for all manufactur-
ers, this enables vehicles to be com-
pared with one another. Consumption
in real time depends on vehicle usage
conditions, the equipment fitted and the
user’s driving style. To optimise fuel
consumption, please refer to the follow-
ing advice.
Depending on the vehicle, you will have
various functions which enable you to
lower your fuel consumption:
– the rev counter;
– gear change indicator;
– ECO mode activated by button ECO.
1

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
2.14
ENG_UD36360_3
Conseils de conduite, Eco conduite (X92 - X67 - Dacia) ENG_NU_975-8_X92_Dacia_2

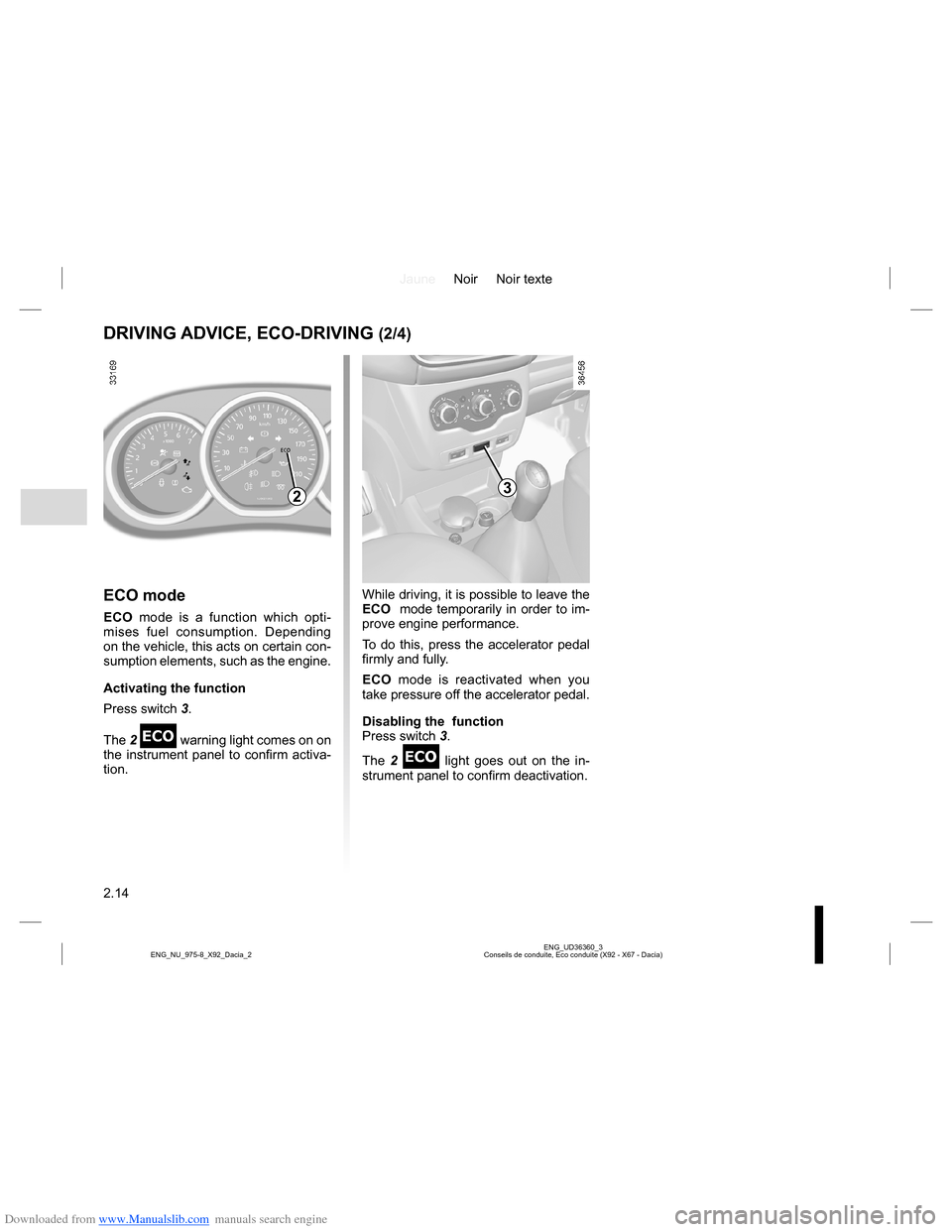

DRIVING ADVICE, ECO-DRIVING (2/4)
ECO mode
ECO mode is a function which opti-
mises fuel consumption. Depending
on the vehicle, this acts on certain con-
sumption elements, such as the engine.
Activating the function
Press switch 3.
The 2
 warning light comes on on
the instrument panel to confirm activa-
tion.While driving, it is possible to leave the
ECO mode temporarily in order to im-
prove engine performance.
To do this, press the accelerator pedal
firmly and fully.
ECO mode is reactivated when you
take pressure off the accelerator pedal.
Disabling the function
Press switch 3.
The 2
 light goes out on the in-
strument panel to confirm deactivation.
32

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
2.15
ENG_UD36360_3
Conseils de conduite, Eco conduite (X92 - X67 - Dacia) ENG_NU_975-8_X92_Dacia_2

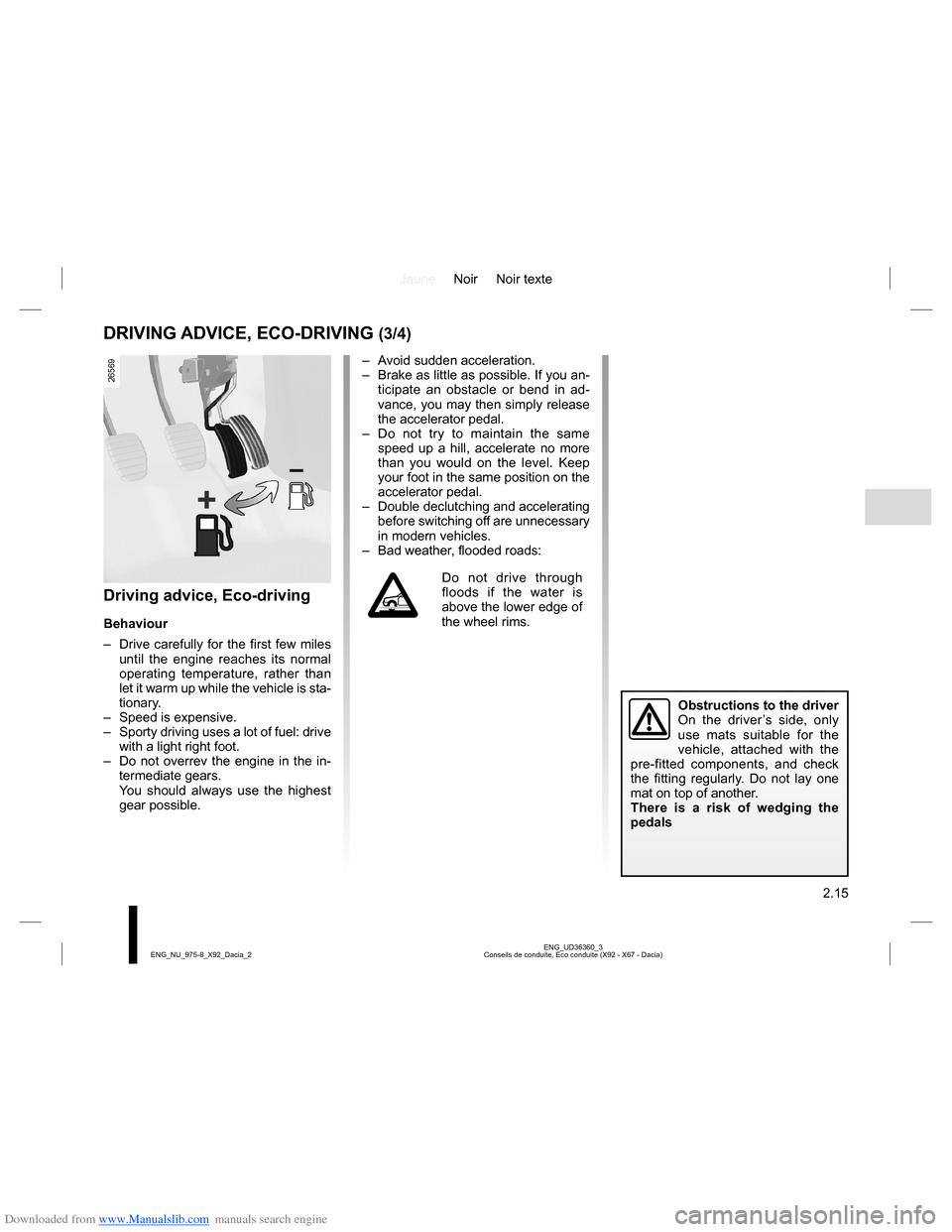

DRIVING ADVICE, ECO-DRIVING (3/4)
Driving advice, Eco-driving
Behaviour
– Drive carefully for the first few miles
until the engine reaches its normal
operating temperature, rather than
let it warm up while the vehicle is sta-
tionary.
– Speed is expensive.
– Sporty driving uses a lot of fuel: drive
with a light right foot.
– Do not overrev the engine in the in-
termediate gears.
You should always use the highest
gear possible.
– Avoid sudden acceleration.
– Brake as little as possible. If you an-
ticipate an obstacle or bend in ad-
vance, you may then simply release
the accelerator pedal.
– Do not try to maintain the same
speed up a hill, accelerate no more
than you would on the level. Keep
your foot in the same position on the
accelerator pedal.
– Double declutching and accelerating
before switching off are unnecessary
in modern vehicles.
– Bad weather, flooded roads:
Do not drive through
floods if the water is
above the lower edge of
the wheel rims.
Obstructions to the driver
On the driver’s side, only
use mats suitable for the
vehicle, attached with the
pre-fitted components, and check
the fitting regularly. Do not lay one
mat on top of another.
There is a risk of wedging the
pedals

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
2.16
ENG_UD36360_3
Conseils de conduite, Eco conduite (X92 - X67 - Dacia) ENG_NU_975-8_X92_Dacia_2

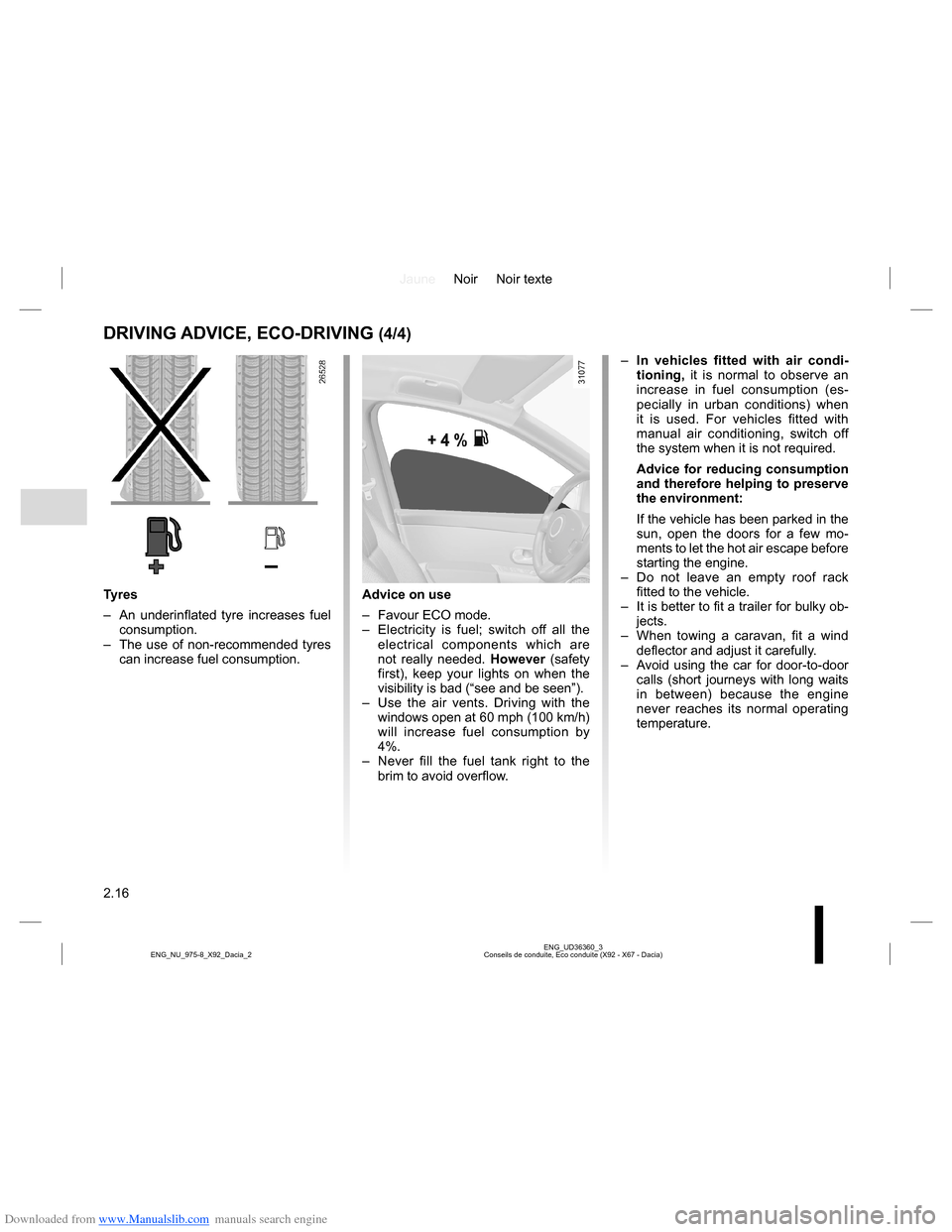

DRIVING ADVICE, ECO-DRIVING (4/4)
Tyres
– An underinflated tyre increases fuel
consumption.
– The use of non-recommended tyres
can increase fuel consumption.Advice on use
– Favour ECO mode.
– Electricity is fuel; switch off all the
electrical components which are
not really needed. However (safety
first), keep your lights on when the
visibility is bad (“see and be seen”).
– Use the air vents. Driving with the
windows open at 60 mph (100 km/h)
will increase fuel consumption by
4%.
– Never fill the fuel tank right to the
brim to avoid overflow.– In vehicles fitted with air condi-
tioning, it is normal to observe an
increase in fuel consumption (es-
pecially in urban conditions) when
it is used. For vehicles fitted with
manual air conditioning, switch off
the system when it is not required.
Advice for reducing consumption
and therefore helping to preserve
the environment:
If the vehicle has been parked in the
sun, open the doors for a few mo-
ments to let the hot air escape before
starting the engine.
– Do not leave an empty roof rack
fitted to the vehicle.
– It is better to fit a trailer for bulky ob-
jects.
– When towing a caravan, fit a wind
deflector and adjust it carefully.
– Avoid using the car for door-to-door
calls (short journeys with long waits
in between) because the engine
never reaches its normal operating
temperature.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
2.17
ENG_UD38086_4
Conseils entretien et antipollution (X91 - B91 - K91 - D91 - X95 - E95 - J95 - R95 - H79 - X67 - X92 - X98 - X52 - X87 - H79 Ph2 - X07 - JFC - HFE - Renault) ENG_NU_975-8_X92_Dacia_2
MAINTENANCE AND ANTIPOLLUTION ADVICE
Your vehicle complies with criteria for
recycling and recovering vehicles at the
end of their service life which will come
into force in 2015.
Some parts of your vehicle have there-
fore been designed to facilitate future
recycling.
These parts are easy to remove so
that they can be recovered and reproc-
essed by recycling companies.
By virtue of its design, moderate fuel
consumption and initial settings, your
vehicle also conforms to current anti-
pollution regulations. The manufac-
turer is actively striving to reduce pol-
lutant exhaust gas emissions and to
save energy. But the fuel consumption
of your vehicle and the level of pollutant
exhaust gas emissions are also your
responsibility. Ensure that it is main-
tained and used correctly.
Maintenance
It is important to remember that fail-
ure to respect anti-pollution regulations
could lead to legal action being taken
against the vehicle owner.In addition, replacing engine, fuel
supply system and exhaust compo-
nents with parts other than those origi-
nally recommended by the manufac-
turer may alter your vehicle so that it
no longer complies with anti-pollution
regulations.
Have your vehicle adjusted and
checked by an authorised dealer, in ac-
cordance with the instructions given in
your maintenance schedule: they will
have all the equipment necessary for
ensuring that your vehicle is maintained
to its original standard.
Engine adjustments
– Spark plugs: for optimum condi-
tions of use, output and performance
the specifications laid down by our
Design Department must be strictly
applied.
If the spark plugs have to be changed,
use the make, type and gap specified
for your vehicle’s engine. Contact an
authorised dealer for this.
– Air filter, fuel filter: a choked ele-
ment will reduce efficiency. It must
be replaced.
– Ignition and idle speed: no adjust-
ment is needed.
Exhaust gas monitoring
system
The exhaust gas monitoring system will
detect any operating faults in the vehi-
cle’s antipollution system.
If this system malfunctions, toxic sub-
stances may be released into the at-
mosphere or damage may occur.
ÄThis warning light on the in-
strument panel will indicate if
there are any faults in the system:
This lights up when the ignition is
switched on and goes out when the
engine is started.
– If it lights up continuously, consult an
approved Dealer as soon as possi-
ble;
– if it flashes, reduce the engine speed
until the light stops flashing. Contact
an authorised dealer as soon as pos-
sible.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
2.18
ENG_UD34481_2
Environnement (sans marque) (X35 - X44 - X45 - X77 - X81 - X85 - X90 - X91 - X83 - X61 - TEST - X95 - L90 Ph2 - F90 Ph2 - R90 Ph2 - X33 - X47 - X43 - X38 - H79 - ENG_NU_975-8_X92_Dacia_2
ENVIRONMENT
Emissions
Your vehicle has been designed to emit
fewer greenhouse gases (CO2) while in
use, and therefore to consume less fuel
(eg. 140 g/km, equivalent to 5.3 l/100
km for a diesel vehicle).
Our vehicles are also equipped with a
particle filter system including a cata-
lytic converter, an oxygen sensor and
an active carbon filter (the latter pre-
vents vapour from the fuel tank being
released into the open air).
For certain diesel vehicles, this system
also has a particle filter to reduce the
volume of soot particles emitted.
Please make your own
contribution towards
protecting the environment
too
– Worn parts replaced in the course of
routine vehicle maintenance (vehi-
cle battery, oil filter, air filter, batter-
ies, etc.) and oil containers (empty or
filled with used oil) must be disposed
of through specialist organisations.– At the end of the vehicle’s service
life, it should be sent to approved
centres to ensure that it is recycled.
– In all cases, comply with local legis-
lation.
Recycling
Your vehicle is 85% recyclable and
95% recoverable.
To achieve these objectives, many of
the vehicle components have been de-
signed to enable them to be recycled.
The materials and structures have
been carefully designed to allow these
components to be easily removed and
reprocessed by specialist companies.
In order to preserve raw material re-
sources, this vehicle incorporates nu-
merous parts made from recycled plas-
tics or renewable materials (vegetable
or animal-derived materials such as
cotton or wool). Your vehicle has been designed with
respect for the environment in mind for
its entire service life: during production,
use and at the end of its life.
This commitment is illustrated by the of
the manufacturer eco² signature.Manufacture
Your vehicle has been manufactured at
a factory which complies with a policy
to reduce the environmental impact
on the surrounding areas (reduction of
water and energy consumption, visual
and noise pollution, atmospheric emis-
sions and waste water; sorting and re-
using waste).

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
2.19
ENG_UD38215_3
Avertisseur de perte de pression des pneumatique (X92 - Dacia) ENG_NU_975-8_X92_Dacia_2
TYRE PRESSURE LOSS WARNING (1/3)
If fitted on the vehicle, while driving, this
system notifies the driver if one or more
tyres lose pressure.
Operating principle
Each wheel (except for the emergency
spare wheel) has a sensor in the infla-
tion valve which periodically measures
the tyre pressure while driving.
Warning light
 1 comes on to
alert the driver in the event of insuffi-
cient pressure (deflated wheel, punctu-
red tyre, etc.).
Resetting the standard level
for the tyre pressures
This should be done:
– when the standard tyre pressure
needs to be changed to adapt to
usage conditions (empty, carrying a
load, motorway driving, etc.);
– after swapping a wheel (however this
practice is not recommended);
– after changing a wheel.
It should always be done after checking
the tyre pressure of all four tyres when
cold.
Tyre pressures must correspond to the
current usage of the vehicle (empty,
carrying a load, motorway driving, etc.).
This function is an additio-
nal driving aid.
However, the function does
not take the place of the
driver. It cannot, therefore, under
any circumstances replace the vi-
gilance or the responsibility of the
driver.
Check the tyre pressures, including
the emergency spare wheel, once a
month.
1

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte

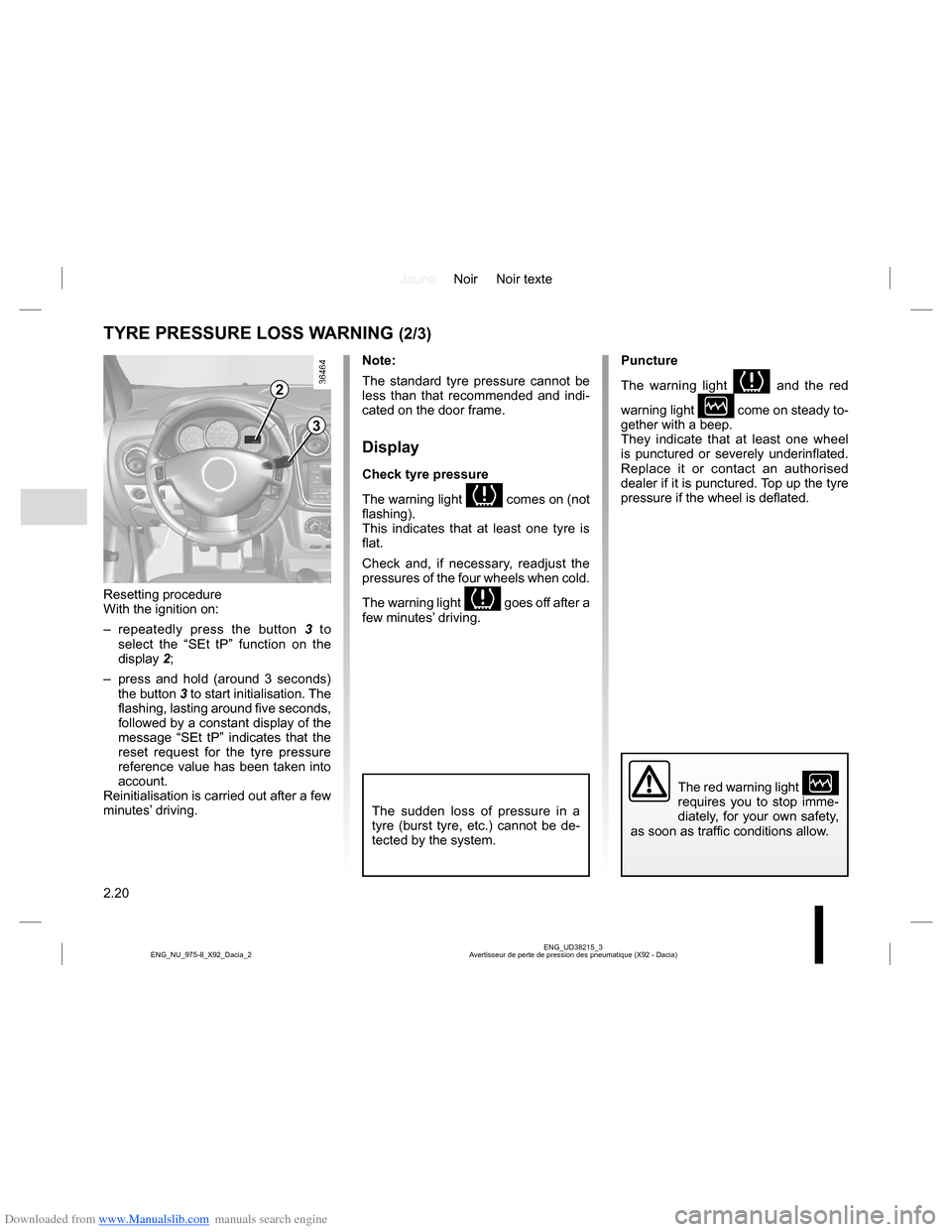

2.20
ENG_UD38215_3
Avertisseur de perte de pression des pneumatique (X92 - Dacia) ENG_NU_975-8_X92_Dacia_2
Note:
The standard tyre pressure cannot be
less than that recommended and indi-
cated on the door frame.
Display
Check tyre pressure
The warning light
 comes on (not
flashing).
This indicates that at least one tyre is
flat.
Check and, if necessary, readjust the
pressures of the four wheels when cold.
The warning light
 goes off after a
few minutes’ driving.
Puncture
The warning light
 and the red
warning light
Ò come on steady to-
gether with a beep.
They indicate that at least one wheel
is punctured or severely underinflated.
Replace it or contact an authorised
dealer if it is punctured. Top up the tyre
pressure if the wheel is deflated.
TYRE PRESSURE LOSS WARNING (2/3)
Resetting procedure
With the ignition on:
– repeatedly press the button 3 to
select the “SEt tP” function on the
display 2;
– press and hold (around 3 seconds)
the button 3 to start initialisation. The
flashing, lasting around five seconds,
followed by a constant display of the
message “SEt tP” indicates that the
reset request for the tyre pressure
reference value has been taken into
account.
Reinitialisation is carried out after a few
minutes’ driving.
The sudden loss of pressure in a
tyre (burst tyre, etc.) cannot be de-
tected by the system.
2
3
The red warning light Ò
requires you to stop imme-
diately, for your own safety,
as soon as traffic conditions allow.
