DACIA SANDERO 2013 2.G Owners Manual
Manufacturer: DACIA, Model Year: 2013, Model line: SANDERO, Model: DACIA SANDERO 2013 2.GPages: 146, PDF Size: 6.4 MB
Page 131 of 146
JauneNoirNoir texte
5.31
ENG_UD5616_1Anomalies de fonctionnement (B90 - Dacia)ENG_NU_817-2_NU_Dacia_5

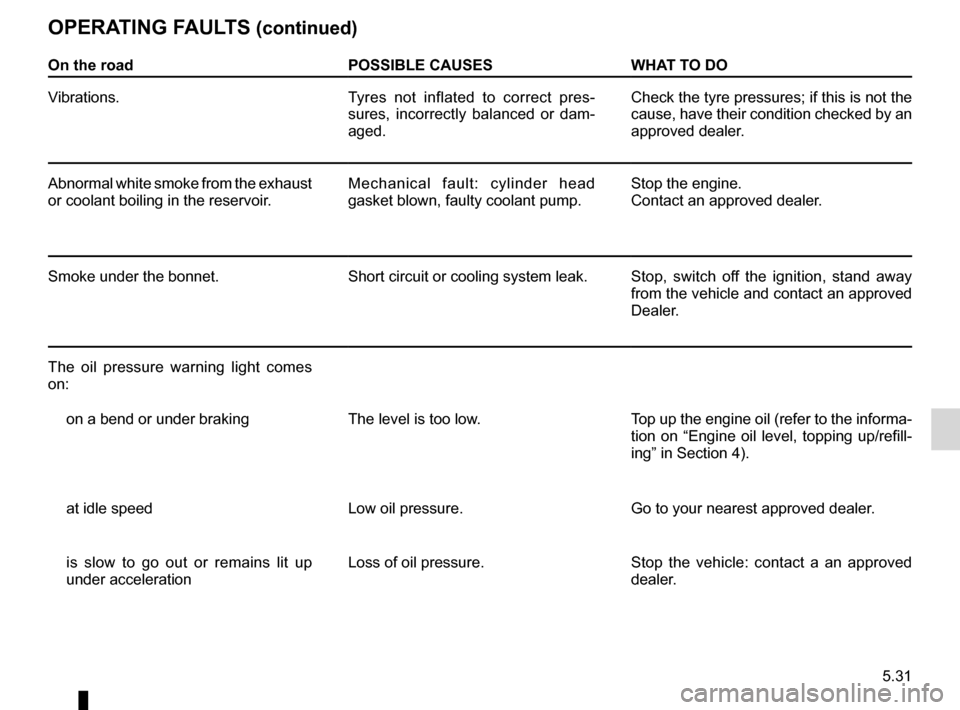

OPERATING FAULTS (continued)
On the roadPOSSIBLE CAUSESWHAT TO DO
Vibrations.Tyres not inflated to correct pres- sures, incorrectly balanced or dam- aged.
Check the tyre pressures; if this is not the cause, have their condition checked by an approved dealer.
Abnormal white smoke from the exhaust or coolant boiling in the reservoir.Mechanical fault: cylinder head gasket blown, faulty coolant pump.Stop the engine.Contact an approved dealer.
Smoke under the bonnet.Short circuit or cooling system leak.Stop, switch off the ignition, stand away from the vehicle and contact an approved Dealer.
The oil pressure warning light comes on:
on a bend or under brakingThe level is too low.Top up the engine oil (refer to the informa- tion on “Engine oil level, topping up/refill- ing” in Section 4).
at idle speedLow oil pressure.Go to your nearest approved dealer.
is slow to go out or remains lit up under accelerationLoss of oil pressure.Stop the vehicle: contact a an approved dealer.
Page 132 of 146
5.32
ENG_UD5616_1Anomalies de fonctionnement (B90 - Dacia)ENG_NU_817-2_NU_Dacia_5
JauneNoirNoir texte

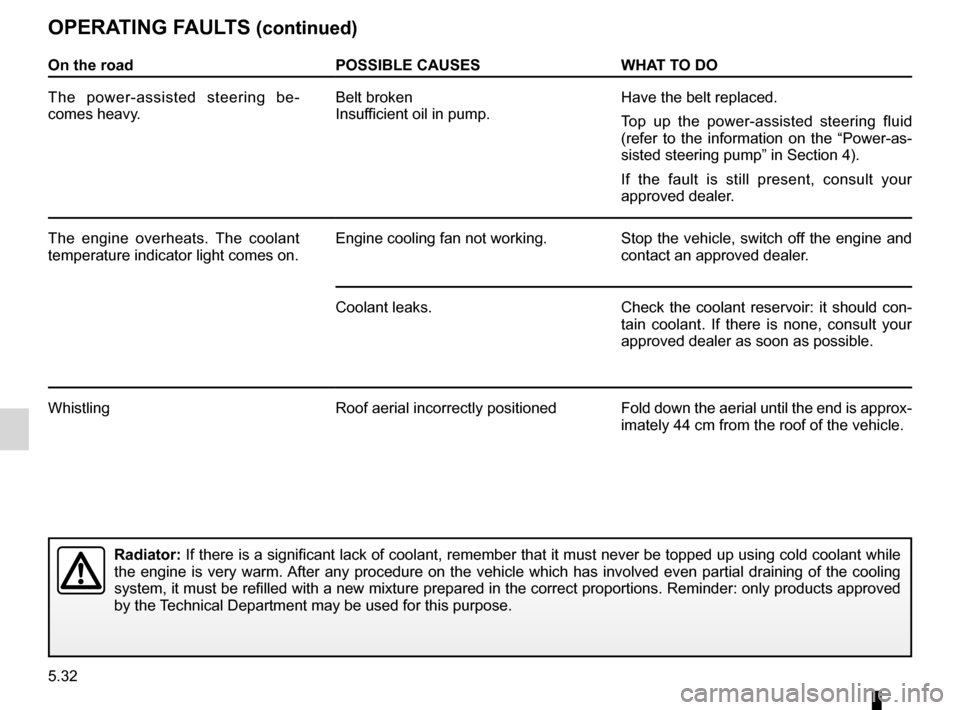

OPERATING FAULTS (continued)
On the roadPOSSIBLE CAUSESWHAT TO DO
The power-assisted steering be- comes heavy.Belt brokenInsufficient oil in pump.Have the belt replaced.
Top up the power-assisted steering fluid (refer to the information on the “Power-as- sisted steering pump” in Section 4).
If the fault is still present, consult your approved dealer.
The engine overheats. The coolant temperature indicator light comes on.Engine cooling fan not working.Stop the vehicle, switch off the engine and contact an approved dealer.
Coolant leaks.Check the coolant reservoir: it should con- tain coolant. If there is none, consult your approved dealer as soon as possible.
WhistlingRoof aerial incorrectly positionedFold down the aerial until the end is approx- imately 44 cm from the roof of the vehicle.
Radiator: If there is a significant lack of coolant, remember that it must never be topped up using cold coolant while the engine is very warm. After any procedure on the vehicle which has involved even partial draining of the cooling system, it must be refilled with a new mixture prepared in the correct proportions. Reminder: only products approved by the Technical Department may be used for this purpose.
Page 133 of 146
JauneNoirNoir texte
5.33
ENG_UD5616_1Anomalies de fonctionnement (B90 - Dacia)ENG_NU_817-2_NU_Dacia_5

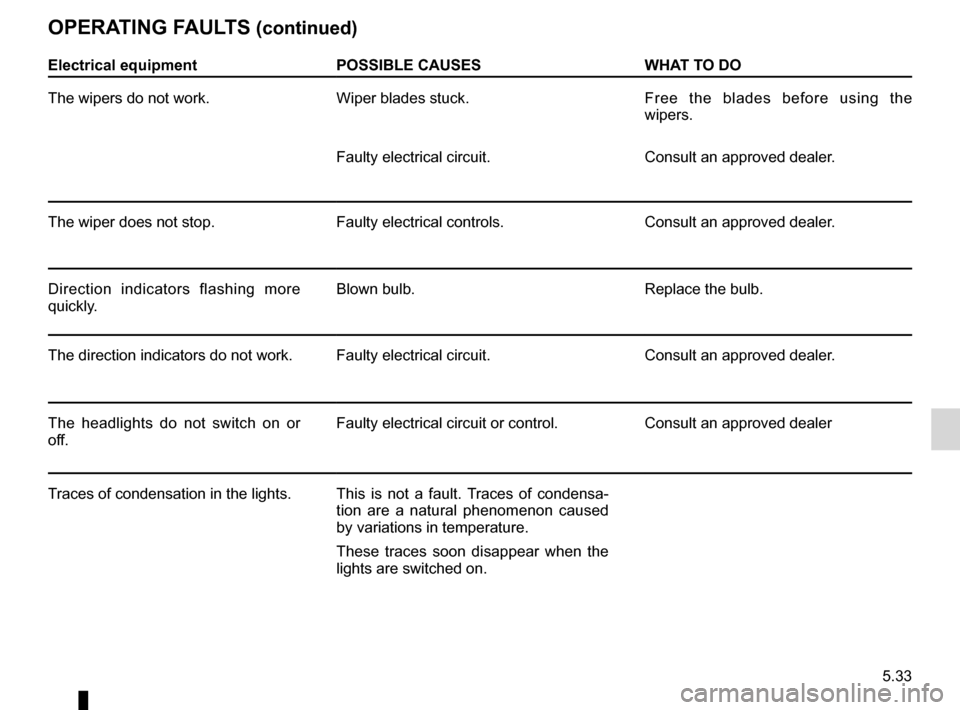

OPERATING FAULTS (continued)
Electrical equipmentPOSSIBLE CAUSESWHAT TO DO
The wipers do not work.Wiper blades stuck.Free the blades before using the wipers.
Faulty electrical circuit.Consult an approved dealer.
The wiper does not stop.Faulty electrical controls.Consult an approved dealer.
Direction indicators flashing more quickly.Blown bulb.Replace the bulb.
The direction indicators do not work. Faulty electrical circuit.Consult an approved dealer.
The headlights do not switch on or off.Faulty electrical circuit or control.Consult an approved dealer
Traces of condensation in the lights.This is not a fault. Traces of condensa- tion are a natural phenomenon caused by variations in temperature.
These traces soon disappear when the lights are switched on.
Page 134 of 146
5.34
ENG_UD5577_1Filler NU (B90 - Dacia)ENG_NU_817-2_NU_Dacia_5
Page 135 of 146
6.1
ENG_UD8709_2Sommaire 6 (B90 - Dacia)ENG_NU_817-2_NU_Dacia_6

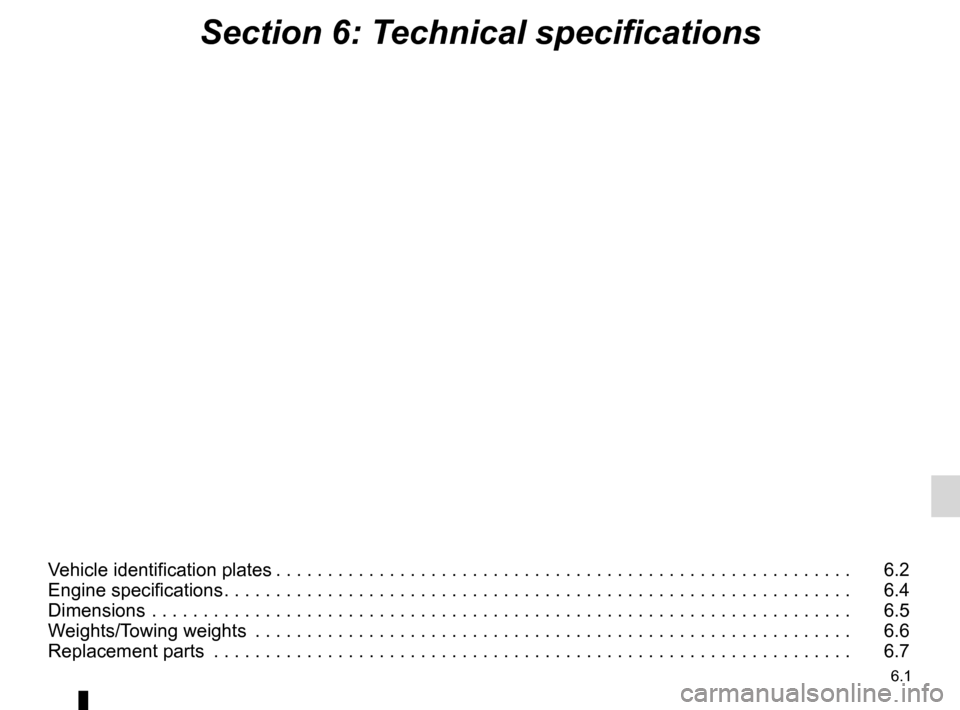

Section 6: Technical specifications
Vehicle identification plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . 6.2
Engine specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . 6.4
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.5
Weights/Towing weights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . 6.6
Replacement parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . 6.7
Page 136 of 146
technical specifications .........................(up to the end of the DU)vehicle identification .............................(up to the end of the DU)paintworkreference ..........................................................(current page)vehicle identification plates ...................(up to the end of the DU)
6.2
ENG_UD5618_1Plaques identification (B90 - Dacia)ENG_NU_817-2_NU_Dacia_6
JauneNoirNoir texte
Plaques d’identification

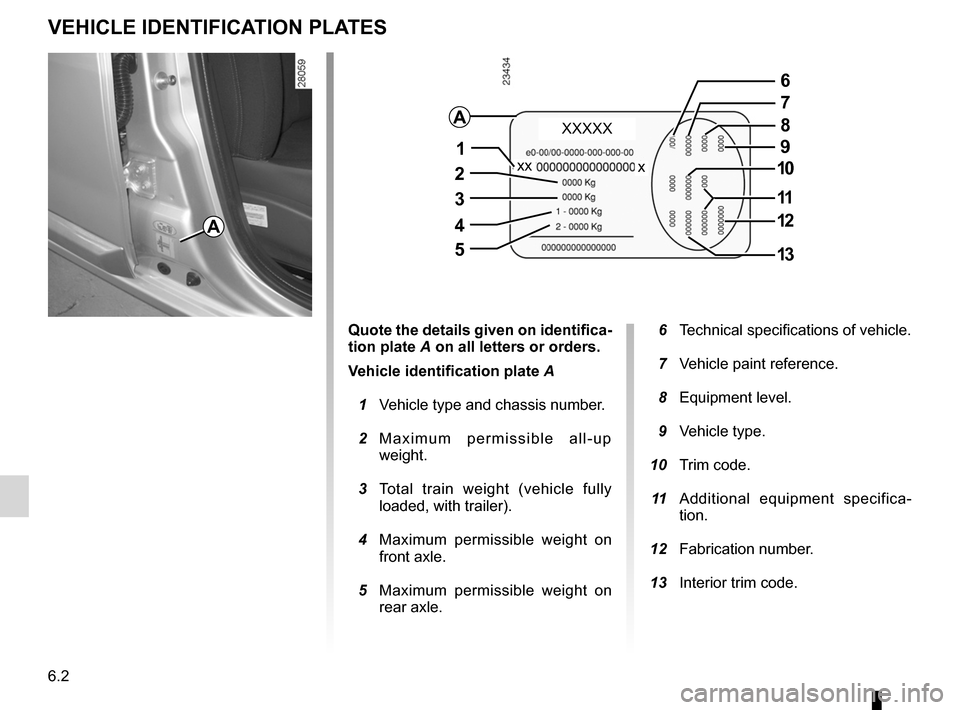

VEHICLE IDENTIFICATION PLATES
Quote the details given on identifica- tion plate A on all letters or orders.
Vehicle identification plate A
1 Vehicle type and chassis number.
2 M a x i m u m p e r m i s s i b l e a l l - u p weight.
3 Total train weight (vehicle fully loaded, with trailer).
4 Maximum permissible weight on front axle.
5 Maximum permissible weight on rear axle.
6 Technical specifications of vehicle.
7 Vehicle paint reference.
8 Equipment level.
9 Vehicle type.
10 Trim code.
11 Additional equipment specifica- tion.
12 Fabrication number.
13 Interior trim code.
A
6
7
8
9
10
11
12
13
XXXXX
xxx1
2
3
4
5
A
Page 137 of 146
JauneNoirNoir texte
6.3
ENG_UD5618_1Plaques identification (B90 - Dacia)ENG_NU_817-2_NU_Dacia_6

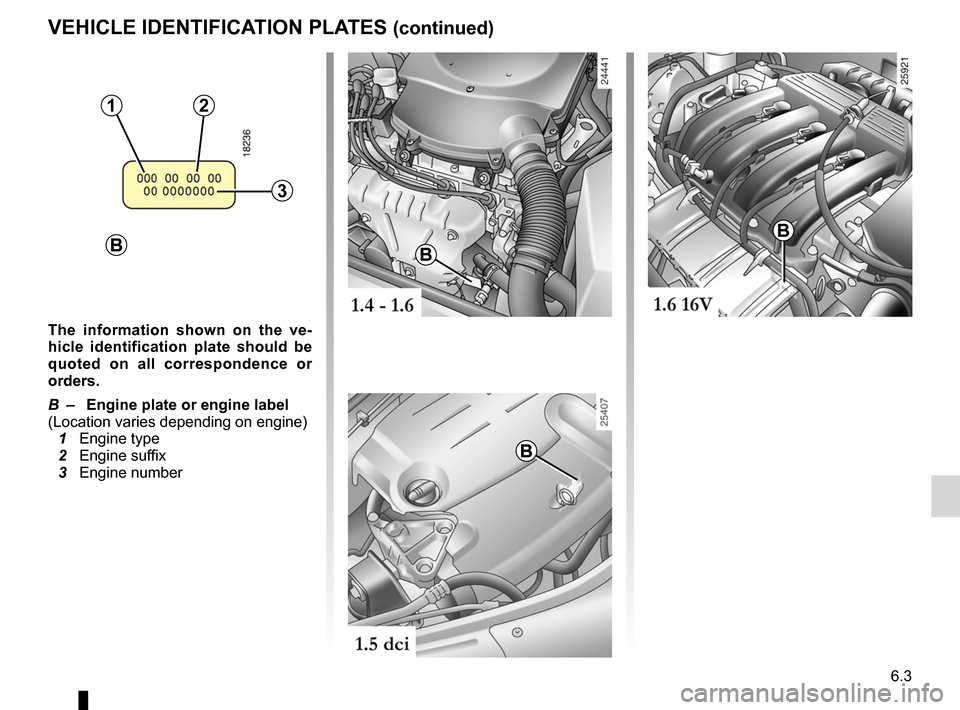

VEHICLE IDENTIFICATION PLATES (continued)
The information shown on the ve- hicle identification plate should be quoted on all correspondence or orders.
B – Engine plate or engine label(Location varies depending on engine) 1 Engine type 2 Engine suffix 3 Engine number
B
3
21
B
B
B
Page 138 of 146
engine specifications ............................(up to the end of the DU)technical specifications .........................(up to the end of the DU)fuelgrade ...............................................(up to the end of the DU)enginetechnical specifications ...................(up to the end of the DU)
6.4
ENG_UD5619_1Caractéristiques moteur (B90 - Dacia)ENG_NU_817-2_NU_Dacia_6
Caractéristiques moteurs

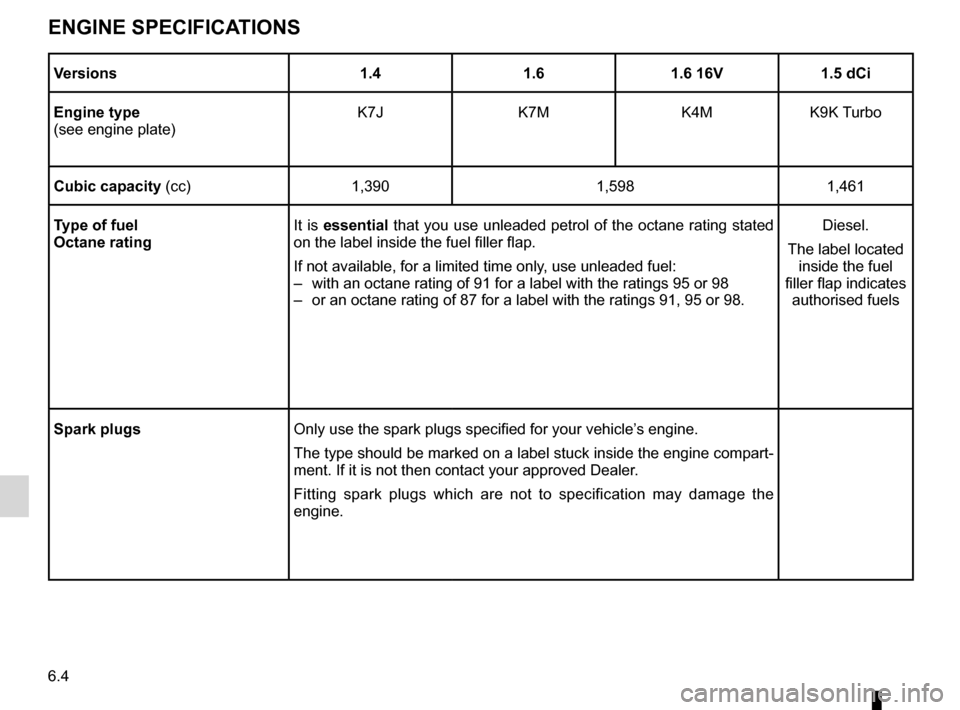

ENGINE SPECIFICATIONS
Versions1.41.61.6 16V1.5 dCi
Engine type(see engine plate)K7JK7MK4MK9K Turbo
Cubic capacity (cc)1,3901,5981,461
Type of fuelOctane ratingIt is essential that you use unleaded petrol of the octane rating stated on the label inside the fuel filler flap.
If not available, for a limited time only, use unleaded fuel:
– with an octane rating of 91 for a label with the ratings 95 or 98
– or an octane rating of 87 for a label with the ratings 91, 95 or 98.
Diesel.
The label located inside the fuel filler flap indicates authorised fuels
Spark plugsOnly use the spark plugs specified for your vehicle’s engine.
The type should be marked on a label stuck inside the engine compart- ment. If it is not then contact your approved Dealer.
Fitting spark plugs which are not to specification may damage the engine.
Page 139 of 146
technical specifications .........................(up to the end of the DU)dimensions ...........................................(up to the end of the DU)
6.5
ENG_UD5620_1Dimensions (en mètres) (B90 - Dacia)ENG_NU_817-2_NU_Dacia_6
Dimensions
1.470
1.480
1.746
1.534*
0.7812.5890.650
4.020
* unladen

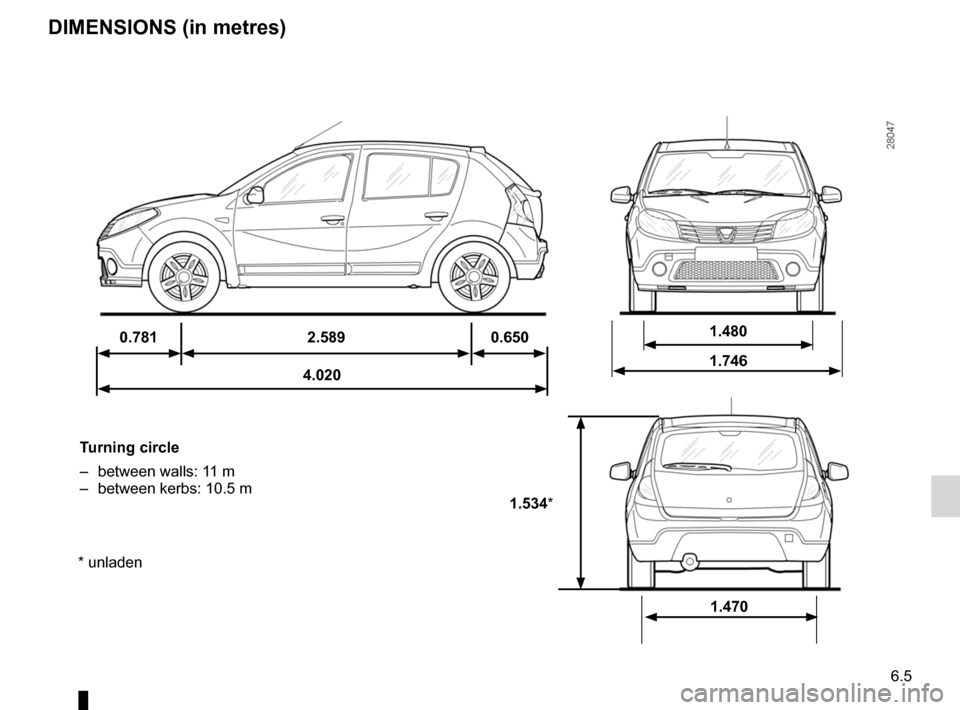

DIMENSIONS (in metres)
Turning circle
– between walls: 11 m
– between kerbs: 10.5 m
Page 140 of 146
technical specifications .........................(up to the end of the DU)weight ...................................................(up to the end of the DU)towing ...................................................(up to the end of the DU)towing a caravan ...................................................(current page)towing weights .......................................................(current page)weights ..................................................................(current page)
6.6
ENG_UD5621_1Masses (en kg) (B90 - Dacia)ENG_NU_817-2_NU_Dacia_6
Masses/Charges remorquables

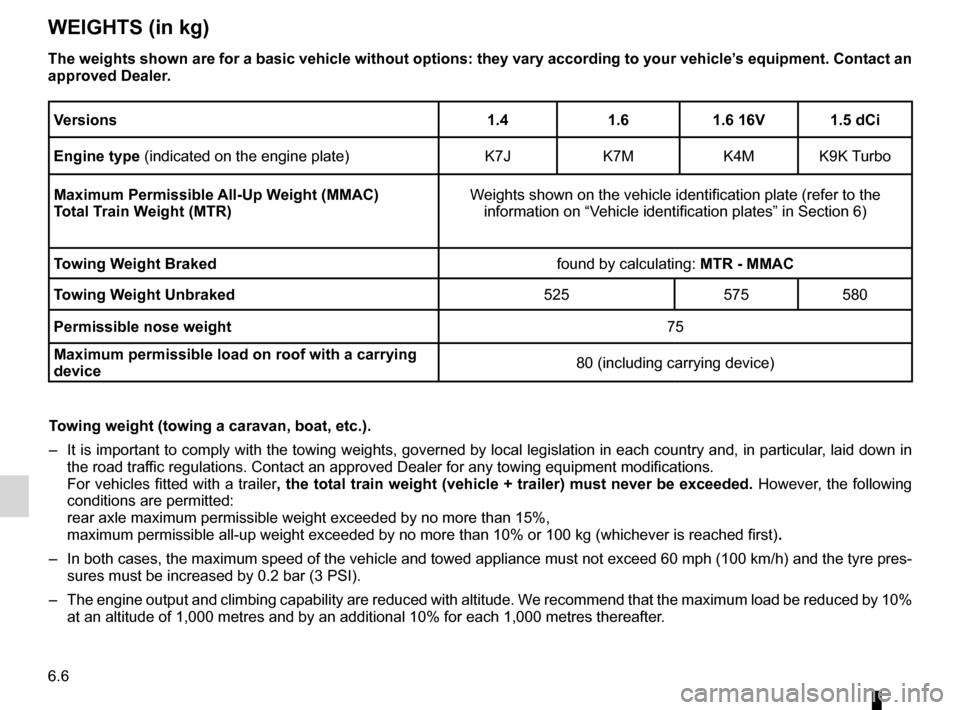

WEIGHTS (in kg)
Versions1.41.61.6 16V1.5 dCi
Engine type (indicated on the engine plate)K7JK7MK4MK9K Turbo
Maximum Permissible All-Up Weight (MMAC)Total Train Weight (MTR)Weights shown on the vehicle identification plate (refer to the information on “Vehicle identification plates” in Section 6)
Towing Weight Brakedfound by calculating: MTR - MMAC
Towing Weight Unbraked525575580
Permissible nose weight75
Maximum permissible load on roof with a carrying device80 (including carrying device)
Towing weight (towing a caravan, boat, etc.).
– It is important to comply with the towing weights, governed by local legislation in each country and, in particular, laid down in
the road traffic regulations. Contact an approved Dealer for any towing equipment mod\
ifications. For vehicles fitted with a trailer, the total train weight (vehicle + trailer) must never be exceeded. However, the following conditions are permitted:rear axle maximum permissible weight exceeded by no more than 15%,maximum permissible all-up weight exceeded by no more than 10% or 100 kg\
(whichever is reached first).
– In both cases, the maximum speed of the vehicle and towed appliance must not exceed 60 mph (100 km/h) and the tyre pres
- sures must be increased by 0.2 bar (3 PSI).
– The engine output and climbing capability are reduced with altitude. We recommend that the maximum load be reduced by 10%
at an altitude of 1,000 metres and by an additional 10% for each 1,000 m\
etres thereafter.
The weights shown are for a basic vehicle without options: they vary according to your vehicle’s equipment. Contact an approved Dealer.
