engine immobiliser................................(up to the end of the DU)engine immobiliser................................(up to the end of the DU)
1.7
ENG_UD5545_1Système antidémarrage (B90 - Dacia)ENG_NU_817-2_NU_Dacia_1
Système antidémarrage

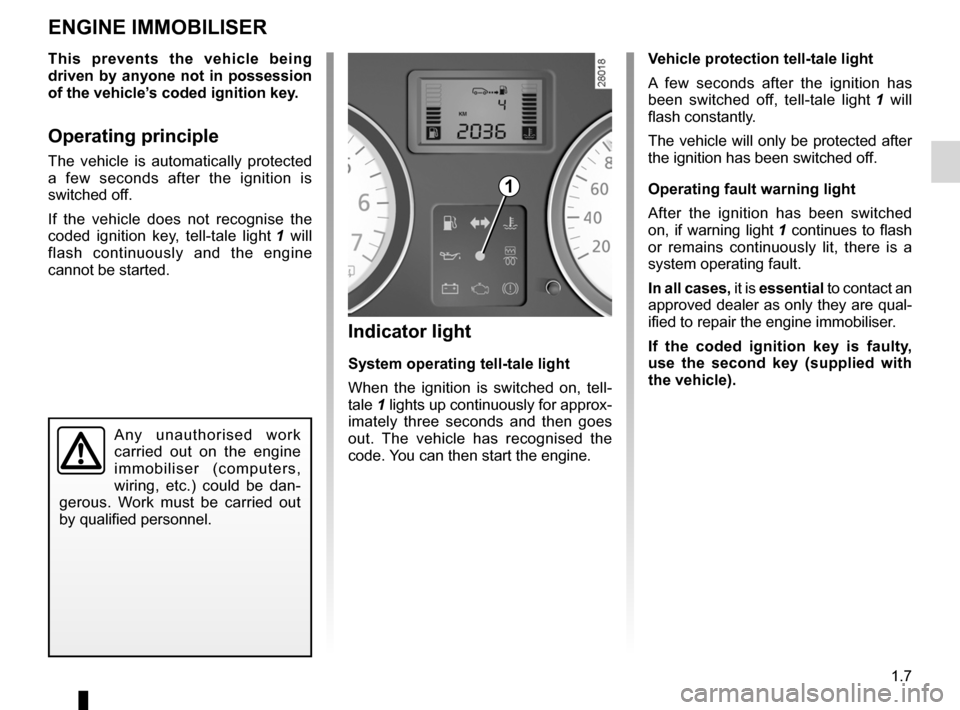

ENGINE IMMOBILISER
This prevents the vehicle being driven by anyone not in possession of the vehicle’s coded ignition key.
Operating principle
The vehicle is automatically protected a few seconds after the ignition is switched off.
If the vehicle does not recognise the
coded ignition key, tell-tale light 1 will flash continuously and the engine cannot be started.
Any unauthorised work carried out on the engine immobiliser (computers, wiring, etc.) could be dan- gerous. Work must be carried out by qualified personnel.
Indicator light
System operating tell-tale light
When the ignition is switched on, tell-
tale 1 lights up continuously for approx- imately three seconds and then goes out. The vehicle has recognised the code. You can then start the engine. v
ehicle protection tell-tale light
A few seconds after the ignition has
been switched off, tell-tale light 1 will flash constantly.
The vehicle will only be protected after the ignition has been switched off.
Operating fault warning light
After the ignition has been switched
on, if warning light 1 continues to flash or remains continuously lit, there is a system operating fault.
In all cases, it is essential to contact an approved dealer as only they are qual- ified to repair the engine immobiliser.
If the coded ignition key is faulty, use the second key (supplied with the vehicle).
1
Page 12 of 146
headrest................................................(up to the end of the DU)
1.8
ENG_UD8366_2Appuis-tête avant (B90 - L90 Ph2 - Dacia)ENG_NU_817-2_NU_Dacia_1
Headrests - Seats

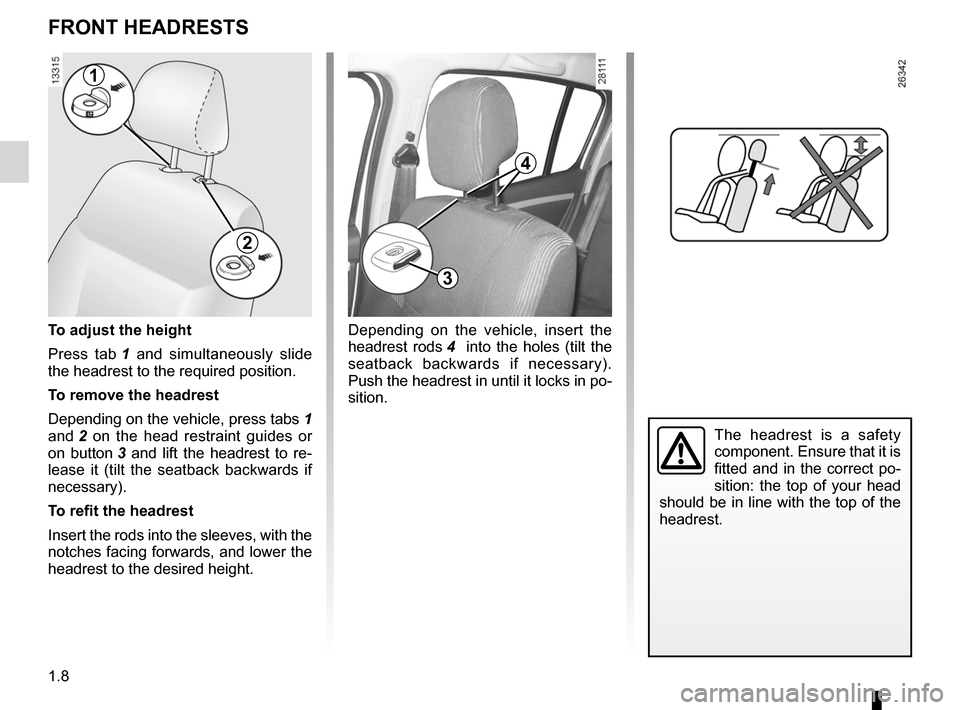

FRONT HEADRESTS
To adjust the height
Press tab
1 and simultaneously slide the headrest to the required position.
To remove the headrest
Depending on the vehicle, press tabs
1
and 2 on the head restraint guides or
on button 3 and lift the headrest to re- lease it (tilt the seatback backwards if necessary).
To refit the headrest
Insert the rods into the sleeves, with the notches facing forwards, and lower the headrest to the desired height.
The headrest is a safety component. Ensure that it is fitted and in the correct po- sition: the top of your head should be in line with the top of the headrest.
1
2
Depending on the vehicle, insert the
headrest rods 4 into the holes (tilt the seatback backwards if necessary). Push the headrest in until it locks in po- sition.
3
4
Page 13 of 146
headrest................................................(up to the end of the DU)adjusting your driving position ..............(up to the end of the DU)
1.9
ENG_UD6896_1Appuis-tête arrière (B90 - Dacia)ENG_NU_817-2_NU_Dacia_1

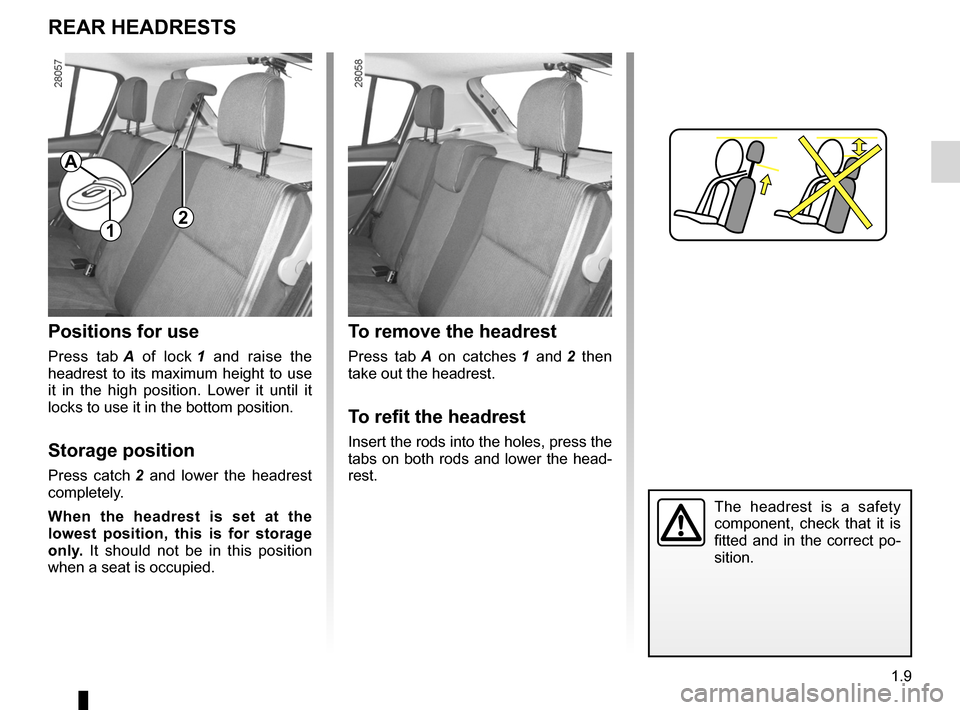

REAR HEADRESTS
Positions for use
Press tab A of lock 1 and raise the headrest to its maximum height to use it in the high position. Lower it until it locks to use it in the bottom position.
Storage position
Press catch 2 and lower the headrest completely.
when the headrest is set at the
lowest position, this is for storage only. It should not be in this position when a seat is occupied.
To remove the headrest
Press tab A on catches 1 and 2 then take out the headrest.
To refit the headrest
Insert the rods into the holes, press the tabs on both rods and lower the head- rest.
The headrest is a safety component, check that it is fitted and in the correct po- sition.
1
A
2
Page 14 of 146
front seat adjustment ............................(up to the end of the DU)front seatsadjustment ......................................(up to the end of the DU)
1.10
ENG_UD8376_2Sièges avant (B90 - Dacia)ENG_NU_817-2_NU_Dacia_1

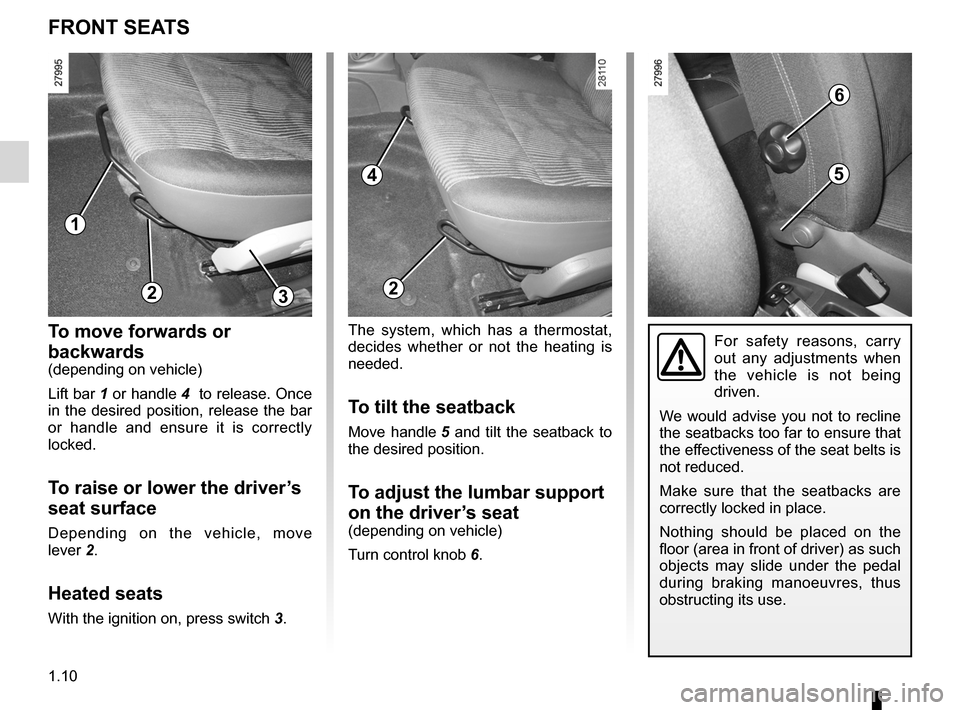

FRONT SEATS
To move forwards or
backwards(depending on vehicle)
Lift bar
1 or handle 4 to release. Once in the desired position, release the bar or handle and ensure it is correctly locked.
To raise or lower the driver’s
seat surface
Depending on the vehicle, move
lever 2.
Heated seats
With the ignition on, press switch 3.
For safety reasons, carry out any adjustments when the vehicle is not being driven.
We would advise you not to recline the seatbacks too far to ensure that the effectiveness of the seat belts is not reduced.
Make sure that the seatbacks are correctly locked in place.
Nothing should be placed on the floor (area in front of driver) as such objects may slide under the pedal during braking manoeuvres, thus obstructing its use.
1
23
The system, which has a thermostat, decides whether or not the heating is needed.
To tilt the seatback
Move handle 5 and tilt the seatback to the desired position.
To adjust the lumbar support
on the driver’s seat(depending on vehicle)
Turn control knob
6.
4
6
5
2
Page 15 of 146
adjusting your driving position ..............(up to the end of the DU)seat belts ..............................................(up to the end of the DU)
1.11
ENG_UD5460_1Ceintures de sécurité (U90 - Dacia)ENG_NU_817-2_NU_Dacia_1
Ceintures de sécurité

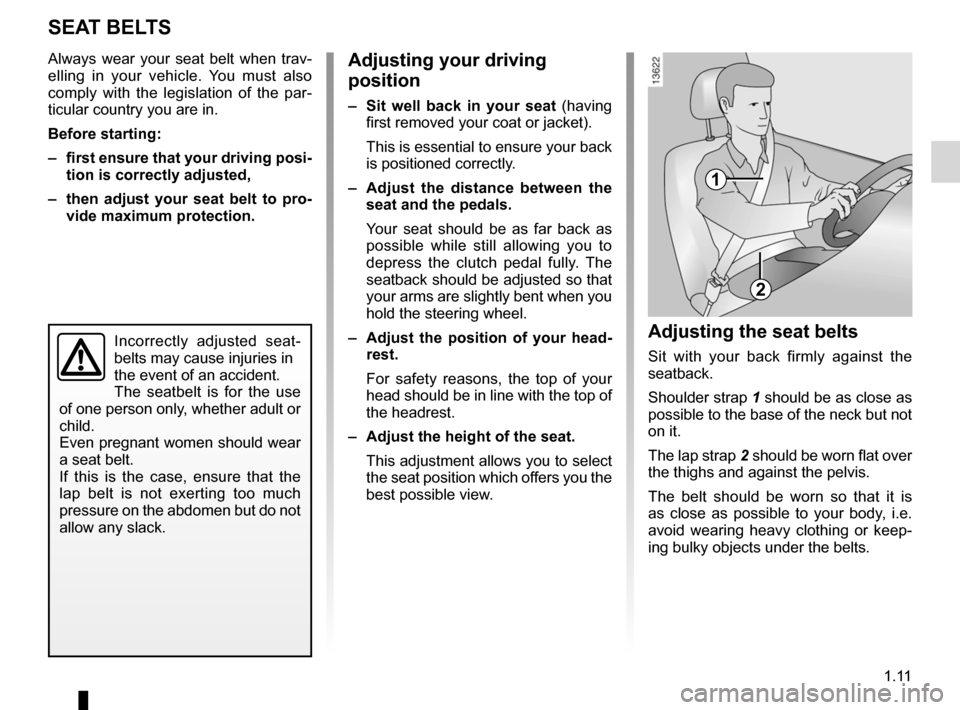

SEAT BELTS
Always wear your seat belt when trav- elling in your vehicle. You must also comply with the legislation of the par- ticular country you are in.
Before starting:
– first ensure that your driving posi
- tion is correctly adjusted,
– then adjust your seat belt to pro
- vide maximum protection.
Incorrectly adjusted seat- belts may cause injuries inthe event of an accident.The seatbelt is for the use of one person only, whether adult or child. Even pregnant women should wear a seat belt.If this is the case, ensure that the lap belt is not exerting too much pressure on the abdomen but do not allow any slack.
Adjusting your driving
position
– Sit well back in your seat (having first removed your coat or jacket).
This is essential to ensure your back is positioned correctly.
– Adjust the distance between the
seat and the pedals.
Your seat should be as far back as possible while still allowing you to depress the clutch pedal fully. The
seatback should be adjusted so that your arms are slightly bent when you hold the steering wheel.
– Adjust the position of your head
- rest.
For safety reasons, the top of your head should be in line with the top of the headrest.
– Adjust the height of the seat.
This adjustment allows you to select the seat position which offers you the best possible view.
Adjusting the seat belts
Sit with your back firmly against the seatback.
Shoulder strap
1 should be as close as possible to the base of the neck but not on it.
The lap strap
2 should be worn flat over the thighs and against the pelvis.
The belt should be worn so that it is as close as possible to your body, i.e. avoid wearing heavy clothing or keep- ing bulky objects under the belts.
1
2
Page 16 of 146
seat belts ..............................................(up to the end of the DU)adjusting your driving position ..............(up to the end of the DU)
1.12
ENG_UD8378_2Ceintures de sécurité avant (B90 - Dacia)ENG_NU_817-2_NU_Dacia_1

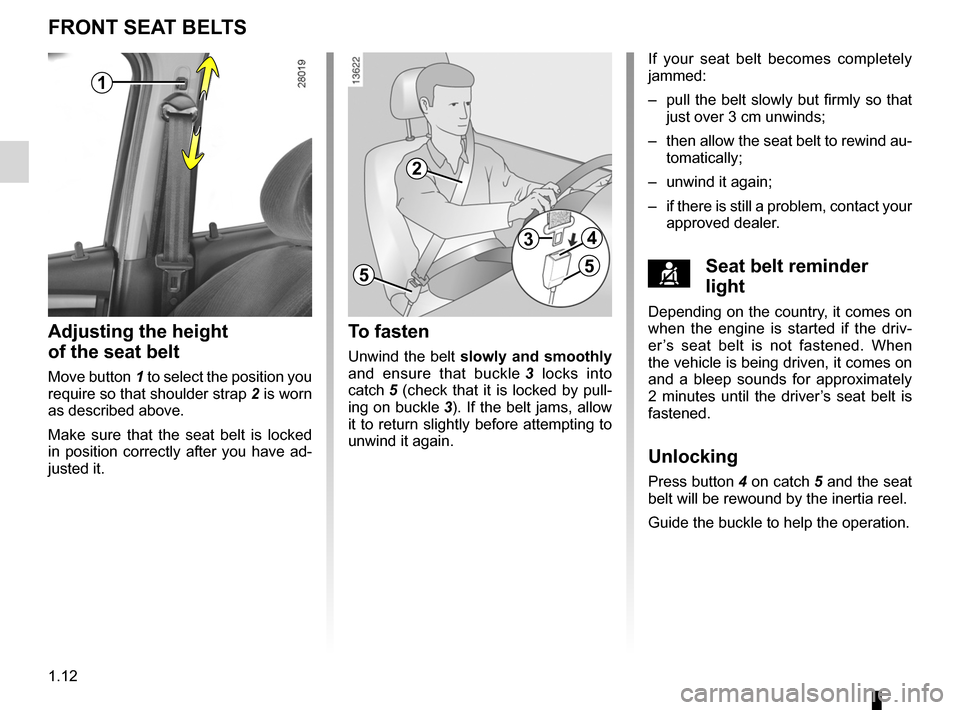

FRONT SEAT BELTS
If your seat belt becomes completely jammed:
– pull the belt slowly but firmly so that
just over 3 cm unwinds;
– then allow the seat belt to rewind au
- tomatically;
– unwind it again;
– if there is still a problem, contact your
approved dealer.
çSeat belt reminder
light
Depending on the country, it comes on when the engine is started if the driv- er ’s seat belt is not fastened. When the vehicle is being driven, it comes on and a bleep sounds for approximately 2 minutes until the driver’s seat belt is fastened.
Unlocking
Press button 4 on catch 5 and the seat belt will be rewound by the inertia reel.
Guide the buckle to help the operation.
Adjusting the height
of the seat belt
Move button 1 to select the position you
require so that shoulder strap 2 is worn as described above.
Make sure that the seat belt is locked in position correctly after you have ad- justed it.
3
2
5
4
5
To fasten
Unwind the belt slowly and smoothly
and ensure that buckle 3 locks into
catch 5 (check that it is locked by pull-
ing on buckle 3). If the belt jams, allow it to return slightly before attempting to unwind it again.
1
Page 17 of 146
seat belts ..............................................(up to the end of the DU)
1.13
ENG_UD5550_1Ceintures de sécurité arrière (B90 - Dacia)ENG_NU_817-2_NU_Dacia_1

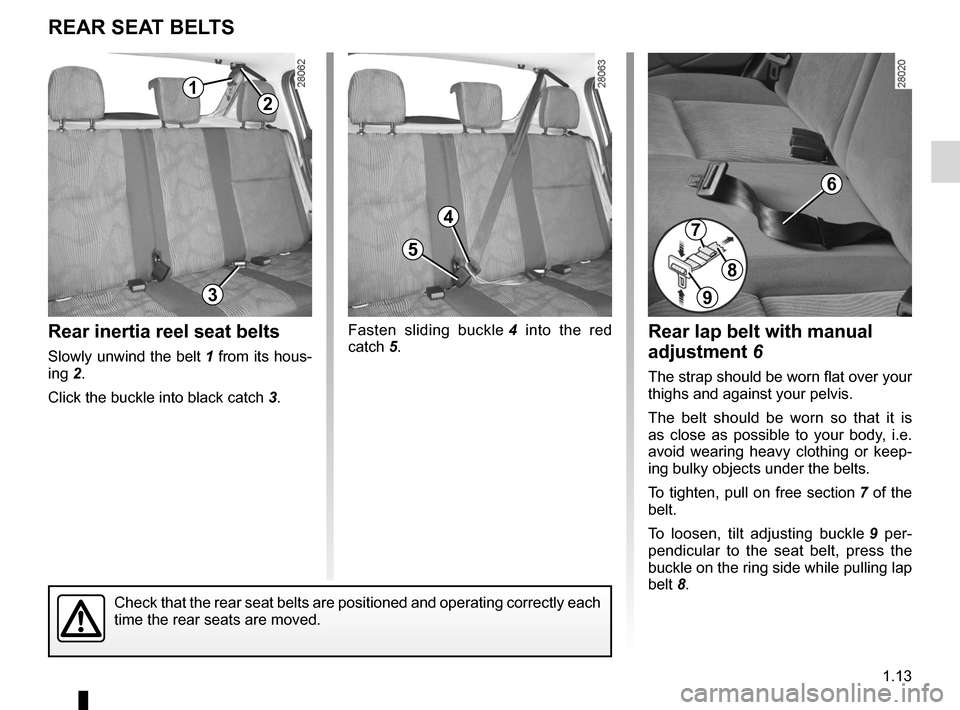

REAR SEAT BELTS
Rear inertia reel seat belts
Slowly unwind the belt 1 from its hous-
ing 2.
Click the buckle into black catch
3. Fasten sliding buckle
4 into the red
catch 5.Rear lap belt with manual
adjustment
6
The strap should be worn flat over your thighs and against your pelvis.
The belt should be worn so that it is as close as possible to your body, i.e. avoid wearing heavy clothing or keep- ing bulky objects under the belts.
To tighten, pull on free section
7 of the belt.
To loosen, tilt adjusting buckle
9 per- pendicular to the seat belt, press the buckle on the ring side while pulling lap
belt 8.
Check that the rear seat belts are positioned and operating correctly each time the rear seats are moved.
7
9
8
6
12
3
4
5
Page 18 of 146
seat belts ..............................................(up to the end of the DU)children .................................................(up to the end of the DU)
1.14
ENG_UD7651_2Ceintures de sécurité : avertissement (B90 - L90 Ph2 - Dacia)ENG_NU_817-2_NU_Dacia_1

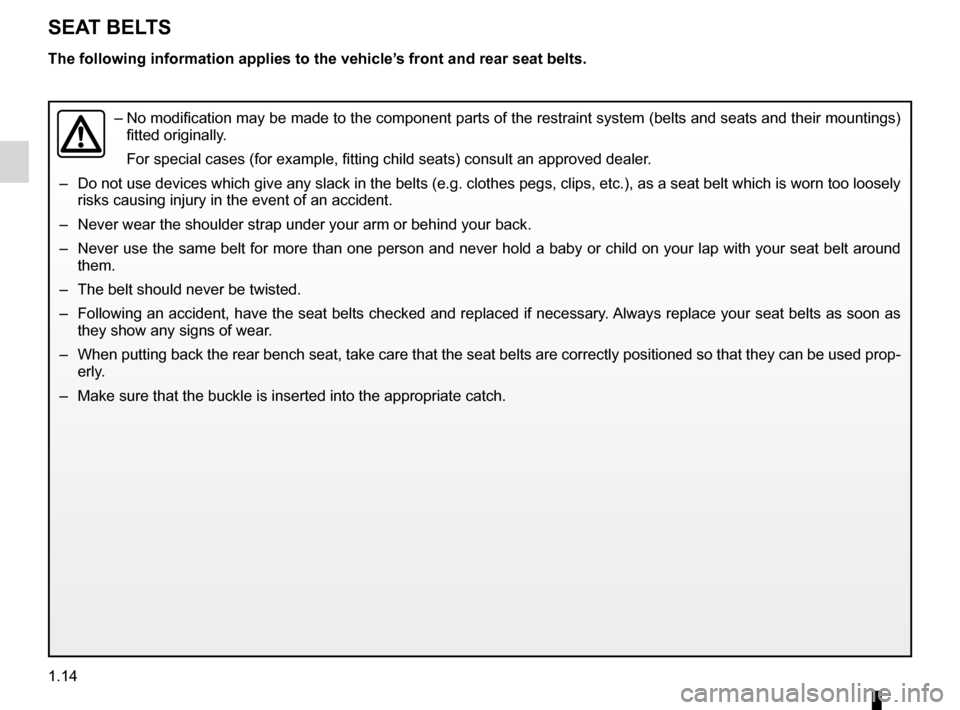

SEAT BELTS
The following information applies to the vehicle’s front and rear seat belts.
– No modification may be made to the component parts of the restraint system (belts and seats and their mountings) fitted originally.
For special cases (for example, fitting child seats) consult an approved dealer.
– Do not use devices which give any slack in the belts (e.g. clothes pegs, clips, etc.), as a seat belt which is worn too loosely
risks causing injury in the event of an accident.
– Never wear the shoulder strap under your arm or behind your back.
– Never use the same belt for more than one person and never hold a baby or child on your lap with your seat belt around
them.
– The belt should never be twisted.
– Following an accident, have the seat belts checked and replaced if necessary. Always replace your seat belts as soon as
they show any signs of wear.
– When putting back the rear bench seat, take care that the seat belts are correctly positioned so that they can be used prop
- erly.
– Make sure that the buckle is inserted into the appropriate catch.
Page 19 of 146
air bag...................................................(up to the end of the DU)seat belts ..............................................(up to the end of the DU)methods of restraint in addition to the front seat belts
(up to the end of the DU)
1.15
ENG_UD8379_3Dispositifs complémentaires à la ceinture avant (B90 - L90 Ph2 - \
Dacia)ENG_NU_817-2_NU_Dacia_1

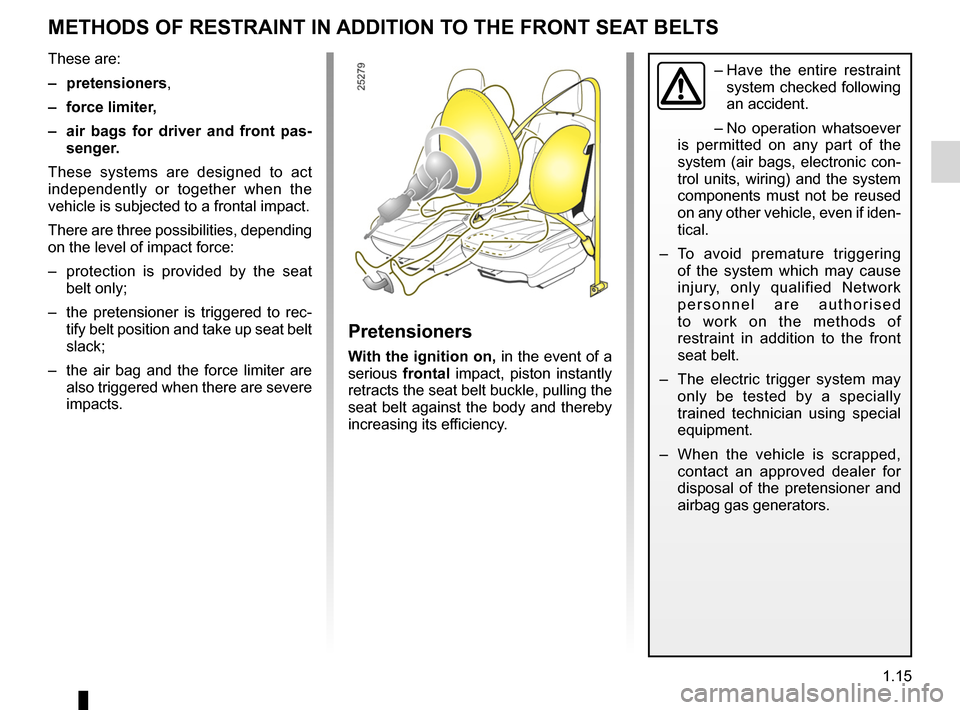

Methods of restraint in addition to the front seat belts
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS
These are:
– pretensioners
,
– force limiter,
– air bags for driver and front pas
- senger.
These systems are designed to act independently or together when the vehicle is subjected to a frontal impact.
There are three possibilities, depending on the level of impact force:
– protection is provided by the seat
belt only;
– the pretensioner is triggered to rec
- tify belt position and take up seat belt slack;
– the air bag and the force limiter are
also triggered when there are severe impacts.
– Have the entire restraint system checked following an accident.
– No operation whatsoever
is permitted on any part of the system (air bags, electronic con- trol units, wiring) and the system components must not be reused on any other vehicle, even if iden- tical.
– To avoid premature triggering
of the system which may cause injury, only qualified Network p e r s o n n e l a r e a u t h o r i s e d to work on the methods of restraint in addition to the front seat belt.
– The electric trigger system may
only be tested by a specially trained technician using special equipment.
– When the vehicle is scrapped,
contact an approved dealer for disposal of the pretensioner and airbag gas generators.
Pretensioners
with the ignition on, in the event of a serious frontal impact, piston instantly retracts the seat belt buckle, pulling the seat belt against the body and thereby increasing its efficiency.
Page 20 of 146
1.16
ENG_UD8379_3Dispositifs complémentaires à la ceinture avant (B90 - L90 Ph2 - \
Dacia)ENG_NU_817-2_NU_Dacia_1
JauneNoirNoir texte
METHODS OF RESTRAINT IN ADDITION TO THE FRONT SEAT BELTS (continued)
Driver’s and passenger
air bags
These may be provided for the driver and the front passenger seats.
The presence of this equipment is in- dicated by the words “Air bag” on the steering wheel and the dashboard, and a label on the base of the windscreen or on the sun visor.
Each air bag system consists of:
– an air bag and gas generator fitted
on the steering wheel for the driver and in the dashboard for the front passenger,
– a computer for both systems, which
includes the impact sensor and a monitor controlling the electrical trig- ger system for the gas generator;
– a single warning light
å on the instrument panel.
Load limiter
Above a certain level of impact force, this mechanism is used to limit the force of the belt against the body so that it is at an acceptable level.
The air bag system uses pyrotechnic principles. This explains why, when the air bag inflates, it will gener- ate heat, produce smoke (this does not mean that a fire is about to start) and make a noise upon detonation. An air bag may inflate immediately, causing some minor, superficial grazing to the skin or other discom-
fort.
