INSTRUMENT PANEL: warning lights (continued)
êEngine immobiliser system warning light
This light performs several functions.
Refer to the information on the “Engine immobiliser” in Section 1.
6
Electronic fault or preheat- ing warning light
Preheating warning light
This light should come on when the ig- nition key is in position M; it indicates that the heater plugs are in operation.
It goes out when preheating is complete and the engine can be started.
Electronic fault warning light
If it remains lit or comes on when you are driving, it indicates an electrical or electronic fault. Contact an approved Dealer as soon as possible.
ÚBattery charge warning light
It should go out as soon as the engine starts.
If it comes on when you are driving, it indicates that the circuit is overcharging or has discharged. Stop and contact an approved Dealer.
ÄToxic Fume Filter System
w arning Light
On equipped vehicles, the light comes on when the ignition is switched on then goes out.
– If it lights up continuously, consult
your approved Dealer as soon as possible.
– If it flashes, reduce the engine
speed until the light stops flashing. Contact an approved Dealer as soon as possible.
Refer to the information “Advice on antipollution, fuel economy and driving” in Section 2.
The presence and operation of the warning lights DEPEND ON THE EQUIPMENT\
AND COUNTRY.
ÔCoolant temperature warn- ing light
This goes out as soon as the engine starts. If it comes on when driving, it in- dicates an increase in coolant tempera- ture. Stop and let the engine idle for a minute or two; the temperature should fall. Otherwise, stop the engine, let it cool and check the coolant level.
If the level is normal, the indicator light is being lit by something else. Contact an approved Dealer.
ÀOil pressure warning light
It goes out as soon as the engine starts; if it lights up when you are driving, it is essential to stop and switch off the ignition. Check the oil level.
If the level is normal, the indicator light is being lit by something else. Contact an approved Dealer.
Page 42 of 146
rear screendemisting .........................................................(current page)
1.38
ENG_UD5559_1tableau de bord : Témoins lumineux (B90 - Dacia)ENG_NU_817-2_NU_Dacia_1
INSTRUMENT PANEL: warning lights (continued)
The presence and operation of the warning lights DEPEND ON THE EQUIPMENT\
AND COUNTRY.
DHandbrake on and brake cir- cuit incident warning light
If it lights up, check that the hand brake is fully released. If not, it indicates that the fluid level is low in one of the cir- cuits. It may be dangerous to continue driving, contact an approved dealer.
mDipped beam headlight tell- tale light
oMain beam headlight tell-tale
light
xAnti-lock braking warning light
This comes on when the ignition is switched on and goes out within three seconds. If it comes on when you are driving, it indicates a fault on the anti- lock braking system. The braking system then operates as it would on a vehicle without the anti-lock braking system.
Contact an approved Dealer as soon as possible.
çSeat belt reminder light
This warning light goes out to let you know that the seat belt has been correctly fastened.
åAir bag warning light
This lights up when the ignition is switched on and goes out after a few seconds.
If it does not light up when the ignition
is switched on, or lights up when the engine is running, there is a fault in the system.
Refer to the information on “Systems in addition to the front seat belts” in Section 1.
Contact an approved Dealer as soon as possible.
]Front passenger air bag de- activation warning light.
Refer to the information on “Child Safety” in Section 1.
VRear screen demisting indi- cator light
These warning lights, if lit up on in-
strument panel A, require you to stop immediately, as soon as traffic conditions allow.
ÚÀÔ
D+x
A
Page 43 of 146
overspeed buzzer ..................................................(current page)control instruments ...............................(up to the end of the DU)instrument panel ...................................(up to the end of the DU)warning lights........................................(up to the end of the DU)
1.39
ENG_UD5560_1Tableau de bord : afficheur et indicateur (B90 - Dacia)ENG_NU_817-2_NU_Dacia_1
INSTRUMENT PANEL: displays and indicators
Rev counter 1 (scale x 1000). Speedometer 2 (km or miles
per hour).
Overspeed buzzer
Depending on the vehicle, a buzzer
sounds for approximately 10 seconds
every 30 seconds, as long as the
vehicle is travelling in excess of 72 mph
(120 km/h).
21
Page 44 of 146
fuel level ................................................................(current page)
1.40
ENG_UD5560_1Tableau de bord : afficheur et indicateur (B90 - Dacia)ENG_NU_817-2_NU_Dacia_1
INSTRUMENT PANEL: displays and indicators (continued)
Fuel gauge
3
The number of squares lit shows the fuel level. When it is at minimum, the squares disappear and the low fuel level warning light comes on.
Coolant temperature
indicator
4
The number of squares lit depends on the engine coolant temperature. There is no warning unless the last three squares light up.
Multifunction display A
Total mileage recorder, distance trav- elled trip mileometer, clock.
OR
Trip computer and warning
system
Refer to the information on the “Trip computer and warning system” in Section 1.
Multifunction key 5
– Display selection
By pressing the button you can shift from the total mileage recorder, trip mileometer and time or vice-versa.
–
Resetting the trip mileage re- corder
Once the trip mileage display is se- lected, press and hold the button.
–
Resetting the clock
Refer to the information on the “Clock” in Section 1.
43
A
5
Page 45 of 146
control instruments ...............................(up to the end of the DU)trip computer and warning system........(up to the end of the DU)warning lights........................................(up to the end of the DU)
1.41
ENG_UD5561_1Ordinateur de bord (B90 - Dacia)ENG_NU_817-2_NU_Dacia_1
Ordinateur de bord
TRIP COMPUTER AND w ARNING SYSTEM
Display 1
General reset and trip
mileage recorder reset key
2
To reset the trip mileage recorder, the display must show the Trip mileometer function.
Press and hold button
2.
Display selection key 3
Keep pressing key 3 briefly to scroll through the following information (de- pending on the vehicle) in sequence:
a) total mileage recorder,b) trip mileage recorder,c) fuel used,d) average consumption,e) estimated range,f) distance travelled,g) average speed.
Refer to the table on the following pages showing display examples.
The information displayed DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.
1
23
Page 46 of 146
1.42
ENG_UD5561_1Ordinateur de bord (B90 - Dacia)ENG_NU_817-2_NU_Dacia_1
JauneNoirNoir texte
Interpreting some of the
values displayed after
resetting
The values showing average fuel con- sumption, range and average speed will become more stable and reliable the further you travel after pressing the reset button.
For the first few miles after pressing the reset button you will notice:
– that the range increases as you
travel. This is normal, as average fuel consumption may decrease when:
– the vehicle stops accelerating,
– the engine reaches its operating
temperature (engine cold when reset button pressed),
– when driving from a built-up area
onto the open road.
Therefore, if the average fuel con
-
sumption decreases, the range will increase.
The information displayed DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.
– You may also notice that the average
fuel consumption increases when the vehicle is stationary and the engine idling.
This is normal, since the computer takes account of fuel used during idling.
Note: resetting is automatic when the maximum capacity of any of the memo- ries is exceeded.
TRIP COMPUTER AND w ARNING SYSTEM (continued)
Page 47 of 146
JauneNoirNoir texte
1.43
ENG_UD5561_1Ordinateur de bord (B90 - Dacia)ENG_NU_817-2_NU_Dacia_1
TRIP COMPUTER AND wARNING SYSTEM (continued)
The information displayed DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.
Examples of display selections by repeatedly pressing 3Interpreting the display
a) Total mileage recorder.
b) Trip mileage recorder.
c) Fuel used
since the last time the reset button was pressed.
d) Average fuel consumption
since the last time the reset button was pressed.
This value is displayed after driving 400 metres and takes into account the distance travelled and the fuel used since the last time the reset button was pressed.
Page 48 of 146
1.44
ENG_UD5561_1Ordinateur de bord (B90 - Dacia)ENG_NU_817-2_NU_Dacia_1
TRIP COMPUTER AND wARNING SYSTEM (continued)
The information displayed DEPENDS ON THE VEHICLE EQUIPMENT AND COUNTRY.
Examples of display selections by repeatedly pressing 3Interpreting the display
e) Estimated range with remaining fuel
This range takes into account the average fuel consumption since the last time the reset button was pressed.The value is displayed after driving around 400 metres.
f) Distance travelled since the last reset.
g) Average speed since the last reset.The value is displayed after driving around 400 metres.
Page 49 of 146
clock .....................................................(up to the end of the DU)clock .....................................................(up to the end of the DU)control instruments ................................................(current page)
1.45
ENG_UD5562_1Heure (B90 - Dacia)ENG_NU_817-2_NU_Dacia_1
Heure

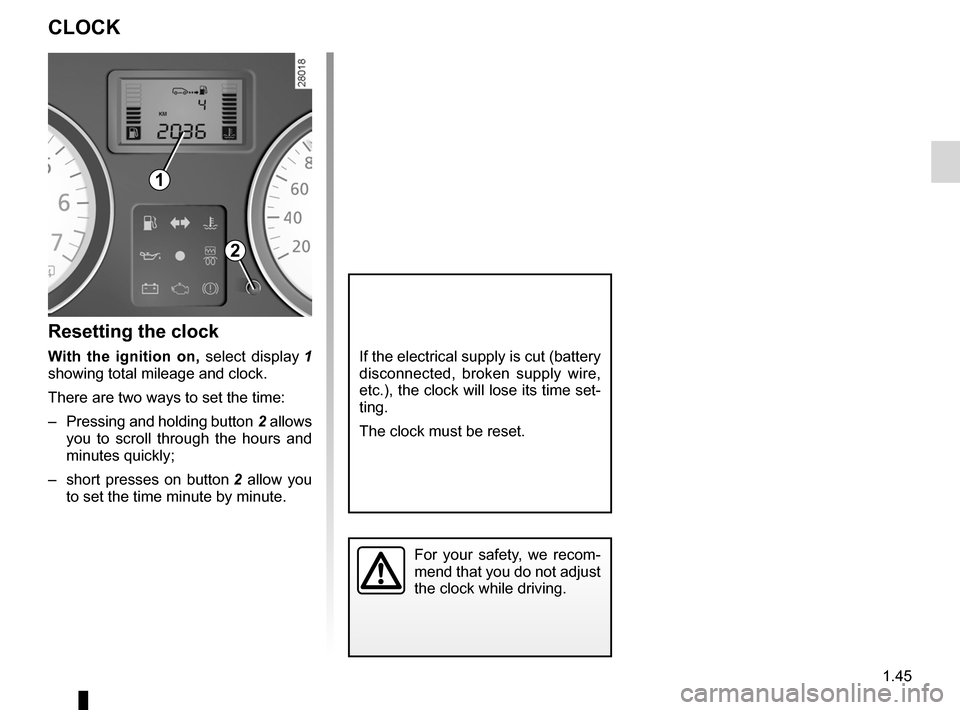

CLOCK
Resetting the clock
w ith the ignition on, select display 1 showing total mileage and clock.
There are two ways to set the time:
– Pressing and holding button
2 allows you to scroll through the hours and minutes quickly;
– short presses on button
2 allow you to set the time minute by minute.
If the electrical supply is cut (battery disconnected, broken supply wire, etc.), the clock will lose its time set- ting.
The clock must be reset.
For your safety, we recom- mend that you do not adjust the clock while driving.
1
2
Page 50 of 146
lighting:exterior ............................................(up to the end of the DU)lights:dipped beam headlights ...................................(current page)lights:side lights .........................................................(current page)lights:main beam headlights ......................................(current page)lights .....................................................(up to the end of the DU)signals and lights ..................................(up to the end of the DU)control instruments ...............................(up to the end of the DU)
1.46
ENG_UD5563_1Éclairages et signalisations extérieures (B90 - Dacia)ENG_NU_817-2_NU_Dacia_1
JauneNoirNoir texte
Éclairages et signalisations extérieurs
EXTERIOR LIGHTING AND SIGNALS
uSide lights
Turn the end of stalk 1 until the
symbol is opposite mark 2.
kDipped beam
headlights
Turn the end of stalk 1 until the symbol
is opposite mark 2.
An indicator light on the instrument panel will come on.
áMain beam headlights
With stalk 1 in dipped beam headlights position, move the stalk to- wards you.
When the main beam headlights are lit, an indicator light lights up on the instru- ment panel.
To return to the dipped beam headlight position, pull the switch stalk towards you.
eSwitching off the lights
Return the end of stalk 1 to its initial position.
Before driving at night, check that the electrical equipment is operating cor- rectly and adjust the head- light beams (if your vehicle is not
carrying its normal load).
Check that the lights are not ob- scured (by dirt, mud, snow or ob- jects which could cover them).
112
