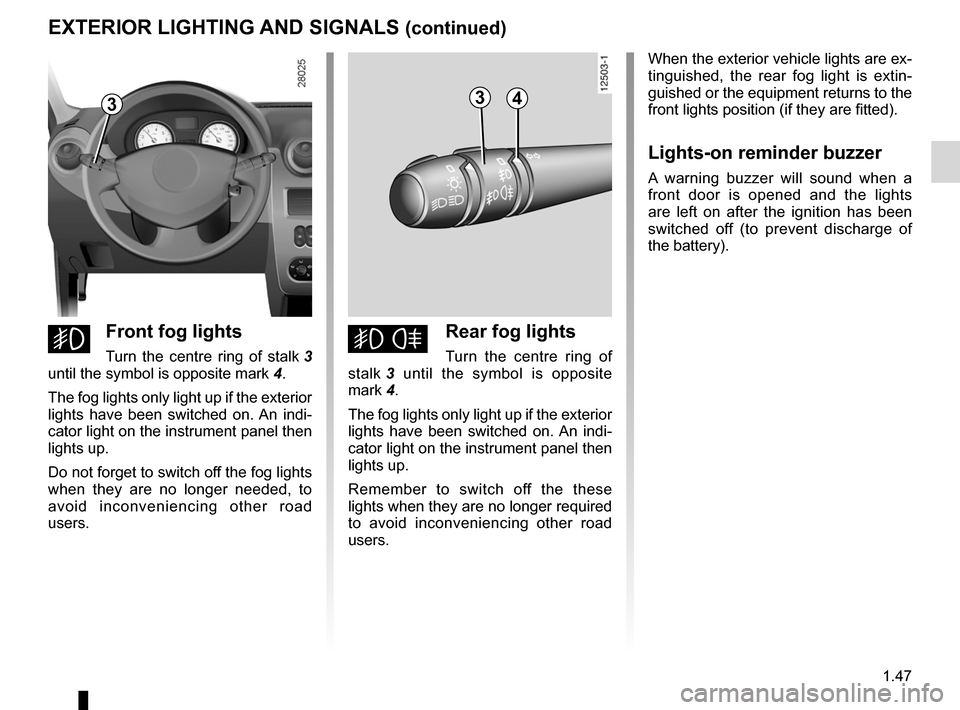

EXTERIOR LIGHTING AND SIGNALS (continued)
When the exterior vehicle lights are ex- tinguished, the rear fog light is extin- guished or the equipment returns to the front lights position (if they are fitted).
Lights-on reminder buzzer
A warning buzzer will sound when a front door is opened and the lights are left on after the ignition has been switched off (to prevent discharge of the battery).
gFront fog lights
Turn the centre ring of stalk 3
until the symbol is opposite mark 4.
The fog lights only light up if the exterior lights have been switched on. An indi- cator light on the instrument panel then lights up.
Do not forget to switch off the fog lights when they are no longer needed, to avoid inconveniencing other road users.
hRear fog lights
Turn the centre ring of
stalk 3 until the symbol is opposite
mark 4.
The fog lights only light up if the exterior lights have been switched on. An indi- cator light on the instrument panel then lights up.
Remember to switch off the these lights when they are no longer required to avoid inconveniencing other road users.
343
Page 52 of 146
lights:adjusting .........................................(up to the end of the DU)lights .....................................................(up to the end of the DU)lightsadjustment ......................................(up to the end of the DU)headlight beam adjustment ..................(up to the end of the DU)
1.48
ENG_UD5564_1Réglage de la hauteur des faisceaux (B90 - Dacia)ENG_NU_817-2_NU_Dacia_1
Réglage des projecteurs

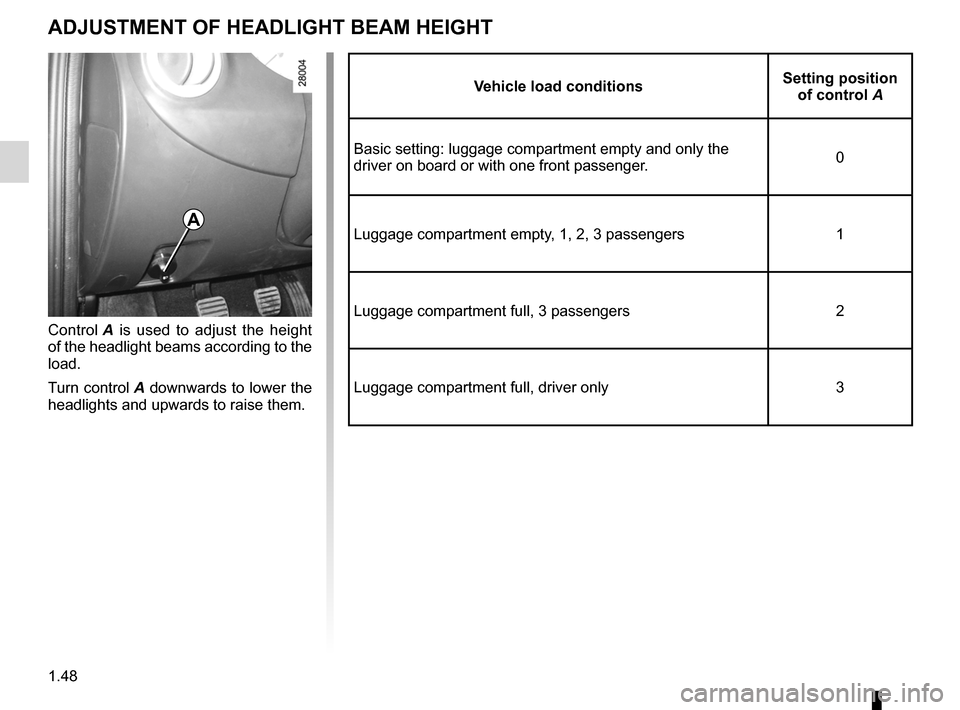

ADJUSTMENT OF HEADLIGHT BEAM HEIGHT
Control A is used to adjust the height of the headlight beams according to the load.
Turn control
A downwards to lower the headlights and upwards to raise them.
vehicle load conditionsSetting position of control A
Basic setting: luggage compartment empty and only the driver on board or with one front passenger.0
Luggage compartment empty, 1, 2, 3 passengers1
Luggage compartment full, 3 passengers2
Luggage compartment full, driver only3
A
Page 53 of 146
headlight flashers .................................(up to the end of the DU)horn ......................................................(up to the end of the DU)indicators ..............................................(up to the end of the DU)lights:direction indicators ..........................(up to the end of the DU)lights:hazard warning ...............................(up to the end of the DU)indicators:direction indicators ..........................(up to the end of the DU)hazard warning lights signal .................(up to the end of the DU)hazard warning lights signal .................(up to the end of the DU)
1.49
ENG_UD5565_1Avertisseurs sonore et lumineux (B90 - Dacia)ENG_NU_817-2_NU_Dacia_1
Avertisseurs sonores et lumineux

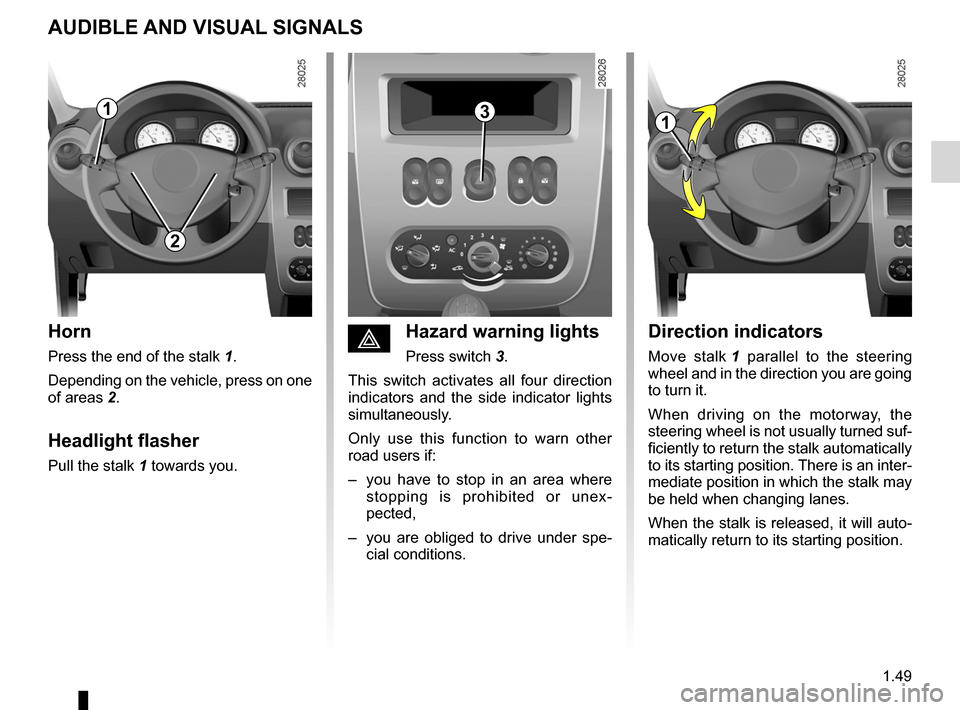

AUDIBLE AND vISUAL SIGNALS
Horn
Press the end of the stalk 1.
Depending on the vehicle, press on one
of areas 2.
Headlight flasher
Pull the stalk 1 towards you.
Direction indicators
Move stalk 1 parallel to the steering wheel and in the direction you are going to turn it.
When driving on the motorway, the steering wheel is not usually turned suf- ficiently to return the stalk automatically to its starting position. There is an inter- mediate position in which the stalk may
be held when changing lanes.
When the stalk is released, it will auto- matically return to its starting position.
éHazard warning lights
Press switch 3.
This switch activates all four direction indicators and the side indicator lights simultaneously.
Only use this function to warn other road users if:
– you have to stop in an area where
stopping is prohibited or unex- pected,
– you are obliged to drive under spe
- cial conditions.
113
2
Page 54 of 146
wipers ....................................................................(current page)windscreen washer ................................................(current page)
1.50
ENG_UD7652_2Essuie-vitre/Lave-vitre/Dégivrage (B90 - L90 Ph2 - Dacia)ENG_NU_817-2_NU_Dacia_1
JauneNoirNoir texte

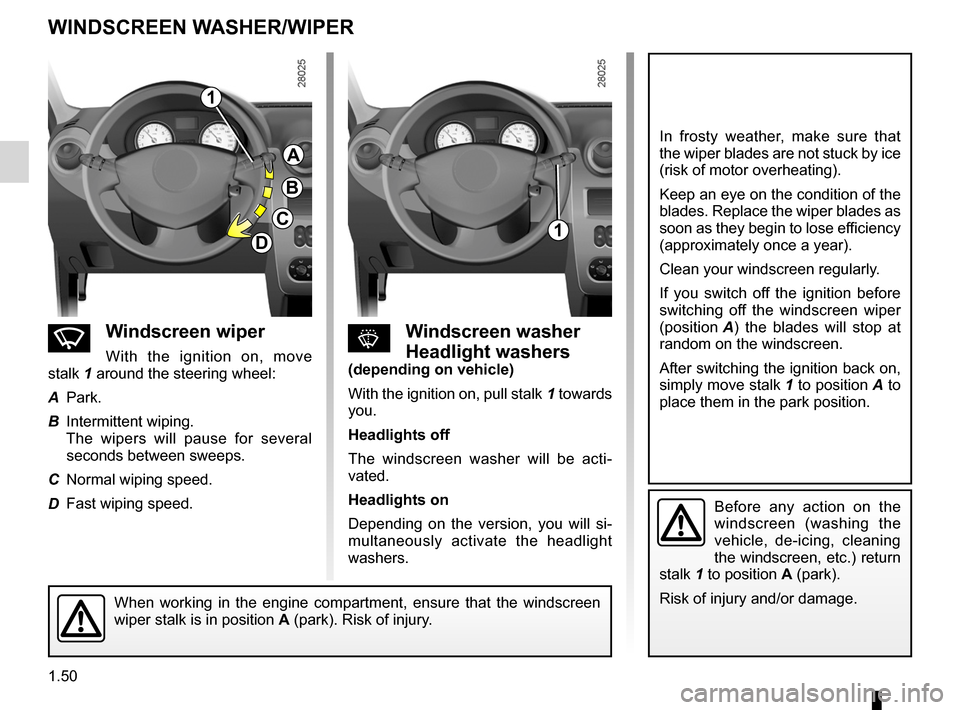

Wiper/Windscreen washer/De-icing
nw indscreen wiper
With the ignition on, move
stalk 1 around the steering wheel:
A
Park.
B
Intermittent wiping.
The wipers will pause for several seconds between sweeps.
C
Normal wiping speed.
D
Fast wiping speed.
sw indscreen washer
Headlight washers(depending on vehicle)
With the ignition on, pull stalk
1 towards you.
Headlights off
The windscreen washer will be acti- vated.
Headlights on
Depending on the version, you will si- multaneously activate the headlight washers.
In frosty weather, make sure that the wiper blades are not stuck by ice (risk of motor overheating).
Keep an eye on the condition of the blades. Replace the wiper blades as soon as they begin to lose efficiency (approximately once a year).
Clean your windscreen regularly.
If you switch off the ignition before switching off the windscreen wiper
(position A) the blades will stop at random on the windscreen.
After switching the ignition back on,
simply move stalk 1 to position A to place them in the park position.
Before any action on the windscreen (washing the vehicle, de-icing, cleaning the windscreen, etc.) return
stalk 1 to position A (park).
Risk of injury and/or damage.When working in the engine compartment, ensure that the windscreen wiper stalk is in position A (park). Risk of injury.
1
A
B
C
D1
wINDSCREEN w ASHER/wIPER
Page 55 of 146
rear screendemisting .........................................................(current page)
JauneNoirNoir texte
1.51
ENG_UD7652_2Essuie-vitre/Lave-vitre/Dégivrage (B90 - L90 Ph2 - Dacia)ENG_NU_817-2_NU_Dacia_1

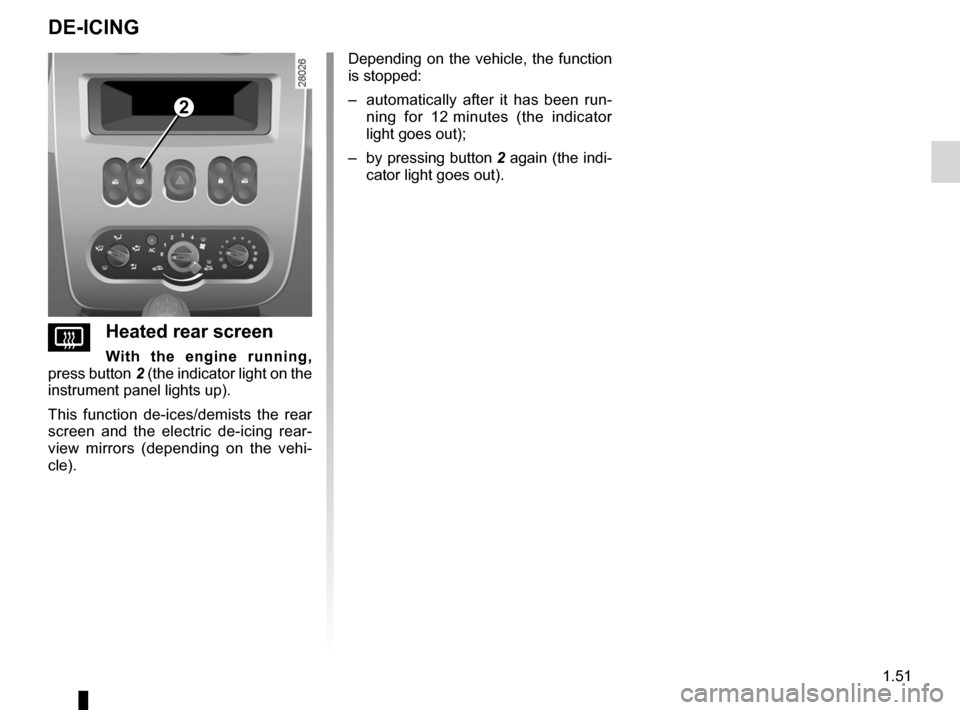

DE-ICING
VHeated rear screen
w ith the engine running,
press button 2 (the indicator light on the instrument panel lights up).
This function de-ices/demists the rear screen and the electric de-icing rear- view mirrors (depending on the vehi- cle).
Depending on the vehicle, the function is stopped:
– automatically after it has been run
-
ning for 12 minutes (the indicator light goes out);
– by pressing button
2 again (the indi- cator light goes out).
2
Page 56 of 146
fuel filler cap ..........................................................(current page)fuel tank capacity ...................................................(current page)fuelgrade ................................................................(current page)fuel tank ................................................(up to the end of the DU)fuel filler cap ..........................................................(current page)fuel grade...............................................................(current page)
1.52
ENG_UD5567_1Réservoir carburant (B90 - Dacia)ENG_NU_817-2_NU_Dacia_1
JauneNoirNoir texte
Réservoir carburant (remplissage carburant)
FUEL TANK
Capacity of the fuel tank: 50 litres ap- proximately.
Depending on the vehicle, the cap
1 may be unlocked with the ignition key.
For details on filling the fuel tank, refer to the information on “Filling with fuel”.
There is a cap holder on the fuel filler flap for holding the cap when the tank is being filled.
Fuel filler cap: this is spe- cific to the vehicle type. If you have to replace it, make sure the new cap is of the same type. Contact an approved dealer.
Never place the cap near a source of heat or flame.
Do not wash the filler area with a high-pressure washer.
Fuel grade
Use a high grade fuel that complies with the standards currently in force in each country.
Petrol version
It is essential to use unleaded petrol. The octane rating (RON) must conform with the specifications given on the
label inside the fuel filler flap A.
Refer to the “Engine specifications” table in section 6.
v ehicles running on ethanol-based
fuel
Always use unleaded petrol or fuel containing a maximum of 85 percent ethanol (E85).
Note: you may notice an increase in fuel consumption with this type of fuel.
When the fuel is changed the engine must adjust, which may cause minor in- conveniences for a few minutes (longer starting times, cutting out, etc.).
1
A
Do not mix even small amounts of petrol (unleaded or E85) with diesel.Do not use ethanol based fuel or diesel containing more than 10% bio additives if your vehicle is not adapted to these fuels.
Page 57 of 146
fuelfilling .................................................................(current page)
JauneNoirNoir texte
1.53
ENG_UD5567_1Réservoir carburant (B90 - Dacia)ENG_NU_817-2_NU_Dacia_1

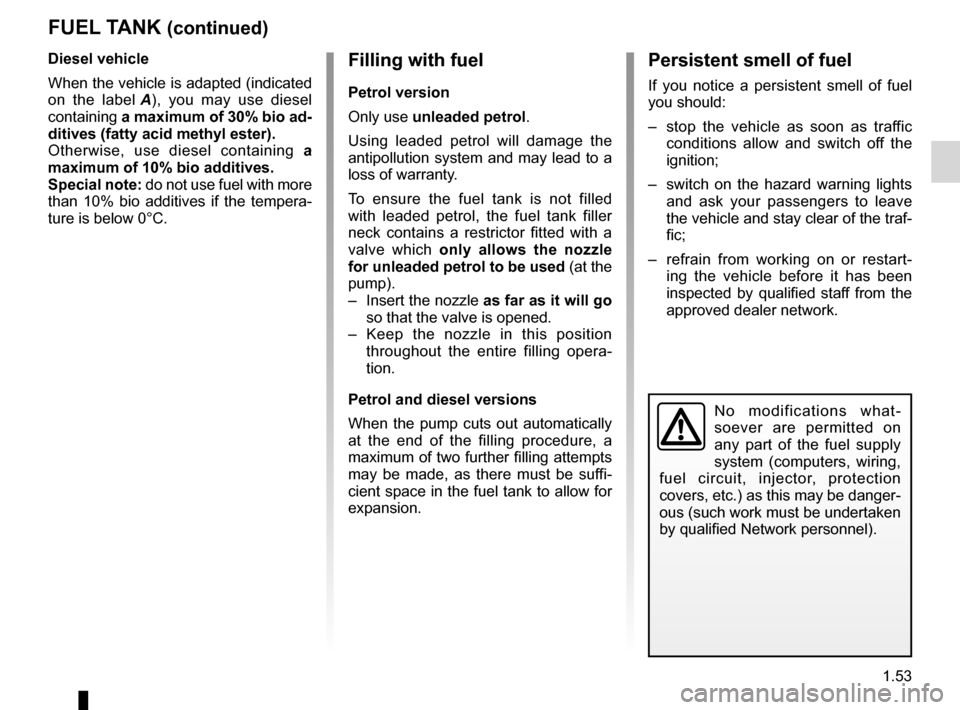

FUEL TANK (continued)
Diesel vehicle
When the vehicle is adapted (indicated
on the label A), you may use diesel containing a maximum of 30% bio ad- ditives (fatty acid methyl ester).Otherwise, use diesel containing a maximum of 10% bio additives.Special note: do not use fuel with more than 10% bio additives if the tempera- ture is below 0°C.
Filling with fuel
Petrol version
Only use unleaded petrol.
Using leaded petrol will damage the antipollution system and may lead to a loss of warranty.
To ensure the fuel tank is not filled with leaded petrol, the fuel tank filler neck contains a restrictor fitted with a valve which only allows the nozzle for unleaded petrol to be used (at the pump).
– Insert the nozzle as far as it will go so that the valve is opened.
– Keep the nozzle in this position throughout the entire filling opera- tion.
Petrol and diesel versions
When the pump cuts out automatically at the end of the filling procedure, a maximum of two further filling attempts may be made, as there must be suffi- cient space in the fuel tank to allow for expansion.
Persistent smell of fuel
If you notice a persistent smell of fuel you should:
– stop the vehicle as soon as traffic
conditions allow and switch off the ignition;
– switch on the hazard warning lights
and ask your passengers to leave the vehicle and stay clear of the traf- fic;
– refrain from working on or restart
-
ing the vehicle before it has been inspected by qualified staff from the approved dealer network.
No modifications what- soever are permitted on any part of the fuel supply system (computers, wiring, fuel circuit, injector, protection
covers, etc.) as this may be danger- ous (such work must be undertaken by qualified Network personnel).
Page 58 of 146
1.54
ENG_UD5577_1Filler NU (B90 - Dacia)ENG_NU_817-2_NU_Dacia_1
Page 59 of 146
2.1
ENG_UD8702_2Sommaire 2 (B90 - Dacia)ENG_NU_817-2_NU_Dacia_2

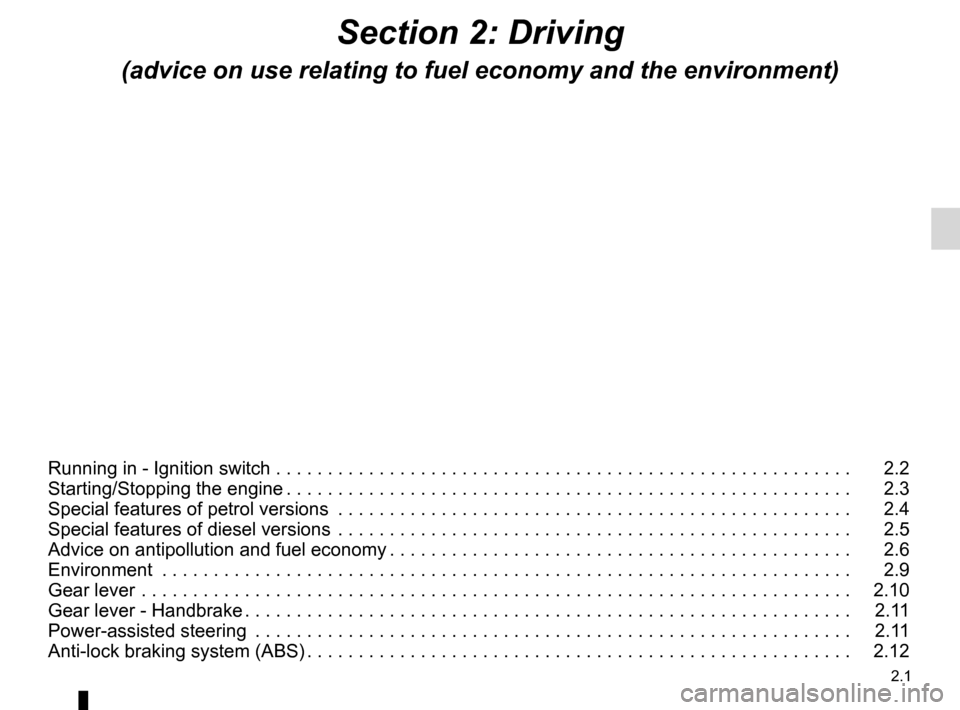

Section 2: Driving
(advice on use relating to fuel economy and the environment)
Running in - Ignition switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . 2.2
Starting/Stopping the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . 2.3
Special features of petrol versions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . 2.4
Special features of diesel versions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . 2.5
Advice on antipollution and fuel economy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . 2.6
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.9
Gear lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.10
Gear lever - Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . 2.11
Power-assisted steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . 2.11
Anti-lock braking system (ABS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . 2.12
Page 60 of 146
running in ...............................................................(current page)ignition switch ........................................................(current page)engine immobiliser (switch) ...................................(current page)driving ....................................................................(current page)starting ...................................................................(current page)
2.2
ENG_UD5481_1Rodage / Contacteur de démarrage (U90 - Dacia)ENG_NU_817-2_NU_Dacia_2
Rodage - Contacteur de démarrage

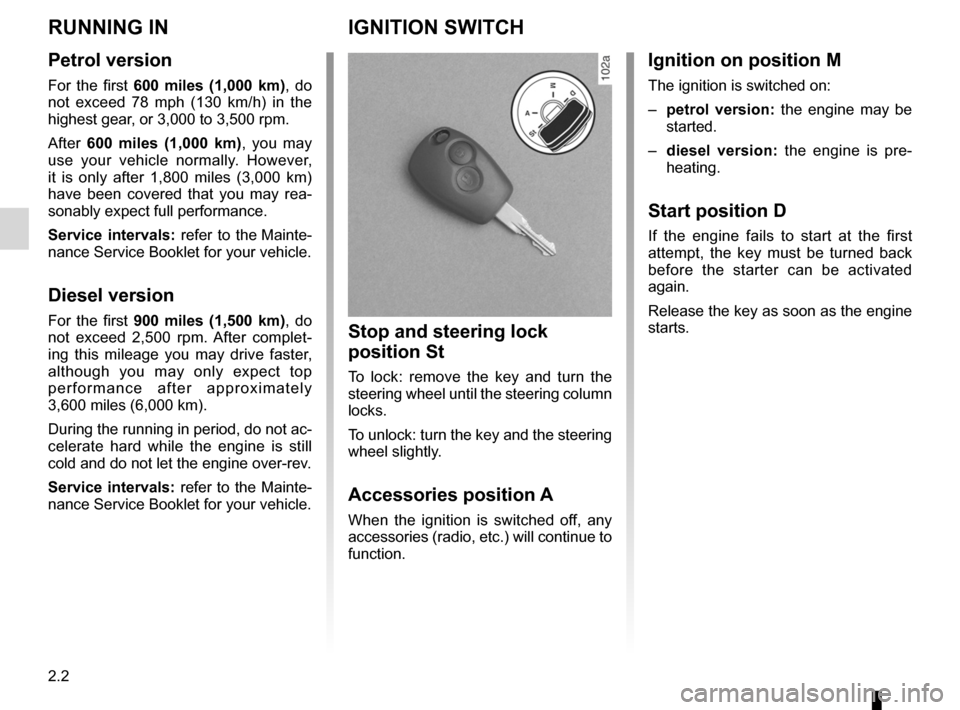

RUNNING IN
Petrol version
For the first 600 miles (1,000 km), do not exceed 78 mph (130 km/h) in the highest gear, or 3,000 to 3,500 rpm.
After 600 miles (1,000 km), you may use your vehicle normally. However, it is only after 1,800 miles (3,000 km) have been covered that you may rea- sonably expect full performance.
Service intervals: refer to the Mainte- nance Service Booklet for your vehicle.
Diesel version
For the first 900 miles (1,500 km), do not exceed 2,500 rpm. After complet- ing this mileage you may drive faster, although you may only expect top p e r f o r m a n c e a f t e r a p p r o x i m a t e l y 3,600 miles (6,000 km).
During the running in period, do not ac- celerate hard while the engine is still cold and do not let the engine over-rev.
Service intervals: refer to the Mainte- nance Service Booklet for your vehicle.
IGNITION SWITCH
Stop and steering lock
position St
To lock: remove the key and turn the steering wheel until the steering column locks.
To unlock: turn the key and the steering wheel slightly.
Accessories position A
When the ignition is switched off, any accessories (radio, etc.) will continue to function.
Ignition on position M
The ignition is switched on:
–
petrol version: the engine may be started.
–
diesel version: the engine is pre- heating.
Start position D
If the engine fails to start at the first attempt, the key must be turned back before the starter can be activated again.
Release the key as soon as the engine starts.
