3.1
ENG_UD8703_2Sommaire 3 (B90 - Dacia)ENG_NU_817-2_NU_Dacia_3

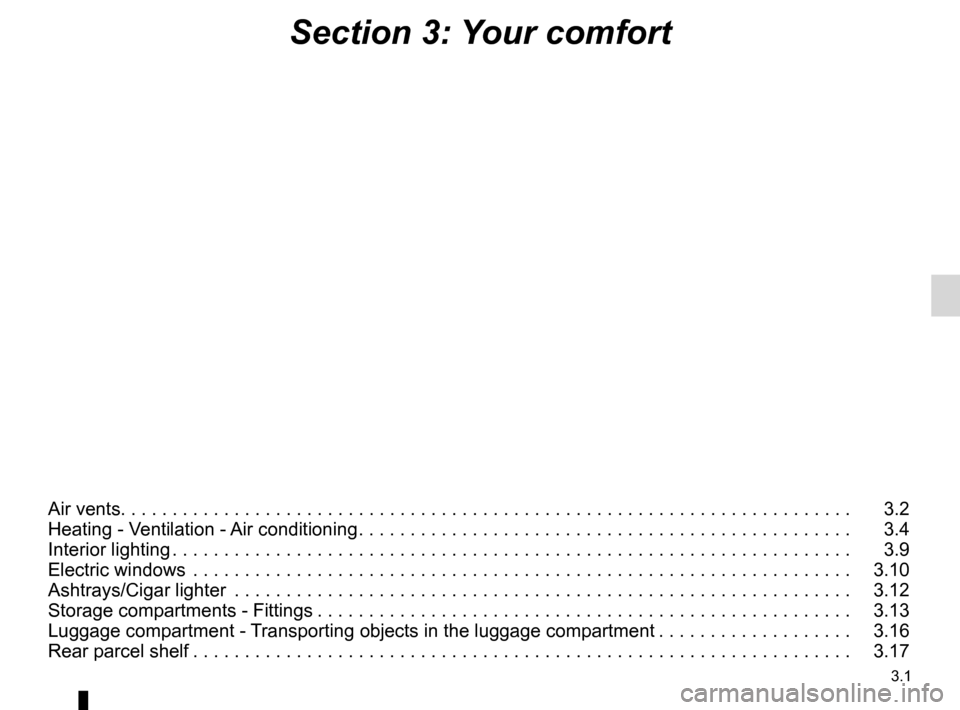

Section 3: Your comfort
Air vents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.2
Heating - Ventilation - Air conditioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . 3.4
Interior lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.9
Electric windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.10
Ashtrays/Cigar lighter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . 3.12
Storage compartments - Fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . 3.13
Luggage compartment - Transporting objects in the luggage compartment . . . . . . . . . . . . . . . . . . . 3.16
Rear parcel shelf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.17

air vents ................................................(up to the end of the DU)heating system .....................................(up to the end of the DU)heating and air conditioning system .....(up to the end of the DU)
3.2
ENG_UD5579_1Aérateurs (sorties air) (B90 - Dacia)ENG_NU_817-2_NU_Dacia_3
JauneNoirNoir texte
Aérateurs

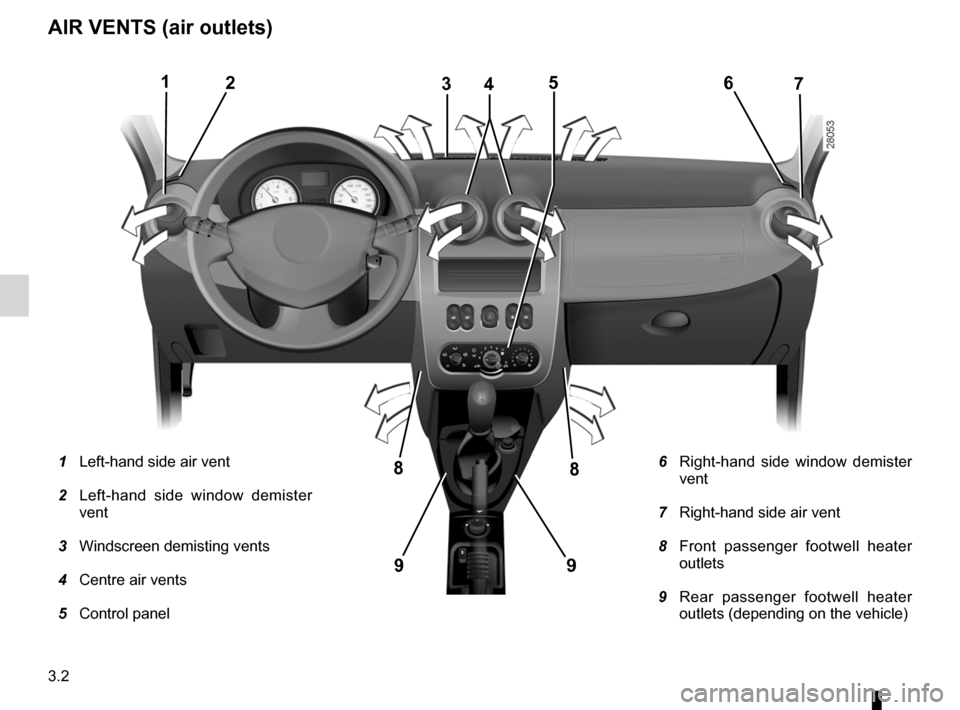

AIR VENTS (air outlets)
12367
1 Left-hand side air vent
2 Left-hand side window demister vent
3 Windscreen demisting vents
4 Centre air vents
5 Control panel
6 Right-hand side window demister vent
7 Right-hand side air vent
8 Front passenger footwell heater outlets
9 Rear passenger footwell heater outlets (depending on the vehicle)
54
88
99

JauneNoirNoir texte

3.3
ENG_UD5579_1Aérateurs (sorties air) (B90 - Dacia)ENG_NU_817-2_NU_Dacia_3

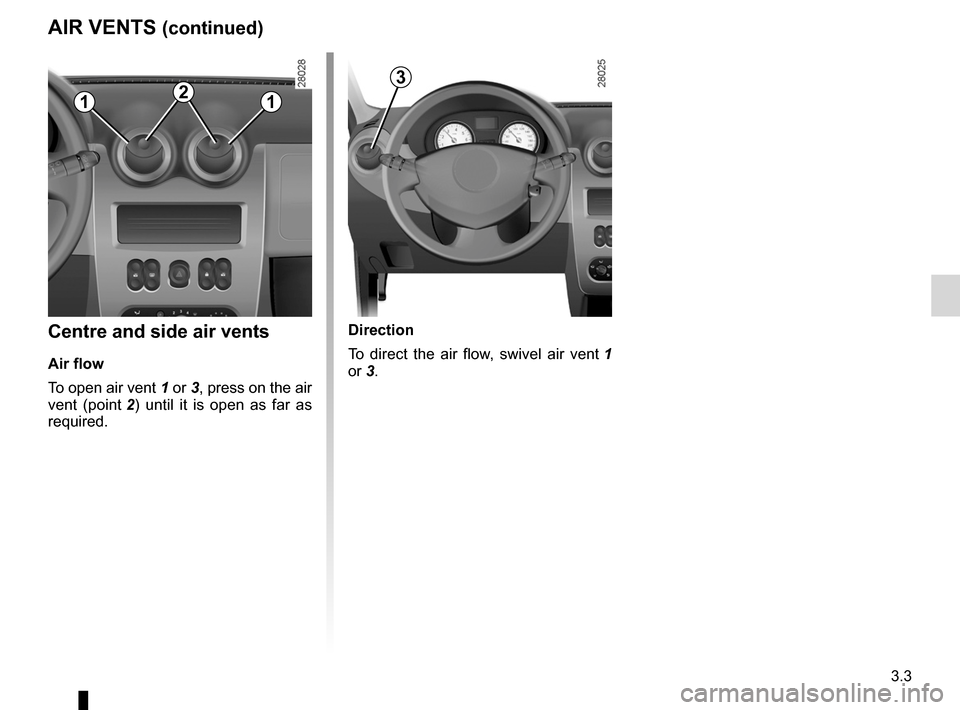

AIR VENTS (continued)
Centre and side air vents
Air flow
To open air vent
1 or 3, press on the air
vent (point 2) until it is open as far as required.
Direction
To direct the air flow, swivel air vent
1
or 3.
211
3

air conditioning .....................................(up to the end of the DU)heating and air conditioning system .....(up to the end of the DU)heating system .....................................(up to the end of the DU)ventilationheating and air conditioning system (up to the end of the DU)air conditioning .....................................(up to the end of the DU)
3.4
ENG_UD5580_1Chauffage - Ventilation - Air conditionné (B90 - Dacia)ENG_NU_817-2_NU_Dacia_3
JauneNoirNoir texte
Chauffage - Ventilation - Air conditionné

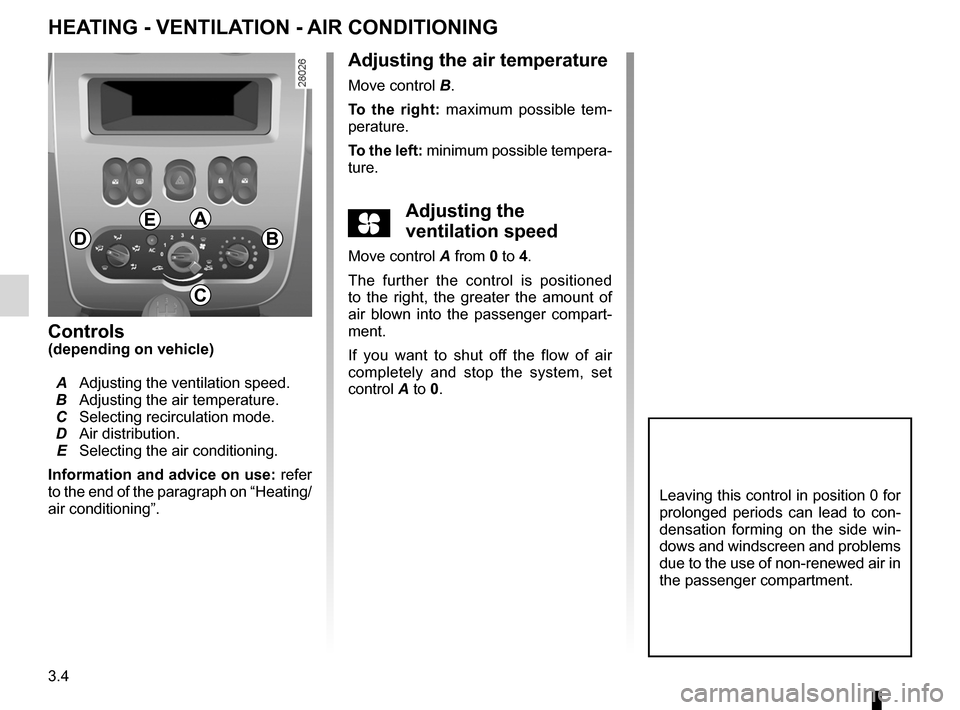

HEATING - VENTILATION - AIR CONDITIONING
Controls(depending on vehicle)
A Adjusting the ventilation speed. B Adjusting the air temperature. C Selecting recirculation mode. D Air distribution. E Selecting the air conditioning.
Information and advice on use: refer to the end of the paragraph on “Heating/ air conditioning”.
Adjusting the air temperature
Move control B.
To the right: maximum possible tem- perature.
To the left: minimum possible tempera- ture.
yAdjusting the
ventilation speed
Move control A from 0 to 4.
The further the control is positioned to the right, the greater the amount of air blown into the passenger compart- ment.
If you want to shut off the flow of air completely and stop the system, set
control A to 0.
Leaving this control in position 0 for prolonged periods can lead to con- densation forming on the side win- dows and windscreen and problems due to the use of non-renewed air in the passenger compartment.
D
EA
B
C

JauneNoirNoir texte

3.5
ENG_UD5580_1Chauffage - Ventilation - Air conditionné (B90 - Dacia)ENG_NU_817-2_NU_Dacia_3

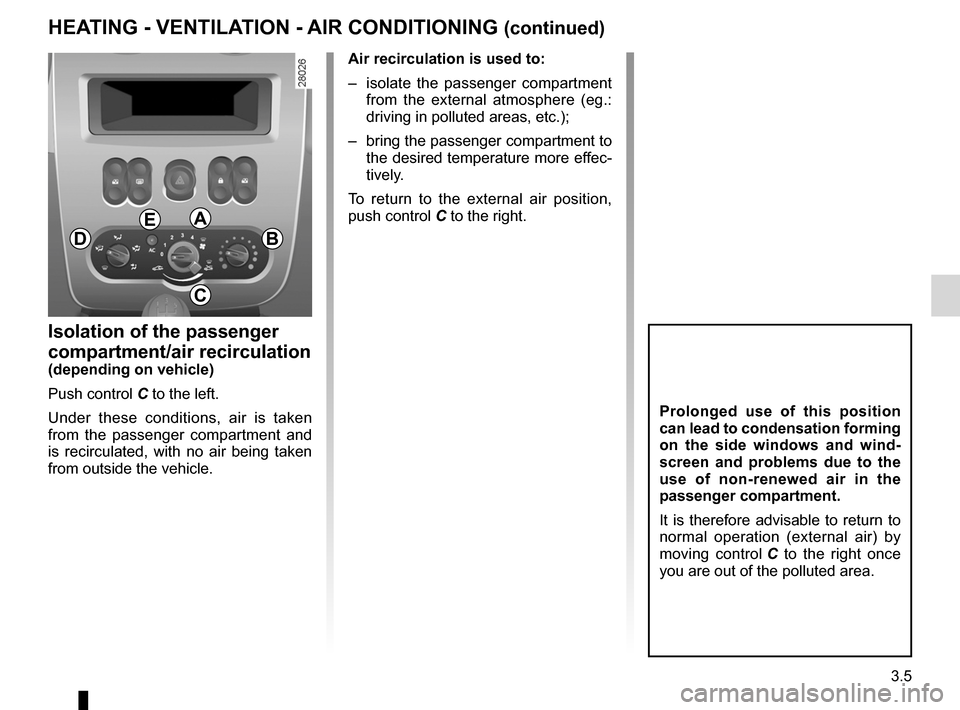

HEATING - VENTILATION - AIR CONDITIONING (continued)
Isolation of the passenger
compartment/air recirculation(depending on vehicle)
Push control
C to the left.
Under these conditions, air is taken from the passenger compartment and is recirculated, with no air being taken from outside the vehicle.
Air recirculation is used to:
– isolate the passenger compartment
from the external atmosphere (eg.: driving in polluted areas, etc.);
– bring the passenger compartment to
the desired temperature more effec- tively.
To return to the external air position,
push control C to the right.
Prolonged use of this position can lead to condensation forming on the side windows and wind- screen and problems due to the use of non-renewed air in the passenger compartment.
It is therefore advisable to return to normal operation (external air) by
moving control C to the right once you are out of the polluted area.
D
EA
B
C

demistingwindscreen .......................................................(current page)

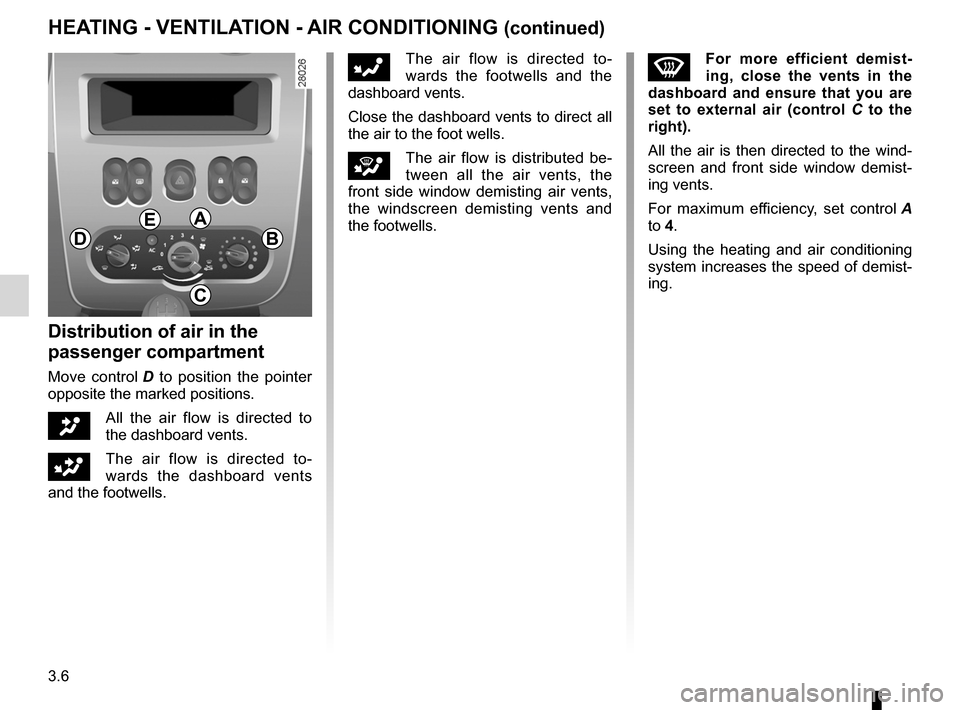

3.6
ENG_UD5580_1Chauffage - Ventilation - Air conditionné (B90 - Dacia)ENG_NU_817-2_NU_Dacia_3
JauneNoirNoir texte
HEATING - VENTILATION - AIR CONDITIONING (continued)
Distribution of air in the
passenger compartment
Move control D to position the pointer opposite the marked positions.
JAll the air flow is directed to the dashboard vents.
GThe air flow is directed to- wards the dashboard vents and the footwells.
FThe air flow is directed to- wards the footwells and the dashboard vents.
Close the dashboard vents to direct all the air to the foot wells.
iThe air flow is distributed be- tween all the air vents, the front side window demisting air vents, the windscreen demisting vents and the footwells.
WFor more efficient demist- ing, close the vents in the dashboard and ensure that you are set to external air (control C to the right).
All the air is then directed to the wind- screen and front side window demist- ing vents.
For maximum efficiency, set control
A to 4.
Using the heating and air conditioning system increases the speed of demist- ing.
D
EA
B
C

JauneNoirNoir texte

3.7
ENG_UD5580_1Chauffage - Ventilation - Air conditionné (B90 - Dacia)ENG_NU_817-2_NU_Dacia_3

HEATING - VENTILATION - AIR CONDITIONING (continued)
Air conditioning controls(depending on vehicle)
Control
E switches the air conditioning on or off.
The system cannot be switched on if
control A is set to 0.
Using the air conditioning system enables you to:
– lower the temperature inside the
passenger compartment;
– e l i m i n a t e c o n d e n s a t i o n m o r e
quickly.
Fuel consumption increases when the air conditioning system is being used. (Switch it off when it is not required.)
Note: The air conditioning may be used in all conditions but does not operate when the external temperature is low.
– Button
E not activated (indicator light off)
The air conditioning is not operating.
The heating and ventilation controls are the same as a vehicle without air
conditioning.
– Button
E activated (indicator light on)
The air conditioning is activated.
D
EA
B
C

air conditioning .....................................(up to the end of the DU)heating system .....................................(up to the end of the DU)heating and air conditioning system .....(up to the end of the DU)ventilationheating and air conditioning system (up to the end of the DU)air conditioning ......................................................(current page)
3.8
ENG_UD5493_1Air conditionné : informations et conseils utilisation (U90 - Dacia)\
ENG_NU_817-2_NU_Dacia_3
AIR CONDITIONING: information and advice on use
Fuel consumption
You will normally notice an increase in fuel consumption (especially when driving in town) when the air conditioning is operating.
For vehicles fitted with manual air conditioning, switch off the system when it is not required.
Some advice for reducing fuel consumption and therefore help- ing to protect the environment:It is advisable to drive with the vents open and the windows closed.
If the vehicle has been parked in the sun, open the doors for a few moments to let the hot air escape before starting the engine.
Maintenance
Refer to the Maintenance Service Booklet for your vehicle for the in- spection frequency.
Operating faults
As a general rule, contact your approved dealer in the event of an operating fault.
No cold air is being produced.
Check that the controls are set cor- rectly and that the fuses are sound. Otherwise, switch off the system.
Do not open the refriger- ant fluid circuit. The fluid may damage the eyes or skin.
Presence of water under the ve- hicle. After prolonged use of the air conditioning system, it is normal for water to be present under the ve- hicle. This is caused by condensa- tion.

lighting:interior .............................................(up to the end of the DU)courtesy light ........................................(up to the end of the DU)map reading lights ................................(up to the end of the DU)
3.9
ENG_UD5582_1Eclairage intérieur (B90 - Dacia)ENG_NU_817-2_NU_Dacia_3
Éclairage intérieur

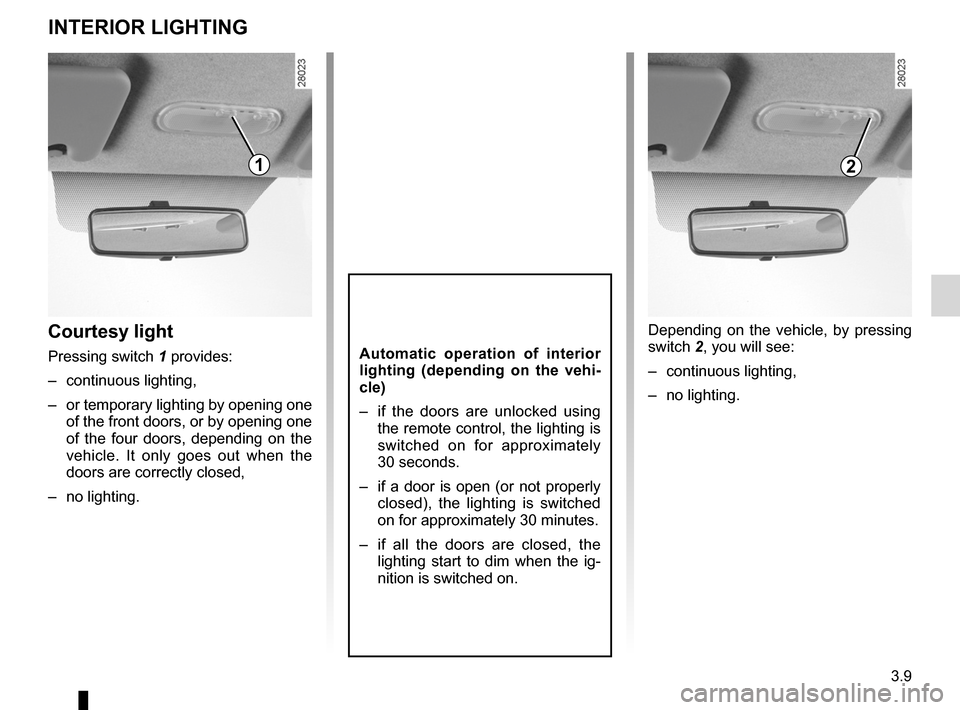

INTERIOR LIGHTING
Courtesy light
Pressing switch 1 provides:
– continuous lighting,
– or temporary lighting by opening one
of the front doors, or by opening one of the four doors, depending on the vehicle. It only goes out when the doors are correctly closed,
– no lighting.
Automatic operation of interior lighting (depending on the vehi- cle)
– if the doors are unlocked using
the remote control, the lighting is switched on for approximately
30 seconds.
– if a door is open (or not properly

closed), the lighting is switched on for approximately 30 minutes.
– if all the doors are closed, the
lighting start to dim when the ig- nition is switched on.
Depending on the vehicle, by pressing
switch 2, you will see:
– continuous lighting,
– no lighting.
12

electric windows ...................................(up to the end of the DU)
3.10
ENG_UD5583_1Lève-vitres / pare soleil - poignée de maintien (B90 - Dacia)ENG_NU_817-2_NU_Dacia_3
JauneNoirNoir texte
Lève-vitres
ELECTRIC WINDOWS
Front electric windows(depending on vehicle)
With the ignition on, press switch 1
or 2 to open the window or raise
switch 1 or 2 to close it.
Rear electric windows(depending on vehicle)
With the ignition on, press switch 3
or 4 to open the window or raise
switch 3 or 4 to close it. Press switch
5 to lock operation of the rear electric windows.
1234
5
Driver’s responsibility
Switch
5 inhibits the operation of the rear electric windows.
If there is a child (or animal) in the vehicle, never leave it unattended with the key in the ignition. With the key in the ignition it would be possible to operate the electric windows and there is a risk that a child or animal may be seriously injured (by trapping his or her neck, arm, hand, etc.).
If something gets trapped, reverse the direction of travel as soon as po\
ssible by pressing the relevant switch.
