DAEWOO LACETTI 2004 Service Repair Manual

ELECTRICAL WIRING DIAGRAMSW5–71
c. POSITION OF CONNECTORS AND GROUNDS
S W/H INSTRUMENT PANEL
d. SPLICE PACK
S202
S203
S204

5–72WELECTRICAL WIRING DIAGRAMS
2–2) SIRIUS D4a. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C101 (21 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C104 (24 Pin, White)Front
Engine Fuse BlockEngine Fuse Block
C105 (4 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C106 (20 Pin, White)Engine
Engine Fuse BlockEngine Fuse Block
C108 (24 Pin, Black)Body
EngineLeft Engine Fuse Block
C113 (16 Pin, Black)Body
FrontBehind ECM Bracket
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
C206 (22 Pin, White)I.P
TCMUpper Driver Leg Room
C208 (15 Pin, White)I.P
FAT CBehind Glove Box
C209 (20 Pin, Black)FAT C
FAT C . A u xBetween Heater Core and Evaporator Core
S202 (Black)I.PBehind Cluster
S203 (Red)I.PBehind Audio Mounting
S204 (Magenta)I.PBehind Audio Mounting
G102FrontBehind Right Head Lamp
G203I.PBehind Left Audio Bracket
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

ELECTRICAL WIRING DIAGRAMSW5–73
c. POSITION OF CONNECTORS AND GROUNDS
S W/H INSTRUMENT PANEL
d. SPLICE PACK
S202
S203
S204

5–74WELECTRICAL WIRING DIAGRAMS
9. RADIATOR COOLING FAN CIRCUIT
1) COOLING FAN CIRCUIT (MR–140/HV–240) : DUAL
a. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C101 (21 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C102 (11 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C104 (24 Pin, White)Front
Engine Fuse BlockEngine Fuse Block
C106 (20 Pin, White)Engine
Engine Fuse BlockEngine Fuse Block
C108 (24 Pin, Black)Body
EngineLeft Engine Fuse Block
C113 (16 Pin, Black)Body
FrontBehind ECM Bracket
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
G101FrontBehind Left Head Lamp
G102FrontBehind Right Head Lamp
G107Engine (MR–140/HV–240)Under Start Motor
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

ELECTRICAL WIRING DIAGRAMSW5–75
c. POSITION OF CONNECTORS AND GROUNDS
S W/H ENGINE
S W/H FRONT

5–76WELECTRICAL WIRING DIAGRAMS

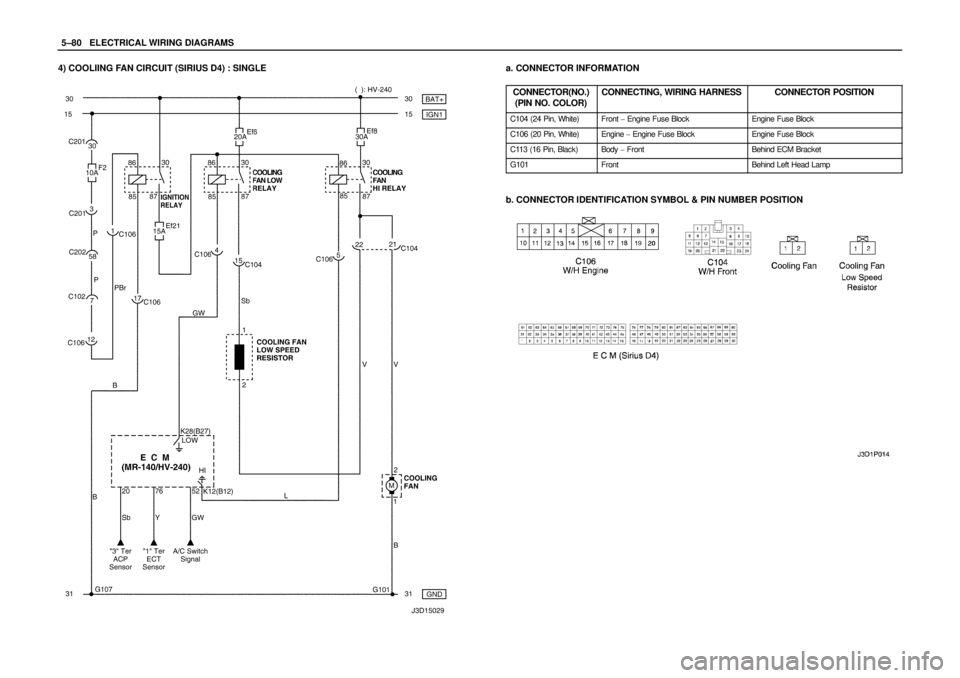

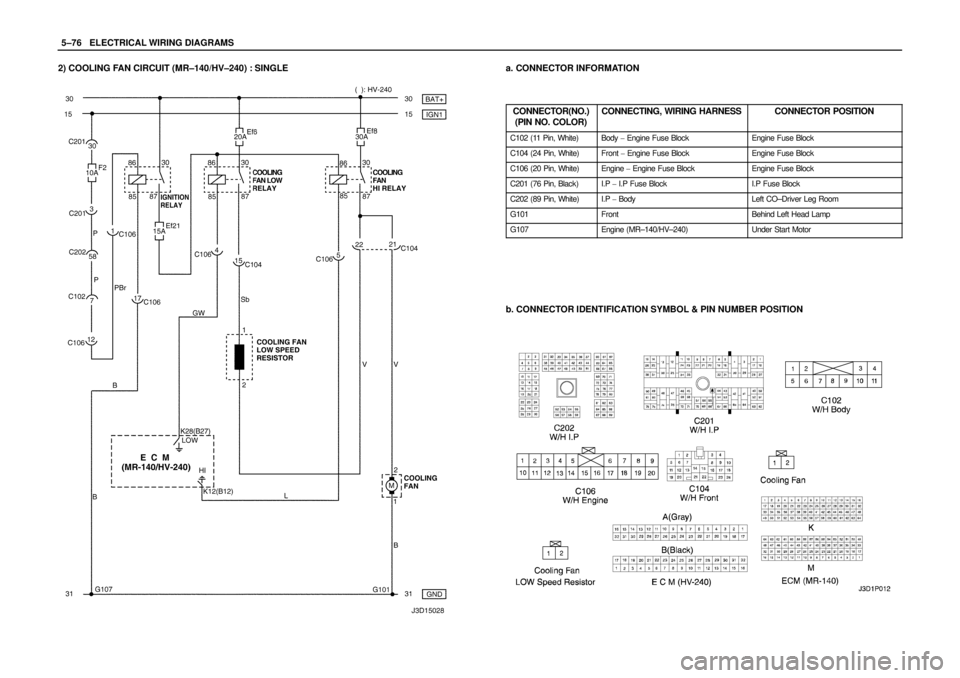

2) COOLING FAN CIRCUIT (MR–140/HV–240) : SINGLEa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C102 (11 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C104 (24 Pin, White)Front
Engine Fuse BlockEngine Fuse Block
C106 (20 Pin, White)Engine
Engine Fuse BlockEngine Fuse Block
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
G101FrontBehind Left Head Lamp
G107Engine (MR–140/HV–240)Under Start Motor
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

ELECTRICAL WIRING DIAGRAMSW5–77
c. POSITION OF CONNECTORS AND GROUNDS
S W/H ENGINE
S W/H FRONT

5–78WELECTRICAL WIRING DIAGRAMS

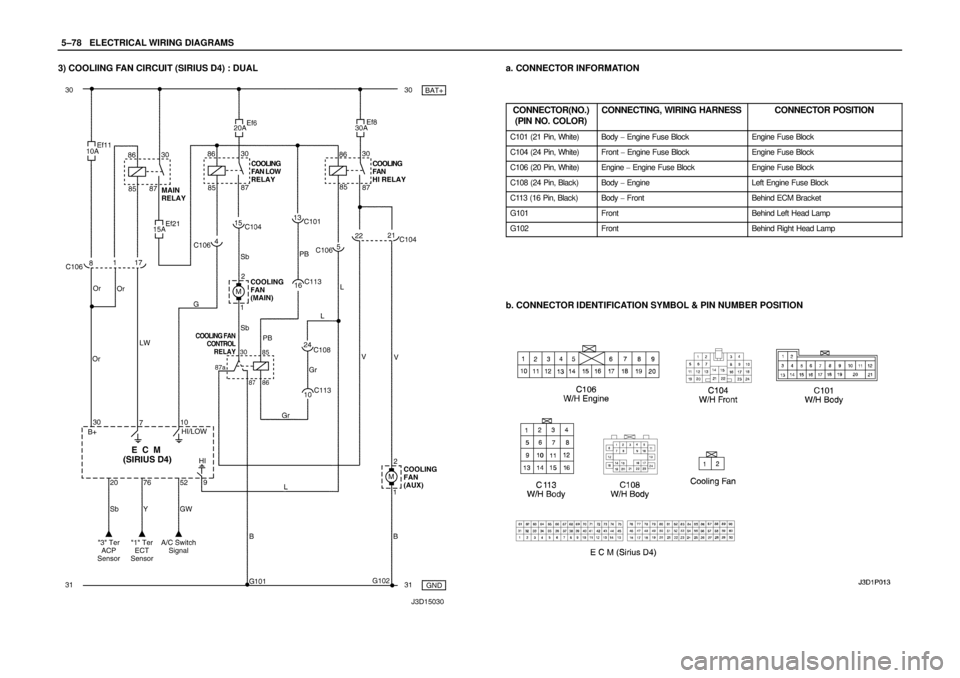

3) COOLIING FAN CIRCUIT (SIRIUS D4) : DUALa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C101 (21 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C104 (24 Pin, White)Front
Engine Fuse BlockEngine Fuse Block
C106 (20 Pin, White)Engine
Engine Fuse BlockEngine Fuse Block
C108 (24 Pin, Black)Body
EngineLeft Engine Fuse Block
C113 (16 Pin, Black)Body
FrontBehind ECM Bracket
G101FrontBehind Left Head Lamp
G102FrontBehind Right Head Lamp
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

ELECTRICAL WIRING DIAGRAMSW5–79
c. POSITION OF CONNECTORS AND GROUNDS
S W/H ENGINE
S W/H FRONT

5–80WELECTRICAL WIRING DIAGRAMS
4) COOLIING FAN CIRCUIT (SIRIUS D4) : SINGLEa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C104 (24 Pin, White)Front
Engine Fuse BlockEngine Fuse Block
C106 (20 Pin, White)Engine
Engine Fuse BlockEngine Fuse Block
C113 (16 Pin, Black)Body
FrontBehind ECM Bracket
G101FrontBehind Left Head Lamp
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
