DAEWOO LACETTI 2004 Service Repair Manual

ELECTRICAL WIRING DIAGRAMSW5–91
c. POSITION OF CONNECTORS AND GROUNDS
S W/H FRONT
S W/H TRUNK
S W/H BODY

5–92WELECTRICAL WIRING DIAGRAMS

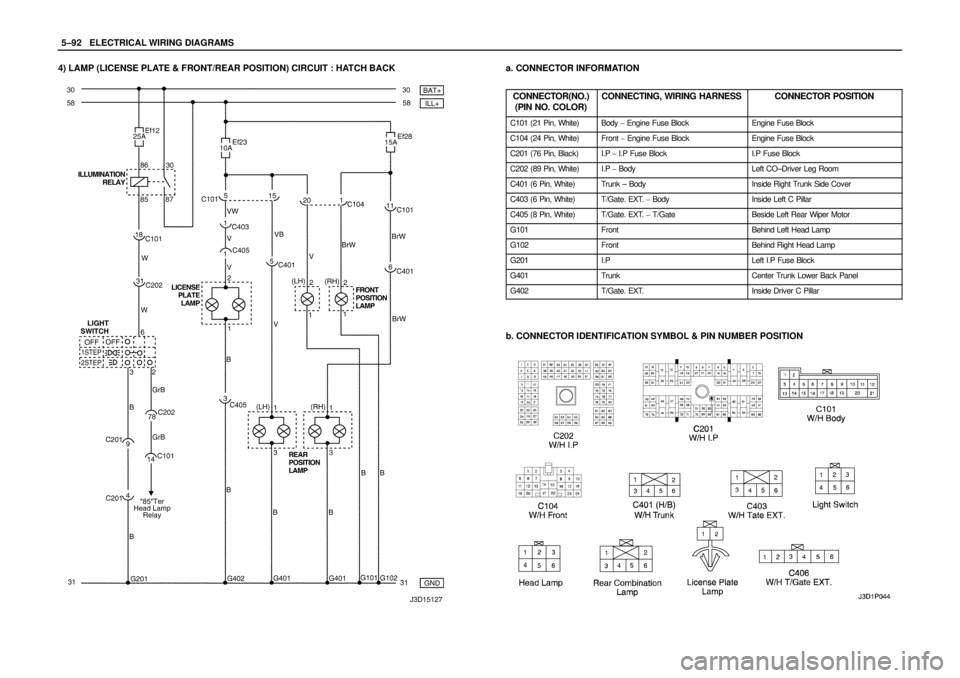

4) LAMP (LICENSE PLATE & FRONT/REAR POSITION) CIRCUIT : HATCH BACKa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C101 (21 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C104 (24 Pin, White)Front
Engine Fuse BlockEngine Fuse Block
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
C401 (6 Pin, White)Trunk – BodyInside Right Trunk Side Cover
C403 (6 Pin, White)T/Gate. EXT.
BodyInside Left C Pillar
C405 (8 Pin, White)T/Gate. EXT.
T/GateBeside Left Rear Wiper Motor
G101FrontBehind Left Head Lamp
G102FrontBehind Right Head Lamp
G201I.PLeft I.P Fuse Block
G401TrunkCenter Trunk Lower Back Panel
G402T/Gate. EXT.Inside Driver C Pillar
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

ELECTRICAL WIRING DIAGRAMSW5–93
c. POSITION OF CONNECTORS AND GROUNDS
S W/H FRONT
S W/H TAIL GATE
S W/H TRUNK (H/B)
V3B1P000
S W/H BODY

5–94WELECTRICAL WIRING DIAGRAMS

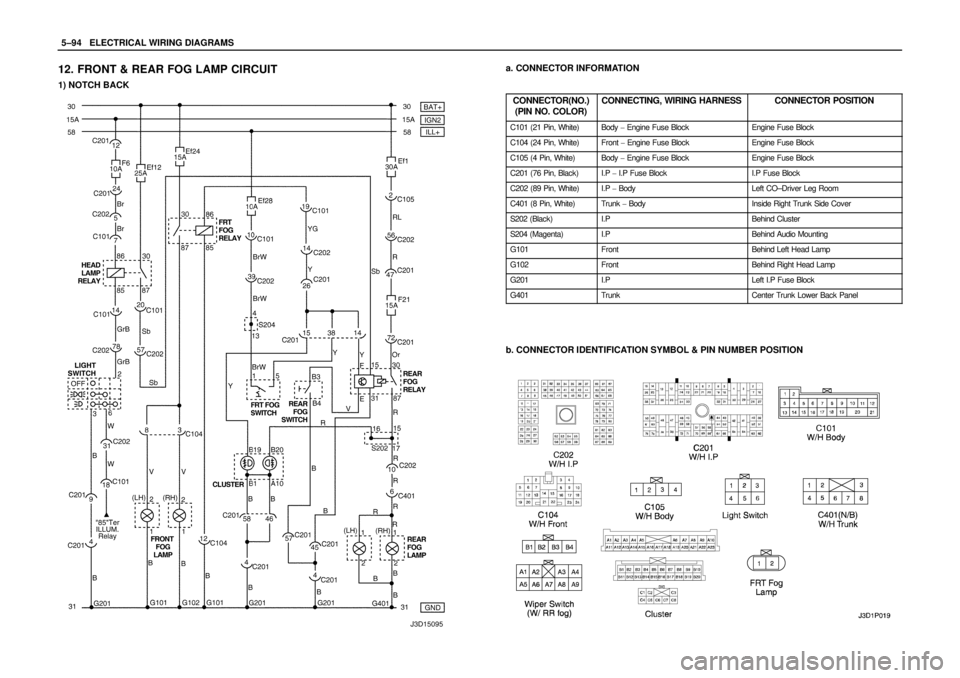

12. FRONT & REAR FOG LAMP CIRCUIT
1) NOTCH BACK
a. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C101 (21 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C104 (24 Pin, White)Front
Engine Fuse BlockEngine Fuse Block
C105 (4 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
C401 (8 Pin, White)Trunk
BodyInside Right Trunk Side Cover
S202 (Black)I.PBehind Cluster
S204 (Magenta)I.PBehind Audio Mounting
G101FrontBehind Left Head Lamp
G102FrontBehind Right Head Lamp
G201I.PLeft I.P Fuse Block
G401TrunkCenter Trunk Lower Back Panel
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

ELECTRICAL WIRING DIAGRAMSW5–95
c. POSITION OF CONNECTORS AND GROUNDS
S W/H TRUNK LID
S W/H INSTRUMENT PANEL
d. SPLICE PACK
S202
S204

5–96WELECTRICAL WIRING DIAGRAMS

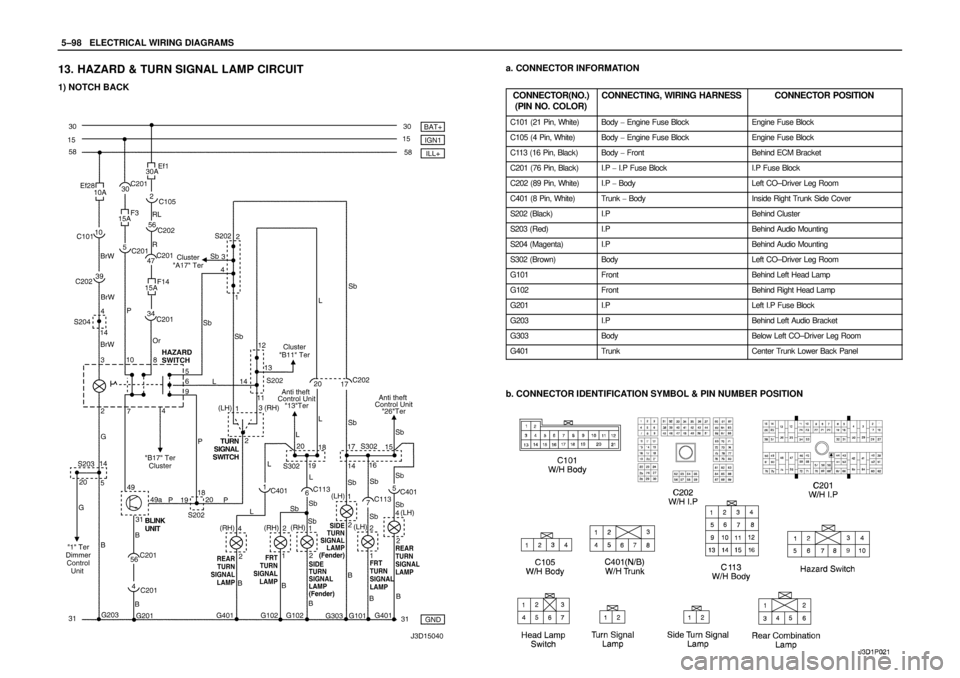

2) HATCH BACKa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C101 (21 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C104 (24 Pin, White)Front
Engine Fuse BlockEngine Fuse Block
C105 (4 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
C403 (6 Pin, White)T/Gate. EXT.
BodyInside Left C Pillar
C405 (8 Pin, White)T/Gate. EXT.
T/GateBeside Left Rear Wiper Motor
C406 (6 Pin, White)T/Gate. EXT.
T/GateBeside Left Rear Wiper Motor
S202 (Black)I.PBehind Cluster
S204 (Magenta)I.PBehind Audio Mounting
G101FrontBehind Left Head Lamp
G102FrontBehind Right Head Lamp
G201I.PLeft I.P Fuse Block
G401TrunkCenter Trunk Lower Back Panel
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

ELECTRICAL WIRING DIAGRAMSW5–97
c. POSITION OF CONNECTORS AND GROUNDS
S W/H INSTRUMENT PANEL
S W/H TAIL GATE
d. SPLICE PACK
S202
S204

5–98WELECTRICAL WIRING DIAGRAMS

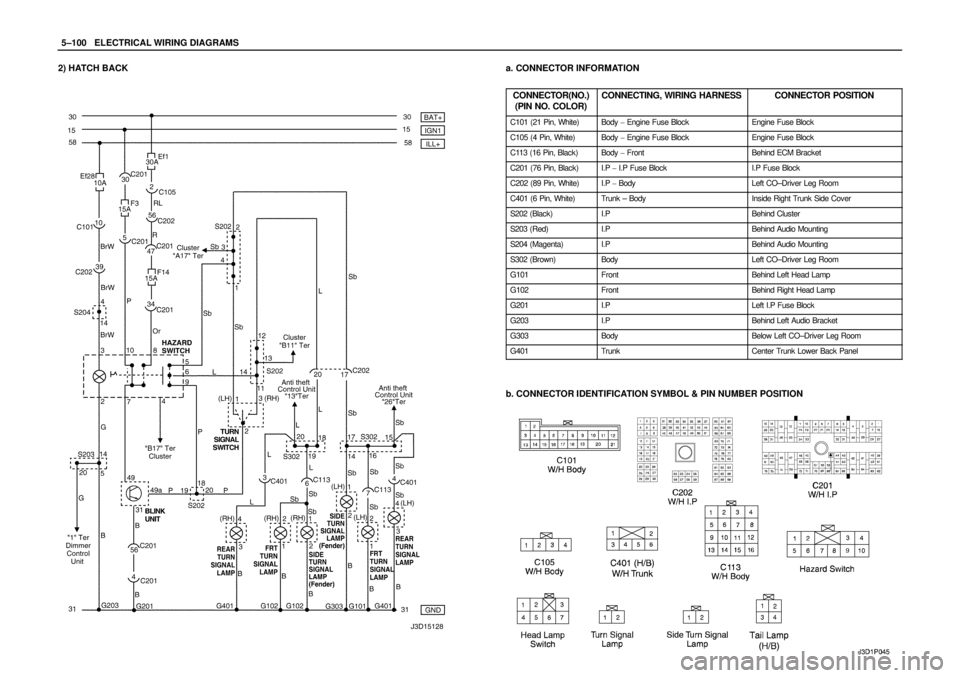

13. HAZARD & TURN SIGNAL LAMP CIRCUIT
1) NOTCH BACK
a. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C101 (21 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C105 (4 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C113 (16 Pin, Black)Body
FrontBehind ECM Bracket
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
C401 (8 Pin, White)Trunk
BodyInside Right Trunk Side Cover
S202 (Black)I.PBehind Cluster
S203 (Red)I.PBehind Audio Mounting
S204 (Magenta)I.PBehind Audio Mounting
S302 (Brown)BodyLeft CO–Driver Leg Room
G101FrontBehind Left Head Lamp
G102FrontBehind Right Head Lamp
G201I.PLeft I.P Fuse Block
G203I.PBehind Left Audio Bracket
G303BodyBelow Left CO–Driver Leg Room
G401TrunkCenter Trunk Lower Back Panel
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

ELECTRICAL WIRING DIAGRAMSW5–99
c. POSITION OF CONNECTORS AND GROUNDS
S W/H FRONT
d. SPLICE PACK
S202
S203
S204
S302

5–100WELECTRICAL WIRING DIAGRAMS
2) HATCH BACKa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C101 (21 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C105 (4 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C113 (16 Pin, Black)Body
FrontBehind ECM Bracket
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
C401 (6 Pin, White)Trunk – BodyInside Right Trunk Side Cover
S202 (Black)I.PBehind Cluster
S203 (Red)I.PBehind Audio Mounting
S204 (Magenta)I.PBehind Audio Mounting
S302 (Brown)BodyLeft CO–Driver Leg Room
G101FrontBehind Left Head Lamp
G102FrontBehind Right Head Lamp
G201I.PLeft I.P Fuse Block
G203I.PBehind Left Audio Bracket
G303BodyBelow Left CO–Driver Leg Room
G401TrunkCenter Trunk Lower Back Panel
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
