DAEWOO LACETTI 2004 Service Repair Manual

ELECTRICAL WIRING DIAGRAMSW5–121
c. POSITION OF CONNECTORS AND GROUNDS
S W/H ROOF
S W/H INSTRUMENT PANEL
d. SPLICE PACK
S301 (NOTCH BACK)
S301 (HATCH BACK)

5–122WELECTRICAL WIRING DIAGRAMS

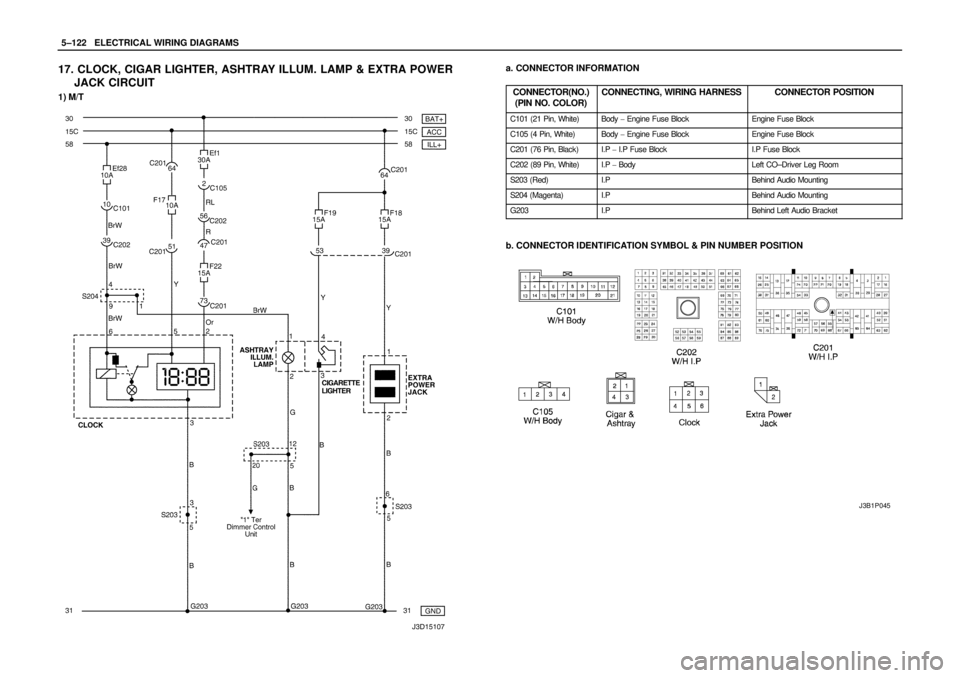

17. CLOCK, CIGAR LIGHTER, ASHTRAY ILLUM. LAMP & EXTRA POWER
JACK CIRCUIT
1) M/T
a. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C101 (21 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C105 (4 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
S203 (Red)I.PBehind Audio Mounting
S204 (Magenta)I.PBehind Audio Mounting
G203I.PBehind Left Audio Bracket
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
J3B1P045

ELECTRICAL WIRING DIAGRAMSW5–123
c. POSITION OF CONNECTORS AND GROUNDS
S W/H INSTRUMENT PANEL
d. SPLICE PACK
S203
S204

5–124WELECTRICAL WIRING DIAGRAMS

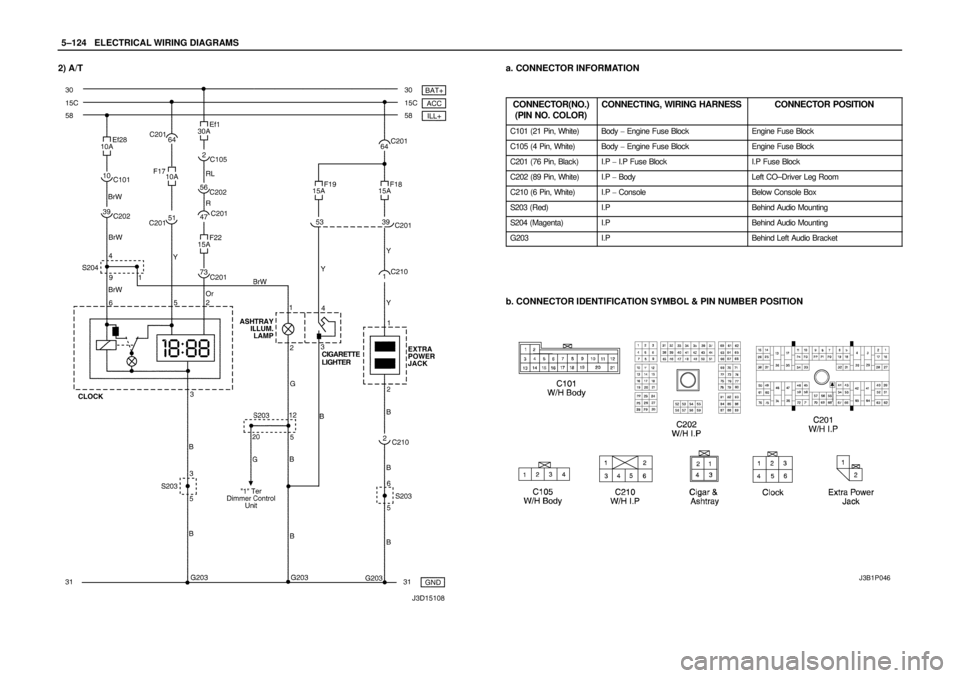

2) A/Ta. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C101 (21 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C105 (4 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
C210 (6 Pin, White)I.P
ConsoleBelow Console Box
S203 (Red)I.PBehind Audio Mounting
S204 (Magenta)I.PBehind Audio Mounting
G203I.PBehind Left Audio Bracket
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
J3B1P046

ELECTRICAL WIRING DIAGRAMSW5–125
c. POSITION OF CONNECTORS AND GROUNDS
S W/H INSTRUMENT PANEL
d. SPLICE PACK
S203
S204

5–126WELECTRICAL WIRING DIAGRAMS

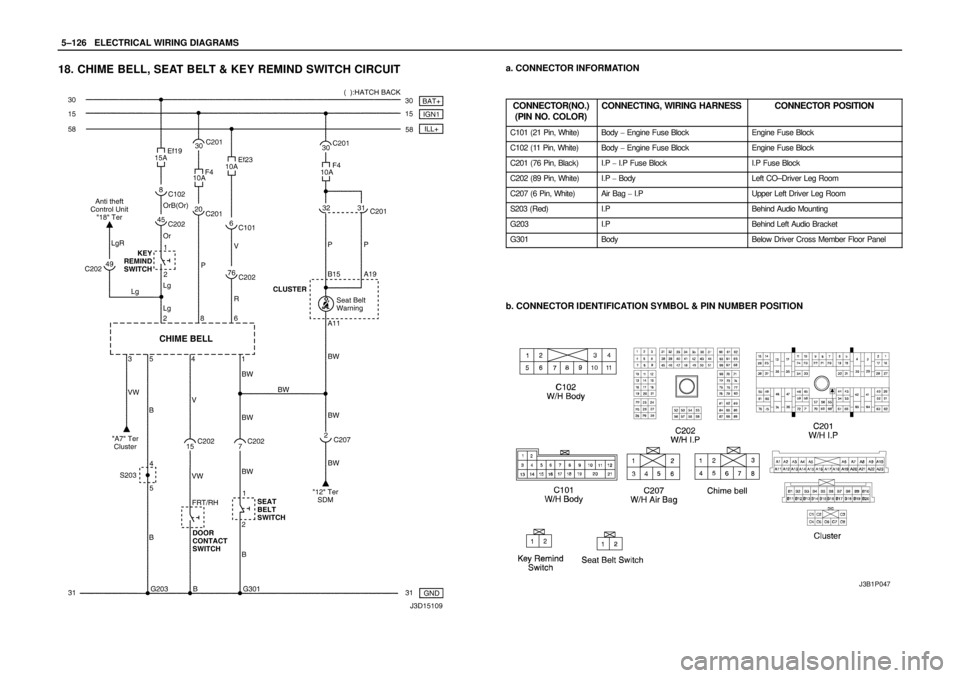

18. CHIME BELL, SEAT BELT & KEY REMIND SWITCH CIRCUITa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C101 (21 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C102 (11 Pin, White)Body
Engine Fuse BlockEngine Fuse Block
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
C207 (6 Pin, White)Air Bag
I.PUpper Left Driver Leg Room
S203 (Red)I.PBehind Audio Mounting
G203I.PBehind Left Audio Bracket
G301BodyBelow Driver Cross Member Floor Panel
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
J3B1P047

ELECTRICAL WIRING DIAGRAMSW5–127
c. POSITION OF CONNECTORS AND GROUNDS
S W/H INSTRUMENT PANEL
d. SPLICE PACK
S203

5–128WELECTRICAL WIRING DIAGRAMS

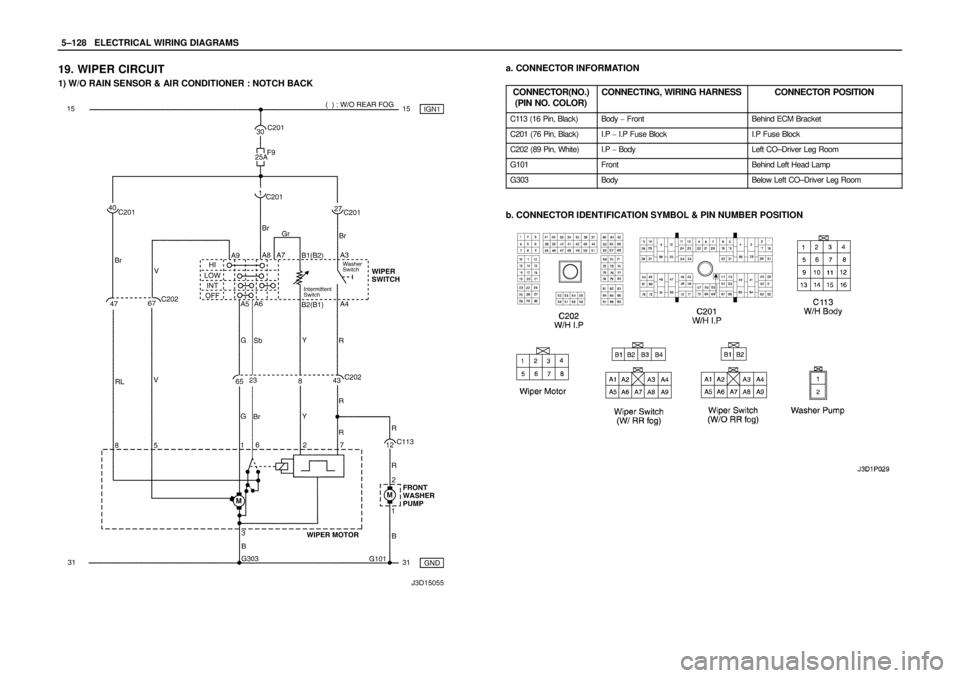

19. WIPER CIRCUIT
1) W/O RAIN SENSOR & AIR CONDITIONER : NOTCH BACK
a. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C113 (16 Pin, Black)Body
FrontBehind ECM Bracket
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
G101FrontBehind Left Head Lamp
G303BodyBelow Left CO–Driver Leg Room
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

ELECTRICAL WIRING DIAGRAMSW5–129
c. POSITION OF CONNECTORS AND GROUNDS
S W/H INSTRUMENT PANEL
S W/H BODY

5–130WELECTRICAL WIRING DIAGRAMS
2) W/O RAIN SENSOR & AIR CONDITIONER : HATCH BACKa. CONNECTOR INFORMATION
CONNECTOR(NO.)
(PIN NO. COLOR)
CONNECTING, WIRING HARNESSCONNECTOR POSITION
C201 (76 Pin, Black)I.P
I.P Fuse BlockI.P Fuse Block
C202 (89 Pin, White)I.P
BodyLeft CO–Driver Leg Room
C404 (8 Pin, White)T/Gate. EXT.
BodyInside Left C Pillar
C405 (8 Pin, White)T/Gate. EXT.
T/GateBeside Left Rear Wiper Motor
G303BodyBelow Left CO–Driver Leg Room
G402T/Gate. EXT.Inside Driver C Pillar
b. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
