ENGINE COOLING 1D–17
DAEWOO M-150 BL2
SPECIFICATIONS
GENERAL SPECIFICATIONS
ApplicationDescriptionUnitStandardLimit
Cooling
SystemCooling Type–Forced Water
Circulation
CoolantCoolant CapacityL/qt3.8/4.00
Thermostat Type–Pellet Type
Temperature(opened initially)°C(°F)82(180)
ThermostatTemperature(perfectly opened)°C(°F)95(203.4)
Temperature(perfectly closed)°C(°F)80(176.4)
Stroke(perfectly opened)mm(in.)8 (0.32)
Cooling Fan Type–Electric
Blade NumberEA6
Cooling Fan Diametermm(inch)300(11.8)
Electric CoolingTemperature At Low Speed ON°C(°F)93(199.8)Fan
Temperature At Low Speed OFF°C(°F)90(194.4)
Temperature At High Speed ON°C(°F)100(212.4)
Temperature At High Speed OFF°C(°F)97(207)
Surge TankOpen Pressure of The Pressure ValvekPa (psi)120–150
(17.4–21.8)
Surge Tank
Open Pressure of The Vacuum ValvekPa (psi)10 (1.5)
Water Pump Type–Centrifugal
Coolant PumpImpeller Diametermm(in.)60(2.36)
Impeller Blade NumberEA7
Radiator Type–Cross–Flow
Core Widthmm(in.)458(18.03)RadiatorCore Heightmm(in.)295(11.61)
Core Depth (Standard/Heavy Duty)mm(in.)16/27(0.63/1.06)
Resistance
(Coolant Temperature 50°C(122.4°F))Ω185.2
Coolant
TemperatureResistance
(Coolant Temperature 85°C(185.4°F))Ω49.2
SensorResistance
(Coolant Temperature 105°C(221.4°F))Ω27.5
Engine CoolantResistance
(Coolant Temperature 20°C(68.4°F))Ω3,520
Temperature
SensorResistance
(Coolant Temperature 80°C(176.4°F))Ω332

1D–18 ENGINE COOLING
DAEWOO M-150 BL2
FASTENER TIGHTENING SPECIFICATIONS
ApplicationNmLb-FtLb-In
Engine Coolant Temperature Sensor10–89
Coolant Temperature Sensor2015–
Coolant Pipe Bolt8 – 15–71 – 130
Electric Cooling Fan Motor Nut3.0 – 3.2–27 – 28
Electric Cooling Fan Assembly Bolt3.5 – 4.5–31 – 40
Distributor Case Bolt/Nut8 – 12–71 – 106
Radiator Mounting Bracket Bolt3.5 – 4.5–31 – 40
Thermostat Housing Bolt8 – 15–71 – 130
Water Inlet Cap Bolt8 – 12–71 – 106
Coolant Pump Bolt/Nut9–12–80 – 106
Coolant Pump Stud Bolt9–12–80 – 106

ENGINE ELECTRICAL 1E–5
DAEWOO M-150 BL2
the sequence of ignition order. It also adjusts the ignition
timing according to the engine condition.
This vehicle uses the distributor (optical sensor type)
which controls the preminary current of the ignition coil
by the ECM.
The ignition timing change is controlled electronically by
the ECM.
When diagnosing the ignition system, refer to Section
1F, Engine Controls.
IGNITION COIL
Ignition coil is a sort of transformer to generate high volt-
age (15,000–25,000V) which can bring spark at the
spark plugs and has an iron cored closed magnetic type.The closed magnetic typed ignition coil is used for the
High Energy Ignition (H.E.I) system. Comparing with the
iron cored open magnetic type, the closed type almost
has no loss of magnetic flux, and smaller in size, so it
produces the high voltage of secondary voltage.
SPARK PLUG
It is a part of ignition secondary current, and it burns the
compressed mixture by sparking the high voltage in-
duced from the ignition coil.

ENGINE ELECTRICAL 1E–9
DAEWOO M-150 BL2
IGNITION SYSTEM
D102E404
1 Ignition Coil
2 Spark Pulg
3 Ignitoin Wire (#0)
4 Ignition Wires (#1, #2, #3)
5 Support Clamp
6 Mounting Clamp
7 Distributor Assembly
8 Coupling
9 Distributor Oil Seal
10 Distributor Housing
11 Distributor Shaft12 Plate
13 Optical Sensor Unit
14 Plate
15 Bushing
16 Disc Wheel
17 Inner Cover
18 Outer Cover
19 Distributor Rotor
20 Distributor Cap Seal
21 Distributor Cap

ENGINE ELECTRICAL 1E–11
DAEWOO M-150 BL2

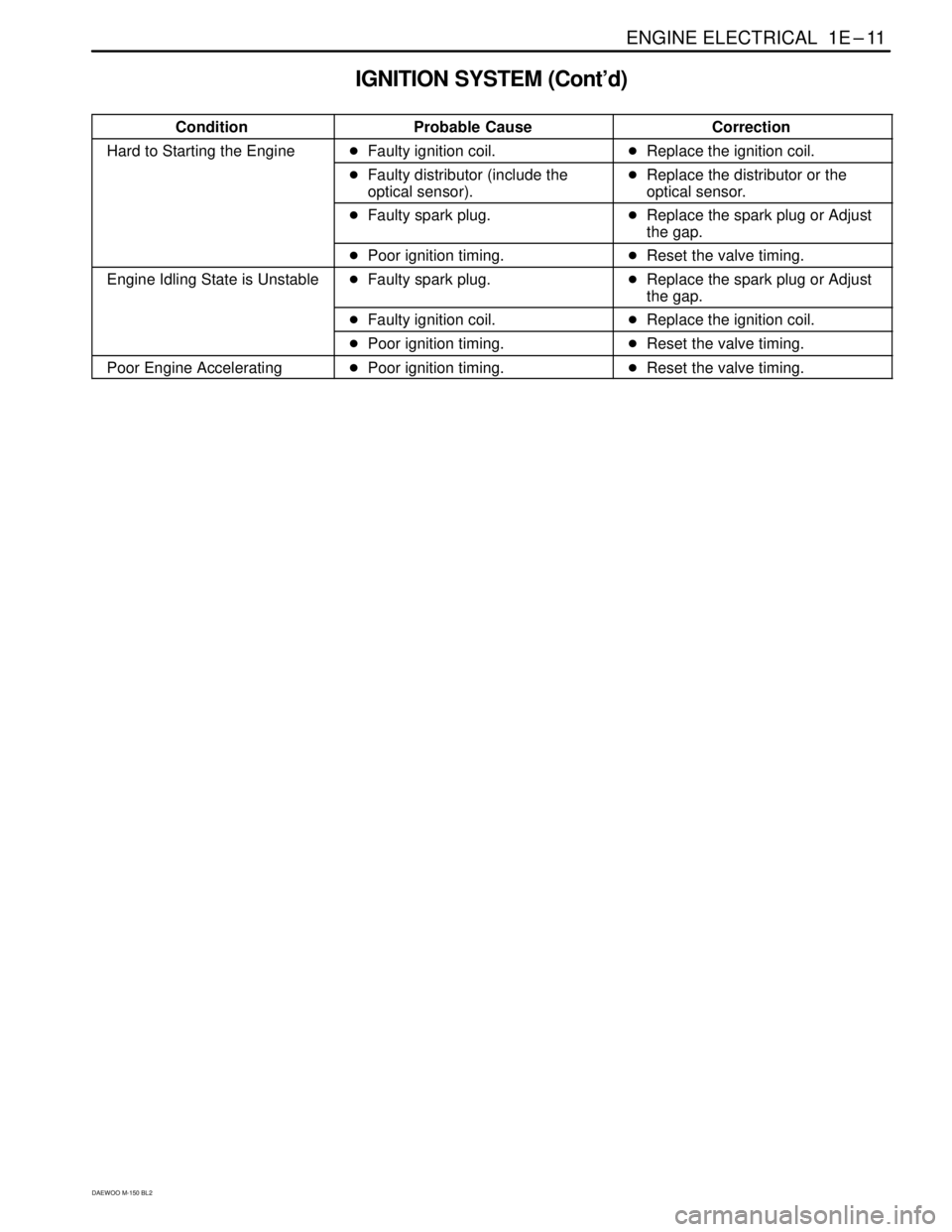

IGNITION SYSTEM (Cont’d)
ConditionProbable CauseCorrection
Hard to Starting the Engine
Faulty ignition coil.
Replace the ignition coil.

Faulty distributor (include the
optical sensor).
Replace the distributor or the
optical sensor.

Faulty spark plug.
Replace the spark plug or Adjust
the gap.

Poor ignition timing.
Reset the valve timing.
Engine Idling State is Unstable
Faulty spark plug.
Replace the spark plug or Adjust
the gap.

Faulty ignition coil.
Replace the ignition coil.

Poor ignition timing.
Reset the valve timing.
Poor Engine Accelerating
Poor ignition timing.
Reset the valve timing.

1E–14 ENGINE ELECTRICAL
DAEWOO M-150 BL2
REPAIR INSTRUCTIONS
ON–VEHICLE SERVICE
D12E5011
STARTER
Removal Procedure
1. Disconnect the negative battery cable.
2. Disconnect the electrical connector and clip around
the starter.

Remove the engine oil temperature sensor to dis-
connect the harness connector (1).

Remove the starter solenoid nut to disconnect the
electrical cable (2).

Remove the harness clip bolt to disconnect the
harness clip (3).

Remove the ground bolt (4).
D102E502
3. Remove the starter assembly.

Remove the starter mounting bolts (1).

Remove the starter assembly (2).
D12E5031
Installation procedure
1. Install in the reverse order of removal.
2. Install the starter mounting bolts and starter solenoid
nut.
Tighten

Tighten the starter mounting bolts to 55–65 Nm
(41–48 lb-ft) (a).

Tighten the starter solenoid nut to 9–12 Nm
(80–106 lb-in) (b).

Tighten the harness clip bolt to 9–12 Nm (80–106
lb-in) (c).

Tighten the ground bolt to 35–41 Nm (26–30 lb-ft)
(d).

ENGINE ELECTRICAL 1E–17
DAEWOO M-150 BL2

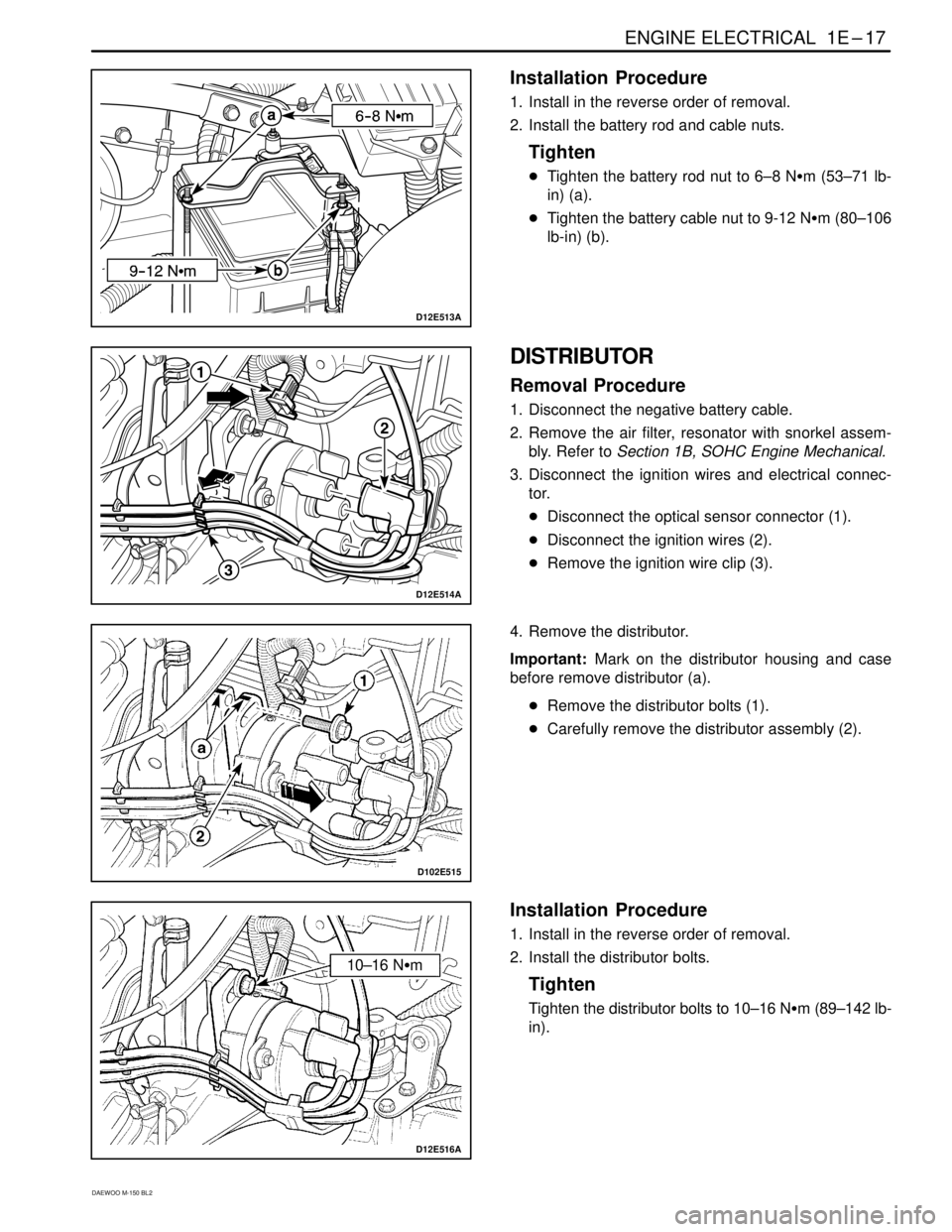

D12E513A
Installation Procedure
1. Install in the reverse order of removal.
2. Install the battery rod and cable nuts.
Tighten

Tighten the battery rod nut to 6–8 Nm (53–71 lb-
in) (a).

Tighten the battery cable nut to 9-12 Nm (80–106
lb-in) (b).
D12E514A
DISTRIBUTOR
Removal Procedure
1. Disconnect the negative battery cable.
2. Remove the air filter, resonator with snorkel assem-
bly. Refer to Section 1B, SOHC Engine Mechanical.
3. Disconnect the ignition wires and electrical connec-
tor.

Disconnect the optical sensor connector (1).

Disconnect the ignition wires (2).

Remove the ignition wire clip (3).
D102E515
4. Remove the distributor.
Important: Mark on the distributor housing and case
before remove distributor (a).

Remove the distributor bolts (1).

Carefully remove the distributor assembly (2).
D12E516A
10–16 Nm
Installation Procedure
1. Install in the reverse order of removal.
2. Install the distributor bolts.
Tighten
Tighten the distributor bolts to 10–16 Nm (89–142 lb-
in).

ENGINE ELECTRICAL 1E–35
DAEWOO M-150 BL2
D102E764
4. Remove the optical sensor cover and adaptor from
the distributor housing.

Remove the screw (1).

Remove the adaptor (2).

Remove the screws (3).

Remove the cover (4).

Remove the gasket (5).
D102E765
5. Remove the optical sensor unit from the distributor
housing.

Carefully remove the disc wheel (1).

Remove the bushing (2).

Remove the screws (3).

Remove the optical sensor unit plate (4).

Remove the optical sensor unit (5).
D102E766
6. Remove the bearing plate from the distributor hous-
ing.

Remove the screws (1).

Remove the bearing plate (2).
D102E767
7. Remove the coupling, shaft and bearing from the dis-
tributor housing.

Remove the coupling (1).

Remove the shaft using the press (2).

Remove the bearing (3).

ENGINE ELECTRICAL 1E–41
DAEWOO M-150 BL2

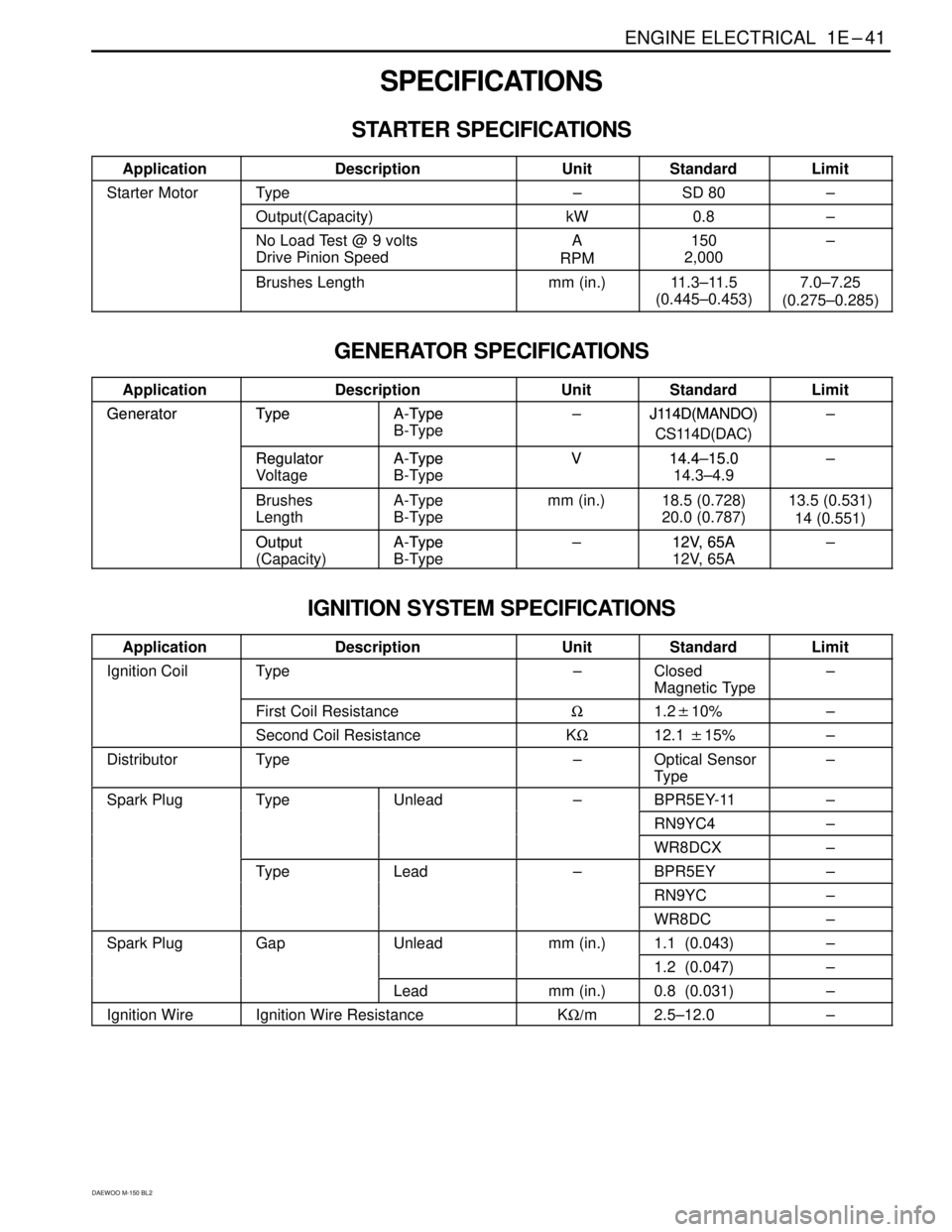

SPECIFICATIONS
STARTER SPECIFICATIONS
ApplicationDescriptionUnitStandardLimit
Starter MotorType–SD 80–
Output(Capacity)kW0.8–
No Load Test @ 9 volts
Drive Pinion SpeedA
RPM150
2,000–
Brushes Lengthmm (in.)11.3–11.5
(0.445–0.453)7.0–7.25
(0.275–0.285)
GENERATOR SPECIFICATIONS
ApplicationDescriptionUnitStandardLimit
GeneratorTypeA-Type–J114D(MANDO)–GeneratorTypeA-Type
B-Type–J114D(MANDO)
CS114D(DAC)–
RegulatorA-TypeV14.4–15.0–Regulator
VoltageA-Type
B-TypeV14.4–15.0
14.3–4.9–
Brushes
LengthA-Type
B-Typemm (in.)18.5 (0.728)
20.0 (0.787)13.5 (0.531)
14 (0.551)
OutputA-Type–12V, 65A–Output
(Capacity)A-Type
B-Type–12V, 65A
12V, 65A–
IGNITION SYSTEM SPECIFICATIONS
ApplicationDescriptionUnitStandardLimit
Ignition CoilType–Closed
Magnetic Type–
First Coil ResistanceΩ1.2
10%–
Second Coil ResistanceKΩ12.1
15%–
DistributorType–Optical Sensor
Type–
Spark PlugTypeUnlead–BPR5EY-11–
RN9YC4–
WR8DCX–
TypeLead–BPR5EY–
RN9YC–
WR8DC–
Spark PlugGapUnleadmm (in.)1.1 (0.043)–
1.2 (0.047)–
Leadmm (in.)0.8 (0.031)–
Ignition WireIgnition Wire ResistanceKΩ/m2.5–12.0–

DAEWOO M-150 BL2
SECTION 1F
ENGINE CONTROLS
CAUTION: Disconnect the negative battery cable before removing or installing any electrical unit or when a
tool or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable
will help prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless
otherwise noted.
TABLE OF CONTENTS
Description and Operation 1F-4. . . . . . . . . . . . . . . . . .
Ignition System Operation 1F-4. . . . . . . . . . . . . . . . . .
Electronic Ignition System Ignition Coil 1F-4. . . . . . .
Crankshaft Position Sensor 1F-4. . . . . . . . . . . . . . . . .
Camshaft Position Sensor 1F-4. . . . . . . . . . . . . . . . . .
Idle Air System Operation 1F-4. . . . . . . . . . . . . . . . . .
Fuel Control System Operation 1F-4. . . . . . . . . . . . . .
Evaporative Emission Control System
Operation 1F-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Controlled Charcoal Canister 1F-5. . . . . . . . . . . . . . . .
Positive Crankcase Ventilation Control System
Operation 1F-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine Coolant Temperature Sensor 1F-6. . . . . . . . .
Throttle Position Sensor 1F-6. . . . . . . . . . . . . . . . . . . .
Catalyst Monitor Oxygen Sensors 1F-6. . . . . . . . . . .
Electric Exhaust Gas Recirculation Valve 1F-6. . . . .
Intake Air Temperature Sensor 1F-7. . . . . . . . . . . . . .
Idle Air Control Valve 1F-7. . . . . . . . . . . . . . . . . . . . . .
Manifold Absolute Pressure Sensor 1F-7. . . . . . . . . .
Engine Control Module 1F-8. . . . . . . . . . . . . . . . . . . . .
Fuel Injector 1F-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel Cutoff Switch (Inertia Switch) 1F-8. . . . . . . . . . .
Knock Sensor 1F-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Variable Reluctance (VR) Sensor 1F-8. . . . . . . . . . . .
Octane Number Connector 1F-8. . . . . . . . . . . . . . . . .
Strategy-Based Diagnostics 1F-9. . . . . . . . . . . . . . . .
EOBD Serviceability Issues 1F-9. . . . . . . . . . . . . . . . .
Serial Data Communications 1F-10. . . . . . . . . . . . . . .
Euro On-Board Diagnostic (EOBD) 1F-10. . . . . . . . .
Comprehensive Component Monitor Diagnostic
Operation 1F-11. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Common EOBD Terms 1F-11. . . . . . . . . . . . . . . . . . . .
DTC Types 1F-13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Reading Diagnostic Trouble Codes 1F-13. . . . . . . . .
Primary System-Based Diagnostics 1F-15. . . . . . . . Diagnostic Information and Procedures 1F-17. . . .
System Diagnosis 1F-17. . . . . . . . . . . . . . . . . . . . . . . . . .
Diagnostic Aids 1F-17. . . . . . . . . . . . . . . . . . . . . . . . . .
Idle Learn Procedure 1F-17. . . . . . . . . . . . . . . . . . . . .
Euro On-Board Diagnostic (EOBD) System
Check 1F-18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ECM Output Diagnosis 1F-20. . . . . . . . . . . . . . . . . . . .
Multiple ECM Information Sensor DTCs Set 1F-21. .
Engine Cranks But Will Not Run 1F-25. . . . . . . . . . . .
No Malfunction Indicator Lamp 1F-30. . . . . . . . . . . . .
Malfunction Indicator Lamp On Steady 1F-32. . . . . .
Fuel System Diagnosis 1F-34. . . . . . . . . . . . . . . . . . . .
Fuel Pump Relay Circuit Check 1F-36. . . . . . . . . . . .
Main Relay Circuit Check 1F-38. . . . . . . . . . . . . . . . . .
Manifold Absolute Pressure Check 1F-40. . . . . . . . . .
Idle Air Control System Check 1F-42. . . . . . . . . . . . .
Ignition System Check 1F-45. . . . . . . . . . . . . . . . . . . .
Engine Cooling Fan Circuit Check 1F-48. . . . . . . . . .
Data Link Connector Diagnosis 1F-52. . . . . . . . . . . . .
Fuel Injector Balance Test 1F-54. . . . . . . . . . . . . . . . .
Diagnostic Trouble Code Diagnosis 1F-55. . . . . . . .
Clearing Trouble Codes 1F-55. . . . . . . . . . . . . . . . . . .
Diagnostic Trouble Codes 1F-55. . . . . . . . . . . . . . . . .
DTC P0107 Manifold Absolute Pressure Sensor
Low Voltage 1F-58. . . . . . . . . . . . . . . . . . . . . . . . . . .
DTC P0108 Manifold Pressure Sensor High
Voltage 1F-62. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DTC P0112 Intake Air Temperature Sensor Low
Voltage 1F-66. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DTC P0113 Intake Air Temperature Sensor High
Voltage 1F-68. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DTC P0117 Engine Coolant Temperature Sensor
Low Voltage 1F-72. . . . . . . . . . . . . . . . . . . . . . . . . . .
DTC P0118 Engine Coolant Temperature Sensor
High Voltage 1F-74. . . . . . . . . . . . . . . . . . . . . . . . . . .
