2. Twist and remove socket from the back of the light
housing. 3. Replace the bulb and reinstall the socket into the
housing by locking it in place with a twist.
Changing High Mount Stop Light Bulb MAINTAINING YOUR VEHICLE 419
7

FLUIDS AND CAPACITIES
FLUIDS AND CAPACITIES
Engine U.S. Metric
Fuel (approximate)
All FWD Engines Ð (Except 2.4L PZEV) 16.9 Gals 64 L
3.5L Engine with AWD (All Wheel Drive) 17.3 Gals 65.5 L
2.4L PZEV (Partial Zero Emissions Vehicle) 18.4 Gals 69.7 L
Engine Oil with Filter
2.4 Liter Engine (SAE 5W-20, API Certified) 4.5 Qts 4.26 L
2.7 Liter Engine (SAE 5W-20, API Certified) 5.5 Qts 5.2 L
3.5 Liter Engine (SAE 10W-30, API Certified) 5.5 Qts 5.2 L420 MAINTAINING YOUR VEHICLE

FLUIDS AND CAPACITIES
Engine U.S. Metric
Cooling System *
2.4 Liter Engine (Mopar t Antifreeze/Coolant 5 Year/
100,000 Mile Formula) or equivalent. 7.7 Qts 7.3 L
2.7 Liter Engine (Mopar t Antifreeze/Coolant 5 Year/
100,000 Mile Formula) or equivalent. 9.8 Qts 9.3 L
3.5 Liter Engine (Mopar t Antifreeze/Coolant 5 Year/
100,000 Mile Formula) or equivalent. 11.6 Qts 11.0 L
* Includes heater and coolant recovery bottle filled to MAX level. MAINTAINING YOUR VEHICLE 421
7

FLUIDS, LUBRICANTS, AND GENUINE PARTS
Engine
Component Fluids, Lubricants, and Genuine Parts
Engine Coolant Mopar t Antifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hybrid Organic
Additive Technology) or equivalent
Engine Oil (2.4L, 2.7L) Use API Certified engine oil. SAE 5W-20 is recommended. Refer to the engine oil
fill cap for the correct SAE grade meeting DaimlerChrysler Material Standard MS-
6395.
Engine Oil (3.5L) Use API Certified engine oil. SAE 10W-30 is recommended. Refer to the engine oil
viscosity chart for the correct SAE grade meeting DaimlerChrysler Material Stan-
dard MS-6395.
Oil Filter (2.4L) Mopar t 04884900AB or equivalent.
Oil Filter (2.7L, 3.5L) Mopar t 04884899AB or equivalent.
Spark Plugs (2.4L - EXCEPT
PZEV*) ZFR5F-11 (Gap.043 in [1.11 mm])
Spark Plugs (2.4LÐ with
PZEV ZFR5AP (Gap.031 in [0.8 mm])422 MAINTAINING YOUR VEHICLE

Component Fluids, Lubricants, and Genuine Parts
Spark Plugs (2.7L) RE14PMC5 (Gap.050 in [1.27 mm])
Spark Plugs (3.5L) ZFR5LP-13G (Gap.050 in [1.27 mm])
Fuel Selection (2.4L, 2.7L) 87 Octane
Fuel Selection (2.7L - EX-
CEPT CALIFORNIA EMIS-
SION STATES) E-85 Ethanol
Fuel Selection (3.5L) 87 to 89 Octane
* PZEV = Partial Zero Emission Vehicle MAINTAINING YOUR VEHICLE 423
7

Chassis
Component Fluids, Lubricants and Genuine Parts
Automatic Transaxle Mopar t ATF+4 Automatic Transmission Fluid.
Brake Master Cylinder Mopar t DOT 3 and SAE J1703 should be used. If DOT 3 brake fluid is not avail-
able, then DOT 4 is acceptable. Use only recommended brake fluids.
Power Steering Reservoir Mopar t ATF+4 Automatic Transmission Fluid.424 MAINTAINING YOUR VEHICLE

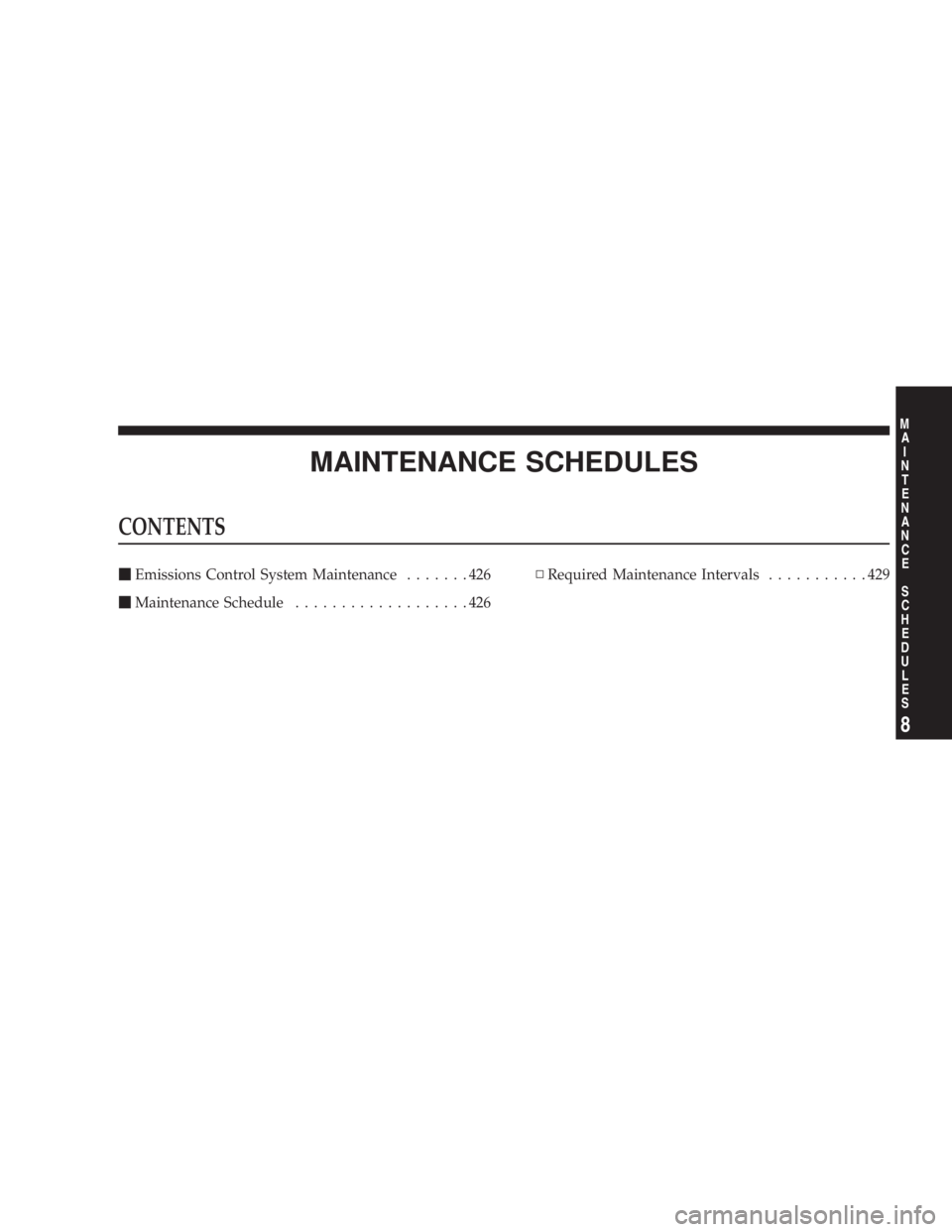

MAINTENANCE SCHEDULESCONTENTS m Emissions Control System Maintenance .......426
m Maintenance Schedule ...................426 N Required Maintenance Intervals ...........429
8 M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

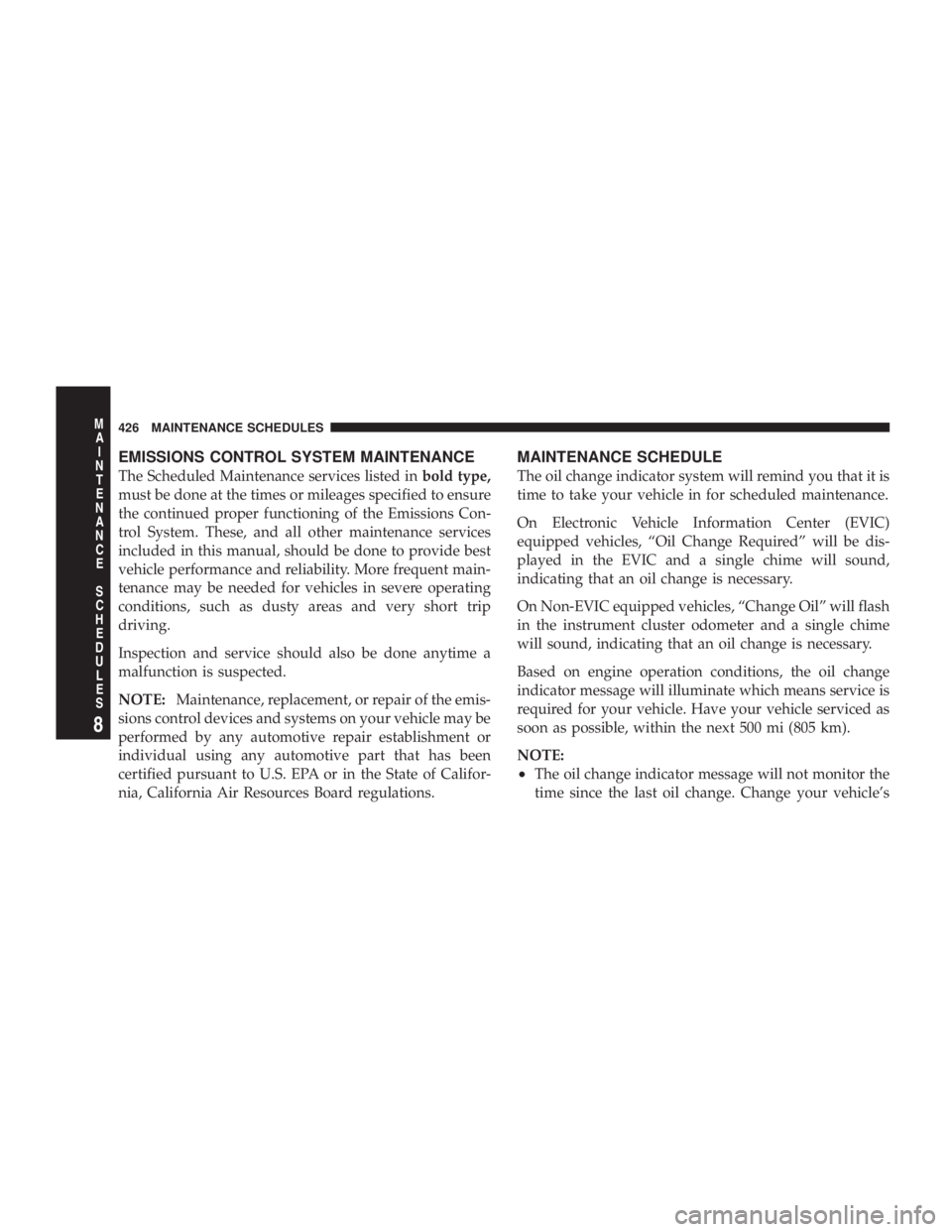

EMISSIONS CONTROL SYSTEM MAINTENANCE
The Scheduled Maintenance services listed in bold type,
must be done at the times or mileages specified to ensure
the continued proper functioning of the Emissions Con-
trol System. These, and all other maintenance services
included in this manual, should be done to provide best
vehicle performance and reliability. More frequent main-
tenance may be needed for vehicles in severe operating
conditions, such as dusty areas and very short trip
driving.
Inspection and service should also be done anytime a
malfunction is suspected.
NOTE: Maintenance, replacement, or repair of the emis-
sions control devices and systems on your vehicle may be
performed by any automotive repair establishment or
individual using any automotive part that has been
certified pursuant to U.S. EPA or in the State of Califor-
nia, California Air Resources Board regulations. MAINTENANCE SCHEDULE
The oil change indicator system will remind you that it is
time to take your vehicle in for scheduled maintenance.
On Electronic Vehicle Information Center (EVIC)
equipped vehicles, ªOil Change Requiredº will be dis-
played in the EVIC and a single chime will sound,
indicating that an oil change is necessary.
On Non-EVIC equipped vehicles, ªChange Oilº will flash
in the instrument cluster odometer and a single chime
will sound, indicating that an oil change is necessary.
Based on engine operation conditions, the oil change
indicator message will illuminate which means service is
required for your vehicle. Have your vehicle serviced as
soon as possible, within the next 500 mi (805 km).
NOTE:
² The oil change indicator message will not monitor the
time since the last oil change. Change your vehicle's426 MAINTENANCE SCHEDULES
8 M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

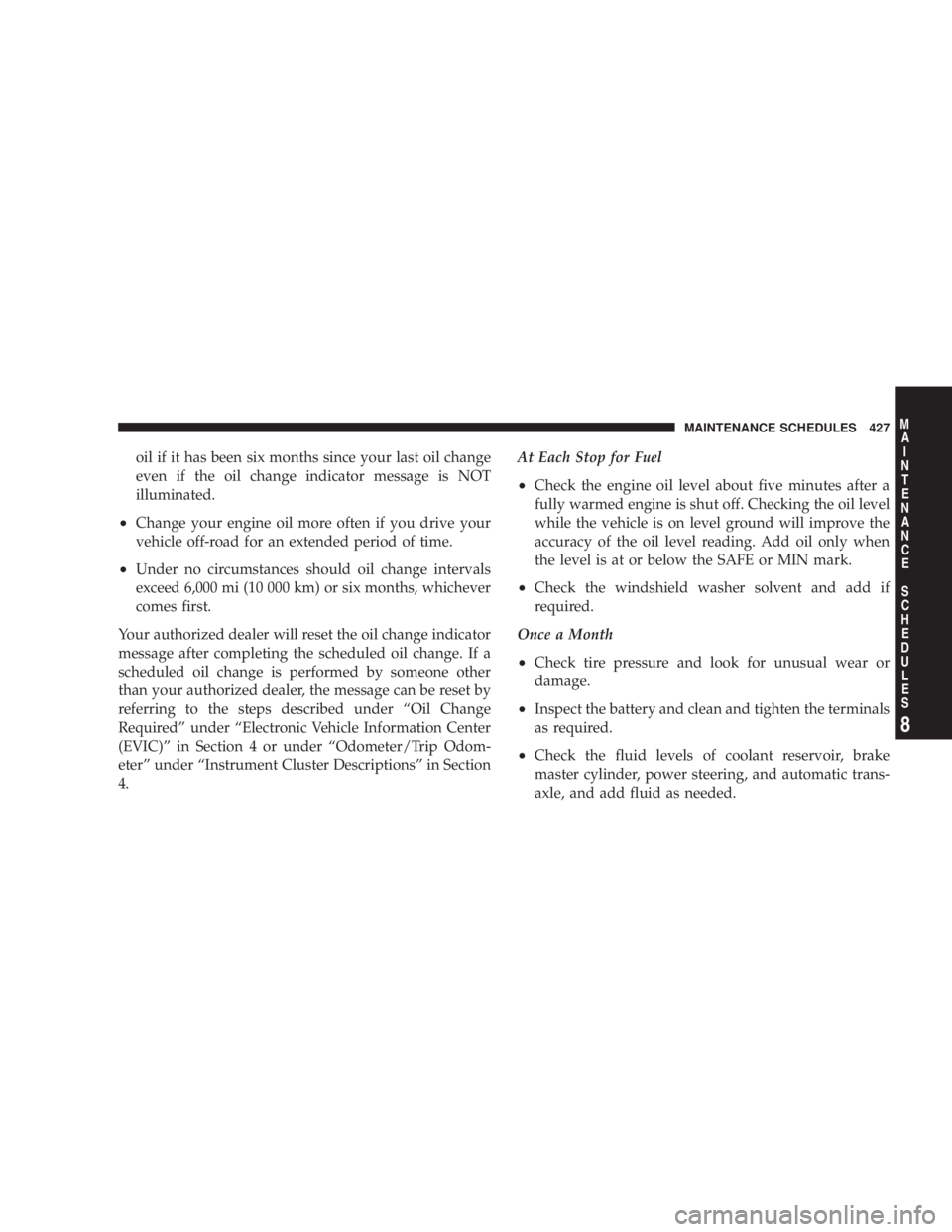

oil if it has been six months since your last oil change
even if the oil change indicator message is NOT
illuminated.
² Change your engine oil more often if you drive your
vehicle off-road for an extended period of time.
² Under no circumstances should oil change intervals
exceed 6,000 mi (10 000 km) or six months, whichever
comes first.
Your authorized dealer will reset the oil change indicator
message after completing the scheduled oil change. If a
scheduled oil change is performed by someone other
than your authorized dealer, the message can be reset by
referring to the steps described under ªOil Change
Requiredº under ªElectronic Vehicle Information Center
(EVIC)º in Section 4 or under ªOdometer/Trip Odom-
eterº under ªInstrument Cluster Descriptionsº in Section
4. At Each Stop for Fuel
² Check the engine oil level about five minutes after a
fully warmed engine is shut off. Checking the oil level
while the vehicle is on level ground will improve the
accuracy of the oil level reading. Add oil only when
the level is at or below the SAFE or MIN mark.
² Check the windshield washer solvent and add if
required.
Once a Month
² Check tire pressure and look for unusual wear or
damage.
² Inspect the battery and clean and tighten the terminals
as required.
² Check the fluid levels of coolant reservoir, brake
master cylinder, power steering, and automatic trans-
axle, and add fluid as needed. MAINTENANCE SCHEDULES 427
8 M
A
I
N
T
E
N
A
N
C
E
S
C
H
E
D
U
L
E
S

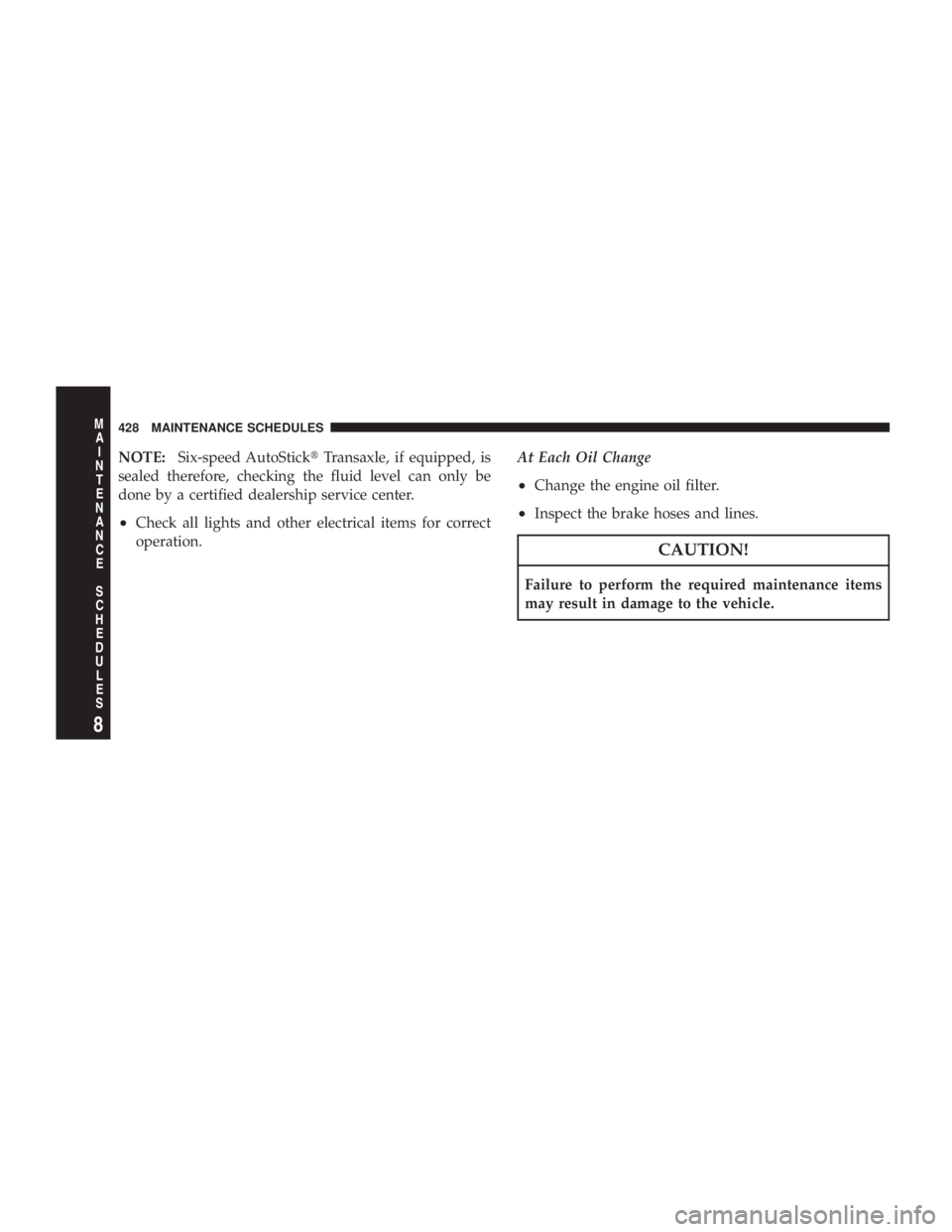

NOTE: Six-speed AutoStick t Transaxle, if equipped, is
sealed therefore, checking the fluid level can only be
done by a certified dealership service center.
² Check all lights and other electrical items for correct
operation. At Each Oil Change
² Change the engine oil filter.
² Inspect the brake hoses and lines.
CAUTION!Failure to perform the required maintenance items
may result in damage to the vehicle.428 MAINTENANCE SCHEDULES
