DODGE CHALLENGER 2015 3.G Owners Manual

Cavity Cartridge FuseMini-FuseDescription
31—25 Amp Clear Power Seats
32—15 Amp Blue HVAC Module/Cluster
33—15 Amp Blue Ignition Switch/Wireless Module
34—10 Amp Red Steering Column Module/Clock/Spare
– Police
35—5 Amp TanBattery Sensor
36—15 Amp Blue Electronic Exhaust Valve – If Equipped
37—15 Amp Blue Radio
38—20 Amp Yellow Power Outlet Inside Arm Rest
40——Fuse — Spare
41——Fuse — Spare
4230 Amp Pink—Rear Defrost
43—20 Amp Yellow Rear Heated Seats/Steering Wheel
44—10 Amp Red Park Assist/Blind Spot/Camera
45—15 Amp Blue Cluster/Rearview Mirror/Compass
7
MAINTAINING YOUR VEHICLE 539

Cavity Cartridge FuseMini-FuseDescription
46—10 Amp Red Adaptive Cruise Control – If Equipped
47—10 Amp Red Adaptive Front Lighting – If Equipped
48—20 Amp Yellow Active Suspension / Spare – Police
49——Fuse — Spare
50——Fuse — Spare
51—20 Amp Yellow Front Heated Seats – If Equipped
52—10 Amp Red Heated Cupholders/Rear Heated Seat
Switches – If Equipped
53—10 Amp Red HVAC Module/In Car Temperature
Sensor
54—10 Amp Red Airbag Module
55——Fuse — Spare
56——Fuse — Spare
57——Fuse — Spare
58—10 Amp Red Airbag Module
540 MAINTAINING YOUR VEHICLE

Cavity Cartridge FuseMini-FuseDescription
59—20 Amp Yellow Adjustable Pedals – Police
60——Fuse — Spare
61—20 Amp Yellow Cigar Lighter – If Equipped
62——Fuse — Spare
63——Fuse — Spare
64—25 Amp Clear Rear Windows
65—10 Amp Red Airbag Module
66——Fuse — Spare
67—15 Amp Blue Run Sense
68—15 Amp Blue / 10 Amp Red Illumination/Rear Sunshade/CTR Con-
sole Power Outlet – If Equipped
69——Fuse — Spare
70——Fuse — Spare
7
MAINTAINING YOUR VEHICLE 541

VEHICLE STORAGE
If you are leaving your vehicle dormant for more than 21
days, you may want to take these steps to protect your
battery.
•Disconnect the negative cable from the battery.
•Anytime you store your vehicle, or keep it out of
service (e.g., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
542 MAINTAINING YOUR VEHICLE

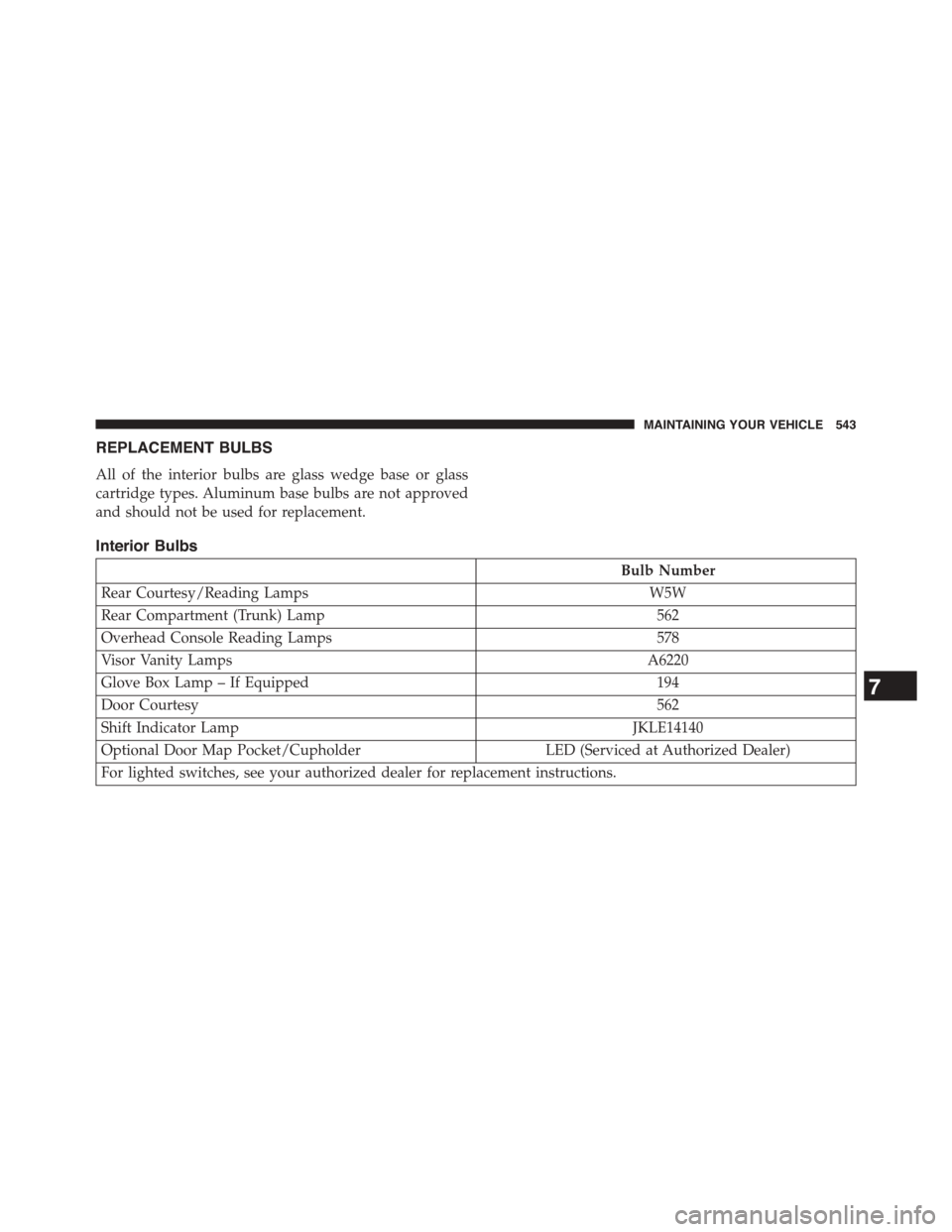

REPLACEMENT BULBS
All of the interior bulbs are glass wedge base or glass
cartridge types. Aluminum base bulbs are not approved
and should not be used for replacement.
Interior Bulbs
Bulb Number
Rear Courtesy/Reading LampsW5W
Rear Compartment (Trunk) Lamp562
Overhead Console Reading Lamps578
Visor Vanity LampsA6220
Glove Box Lamp – If Equipped194
Door Courtesy562
Shift Indicator LampJKLE14140
Optional Door Map Pocket/CupholderLED (Serviced at Authorized Dealer)
For lighted switches, see your authorized dealer for replacement instructions.
7
MAINTAINING YOUR VEHICLE 543

Exterior Bulbs
Bulb Number
Headlamp – High Intensity Discharge (HID)D3S (Serviced at Authorized Dealer) *
Halogen HeadlampHIR2LL
Front Park/Turn LampLED (Serviced at Authorized Dealer)
Front Fog LampH11LL (Serviced at Authorized Dealer)
Front Side MarkerLED (Serviced at Authorized Dealer)
Tail LampLED (Serviced at Authorized Dealer)
Stop/Turn LampLED (Serviced at Authorized Dealer)
Rear Side MarkerLED (Serviced at Authorized Dealer)
Backup LampLED (Serviced at Authorized Dealer)
Center High-Mount Stop Lamp (CHMSL)LED (Serviced at Authorized Dealer)
LicenseLED (Serviced at Authorized Dealer)
* The headlamps are a type of high-voltage discharge
tube. High voltage can remain in the circuit even with the
headlamp switch off and the key removed. Because of
this, you should not attempt to service a headlamp bulb
yourself. If a headlamp bulb fails, take your vehicle to an
authorized dealer for service.
544 MAINTAINING YOUR VEHICLE

BULB REPLACEMENT
NOTE:Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.
Low Beam Headlamp, High Beam Headlamp,
Park/Turn Lamp — Models with Halogen
Headlamps — If Equipped
To replace the passenger side lamps:
1. Open the hood.
2. Remove the headlamp cover.
3. Reach behind the passenger headlamp assembly.
NOTE:The park/turn lamps can also be accessed at this
point.
4. Turn the headlamp access cap counterclockwise to
remove.
5. Remove bulb by turning it counter clockwise and
disconnect.
6. Install new bulb by turning it clockwise and reconnect.
7. Reinstall headlamp access cap by turning it clockwise
and then reinstall headlamp cover.
To replace the driver side lamps:
1. Open the hood.
2. Remove the air cleaner filter cover by removing three
fasteners and loosening the clean air inlet clamp and
then rotate cover off to the side.
NOTE:The cover has an electrical connector that does
not need to be disconnected if the cover is rotated off to
the side.
7
MAINTAINING YOUR VEHICLE 545

3. Remove one fastener on the lower air box to remove
and access the rear of the headlamp assembly.
4. Reach behind the passenger headlamp assembly.
NOTE:The park/turn lamps can also be accessed at this
point.
5. Remove the headlamp cover.
6. Turn the headlamp access cap counterclockwise to
remove.
7. Remove bulb by turn it counter clockwise and discon-
nect.
8. Install new bulb by turning it clockwise and reconnect.
9. Reinstall headlamp access cap by turning it clockwise
and then reinstall headlamp cover.
10. Reinstall engine air cleaner assembly.
Low Beam Headlamp, High Beam Headlamp, and
Park/Turn Lamp — Models with High Intensity
Discharge (HID) Headlamps — If Equipped
HID Headlamps
The headlamps are a type of high voltage discharge tube.
High voltage can remain in the circuit even with the
headlamp switch off and the key removed.Because of
this, you should not attempt to service a headlamp bulb
yourself. If a headlamp bulb fails, take your vehicle to
an authorized dealer for service.
WARNING!
A transient high voltage occurs at the bulb sockets of
HID headlamps when the headlamp switch is turned
ON. It may cause serious electrical shock or electro-
cution if not serviced properly. See your authorized
dealer for service.
546 MAINTAINING YOUR VEHICLE

NOTE:On vehicles equipped with HID headlamps,
when the headlamps are turned on, there is a blue hue to
the lamps. This diminishes and becomes more white after
approximately 10 seconds, as the system charges.
Front/Rear Side Marker Lamp
The Side Markers use LED lamps that are not serviceable
separately. The Side Markers must be replaced as an
assembly, see your authorized dealer.
Tail/Turn And Stop Lamp
The Tail/Turn and Stop Lamps use LED lamps that are
not serviceable separately. The Tail/Turn and Stop
Lamps must be replaced as an assembly, see your autho-
rized dealer.
Center Tail/Backup Lamp
The Center Tail/Backup Lamp use LED lamps that are
not serviceable separately. The Center Tail/Backup Lamp
must be replaced as an assembly, see your authorized
dealer.
Center High-Mounted Stop Lamp (CHMSL)
The CHMSL uses LED lamps that are not serviceable
separately. The CHMSL must be replaced as an assembly,
see your authorized dealer.
License Lamp
The License Lamp use LED lamps that are not serviceable
separately. The License Lamp must be replaced as an
assembly, see your authorized dealer.
7
MAINTAINING YOUR VEHICLE 547

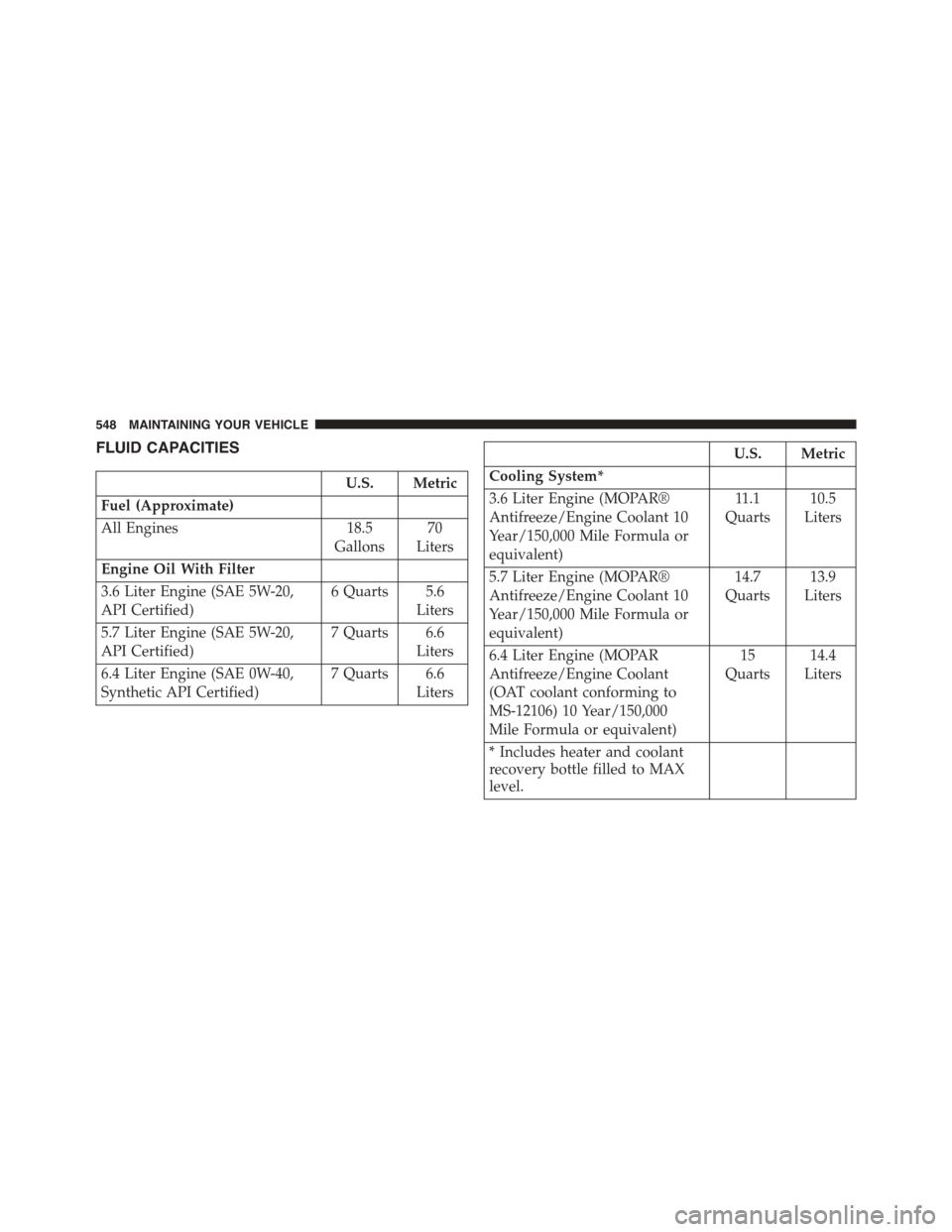

FLUID CAPACITIES
U.S. Metric
Fuel (Approximate)
All Engines18.5
Gallons
70
Liters
Engine Oil With Filter
3.6 Liter Engine (SAE 5W-20,
API Certified)
6 Quarts 5.6
Liters
5.7 Liter Engine (SAE 5W-20,
API Certified)
7 Quarts 6.6
Liters
6.4 Liter Engine (SAE 0W-40,
Synthetic API Certified)
7 Quarts 6.6
Liters
U.S. Metric
Cooling System*
3.6 Liter Engine (MOPAR®
Antifreeze/Engine Coolant 10
Year/150,000 Mile Formula or
equivalent)
11.1
Quarts
10.5
Liters
5.7 Liter Engine (MOPAR®
Antifreeze/Engine Coolant 10
Year/150,000 Mile Formula or
equivalent)
14.7
Quarts
13.9
Liters
6.4 Liter Engine (MOPAR
Antifreeze/Engine Coolant
(OAT coolant conforming to
MS-12106) 10 Year/150,000
Mile Formula or equivalent)
15
Quarts
14.4
Liters
* Includes heater and coolant
recovery bottle filled to MAX
level.
548 MAINTAINING YOUR VEHICLE
