DODGE CHALLENGER SRT 2015 3.G Owners Manual

•Brake Speed
Displays the speed the vehicle is traveling when the
brake pedal is depressed.
NOTE: Brake Distance and Speed timers will only dis-
play ready when vehicle is traveling at greater than 30
MPH (48 km/h).Gauges 1
SRT Performance Pages — Gauges 1 (6.2L Manual
Transmission)
4
UNDERSTANDING YOUR INSTRUMENT PANEL 279

When selected, this screen displays the following values:
•Coolant Temperature
Shows the actual coolant temperature.
• Oil Pressure
Shows the actual oil pressure.
• Oil Temperature
Shows the actual oil temperature.
• Battery Voltage
Shows the actual battery voltage.
• Trans Oil Temp (Auto Transmission Only)
Shows the actual automatic transmission oil temperature.
SRT Performance Pages — Gauges 1 (6.2L Automatic Transmission)
280 UNDERSTANDING YOUR INSTRUMENT PANEL

When selected, this screen displays the following values:
•Coolant Temperature
Shows the actual coolant temperature.
• Oil Temperature
Shows the actual oil temperature. •
Oil Pressure
Shows the actual oil pressure.
Gauges 2
SRT Performance Pages — Gauges 1 (6.4L)
SRT Performance Pages — Gauges 2 (6.4L Manual Transmission)
4
UNDERSTANDING YOUR INSTRUMENT PANEL 281

When selected, this screen displays the following values:
•Battery Voltage
Shows the actual battery voltage. •
Intake Air Temperature
Shows the actual intake air temperature.
• Transmission Temperature (Automatic Transmission
Only)
Shows the actual transmission temperature.
SRT Performance Pages — Gauges 2 (6.4L Automatic
Transmission)
SRT Performance Pages — Gauges 2 (6.2L)
282 UNDERSTANDING YOUR INSTRUMENT PANEL

When selected, this screen displays the following values:
•Boost Pressure
Shows the current value for boost pressure.
• Air Fuel Ratio
Shows the current value for the air fuel ratio.
• Inter-Cooler (I/C) Coolant Temperature
Shows the current value for the I/C coolant temperature.
• Intake Air Temperature
Shows the actual intake air temperature.G-Force
When selected, this screen displays all four G-Force
values (two lateral and two longitudinal) as well as
steering angle.
SRT Performance Pages — G-Force
4
UNDERSTANDING YOUR INSTRUMENT PANEL 283

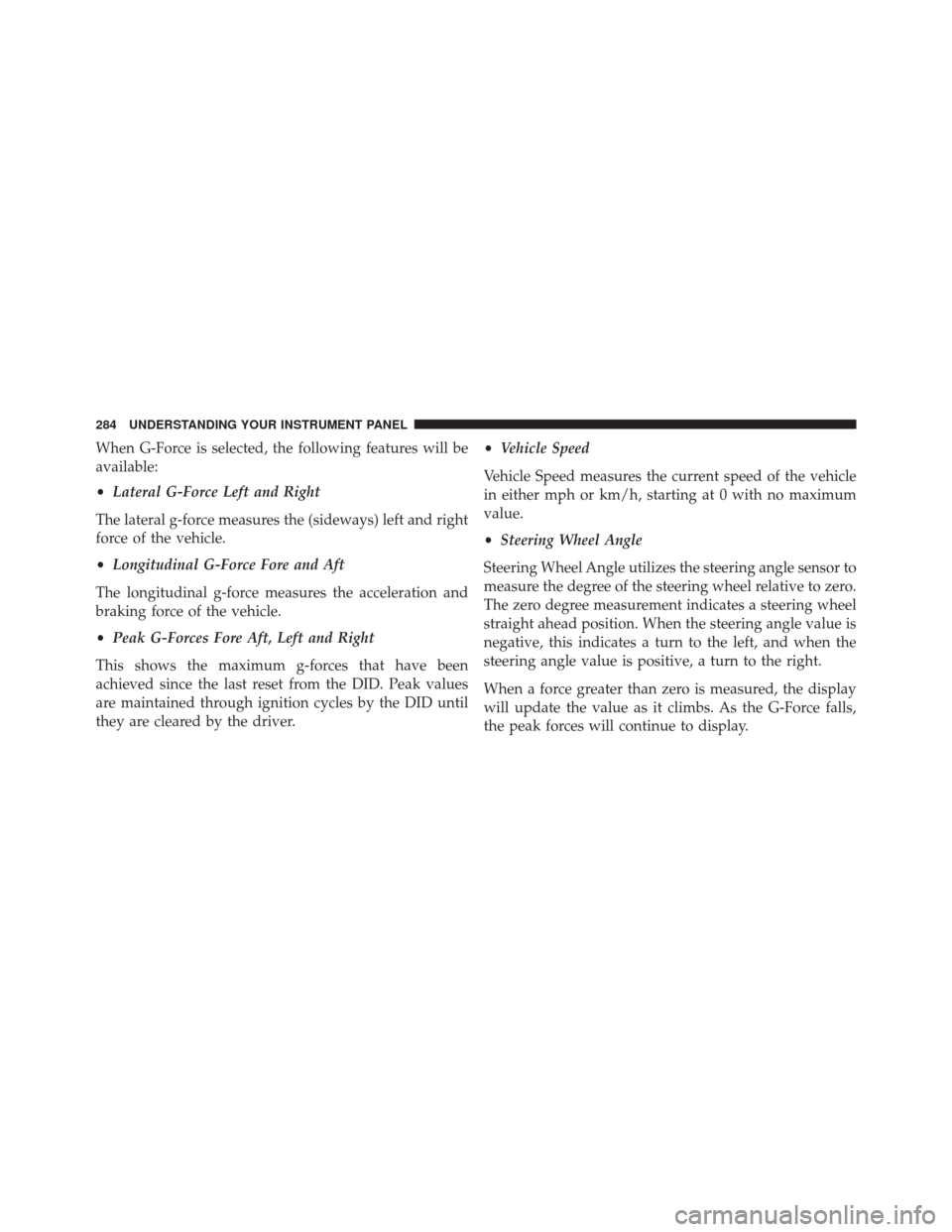

When G-Force is selected, the following features will be
available:
•Lateral G-Force Left and Right
The lateral g-force measures the (sideways) left and right
force of the vehicle.
• Longitudinal G-Force Fore and Aft
The longitudinal g-force measures the acceleration and
braking force of the vehicle.
• Peak G-Forces Fore Aft, Left and Right
This shows the maximum g-forces that have been
achieved since the last reset from the DID. Peak values
are maintained through ignition cycles by the DID until
they are cleared by the driver. •
Vehicle Speed
Vehicle Speed measures the current speed of the vehicle
in either mph or km/h, starting at 0 with no maximum
value.
• Steering Wheel Angle
Steering Wheel Angle utilizes the steering angle sensor to
measure the degree of the steering wheel relative to zero.
The zero degree measurement indicates a steering wheel
straight ahead position. When the steering angle value is
negative, this indicates a turn to the left, and when the
steering angle value is positive, a turn to the right.
When a force greater than zero is measured, the display
will update the value as it climbs. As the G-Force falls,
the peak forces will continue to display.
284 UNDERSTANDING YOUR INSTRUMENT PANEL

Engine
When selected, this screen displays the following values:
•Vehicle Speed
Shows the actual vehicle speed.SRT Performance Pages — Engine (6.4L Automatic Transmission)
SRT Performance Pages — Engine (6.2L AutomaticTransmission)
4
UNDERSTANDING YOUR INSTRUMENT PANEL 285

•Instantaneous Horsepower/Kilowatts
Shows the instantaneous horsepower.
• Instantaneous Torque
Shows the instantaneous torque.
• Oil Pressure (6.4L Only)
Shows the actual oil pressure.
• Gear (Automatic Transmission Only)
Shows the current (or pending) operating gear of the
vehicle.
• Boost Pressure (6.2L Only)
Shows the actual boost pressure.SRT Drive Modes
Key FOB 6.2L Supercharged Engine — If Equipped
If your vehicle is equipped with the 6.2L supercharged
engine, it will support an additional engine power level
configuration as part of SRT Drive Modes. Use of the
Red Key FOB
286 UNDERSTANDING YOUR INSTRUMENT PANEL

RED key FOB unlocks the full potential of the engine’s
output, and allows the driver to select from two power
levels within Drive Modes Set-Up.
Use of the BLACK key FOB limits the driver to a reduced
engine output. This information is also available withinthe SRT Drive Modes interface, and can be accessed by
pressing the “KEY FOB” button on the touchscreen in the
SRT Drive Modes menu.
Drive Modes
Your SRT vehicle is equipped with a Drive Modes feature
which allows for coordinating the operation of various
Black Key FOB
Drive Modes
4
UNDERSTANDING YOUR INSTRUMENT PANEL 287

vehicle systems depending upon the type of driving
behavior desired. The Drive Modes feature is controlled
through the Uconnect® radio and may be accessed by
performing any of the following:
•Pushing the SRT button on the instrument panel
switch bank.
• Selecting “Drive Modes” from the “SRT & Apps”
menu. •
Selecting “Drive Modes” from within the Performance
Pages menu.
NOTE: Not all options listed in this manual are available
on every vehicle. Refer to the chart below for all available
Drive Mode vehicle configurations.
Engine/
Transmis- sion Red Key/
700+ HP Black Key/
500 HP Transmis-
sion Paddle
Shifters Suspen-
sion Steering Traction
6.2L Auto XXXXXN /AX
6.2L
Manual X
XN/A N/A XN/A X
6.4L Auto N/A N/A XXXX X
6.4L
Manual N/A N/A N/A N/A
XX X
288 UNDERSTANDING YOUR INSTRUMENT PANEL
