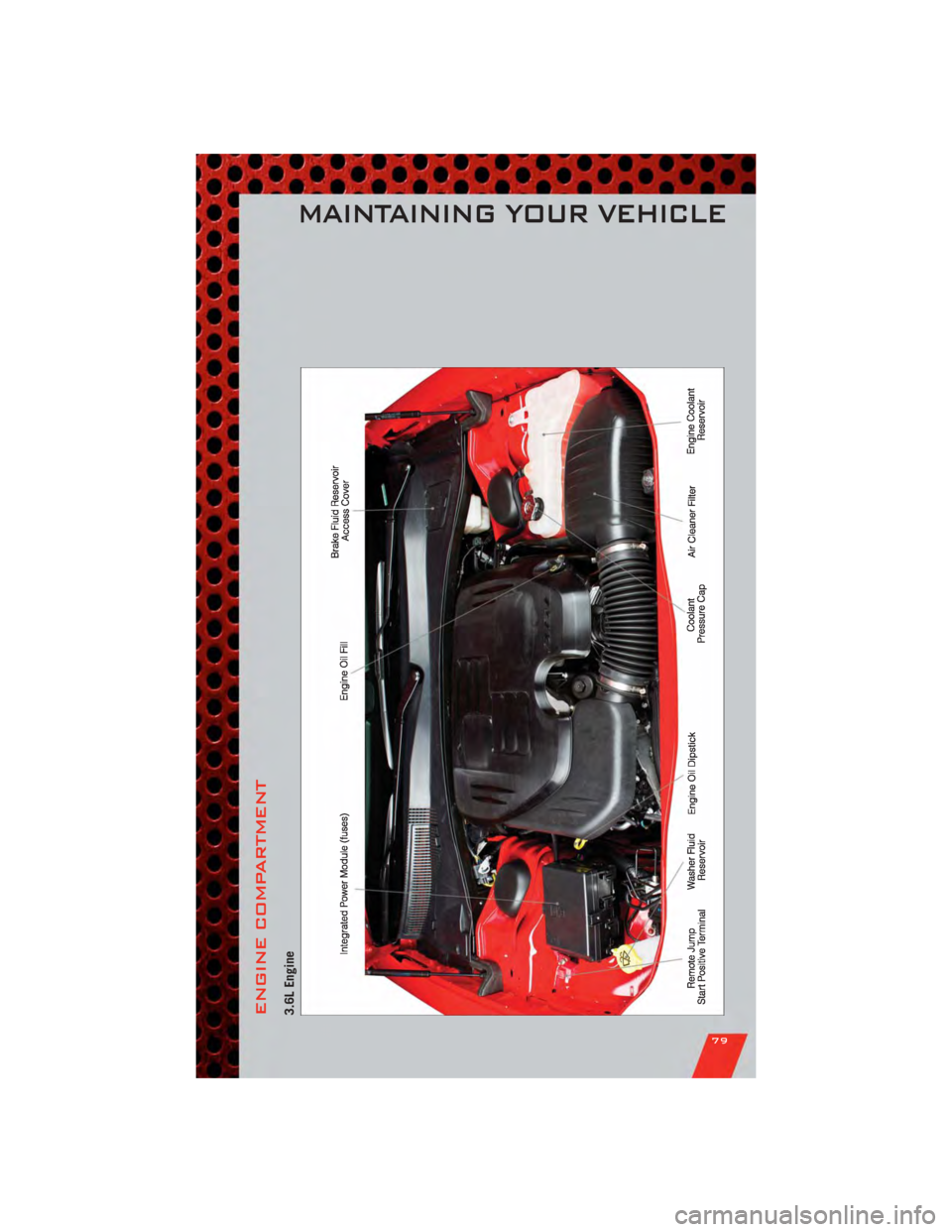

ENGINE COMPARTMENT3.6L Engine
MAINTAINING YOUR VEHICLE
79

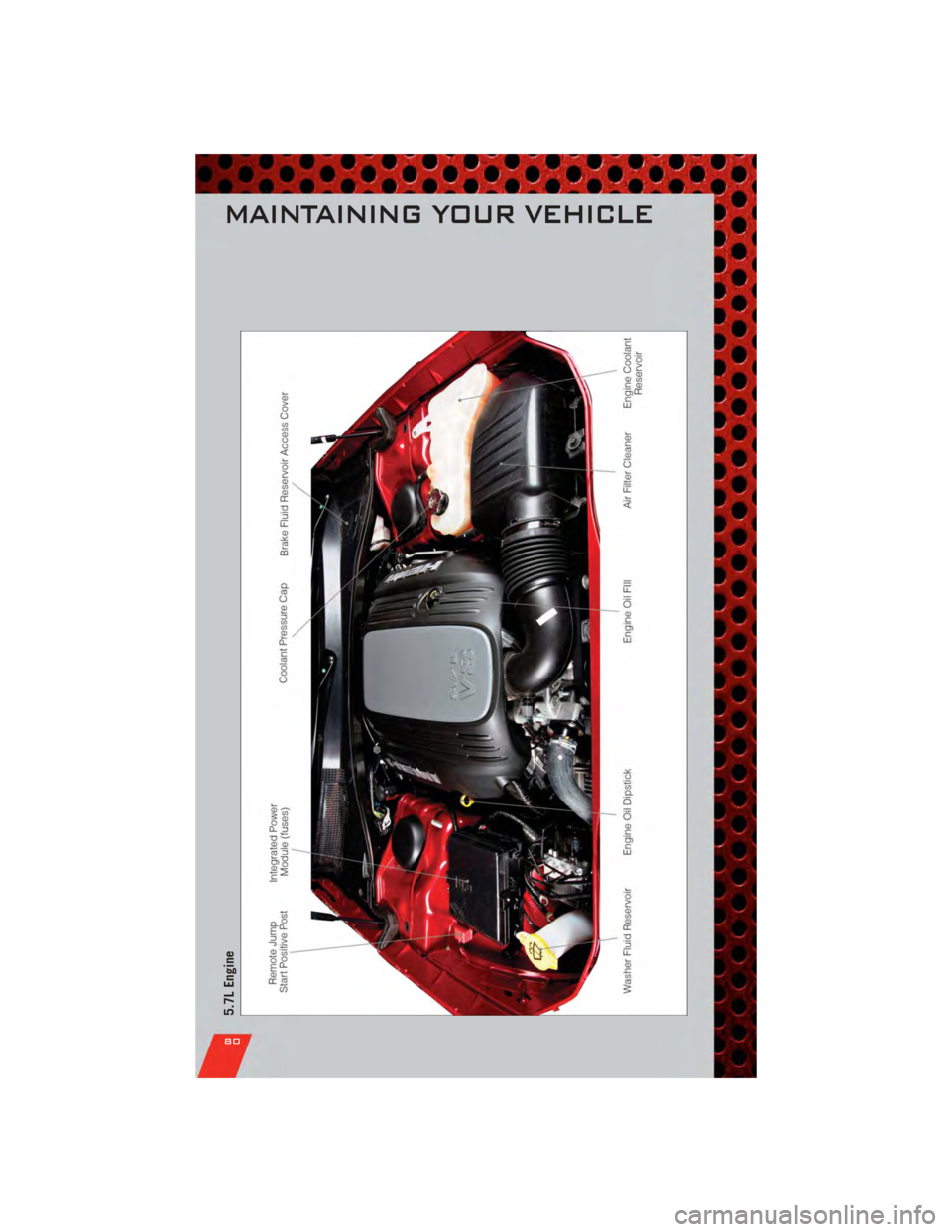

5.7L Engine
MAINTAINING YOUR VEHICLE
80

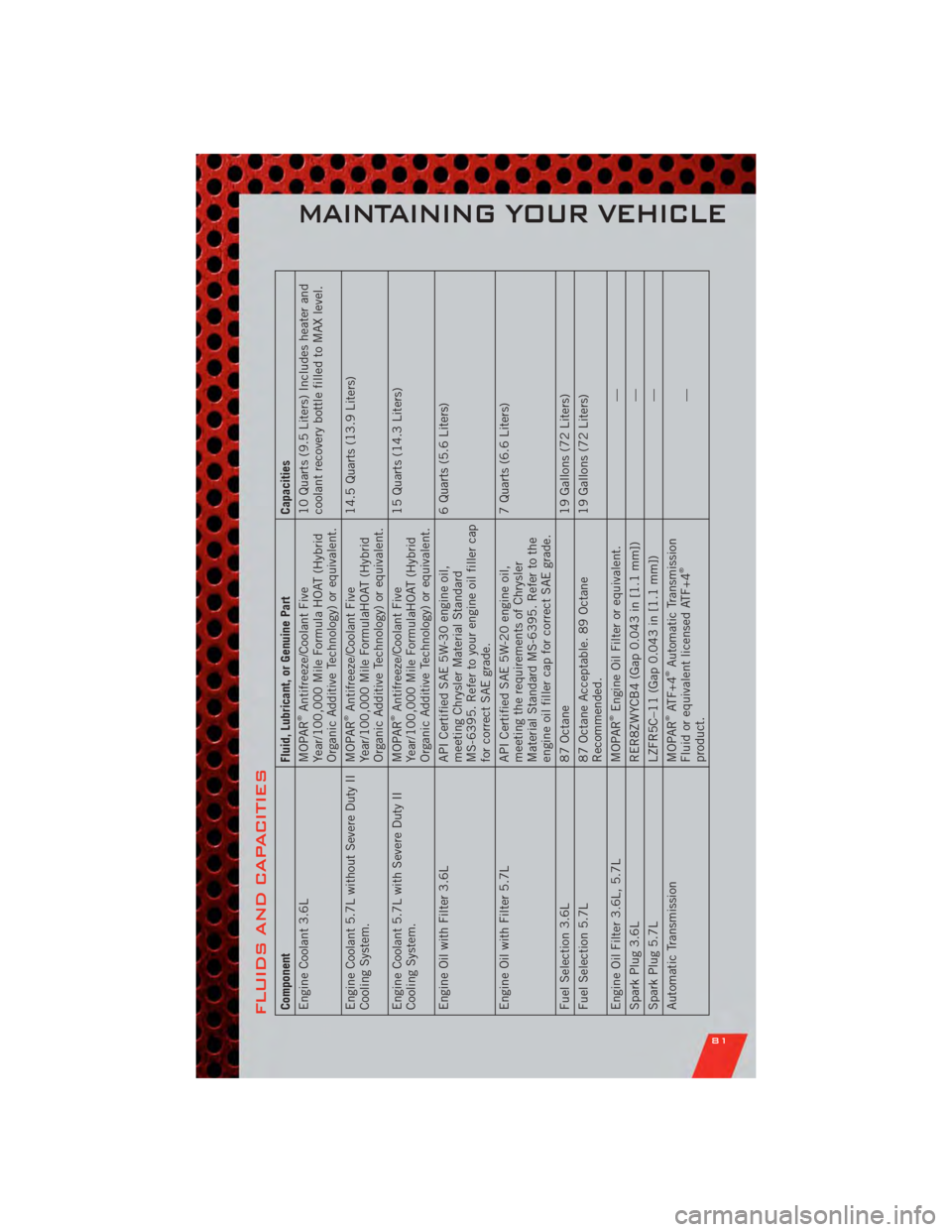

FLUIDS AND CAPACITIESComponentFluid, Lubricant, or Genuine PartCapacities
Engine Coolant 3.6L MOPAR
®Antifreeze/Coolant Five
Year/100,000 Mile Formula HOAT (Hybrid
Organic Additive Technology) or equivalent. 10 Quarts (9.5 Liters) Includes heater and
coolant recovery bottle filled to MAX level.
Engine Coolant 5.7L without Severe Duty II
Cooling System. MOPAR®Antifreeze/Coolant Five
Year/100,000 Mile FormulaHOAT (Hybrid
Organic Additive Technology) or equivalent. 14.5 Quarts (13.9 Liters)
Engine Coolant 5.7L with Severe Duty II
Cooling System. MOPAR®Antifreeze/Coolant Five
Year/100,000 Mile FormulaHOAT (Hybrid
Organic Additive Technology) or equivalent. 15 Quarts (14.3 Liters)
Engine Oil with Filter 3.6L API Certified SAE 5W-30 engine oil,
meeting Chrysler Material Standard
MS-6395. Refer to your engine oil filler cap
for correct SAE grade. 6 Quarts (5.6 Liters)
Engine Oil with Filter 5.7L API Certified SAE 5W-20 engine oil,
meeting the requirements of Chrysler
Material Standard MS-6395. Refer to the
engine oil filler cap for correct SAE grade. 7 Quarts (6.6 Liters)
Fuel Selection 3.6L 87 Octane19 Gallons (72 Liters)
Fuel Selection 5.7L 87 Octane Acceptable. 89 Octane
Recommended. 19 Gallons (72 Liters)
Engine Oil Filter 3.6L, 5.7L MOPAR®Engine Oil Filter or equivalent. —
Spark Plug 3.6L RER8ZWYCB4 (Gap 0.043 in [1.1 mm]) —
Spark Plug 5.7L LZFR5C–11 (Gap 0.043 in [1.1 mm]) —
Automatic Transmission MOPAR®ATF+4
®Automatic Transmission
Fluid or equivalent licensed ATF+4
®
product. —
MAINTAINING YOUR VEHICLE
81

ComponentFluid, Lubricant, or Genuine PartCapacities
Transfer Case MOPAR
®BorgWarner 44–40 Transfer Case
Lubricant or equivalent. —
Axle Front API GL-5 SAE 75W90 Synthetic Gear
Lubricant or equivalent. —
Axle Rear API GL-5 SAE 75W140 Synthetic Gear
Lubricant or equivalent. —
Brake Master Cylinder MOPAR®DOT 3 and SAE J1703 should be
used or equivalent. If DOT 3 is not
available, then DOT 4 is acceptable. Use
only recommended brake fluids. —
Power Steering Reservoir MOPAR®Hydraulic Fluid or equivalent
meeting MS-11655, such as Fuchs EG ZH
3044 or Pentosin CHF 11s. —
MAINTAINING YOUR VEHICLE
82

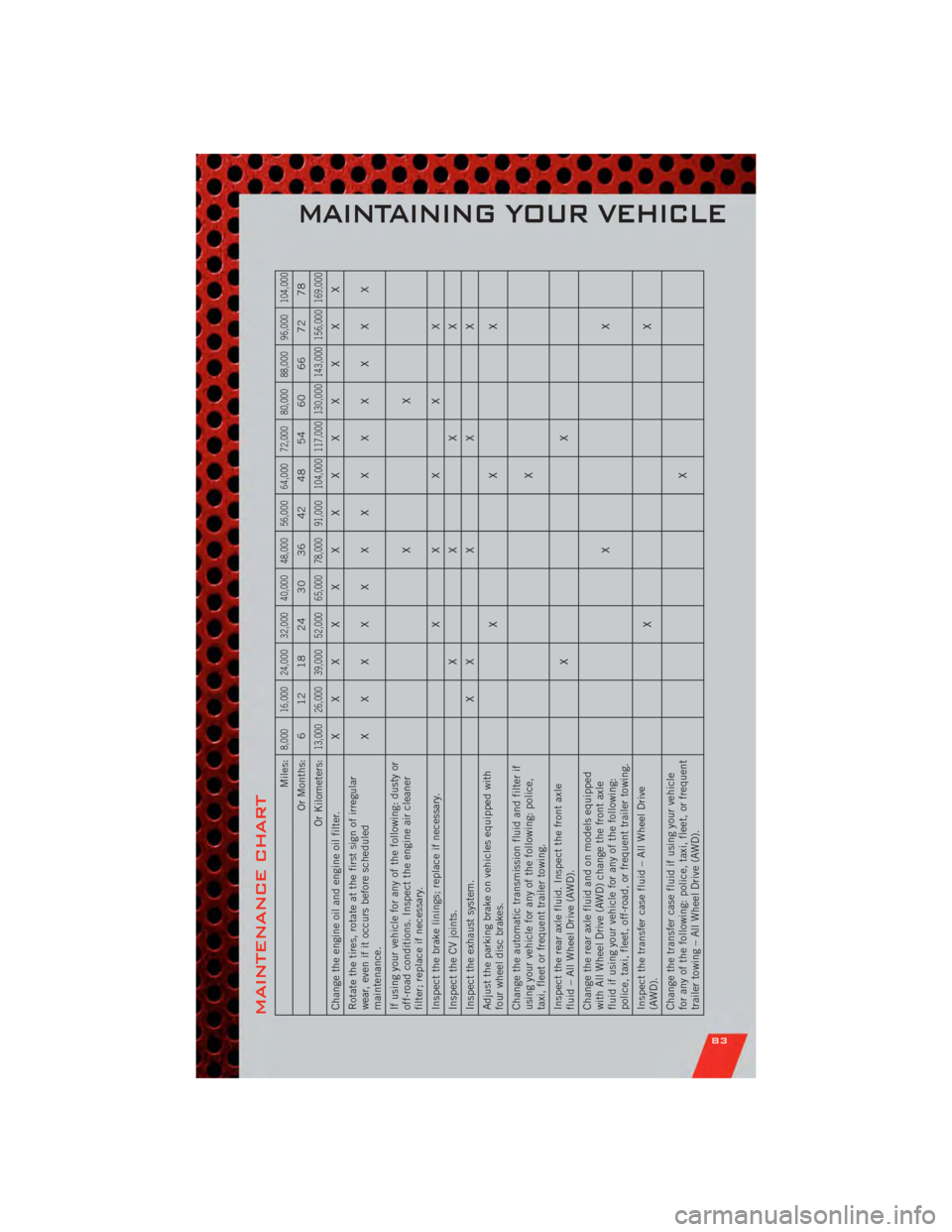

MAINTENANCE CHART
Miles:
8,000 16,000 24,000 32,000 40,000 48,000 56,000 64,000 72,000 80,000 88,000 96,000 104,000
Or Months: 6 12 18 24 30 36 42 48 54 60 66 72 78
Or Kilometers:
13,000 26,000 39,000 52,000 65,000 78,000 91,000 104,000 117,000 130,000 143,000 156,000 169,000
Change the engine oil and engine oil filter. XXXXXXXXXXXXX
Rotate the tires, rotate at the first sign of irregular
wear, even if it occurs before scheduled
maintenance. XXXXXXXXXXXXX
If using your vehicle for any of the following: dusty or
off-road conditions. Inspect the engine air cleaner
filter; replace if necessary. XX
Inspect the brake linings; replace if necessary. X XXXX
Inspect the CV joints. XXXX
Inspect the exhaust system. X XXXX
Adjust the parking brake on vehicles equipped with
four wheel disc brakes. XXX
Change the automatic transmission fluid and filter if
using your vehicle for any of the following: police,
taxi, fleet or frequent trailer towing. X
Inspect the rear axle fluid. Inspect the front axle
fluid – All Wheel Drive (AWD). XX
Change the rear axle fluid and on models equipped
with All Wheel Drive (AWD) change the front axle
fluid if using your vehicle for any of the following:
police, taxi, fleet, off-road, or frequent trailer towing. XX
Inspect the transfer case fluid – All Wheel Drive
(AWD). XX
Change the transfer case fluid if using your vehicle
for any of the following: police, taxi, fleet, or frequent
trailer towing – All Wheel Drive (AWD). X
MAINTAINING YOUR VEHICLE
83

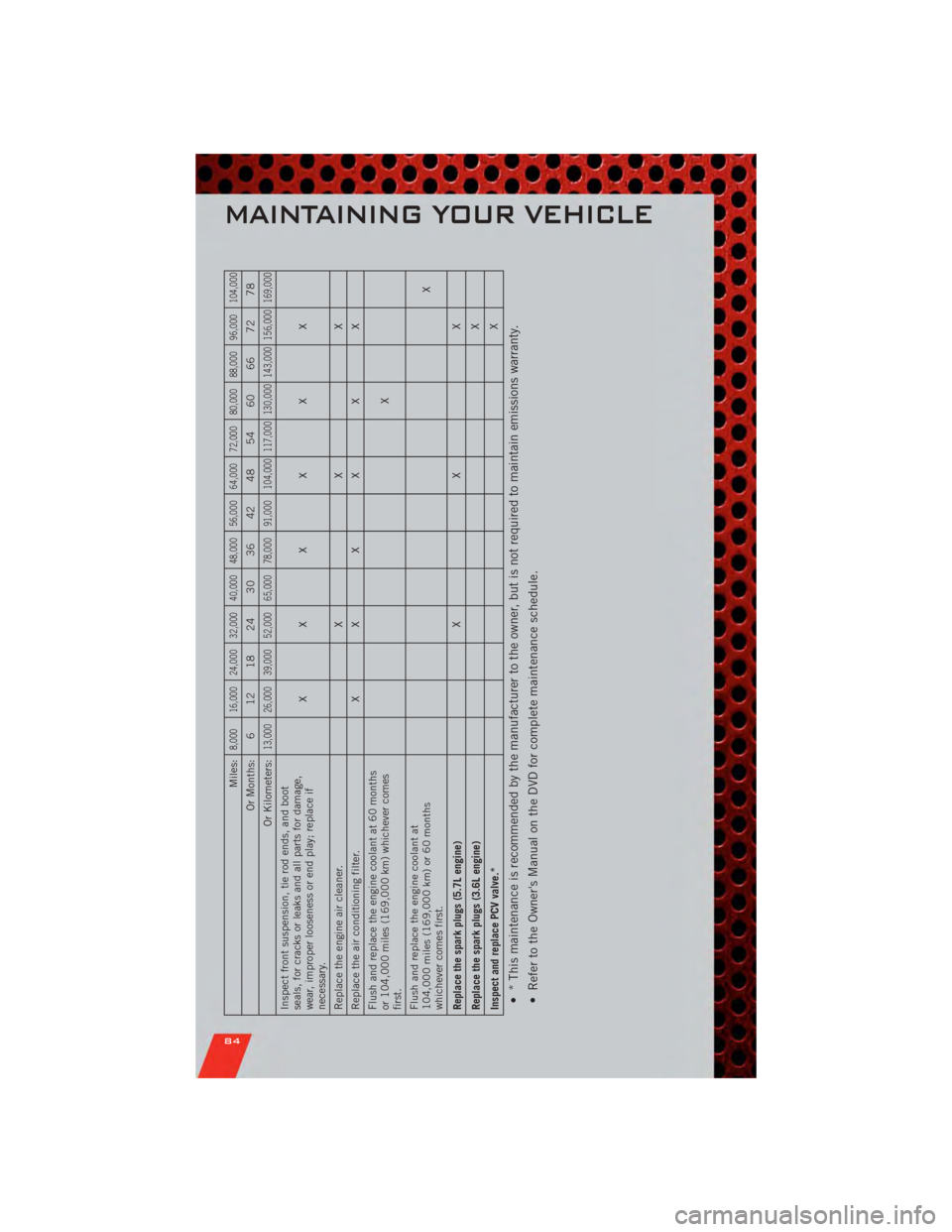

Miles:
8,000 16,000 24,000 32,000 40,000 48,000 56,000 64,000 72,000 80,000 88,000 96,000 104,000
Or Months: 6 12 18 24 30 36 42 48 54 60 66 72 78
Or Kilometers:
13,000 26,000 39,000 52,000 65,000 78,000 91,000 104,000 117,000 130,000 143,000 156,000 169,000
Inspect front suspension, tie rod ends, and boot
seals, for cracks or leaks and all parts for damage,
wear, improper looseness or end play; replace if
necessary. XXXXXX
Replace the engine air cleaner. XXX
Replace the air conditioning filter. XXXXXX
Flush and replace the engine coolant at 60 months
or 104,000 miles (169,000 km) whichever comes
first. X
Flush and replace the engine coolant at
104,000 miles (169,000 km) or 60 months
whichever comes first. X
Replace the spark plugs (5.7L engine) XXX
Replace the spark plugs (3.6L engine) X
Inspect and replace PCV valve.* X• * This maintenance is recommended by the manufacturer to the owner, but is not required to maintain emissions warranty.
• Refer to the Owner's Manual on the DVD for complete maintenance schedule.
MAINTAINING YOUR VEHICLE
84

Maintenance Record
Odometer Date Signature, Authorized Service Center
8,000 Miles
(13,000 km)
or 6 Months
16,000 Miles
(26,000 km)
or 12 Months
24,000 Miles
(39,000 km)
or 18 Months
32,000 Miles
(52,000 km)
or 24 Months
40,000 Miles
(65,000 km)
or 30 Months
48,000 Miles
(78,000 km)
or 36 Months
56,000 Miles
(91,000 km)
or 42 Months
64,000 Miles
(104,000 km)
or 48 Months
72,000 Miles
(117,000 km)
or 54 Months
80,000 Miles
(130,000 km)
or 60 Months
88,000 Miles
(143,000 km)
or 66 Months
96,000 Miles
(156,000 km)
or 72 Months
104,000 Miles
(169,000 km)
or 78 Months
MAINTAINING YOUR VEHICLE
85

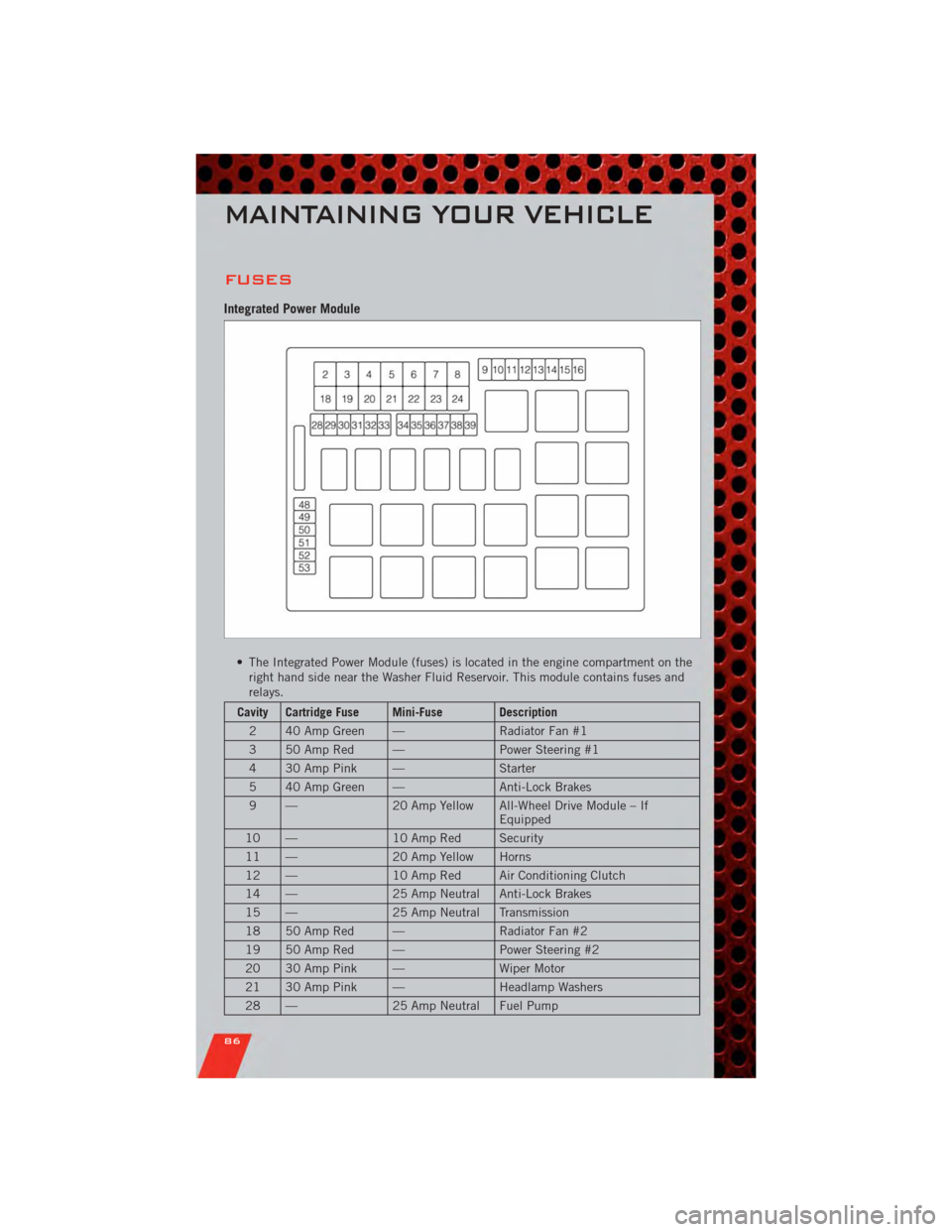

FUSES
Integrated Power Module
• The Integrated Power Module (fuses) is located in the engine compartment on theright hand side near the Washer Fluid Reservoir. This module contains fuses and
relays.
Cavity Cartridge Fuse Mini-Fuse Description
2 40 Amp Green — Radiator Fan #1
3 50 Amp Red — Power Steering #1
4 30 Amp Pink — Starter
5 40 Amp Green — Anti-Lock Brakes
9 — 20 Amp Yellow All-Wheel Drive Module – If
Equipped
10 — 10 Amp Red Security
11 — 20 Amp Yellow Horns
12 — 10 Amp Red Air Conditioning Clutch
14 — 25 Amp Neutral Anti-Lock Brakes
15 — 25 Amp Neutral Transmission
18 50 Amp Red — Radiator Fan #2
19 50 Amp Red — Power Steering #2
20 30 Amp Pink — Wiper Motor
21 30 Amp Pink — Headlamp Washers
28 — 25 Amp Neutral Fuel Pump
MAINTAINING YOUR VEHICLE
86

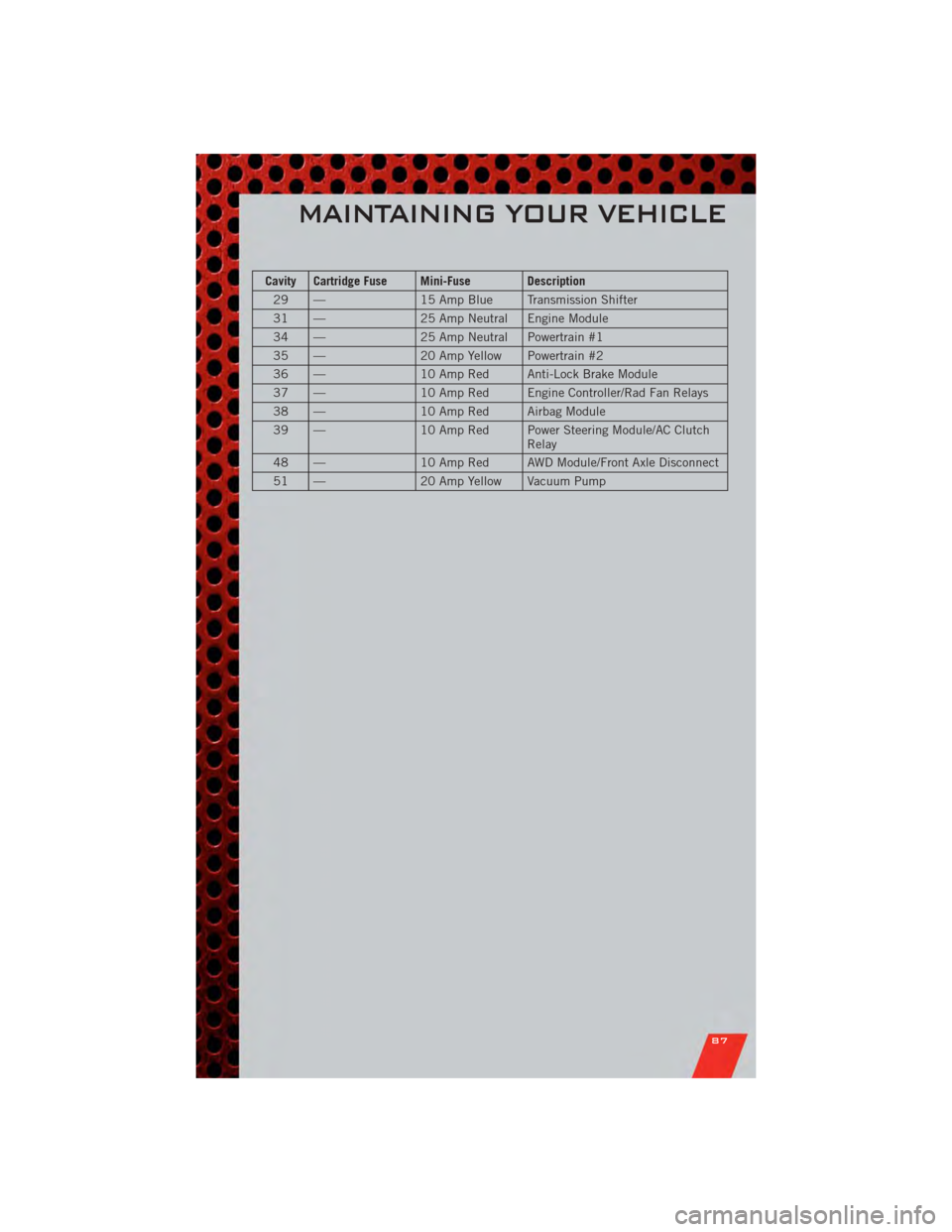

Cavity Cartridge Fuse Mini-Fuse Description29 — 15 Amp Blue Transmission Shifter
31 — 25 Amp Neutral Engine Module
34 — 25 Amp Neutral Powertrain #1
35 — 20 Amp Yellow Powertrain #2
36 — 10 Amp Red Anti-Lock Brake Module
37 — 10 Amp Red Engine Controller/Rad Fan Relays
38 — 10 Amp Red Airbag Module
39 — 10 Amp Red Power Steering Module/AC Clutch
Relay
48 — 10 Amp Red AWD Module/Front Axle Disconnect
51 — 20 Amp Yellow Vacuum Pump
MAINTAINING YOUR VEHICLE
87

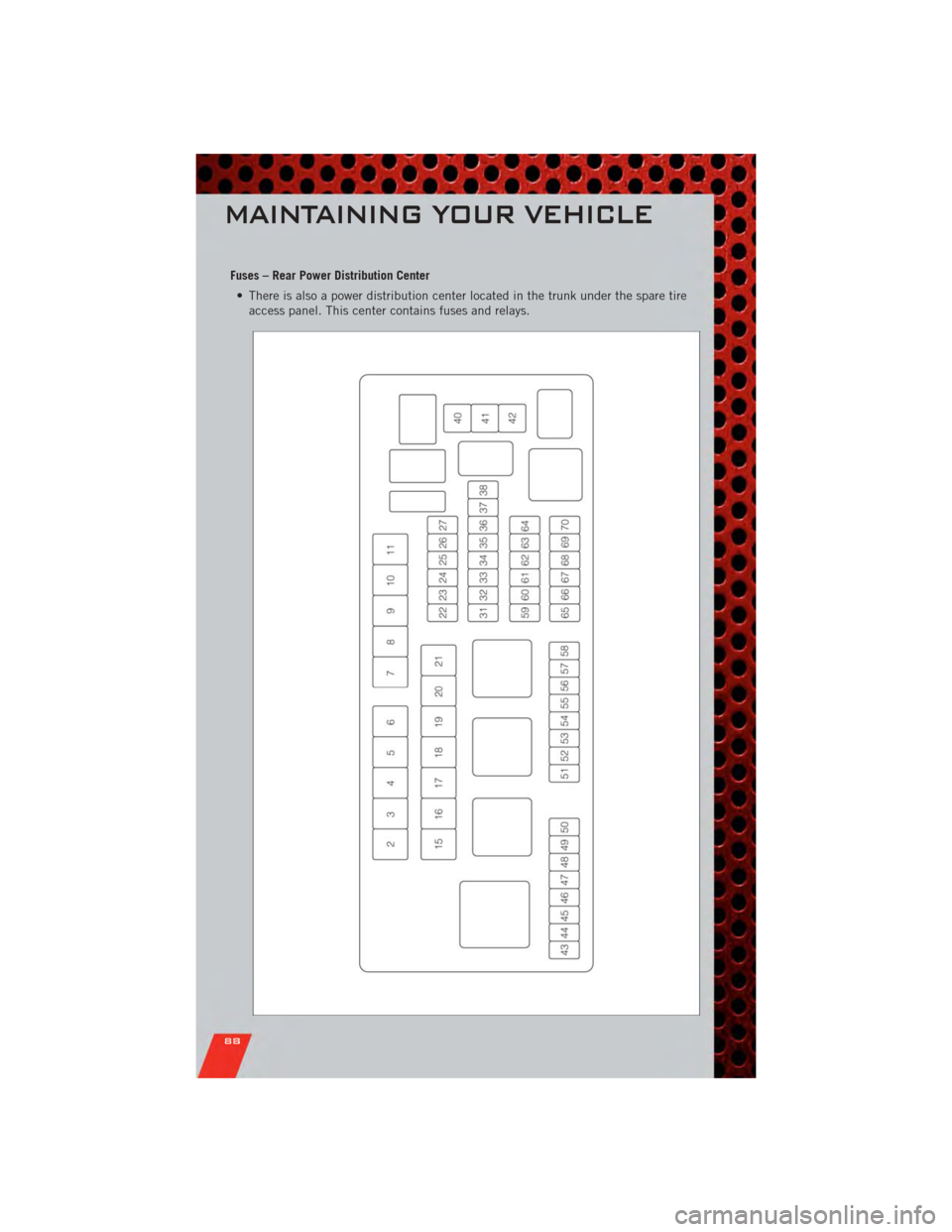

Fuses – Rear Power Distribution Center• There is also a power distribution center located in the trunk under the spare tire access panel. This center contains fuses and relays.
