DODGE CHARGER 2017 7.G Owners Manual

Gauges 1
When selected, this screen displays the following values:
•Oil Temperature
Shows the actual oil temperature.
• Coolant Temperature
Shows the actual coolant temperature. •
Oil Pressure
Shows the actual oil pressure.
Gauges 2
When selected, this screen displays the following values:
• Battery Voltage
Shows the actual battery voltage.
Performance Pages — Gauges 1
Performance Pages — Gauges 2 (Automatic Transmission)
4
UNDERSTANDING YOUR INSTRUMENT PANEL 279

•Intake Air Temperature
Shows the actual intake air temperature.
• Transmission Temperature (Automatic Transmission
Only)
Shows the actual transmission temperature.
G-Force
When selected, this screen displays all four G-Force values
(two lateral and two longitudinal) as well as steering angle.
When G-Force is selected, the following features will be
available:
• Lateral G-Force Left and Right
The lateral g-force measures the (sideways) left and right
force of the vehicle.
Charger Performance Pages — G-Force
280 UNDERSTANDING YOUR INSTRUMENT PANEL

•Longitudinal G-Force Acceleration and Braking
The longitudinal g-force measures the acceleration and
braking force of the vehicle.
• Peak G-Forces Acceleration and Braking, Left and
Right
This shows the maximum g-forces that have been achieved
since the last reset from the instrument cluster display.
Peak values are maintained through ignition cycles by the
instrument cluster display until they are cleared by the
driver.
• Vehicle Speed
Vehicle Speed measures the current speed of the vehicle in
either mph or km/h, starting at 0 with no maximum value.
• Steering Wheel Angle
Steering Wheel Angle utilizes the steering angle sensor to
measure the degree of the steering wheel relative to zero.
The zero degree measurement indicates a steering wheel
straight ahead position. When the steering angle value is
negative, this indicates a turn to the left, and when the
steering angle value is positive, a turn to the right.Engine
When selected, this screen displays the following values:
• Vehicle Speed
Shows the actual vehicle speed.
• Instantaneous Horsepower/Kilowatts
Shows the instantaneous horsepower.
Performance Pages — Engine
4
UNDERSTANDING YOUR INSTRUMENT PANEL 281

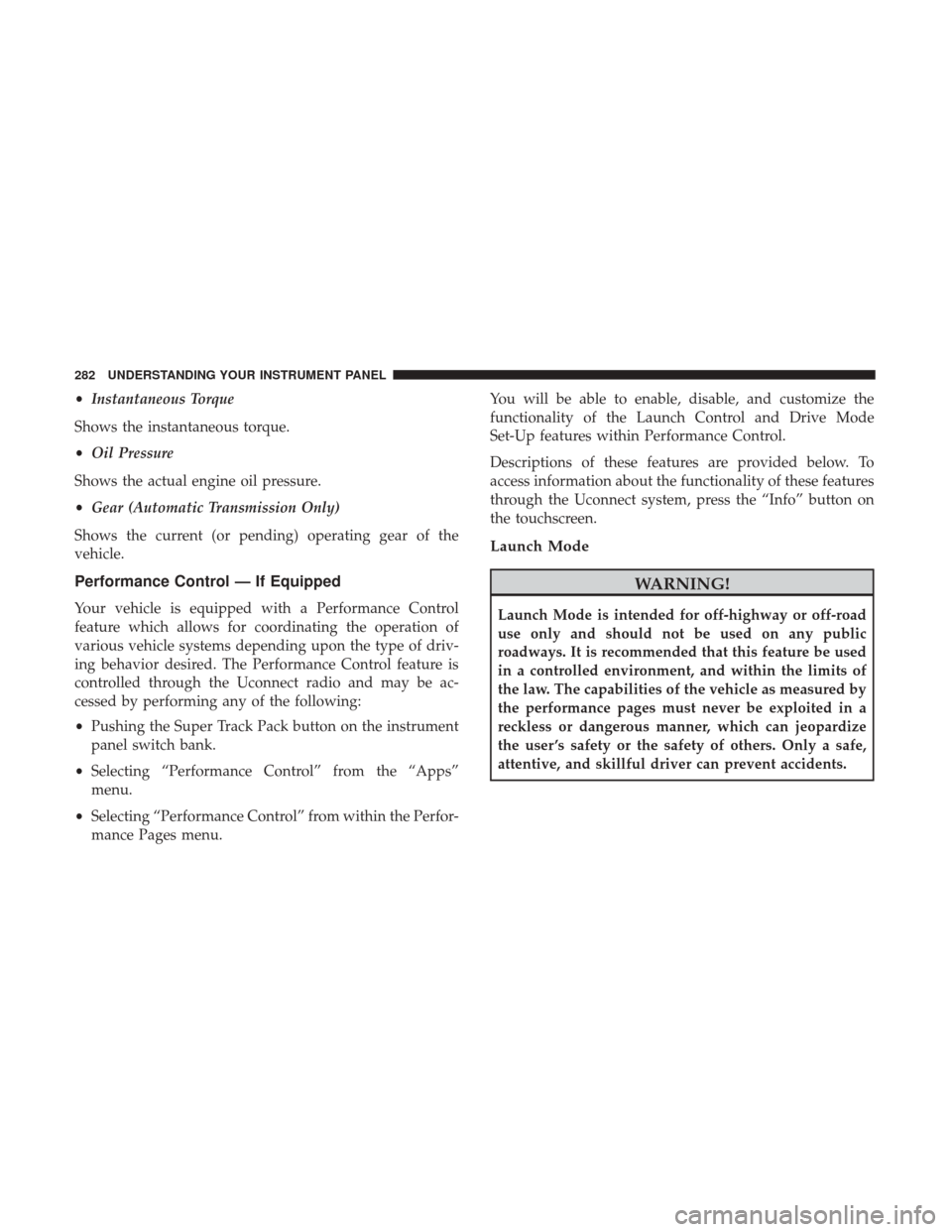

•Instantaneous Torque
Shows the instantaneous torque.
• Oil Pressure
Shows the actual engine oil pressure.
• Gear (Automatic Transmission Only)
Shows the current (or pending) operating gear of the
vehicle.
Performance Control — If Equipped
Your vehicle is equipped with a Performance Control
feature which allows for coordinating the operation of
various vehicle systems depending upon the type of driv-
ing behavior desired. The Performance Control feature is
controlled through the Uconnect radio and may be ac-
cessed by performing any of the following:
• Pushing the Super Track Pack button on the instrument
panel switch bank.
• Selecting “Performance Control” from the “Apps”
menu.
• Selecting “Performance Control” from within the Perfor-
mance Pages menu. You will be able to enable, disable, and customize the
functionality of the Launch Control and Drive Mode
Set-Up features within Performance Control.
Descriptions of these features are provided below. To
access information about the functionality of these features
through the Uconnect system, press the “Info” button on
the touchscreen.
Launch Mode
WARNING!
Launch Mode is intended for off-highway or off-road
use only and should not be used on any public
roadways. It is recommended that this feature be used
in a controlled environment, and within the limits of
the law. The capabilities of the vehicle as measured by
the performance pages must never be exploited in a
reckless or dangerous manner, which can jeopardize
the user ’s safety or the safety of others. Only a safe,
attentive, and skillful driver can prevent accidents.
282 UNDERSTANDING YOUR INSTRUMENT PANEL

This vehicle is equipped with a Launch Control system that
is designed to allow the driver to achieve maximum
vehicle acceleration in a straight line. Launch Control is a
form of traction control that manages tire slip while
launching the vehicle. This feature is intended for use
during race events on a closed course where consistent
quarter mile and zero to sixty times are desired. The system
is not intended to compensate for lack of driver experienceor familiarity with the race track. Use of this feature in low
traction (cold, wet, gravel, etc.) conditions may results in
excess wheel slip outside this systems control resulting in
an aborted launch.
NOTE:
•
Launch control should not be used on public roads.
Always check track conditions and the surrounding
area.
• Launch Control is not available for the first 500 miles of
the vehicle’s life.
• Launch Control should only be used when the engine
and transmission are at operating temperature.
• Launch Control is intended to be used on dry, paved
road surfaces only. Use on slippery or loose surfaces
may cause damage to vehicle components and is not
recommended.
Launch Control
4
UNDERSTANDING YOUR INSTRUMENT PANEL 283

Drive Mode Set-Up
Pressing the “Drive Mode Set-Up” button on the touch-
screen within the Performance Control screen indicates the
real-time status of the various systems. Pressing the “Sport
Mode Set-Up” or “Default Mode Set-Up” buttons on the
touchscreen, the driver can configure their individual drive
modes and see how those configurations affect the perfor-
mance of the vehicle.NOTE:
Not all of the options listed in this manual are
available on every vehicle, below is a chart with all
available Drive Mode vehicle configurations.
Available Mode Configurations
Transmission Auto
Engine N/A
Engine/Trans X
Steering X
Paddle Shifters X
Traction Control X
Refer to the Sport and Default modes for their detailed
operation.
NOTE: These settings will remain in effect when using the
Launch Control feature.
Drive Mode Set-Up
284 UNDERSTANDING YOUR INSTRUMENT PANEL

Default Mode
The vehicle will always start in Default Mode. This mode is
for typical driving conditions. While in Default Mode, the
Engine, Transmission and Traction will operate in their Nor-
mal settings and cannot be changed. The Steering assist may
be configured to Normal, Sport, or Comfort by pressing the
corresponding buttons on the touchscreen. The Paddle Shift-
ers may be enabled or disabled while in this mode.
Default Mode
Default Mode Set-Up
4
UNDERSTANDING YOUR INSTRUMENT PANEL 285

Sport Mode
Sport Mode is a configuration set-up for typical enthusiast
driving. The Transmission and Steering are both set to their
Sport settings. The steering wheel paddle switches are
enabled. The Traction Control defaults to Normal. Any of
these four settings may be changed to the driver ’s prefer-
ences by pressing the buttons on the touchscreen. Push the
Sport button on the instrument panel switch bank to putthe vehicle in Sport Mode and activate these settings. The
customized settings will only be active when the Sport
button is active.
Possible Drive Mode configurations are listed below with
accompanying descriptions. The information contained in
the list below can also be accessed from within the mode
Set-Up menus. To access the information, press the “Info”
button on the touchscreen from the mode Set-Up menu,
Sport Mode
Sport Mode Set-Up
286 UNDERSTANDING YOUR INSTRUMENT PANEL

and use the left/right arrows to toggle through available
descriptions. The title for each system in the Set-Up menu
can be pressed, which provides the descriptions for each
function of that system.
Engine/Trans•
SPORT
Press the “Sport” button on the touchscreen for improved
throttle response and modified shifting for an enhanced
driving experience.
• NORMAL
Press the “Norm” button on the touchscreen for a balance
of throttle response, shift comfort and economy for normal
driving.
Engine/Trans
4
UNDERSTANDING YOUR INSTRUMENT PANEL 287

Paddle Shifters — If Equipped With Automatic
Transmission
•ON
Press the “ON” button on the touchscreen to enable
steering wheel Paddle Shifters. •
OFF
Press the “OFF” button on the touchscreen to disable
steering wheel Paddle Shifters.
Traction
• SPORT
Press the “SPORT” button on the touchscreen to turn off
traction control and reduce stability control.
Paddle – Automatic Transmission
Traction Control
