Page 471 of 535

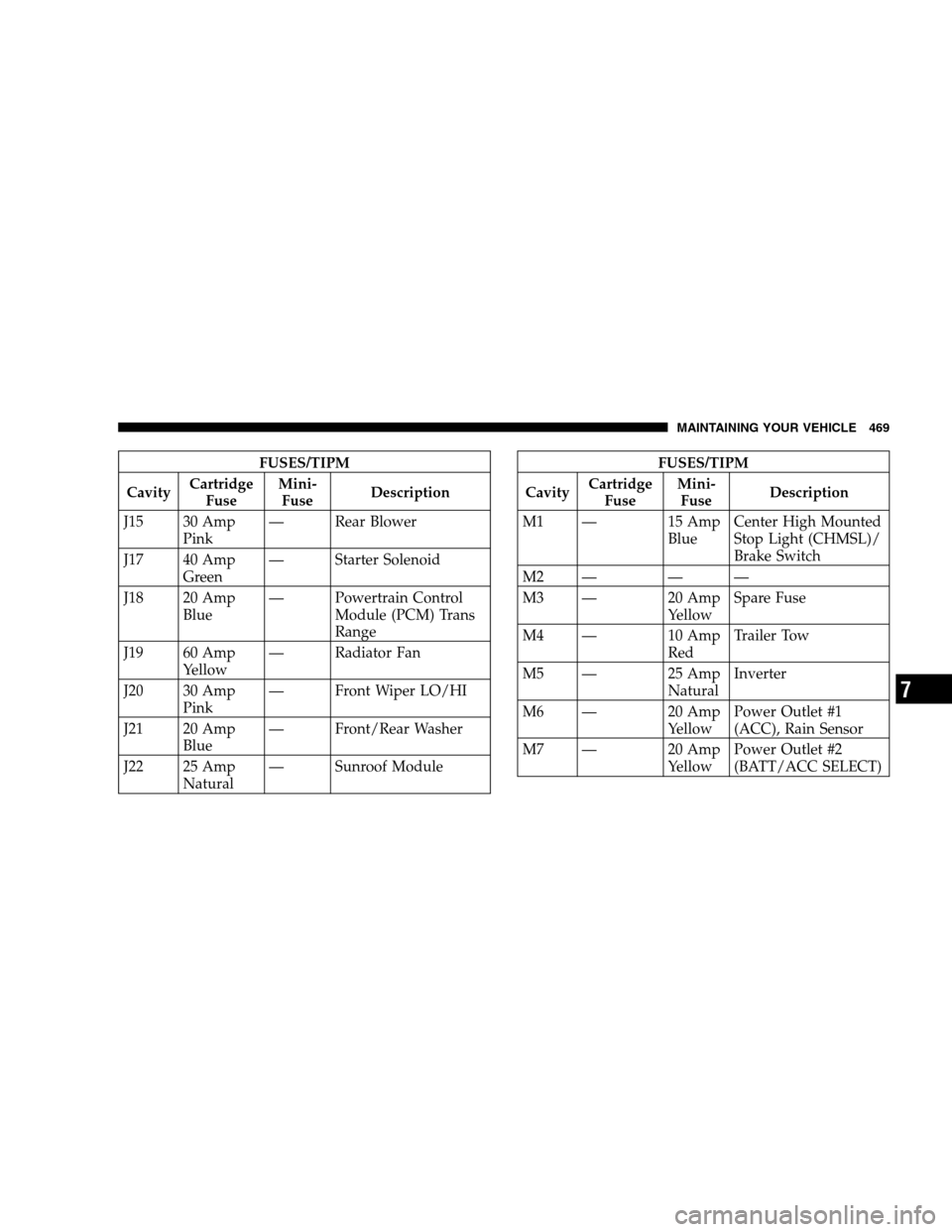

FUSES/TIPM
Cavity Cartridge
Fuse Mini-
Fuse Description
J15 30 Amp Pink — Rear Blower
J17 40 Amp Green — Starter Solenoid
J18 20 Amp Blue — Powertrain Control
Module (PCM) Trans
Range
J19 60 Amp Yellow — Radiator Fan
J20 30 Amp Pink — Front Wiper LO/HI
J21 20 Amp Blue — Front/Rear Washer
J22 25 Amp Natural — Sunroof ModuleFUSES/TIPM
Cavity Cartridge
Fuse Mini-
Fuse Description
M1 — 15 Amp BlueCenter High Mounted
Stop Light (CHMSL)/
Brake Switch
M2 — — —
M3 — 20 Amp YellowSpare Fuse
M4 — 10 Amp RedTrailer Tow
M5 — 25 Amp NaturalInverter
M6 — 20 Amp YellowPower Outlet #1
(ACC), Rain Sensor
M7 — 20 Amp YellowPower Outlet #2
(BATT/ACC SELECT)
MAINTAINING YOUR VEHICLE 469 7
Page 472 of 535

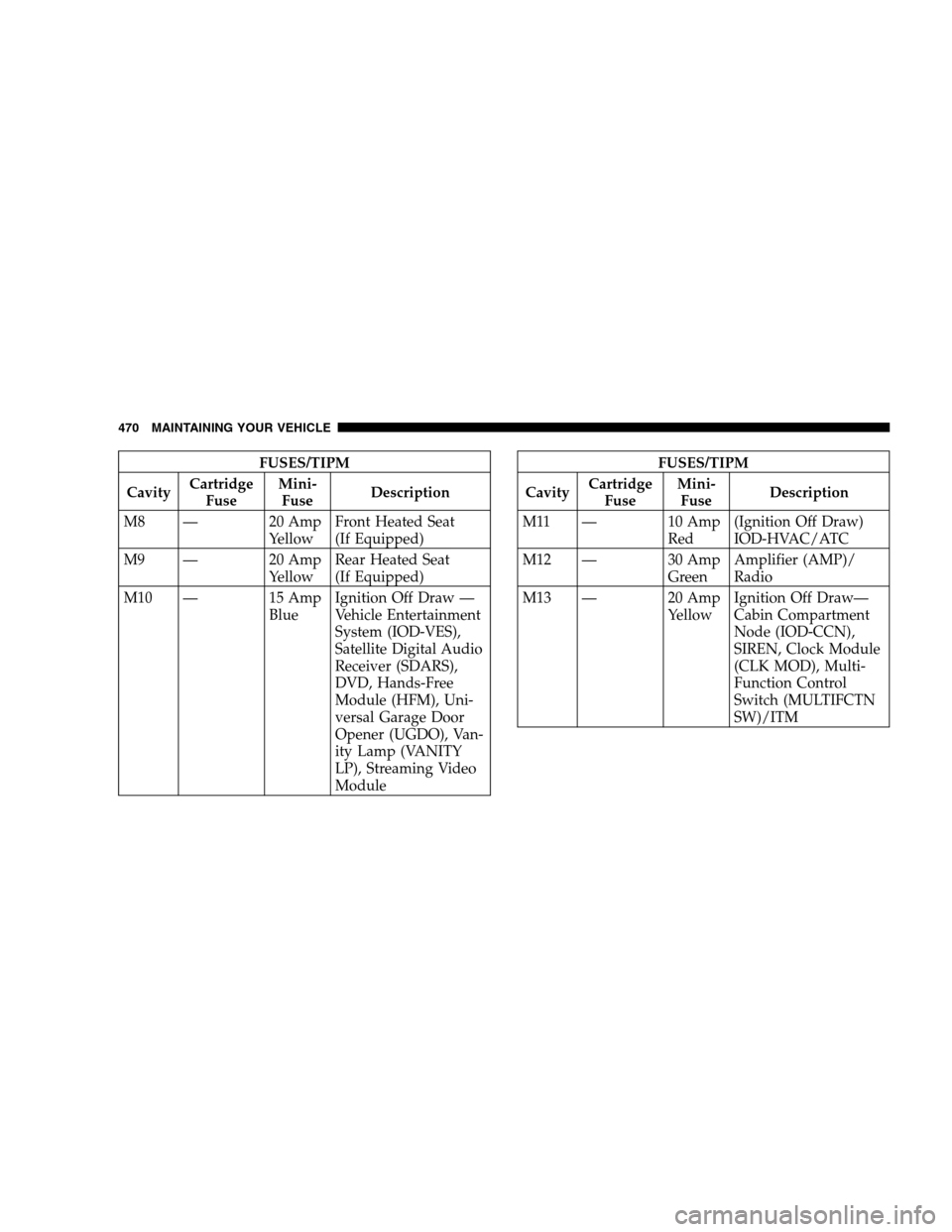

FUSES/TIPM
Cavity Cartridge
Fuse Mini-
Fuse Description
M8 — 20 Amp YellowFront Heated Seat
(If Equipped)
M9 — 20 Amp YellowRear Heated Seat
(If Equipped)
M10 — 15 Amp BlueIgnition Off Draw —
Vehicle Entertainment
System (IOD-VES),
Satellite Digital Audio
Receiver (SDARS),
DVD, Hands-Free
Module (HFM), Uni-
versal Garage Door
Opener (UGDO), Van-
ity Lamp (VANITY
LP), Streaming Video
ModuleFUSES/TIPM
Cavity Cartridge
Fuse Mini-
Fuse Description
M11 — 10 Amp Red(Ignition Off Draw)
IOD-HVAC/ATC
M12 — 30 Amp GreenAmplifier (AMP)/
Radio
M13 — 20 Amp YellowIgnition Off Draw—
Cabin Compartment
Node (IOD-CCN),
SIREN, Clock Module
(CLK MOD), Multi-
Function Control
Switch (MULTIFCTN
SW)/ITM
470 MAINTAINING YOUR VEHICLE
Page 473 of 535

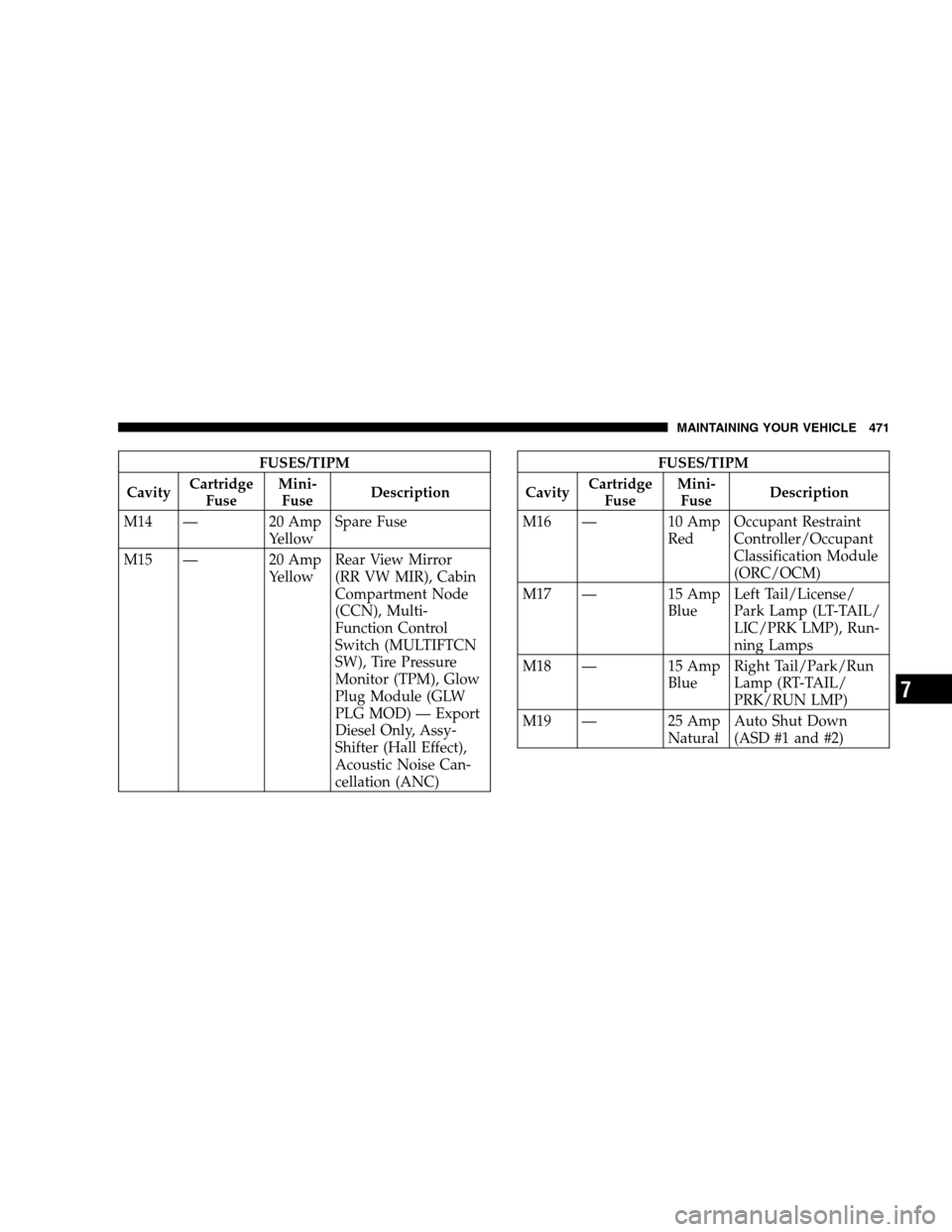

FUSES/TIPM
Cavity Cartridge
Fuse Mini-
Fuse Description
M14 — 20 Amp YellowSpare Fuse
M15 — 20 Amp YellowRear View Mirror
(RR VW MIR), Cabin
Compartment Node
(CCN), Multi-
Function Control
Switch (MULTIFTCN
SW), Tire Pressure
Monitor (TPM), Glow
Plug Module (GLW
PLG MOD) — Export
Diesel Only, Assy-
Shifter (Hall Effect),
Acoustic Noise Can-
cellation (ANC)FUSES/TIPM
Cavity Cartridge
Fuse Mini-
Fuse Description
M16 — 10 Amp RedOccupant Restraint
Controller/Occupant
Classification Module
(ORC/OCM)
M17 — 15 Amp BlueLeft Tail/License/
Park Lamp (LT-TAIL/
LIC/PRK LMP), Run-
ning Lamps
M18 — 15 Amp BlueRight Tail/Park/Run
Lamp (RT-TAIL/
PRK/RUN LMP)
M19 — 25 Amp NaturalAuto Shut Down
(ASD #1 and #2)
MAINTAINING YOUR VEHICLE 471 7
Page 474 of 535

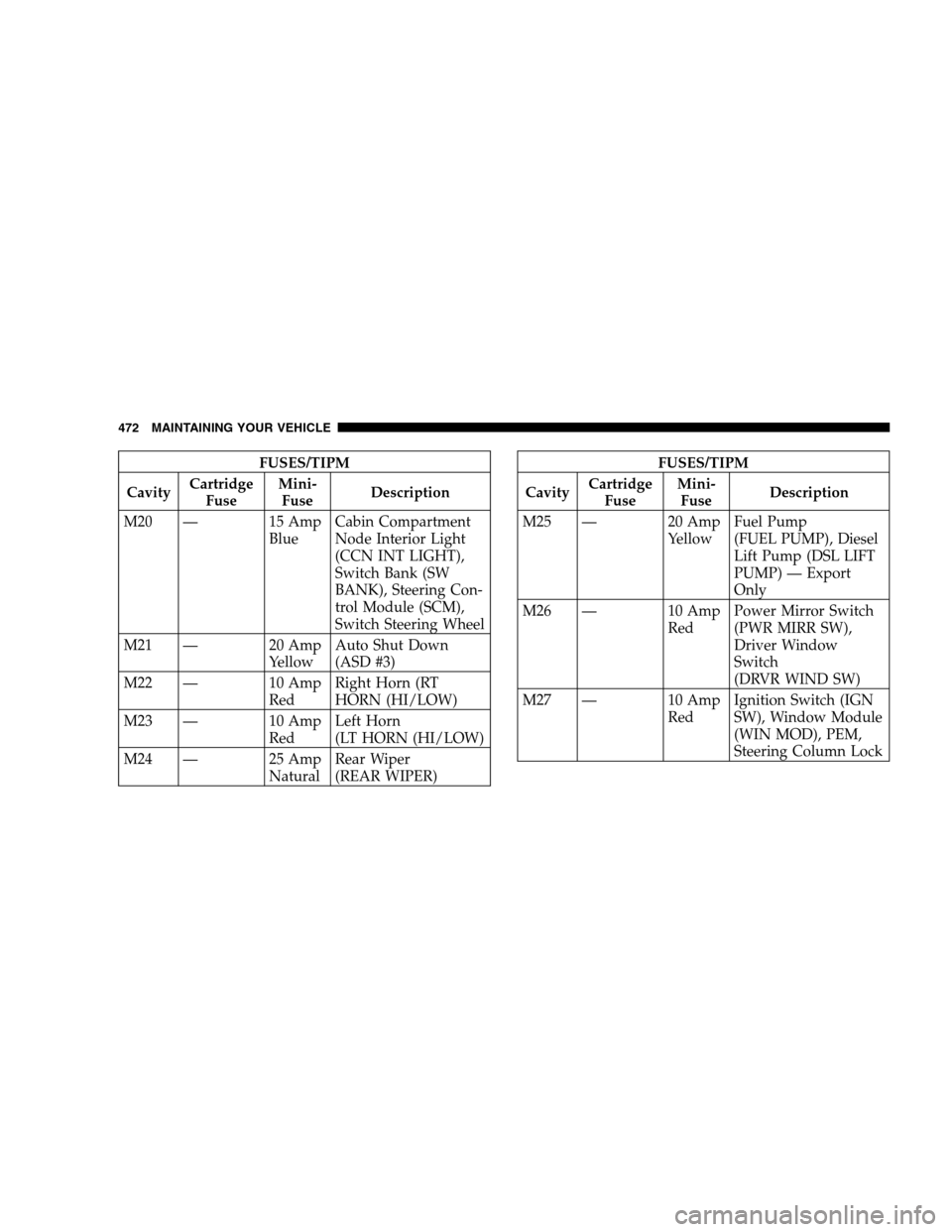

FUSES/TIPM
Cavity Cartridge
Fuse Mini-
Fuse Description
M20 — 15 Amp BlueCabin Compartment
Node Interior Light
(CCN INT LIGHT),
Switch Bank (SW
BANK), Steering Con-
trol Module (SCM),
Switch Steering Wheel
M21 — 20 Amp YellowAuto Shut Down
(ASD #3)
M22 — 10 Amp RedRight Horn (RT
HORN (HI/LOW)
M23 — 10 Amp RedLeft Horn
(LT HORN (HI/LOW)
M24 — 25 Amp NaturalRear Wiper
(REAR WIPER)FUSES/TIPM
Cavity Cartridge
Fuse Mini-
Fuse Description
M25 — 20 Amp YellowFuel Pump
(FUEL PUMP), Diesel
Lift Pump (DSL LIFT
PUMP) — Export
Only
M26 — 10 Amp RedPower Mirror Switch
(PWR MIRR SW),
Driver Window
Switch
(DRVR WIND SW)
M27 — 10 Amp RedIgnition Switch (IGN
SW), Window Module
(WIN MOD), PEM,
Steering Column Lock
472 MAINTAINING YOUR VEHICLE
Page 475 of 535

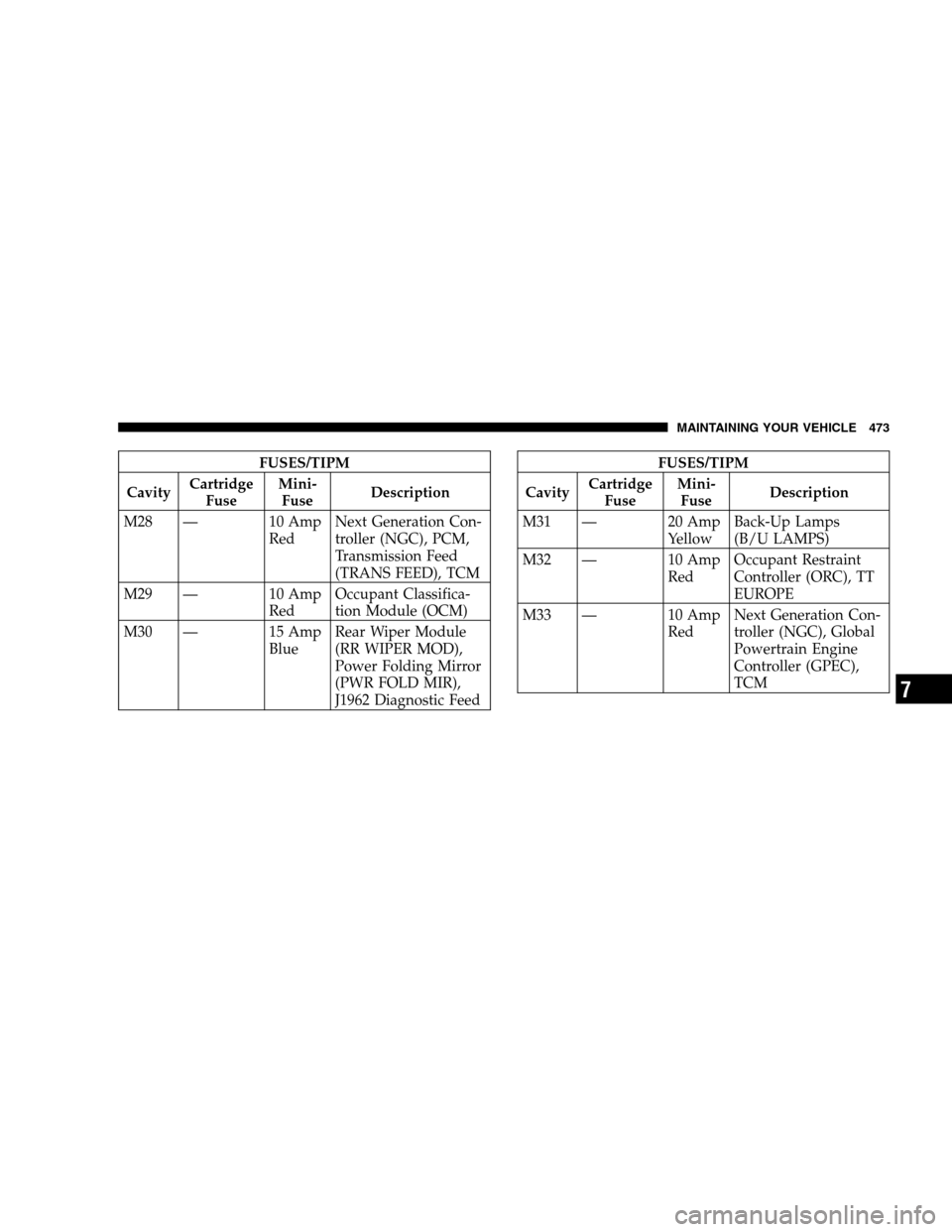

FUSES/TIPM
Cavity Cartridge
Fuse Mini-
Fuse Description
M28 — 10 Amp RedNext Generation Con-
troller (NGC), PCM,
Transmission Feed
(TRANS FEED), TCM
M29 — 10 Amp RedOccupant Classifica-
tion Module (OCM)
M30 — 15 Amp BlueRear Wiper Module
(RR WIPER MOD),
Power Folding Mirror
(PWR FOLD MIR),
J1962 Diagnostic FeedFUSES/TIPM
Cavity Cartridge
Fuse Mini-
Fuse Description
M31 — 20 Amp YellowBack-Up Lamps
(B/U LAMPS)
M32 — 10 Amp RedOccupant Restraint
Controller (ORC), TT
EUROPE
M33 — 10 Amp RedNext Generation Con-
troller (NGC), Global
Powertrain Engine
Controller (GPEC),
TCM
MAINTAINING YOUR VEHICLE 473 7
Page 476 of 535

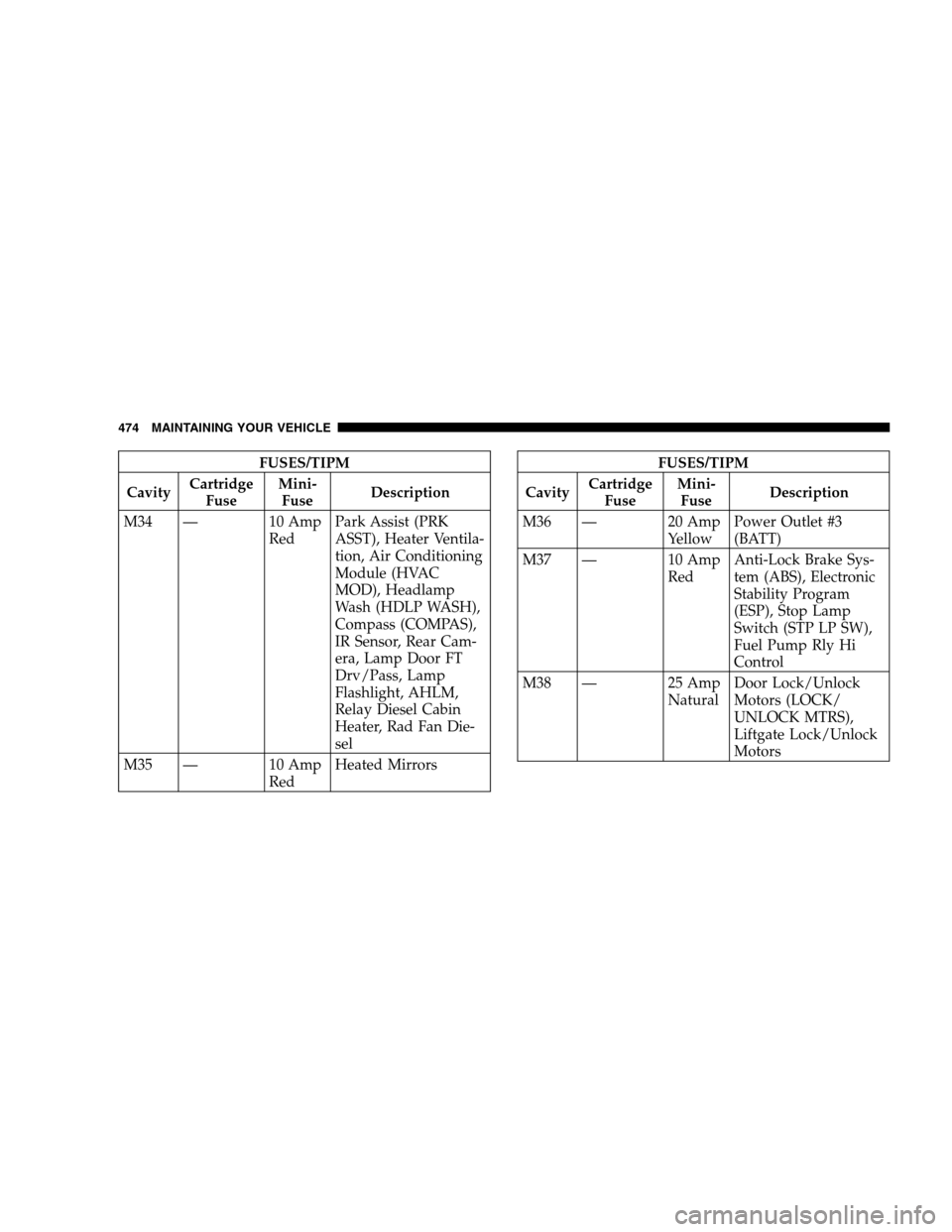

FUSES/TIPM
Cavity Cartridge
Fuse Mini-
Fuse Description
M34 — 10 Amp RedPark Assist (PRK
ASST), Heater Ventila-
tion, Air Conditioning
Module (HVAC
MOD), Headlamp
Wash (HDLP WASH),
Compass (COMPAS),
IR Sensor, Rear Cam-
era, Lamp Door FT
Drv/Pass, Lamp
Flashlight, AHLM,
Relay Diesel Cabin
Heater, Rad Fan Die-
sel
M35 — 10 Amp RedHeated MirrorsFUSES/TIPM
Cavity Cartridge
Fuse Mini-
Fuse Description
M36 — 20 Amp YellowPower Outlet #3
(BATT)
M37 — 10 Amp RedAnti-Lock Brake Sys-
tem (ABS), Electronic
Stability Program
(ESP), Stop Lamp
Switch (STP LP SW),
Fuel Pump Rly Hi
Control
M38 — 25 Amp NaturalDoor Lock/Unlock
Motors (LOCK/
UNLOCK MTRS),
Liftgate Lock/Unlock
Motors
474 MAINTAINING YOUR VEHICLE
Page 477 of 535

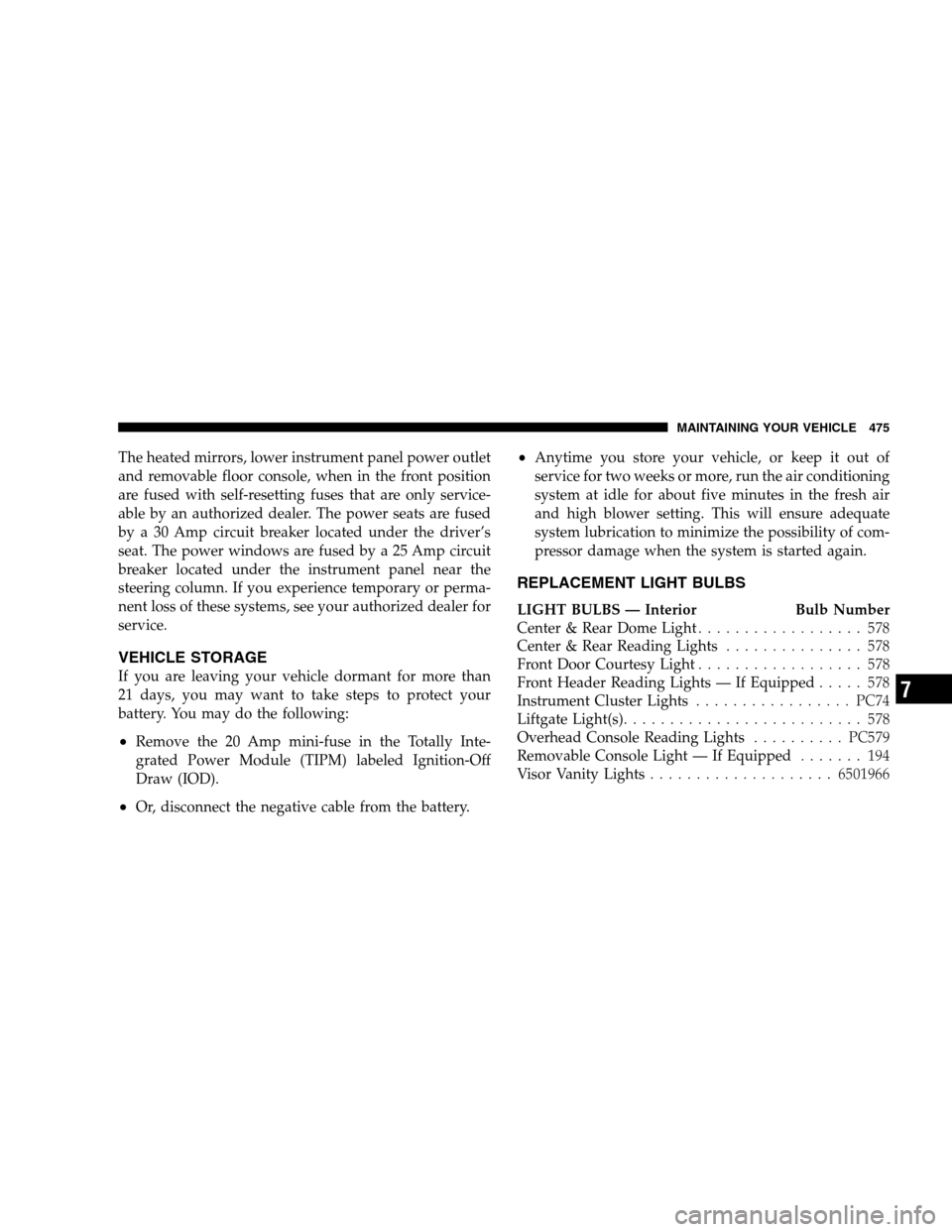

The heated mirrors, lower instrument panel power outlet
and removable floor console, when in the front position
are fused with self-resetting fuses that are only service-
able by an authorized dealer. The power seats are fused
by a 30 Amp circuit breaker located under the driver’s
seat. The power windows are fused by a 25 Amp circuit
breaker located under the instrument panel near the
steering column. If you experience temporary or perma-
nent loss of these systems, see your authorized dealer for
service.
VEHICLE STORAGE
If you are leaving your vehicle dormant for more than
21 days, you may want to take steps to protect your
battery. You may do the following:
Remove the 20 Amp mini-fuse in the Totally Inte-
grated Power Module (TIPM) labeled Ignition-Off
Draw (IOD).
Or, disconnect the negative cable from the battery.
Anytime you store your vehicle, or keep it out of
service for two weeks or more, run the air conditioning
system at idle for about five minutes in the fresh air
and high blower setting. This will ensure adequate
system lubrication to minimize the possibility of com-
pressor damage when the system is started again.
REPLACEMENT LIGHT BULBS
LIGHT BULBS — InteriorBulb Number
Center & Rear Dome Light . . . . . . . . . . . . . . . . . . 578
Center & Rear Reading Lights . . . . . . . . . . . . . . . 578
Front Door Courtesy Light . . . . . . . . . . . . . . . . . . 578
Front Header Reading Lights — If Equipped . . . . . 578
Instrument Cluster Lights . . . . . . . . . . . . . . . . . PC74
Liftgate Light(s) . . . . . . . . . . . . . . . . . . . . . . . . . . 578
Overhead Console Reading Lights . . . . . . . . . . PC579
Removable Console Light — If Equipped . . . . . . . 194
Visor Vanity Lights . . . . . . . . . . . . . . . . . . . . 6501966
MAINTAINING YOUR VEHICLE 475 7
Page 478 of 535

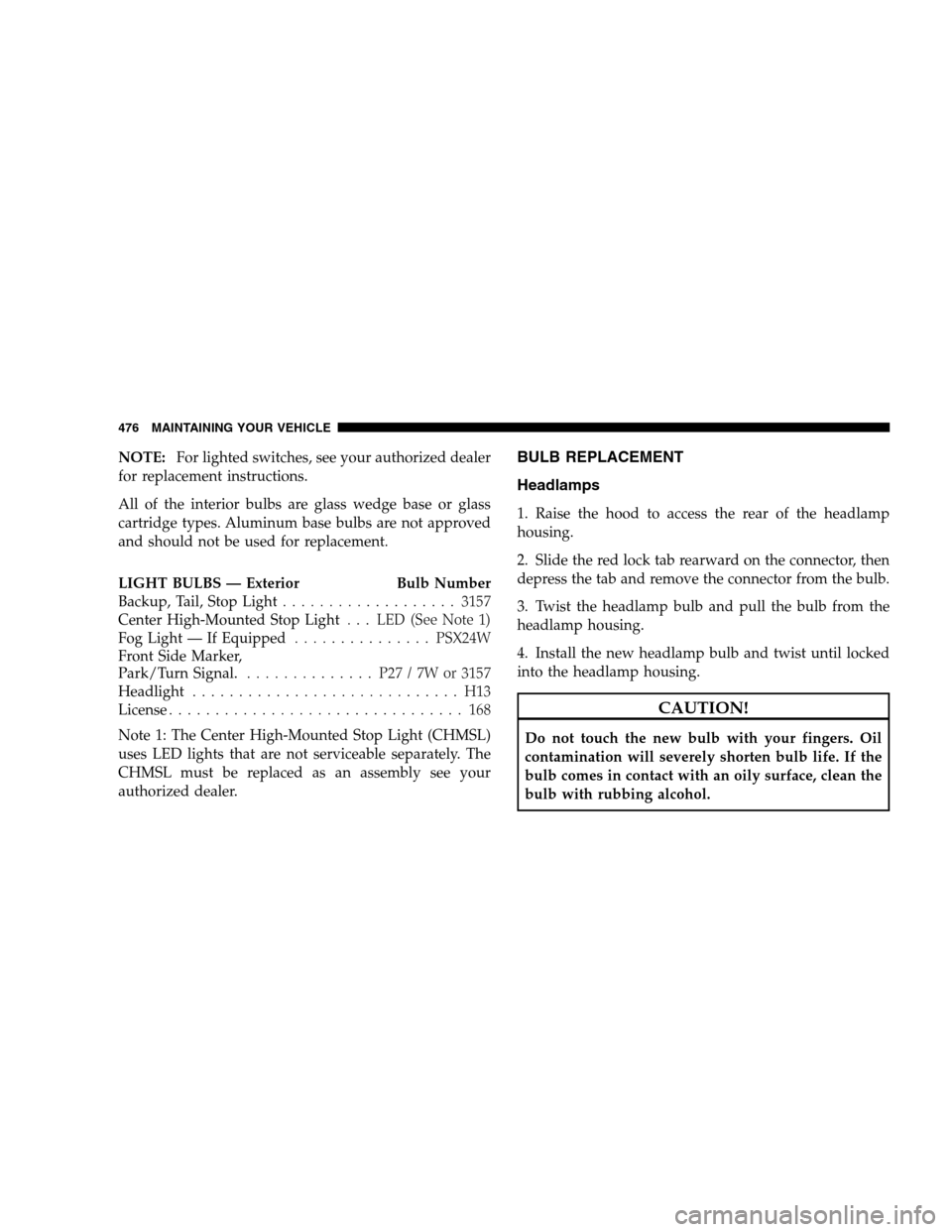

NOTE:For lighted switches, see your authorized dealer
for replacement instructions.
All of the interior bulbs are glass wedge base or glass
cartridge types. Aluminum base bulbs are not approved
and should not be used for replacement.
LIGHT BULBS — Exterior Bulb Number
Backup, Tail, Stop Light . . . . . . . . . . . . . . . . . . . 3157
Center High-Mounted Stop Light . . . LED (See Note 1)
Fog Light — If Equipped . . . . . . . . . . . . . . . PSX24W
Front Side Marker,
Park/Turn Signal. . . . . . . . . . . . . . . P27 / 7W or 3157
Headlight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . H13
License . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Note 1: The Center High-Mounted Stop Light (CHMSL)
uses LED lights that are not serviceable separately. The
CHMSL must be replaced as an assembly see your
authorized dealer.BULB REPLACEMENT
Headlamps
1. Raise the hood to access the rear of the headlamp
housing.
2. Slide the red lock tab rearward on the connector, then
depress the tab and remove the connector from the bulb.
3. Twist the headlamp bulb and pull the bulb from the
headlamp housing.
4. Install the new headlamp bulb and twist until locked
into the headlamp housing. CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with an oily surface, clean the
bulb with rubbing alcohol.
476 MAINTAINING YOUR VEHICLE
Page 479 of 535

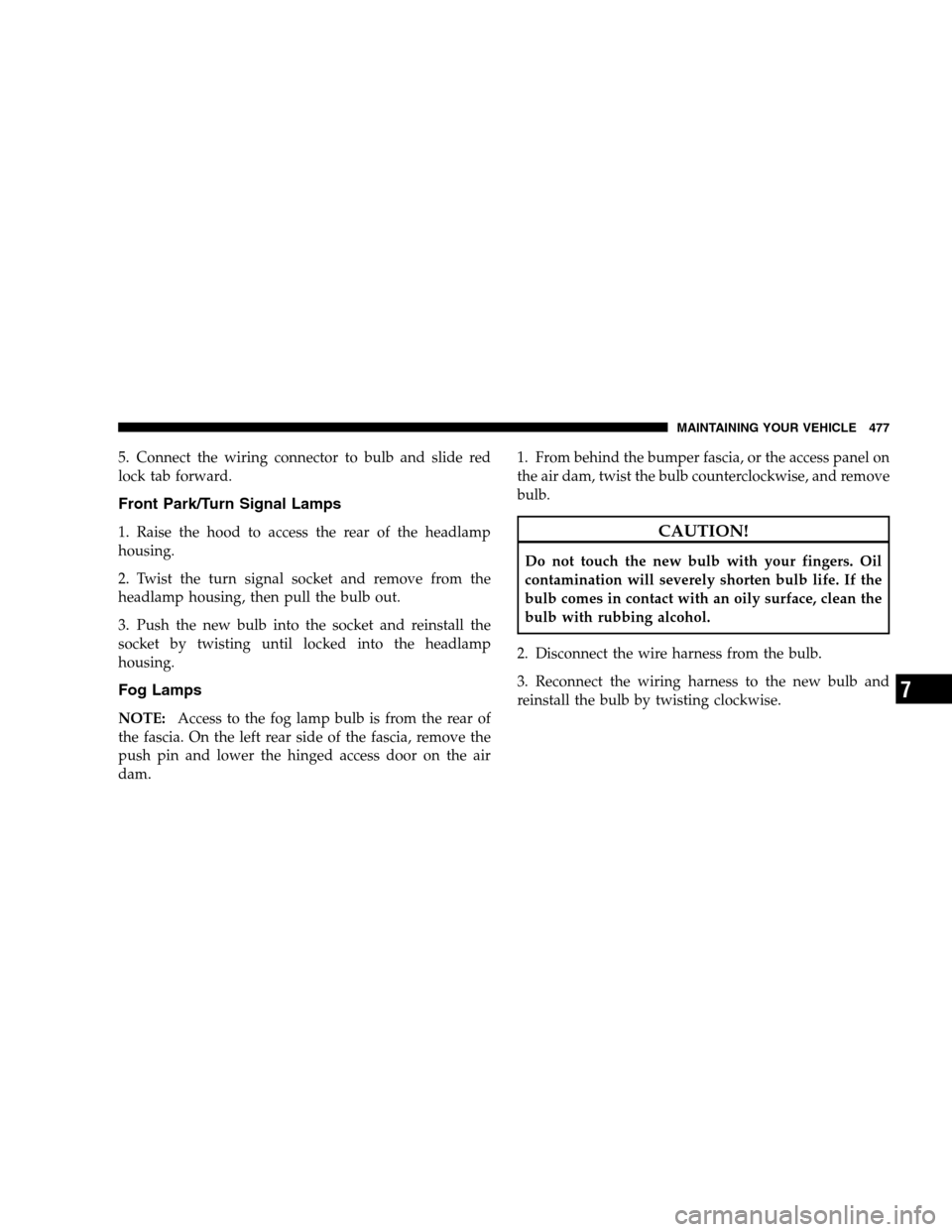

5. Connect the wiring connector to bulb and slide red
lock tab forward.
Front Park/Turn Signal Lamps
1. Raise the hood to access the rear of the headlamp
housing.
2. Twist the turn signal socket and remove from the
headlamp housing, then pull the bulb out.
3. Push the new bulb into the socket and reinstall the
socket by twisting until locked into the headlamp
housing.
Fog Lamps
NOTE:Access to the fog lamp bulb is from the rear of
the fascia. On the left rear side of the fascia, remove the
push pin and lower the hinged access door on the air
dam. 1. From behind the bumper fascia, or the access panel on
the air dam, twist the bulb counterclockwise, and remove
bulb. CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with an oily surface, clean the
bulb with rubbing alcohol.
2. Disconnect the wire harness from the bulb.
3. Reconnect the wiring harness to the new bulb and
reinstall the bulb by twisting clockwise.
MAINTAINING YOUR VEHICLE 477 7
Page 480 of 535

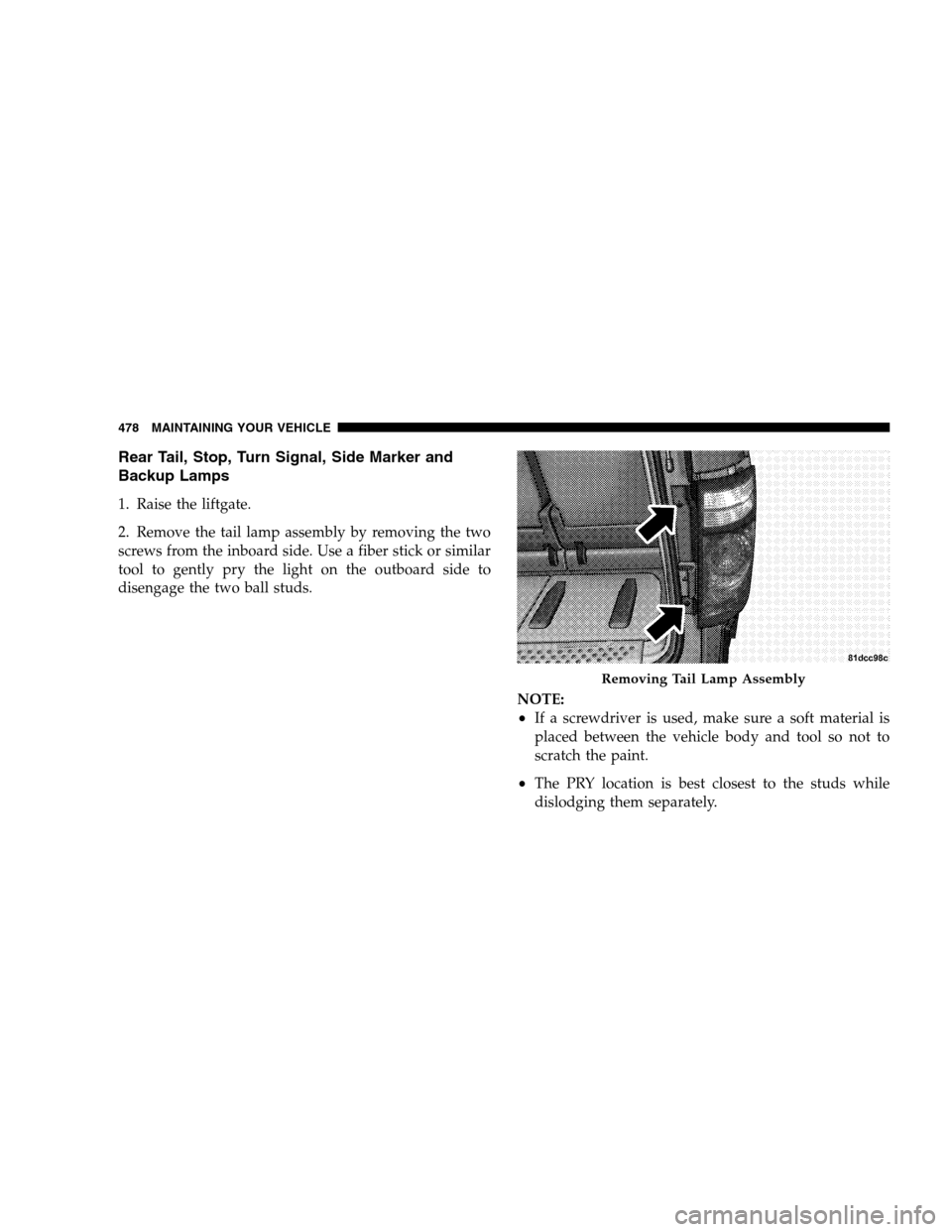

Rear Tail, Stop, Turn Signal, Side Marker and
Backup Lamps1. Raise the liftgate.
2. Remove the tail lamp assembly by removing the two
screws from the inboard side. Use a fiber stick or similar
tool to gently pry the light on the outboard side to
disengage the two ball studs.
NOTE:
If a screwdriver is used, make sure a soft material is
placed between the vehicle body and tool so not to
scratch the paint.
The PRY location is best closest to the studs while
dislodging them separately. Removing Tail Lamp Assembly
478 MAINT
