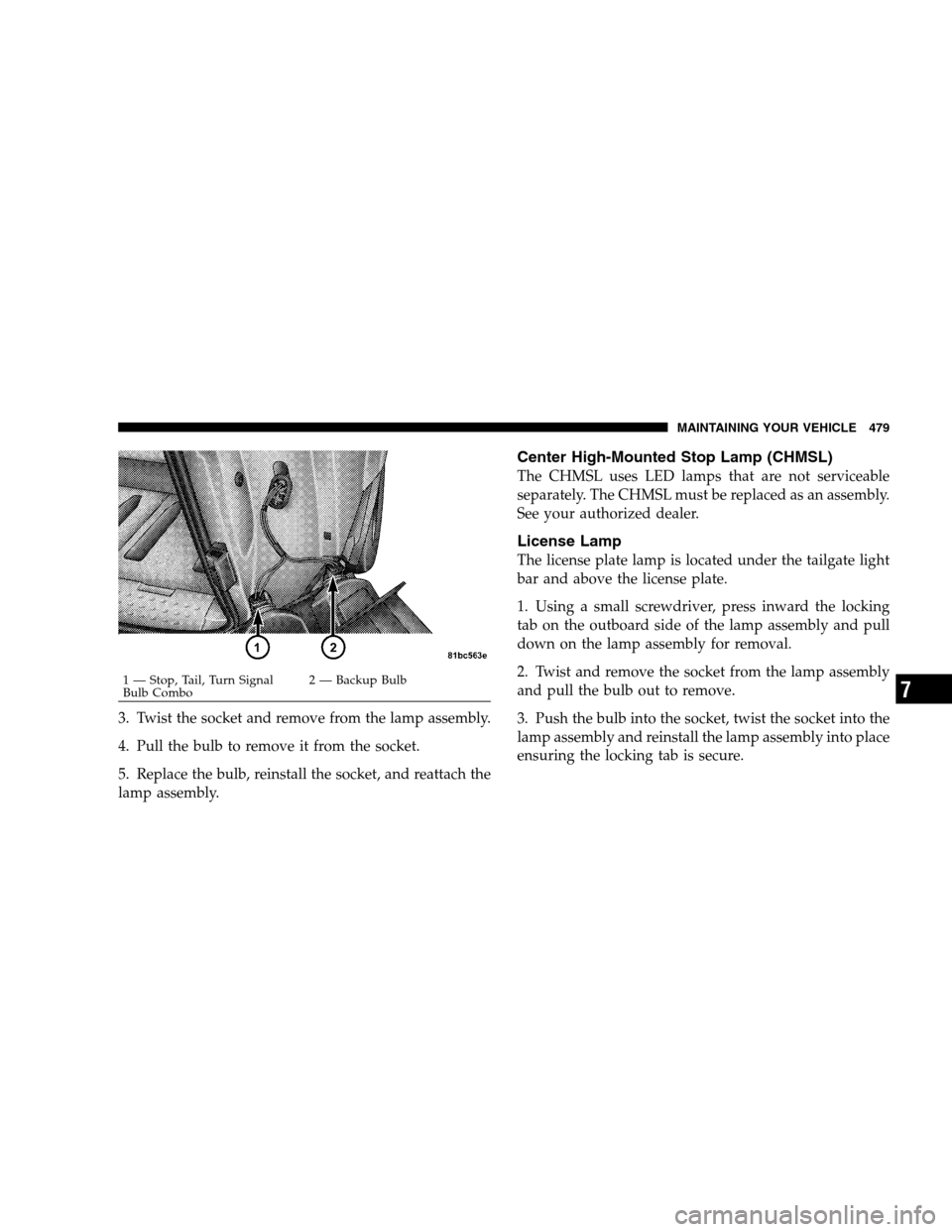

3. Twist the socket and remove from the lamp assembly.
4. Pull the bulb to remove it from the socket.
5. Replace the bulb, reinstall the socket, and reattach the
lamp assembly.
Center High-Mounted Stop Lamp (CHMSL)
The CHMSL uses LED lamps that are not serviceable
separately. The CHMSL must be replaced as an assembly.
See your authorized dealer.
License Lamp
The license plate lamp is located under the tailgate light
bar and above the license plate.
1. Using a small screwdriver, press inward the locking
tab on the outboard side of the lamp assembly and pull
down on the lamp assembly for removal.
2. Twist and remove the socket from the lamp assembly
and pull the bulb out to remove.
3. Push the bulb into the socket, twist the socket into the
lamp assembly and reinstall the lamp assembly into place
ensuring the locking tab is secure.1 — Stop, Tail, Turn Signal
Bulb Combo
2

— Backup Bulb MAINTAINING YOUR VEHICLE 479 7

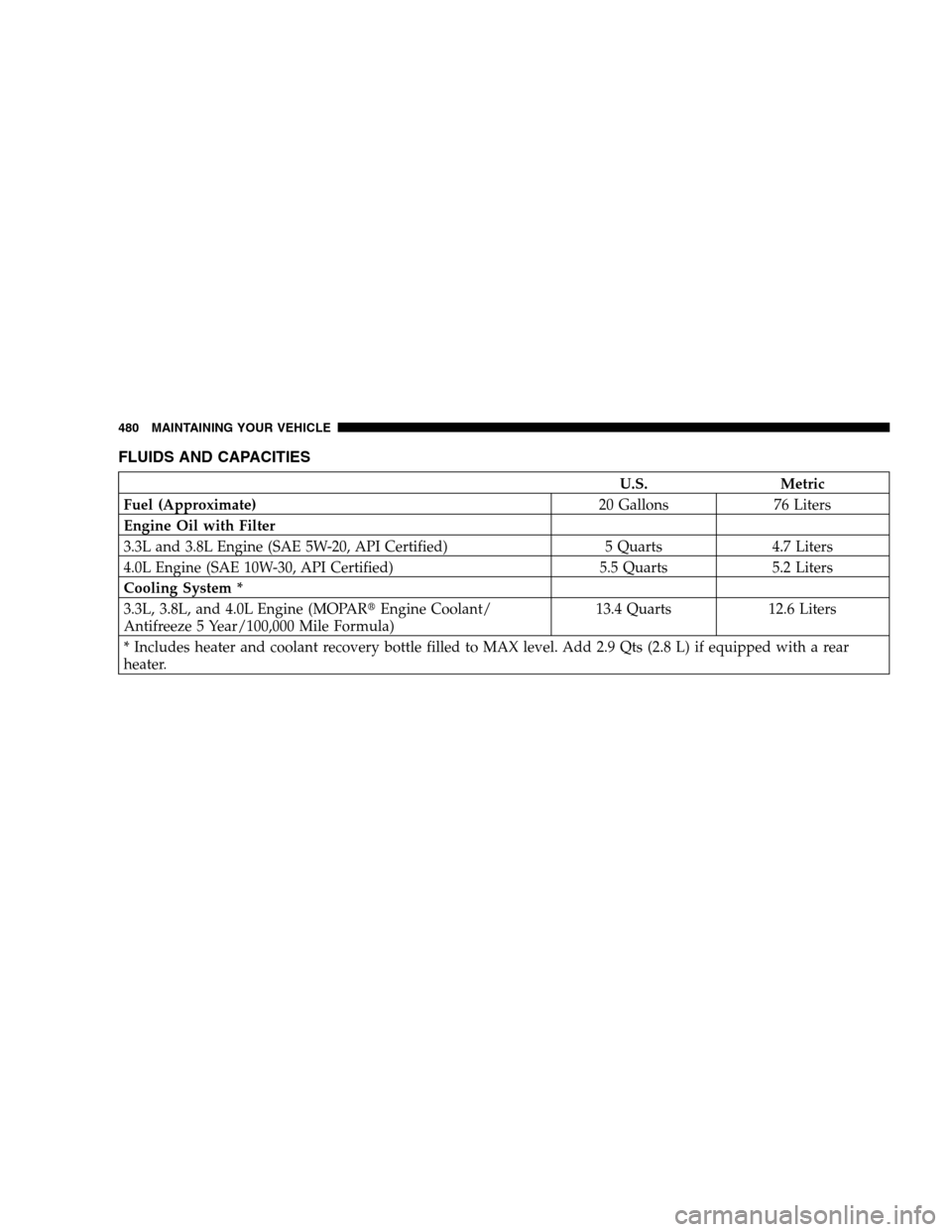

FLUIDS AND CAPACITIESU.S.
Metric
Fuel (Approximate) 20 Gallons76 Liters
Engine Oil with Filter
3.3L and 3.8L Engine (SAE 5W-20, API Certified) 5 Quarts4.7 Liters
4.0L Engine (SAE 10W-30, API Certified) 5.5 Quarts5.2 Liters
Cooling System *
3.3L, 3.8L, and 4.0L Engine (MOPARt Engine Coolant/
Antifreeze 5 Year/100,000 Mile Formula) 13.4 Quarts
12.6 Liters
* Includes heater and coolant recovery bottle filled to MAX level. Add 2.9 Qts (2.8 L) if equipped with a rear
heater.

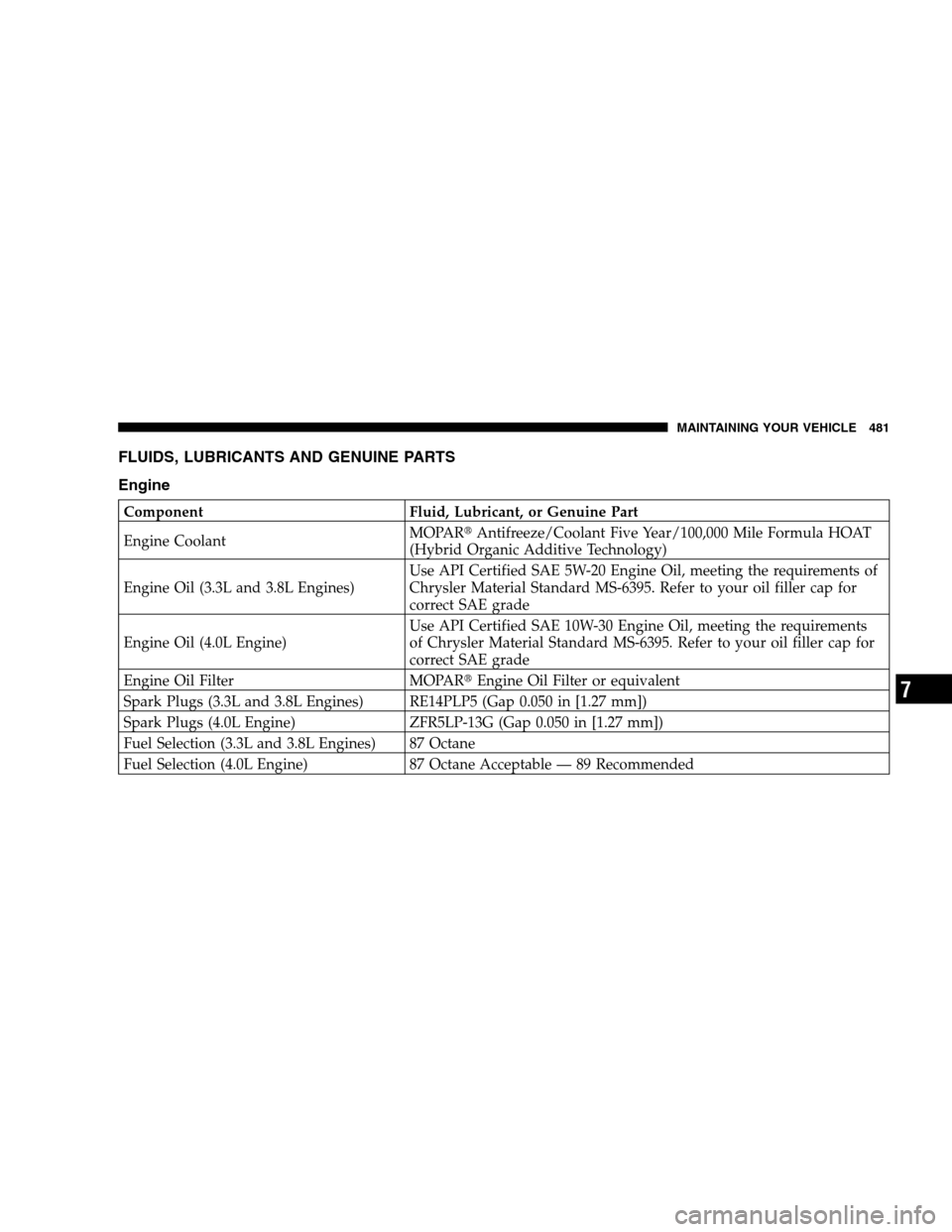

480 MAINTAINING YOUR VEHICLE

FLUIDS, LUBRICANTS AND GENUINE PARTS
EngineComponent
Fluid, Lubricant, or Genuine Part
Engine Coolant MOPARt
Antifreeze/Coolant Five Year/100,000 Mile Formula HOAT
(Hybrid Organic Additive Technology)
Engine Oil (3.3L and 3.8L Engines) Use API Certified SAE 5W-20 Engine Oil, meeting the requirements of
Chrysler Material Standard MS-6395. Refer to your oil filler cap for
correct SAE grade
Engine Oil (4.0L Engine) Use API Certified SAE 10W-30 Engine Oil, meeting the requirements
of Chrysler Material Standard MS-6395. Refer to your oil filler cap for
correct SAE grade
Engine Oil Filter MOPARtEngine Oil Filter or equivalent
Spark Plugs (3.3L and 3.8L Engines) RE14PLP5 (Gap 0.050 in [1.27 mm])
Spark Plugs (4.0L Engine) ZFR5LP-13G (Gap 0.050 in [1.27 mm])
Fuel Selection (3.3L and 3.8L Engines) 87 Octane
Fuel Selection (4.0L Engine) 87 Octane Acceptable — 89 Recommended
MAINTAINING YOUR VEHICLE 481 7

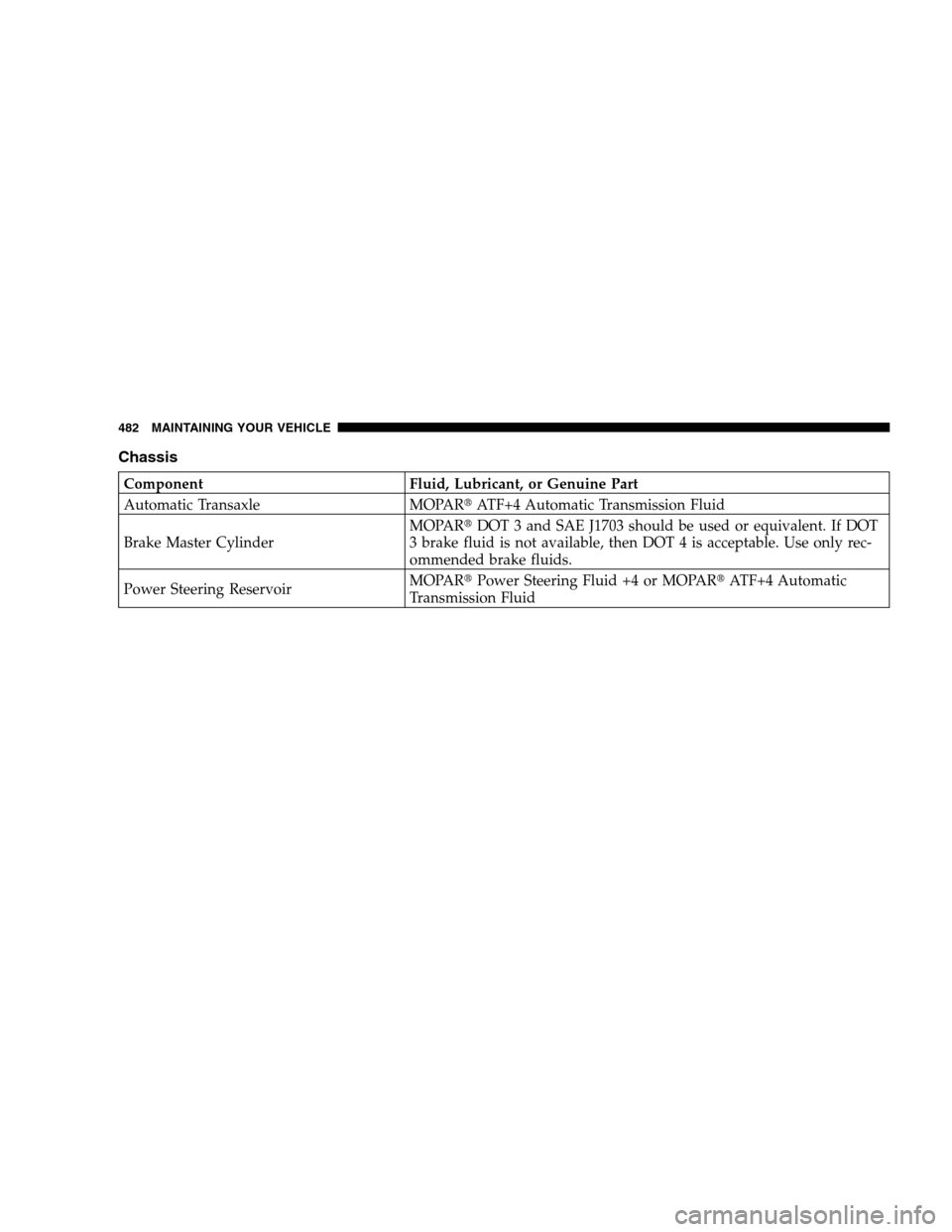

ChassisComponent
Fluid, Lubricant, or Genuine Part
Automatic Transaxle MOPARtATF+4 Automatic Transmission Fluid
Brake Master Cylinder MOPARt
DOT 3 and SAE J1703 should be used or equivalent. If DOT
3 brake fluid is not available, then DOT 4 is acceptable. Use only rec-
ommended brake fluids.
Power Steering Reservoir MOPARt
Power Steering Fluid +4 or MOPARt ATF+4 Automatic
Transmission Fluid
482 MAINTAINING YOUR VEHICLE

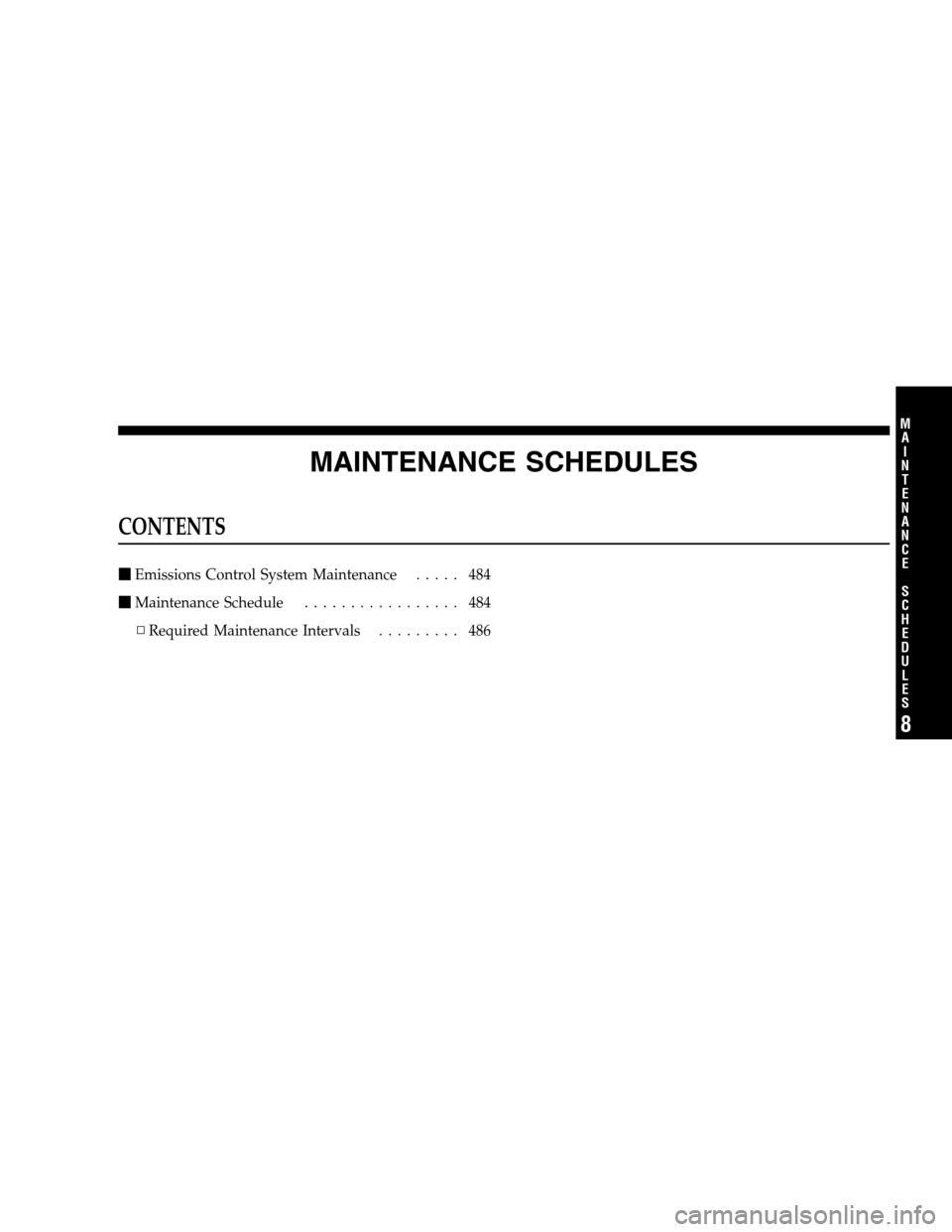

MAINTENANCE SCHEDULESCONTENTS
m
Emissions Control System Maintenance . . . . . 484
m Maintenance Schedule . . . . . . . . . . . . . . . . . 484
▫ Required Maintenance Intervals . . . . . . . . . 486 8
M
A I
N T
E
N A
N C E
S
C
H E
D
U L
E
S

EMISSIONS CONTROL SYSTEM MAINTENANCEThe Scheduled Maintenance services listed in
bold type
must be done at the times or mileages specified to ensure
the continued proper functioning of the emissions control
system. These and all other maintenance services in-
cluded in this manual, should be done to provide best
vehicle performance and reliability. More frequent main-
tenance may be needed for vehicles in severe operating
conditions, such as dusty areas and very short trip
driving.
Inspection and service should also be done anytime a
malfunction is suspected.
NOTE: Maintenance, replacement or repair of the emis-
sions control devices and systems on your vehicle may be
performed by any automotive repair establishment or
individual using any automotive part that has been
certified pursuant to U.S. EPA or in the State of Califor-
nia, California Air Resources Board regulations.
MAINTENANCE SCHEDULE
The oil change indicator system will remind you that it is
time to take your vehicle in for scheduled maintenance.
On Non-EVIC equipped vehicles, CHAngE OILwill
flash in the instrument cluster odometer and a single
chime will sound, indicating that an oil change is neces-
sary.
On Electronic Vehicle Information Center (EVIC)
equipped vehicles, Oil Change Required will be dis-
played in the EVIC and a single chime will sound,
indicating that an oil change is necessary.
Based on engine operation conditions, the oil change
indicator message will illuminate. This means that ser-
vice is required for your vehicle. Have your vehicle
serviced as soon as possible, within the next 500 miles
(805 km).
484 MAINTENANCE SCHEDULES 8
M
A I
N T
E
N A
N C E
S
C
H E
D
U L
E
S

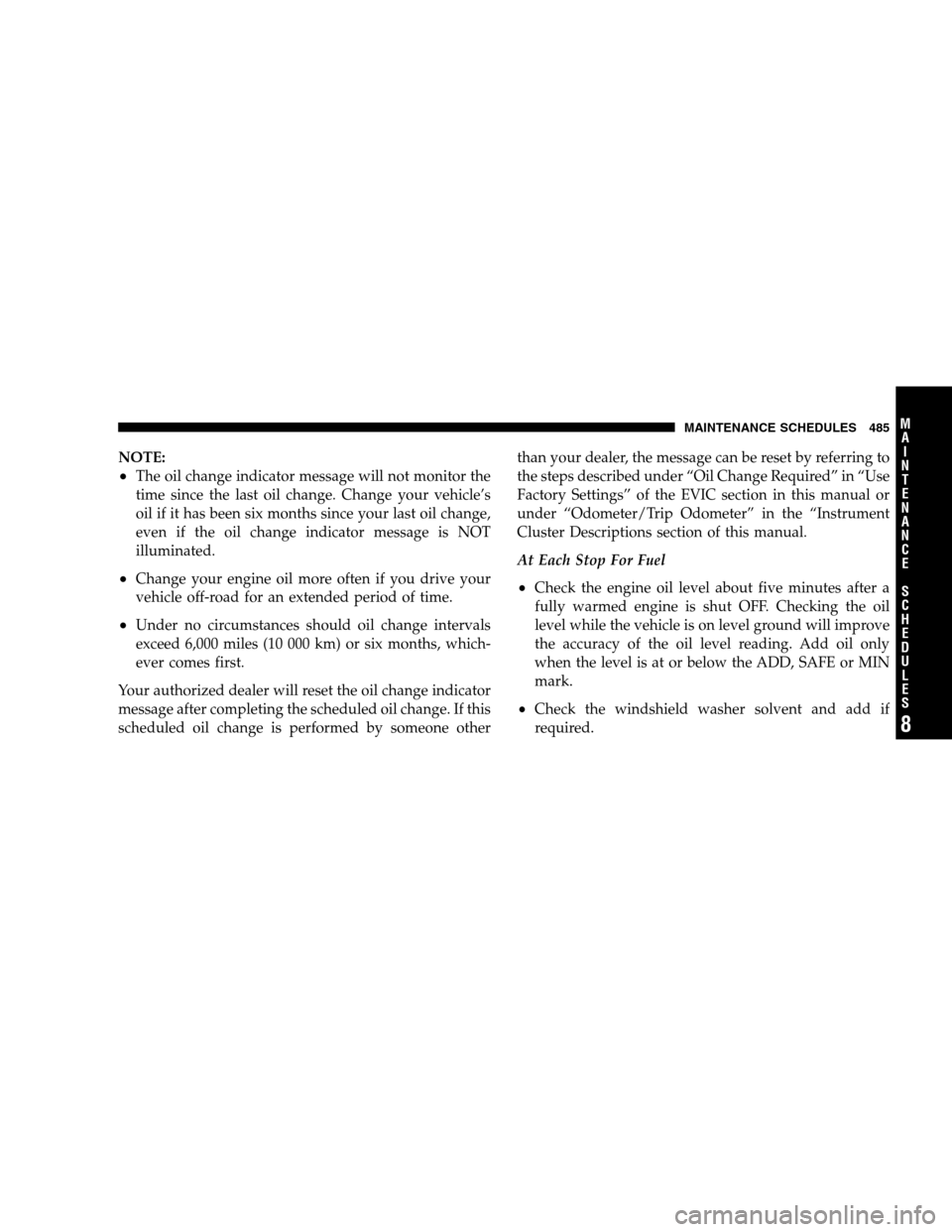

NOTE:
The oil change indicator message will not monitor the
time since the last oil change. Change your vehicle’s
oil if it has been six months since your last oil change,
even if the oil change indicator message is NOT
illuminated.
Change your engine oil more often if you drive your
vehicle off-road for an extended period of time.
Under no circumstances should oil change intervals
exceed 6,000 miles (10 000 km) or six months, which-
ever comes first.
Your authorized dealer will reset the oil change indicator
message after completing the scheduled oil change. If this
scheduled oil change is performed by someone other than your dealer, the message can be reset by referring to
the steps described under “Oil Change Required” in “Use
Factory Settings” of the EVIC section in this manual or
under “Odometer/Trip Odometer” in the “Instrument
Cluster Descriptions section of this manual.
At Each Stop For Fuel
Check the engine oil level about five minutes after a
fully warmed engine is shut OFF. Checking the oil
level while the vehicle is on level ground will improve
the accuracy of the oil level reading. Add oil only
when the level is at or below the ADD, SAFE or MIN
mark.
Check the windshield washer solvent and add if
required.
MAINTENANCE SCHEDULES 485 8
M
A I
N T
E
N A
N C E
S
C
H E
D
U L
E
S

Once A Month
Check tire pressure and look for unusual wear or
damage.
Inspect the battery and clean and tighten the terminals
as required.
Check the fluid levels of the coolant reservoir, the
brake master cylinder, the power steering and the
transaxle and add as needed.
Check all lights and other electrical items for correct
operation.At Each Oil Change
Change the engine oil filter.
Inspect the brake hoses and lines. CAUTION!
Failure to perform the required maintenance items
may result in damage to the vehicle.
Required Maintenance Intervals
Refer to the Maintenance Schedules on the following
pages for the required maintenance intervals.
486 MAINTENANCE SCHEDULES
8
M
A I
N T
E
N A
N C E
S
C
H E
D
U L
E
S

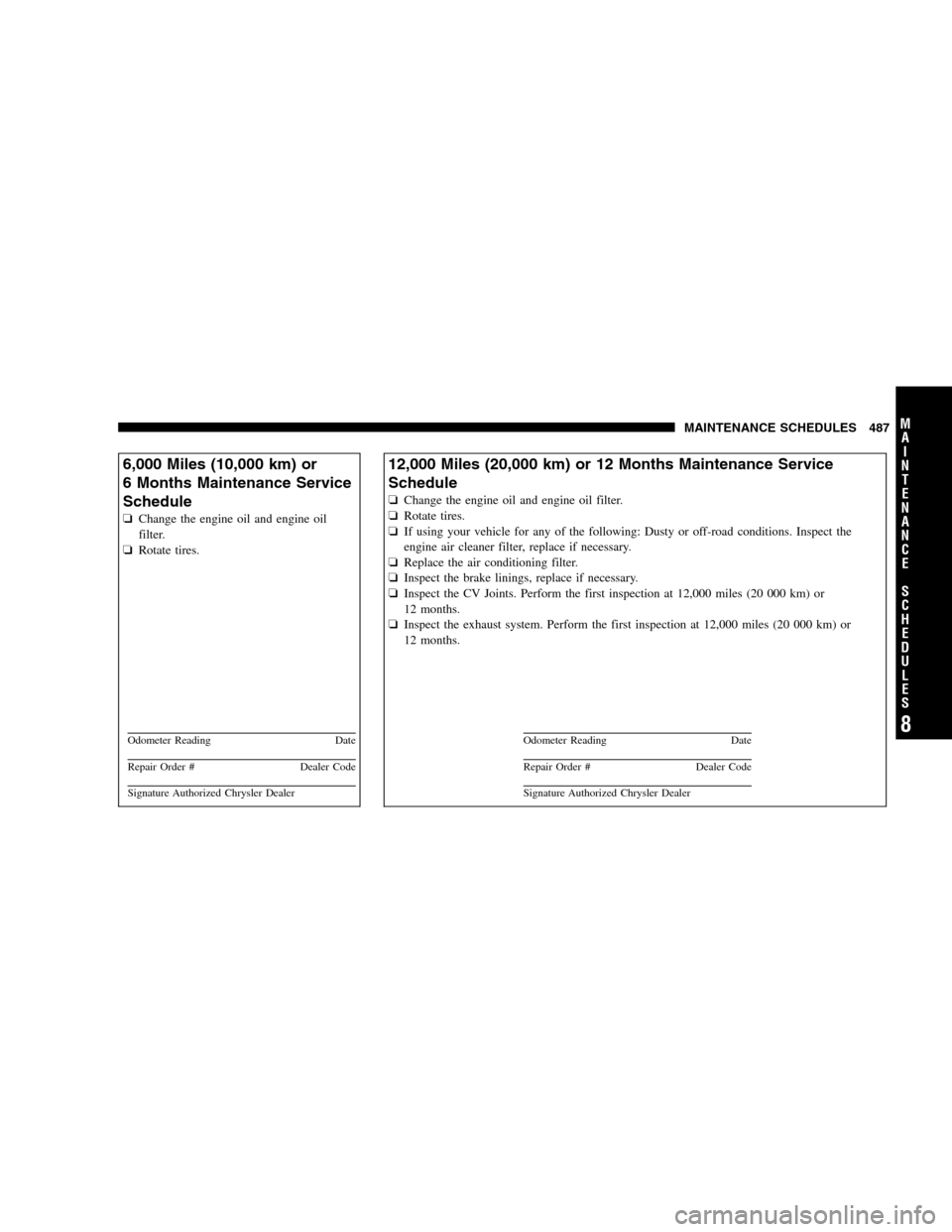

6,000 Miles (10,000 km) or
6 Months
Maintenance Service
Schedule
Change the engine oil and engine oil
filter.
Rotate tires. Odometer Reading
DateRepair Order #
Dealer CodeSignature Authorized Chrysler Dealer 12,000 Miles (20,000 km) or 12 Months Maintenance Service
Schedule

Change the
engine oil and engine oil filter.
Rotate tires.
If using your vehicle for any of the following: Dusty or off-road conditions. Inspect the
engine air cleaner filter, replace if necessary.
Replace the air conditioning filter.
Inspect the brake linings, replace if necessary.
Inspect the CV Joints. Perform the first inspection at 12,000 miles (20 000 km) or
12 months.
Inspect the exhaust system. Perform the first inspection at 12,000 miles (20 000 km) or
12 months. Odometer Reading
Date Repair Order #
Dealer Code Signature Authorized Chrysler Dealer MAINTENANCE SCHEDULES 487
8
M
A I
N T
E
N A
N C E
S
C
H E
D
U L
E
S

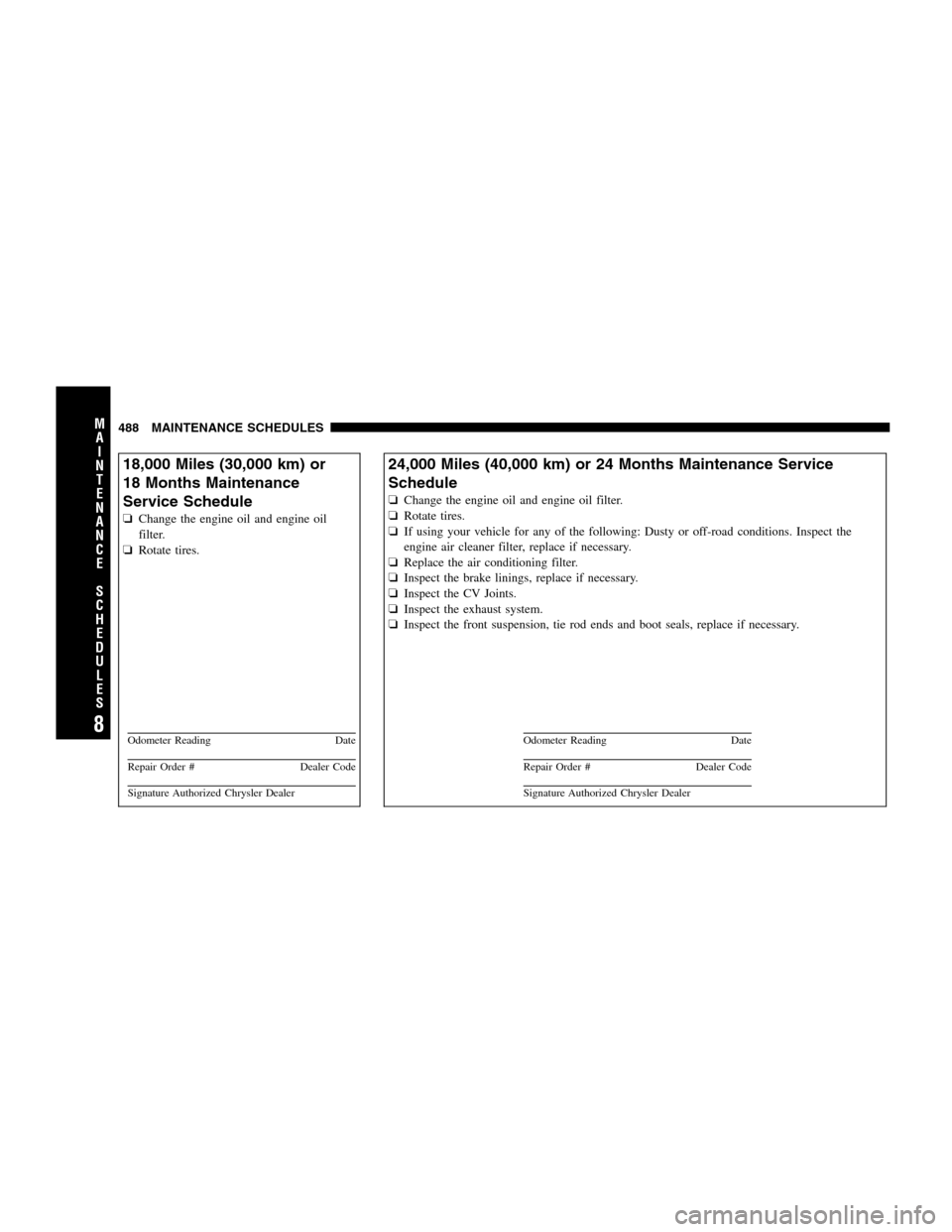

18,000 Miles (30,000 km) or
18 Months
Maintenance
Service Schedule
Change the engine oil and engine oil
filter.
Rotate tires. Odometer Reading
DateRepair Order #
Dealer CodeSignature Authorized Chrysler Dealer 24,000 Miles (40,000 km) or 24 Months Maintenance Service
Schedule

Change the
engine oil and engine oil filter.
Rotate tires.
If using your vehicle for any of the following: Dusty or off-road conditions. Inspect the
engine air cleaner filter, replace if necessary.
Replace the air conditioning filter.
Inspect the brake linings, replace if necessary.
Inspect the CV Joints.
Inspect the exhaust system.
Inspect the front suspension, tie rod ends and boot seals, replace if necessary. Odometer Reading
Date Repair Order #
Dealer Code Signature Authorized Chrysler Dealer488 MAINTENANCE SCHEDULES
