DODGE JOURNEY 2009 1.G Owners Manual

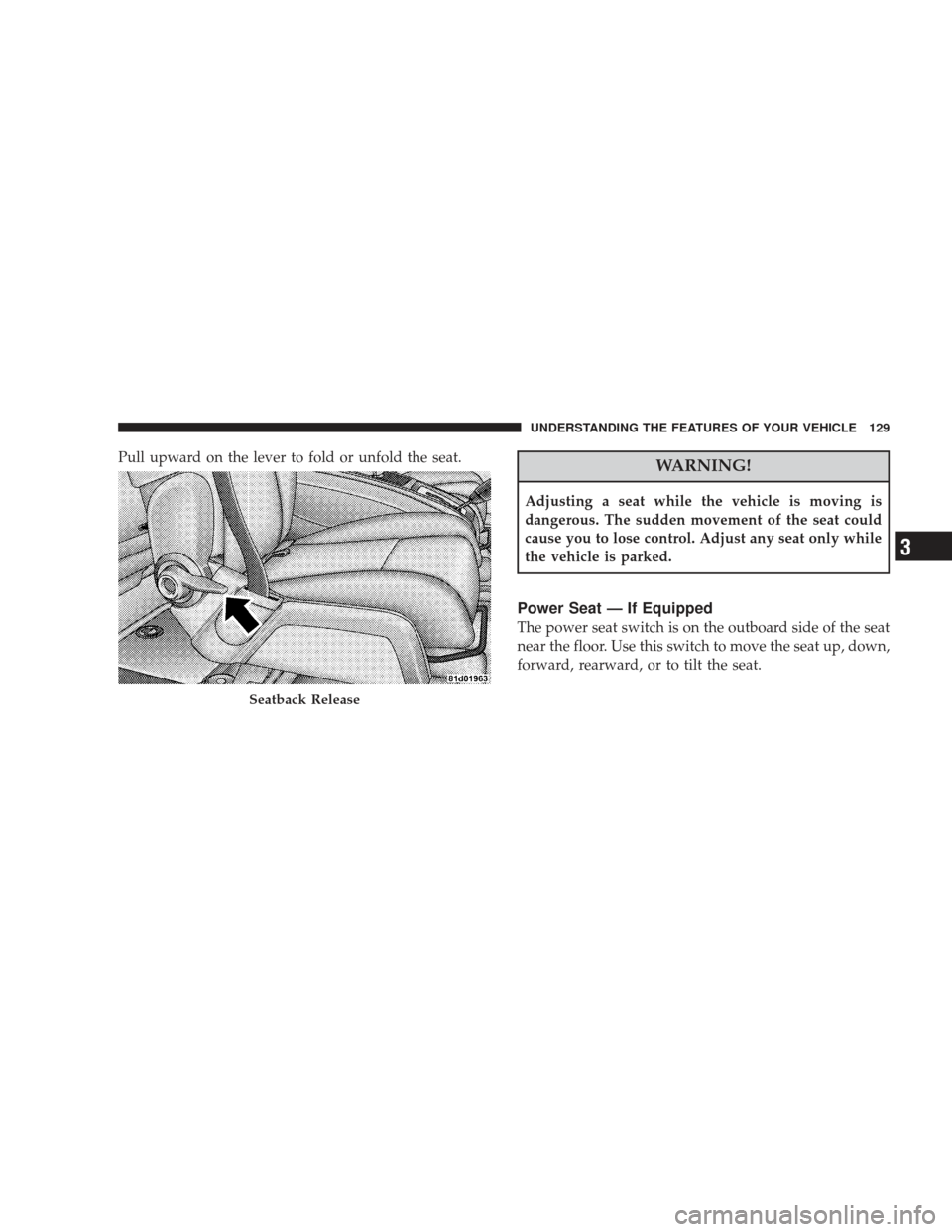

Pull upward on the lever to fold or unfold the seat.WARNING!
Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat could
cause you to lose control. Adjust any seat only while
the vehicle is parked.
Power Seat — If Equipped
The power seat switch is on the outboard side of the seat
near the floor. Use this switch to move the seat up, down,
forward, rearward, or to tilt the seat.
Seatback Release
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 129
3

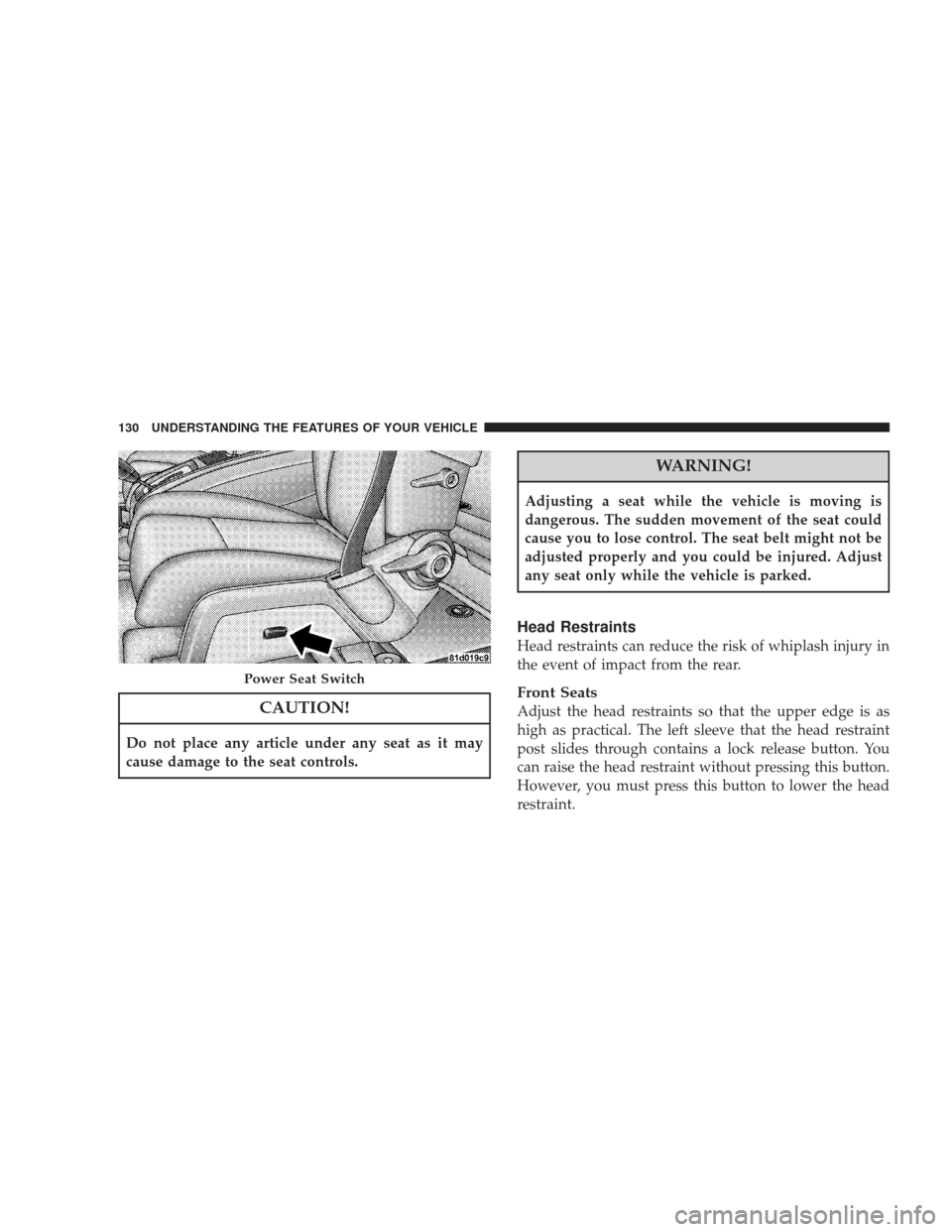

CAUTION!
Do not place any article under any seat as it may
cause damage to the seat controls.
WARNING!
Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat could
cause you to lose control. The seat belt might not be
adjusted properly and you could be injured. Adjust
any seat only while the vehicle is parked.
Head Restraints
Head restraints can reduce the risk of whiplash injury in
the event of impact from the rear.
Front Seats
Adjust the head restraints so that the upper edge is as
high as practical. The left sleeve that the head restraint
post slides through contains a lock release button. You
can raise the head restraint without pressing this button.
However, you must press this button to lower the head
restraint.
Power Seat Switch
130 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

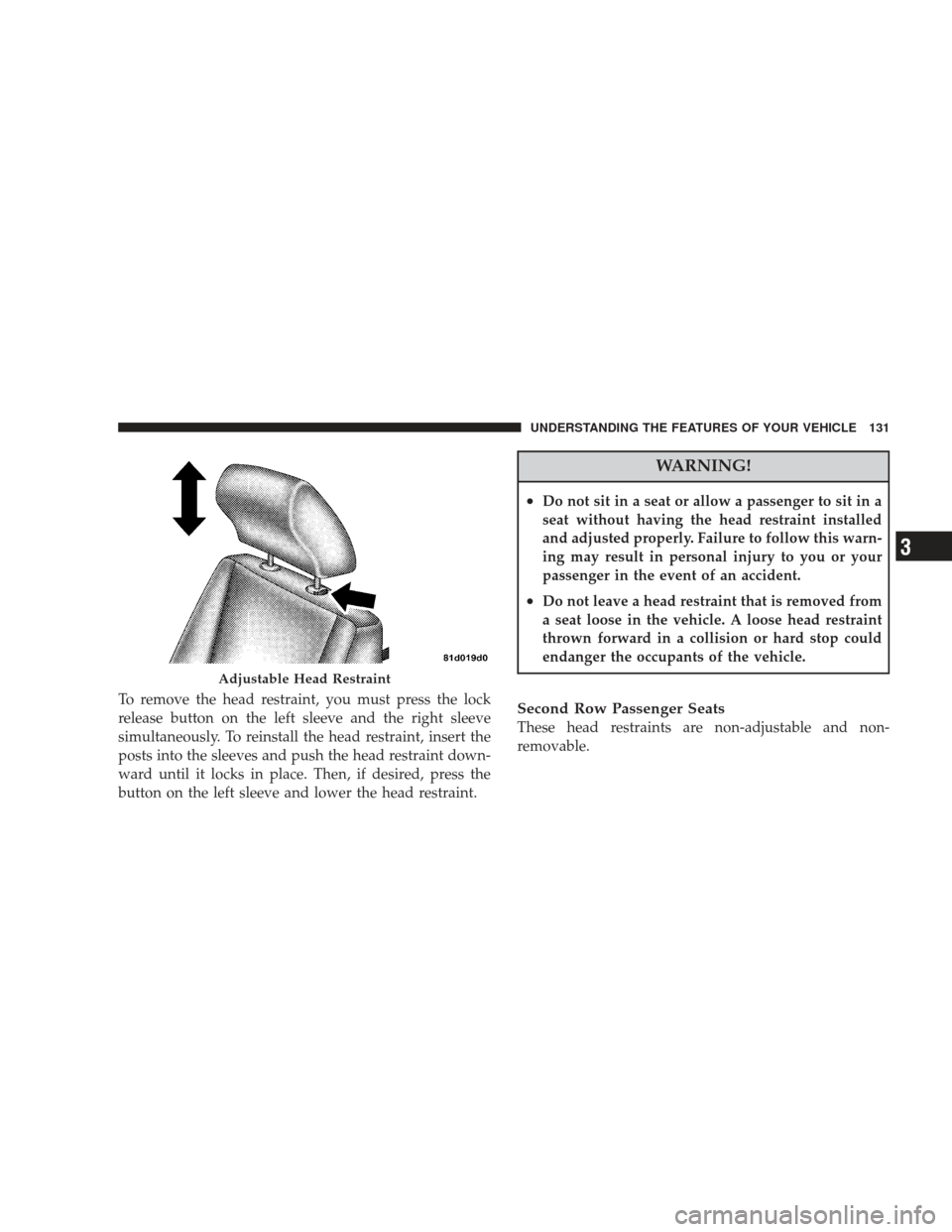

To remove the head restraint, you must press the lock
release button on the left sleeve and the right sleeve
simultaneously. To reinstall the head restraint, insert the
posts into the sleeves and push the head restraint down-
ward until it locks in place. Then, if desired, press the
button on the left sleeve and lower the head restraint.
WARNING!
•Do not sit in a seat or allow a passenger to sit in a
seat without having the head restraint installed
and adjusted properly. Failure to follow this warn-
ing may result in personal injury to you or your
passenger in the event of an accident.
•Do not leave a head restraint that is removed from
a seat loose in the vehicle. A loose head restraint
thrown forward in a collision or hard stop could
endanger the occupants of the vehicle.
Second Row Passenger Seats
These head restraints are non-adjustable and non-
removable.
Adjustable Head Restraint
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 131
3

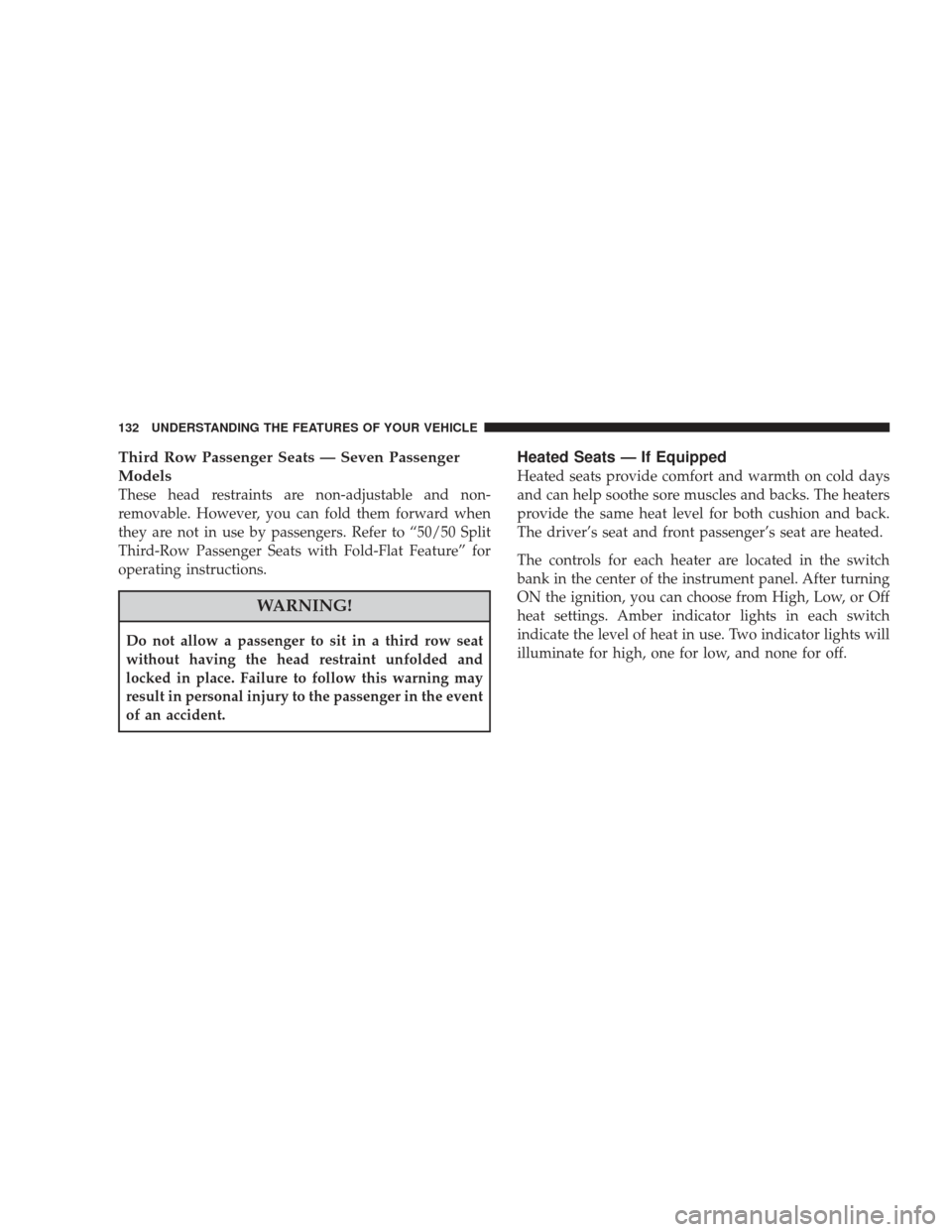

Third Row Passenger Seats — Seven Passenger
Models
These head restraints are non-adjustable and non-
removable. However, you can fold them forward when
they are not in use by passengers. Refer to “50/50 Split
Third-Row Passenger Seats with Fold-Flat Feature” for
operating instructions.
WARNING!
Do not allow a passenger to sit in a third row seat
without having the head restraint unfolded and
locked in place. Failure to follow this warning may
result in personal injury to the passenger in the event
of an accident.
Heated Seats — If Equipped
Heated seats provide comfort and warmth on cold days
and can help soothe sore muscles and backs. The heaters
provide the same heat level for both cushion and back.
The driver’s seat and front passenger’s seat are heated.
The controls for each heater are located in the switch
bank in the center of the instrument panel. After turning
ON the ignition, you can choose from High, Low, or Off
heat settings. Amber indicator lights in each switch
indicate the level of heat in use. Two indicator lights will
illuminate for high, one for low, and none for off.
132 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

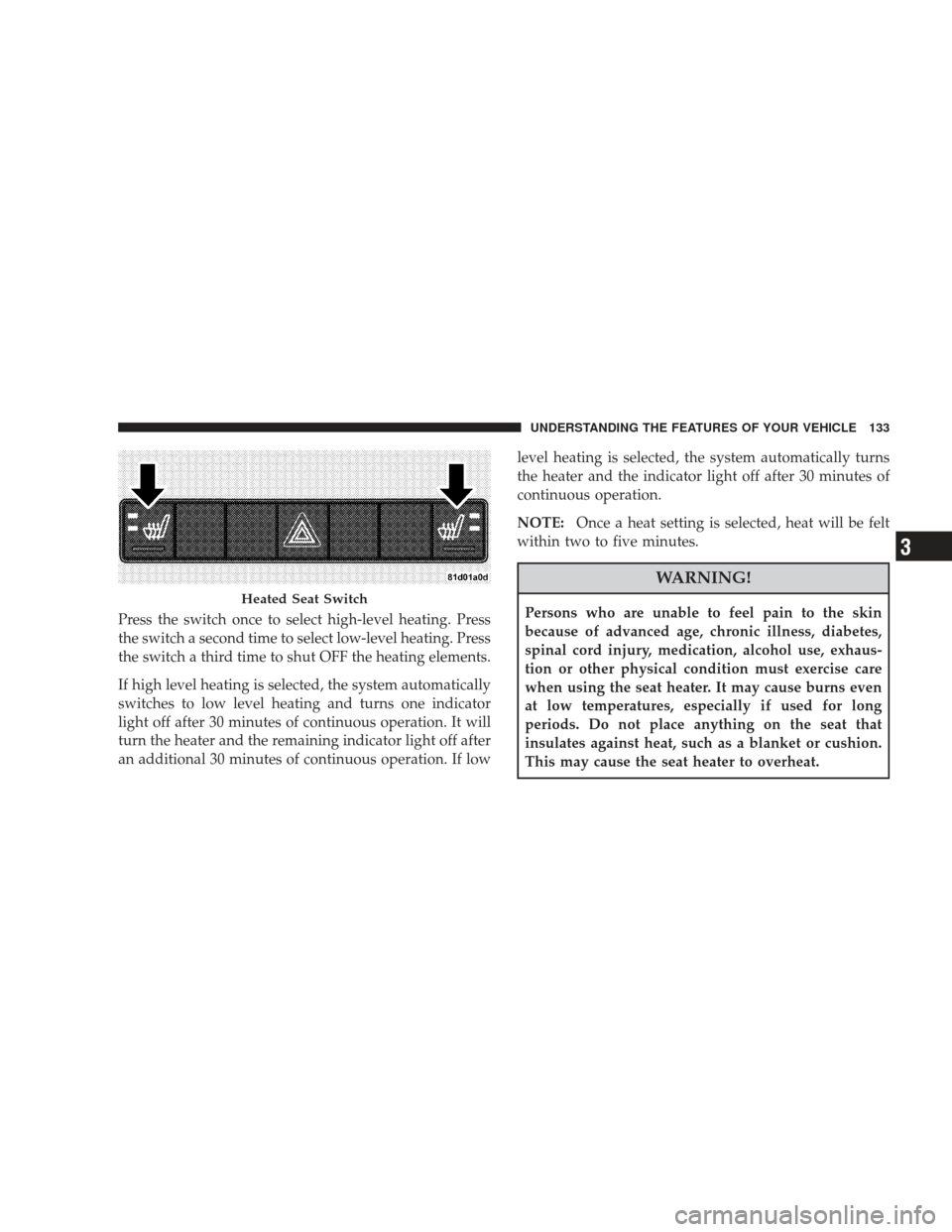

Press the switch once to select high-level heating. Press
the switch a second time to select low-level heating. Press
the switch a third time to shut OFF the heating elements.
If high level heating is selected, the system automatically
switches to low level heating and turns one indicator
light off after 30 minutes of continuous operation. It will
turn the heater and the remaining indicator light off after
an additional 30 minutes of continuous operation. If lowlevel heating is selected, the system automatically turns
the heater and the indicator light off after 30 minutes of
continuous operation.
NOTE:
Once a heat setting is selected, heat will be felt
within two to five minutes.
WARNING!
Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use, exhaus-
tion or other physical condition must exercise care
when using the seat heater. It may cause burns even
at low temperatures, especially if used for long
periods. Do not place anything on the seat that
insulates against heat, such as a blanket or cushion.
This may cause the seat heater to overheat.Heated Seat Switch
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 133
3

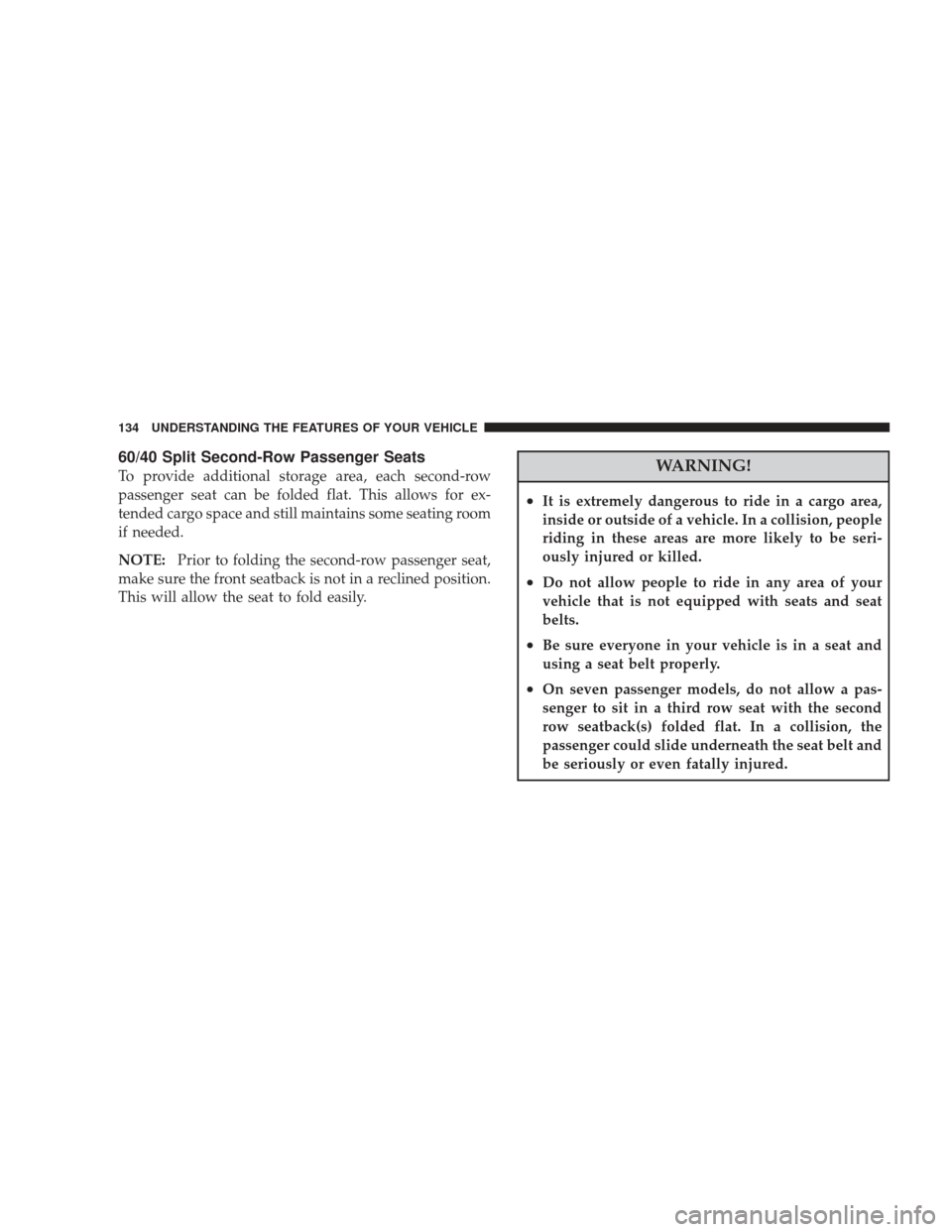

60/40 Split Second-Row Passenger Seats
To provide additional storage area, each second-row
passenger seat can be folded flat. This allows for ex-
tended cargo space and still maintains some seating room
if needed.
NOTE:Prior to folding the second-row passenger seat,
make sure the front seatback is not in a reclined position.
This will allow the seat to fold easily.WARNING!
•It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be seri-
ously injured or killed.
•Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts.
•Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
•On seven passenger models, do not allow a pas-
senger to sit in a third row seat with the second
row seatback(s) folded flat. In a collision, the
passenger could slide underneath the seat belt and
be seriously or even fatally injured.
134 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

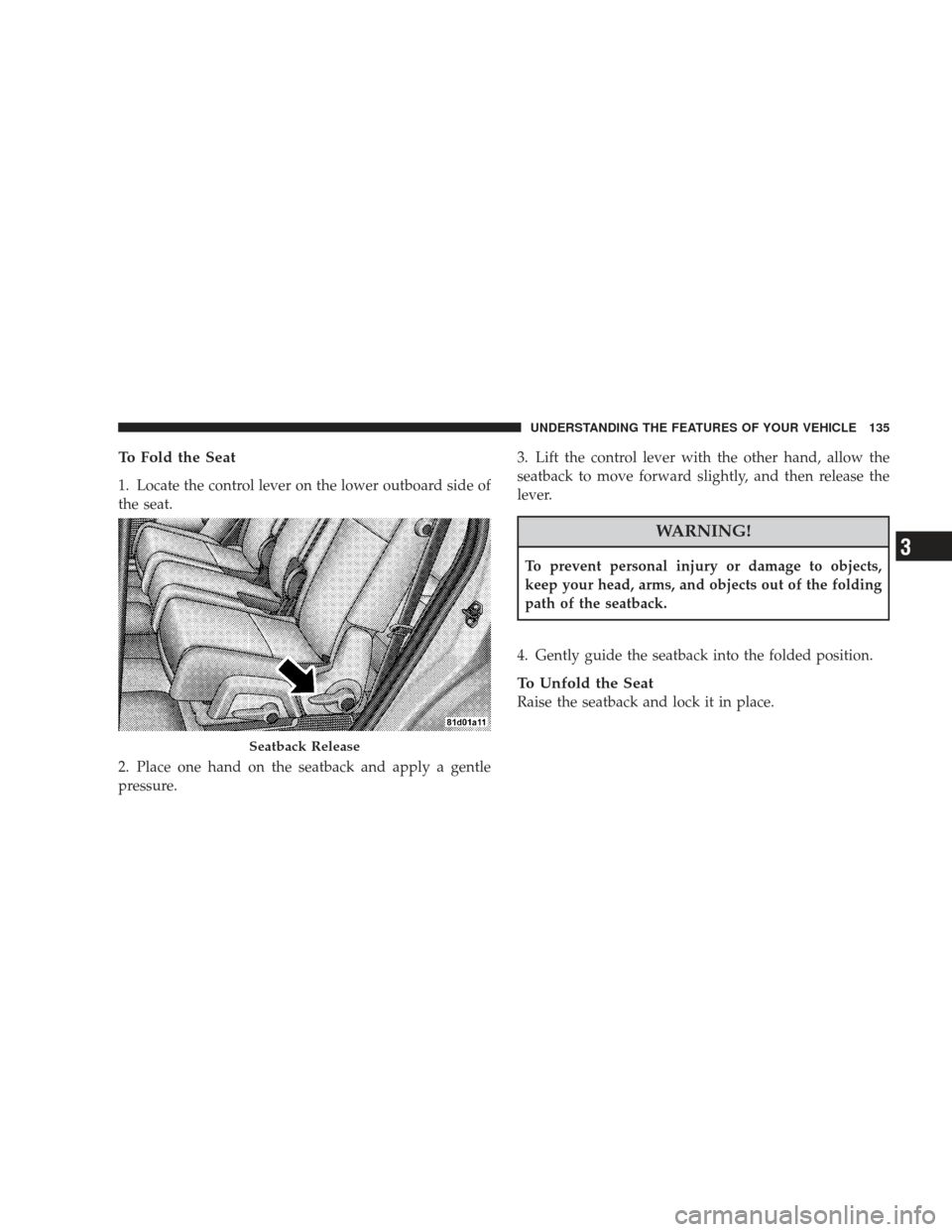

To Fold the Seat
1. Locate the control lever on the lower outboard side of
the seat.
2. Place one hand on the seatback and apply a gentle
pressure.3. Lift the control lever with the other hand, allow the
seatback to move forward slightly, and then release the
lever.
WARNING!
To prevent personal injury or damage to objects,
keep your head, arms, and objects out of the folding
path of the seatback.
4. Gently guide the seatback into the folded position.
To Unfold the Seat
Raise the seatback and lock it in place.
Seatback Release
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 135
3

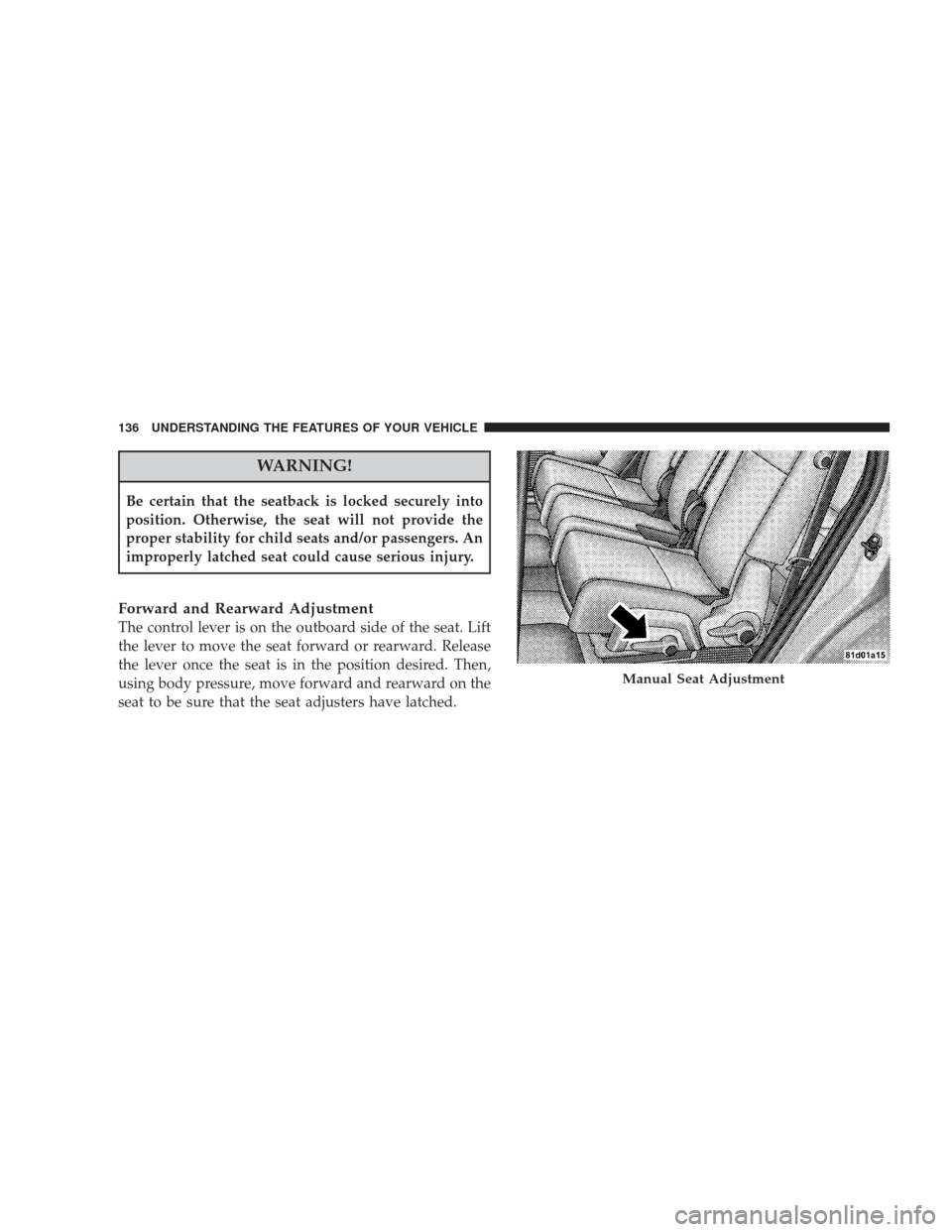

WARNING!
Be certain that the seatback is locked securely into
position. Otherwise, the seat will not provide the
proper stability for child seats and/or passengers. An
improperly latched seat could cause serious injury.
Forward and Rearward Adjustment
The control lever is on the outboard side of the seat. Lift
the lever to move the seat forward or rearward. Release
the lever once the seat is in the position desired. Then,
using body pressure, move forward and rearward on the
seat to be sure that the seat adjusters have latched.
Manual Seat Adjustment
136 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!
Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat could
cause you to lose control. The seat belt might not be
adjusted properly and you could be injured. Adjust
any seat only while the vehicle is parked.

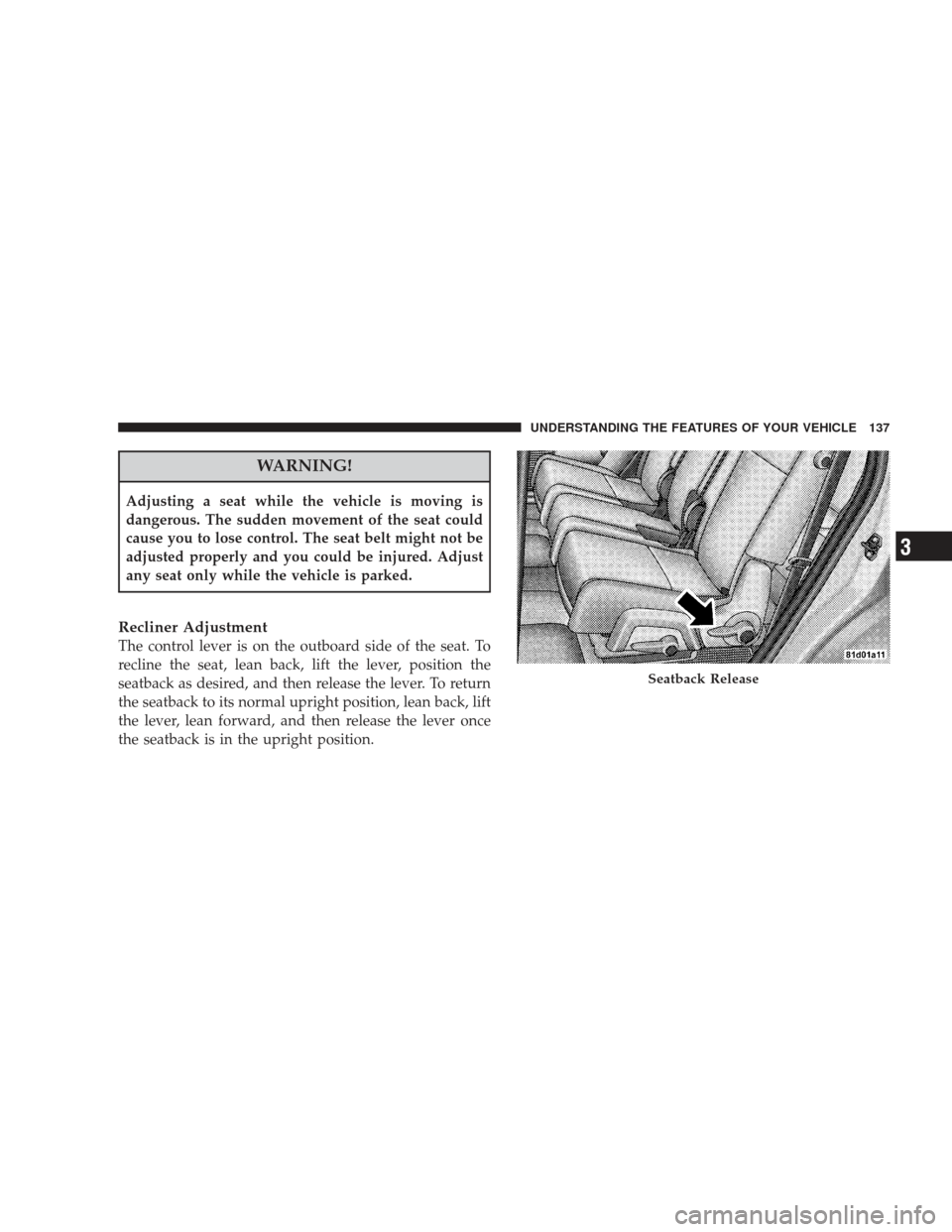

Recliner Adjustment
The control lever is on the outboard side of the seat. To
recline the seat, lean back, lift the lever, position the
seatback as desired, and then release the lever. To return
the seatback to its normal upright position, lean back, lift
the lever, lean forward, and then release the lever once
the seatback is in the upright position.
Seatback Release
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 137
3

WARNING!
•Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat
could cause you to lose control. The seat belt might
not be adjusted properly and you could be injured.
Adjust the seat only while the vehicle is parked.
•Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your
chest. In a collision you could slide under the seat
belt and be seriously or even fatally injured. Use
the recliner only when the vehicle is parked.

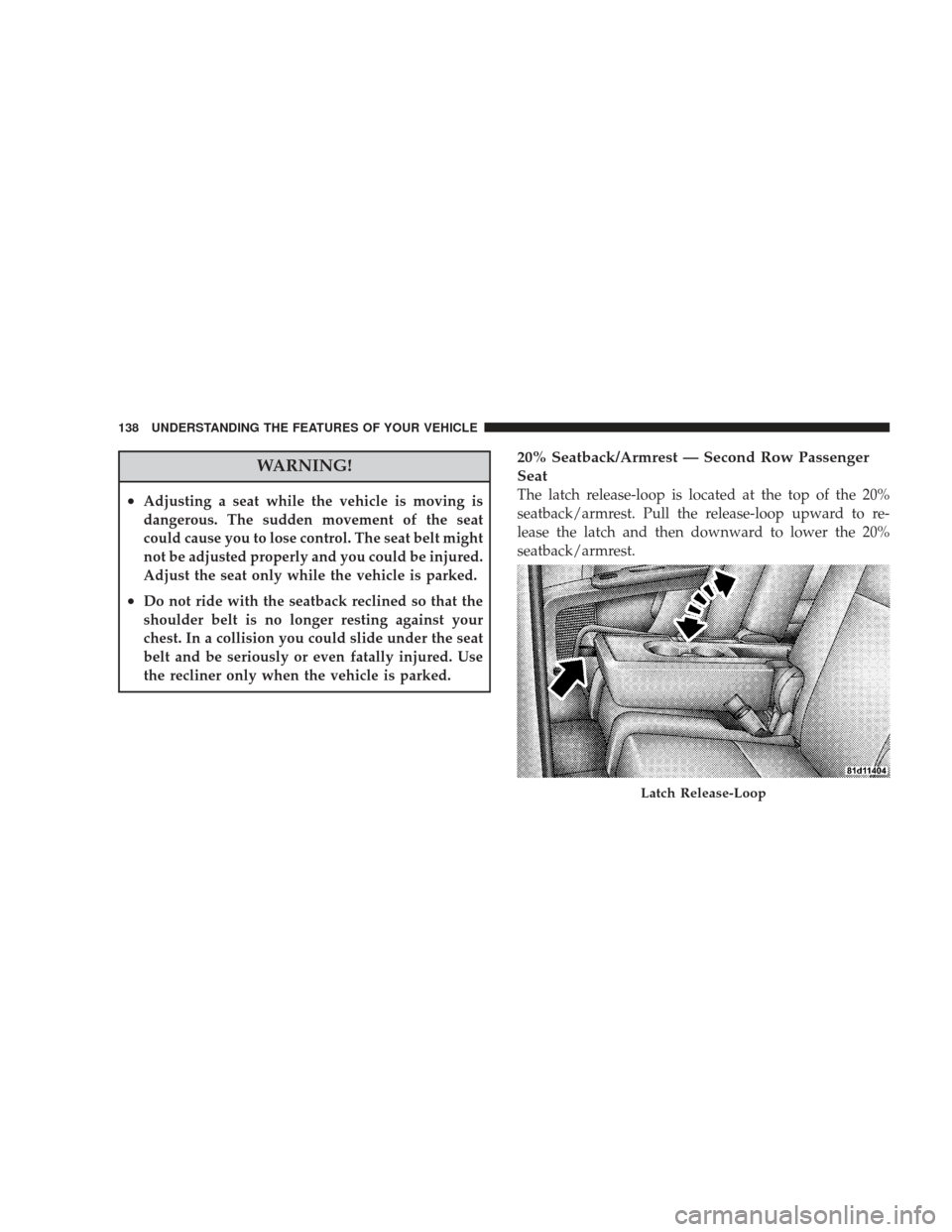

20% Seatback/Armrest — Second Row Passenger
Seat
The latch release-loop is located at the top of the 20%
seatback/armrest. Pull the release-loop upward to re-
lease the latch and then downward to lower the 20%
seatback/armrest.
Latch Release-Loop
138 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
