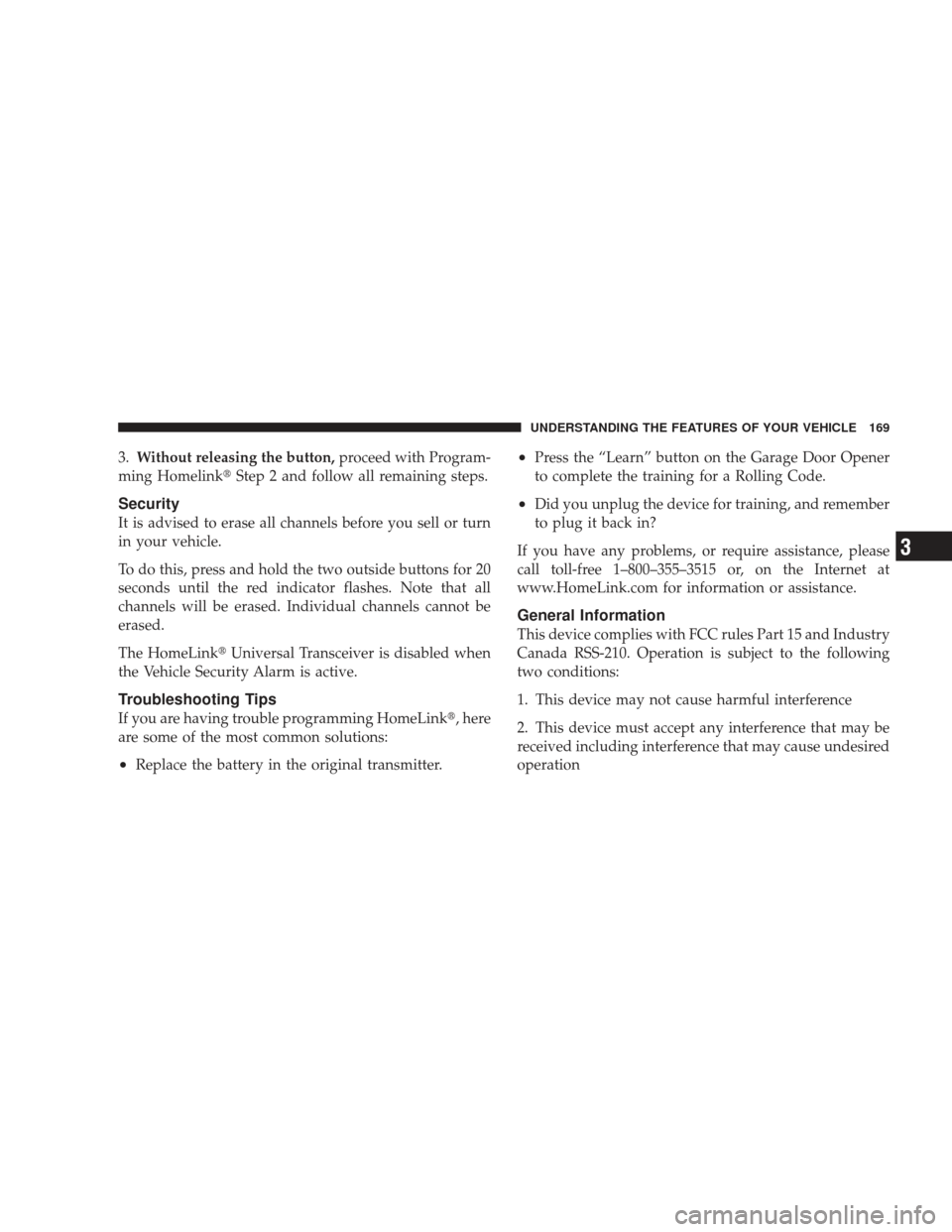

3.Without releasing the button, proceed with Program-
ming Homelink Step 2 and follow all remaining steps.
Security
It is advised to erase all channels before you sell or turn
in your vehicle.
To do this, press and hold the two outside buttons for 20
seconds until the red indicator flashes. Note that all
channels will be erased. Individual channels cannot be
erased.
The HomeLinkUniversal Transceiver is disabled when
the Vehicle Security Alarm is active.
Troubleshooting Tips
If you are having trouble programming HomeLink, here
are some of the most common solutions:
•Replace the battery in the original transmitter.
•Press the “Learn” button on the Garage Door Opener
to complete the training for a Rolling Code.
•Did you unplug the device for training, and remember
to plug it back in?
If you have any problems, or require assistance, please
call toll-free 1–800–355–3515 or, on the Internet at
www.HomeLink.com for information or assistance.
General Information
This device complies with FCC rules Part 15 and Industry
Canada RSS-210. Operation is subject to the following
two conditions:
1. This device may not cause harmful interference
2. This device must accept any interference that may be
received including interference that may cause undesired
operation
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 169
3

NOTE:The transmitter has been tested and it complies
with FCC and IC rules. Changes or modifications not
expressly approved by the party responsible for compli-
ance could void the user ’s authority to operate the
device.
The term IC before the certification/registration number
only signifies that Industry Canada technical specifica-
tions were met.
POWER SUNROOF — IF EQUIPPED
The power sunroof switch is located between the sun
visors on the overhead console.
Power sunroof Switch
170 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

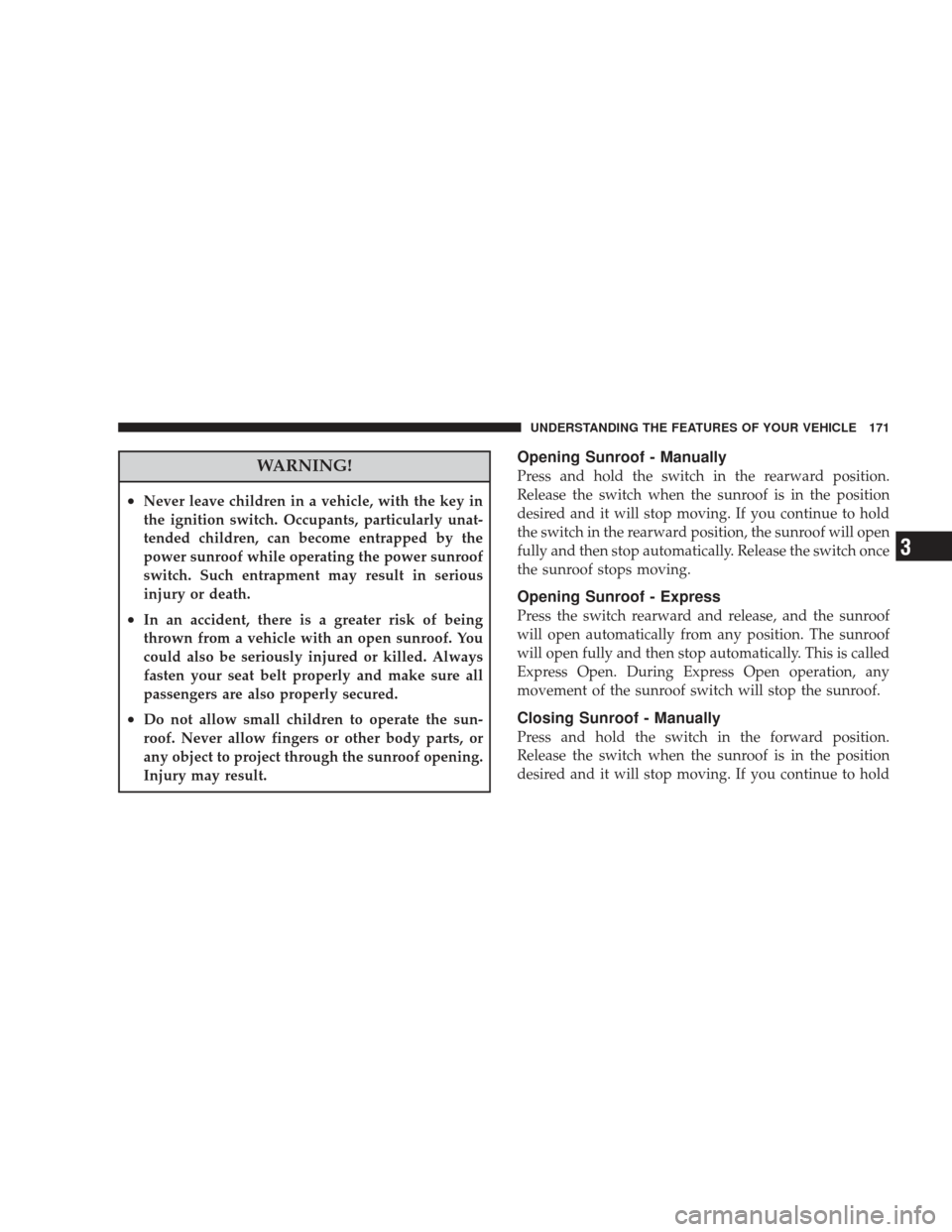

WARNING!
•Never leave children in a vehicle, with the key in
the ignition switch. Occupants, particularly unat-
tended children, can become entrapped by the
power sunroof while operating the power sunroof
switch. Such entrapment may result in serious
injury or death.
•In an accident, there is a greater risk of being
thrown from a vehicle with an open sunroof. You
could also be seriously injured or killed. Always
fasten your seat belt properly and make sure all
passengers are also properly secured.
•Do not allow small children to operate the sun-
roof. Never allow fingers or other body parts, or
any object to project through the sunroof opening.
Injury may result.
Opening Sunroof - Manually
Press and hold the switch in the rearward position.
Release the switch when the sunroof is in the position
desired and it will stop moving. If you continue to hold
the switch in the rearward position, the sunroof will open
fully and then stop automatically. Release the switch once
the sunroof stops moving.
Opening Sunroof - Express
Press the switch rearward and release, and the sunroof
will open automatically from any position. The sunroof
will open fully and then stop automatically. This is called
Express Open. During Express Open operation, any
movement of the sunroof switch will stop the sunroof.
Closing Sunroof - Manually
Press and hold the switch in the forward position.
Release the switch when the sunroof is in the position
desired and it will stop moving. If you continue to hold
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 171
3

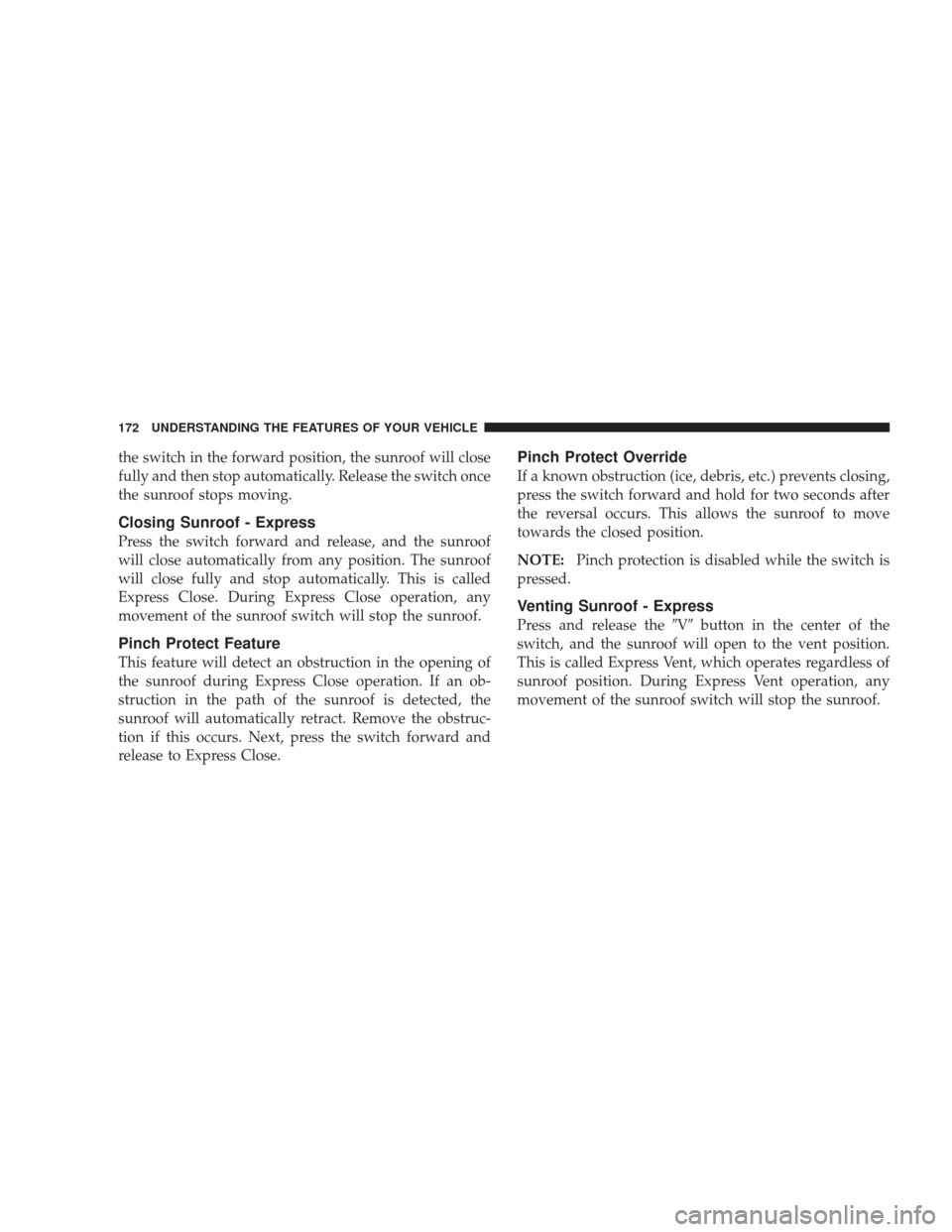

the switch in the forward position, the sunroof will close
fully and then stop automatically. Release the switch once
the sunroof stops moving.
Closing Sunroof - Express
Press the switch forward and release, and the sunroof
will close automatically from any position. The sunroof
will close fully and stop automatically. This is called
Express Close. During Express Close operation, any
movement of the sunroof switch will stop the sunroof.
Pinch Protect Feature
This feature will detect an obstruction in the opening of
the sunroof during Express Close operation. If an ob-
struction in the path of the sunroof is detected, the
sunroof will automatically retract. Remove the obstruc-
tion if this occurs. Next, press the switch forward and
release to Express Close.
Pinch Protect Override
If a known obstruction (ice, debris, etc.) prevents closing,
press the switch forward and hold for two seconds after
the reversal occurs. This allows the sunroof to move
towards the closed position.
NOTE:Pinch protection is disabled while the switch is
pressed.
Venting Sunroof - Express
Press and release the Vbutton in the center of the
switch, and the sunroof will open to the vent position.
This is called Express Vent, which operates regardless of
sunroof position. During Express Vent operation, any
movement of the sunroof switch will stop the sunroof.
172 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

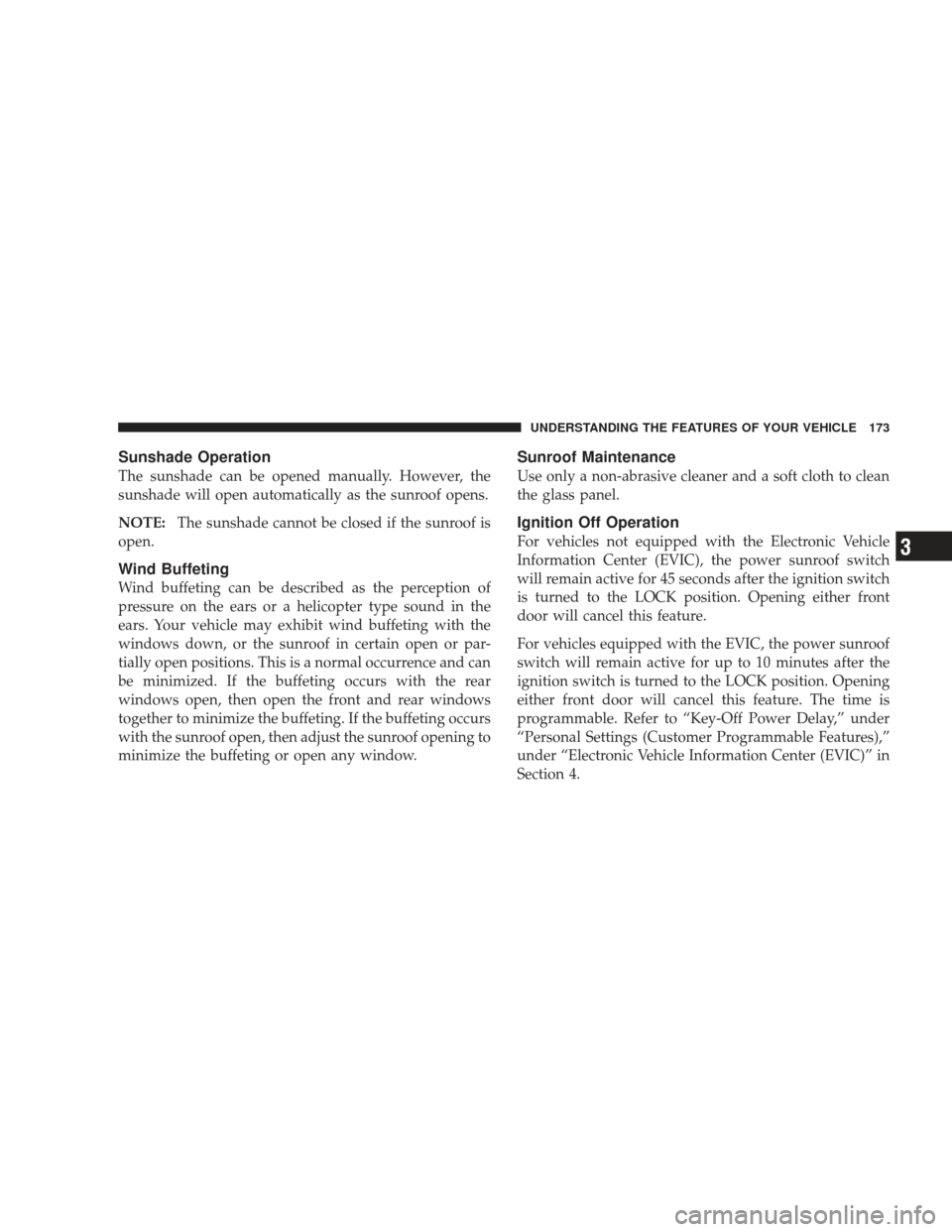

Sunshade Operation
The sunshade can be opened manually. However, the
sunshade will open automatically as the sunroof opens.
NOTE:The sunshade cannot be closed if the sunroof is
open.
Wind Buffeting
Wind buffeting can be described as the perception of
pressure on the ears or a helicopter type sound in the
ears. Your vehicle may exhibit wind buffeting with the
windows down, or the sunroof in certain open or par-
tially open positions. This is a normal occurrence and can
be minimized. If the buffeting occurs with the rear
windows open, then open the front and rear windows
together to minimize the buffeting. If the buffeting occurs
with the sunroof open, then adjust the sunroof opening to
minimize the buffeting or open any window.
Sunroof Maintenance
Use only a non-abrasive cleaner and a soft cloth to clean
the glass panel.
Ignition Off Operation
For vehicles not equipped with the Electronic Vehicle
Information Center (EVIC), the power sunroof switch
will remain active for 45 seconds after the ignition switch
is turned to the LOCK position. Opening either front
door will cancel this feature.
For vehicles equipped with the EVIC, the power sunroof
switch will remain active for up to 10 minutes after the
ignition switch is turned to the LOCK position. Opening
either front door will cancel this feature. The time is
programmable. Refer to “Key-Off Power Delay,” under
“Personal Settings (Customer Programmable Features),”
under “Electronic Vehicle Information Center (EVIC)” in
Section 4.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 173
3

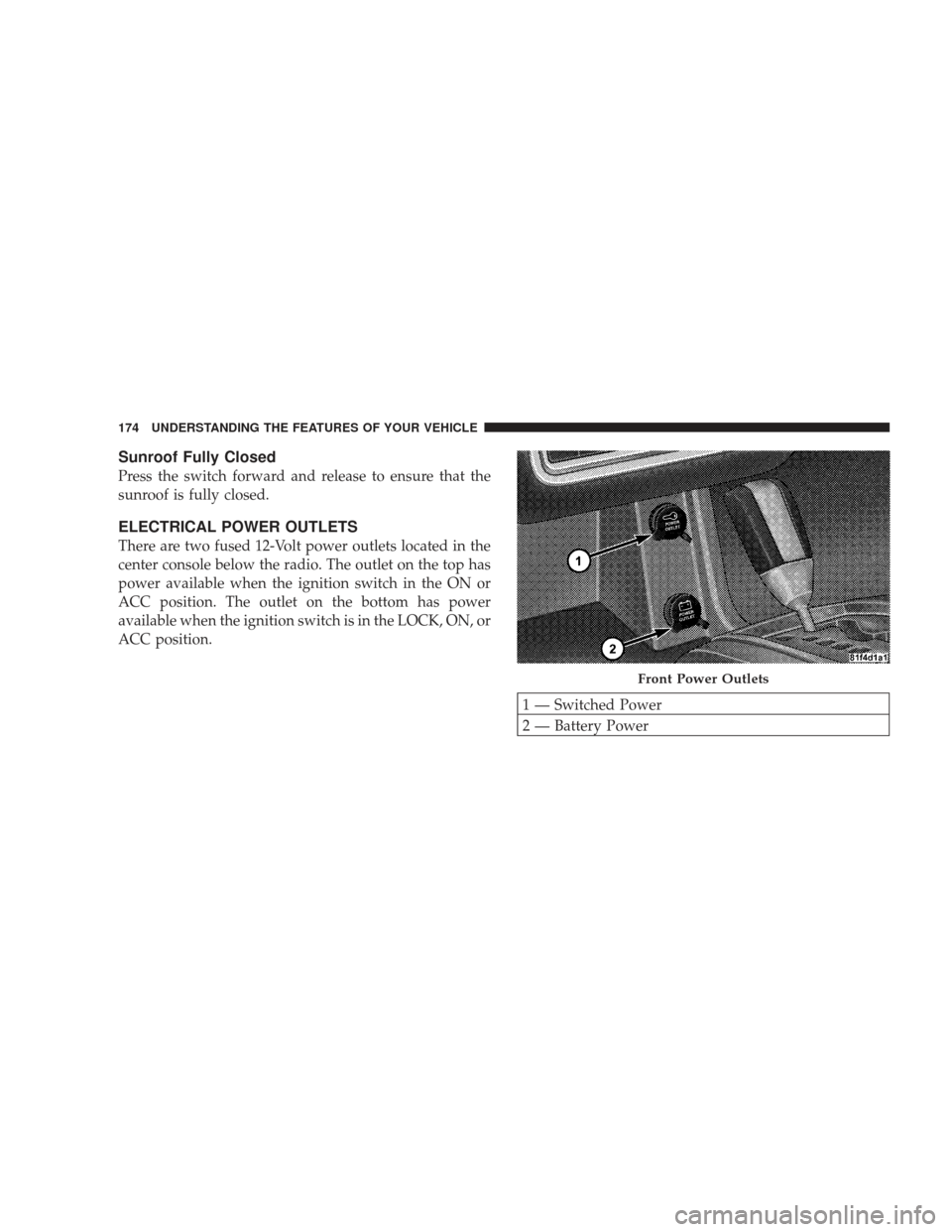

Sunroof Fully Closed
Press the switch forward and release to ensure that the
sunroof is fully closed.
ELECTRICAL POWER OUTLETS
There are two fused 12-Volt power outlets located in the
center console below the radio. The outlet on the top has
power available when the ignition switch in the ON or
ACC position. The outlet on the bottom has power
available when the ignition switch is in the LOCK, ON, or
ACC position.
1 — Switched Power
2 — Battery Power
Front Power Outlets
174 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

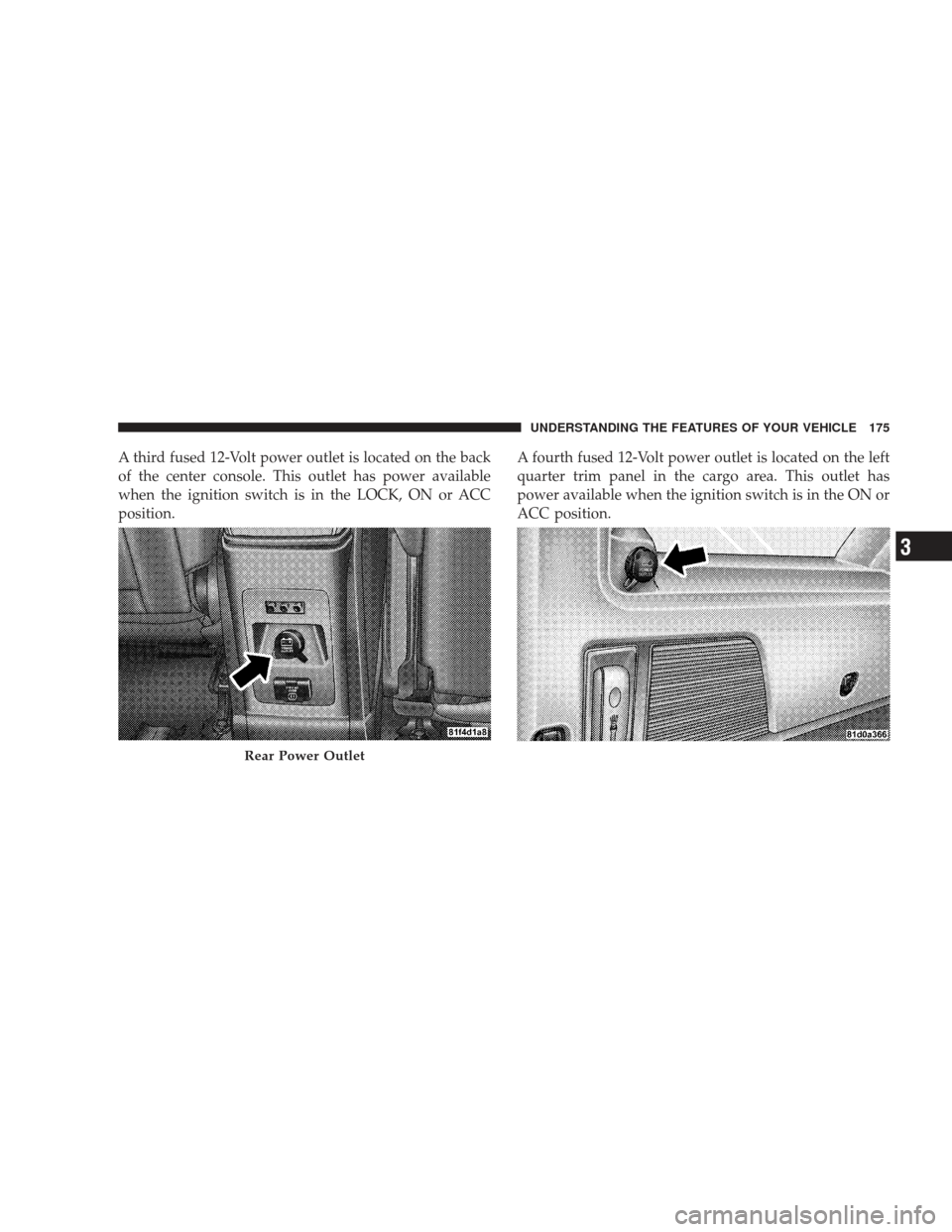

A third fused 12-Volt power outlet is located on the back
of the center console. This outlet has power available
when the ignition switch is in the LOCK, ON or ACC
position.A fourth fused 12-Volt power outlet is located on the left
quarter trim panel in the cargo area. This outlet has
power available when the ignition switch is in the ON or
ACC position.
Rear Power Outlet
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 175
3

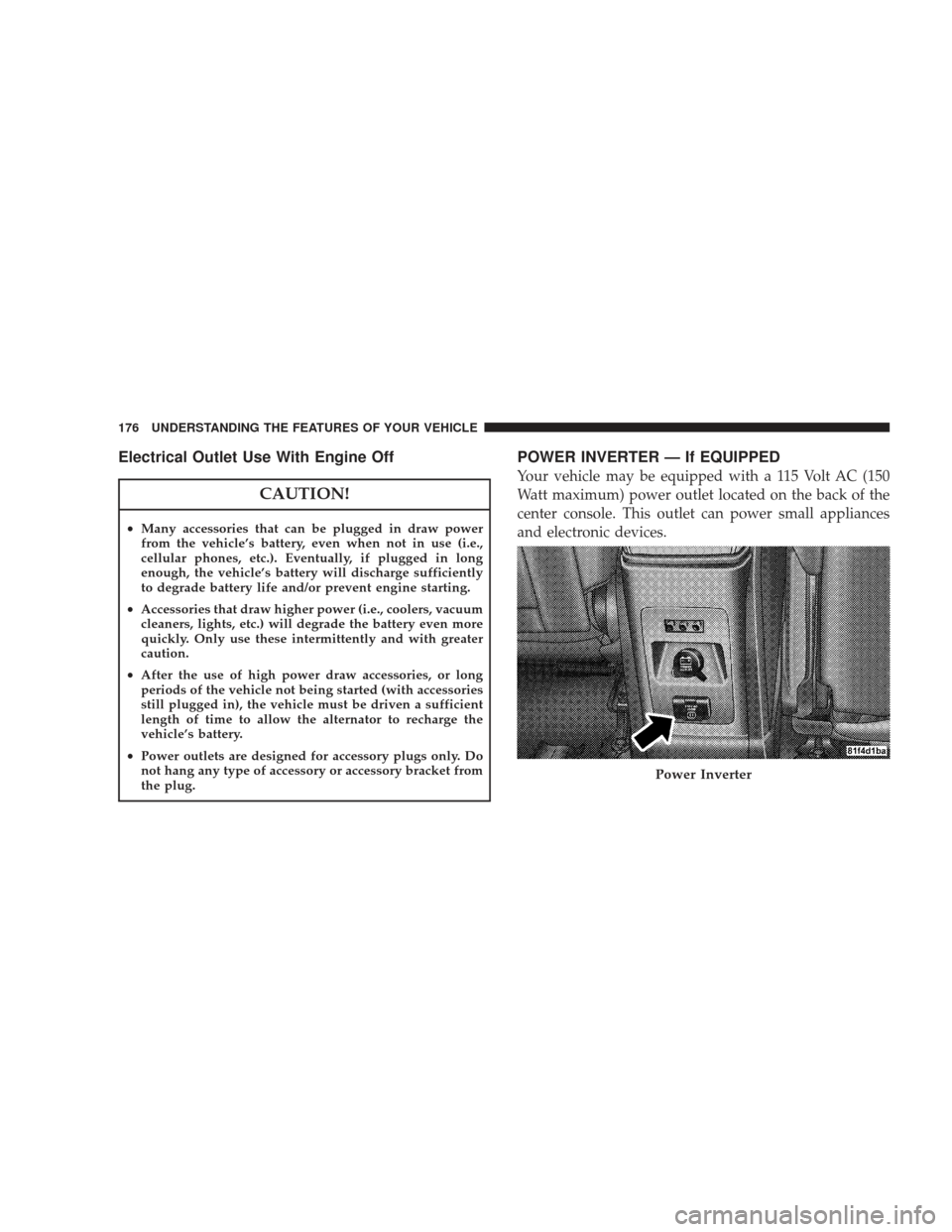

Electrical Outlet Use With Engine Off
CAUTION!
•Many accessories that can be plugged in draw power
from the vehicle’s battery, even when not in use (i.e.,
cellular phones, etc.). Eventually, if plugged in long
enough, the vehicle’s battery will discharge sufficiently
to degrade battery life and/or prevent engine starting.
• Accessories that draw higher power (i.e., coolers, vacuum
cleaners, lights, etc.) will degrade the battery even more
quickly. Only use these intermittently and with greater
caution.
• After the use of high power draw accessories, or long
periods of the vehicle not being started (with accessories
still plugged in), the vehicle must be driven a sufficient
length of time to allow the alternator to recharge the
vehicle’s battery.
• Power outlets are designed for accessory plugs only. Do
not hang any type of accessory or accessory bracket from
the plug.
POWER INVERTER — If EQUIPPED
Your vehicle may be equipped with a 115 Volt AC (150
Watt maximum) power outlet located on the back of the
center console. This outlet can power small appliances
and electronic devices.
Power Inverter
176 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

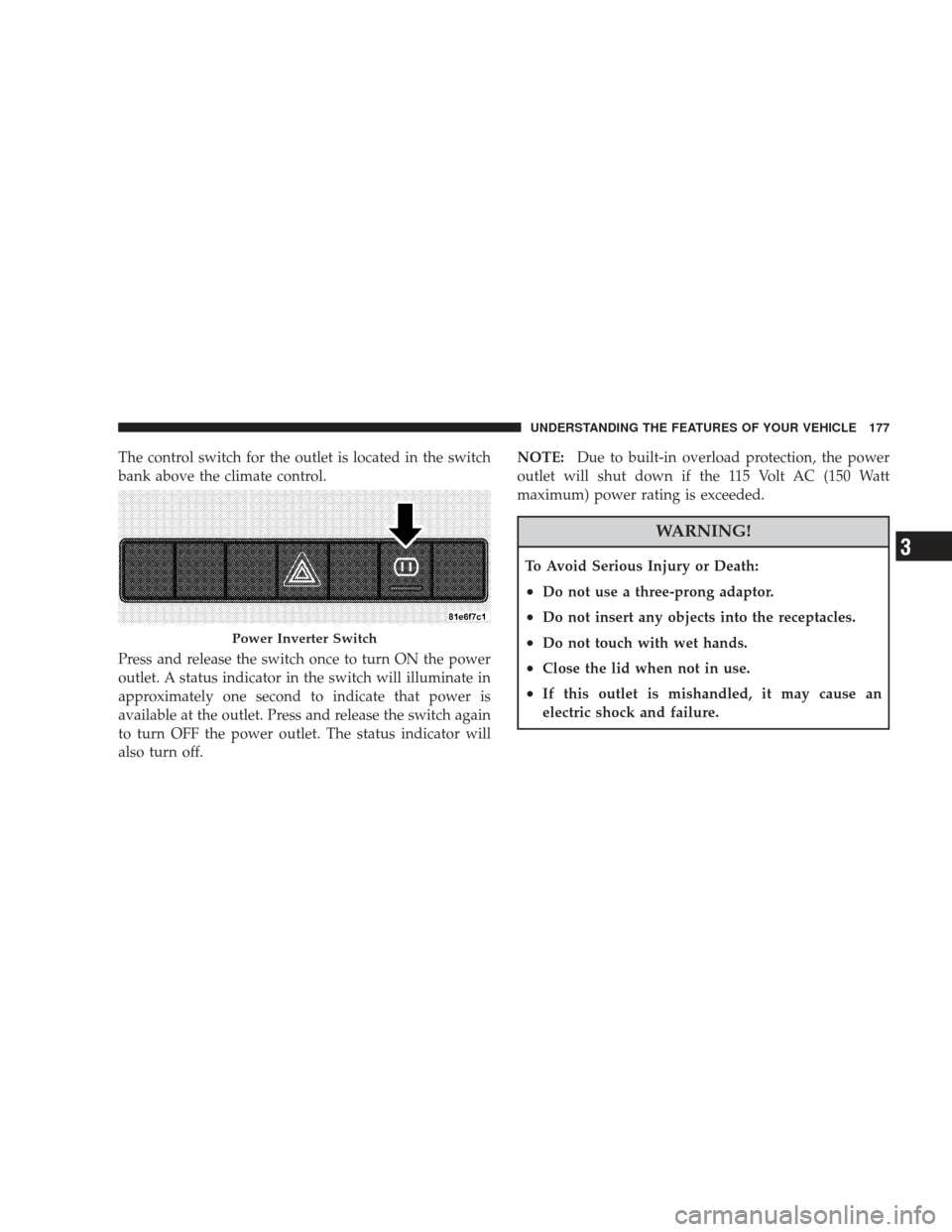

The control switch for the outlet is located in the switch
bank above the climate control.
Press and release the switch once to turn ON the power
outlet. A status indicator in the switch will illuminate in
approximately one second to indicate that power is
available at the outlet. Press and release the switch again
to turn OFF the power outlet. The status indicator will
also turn off.NOTE:
Due to built-in overload protection, the power
outlet will shut down if the 115 Volt AC (150 Watt
maximum) power rating is exceeded.
WARNING!
To Avoid Serious Injury or Death:
•Do not use a three-prong adaptor.
•Do not insert any objects into the receptacles.
•Do not touch with wet hands.
•Close the lid when not in use.
•If this outlet is mishandled, it may cause an
electric shock and failure.
Power Inverter Switch
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 177
3

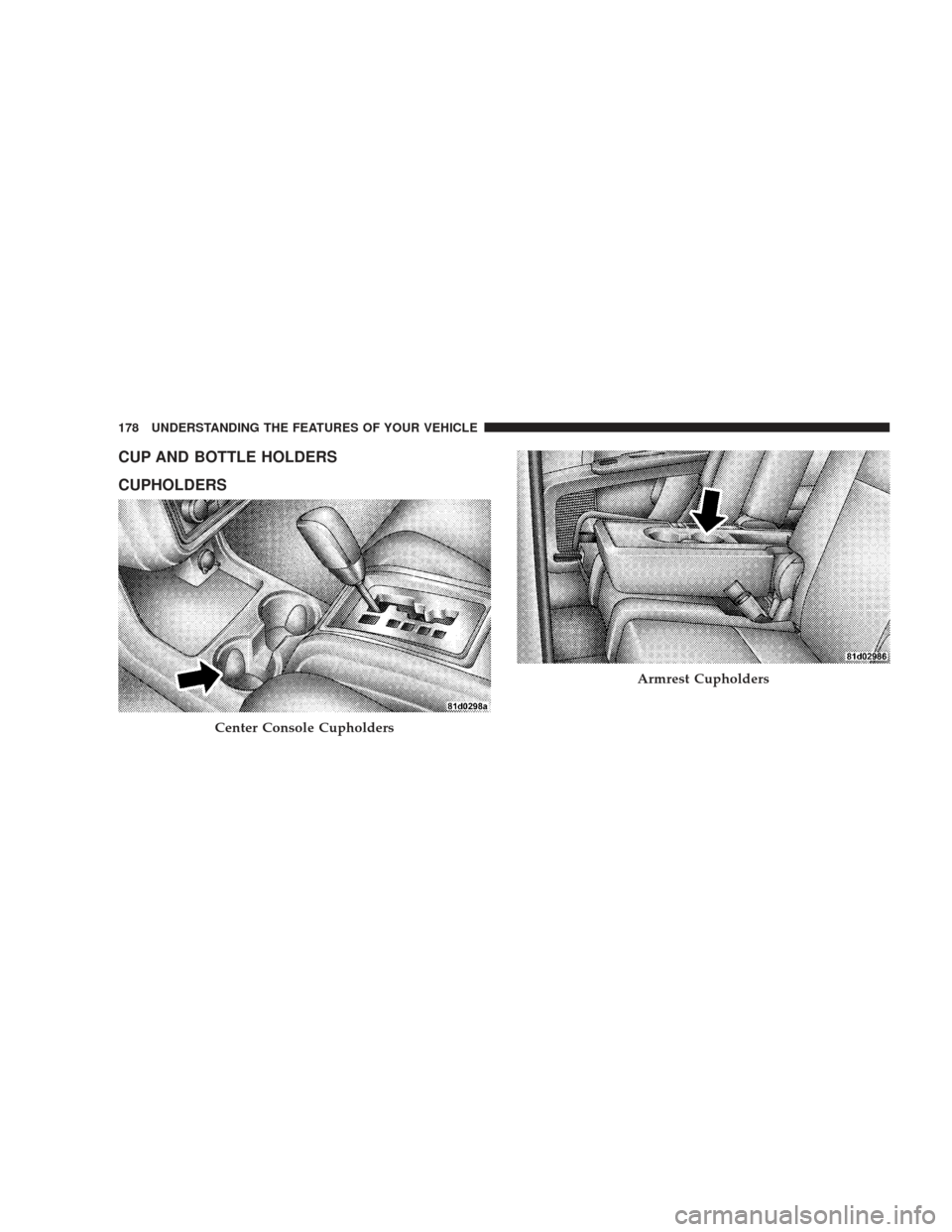

CUP AND BOTTLE HOLDERS
CUPHOLDERS
Center Console Cupholders
Armrest Cupholders
