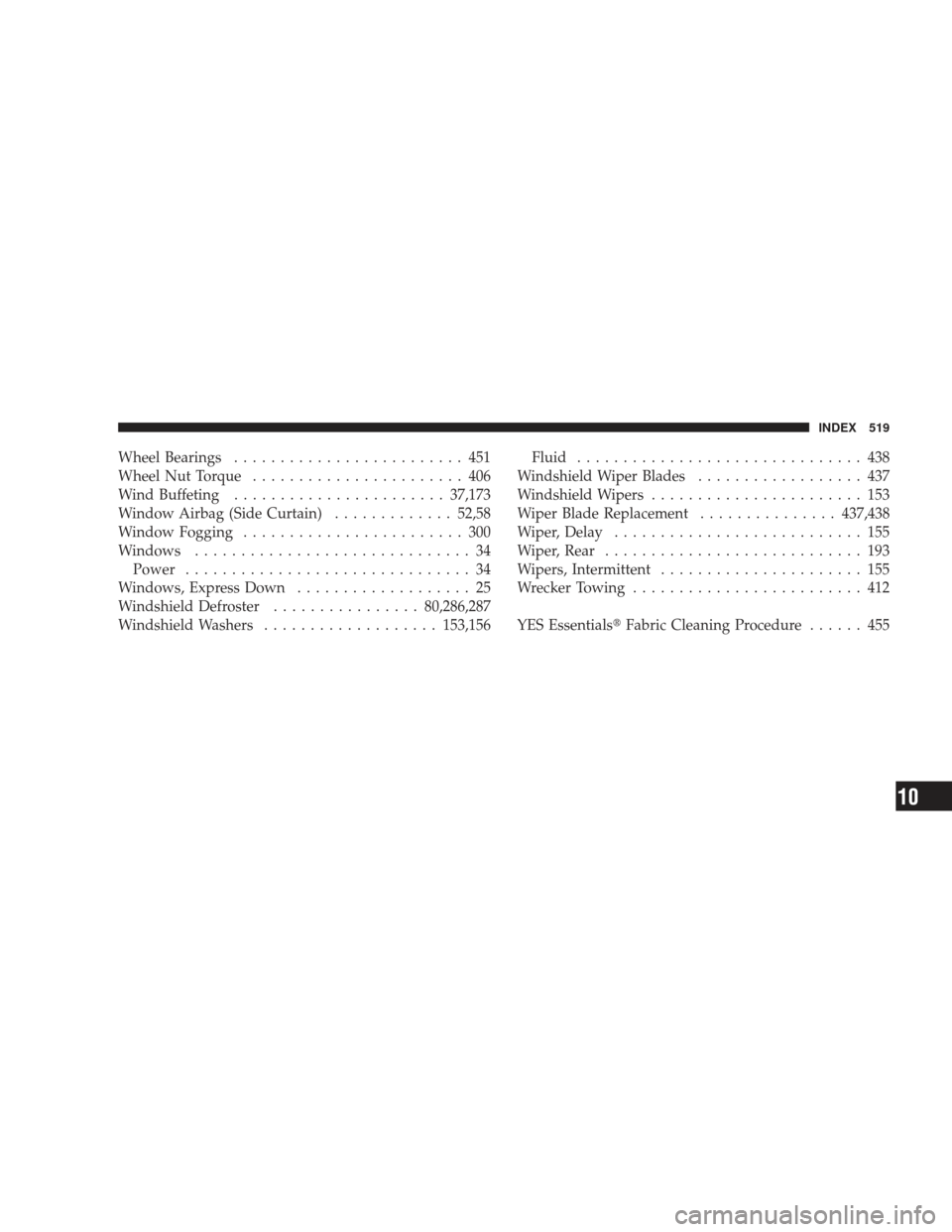

Wheel Bearings......................... 451
Wheel Nut Torque ....................... 406
Wind Buffeting ....................... 37,173
Window Airbag (Side Curtain) .............52,58
Window Fogging ........................ 300
Windows .............................. 34
Power ............................... 34
Windows, Express Down ................... 25
Windshield Defroster ................80,286,287
Windshield Washers ................... 153,156Fluid
............................... 438
Windshield Wiper Blades .................. 437
Windshield Wipers ....................... 153
Wiper Blade Replacement ...............437,438
Wiper, Delay ........................... 155
Wiper, Rear ............................ 193
Wipers, Intermittent ...................... 155
Wrecker Towing ......................... 412
YES Essentials Fabric Cleaning Procedure ...... 455
INDEX 519
10

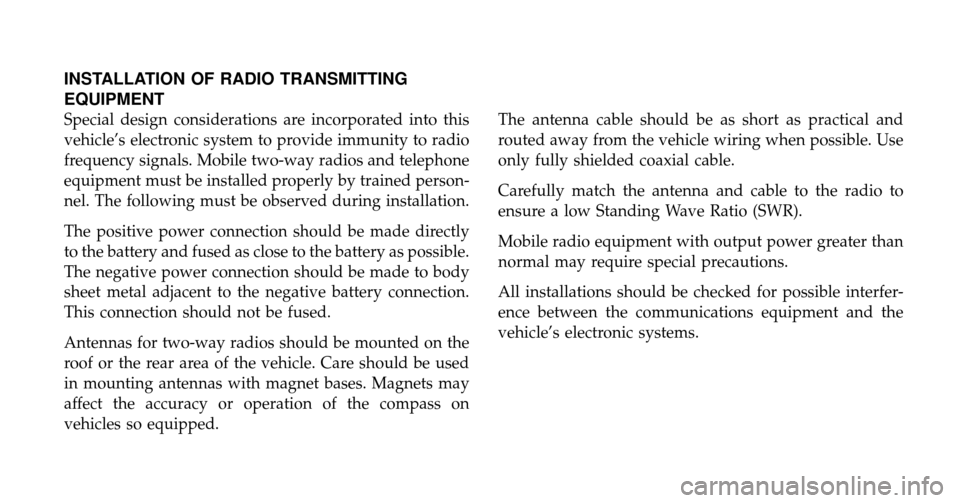

INSTALLATION OF RADIO TRANSMITTING
EQUIPMENT
Special design considerations are incorporated into this
vehicle’s electronic system to provide immunity to radio
frequency signals. Mobile two-way radios and telephone
equipment must be installed properly by trained person-
nel. The following must be observed during installation.
The positive power connection should be made directly
to the battery and fused as close to the battery as possible.
The negative power connection should be made to body
sheet metal adjacent to the negative battery connection.
This connection should not be fused.
Antennas for two-way radios should be mounted on the
roof or the rear area of the vehicle. Care should be used
in mounting antennas with magnet bases. Magnets may
affect the accuracy or operation of the compass on
vehicles so equipped.The antenna cable should be as short as practical and
routed away from the vehicle wiring when possible. Use
only fully shielded coaxial cable.
Carefully match the antenna and cable to the radio to
ensure a low Standing Wave Ratio (SWR).
Mobile radio equipment with output power greater than
normal may require special precautions.
All installations should be checked for possible interfer-
ence between the communications equipment and the
vehicle’s electronic systems.
