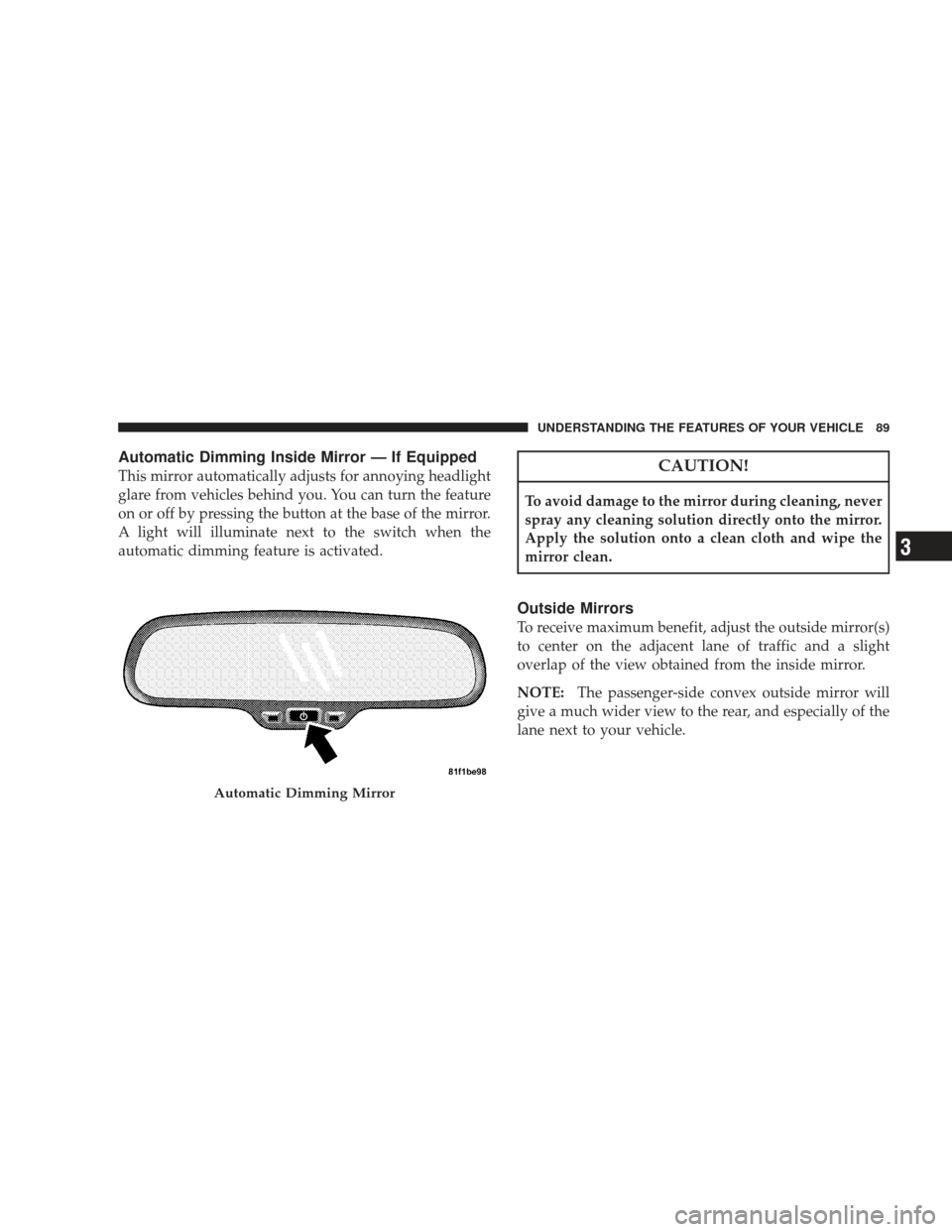

Automatic Dimming Inside Mirror — If Equipped
This mirror automatically adjusts for annoying headlight
glare from vehicles behind you. You can turn the feature
on or off by pressing the button at the base of the mirror.
A light will illuminate next to the switch when the
automatic dimming feature is activated.CAUTION!
To avoid damage to the mirror during cleaning, never
spray any cleaning solution directly onto the mirror.
Apply the solution onto a clean cloth and wipe the
mirror clean.
Outside Mirrors
To receive maximum benefit, adjust the outside mirror(s)
to center on the adjacent lane of traffic and a slight
overlap of the view obtained from the inside mirror.
NOTE:The passenger-side convex outside mirror will
give a much wider view to the rear, and especially of the
lane next to your vehicle.
Automatic Dimming Mirror
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 89
3

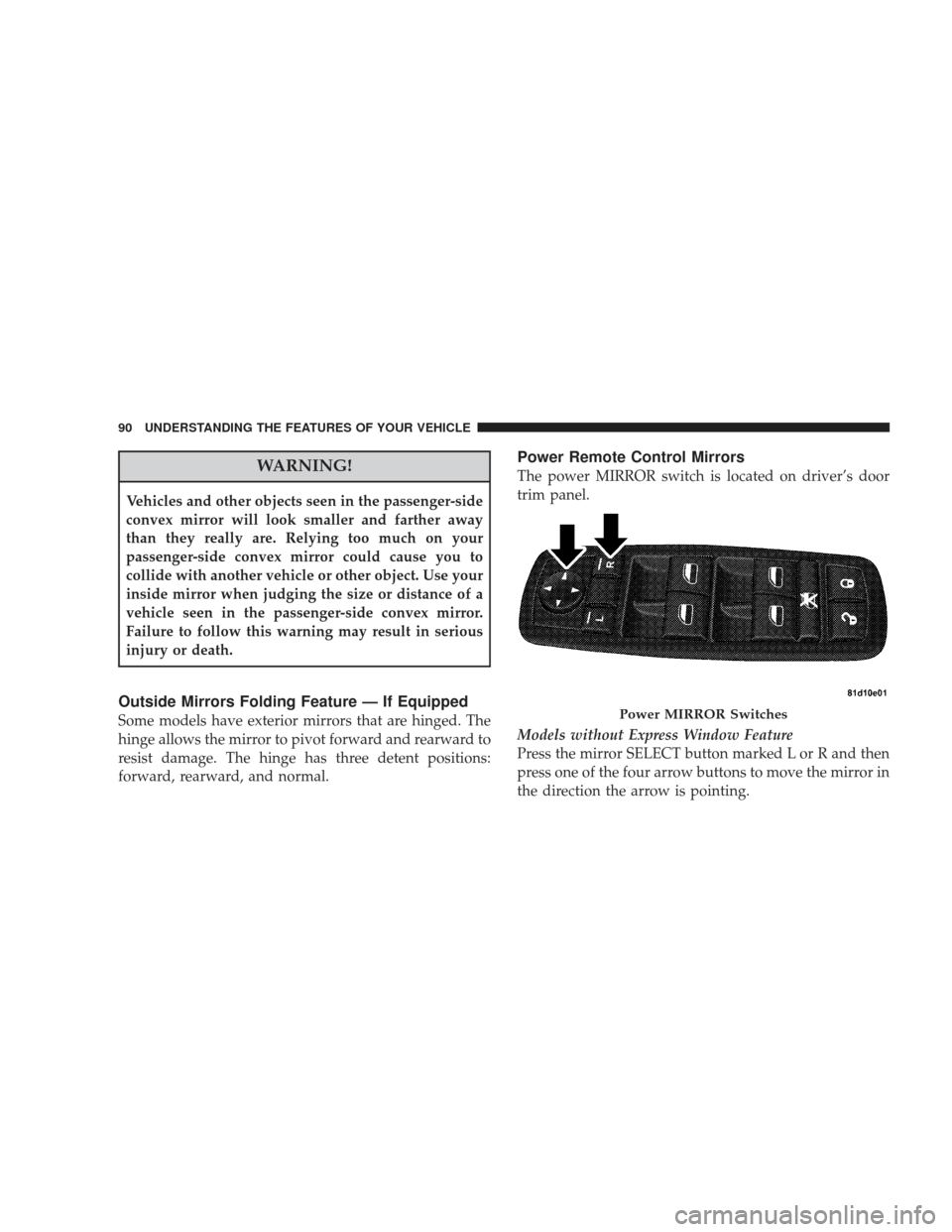

WARNING!
Vehicles and other objects seen in the passenger-side
convex mirror will look smaller and farther away
than they really are. Relying too much on your
passenger-side convex mirror could cause you to
collide with another vehicle or other object. Use your
inside mirror when judging the size or distance of a
vehicle seen in the passenger-side convex mirror.
Failure to follow this warning may result in serious
injury or death.
Outside Mirrors Folding Feature — If Equipped
Some models have exterior mirrors that are hinged. The
hinge allows the mirror to pivot forward and rearward to
resist damage. The hinge has three detent positions:
forward, rearward, and normal.
Power Remote Control Mirrors
The power MIRROR switch is located on driver’s door
trim panel.
Models without Express Window Feature
Press the mirror SELECT button marked L or R and then
press one of the four arrow buttons to move the mirror in
the direction the arrow is pointing.
Power MIRROR Switches
90 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

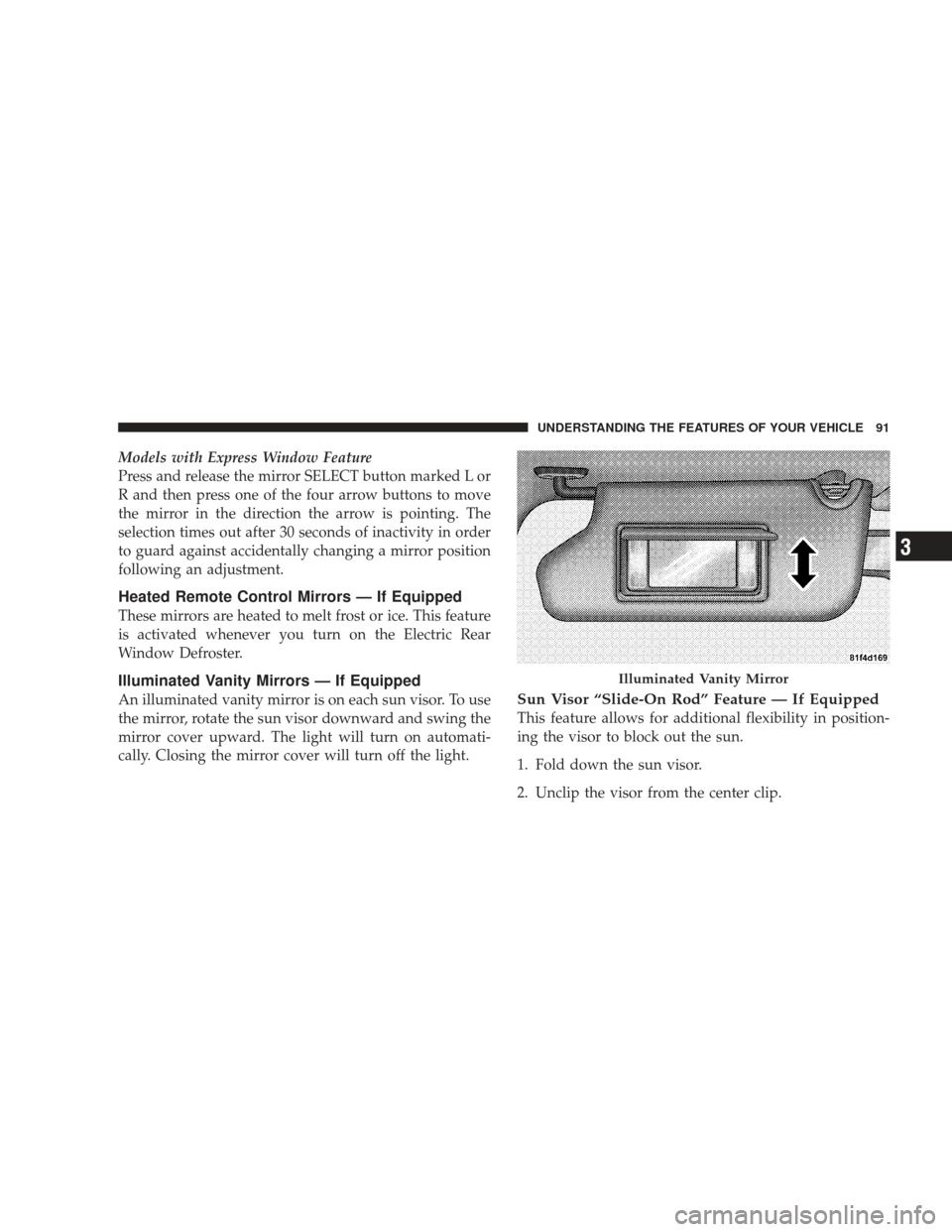

Models with Express Window Feature
Press and release the mirror SELECT button marked L or
R and then press one of the four arrow buttons to move
the mirror in the direction the arrow is pointing. The
selection times out after 30 seconds of inactivity in order
to guard against accidentally changing a mirror position
following an adjustment.
Heated Remote Control Mirrors — If Equipped
These mirrors are heated to melt frost or ice. This feature
is activated whenever you turn on the Electric Rear
Window Defroster.
Illuminated Vanity Mirrors — If Equipped
An illuminated vanity mirror is on each sun visor. To use
the mirror, rotate the sun visor downward and swing the
mirror cover upward. The light will turn on automati-
cally. Closing the mirror cover will turn off the light.Sun Visor “Slide-On Rod” Feature — If Equipped
This feature allows for additional flexibility in position-
ing the visor to block out the sun.
1. Fold down the sun visor.
2. Unclip the visor from the center clip.
Illuminated Vanity Mirror
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 91
3

3. Pull the sun visor toward the inside rearview mirror to
extend it.
PARKVIEWREAR BACKUP CAMERA — IF
EQUIPPED
The Parkview Rear Backup Camera captures live video
of the area behind the vehicle. The live video displays on
the radio’s display screen when backing up your vehicle.
NOTE: Refer to “Setting Display Properties,” under
“System Settings” in the Navigation User’s Manual for
navigation screen brightness adjustment instructions.
To operate the Rear Backup Camera:
1. Start the engine.
2. Move the shift lever into REVERSE.
3. Wait one to two seconds and the video will display on
the radio’s display screen. NOTE:
The video will only display while the shift lever
is in REVERSE.
WARNING!
Drivers must be careful when backing up a vehicle,
even when using the Rear Backup Camera. Always
check carefully for pedestrians, animals, other ve-
hicles, obstructions, and blind spots before backing
up a vehicle. You are responsible for the safety of
your surroundings and must continue to pay atten-
tion while backing up a vehicle. Failure to do so can
result in serious injury or death.
92 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

CAUTION!
•To avoid vehicle damage, only use the Rear
Backup Camera as a parking aid, as the camera is
unable to capture every obstacle or object in your
drive path.
•To avoid vehicle damage, drive slowly when back-
ing up a vehicle so that you can stop in time when
an obstacle comes into view. It is recommended
that the driver look frequently over their shoulder
when backing up a vehicle.
NOTE: If snow, ice, mud, or anything else builds up on
the camera lens, clean the lens, rinse with water, and dry
with a soft cloth. Do not cover the lens.
HANDS-FREE COMMUNICATION (UConnect )—
IF EQUIPPED
NOTE: The sales code RER, REN and REU radios
contain an integrated Hands-Free Communication
(UConnect) system. Refer to your “Navigation User’s
Manual” for UConnect system operating instructions
for these radios.
UConnect is a voice-activated, hands-free, in-vehicle
communications system. UConnect allows you to dial a
phone number with your cellular phone using simple
voice commands (e.g., Call”“Mike” ”Work orDial”
 “248-555-1212). Your cellular phone’s audio is trans-
mitted through your vehicle’s audio system; the system
will automatically mute your radio when using the
UConnect system.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 93
3

NOTE:The UConnect system requires a cellular phone
equipped with the Bluetooth Hands-Free Profile,Ve r -
sion 0.96 or higher. See the UConnect website for
supported phones.
NOTE: For UConnect customer support, visit the
following websites:
•www.chrysler.com/uconnect
•www.dodge.com/uconnect
•www.jeep.com/uconnect
•or call 1–877–855–8400
UConnect allows you to transfer calls between the
system and your cellular phone as you enter or exit your
vehicle and enables you to mute the system’s microphone
for private conversation. The UConnect
phonebook enables you to store up to 32
names, with four numbers per name. Each language has
a separate 32-name phonebook accessible only in that
language. This system is driven through your Bluetooth
“Hands-Free profile” cellular phone. UConnect features
Bluetooth technology - the global standard that enables
different electronic devices to connect to each other
without wires or a docking station, so UConnect works
no matter where you stow your cellular phone (be it your
purse, pocket, or briefcase), as long as your phone is
turned on and has been paired to the vehicle’s
UConnect system. The UConnect system allows up to
seven cellular phones to be linked to the system. Only
one linked (or paired) cellular phone can be used with the
system at a time. The system is available in English,
Spanish, or French languages.
94 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Phone ButtonThe rearview mirror contains the microphone
for the system (depending on the type of
mirror and radio equipped), and either the
radio or the mirror has the two control buttons
(PHONE Button and VOICE RECOGNITION button)
that will enable you to access the system.
Voice Recognition Button Actual button location may vary with radio.
The individual buttons are described in the
“Operation” section.
The UConnect system can be used with any Hands-Free
Profile certified Bluetooth cellular phone. See the
UConnect website for supported phones. If your cellu-
lar phone supports a different profile (e.g., Headset
Profile) you may not be able to use any UConnect
features. Refer to your cellular service provider or the
phone manufacturer for details. The UConnect
system is fully integrated with the vehi-
cle’s audio system. The volume of the UConnect system
can be adjusted either from the radio volume control
knob or from the steering wheel radio control (right
switch), if so equipped.
The radio display will be used for visual prompts from
the UConnect system such as CELLor caller ID on
certain radios.
Operation
Voice commands can be used to operate the UConnect
system and to navigate through the UConnect menu
structure. Voice commands are required after most
UConnect system prompts. You will be prompted for a
specific command and then guided through the available
options.
•Prior to giving a voice command, one must wait for
the beep, which follows the Readyprompt or another
prompt.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 95
3

•For certain operations, compound commands can be
used. For example, instead of sayingSetupand then
Phone Pairing, the following compound command
can be said: Setup Phone Pairing.
•For each feature explanation in this section, only the
combined form of the voice command is given. You
can also break the commands into parts and say each
part of the command when you are asked for it. For
example, you can use the combined form voice com-
mandPhonebook New Entry, or you can break the
combined form command into two voice commands:
Phonebook andNew Entry. Please remember, the
UConnect system works best when you talk in a
normal conversational tone, as if speaking to someone
sitting a few feet/meters away from you.
Voice Command Tree
Refer to “Voice Tree” in this section.
Help Command
If you need assistance at any prompt, or if you want to
know your options at any prompt, say Helpfollowing
the beep. The UConnect system will play all the options
at any prompt if you ask for help.
To activate the UConnect system from idle, simply press
the PHONE button and follow the audible prompts for
directions. All UConnect system sessions begin with a
press of the PHONE button on the radio control head.
Cancel Command
At any prompt, after the beep, you can say Canceland
you will be returned to the main menu. However, in a
few instances the system will take you back to the
previous menu.
Pair (Link) UConnect System to a Cellular Phone
To begin using your UConnect system, you must pair
your compatible Bluetooth enabled cellular phone.
96 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

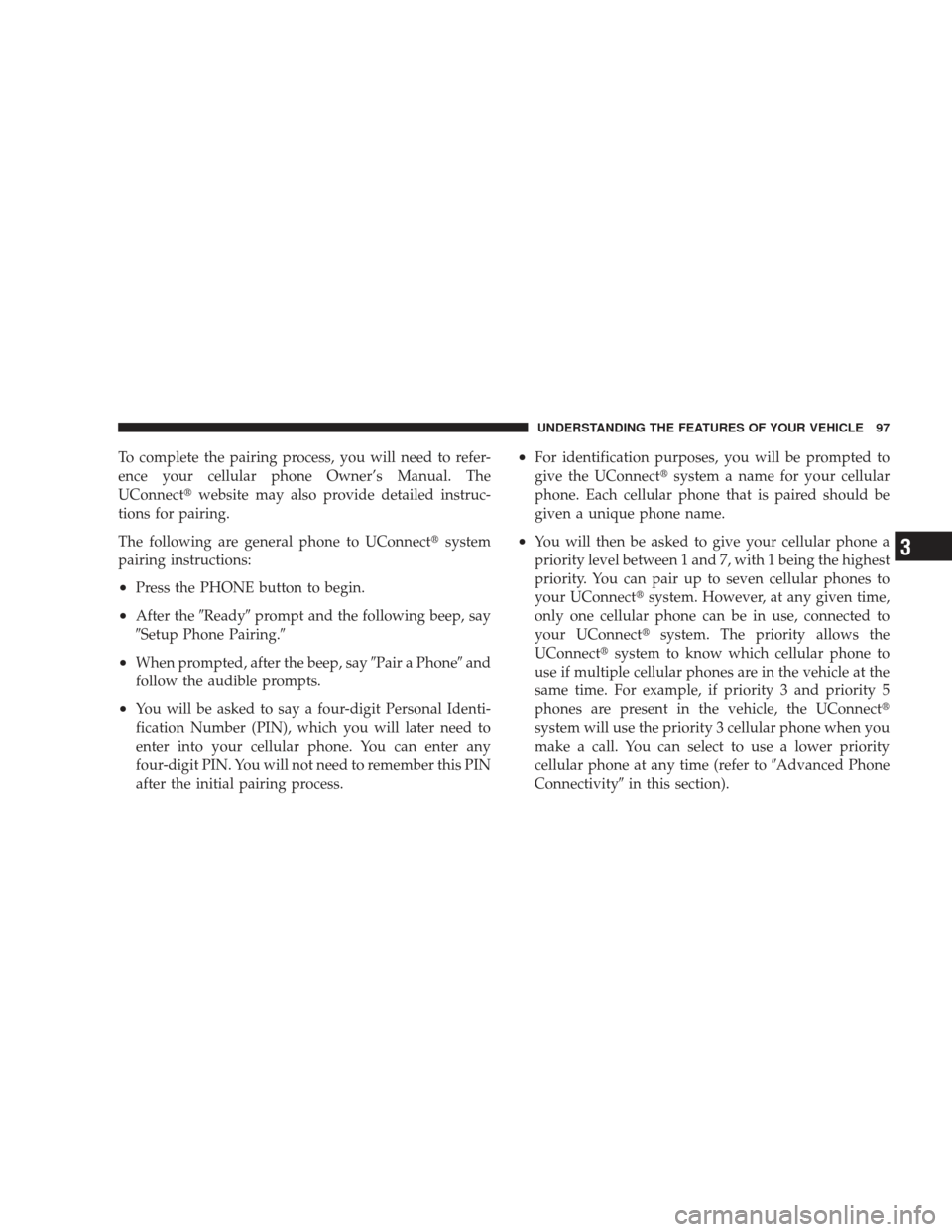

To complete the pairing process, you will need to refer-
ence your cellular phone Owner’s Manual. The
UConnectwebsite may also provide detailed instruc-
tions for pairing.
The following are general phone to UConnect system
pairing instructions:
•Press the PHONE button to begin.
•After the Readyprompt and the following beep, say
Setup Phone Pairing.
•When prompted, after the beep, say Pair a Phoneand
follow the audible prompts.
•You will be asked to say a four-digit Personal Identi-
fication Number (PIN), which you will later need to
enter into your cellular phone. You can enter any
four-digit PIN. You will not need to remember this PIN
after the initial pairing process.
•For identification purposes, you will be prompted to
give the UConnect system a name for your cellular
phone. Each cellular phone that is paired should be
given a unique phone name.
•You will then be asked to give your cellular phone a
priority level between 1 and 7, with 1 being the highest
priority. You can pair up to seven cellular phones to
your UConnect system. However, at any given time,
only one cellular phone can be in use, connected to
your UConnect system. The priority allows the
UConnect system to know which cellular phone to
use if multiple cellular phones are in the vehicle at the
same time. For example, if priority 3 and priority 5
phones are present in the vehicle, the UConnect
system will use the priority 3 cellular phone when you
make a call. You can select to use a lower priority
cellular phone at any time (refer to Advanced Phone
Connectivity in this section).
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 97
3

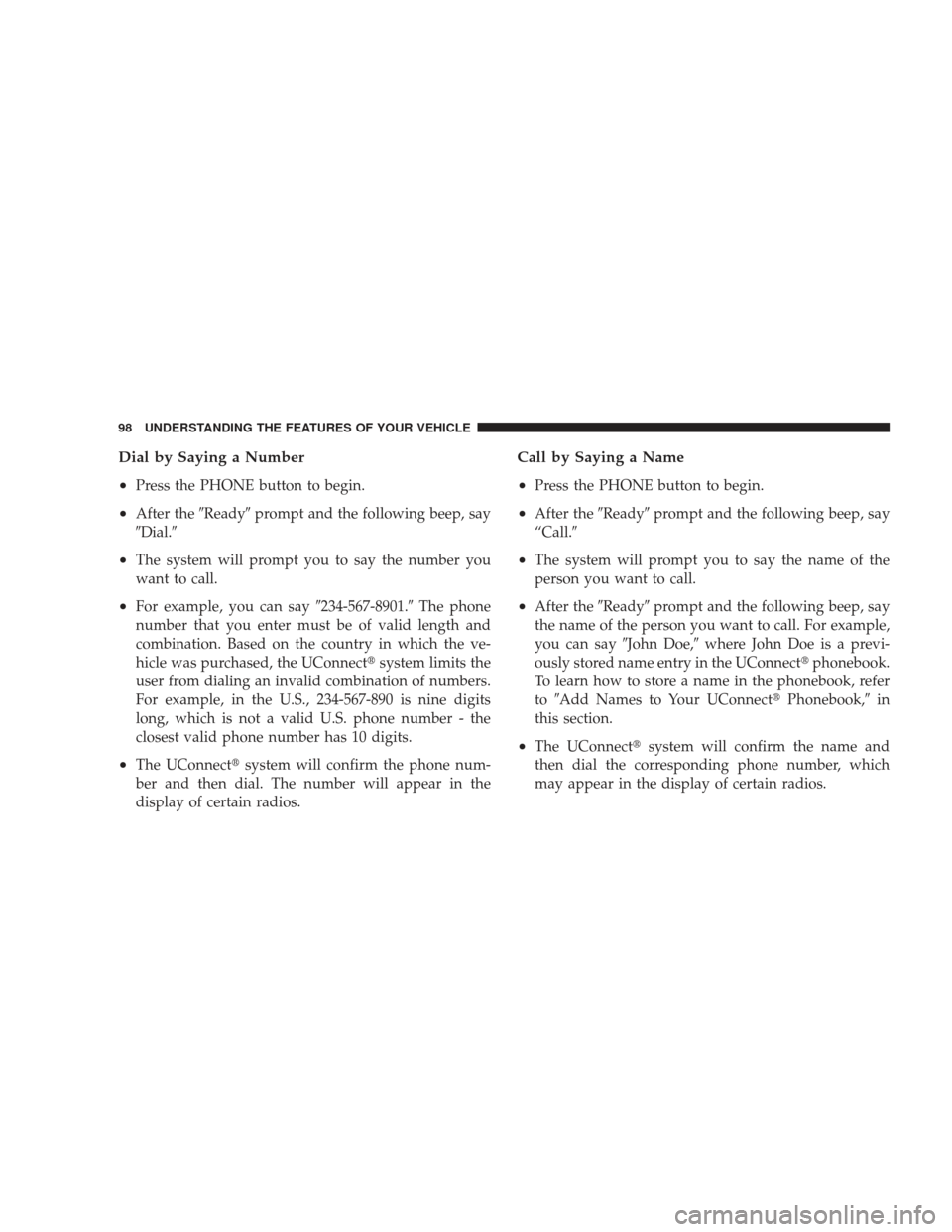

Dial by Saying a Number
•
Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
Dial.
•The system will prompt you to say the number you
want to call.
•For example, you can say 234-567-8901.The phone
number that you enter must be of valid length and
combination. Based on the country in which the ve-
hicle was purchased, the UConnect system limits the
user from dialing an invalid combination of numbers.
For example, in the U.S., 234-567-890 is nine digits
long, which is not a valid U.S. phone number - the
closest valid phone number has 10 digits.
•The UConnect system will confirm the phone num-
ber and then dial. The number will appear in the
display of certain radios.
Call by Saying a Name
•
Press the PHONE button to begin.
•After the Readyprompt and the following beep, say
“Call.
•The system will prompt you to say the name of the
person you want to call.
•After the Readyprompt and the following beep, say
the name of the person you want to call. For example,
you can say John Doe,where John Doe is a previ-
ously stored name entry in the UConnect phonebook.
To learn how to store a name in the phonebook, refer
to Add Names to Your UConnect Phonebook,in
this section.
•The UConnect system will confirm the name and
then dial the corresponding phone number, which
may appear in the display of certain radios.
98 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
