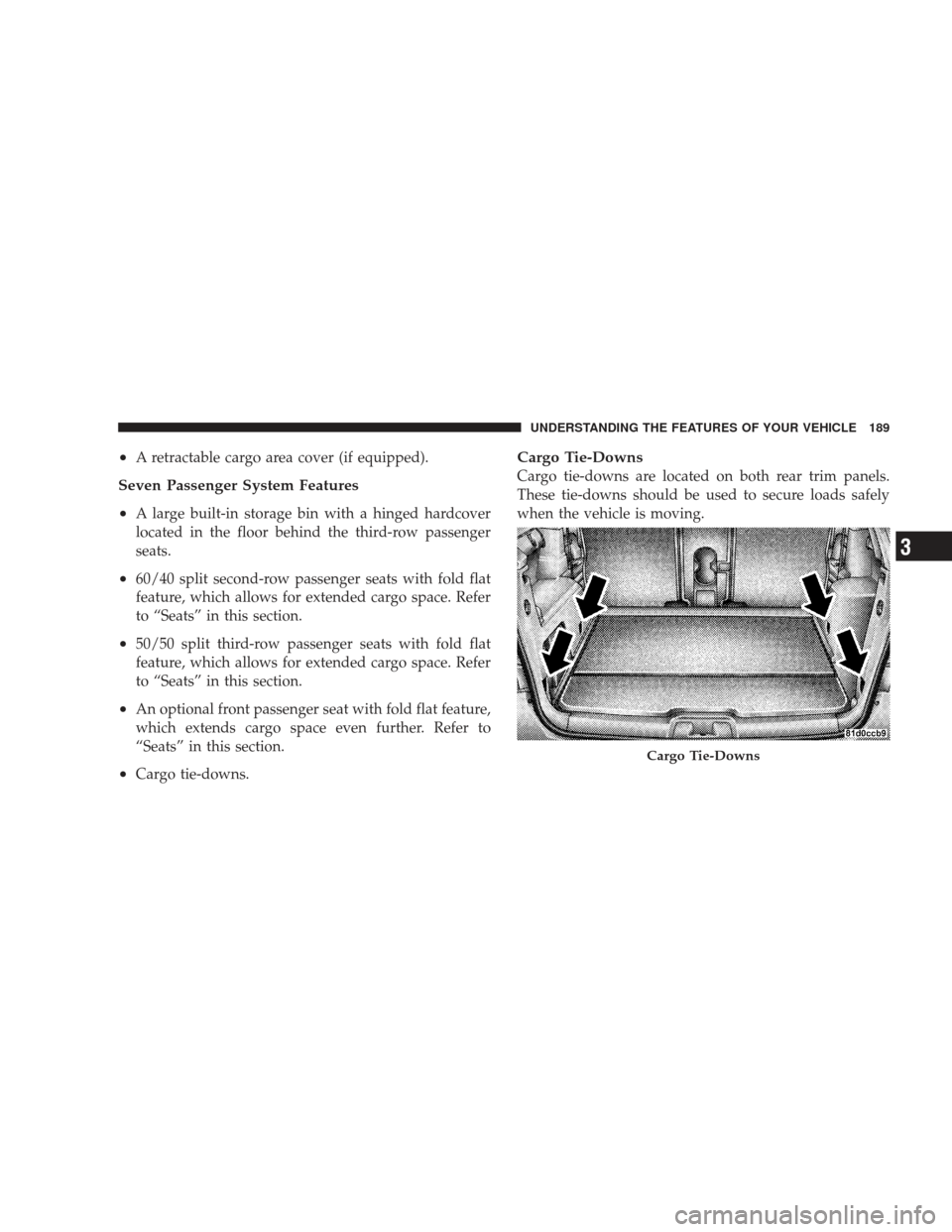

•A retractable cargo area cover (if equipped).
Seven Passenger System Features
•
A large built-in storage bin with a hinged hardcover
located in the floor behind the third-row passenger
seats.
•60/40 split second-row passenger seats with fold flat
feature, which allows for extended cargo space. Refer
to “Seats” in this section.
•50/50 split third-row passenger seats with fold flat
feature, which allows for extended cargo space. Refer
to “Seats” in this section.
•An optional front passenger seat with fold flat feature,
which extends cargo space even further. Refer to
“Seats” in this section.
•Cargo tie-downs.
Cargo Tie-Downs
Cargo tie-downs are located on both rear trim panels.
These tie-downs should be used to secure loads safely
when the vehicle is moving.
Cargo Tie-Downs
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 189
3

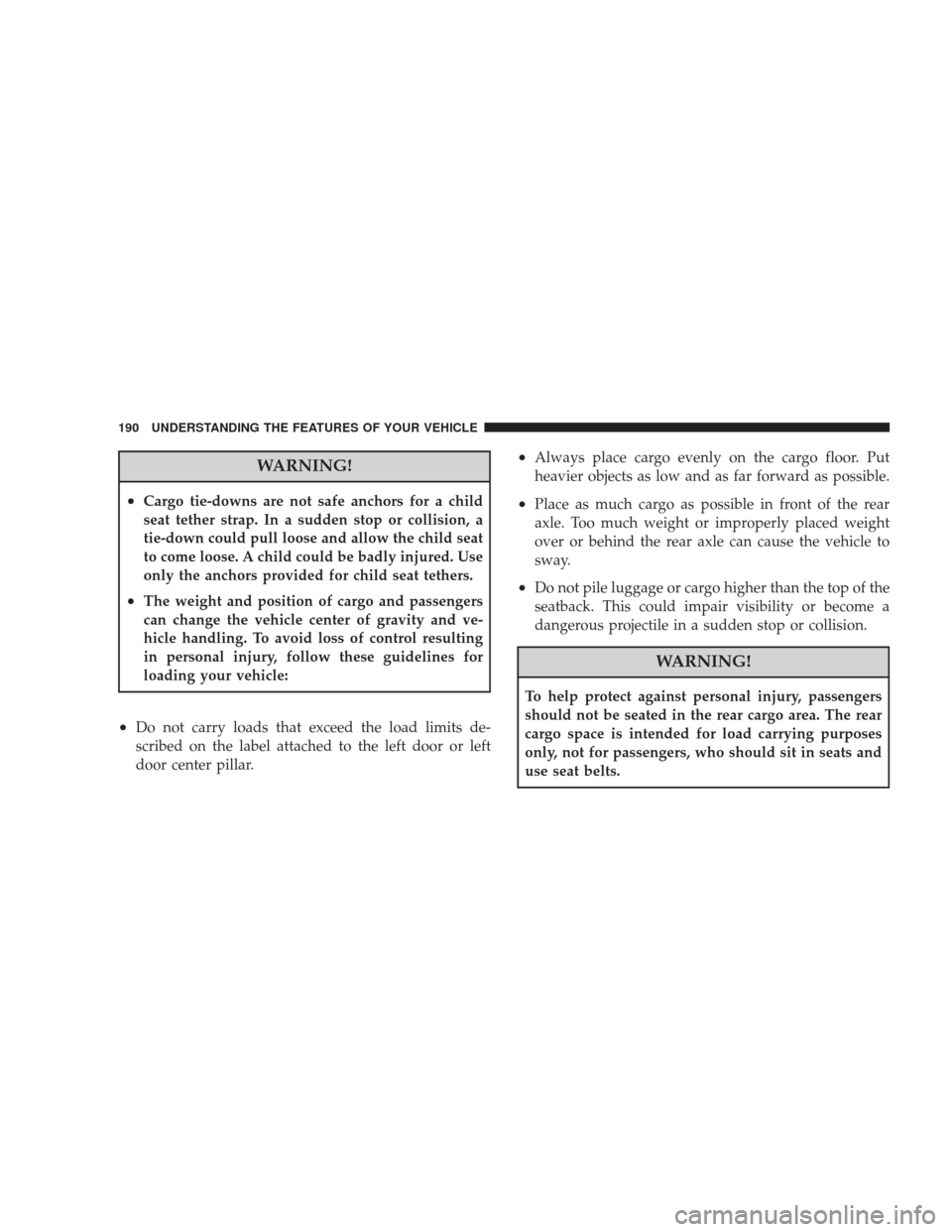

WARNING!
•Cargo tie-downs are not safe anchors for a child
seat tether strap. In a sudden stop or collision, a
tie-down could pull loose and allow the child seat
to come loose. A child could be badly injured. Use
only the anchors provided for child seat tethers.
•The weight and position of cargo and passengers
can change the vehicle center of gravity and ve-
hicle handling. To avoid loss of control resulting
in personal injury, follow these guidelines for
loading your vehicle:
•Do not carry loads that exceed the load limits de-
scribed on the label attached to the left door or left
door center pillar.
•Always place cargo evenly on the cargo floor. Put
heavier objects as low and as far forward as possible.
•Place as much cargo as possible in front of the rear
axle. Too much weight or improperly placed weight
over or behind the rear axle can cause the vehicle to
sway.
•Do not pile luggage or cargo higher than the top of the
seatback. This could impair visibility or become a
dangerous projectile in a sudden stop or collision.
WARNING!
To help protect against personal injury, passengers
should not be seated in the rear cargo area. The rear
cargo space is intended for load carrying purposes
only, not for passengers, who should sit in seats and
use seat belts.
190 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

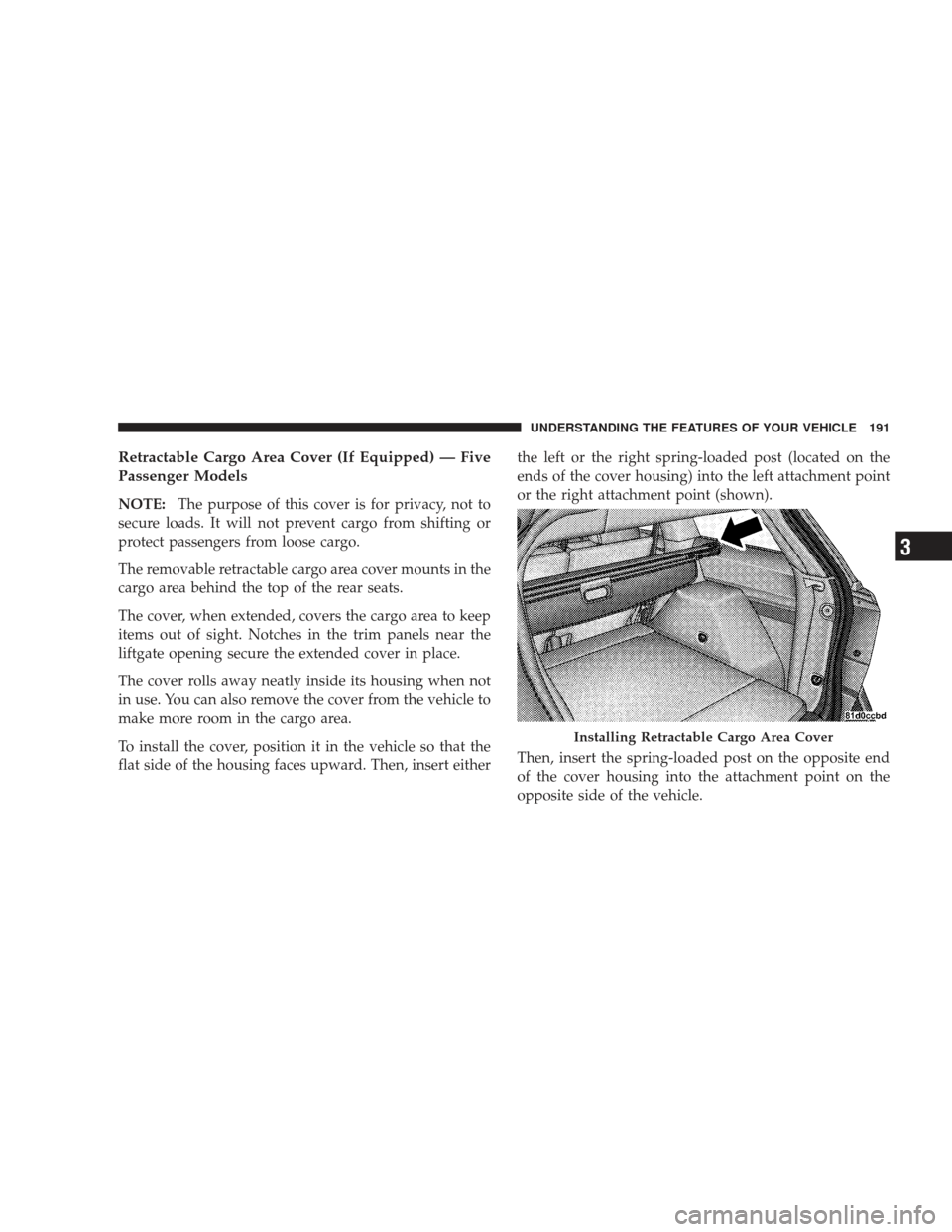

Retractable Cargo Area Cover (If Equipped) — Five
Passenger Models
NOTE:The purpose of this cover is for privacy, not to
secure loads. It will not prevent cargo from shifting or
protect passengers from loose cargo.
The removable retractable cargo area cover mounts in the
cargo area behind the top of the rear seats.
The cover, when extended, covers the cargo area to keep
items out of sight. Notches in the trim panels near the
liftgate opening secure the extended cover in place.
The cover rolls away neatly inside its housing when not
in use. You can also remove the cover from the vehicle to
make more room in the cargo area.
To install the cover, position it in the vehicle so that the
flat side of the housing faces upward. Then, insert either the left or the right spring-loaded post (located on the
ends of the cover housing) into the left attachment point
or the right attachment point (shown).
Then, insert the spring-loaded post on the opposite end
of the cover housing into the attachment point on the
opposite side of the vehicle.
Installing Retractable Cargo Area Cover
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 191
3

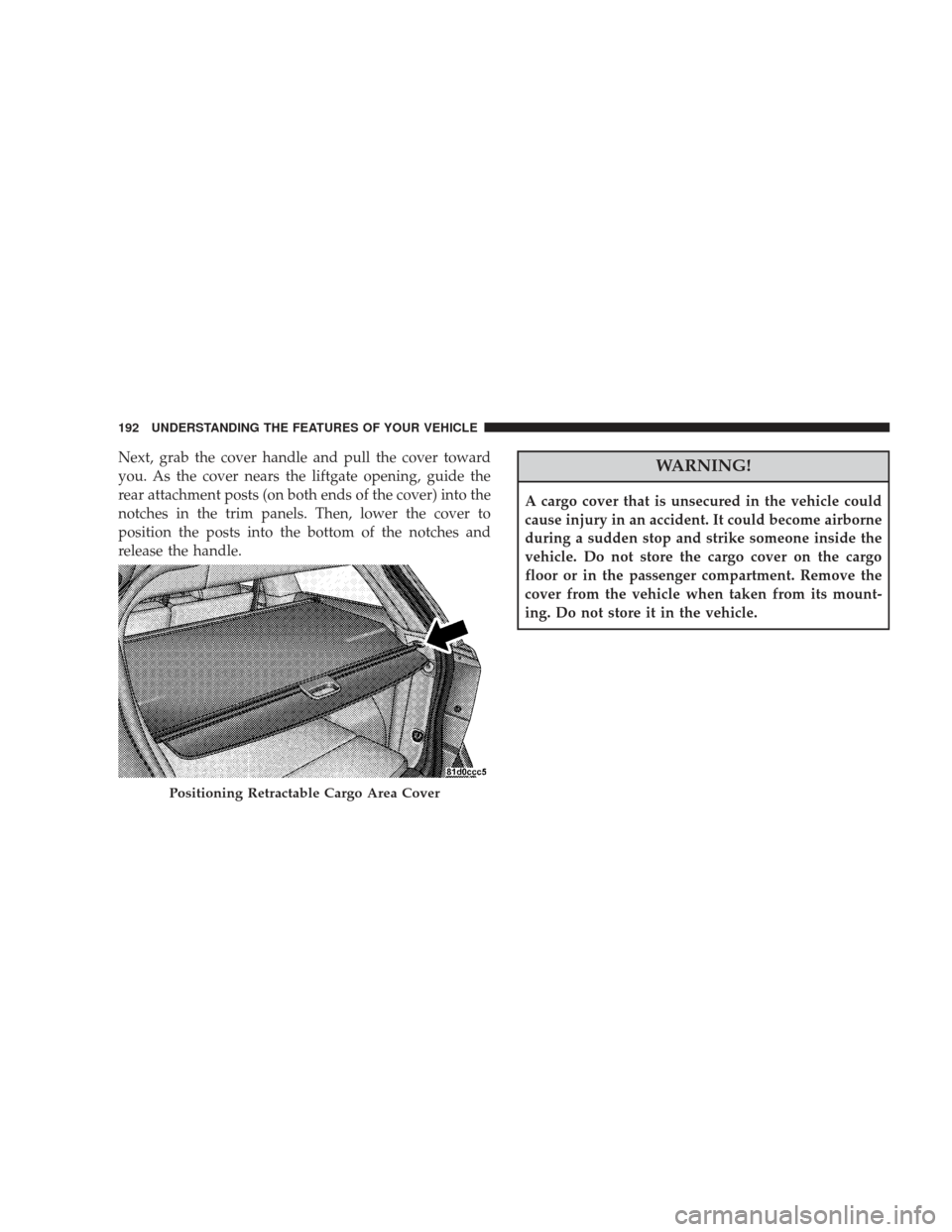

Next, grab the cover handle and pull the cover toward
you. As the cover nears the liftgate opening, guide the
rear attachment posts (on both ends of the cover) into the
notches in the trim panels. Then, lower the cover to
position the posts into the bottom of the notches and
release the handle.WARNING!
A cargo cover that is unsecured in the vehicle could
cause injury in an accident. It could become airborne
during a sudden stop and strike someone inside the
vehicle. Do not store the cargo cover on the cargo
floor or in the passenger compartment. Remove the
cover from the vehicle when taken from its mount-
ing. Do not store it in the vehicle.
Positioning Retractable Cargo Area Cover
192 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

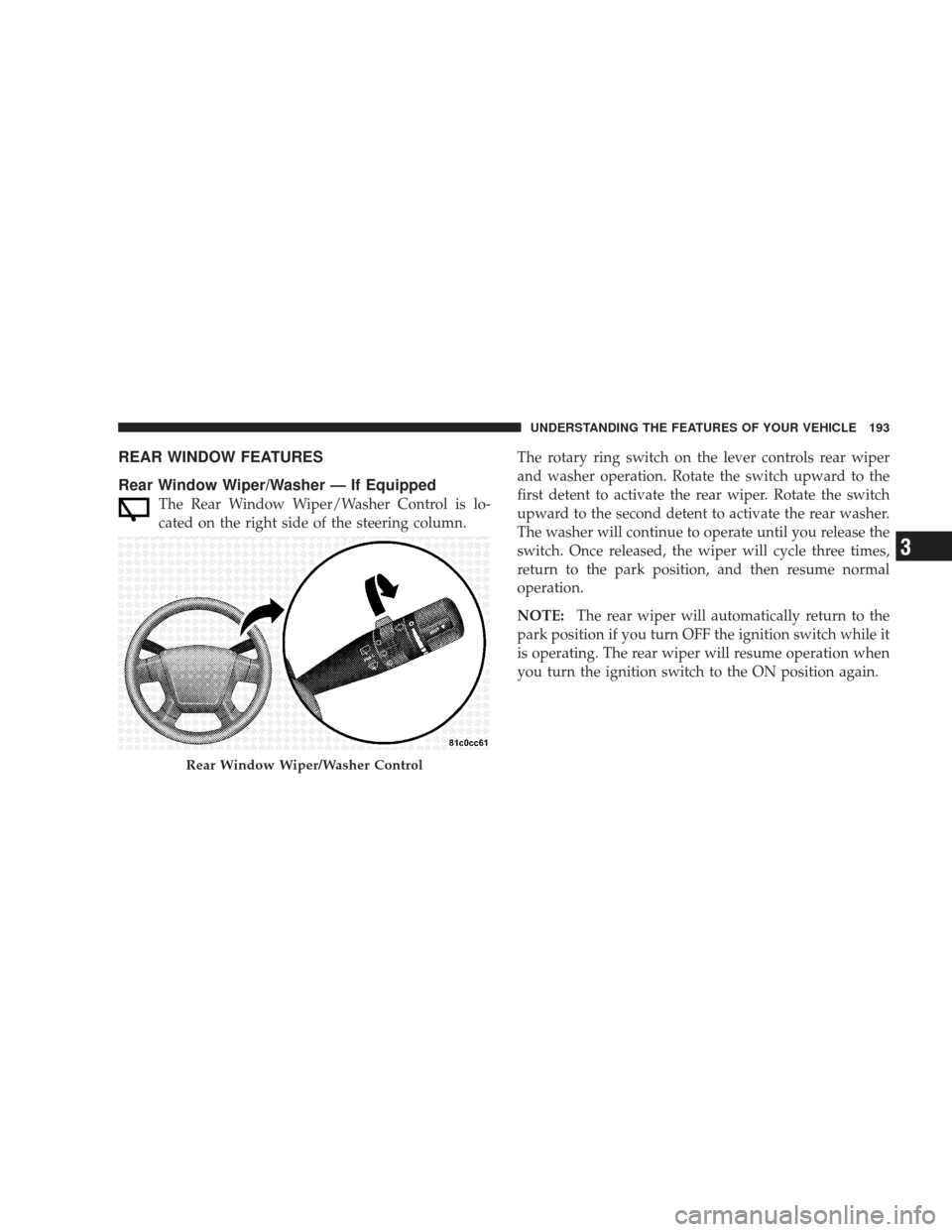

REAR WINDOW FEATURES
Rear Window Wiper/Washer — If Equipped
The Rear Window Wiper/Washer Control is lo-
cated on the right side of the steering column.The rotary ring switch on the lever controls rear wiper
and washer operation. Rotate the switch upward to the
first detent to activate the rear wiper. Rotate the switch
upward to the second detent to activate the rear washer.
The washer will continue to operate until you release the
switch. Once released, the wiper will cycle three times,
return to the park position, and then resume normal
operation.
NOTE:
The rear wiper will automatically return to the
park position if you turn OFF the ignition switch while it
is operating. The rear wiper will resume operation when
you turn the ignition switch to the ON position again.
Rear Window Wiper/Washer Control
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 193
3

CAUTION!
•Turn the rear wiper OFF when driving through an
automatic car wash. Damage to the rear wiper may
result if the rear wiper switch is left in the ON
position.
•In cold weather, always turn OFF the rear wiper
switch and allow the rear wiper to return to the
park position before turning OFF the engine. If the
rear wiper switch is left ON and the rear wiper
freezes to the window, damage to the rear wiper
motor may occur when the vehicle is restarted.
•Always remove any buildup of snow that prevents
the rear wiper blade from returning to the park
position. If the rear wiper control is turned OFF
and the blade cannot return to the park position,
damage to the rear wiper motor may occur.
Adding Washer Fluid
NOTE:Refer to the “Engine Compartment” diagram in
Section 7 for the location of the washer fluid reservoir.
The windshield washer and rear window washer share
the same fluid reservoir. The reservoir is located in the
front of the engine compartment. Be sure to check the
fluid level at regular intervals. Fill the reservoir with
windshield washer solvent (not radiator antifreeze) and
operate the system for a few seconds to flush out the
residual water.
194 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

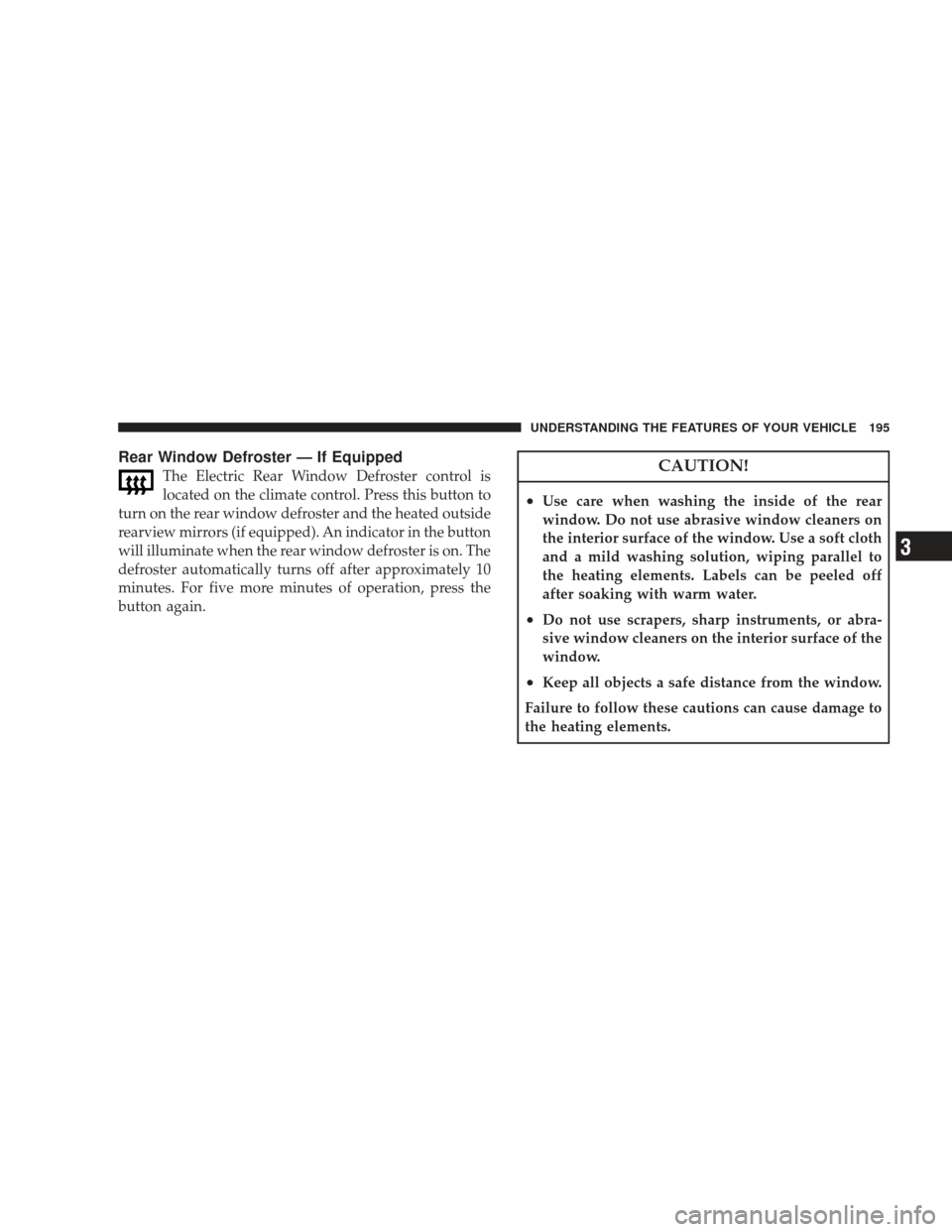

Rear Window Defroster — If Equipped
The Electric Rear Window Defroster control is
located on the climate control. Press this button to
turn on the rear window defroster and the heated outside
rearview mirrors (if equipped). An indicator in the button
will illuminate when the rear window defroster is on. The
defroster automatically turns off after approximately 10
minutes. For five more minutes of operation, press the
button again.CAUTION!
•Use care when washing the inside of the rear
window. Do not use abrasive window cleaners on
the interior surface of the window. Use a soft cloth
and a mild washing solution, wiping parallel to
the heating elements. Labels can be peeled off
after soaking with warm water.
•Do not use scrapers, sharp instruments, or abra-
sive window cleaners on the interior surface of the
window.
•Keep all objects a safe distance from the window.
Failure to follow these cautions can cause damage to
the heating elements.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 195
3

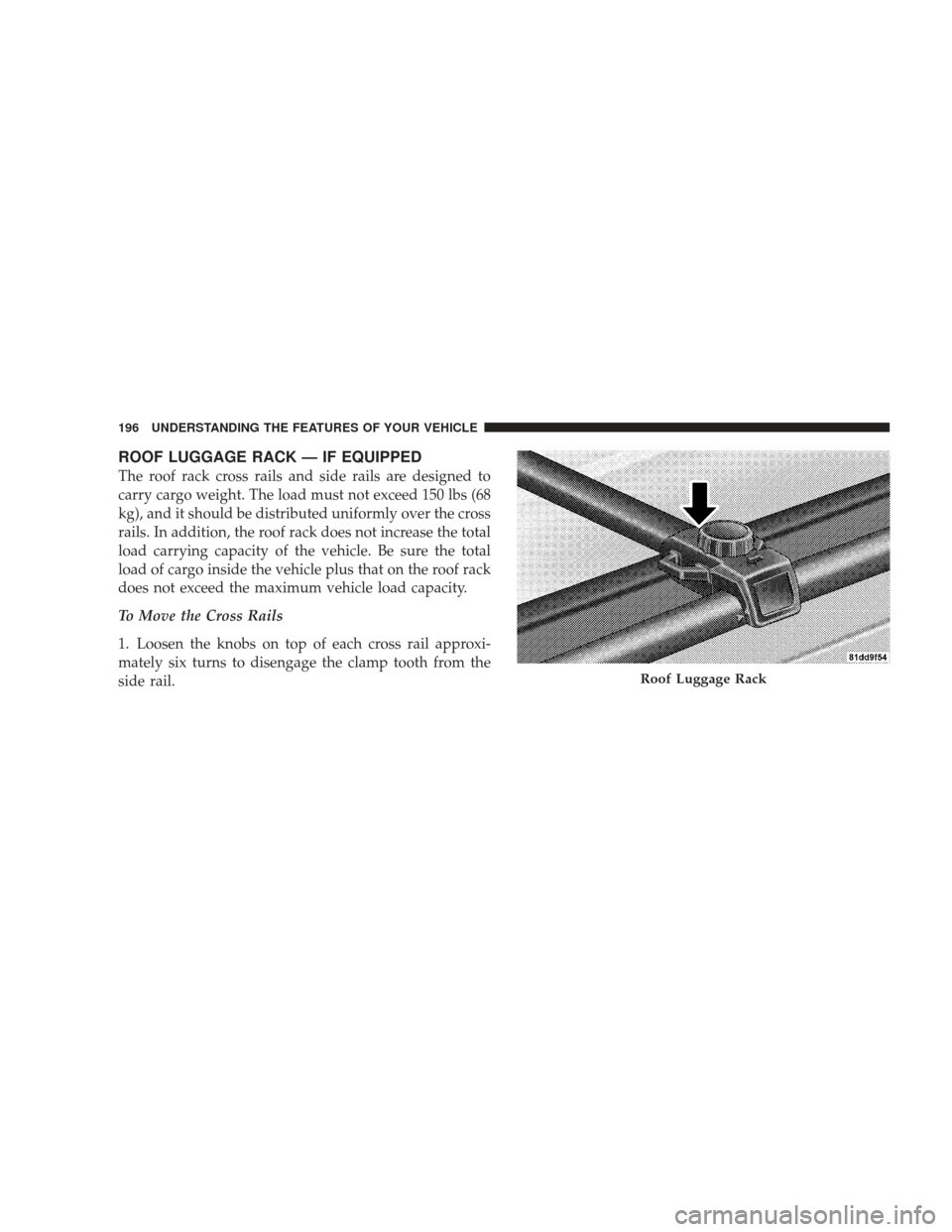

ROOF LUGGAGE RACK — IF EQUIPPED
The roof rack cross rails and side rails are designed to
carry cargo weight. The load must not exceed 150 lbs (68
kg), and it should be distributed uniformly over the cross
rails. In addition, the roof rack does not increase the total
load carrying capacity of the vehicle. Be sure the total
load of cargo inside the vehicle plus that on the roof rack
does not exceed the maximum vehicle load capacity.
To Move the Cross Rails
1. Loosen the knobs on top of each cross rail approxi-
mately six turns to disengage the clamp tooth from the
side rail.
Roof Luggage Rack
196 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

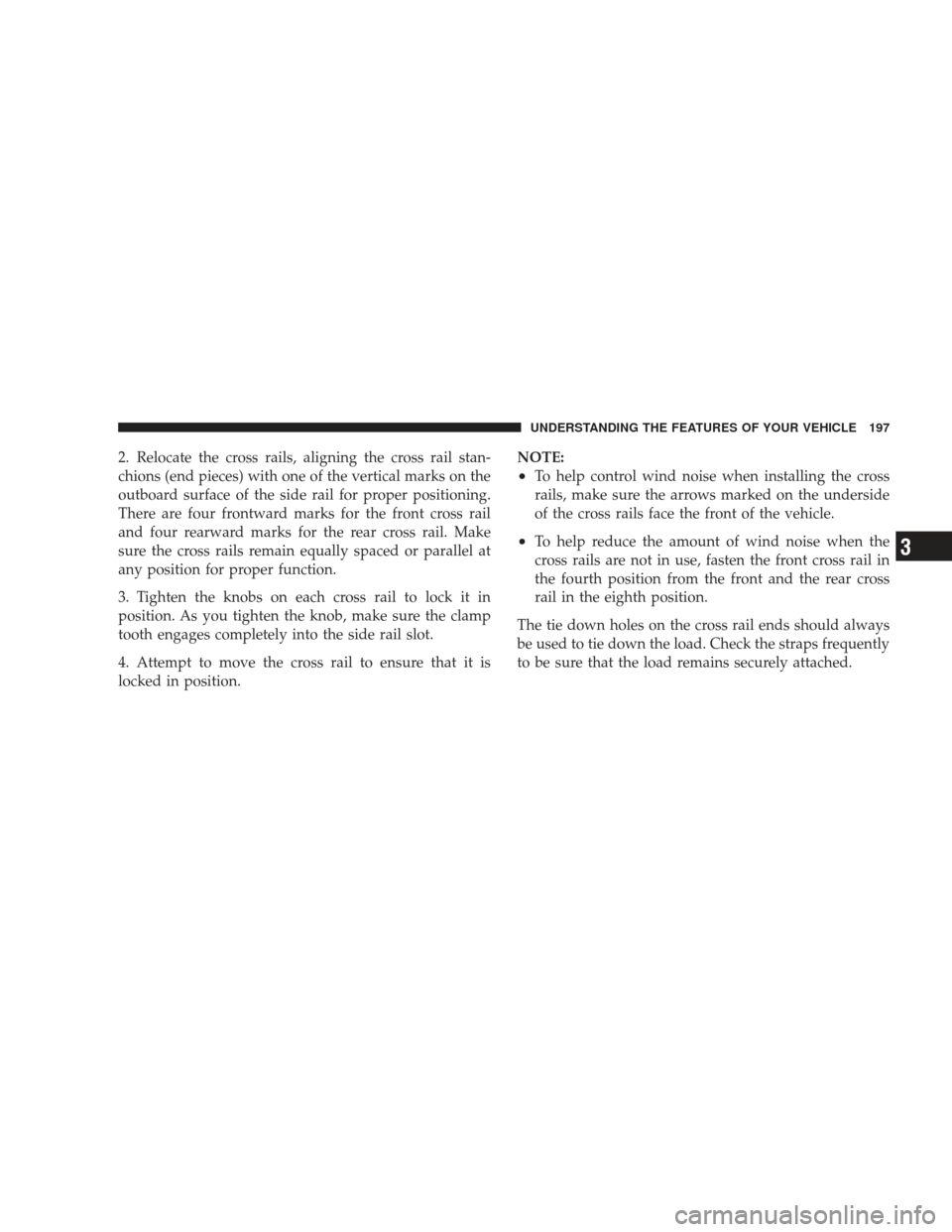

2. Relocate the cross rails, aligning the cross rail stan-
chions (end pieces) with one of the vertical marks on the
outboard surface of the side rail for proper positioning.
There are four frontward marks for the front cross rail
and four rearward marks for the rear cross rail. Make
sure the cross rails remain equally spaced or parallel at
any position for proper function.
3. Tighten the knobs on each cross rail to lock it in
position. As you tighten the knob, make sure the clamp
tooth engages completely into the side rail slot.
4. Attempt to move the cross rail to ensure that it is
locked in position.NOTE:
•To help control wind noise when installing the cross
rails, make sure the arrows marked on the underside
of the cross rails face the front of the vehicle.
•To help reduce the amount of wind noise when the
cross rails are not in use, fasten the front cross rail in
the fourth position from the front and the rear cross
rail in the eighth position.
The tie down holes on the cross rail ends should always
be used to tie down the load. Check the straps frequently
to be sure that the load remains securely attached.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 197
3

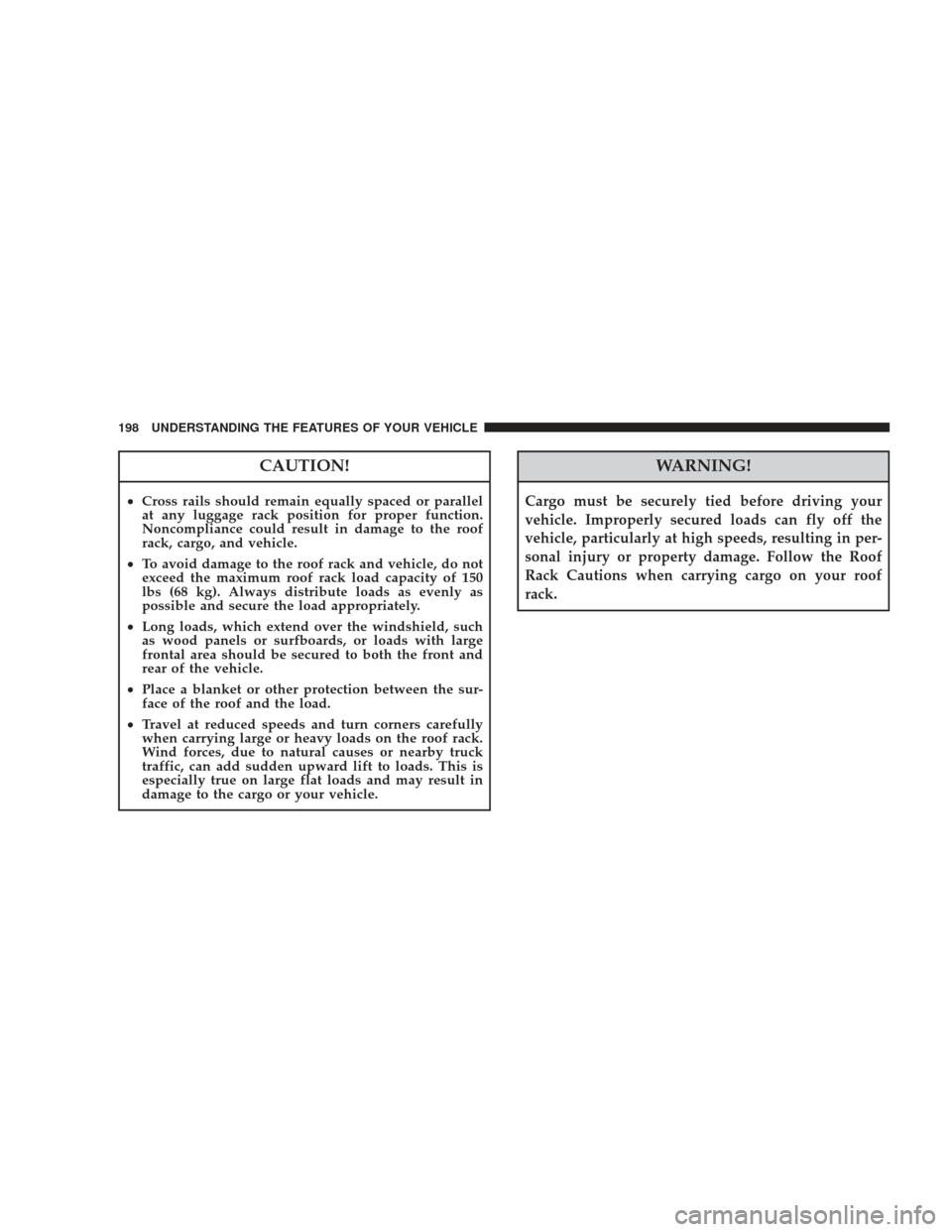

CAUTION!
•Cross rails should remain equally spaced or parallel
at any luggage rack position for proper function.
Noncompliance could result in damage to the roof
rack, cargo, and vehicle.
• To avoid damage to the roof rack and vehicle, do not
exceed the maximum roof rack load capacity of 150
lbs (68 kg). Always distribute loads as evenly as
possible and secure the load appropriately.
• Long loads, which extend over the windshield, such
as wood panels or surfboards, or loads with large
frontal area should be secured to both the front and
rear of the vehicle.
• Place a blanket or other protection between the sur-
face of the roof and the load.
• Travel at reduced speeds and turn corners carefully
when carrying large or heavy loads on the roof rack.
Wind forces, due to natural causes or nearby truck
traffic, can add sudden upward lift to loads. This is
especially true on large flat loads and may result in
damage to the cargo or your vehicle.
WARNING!
Cargo must be securely tied before driving your
vehicle. Improperly secured loads can fly off the
vehicle, particularly at high speeds, resulting in per-
sonal injury or property damage. Follow the Roof
Rack Cautions when carrying cargo on your roof
rack.
