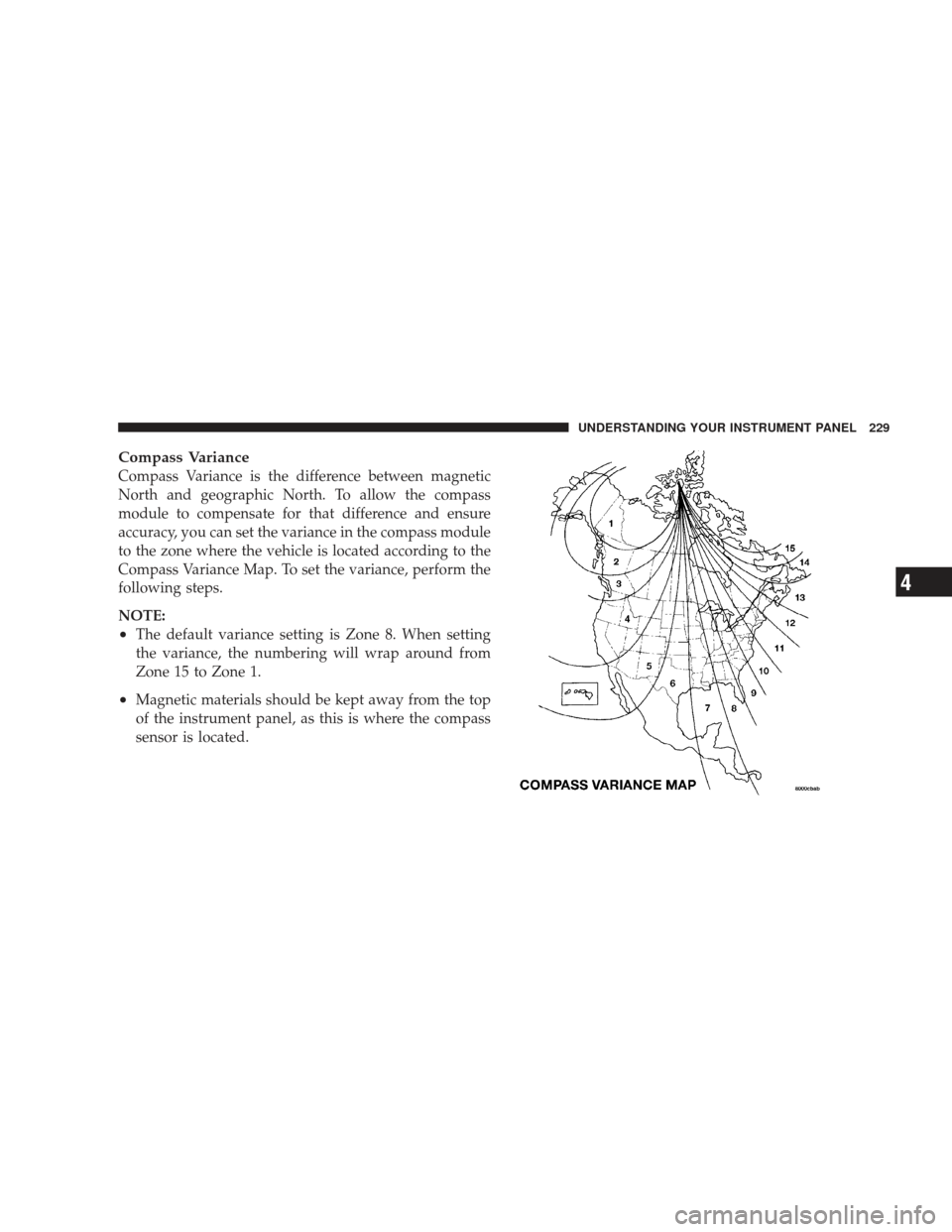

Compass Variance
Compass Variance is the difference between magnetic
North and geographic North. To allow the compass
module to compensate for that difference and ensure
accuracy, you can set the variance in the compass module
to the zone where the vehicle is located according to the
Compass Variance Map. To set the variance, perform the
following steps.
NOTE:
•The default variance setting is Zone 8. When setting
the variance, the numbering will wrap around from
Zone 15 to Zone 1.
•Magnetic materials should be kept away from the top
of the instrument panel, as this is where the compass
sensor is located.
UNDERSTANDING YOUR INSTRUMENT PANEL 229
4

1. Turn the ignition switch ON.
2. Press and release the MENU button until Personal
Settings displays in the EVIC.
3. Press the SCROLL button until “COMPASS VARI-
ANCE” message and the last variance zone number
displays in the EVIC.
4. Press and release RESET button until the proper
variance zone is selected according to the map.
5. Press and release the COMPASS/TEMPERATURE
button to exit.
Personal Settings (Customer Programmable
Features)
Personal Settings allows the driver to set and recall
features when the transaxle is in PARK.
Press and release the MENU button until Personal Set-
tings displays in the EVIC.Use the SCROLL button to display one of the following
choices.
“LANGUAGE”
When in this display you may select one of three lan-
guages for all display nomenclature, including the trip
functions and the navigation system (if equipped). Press
the RESET button while in this display to select English,
French, or Spanish. Then, as you continue, the informa-
tion will display in the selected language.
NOTE:
The EVIC will not change the UConnect lan-
guage selection. Refer to “Language Selection” under
“Hands-Free Communication (UConnect)” in Section 3.
“AUTO UNLK ON EXIT”
When ON is selected, all doors and the liftgate will
unlock when the vehicle is stopped and the transaxle is in
the PARK or NEUTRAL position and the driver’s door is
opened. To make your selection, press and release the
RESET button until “ON” or “OFF” appears.
230 UNDERSTANDING YOUR INSTRUMENT PANEL

“RKE UNLOCK”
WhenDriver Door 1st Press is selected, only the driver’s
door will unlock on the first press of the Remote Keyless
Entry (RKE) UNLOCK button. When Driver Door 1st
Press is selected, you must press the RKE UNLOCK
button twice to unlock the passenger doors and liftgate.
When All Doors 1st Press is selected, all doors and the
liftgate will unlock on the first press of the RKE UN-
LOCK button. To make your selection, press and release
the RESET button until “Driver Door 1st Press” or “All
Doors 1st Press” appears.
“SOUND HORN WITH LOCK”
When ON is selected, a short horn sound will occur when
the RKE LOCK button is pressed. This feature may be
selected with or without the flash lights with lock feature.
To make your selection, press and release the RESET
button until “ON” or “OFF” appears.
“FLASH LAMP WITH LOCK”
When ON is selected, the front and rear turn signals will
flash when the doors are locked or unlocked with the
RKE transmitter. This feature may be selected with or
without the sound horn on lock feature selected. To make
your selection, press and release the RESET button until
“ON” or “OFF” appears.
“HEADLAMP OFF DELAY”
When this feature is selected, the driver can choose to
have the headlights remain on for 0, 30, 60, or 90 seconds
after turning the ignition to the LOCK position. To make
your selection, press and release the RESET button until
“0,” “30,” “60,” or “90” appears.
“HEADLAMPS WITH WIPERS” (Available with
Auto Headlights Only)
When ON is selected, and the multifunction lever is
placed in the AUTO position, the headlights will turn on
approximately 10 seconds after the wipers are turned
UNDERSTANDING YOUR INSTRUMENT PANEL 231
4

ON. The headlights will also turn off when the wipers are
turned OFF if they were turned ON by this feature. To
make your selection, press and release the RESET button
until “ON” or “OFF” appears.
“KEY-OFF POWER DELAY”
When this feature is selected, the power window
switches, radio, hands-free system (if equipped), DVD
video system (if equipped), power sunroof (if equipped),
and ignition powered outlets will remain active for up to
10 minutes after the ignition switch is turned OFF.
Opening a vehicle door will cancel this feature. To make
your selection, press and release the RESET button until
“Off,” “45 sec.,” “5 min.,” or “10 min.” appears.
“ILLUMIN APPROACH”
When this feature is selected, the headlights will activate
and remain on for up to 90 seconds when the doors areunlocked with the RKE transmitter. To make your selec-
tion, press and hold the RESET button until “Off,” “30
sec,” “60 sec,” or “90 sec” appears.
“DISPLAY UNITS IN”
The EVIC, odometer, and navigation system (if
equipped) can be changed between English and Metric
units of measure. To make your selection, press and
release the RESET button until “U.S.” or “METRIC”
appears.
“NAV TURN BY TURN” — If Equipped
When ON is selected, the Turn-by-Turn directions will
appear in the display as the vehicle approaches a desig-
nated turn within a programmed route. To make your
selection, press and release the RESET button until “ON”
or “OFF” appears.
COMPASS VARIANCE
Refer to “Compass Variance” under “Compass Display.”
232 UNDERSTANDING YOUR INSTRUMENT PANEL

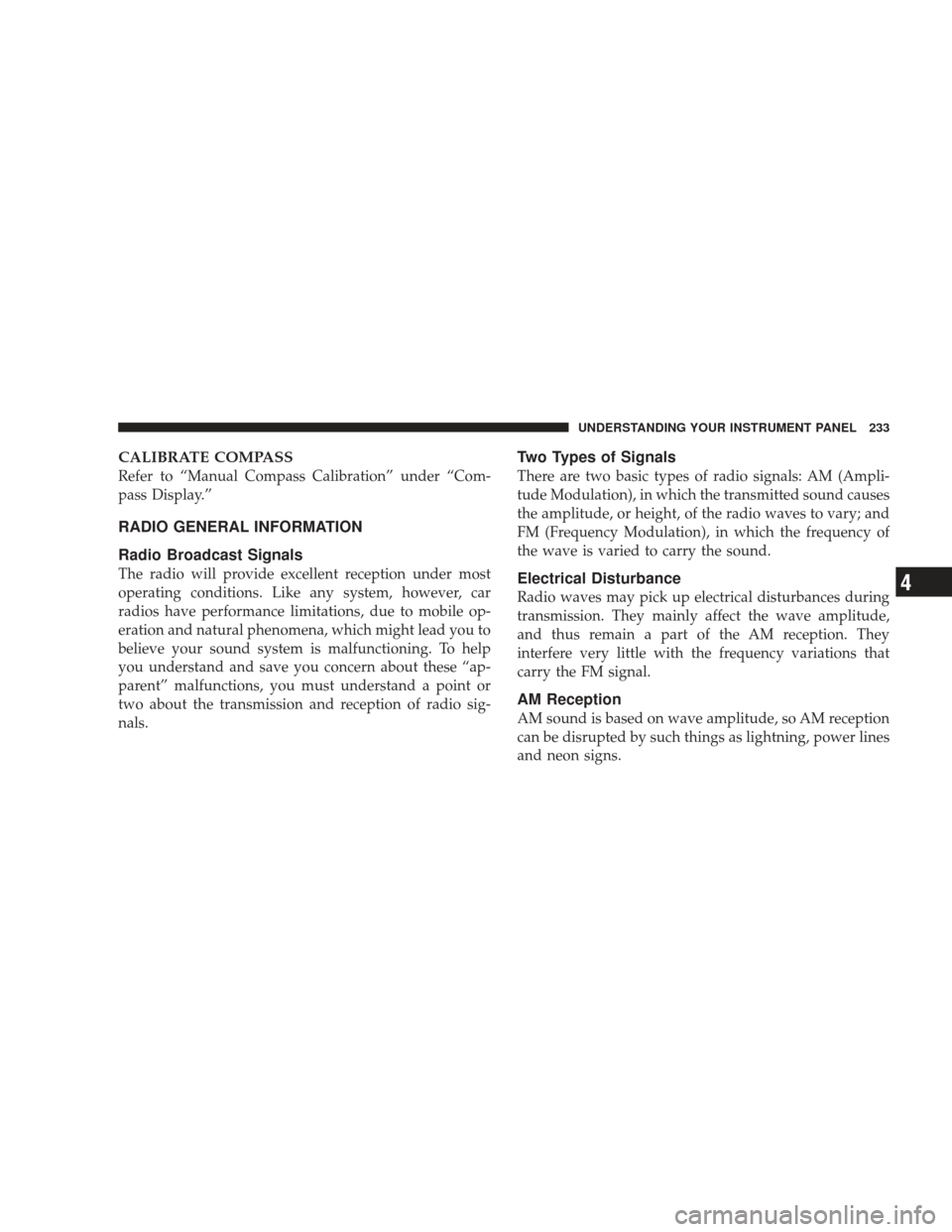

CALIBRATE COMPASS
Refer to “Manual Compass Calibration” under “Com-
pass Display.”
RADIO GENERAL INFORMATION
Radio Broadcast Signals
The radio will provide excellent reception under most
operating conditions. Like any system, however, car
radios have performance limitations, due to mobile op-
eration and natural phenomena, which might lead you to
believe your sound system is malfunctioning. To help
you understand and save you concern about these “ap-
parent” malfunctions, you must understand a point or
two about the transmission and reception of radio sig-
nals.
Two Types of Signals
There are two basic types of radio signals: AM (Ampli-
tude Modulation), in which the transmitted sound causes
the amplitude, or height, of the radio waves to vary; and
FM (Frequency Modulation), in which the frequency of
the wave is varied to carry the sound.
Electrical Disturbance
Radio waves may pick up electrical disturbances during
transmission. They mainly affect the wave amplitude,
and thus remain a part of the AM reception. They
interfere very little with the frequency variations that
carry the FM signal.
AM Reception
AM sound is based on wave amplitude, so AM reception
can be disrupted by such things as lightning, power lines
and neon signs.
UNDERSTANDING YOUR INSTRUMENT PANEL 233
4

FM Reception
Because FM transmission is based on frequency varia-
tions, interference that consists of amplitude variations
can be filtered out, leaving the reception relatively clear,
which is the major feature of FM radio.
NOTE:
•For vehicles not equipped with the Electronic Vehicle
Information Center (EVIC), the radio and steering
wheel radio controls (if equipped) will remain active
for 45 seconds after the ignition switch is turned to the
LOCK position. Opening either front door will cancel
this feature.
•For vehicles equipped with the EVIC, the radio and
steering wheel radio controls (if equipped) will remain
active for up to 10 minutes after the ignition switch is
turned to the LOCK position. Opening either front
door will cancel this feature. The time is program-
mable. For details, refer to “Key-Off Power Delay,”under “Personal Settings (Customer Programmable
Features)” under “Electronic Vehicle Information Cen-
ter (EVIC)” in Section 4.
SALES CODE REN — MULTIMEDIA SYSTEM — IF
EQUIPPED
NOTE:
The sales code is located on the lower right side
of the unit’s faceplate.
The REN Multimedia system contains a radio, CD/DVD
player, USB port, a 30-gigabyte hard drive (HDD), and a
“JukeBox” (virtual CD changer). Sirius Satellite Radio is
optional. The 6.5 in (16.5 cm) touch screen allows for easy
menu selection.
A 30-gigabyte HDD allows uploads of music and photos
from CDs or through the USB port. The Gracenote
database finds the artist, track, and title for the music.
234 UNDERSTANDING YOUR INSTRUMENT PANEL

An auxiliary input jack permits passengers to listen to a
portable MP3 player through the vehicle’s speakers. For
vehicles equipped with the Video Entertainment System
(VES)™, separate audio outputs allow passengers to
listen to the vehicle speakers while different audio tracks
play through the system’s wireless headphones. This
means rear-seat passengers can watch a DVD on the
optional rear seat entertainment system, while the driver
and front-seat passenger listen to the radio.
Other special features include direct tune, music type
selections, easy store presets, backup camera display for
vehicles equipped with a backup camera, and on some
models, a dual display screen operation. Refer to your
radio-specific user’s manual for detailed operating in-
structions.Operating Instructions — Satellite Radio (If
Equipped)
Refer to your radio-specific user’s manual for detailed
operating instructions.
Operating Instructions — Voice Recognition
System (VR) (If Equipped)
For the radio, refer to “Voice Recognition System (VR)” in
Section 3.
For Hands Free Phone Communication (UConnect)
“Voice Recognition System (VR),” refer to “Hands-Free
Communication (UConnect)” in Section 3.
Operating Instructions — Hands-Free
Communication (UConnect ) (If Equipped)
Refer to “Hands-Free Communication (UConnect)” in
Section 3.
UNDERSTANDING YOUR INSTRUMENT PANEL 235
4

Clock Setting Procedure
Setting the Clock
1. Turn on the multimedia system.
2. Touch the screen where the time is displayed. The
clock setting menu will appear on the screen.
3. To move the hour forward, touch the screen where the
word “Hour” with the arrow pointing upward is dis-
played. To move the hour backward, touch the screen
where the word “Hour” with the arrow pointing down-
ward is displayed.
4. To move the minute forward, touch the screen where
the word “Min” with the arrow pointing upward is
displayed. To move the minute backward, touch the
screen where the word “Min” with the arrow pointing
downward is displayed.5. To save the new time setting, touch the screen where
the word “Save” is displayed.Changing Daylight Savings Time
When selected, this feature will display the time of day in
daylight savings time. Proceed as follows to change the
current setting:
1. Turn on the multimedia system.
2. Touch the screen where the time is displayed. The
clock setting menu will appear on the screen.
3. When this feature is on, a check mark will appear in
the box next to the words “Daylight Savings.” Touch the
screen where the words “Daylight Savings” are dis-
played to change the current setting.
236 UNDERSTANDING YOUR INSTRUMENT PANEL

Show Time if Radio is Off
When selected, this feature will display the time of day
on the touch screen when the multimedia system is
turned off. Proceed as follows to change the current
setting:
1. Turn on the multimedia system.
2. Touch the screen where the time is displayed. The
clock setting menu will appear on the screen.
3. When this feature is on, a check mark will appear in
the box next to the words “Show Time if Radio is Off.”
Touch the screen where the words “Show Time if Radio is
Off” are displayed to change the current setting.
Changing the Time Zone
1. Turn on the multimedia system.
2. Touch the screen where the time is displayed. The
clock setting menu will appear on the screen.
3. Touch the screen where the words “Set Time Zone” are
displayed. The time zone selection menu will appear on
the screen.
4. Select a time zone by touching the screen where your
selection appears. If you do not see a time zone that you
want to select, touch the screen where the word “Page” is
displayed to view additional time zones in the menu.
5. Touch the screen where the word “Save” is displayed.
UNDERSTANDING YOUR INSTRUMENT PANEL 237
4

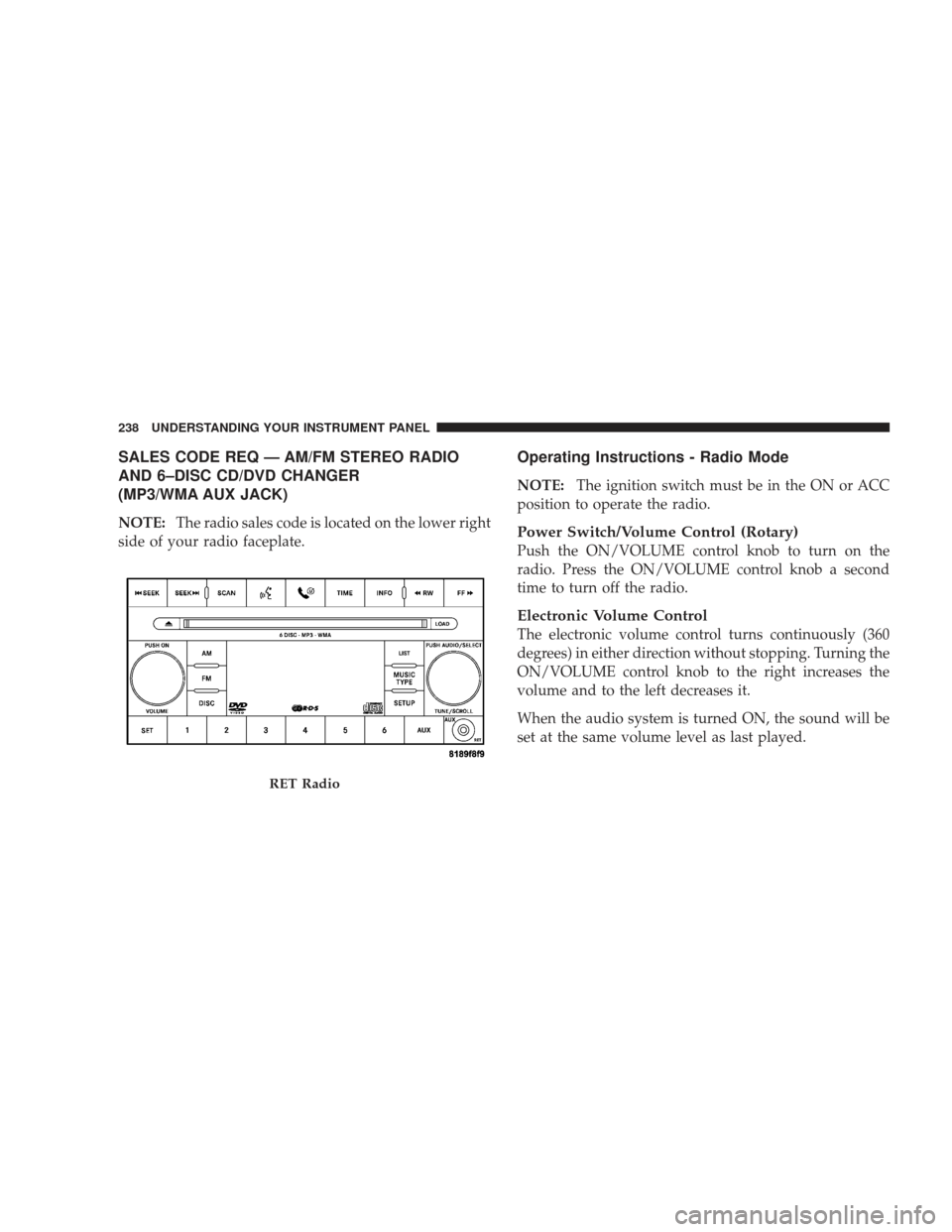

SALES CODE REQ — AM/FM STEREO RADIO
AND 6–DISC CD/DVD CHANGER
(MP3/WMA AUX JACK)
NOTE:The radio sales code is located on the lower right
side of your radio faceplate.
Operating Instructions - Radio Mode
NOTE: The ignition switch must be in the ON or ACC
position to operate the radio.
Power Switch/Volume Control (Rotary)
Push the ON/VOLUME control knob to turn on the
radio. Press the ON/VOLUME control knob a second
time to turn off the radio.
Electronic Volume Control
The electronic volume control turns continuously (360
degrees) in either direction without stopping. Turning the
ON/VOLUME control knob to the right increases the
volume and to the left decreases it.
When the audio system is turned ON, the sound will be
set at the same volume level as last played.
RET Radio
238 UNDERSTANDING YOUR INSTRUMENT PANEL
