maintain for each zone. On Three-Zone ATC systems, if
so desired, push and release the SYNC button. Then turn
the Left Front Temperature Control to dial in the tem-
perature that you want the system to maintain for all
three zones.
Once the comfort level is selected, the system will main-
tain that level automatically using the heating system.
Should the desired comfort level require A/C, the system
will automatically make the adjustment. You will expe-
rience the greatest efficiency by simply allowing the
system to function automatically. 72°F (22°C) is the
recommended setting for maximum comfort for the
average person; however, this may vary.
NOTE:
•The temperature setting can be adjusted at anytime
without affecting automatic operation.
•Pressing the A/C button, or adjusting the blower
speed, or changing the mode of air distribution while
in AUTO mode will cancel automatic operation.
Automatic Operation — Rear-Zone ATC
1. Press the REAR button on the Three-Zone ATC in the
instrument panel to turn ON the Rear-Zone ATC in the
overhead console.
2. Turn the Rear Blower control on the Rear-Zone ATC in
the overhead console to the AUTO position.
3. Turn the Rear Temperature control on the Rear-Zone
ATC in the overhead console to dial in the temperature
that you want the system to maintain in the rear cabin.
NOTE:
•The temperature setting can be adjusted at anytime
without affecting automatic operation.
UNDERSTANDING YOUR INSTRUMENT PANEL 299
4

Operating Tips
NOTE:Refer to the chart at the end of this section for
suggested control settings for various weather condi-
tions.
Summer Operation
The engine cooling system in air-conditioned vehicles
must be protected with a high-quality antifreeze coolant
to provide proper corrosion protection and to protect
against engine overheating. Refer to “Cooling System”
under “Maintenance Procedures” and to “Fluids, Lubri-
cants, and Genuine Parts” in Section 7 for information
pertaining to the cooling system and coolant selection.
Winter Operation
Use of the air Recirculation mode during Winter months
is not recommended because it may cause window
fogging.
Vacation Storage
Anytime you store your vehicle, or keep it out of service
(i.e., vacation) for two weeks or more, run the air
conditioning system at idle for about five minutes in the
fresh air and high blower settings. This will ensure
adequate system lubrication to minimize the possibility
of compressor damage when the system is started again.
Window Fogging
Interior fogging on the windshield can be quickly re-
moved by turning the mode selector to Defrost. The
Defrost/Floor mode can be used to maintain a clear
windshield and provide sufficient heating. If side win-
dow fogging becomes a problem, increase blower speed.
Vehicle windows tend to fog on the inside in mild but
rainy or humid weather.
NOTE: Recirculate without A/C should not be used for
long periods as fogging may occur.
300 UNDERSTANDING YOUR INSTRUMENT PANEL

Side Window Demisters
A side window demister outlet is located at each end of
the instrument panel. These non-adjustable outlets direct
air toward the side windows when the system is in the
Floor, Mix, or Defrost mode. The air is directed at the area
of the windows through which you view the outside
mirrors.
Outside Air Intake
Make sure the air intake, located directly in front of the
windshield, is free of obstructions such as leaves. Leaves
collected in the air intake may reduce airflow, and if they
enter the plenum, they could plug the water drains. In
Winter months, make sure the air intake is clear of ice,
slush, and snow.
A/C Air Filter — If Equipped
The A/C Air Filter will reduce, but not eliminate, diesel
and agricultural smells. The filter acts on air coming from
outside the vehicle and recirculated air within the pas-
senger compartment. Refer to “Maintenance Procedures”
in Section 7 for A/C Air Filter service information or see
your authorized dealer for service. Refer to the Mainte-
nance Schedule in Section 8 for filter service intervals.
UNDERSTANDING YOUR INSTRUMENT PANEL 301
4

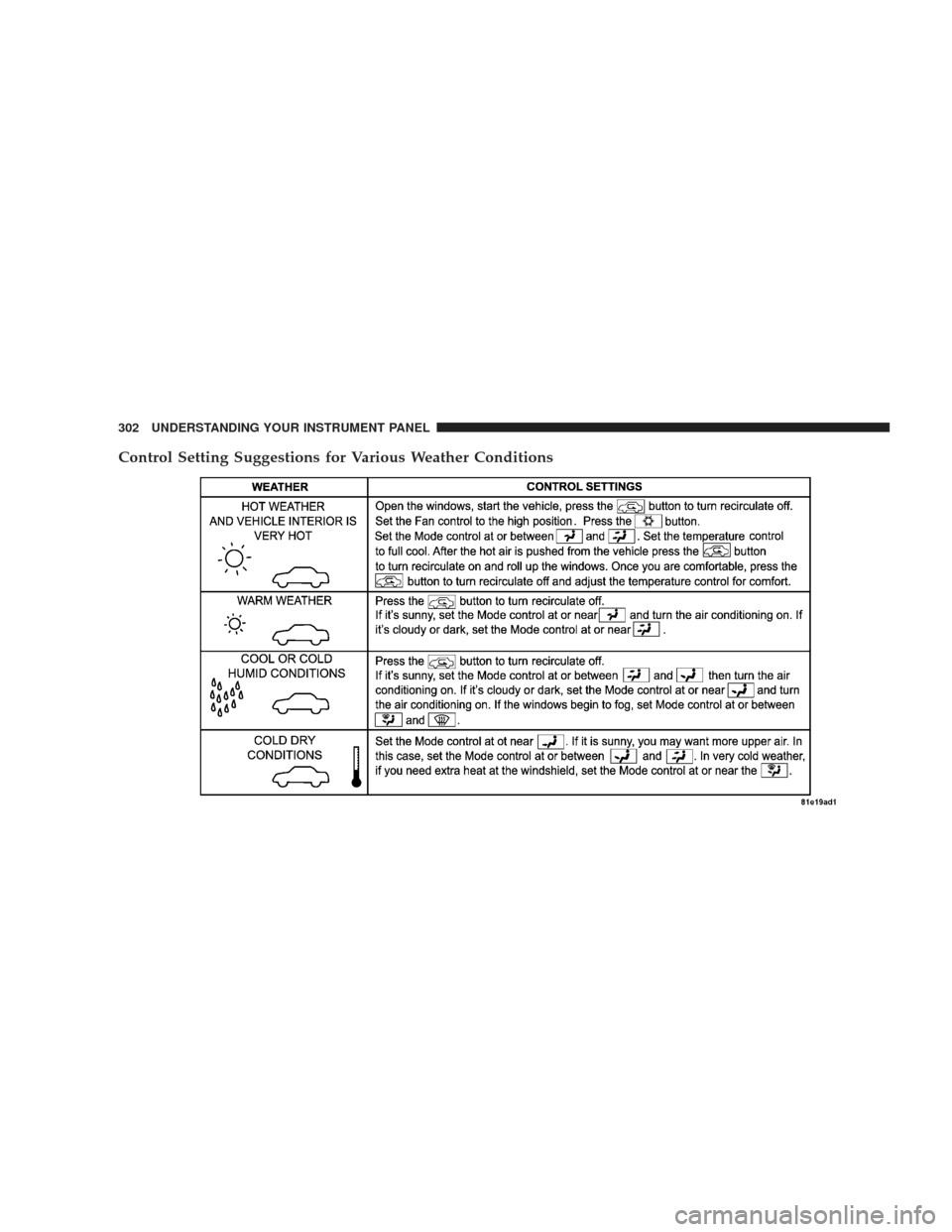

Control Setting Suggestions for Various Weather Conditions
302 UNDERSTANDING YOUR INSTRUMENT PANEL

STARTING AND OPERATING
CONTENTS
Starting Procedures .....................307
▫ Automatic Transaxle ...................308
▫ Normal Starting (Tip Start) ..............309
▫ Extremely Cold Weather
(Below 20°F Or 29°C)................309
▫ If Engine Fails To Start .................310
▫ After Starting ........................311
 Engine Block Heater — If Equipped .........311
 Automatic Transaxle .....................276 ▫
Brake/Transaxle Interlock System ..........312
▫ Automatic Transaxle Ignition Interlock
System .............................313
▫ 4-Speed Or 6-Speed (AutoStick) Automatic
Transaxle ...........................313
 AutoStick — If Equipped ................317
▫ AutoStick Operation..................318
▫ AutoStick General Information ...........318
 All Wheel Drive (AWD) — If Equipped .......319
5

Driving On Slippery Surfaces ..............320
▫ Acceleration .........................320
▫ Traction ............................320
 Driving Through Water ..................321
▫ Flowing/Rising Water ..................321
 Parking Brake .........................323
 Brake System ..........................326
▫ Anti-Lock Brake System (ABS) ............327
 Electronic Brake Control System ............328
▫ Anti-Lock Brake System (ABS) ............328
▫ Brake Assist System (BAS) ...............330
▫ Traction Control System (TCS) ............331
▫ Electronic Roll Mitigation (ERM) ..........331▫
Electronic Stability Program (ESP) .........332
▫ ESP/BAS Warning Light And ESP/TCS
Indicator Light .......................334
▫ Trailer Sway Control (TSC) ..............335
 Power Steering ........................336
 Tire Safety Information ...................337
▫ Tire Markings ........................337
▫ Tire Loading And Tire Pressure ...........341
 Tires — General Information ...............345
▫ Tire Pressure .........................345
 Tire Chains ...........................355
 Snow Tires ...........................355
304 STARTING AND OPERATING

Tire Pressure Monitor System (TPMS) —
If Equipped ...........................355
▫ Base System — If Equipped ..............358
▫ Premium System — If Equipped ..........360
▫ General Information ...................363
 Flexible Fuel— 2.7L Engines Only
(Except California Emission States) ..........364
▫ E-85 General Information ................364
▫ Ethanol Fuel (E-85) ....................365
▫ Fuel Requirements ....................365
▫ Selection Of Engine Oil For Flexible Fuel
Vehicles (E-85) And Gasoline Vehicles .......366
▫ Starting ............................367
▫ Cruising Range .......................367 ▫
Replacement Parts .....................367
▫ Maintenance .........................367
 Fuel Requirements ......................368
▫ 2.4L And 2.7L Engines ..................368
▫ 3.5L Engine .........................368
▫ Reformulated Gasoline .................369
▫ Gasoline/Oxygenate Blends ..............369
▫ MMT In Gasoline .....................370
▫ Materials Added To Fuel ................371
▫ Fuel System Cautions ..................371
▫ Carbon Monoxide Warnings ..............372
 Adding Fuel ..........................372
▫ Fuel Filler Cap (Gas Cap) ...............372
STARTING AND OPERATING 305
5

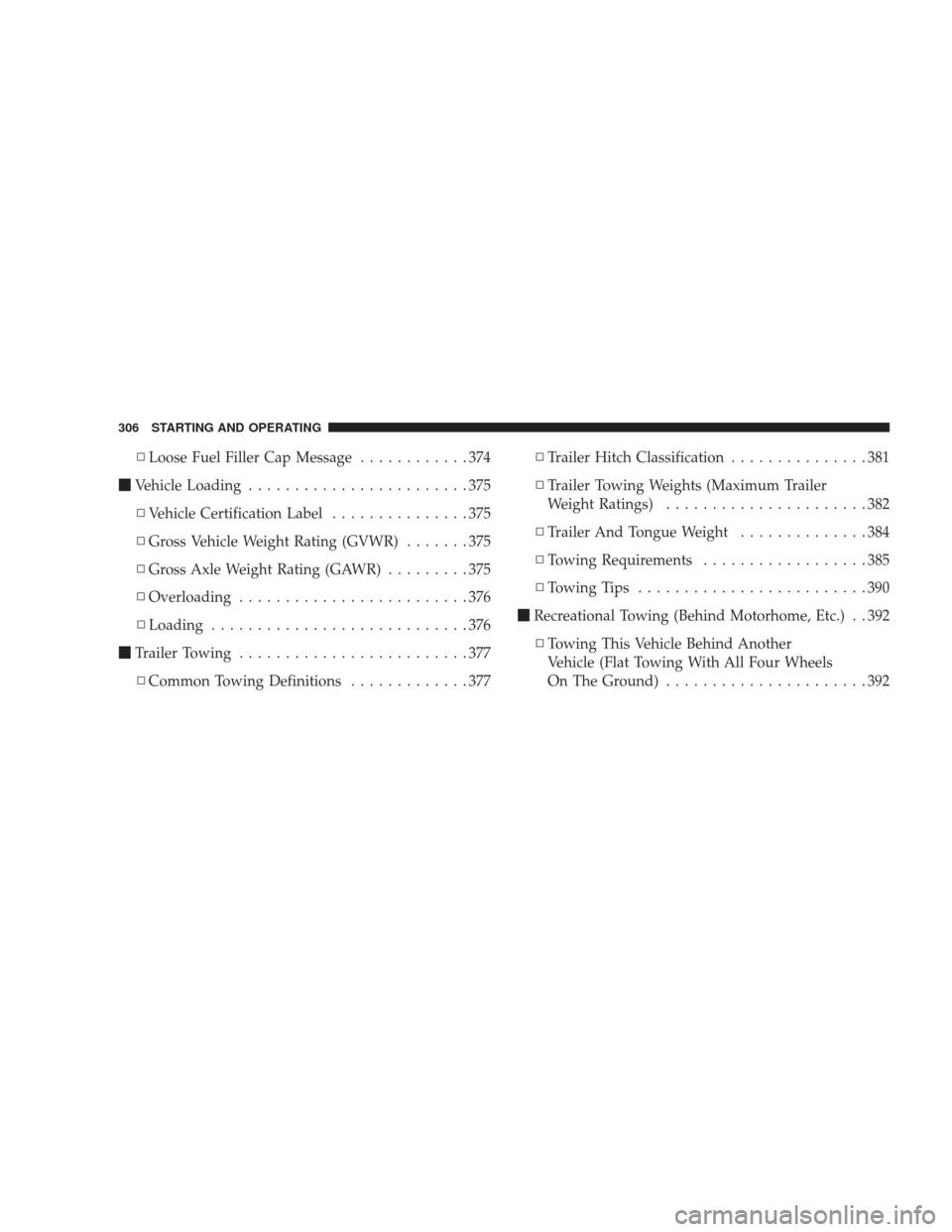

▫Loose Fuel Filler Cap Message ............374
 Vehicle Loading ........................375
▫ Vehicle Certification Label ...............375
▫ Gross Vehicle Weight Rating (GVWR) .......375
▫ Gross Axle Weight Rating (GAWR) .........375
▫ Overloading .........................376
▫ Loading ............................376
 Trailer Towing .........................377
▫ Common Towing Definitions .............377▫
Trailer Hitch Classification ...............381
▫ Trailer Towing Weights (Maximum Trailer
Weight Ratings) ......................382
▫ Trailer And Tongue Weight ..............384
▫ Towing Requirements ..................385
▫ Towing Tips .........................390
 Recreational Towing (Behind Motorhome, Etc.) . . 392
▫ Towing This Vehicle Behind Another
Vehicle (Flat Towing With All Four Wheels
On The Ground) ......................392
306 STARTING AND OPERATING

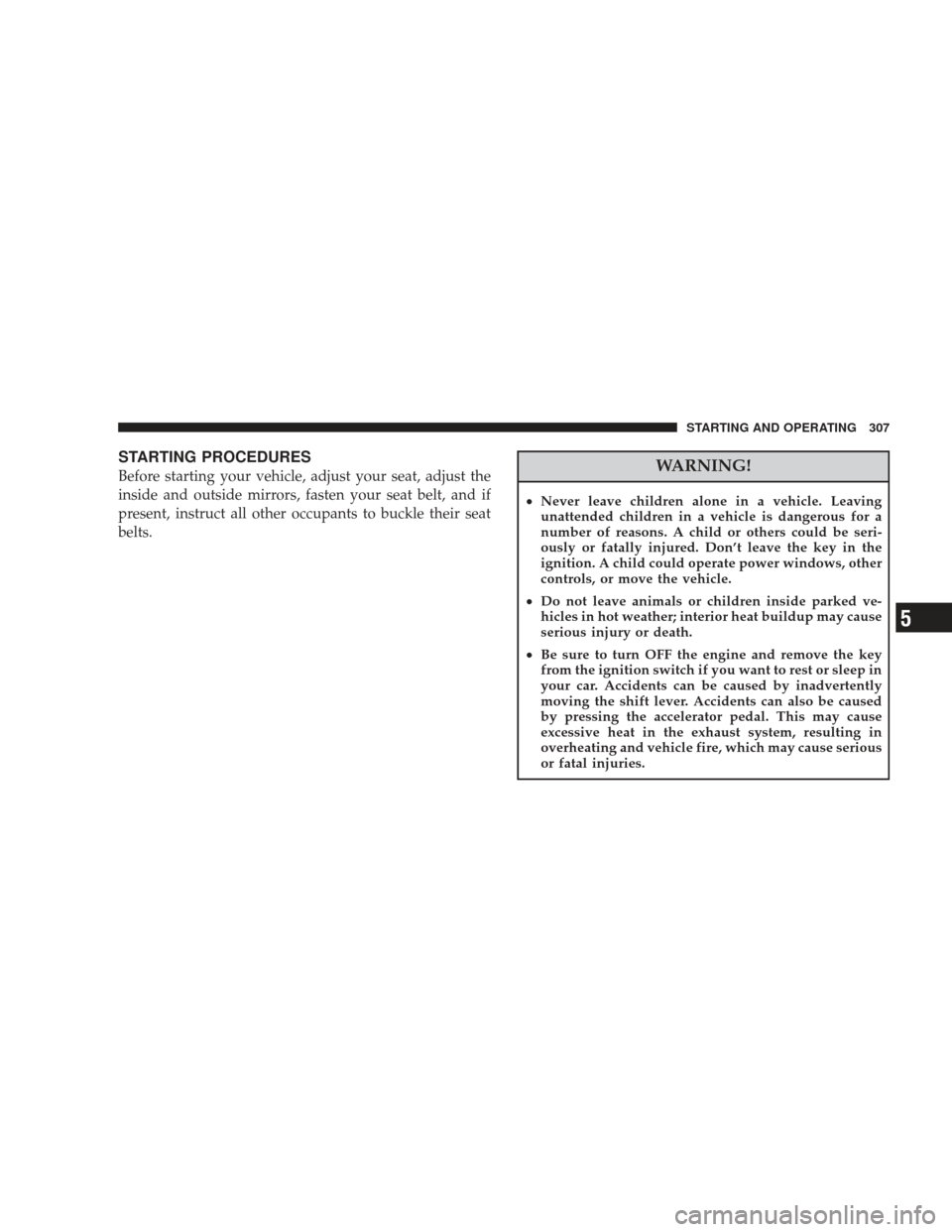

STARTING PROCEDURES
Before starting your vehicle, adjust your seat, adjust the
inside and outside mirrors, fasten your seat belt, and if
present, instruct all other occupants to buckle their seat
belts.WARNING!
•Never leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be seri-
ously or fatally injured. Don’t leave the key in the
ignition. A child could operate power windows, other
controls, or move the vehicle.
• Do not leave animals or children inside parked ve-
hicles in hot weather; interior heat buildup may cause
serious injury or death.
• Be sure to turn OFF the engine and remove the key
from the ignition switch if you want to rest or sleep in
your car. Accidents can be caused by inadvertently
moving the shift lever. Accidents can also be caused
by pressing the accelerator pedal. This may cause
excessive heat in the exhaust system, resulting in
overheating and vehicle fire, which may cause serious
or fatal injuries.
STARTING AND OPERATING 307
5

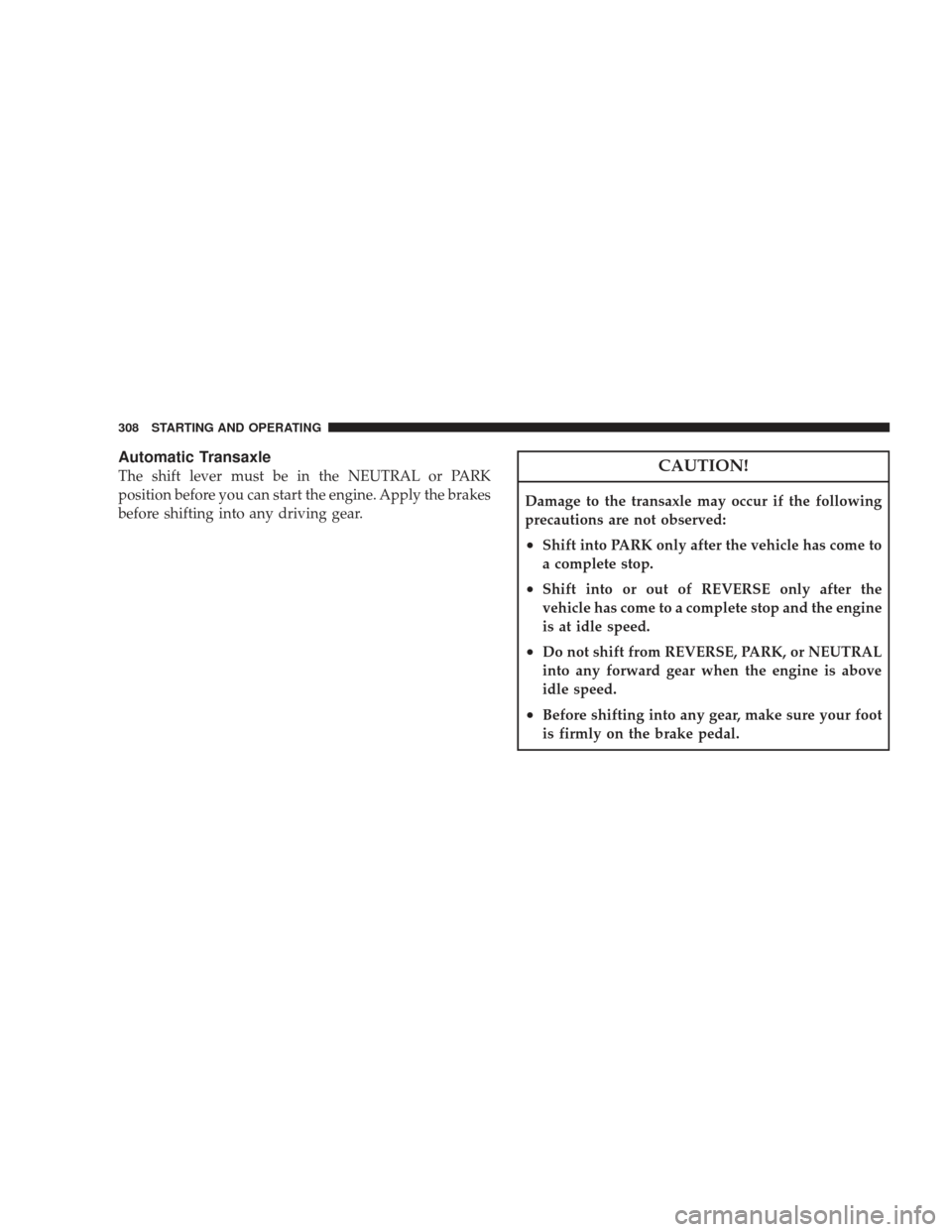

Automatic Transaxle
The shift lever must be in the NEUTRAL or PARK
position before you can start the engine. Apply the brakes
before shifting into any driving gear.CAUTION!
Damage to the transaxle may occur if the following
precautions are not observed:
•Shift into PARK only after the vehicle has come to
a complete stop.
•Shift into or out of REVERSE only after the
vehicle has come to a complete stop and the engine
is at idle speed.
•Do not shift from REVERSE, PARK, or NEUTRAL
into any forward gear when the engine is above
idle speed.
•Before shifting into any gear, make sure your foot
is firmly on the brake pedal.
308 STARTING AND OPERATING
