DODGE JOURNEY 2009 1.G Owners Manual

4. Rotate the applicable bulb’s electrical connector14
turn counterclockwise and remove it from the taillight
housing.
5. Remove the bulb from the connector socket and install
the replacement bulb.6. Install the bulb and connector assembly into the
taillight housing and rotate the connector14turn clock-
wise to lock it in place.
7. Reinstall the taillight housing and fasteners.
Changing the Tail Light or Backup Light
1. Open the liftgate.
2. Remove the two fasteners retaining the taillight hous-
ing to the liftgate from the inboard face of the liftgate.
3. Carefully insert a trim stick (plastic flat-blade tool)
between the taillight housing and the liftgate. Use the
trim stick and hand pressure together to disengage the
taillight housing from the liftgate.
4. Rotate the applicable bulb’s electrical connector
14
turn counterclockwise and remove it from the housing.

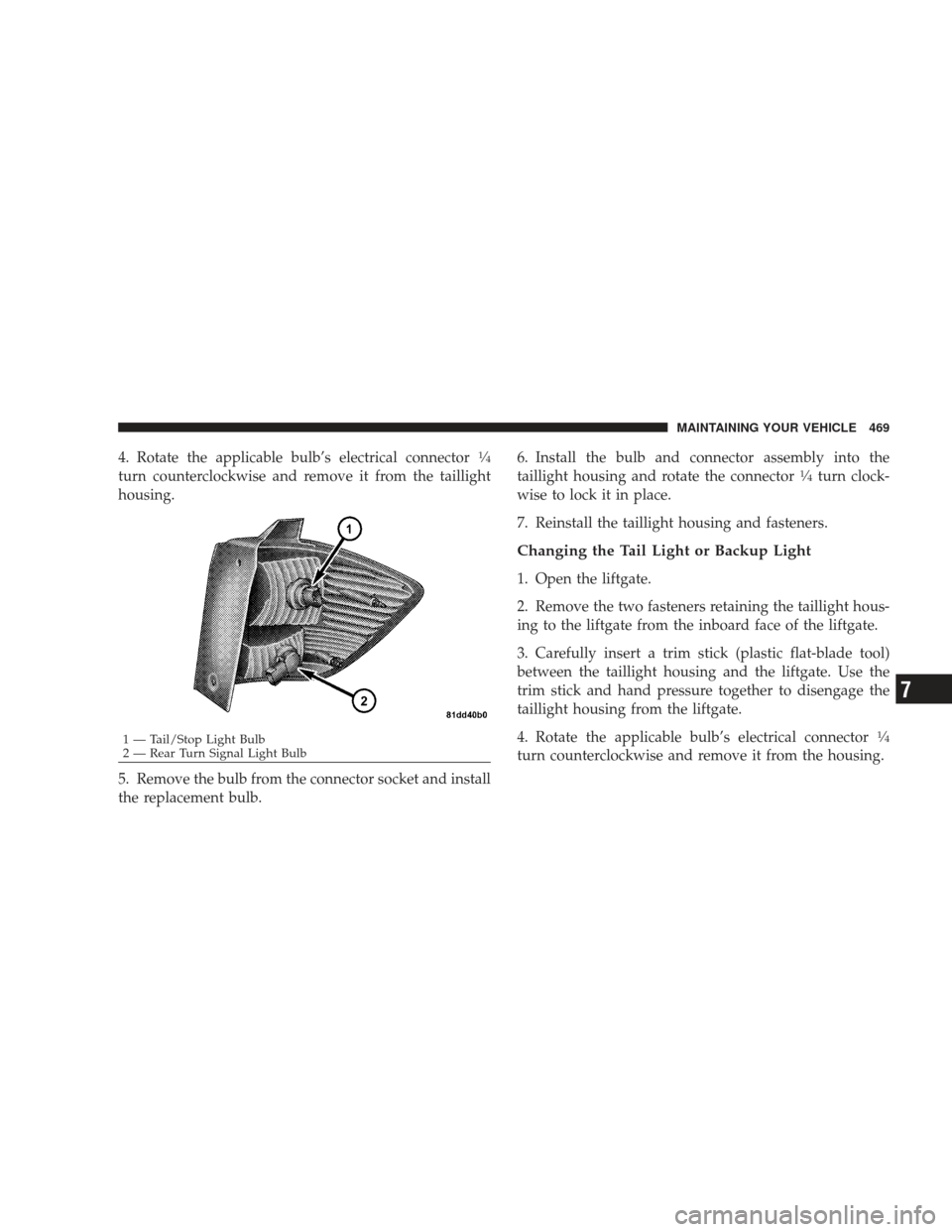

1 — Tail/Stop Light Bulb
2 — Rear Turn Signal Light Bulb MAINTAINING YOUR VEHICLE 469
7

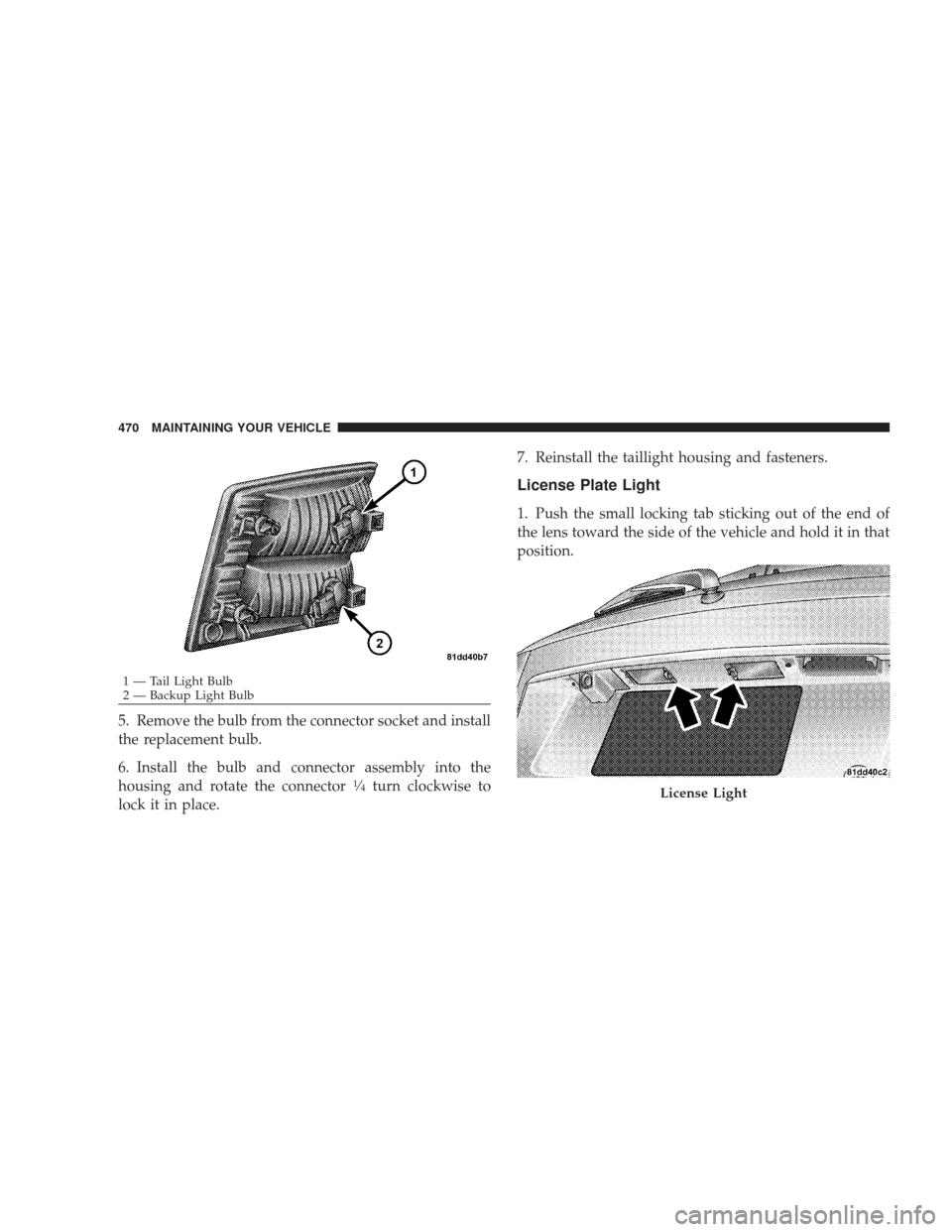

5. Remove the bulb from the connector socket and install
the replacement bulb.
6. Install the bulb and connector assembly into the
housing and rotate the connector
14turn clockwise to
lock it in place. 7. Reinstall the taillight housing and fasteners.
License Plate Light
1. Push the small locking tab sticking out of the end of
the lens toward the side of the vehicle and hold it in that
position.
1 — Tail Light Bulb
2 — Backup Light Bulb
License Light
470 MAINTAINING YOUR VEHICLE

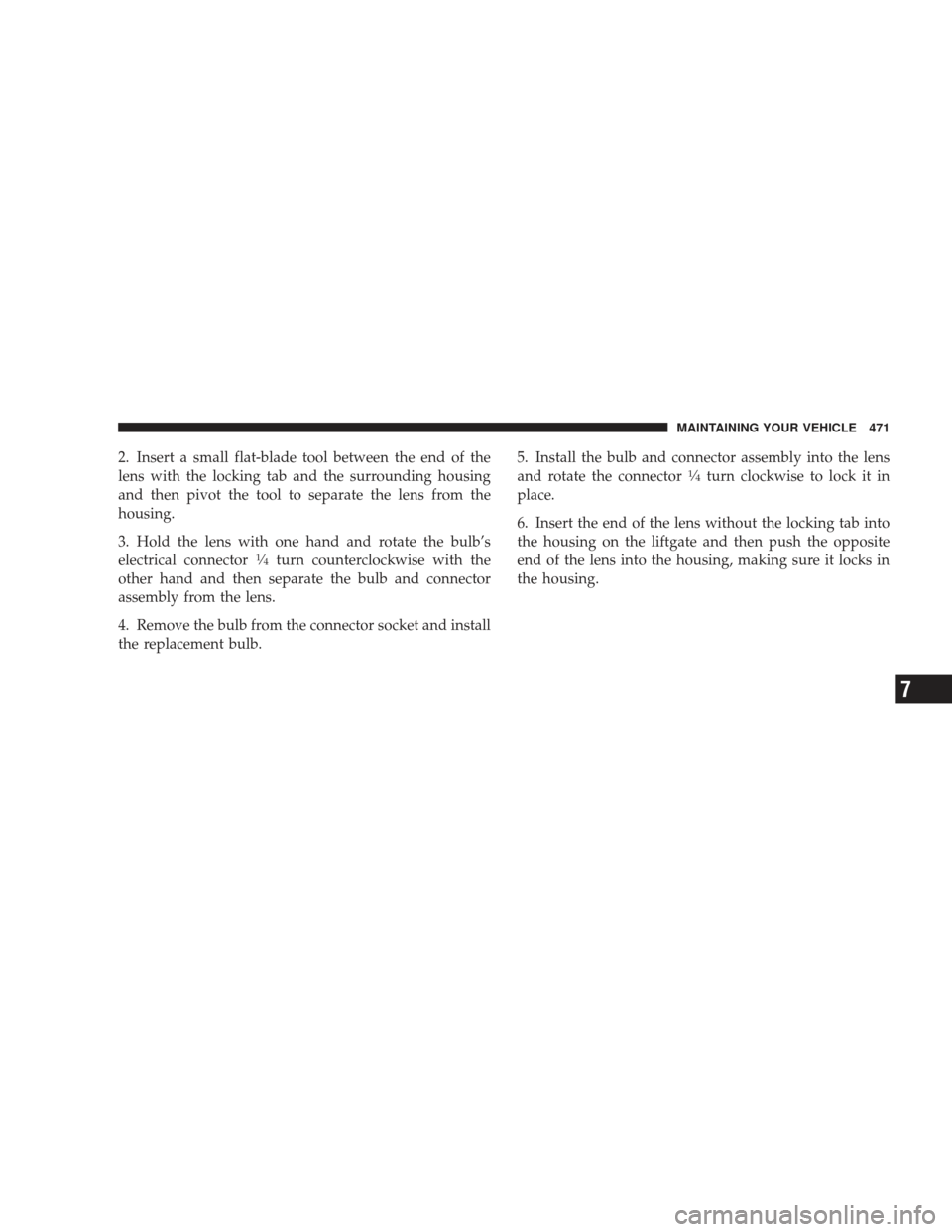

2. Insert a small flat-blade tool between the end of the
lens with the locking tab and the surrounding housing
and then pivot the tool to separate the lens from the
housing.
3. Hold the lens with one hand and rotate the bulb’s
electrical connector
14turn counterclockwise with the
other hand and then separate the bulb and connector
assembly from the lens.
4. Remove the bulb from the connector socket and install
the replacement bulb. 5. Install the bulb and connector assembly into the lens
and rotate the connector
14turn clockwise to lock it in
place.
6. Insert the end of the lens without the locking tab into
the housing on the liftgate and then push the opposite
end of the lens into the housing, making sure it locks in
the housing.
MAINTAINING YOUR VEHICLE 471
7

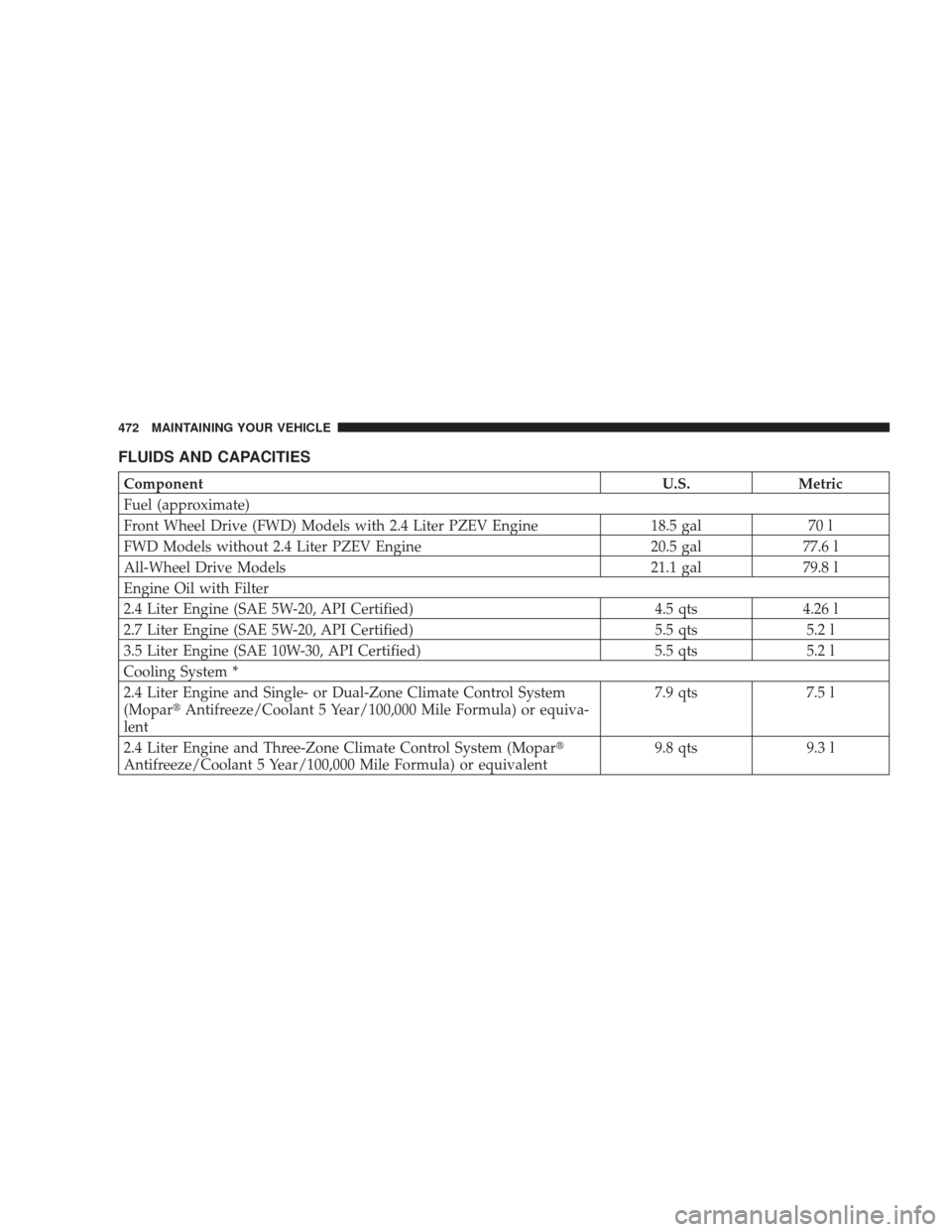

FLUIDS AND CAPACITIES
ComponentU.S.Metric
Fuel (approximate)
Front Wheel Drive (FWD) Models with 2.4 Liter PZEV Engine 18.5 gal70 l
FWD Models without 2.4 Liter PZEV Engine 20.5 gal77.6 l
All-Wheel Drive Models 21.1 gal79.8 l
Engine Oil with Filter
2.4 Liter Engine (SAE 5W-20, API Certified) 4.5 qts4.26 l
2.7 Liter Engine (SAE 5W-20, API Certified) 5.5 qts5.2 l
3.5 Liter Engine (SAE 10W-30, API Certified) 5.5 qts5.2 l
Cooling System *
2.4 Liter Engine and Single- or Dual-Zone Climate Control System
(Mopar Antifreeze/Coolant 5 Year/100,000 Mile Formula) or equiva-
lent 7.9 qts
7.5 l
2.4 Liter Engine and Three-Zone Climate Control System (Mopar
Antifreeze/Coolant 5 Year/100,000 Mile Formula) or equivalent 9.8 qts
9.3 l
472 MAINTAINING YOUR VEHICLE

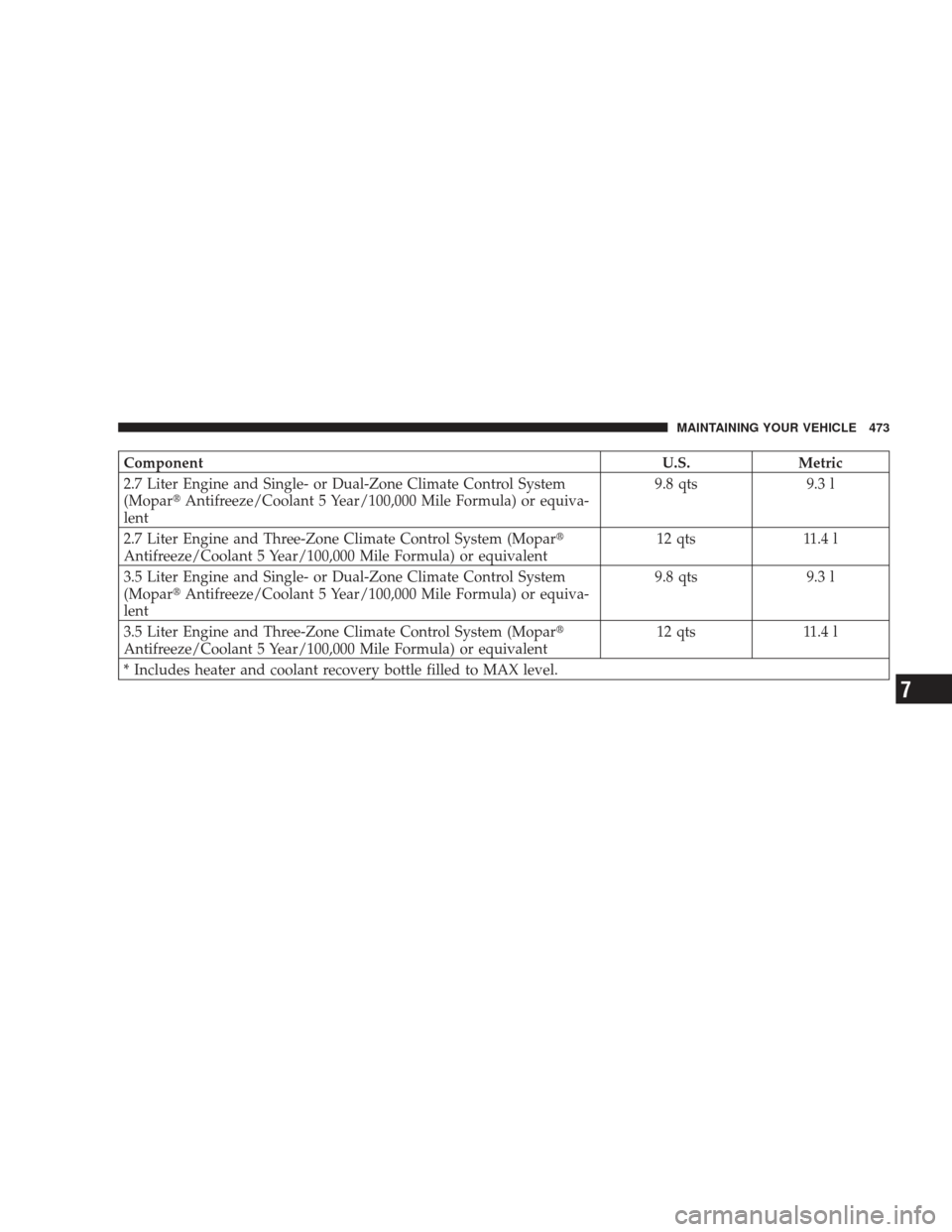

ComponentU.S.Metric
2.7 Liter Engine and Single- or Dual-Zone Climate Control System
(Mopar Antifreeze/Coolant 5 Year/100,000 Mile Formula) or equiva-
lent 9.8 qts
9.3 l
2.7 Liter Engine and Three-Zone Climate Control System (Mopar
Antifreeze/Coolant 5 Year/100,000 Mile Formula) or equivalent 12 qts
11.4 l
3.5 Liter Engine and Single- or Dual-Zone Climate Control System
(Mopar Antifreeze/Coolant 5 Year/100,000 Mile Formula) or equiva-
lent 9.8 qts
9.3 l
3.5 Liter Engine and Three-Zone Climate Control System (Mopar
Antifreeze/Coolant 5 Year/100,000 Mile Formula) or equivalent 12 qts
11.4 l
* Includes heater and coolant recovery bottle filled to MAX level.
MAINTAINING YOUR VEHICLE 473
7

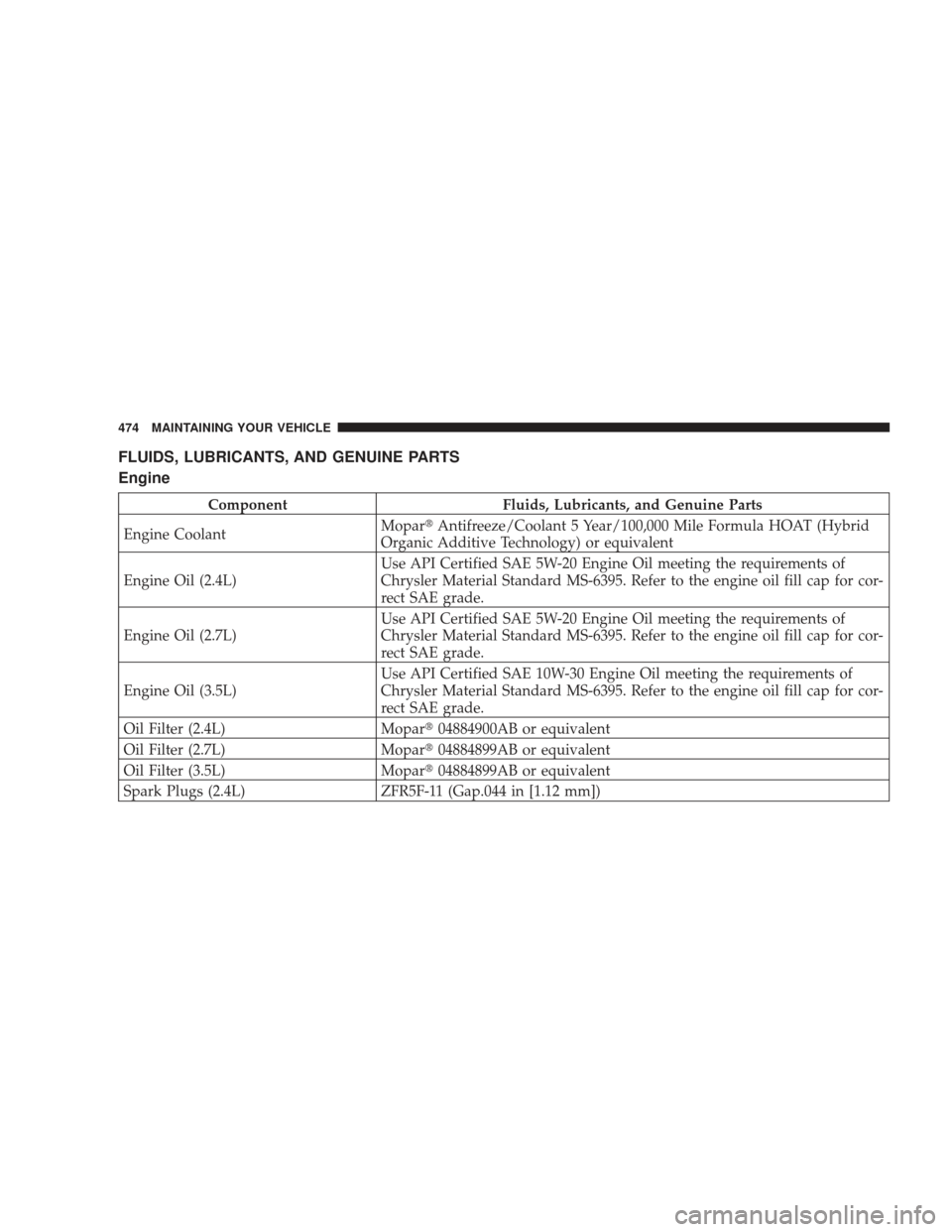

FLUIDS, LUBRICANTS, AND GENUINE PARTS
Engine
ComponentFluids, Lubricants, and Genuine Parts
Engine Coolant Mopar
Antifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hybrid
Organic Additive Technology) or equivalent
Engine Oil (2.4L) Use API Certified SAE 5W-20 Engine Oil meeting the requirements of
Chrysler Material Standard MS-6395. Refer to the engine oil fill cap for cor-
rect SAE grade.
Engine Oil (2.7L) Use API Certified SAE 5W-20 Engine Oil meeting the requirements of
Chrysler Material Standard MS-6395. Refer to the engine oil fill cap for cor-
rect SAE grade.
Engine Oil (3.5L) Use API Certified SAE 10W-30 Engine Oil meeting the requirements of
Chrysler Material Standard MS-6395. Refer to the engine oil fill cap for cor-
rect SAE grade.
Oil Filter (2.4L) Mopar04884900AB or equivalent
Oil Filter (2.7L) Mopar04884899AB or equivalent
Oil Filter (3.5L) Mopar04884899AB or equivalent
Spark Plugs (2.4L) ZFR5F-11 (Gap.044 in [1.12 mm])
474 MAINTAINING YOUR VEHICLE

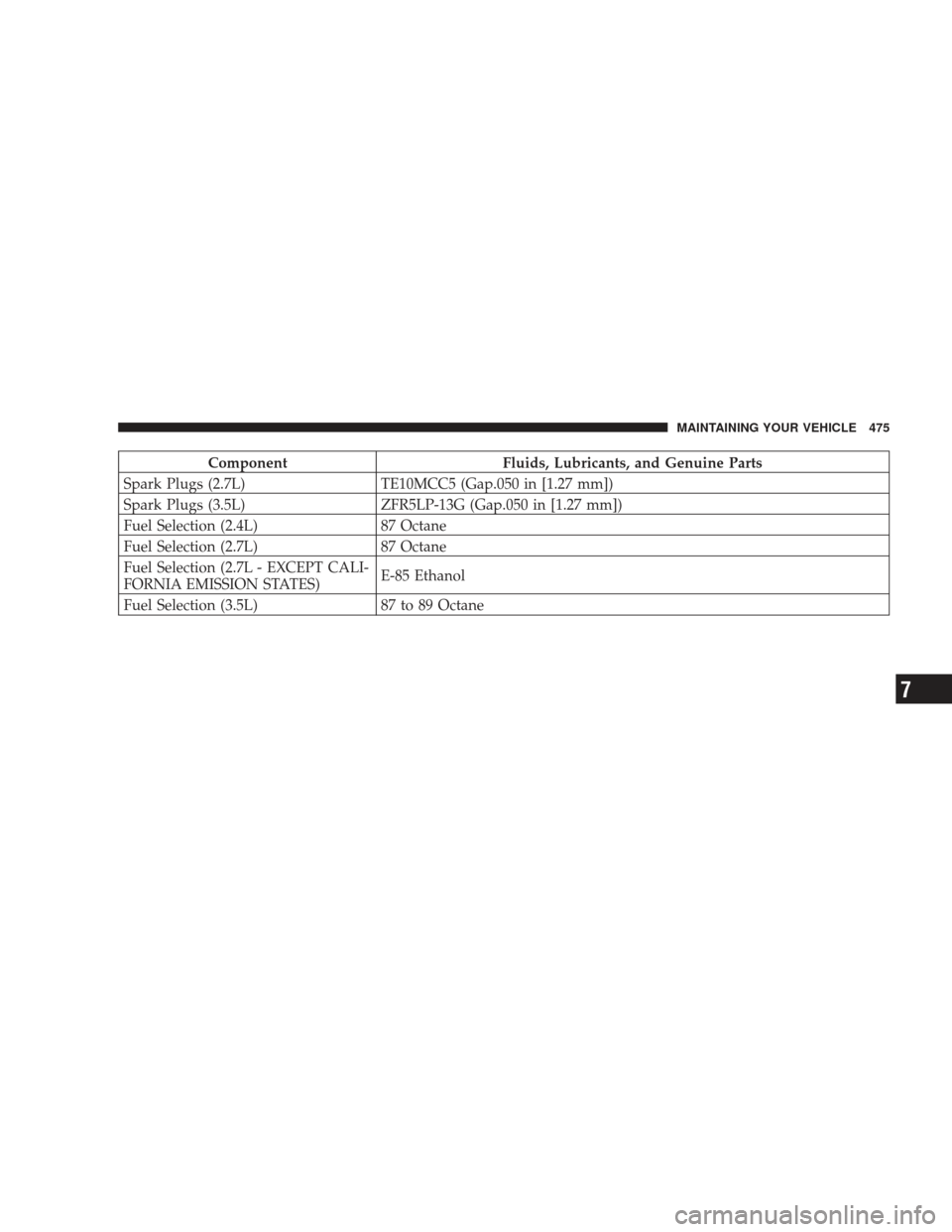

ComponentFluids, Lubricants, and Genuine Parts
Spark Plugs (2.7L) TE10MCC5 (Gap.050 in [1.27 mm])
Spark Plugs (3.5L) ZFR5LP-13G (Gap.050 in [1.27 mm])
Fuel Selection (2.4L) 87 Octane
Fuel Selection (2.7L) 87 Octane
Fuel Selection (2.7L - EXCEPT CALI-
FORNIA EMISSION STATES) E-85 Ethanol
Fuel Selection (3.5L) 87 to 89 Octane
MAINTAINING YOUR VEHICLE 475
7

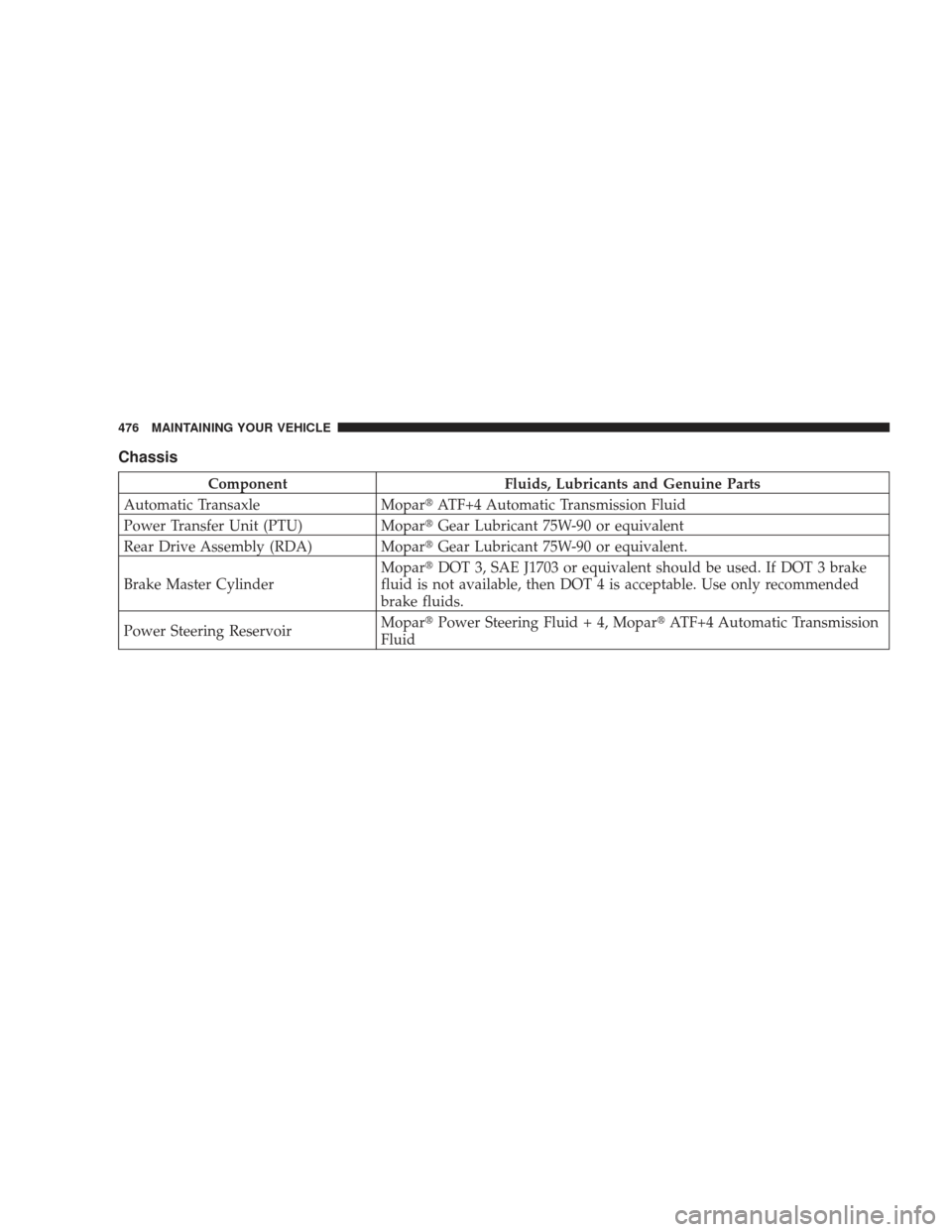

Chassis
ComponentFluids, Lubricants and Genuine Parts
Automatic Transaxle MoparATF+4 Automatic Transmission Fluid
Power Transfer Unit (PTU) MoparGear Lubricant 75W-90 or equivalent
Rear Drive Assembly (RDA) Mopar Gear Lubricant 75W-90 or equivalent.
Brake Master Cylinder Mopar
DOT 3, SAE J1703 or equivalent should be used. If DOT 3 brake
fluid is not available, then DOT 4 is acceptable. Use only recommended
brake fluids.
Power Steering Reservoir Mopar
Power Steering Fluid + 4, Mopar ATF+4 Automatic Transmission
Fluid
476 MAINTAINING YOUR VEHICLE

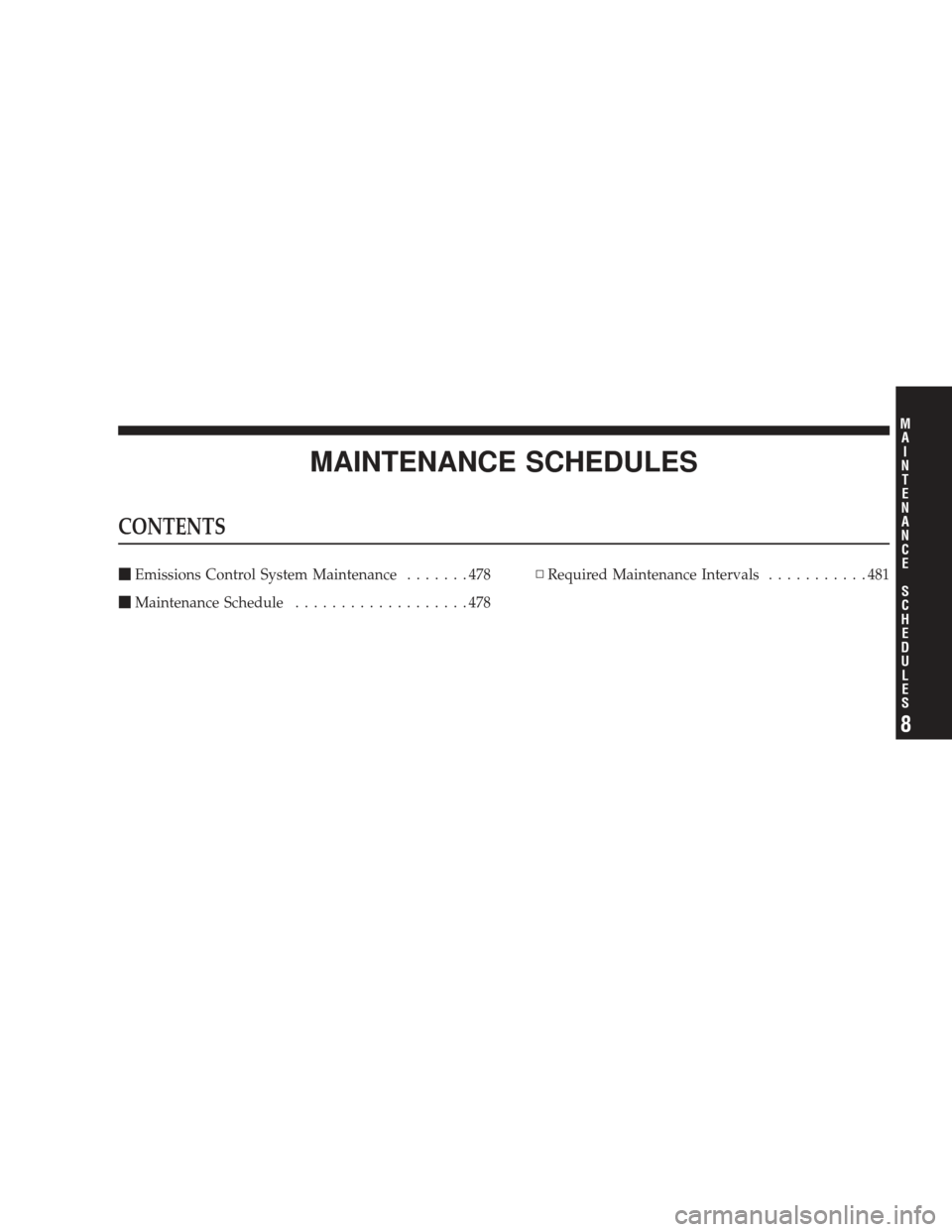

MAINTENANCE SCHEDULES
CONTENTS
Emissions Control System Maintenance .......478
 Maintenance Schedule ...................478 ▫
Required Maintenance Intervals ...........481
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S

EMISSIONS CONTROL SYSTEM MAINTENANCE
The Scheduled Maintenance services listed inbold type,
must be done at the times or mileages specified to ensure
the continued proper functioning of the Emissions Con-
trol System. These, and all other maintenance services
included in this manual, should be done to provide best
vehicle performance and reliability. More frequent main-
tenance may be needed for vehicles in severe operating
conditions, such as dusty areas and very short trip
driving.
Inspection and service should also be done anytime a
malfunction is suspected.
NOTE: Maintenance, replacement, or repair of the emis-
sions control devices and systems on your vehicle may be
performed by any automotive repair establishment or
individual using any automotive part that has been
certified pursuant to U.S. EPA or in the State of Califor-
nia, California Air Resources Board regulations.
MAINTENANCE SCHEDULE
The oil change indicator system will remind you that it is
time to take your vehicle in for scheduled maintenance.
On Electronic Vehicle Information Center (EVIC)
equipped vehicles, “Oil Change Required” will be dis-
played in the EVIC and a single chime will sound,
indicating that an oil change is necessary.
On Non-EVIC equipped vehicles, “Change Oil” will flash
in the instrument cluster odometer and a single chime
will sound, indicating that an oil change is necessary.
Based on engine operation conditions, the oil change
indicator message will illuminate. This means that ser-
vice is required for your vehicle. Have your vehicle
serviced as soon as possible, within the next 500 mi (805
km).
