CavityCartridge
Fuse Mini-
Fuse Description
J7 30 Amp Pink —Anti-Lock Brake Sys-
tem (ABS) Valve/
Electronic Stability
Program (ESP)
J8 40 Amp Green —Power Memory Seat -
if equipped
J9 40 Amp Green —Flex Fuel/PZEV Mo-
tor - if equipped
J10 30 Amp Pink —(If Equipped) Head-
lamp Washer Relay-
(BUX), Manual Tun-
ing Valve
J11 30 Amp Pink —(If Equipped) Sway
Bar/Thatchum Secu-
rity (BUX)/Power
Sliding DoorCavity
Cartridge
Fuse Mini-
Fuse Description
J13 60 Amp Yellow —Ignition Off Draw
(IOD) Main
J14 40 Amp Green —Electric Back Light
(EBL)
J15 30 Amp Pink —Rear Blower - if
equipped
J17 40 Amp Green —Starter Solenoid
J18 20 Amp Yellow — NGC (Powertrain
Control Module)/
Transmission Range
J19 60 Amp Yellow —Radiator Fan Motor
J20 30 Amp Pink —Front Windshield
Wiper Hi/Low
J21 20 Amp Blue —Front/Rear Washer
MAINTAINING YOUR VEHICLE 459
7

CavityCartridge
Fuse Mini-
Fuse Description

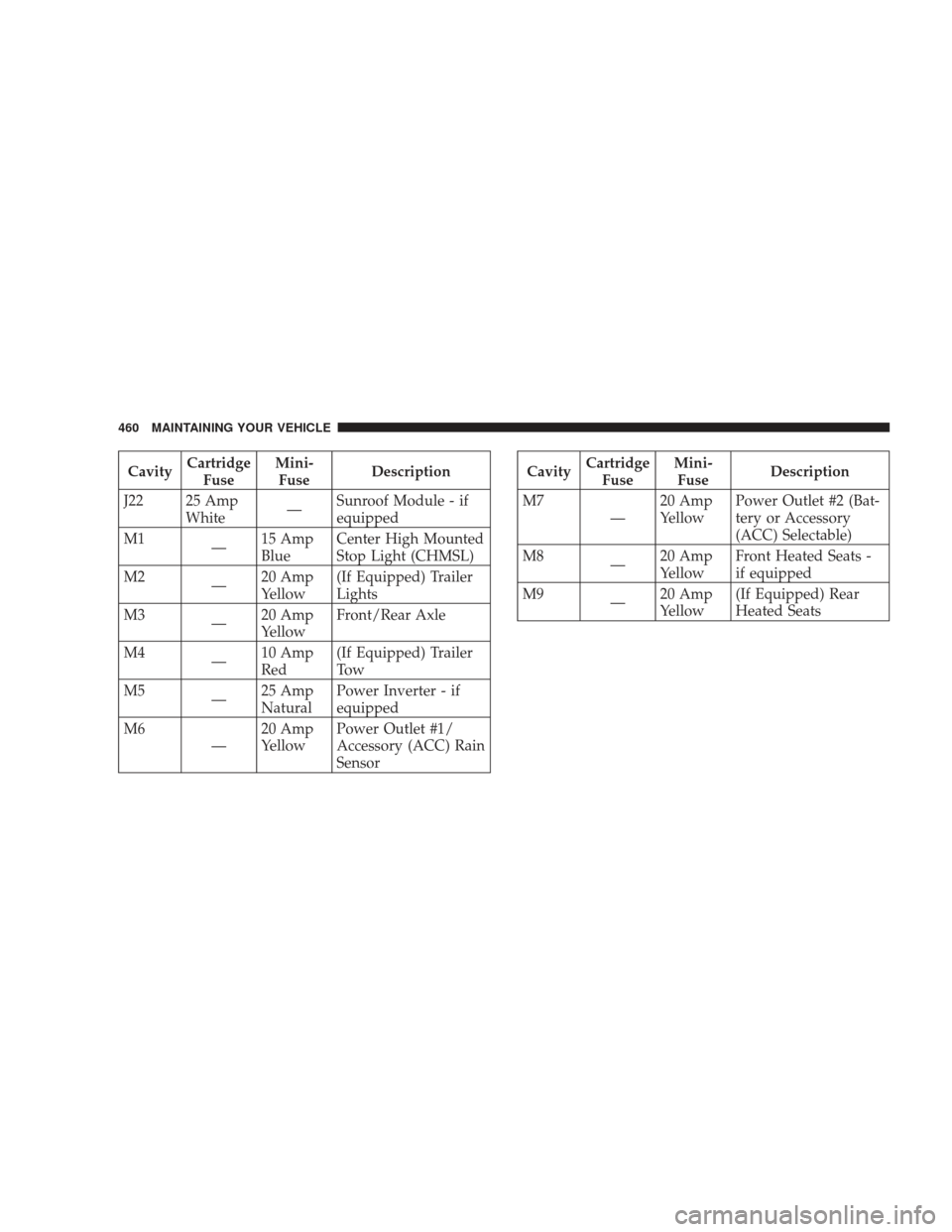

J22 25 Amp White —Sunroof Module - if
equipped
M1 —15 Amp
Blue Center High Mounted
Stop Light (CHMSL)
M2 —20 Amp
Yellow (If Equipped) Trailer
Lights
M3 —20 Amp
Yellow Front/Rear Axle
M4 —10 Amp
Red (If Equipped) Trailer
To w
M5 —25 Amp
Natural Power Inverter - if
equipped
M6 —20 Amp
Yellow Power Outlet #1/
Accessory (ACC) Rain
SensorCavity
Cartridge
Fuse Mini-
Fuse Description
M7 —20 Amp
Yellow Power Outlet #2 (Bat-
tery or Accessory
(ACC) Selectable)
M8 —20 Amp
Yellow Front Heated Seats -
if equipped
M9 —20 Amp
Yellow (If Equipped) Rear
Heated Seats
460 MAINTAINING YOUR VEHICLE

CavityCartridge
Fuse Mini-
Fuse Description

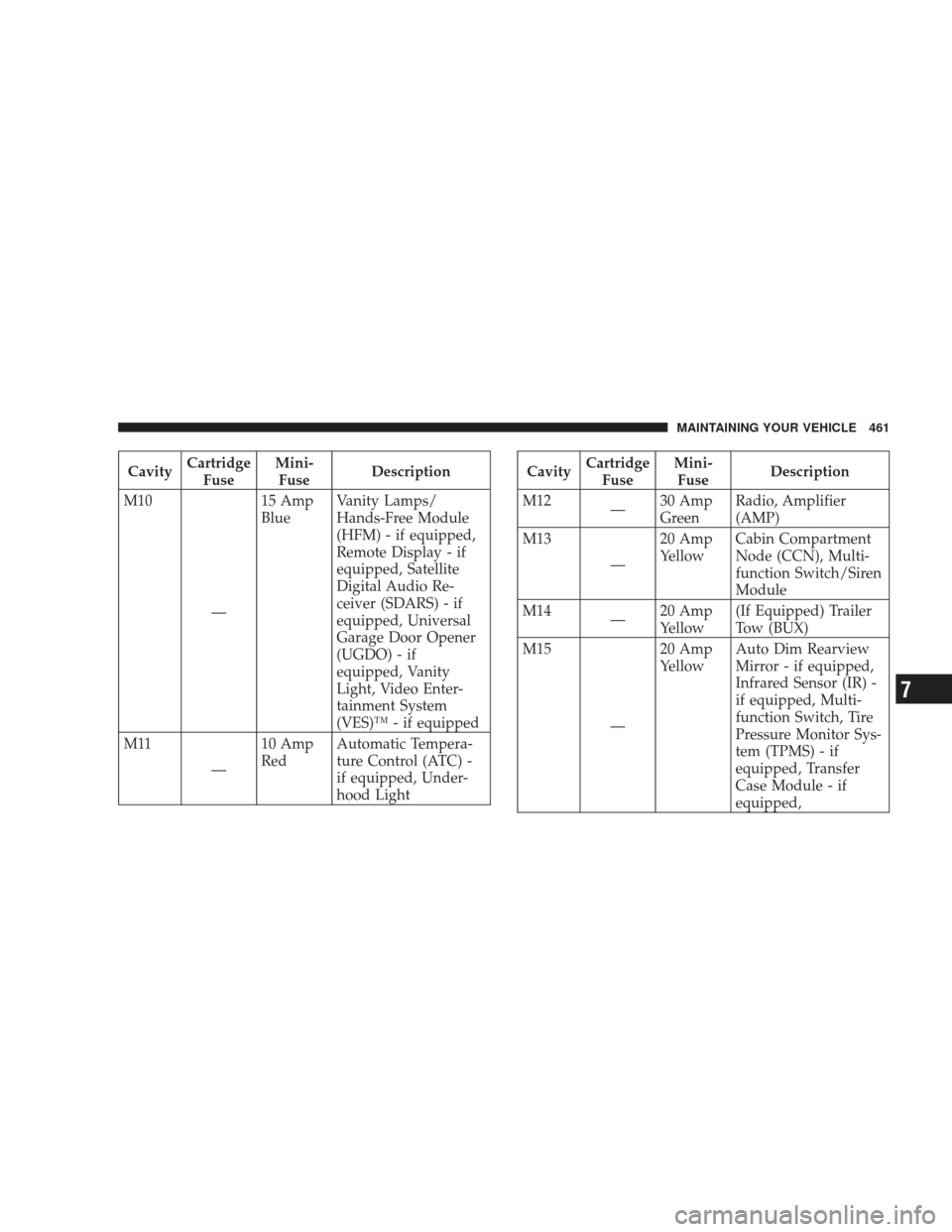

M10
—15 Amp
Blue
Vanity Lamps/
Hands-Free Module
(HFM) - if equipped,
Remote Display - if
equipped, Satellite
Digital Audio Re-
ceiver (SDARS) - if
equipped, Universal
Garage Door Opener
(UGDO) - if
equipped, Vanity
Light, Video Enter-
tainment System
(VES)™ - if equipped
M11
—10 Amp
Red
Automatic Tempera-
ture Control (ATC) -
if equipped, Under-
hood LightCavity
Cartridge
Fuse Mini-
Fuse Description
M12 —30 Amp
Green Radio, Amplifier
(AMP)
M13
—20 Amp
Yellow
Cabin Compartment
Node (CCN), Multi-
function Switch/Siren
Module
M14 —20 Amp
Yellow (If Equipped) Trailer
Tow (BUX)
M15
—20 Amp
Yellow
Auto Dim Rearview
Mirror - if equipped,
Infrared Sensor (IR) -
if equipped, Multi-
function Switch, Tire
Pressure Monitor Sys-
tem (TPMS) - if
equipped, Transfer
Case Module - if
equipped,
MAINTAINING YOUR VEHICLE 461
7

CavityCartridge
Fuse Mini-
Fuse Description
M16 —10 Amp
Red
Occupant Restraint
Controller (ORC)/
Occupant Classifica-
tion Module (OCM)
M17 —15 Amp
Blue Left Park/Side
Marker/Running/Tail
Lights, License Lights
M18 —15 Amp
Blue Right Park/Side
Marker/Running/Tail
Lights
M19 —25 Amp
Natural Auto Shut Down
(ASD) #1 and #2Cavity
Cartridge
Fuse Mini-
Fuse Description
M20
—15 Amp
Blue
Electronic Vehicle In-
formation Center
(EVIC) - if equipped,
Interior Lighting,
Steering Wheel
Switches - if
equipped, Switch
Bank
M21 —20 Amp
Yellow Auto Shut Down
(ASD) #3
M22 —10 Amp
Red Right Horn
M23 —10 Amp
Red Left Horn
M24 —25 Amp
Natural Rear Wiper
462 MAINTAINING YOUR VEHICLE

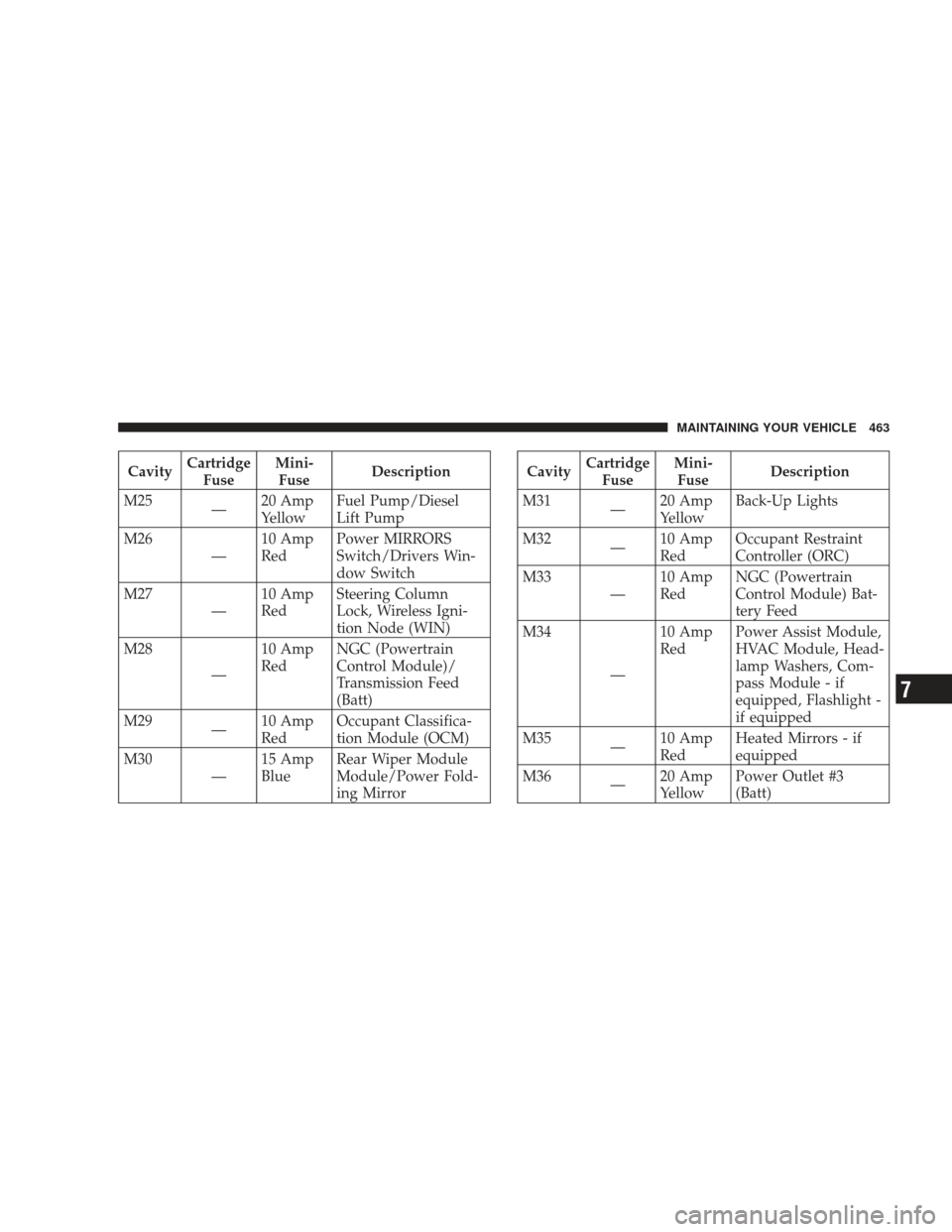

CavityCartridge
Fuse Mini-
Fuse Description
M25 —20 Amp
Yellow Fuel Pump/Diesel
Lift Pump
M26 —10 Amp
Red Power MIRRORS
Switch/Drivers Win-
dow Switch
M27 —10 Amp
Red Steering Column
Lock, Wireless Igni-
tion Node (WIN)
M28
—10 Amp
Red
NGC (Powertrain
Control Module)/
Transmission Feed
(Batt)
M29 —10 Amp
Red Occupant Classifica-
tion Module (OCM)
M30 —15 Amp
Blue Rear Wiper Module
Module/Power Fold-
ing MirrorCavity
Cartridge
Fuse Mini-
Fuse Description
M31 —20 Amp
Yellow Back-Up Lights
M32 —10 Amp
Red Occupant Restraint
Controller (ORC)
M33 —10 Amp
Red NGC (Powertrain
Control Module) Bat-
tery Feed
M34
—10 Amp
Red
Power Assist Module,
HVAC Module, Head-
lamp Washers, Com-
pass Module - if
equipped, Flashlight -
if equipped
M35 —10 Amp
Red Heated Mirrors - if
equipped
M36 —20 Amp
Yellow Power Outlet #3
(Batt)
MAINTAINING YOUR VEHICLE 463
7

CavityCartridge
Fuse Mini-
Fuse Description
M37
—10 Amp
Red
Anti-Lock Brake Sys-
tem (ABS), Electronic
Stability Program
(ESP), STOP LIGHT
Switch
M38 —25 Amp
Natural Lock/Unlock Motors
K1
—— Ignition Run/
Accessory Relay
K2 — — Ignition Run Relay
K3 — — Starter Solenoid Relay
K4 —— Ignition Run/Start
Relay
K5 —— (NGC) Powertrain
Control Module Relay
K6 —— Electric Back Light
(EBL) Relay
K7 — — —
K8 — — —
K9 — — Rear Blower Relay
K10 —— ASD Relay (Feed for
M19 and M21)
K11 —— Radiator Fan Relay
Low Speed
VEHICLE STORAGE
If you will not be using your vehicle for more than 21
days you may want to take steps to preserve your battery.
You may:
•Remove the IOD (Ignition Off-Draw) mini-fuses from
the Totally Integrated Power Module located in the
engine compartment.
•Or, disconnect the batter negative cable.
464 MAINTAINING YOUR VEHICLE

REPLACEMENT BULBS
All the inside bulbs are brass or glass wedge base.
Aluminum base bulbs are not approved and should not
be used for replacement.
LIGHT BULBS — Interior Bulb Number
Courtesy/Reading Lights (Incandescent)........ 578
Courtesy/Reading Lights
(Optional LED) . . . LED (Serviced at Authorized Dealer)
Glove Box Light ......................... 194
Cargo Light ............................ 579
Optional Door Map Pocket/Cupholder
Lighting ........ LED (Serviced at Authorized Dealer)
NOTE: For lighted switches, see your authorized dealer
for replacement instructions. LIGHTS BULBS — Outside
Bulb No.
Low Beam Headlight ..................... 9006
High Beam Headlight ..................... 9005
Front Park/Turn Signal .................3757AK
Side Marker Light ........................ 168
Front Fog Light ..................... 9145//H10
Center High Mounted Stop Light
(CHMSL) ....... LED (Serviced at Authorized Dealer)
Rear Tail/Stop ......................... 3157K
Rear Turn Signal ....................... 3757A
Rear Tail ............................. 3157K
Backup Light .......................... 3157K
License Light ........................... 168
MAINTAINING YOUR VEHICLE 465
7

BULB REPLACEMENT
Low Beam Headlight, High Beam Headlight, Front
Turn Signal/Park Light, Side Marker Light
1. Open the hood.
NOTE:It may be necessary to remove the air cleaner
filter housing and position the Totally Integrated Power
Module (TIPM) aside to replace certain the lights in the
left headlight housing.
2. Rotate the applicable bulb and connector assembly
14
turn counterclockwise and remove the assembly from the
headlight housing.
3. Disconnect the bulb from the harness connector and
then connect the replacement bulb.
1 — Front Turn Signal/Park Light Bulb
2 — Side Marker Light Bulb
3 — Low Beam Headlight Bulb
4 — High Beam Headlight Bulb
466 MAINTAINING YOUR VEHICLE

CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
4. Install the bulb and connector assembly into the
headlight housing and rotate it
14turn clockwise to lock
it in place.
Front Fog Light
NOTE: Turn the steering wheel to the right if replacing
the left front fog light or to the left if replacing the right
front fog light to allow for easier access to the front of the
wheel well.
1. Remove the fasteners retaining the front lower wheel
well access panel and remove the access panel. 2. Rotate the bulb’s electrical connector
14turn counter-
clockwise and remove it from the fog light housing.
3. Remove the bulb from the connector socket and install
the replacement bulb.
MAINTAINING YOUR VEHICLE 467
7

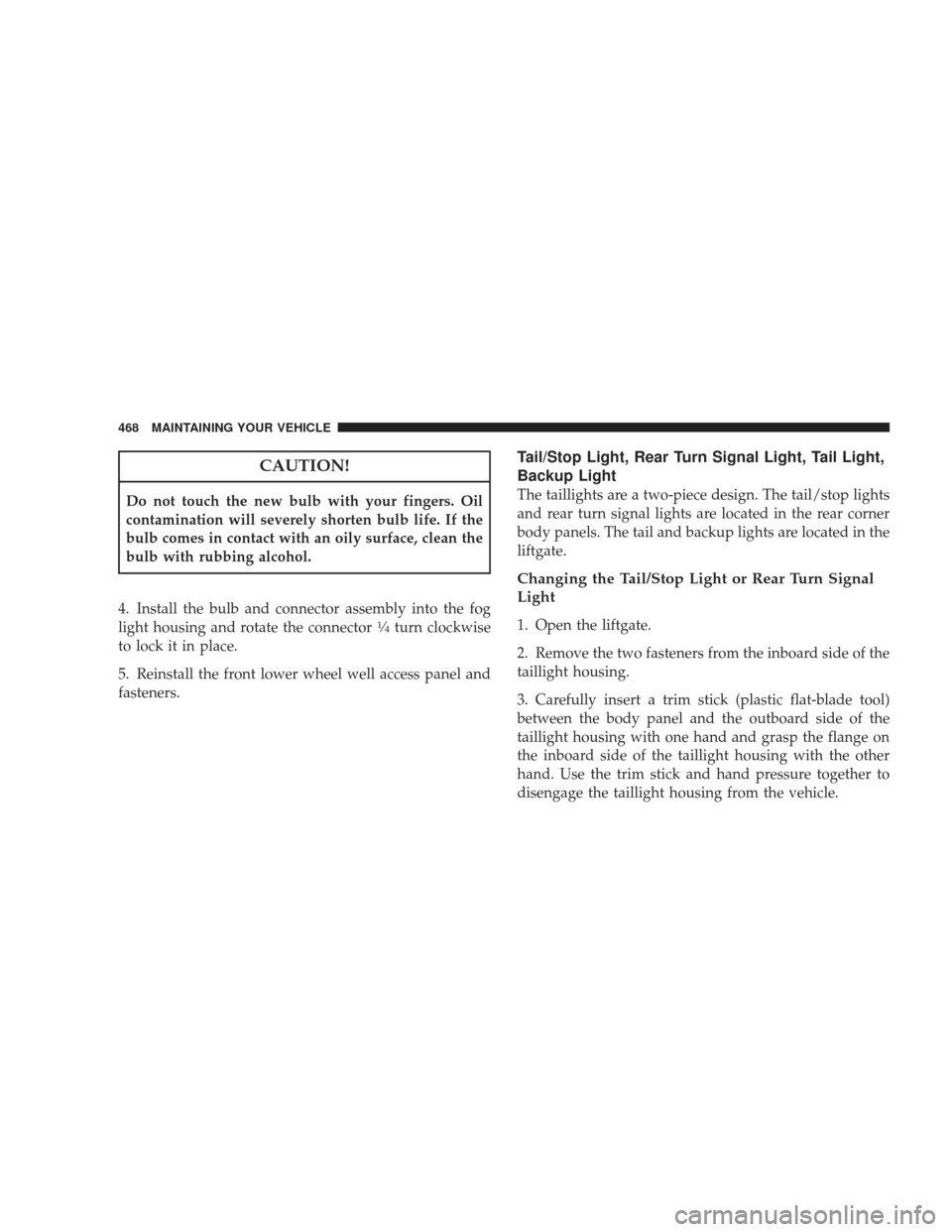

CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with an oily surface, clean the
bulb with rubbing alcohol.
4. Install the bulb and connector assembly into the fog
light housing and rotate the connector
14turn clockwise
to lock it in place.
5. Reinstall the front lower wheel well access panel and
fasteners.
Tail/Stop Light, Rear Turn Signal Light, Tail Light,
Backup Light
The taillights are a two-piece design. The tail/stop lights
and rear turn signal lights are located in the rear corner
body panels. The tail and backup lights are located in the
liftgate.
Changing the Tail/Stop Light or Rear Turn Signal
Light
1. Open the liftgate.
2. Remove the two fasteners from the inboard side of the
taillight housing.
3. Carefully insert a trim stick (plastic flat-blade tool)
between the body panel and the outboard side of the
taillight housing with one hand and grasp the flange on
the inboard side of the taillight housing with the other
hand. Use the trim stick and hand pressure together to
disengage the taillight housing from the vehicle.
468 MAINTAINING YOUR VEHICLE
