DODGE JOURNEY 2012 1.G Owners Manual
Manufacturer: DODGE, Model Year: 2012, Model line: JOURNEY, Model: DODGE JOURNEY 2012 1.GPages: 603
Page 91 of 603
NOTE:Ensure that the tether strap does not slip into the
opening between the seatbacks as you remove slack in
the strap.
WARNING!
An incorrectly anchored tether strap could lead to
increased head motion and possible injury to the
child. Use only the anchor positions directly behind
the child seat to secure a child restraint top tether
strap.
Transporting Pets
Air Bags deploying in the front seat could harm your pet.
An unrestrained pet will be thrown about and possibly
injured, or injure a passenger during panic braking or in
a collision.
Pets should be restrained in the rear seat in pet harnesses
or pet carriers that are secured by seat belts.
ENGINE BREAK-IN RECOMMENDATIONS
A long break-in period is not required for the engine and
drivetrain (transmission and axle) in your vehicle.
Drive moderately during the first 300 mi (500 km). After
the initial 60 mi (100 km), speeds up to 50 or 55 mph (80
or 90 km/h) are desirable.
While cruising, brief full-throttle acceleration, within the
limits of local traffic laws contributes to a good break-in.
Wide-open throttle acceleration in low gear can be detri-
mental and should be avoided.
The engine oil installed in the engine at the factory is a
high-quality energy-conserving type lubricant. Oil
changes should be consistent with anticipated climate
conditions under which vehicle operations will occur. For
the recommended viscosity and quality grades, refer to
“Maintenance Procedures” in “Maintaining Your Ve-
hicle”. NON-DETERGENT OR STRAIGHT MINERAL
OILS MUST NEVER BE USED.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 89
Page 92 of 603
A new engine may consume some oil during its first few
thousand miles (kilometers) of operation. This should be
considered a normal part of the break-in and not inter-
preted as an indication of difficulty.
SAFETY TIPS
Transporting Passengers
NEVER TRANSPORT PASSENGERS IN THE CARGO
AREA.
WARNING!
•Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.(Continued)
WARNING! (Continued)
•It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be seri-
ously injured or killed.
•Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts.
•Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
•On seven passenger models, do not drive the
vehicle with the second row passenger seat in the
easy entry/exit position (seat cushion flipped up-
ward and seat moved forward), as this position is
only intended for entering and exiting the third
row seats. Failure to follow this warning may
result in personal injury.(Continued)
90 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 93 of 603
WARNING! (Continued)
•On seven passenger models, do not allow a pas-
senger to sit in a third row seat with the second
row seatback(s) folded flat. In a collision, the
passenger could slide underneath the seat belt and
be seriously or even fatally injured.
Exhaust Gas
WARNING!
Exhaust gases can injure or kill. They contain carbon
monoxide (CO), which is colorless and odorless.
Breathing it can make you unconscious and can
eventually poison you. To avoid breathing (CO),
follow these safety tips:(Continued)
WARNING! (Continued)
•Do not run the engine in a closed garage or in
confined areas any longer than needed to move
your vehicle in or out of the area.
•If you are required to drive with the trunk/liftgate
open, make sure that all windows are closed and
the climate control BLOWER switch is set at high
speed. DO NOT use the recirculation mode.
•If it is necessary to sit in a parked vehicle with the
engine running, adjust your heating or cooling
controls to force outside air into the vehicle. Set
the blower at high speed.
The best protection against carbon monoxide entry into
the vehicle body is a properly maintained engine exhaust
system.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 91
Page 94 of 603

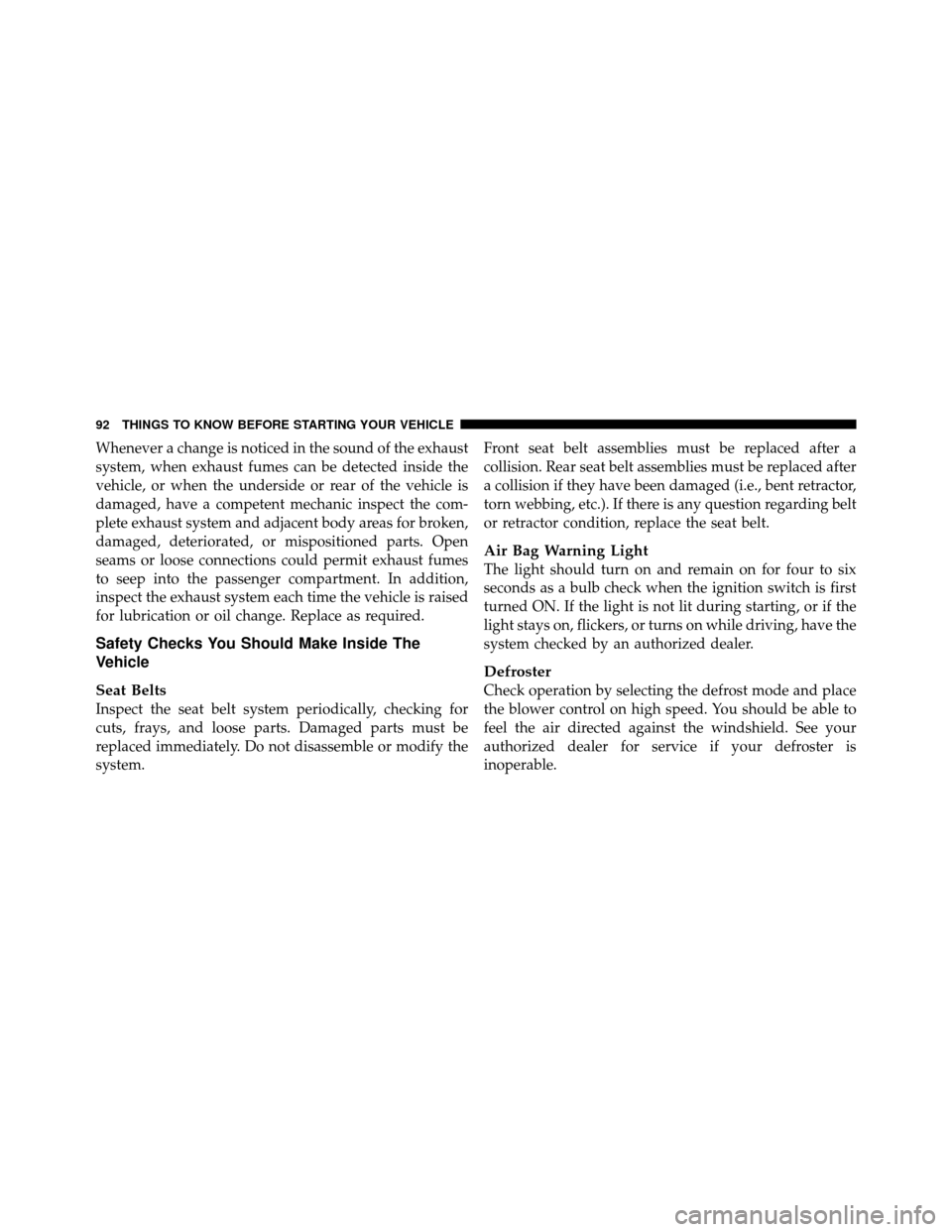

Whenever a change is noticed in the sound of the exhaust
system, when exhaust fumes can be detected inside the
vehicle, or when the underside or rear of the vehicle is
damaged, have a competent mechanic inspect the com-
plete exhaust system and adjacent body areas for broken,
damaged, deteriorated, or mispositioned parts. Open
seams or loose connections could permit exhaust fumes
to seep into the passenger compartment. In addition,
inspect the exhaust system each time the vehicle is raised
for lubrication or oil change. Replace as required.
Safety Checks You Should Make Inside The
Vehicle
Seat Belts
Inspect the seat belt system periodically, checking for
cuts, frays, and loose parts. Damaged parts must be
replaced immediately. Do not disassemble or modify the
system.Front seat belt assemblies must be replaced after a
collision. Rear seat belt assemblies must be replaced after
a collision if they have been damaged (i.e., bent retractor,
torn webbing, etc.). If there is any question regarding belt
or retractor condition, replace the seat belt.
Air Bag Warning Light
The light should turn on and remain on for four to six
seconds as a bulb check when the ignition switch is first
turned ON. If the light is not lit during starting, or if the
light stays on, flickers, or turns on while driving, have the
system checked by an authorized dealer.
Defroster
Check operation by selecting the defrost mode and place
the blower control on high speed. You should be able to
feel the air directed against the windshield. See your
authorized dealer for service if your defroster is
inoperable.
92 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 95 of 603

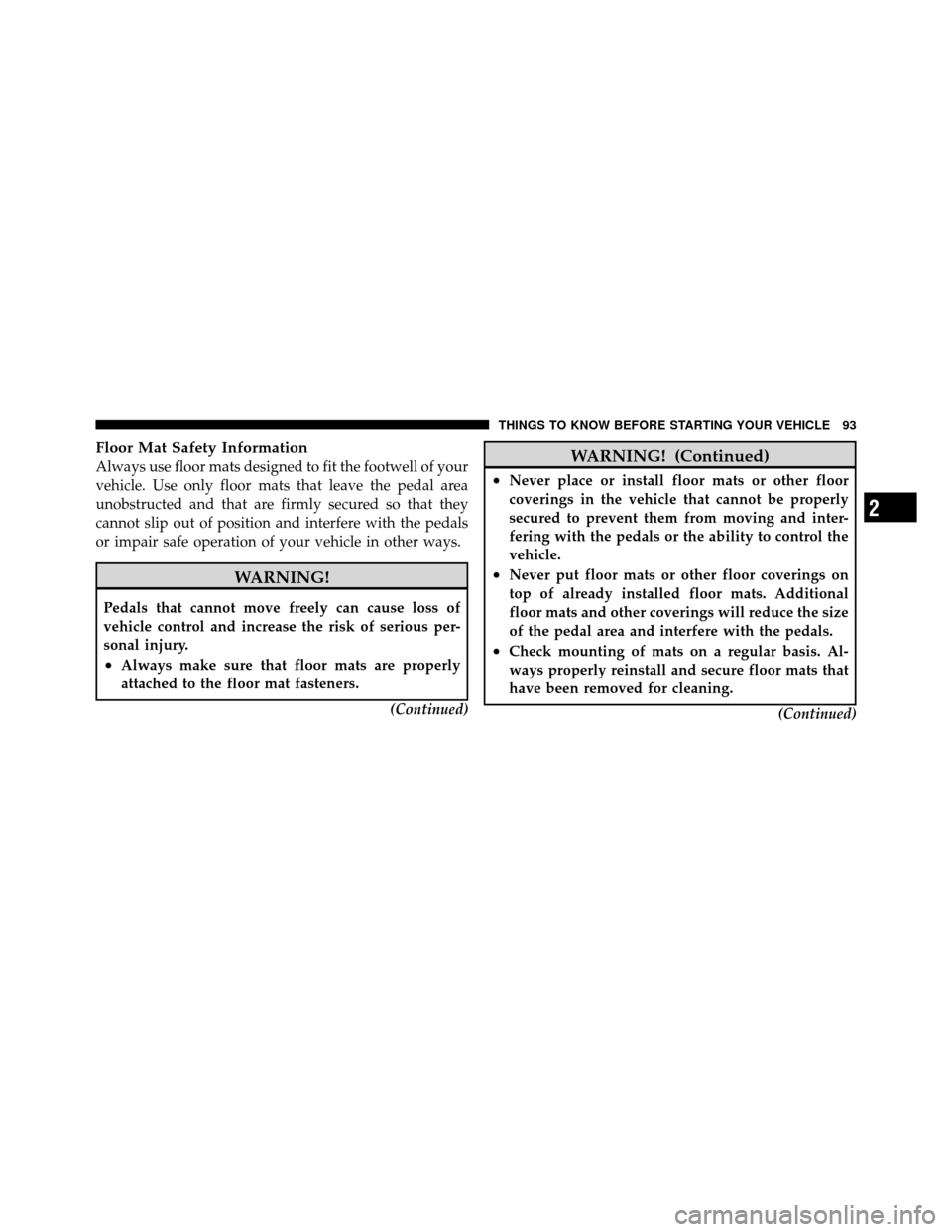

Floor Mat Safety Information
Always use floor mats designed to fit the footwell of your
vehicle. Use only floor mats that leave the pedal area
unobstructed and that are firmly secured so that they
cannot slip out of position and interfere with the pedals
or impair safe operation of your vehicle in other ways.
WARNING!
Pedals that cannot move freely can cause loss of
vehicle control and increase the risk of serious per-
sonal injury.
•Always make sure that floor mats are properly
attached to the floor mat fasteners.(Continued)
WARNING! (Continued)
•Never place or install floor mats or other floor
coverings in the vehicle that cannot be properly
secured to prevent them from moving and inter-
fering with the pedals or the ability to control the
vehicle.
•Never put floor mats or other floor coverings on
top of already installed floor mats. Additional
floor mats and other coverings will reduce the size
of the pedal area and interfere with the pedals.
•Check mounting of mats on a regular basis. Al-
ways properly reinstall and secure floor mats that
have been removed for cleaning.(Continued)
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 93
Page 96 of 603
WARNING! (Continued)
•Always make sure that objects cannot fall into the
driver footwell while the vehicle is moving. Ob-
jects can become trapped under the brake pedal
and accelerator pedal causing a loss of vehicle
control.
•If required, mounting posts must be properly
installed, if not equipped from the factory.
Failure to properly follow floor mat installation or
mounting can cause interference with the brake
pedal and accelerator pedal operation causing loss
of control of the vehicle.
Periodic Safety Checks You Should Make Outside
The Vehicle
Tires
Examine tires for excessive tread wear and uneven wear
patterns. Check for stones, nails, glass, or other objectslodged in the tread or sidewall. Inspect the tread for cuts
and cracks. Inspect sidewalls for cuts, cracks and bulges.
Check the wheel nuts for tightness. Check the tires
(including spare) for proper cold inflation pressure.
Lights
Have someone observe the operation of exterior lights
while you work the controls. Check Turn Signal and High
Beam Indicator Lights on the instrument panel.
Door Latches
Check for positive closing, latching, and locking.
Fluid Leaks
Check area under vehicle after overnight parking for fuel,
engine coolant, oil, or other fluid leaks. Also, if gasoline
fumes are detected or if fuel, power steering fluid, or
brake fluid leaks are suspected, the cause should be
located and corrected immediately.
94 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 97 of 603

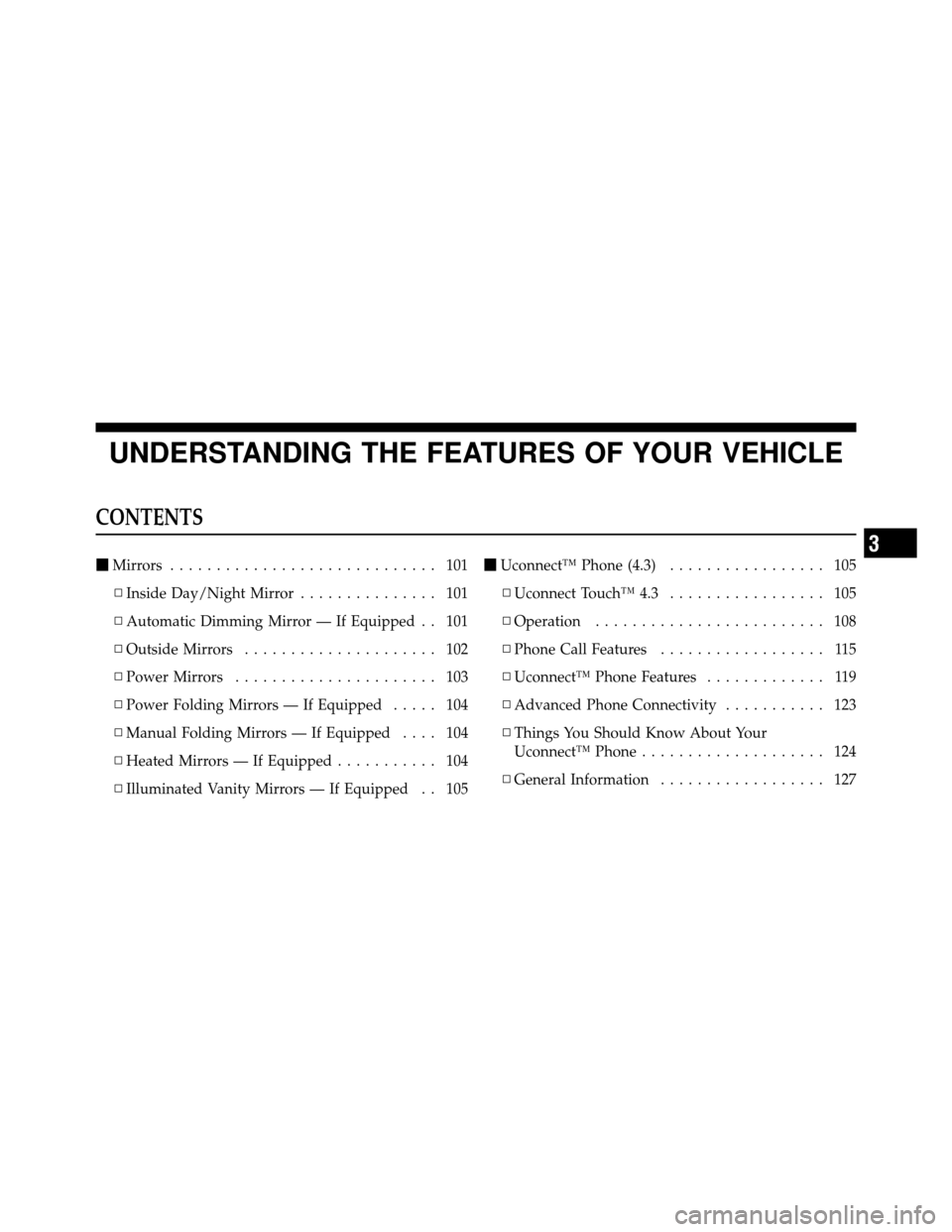

UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
Mirrors ............................. 101
▫ Inside Day/Night Mirror ............... 101
▫ Automatic Dimming Mirror — If Equipped . . 101
▫ Outside Mirrors ..................... 102
▫ Power Mirrors ...................... 103
▫ Power Folding Mirrors — If Equipped ..... 104
▫ Manual Folding Mirrors — If Equipped .... 104
▫ Heated Mirrors — If Equipped ........... 104
▫ Illuminated Vanity Mirrors — If Equipped . . 105
Uconnect™ Phone (4.3) ................. 105
▫ Uconnect Touch™ 4.3 ................. 105
▫ Operation ......................... 108
▫ Phone Call Features .................. 115
▫ Uconnect™ Phone Features ............. 119
▫ Advanced Phone Connectivity ........... 123
▫ Things You Should Know About Your
Uconnect™ Phone .................... 124
▫ General Information .................. 127
3
Page 98 of 603

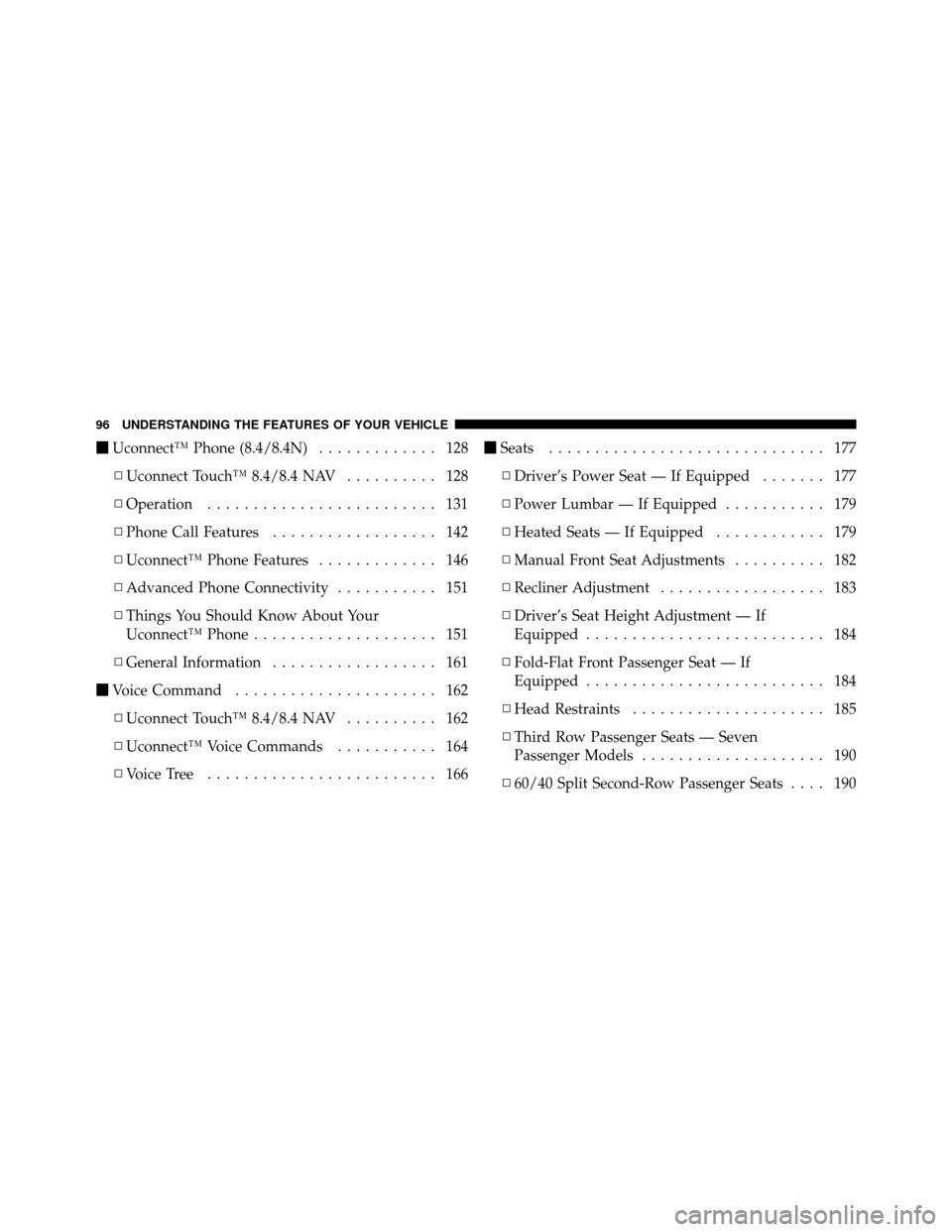

Uconnect™ Phone (8.4/8.4N) ............. 128
▫ Uconnect Touch™ 8.4/8.4 NAV .......... 128
▫ Operation ......................... 131
▫ Phone Call Features .................. 142
▫ Uconnect™ Phone Features ............. 146
▫ Advanced Phone Connectivity ........... 151
▫ Things You Should Know About Your
Uconnect™ Phone .................... 151
▫ General Information .................. 161
Voice Command ...................... 162
▫ Uconnect Touch™ 8.4/8.4 NAV .......... 162
▫ Uconnect™ Voice Commands ........... 164
▫ Voice Tree ......................... 166
Seats .............................. 177
▫ Driver’s Power Seat — If Equipped ....... 177
▫ Power Lumbar — If Equipped ........... 179
▫ Heated Seats — If Equipped ............ 179
▫ Manual Front Seat Adjustments .......... 182
▫ Recliner Adjustment .................. 183
▫ Driver’s Seat Height Adjustment — If
Equipped .......................... 184
▫ Fold-Flat Front Passenger Seat — If
Equipped .......................... 184
▫ Head Restraints ..................... 185
▫ Third Row Passenger Seats — Seven
Passenger Models .................... 190
▫ 60/40 Split Second-Row Passenger Seats .... 190
96 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 99 of 603
▫50/50 Split Third-Row Passenger Seats With
Fold-Flat Feature —
Seven Passenger Models ............... 197
To Open And Close The Hood ............ 200
Lights ............................. 202
▫ Headlight Switch .................... 202
▫ Automatic Headlights — If Equipped ...... 202
▫ Headlights On With Wipers (Available With
Automatic Headlights Only) ............ 203
▫ Headlight Time Delay ................. 203
▫ Daytime Running Lights (DRL) — If
Equipped .......................... 204
▫ Lights-On Reminder .................. 204
▫ Fog Lights — If Equipped .............. 204 ▫
Multifunction Lever .................. 205
▫ Turn Signals ........................ 205
▫ Lane Change Assist ................... 206
▫ High/Low Beam Switch ............... 206
▫ Flash-To-Pass ....................... 206
▫ Interior Lights ...................... 206
▫ Map/Reading Lights .................. 208
Windshield Wipers And Washers .......... 208
▫ Intermittent Wiper System .............. 209
▫ Windshield Wiper Operation ............ 210
▫ Windshield Washers .................. 211
▫ Mist Feature ........................ 212
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 97
Page 100 of 603
▫Headlights With Wipers (Available With
Automatic Headlights Only) ............ 212
Tilt/Telescoping Steering Column .......... 212
Electronic Speed Control — If Equipped ..... 213
▫ To Activate ......................... 214
▫ To Set A Desired Speed ................ 215
▫ To Deactivate ....................... 215
▫ To Resume Speed .................... 215
▫ To Vary The Speed Setting .............. 215
▫ To Accelerate For Passing .............. 216
Parksense Rear Park Assist — If Equipped . . . 216
▫ Parksense Sensors................... 217
▫ Parksense Warning Display ............ 217 ▫
Parksense Display................... 218
▫ Enabling And Disabling Parksense ....... 221
▫ Service The Parksense Rear Park Assist
System ............................ 222
▫ Cleaning The Parksense System......... 222
▫ Parksense System Usage Precautions ...... 222
Parkview Rear Back Up Camera — If
Equipped ............................ 225
▫ Turning Parkview On Or Off — With Touch
Screen Radio ....................... 227
Overhead Console ..................... 227
▫ Courtesy/Reading Lights .............. 227
▫ Sunglasses Storage ................... 228
▫ Interior Observation Mirror ............. 229
98 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
