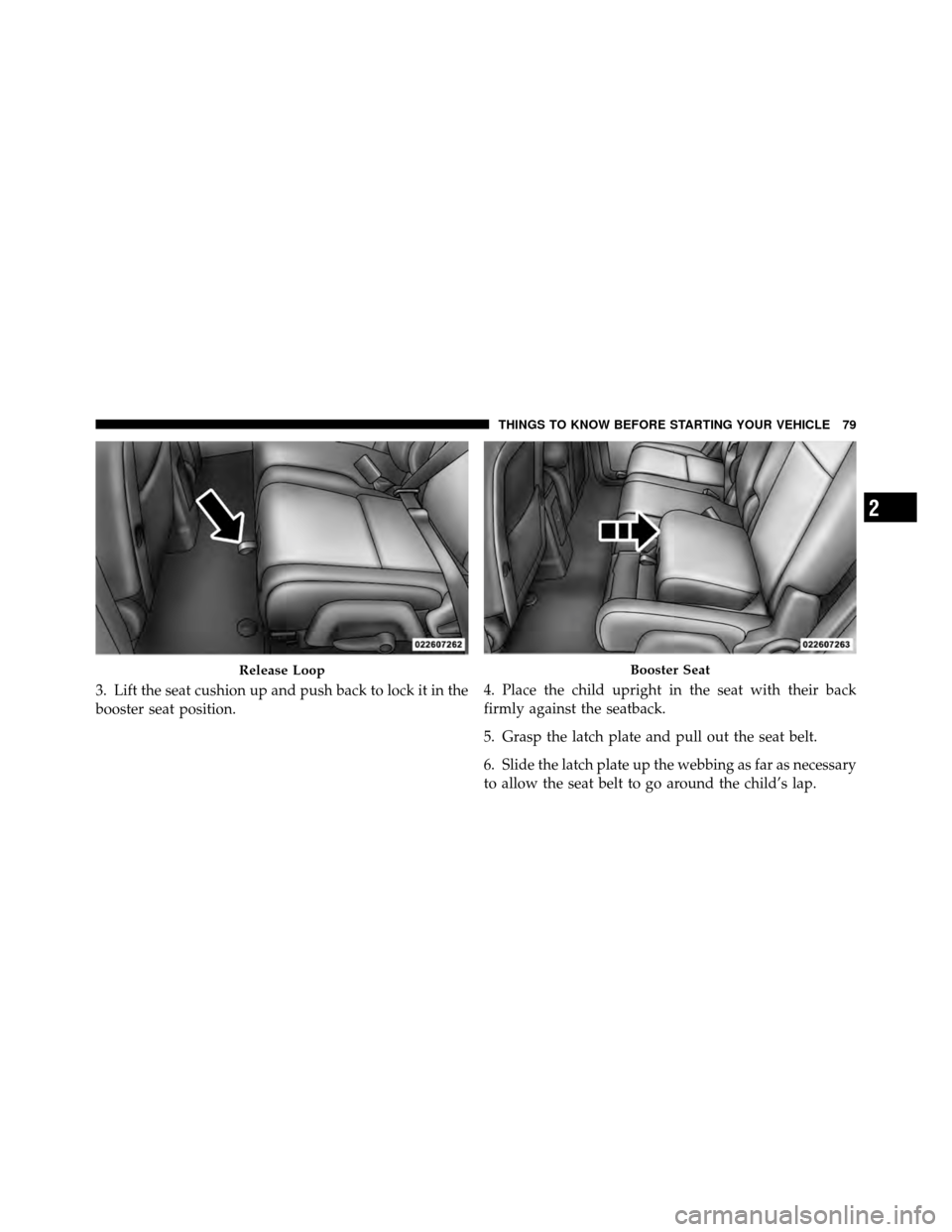

Page 81 of 603
3. Lift the seat cushion up and push back to lock it in the
booster seat position.4. Place the child upright in the seat with their back
firmly against the seatback.
5. Grasp the latch plate and pull out the seat belt.
6. Slide the latch plate up the webbing as far as necessary
to allow the seat belt to go around the child’s lap.
Release LoopBooster Seat
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 79

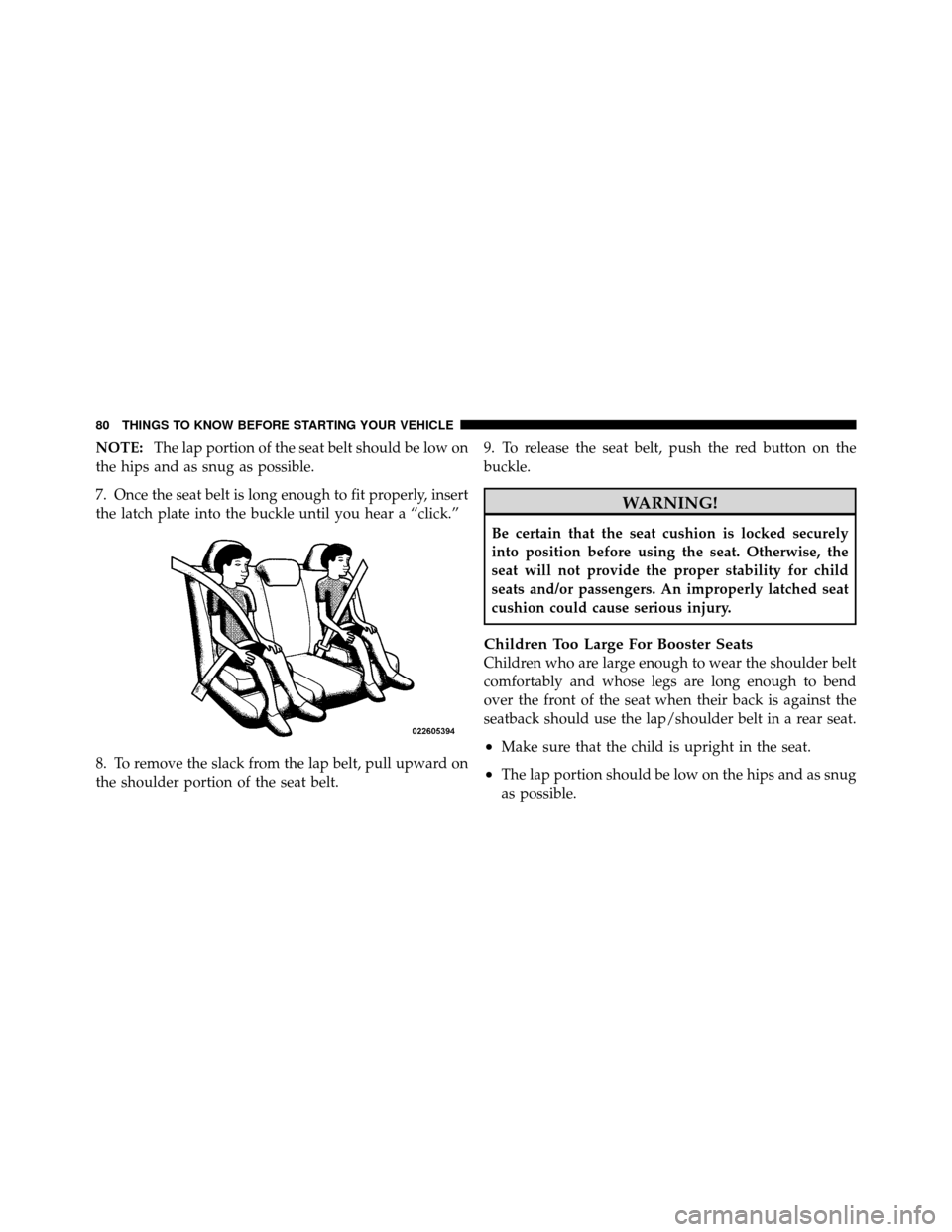

Page 82 of 603
NOTE:The lap portion of the seat belt should be low on
the hips and as snug as possible.
7. Once the seat belt is long enough to fit properly, insert
the latch plate into the buckle until you hear a “click.”
8. To remove the slack from the lap belt, pull upward on
the shoulder portion of the seat belt. 9. To release the seat belt, push the red button on the
buckle.
WARNING!
Be certain that the seat cushion is locked securely
into position before using the seat. Otherwise, the
seat will not provide the proper stability for child
seats and/or passengers. An improperly latched seat
cushion could cause serious injury.
Children Too Large For Booster Seats
Children who are large enough to wear the shoulder belt
comfortably and whose legs are long enough to bend
over the front of the seat when their back is against the
seatback should use the lap/shoulder belt in a rear seat.
•Make sure that the child is upright in the seat.
•The lap portion should be low on the hips and as snug
as possible.
80 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

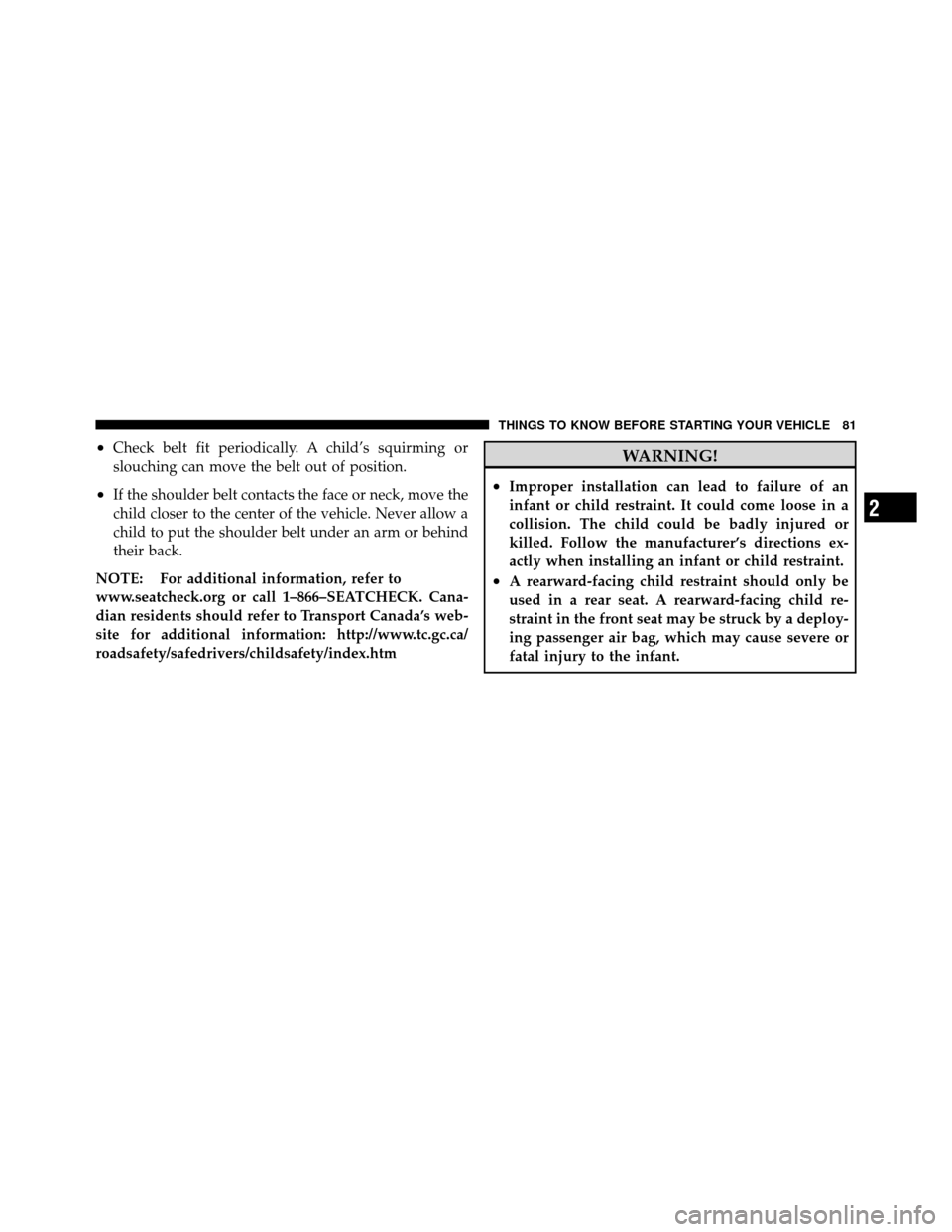

Page 83 of 603
•Check belt fit periodically. A child’s squirming or
slouching can move the belt out of position.
•If the shoulder belt contacts the face or neck, move the
child closer to the center of the vehicle. Never allow a
child to put the shoulder belt under an arm or behind
their back.
NOTE: For additional information, refer to
www.seatcheck.org or call 1–866–SEATCHECK. Cana-
dian residents should refer to Transport Canada’s web-
site for additional information: http://www.tc.gc.ca/
roadsafety/safedrivers/childsafety/index.htm
WARNING!
•Improper installation can lead to failure of an
infant or child restraint. It could come loose in a
collision. The child could be badly injured or
killed. Follow the manufacturer’s directions ex-
actly when installing an infant or child restraint.
•A rearward-facing child restraint should only be
used in a rear seat. A rearward-facing child re-
straint in the front seat may be struck by a deploy-
ing passenger air bag, which may cause severe or
fatal injury to the infant.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 81
Page 84 of 603
Here are some tips on getting the most out of your child
restraint:
•Before buying any restraint system, make sure that it
has a label certifying that it meets all applicable Safety
Standards. Chrysler Group LLC also recommends that
you make sure that you can install the child restraint in
the vehicle where you will use it before you buy it.
•The restraint must be appropriate for your child’s
weight and height. Check the label on the restraint for
weight and height limits.
•Carefully follow the instructions that come with the
restraint. If you install the restraint improperly, it may
not work when you need it.
•Buckle the child into the seat according to the child
restraint manufacturer’s directions.
WARNING!
When your child restraint is not in use, secure it in
the vehicle with the seat belt or remove it from the
vehicle. Do not leave it loose in the vehicle. In a
sudden stop or accident, it could strike the occupants
or seatbacks and cause serious personal injury.
Lower Anchors and Tether for CHildren (LATCH)
Your vehicle’s second row passenger seats are equipped
with the child restraint anchor system called LATCH. The
LATCH system provides for the installation of the child
restraint without using the vehicle’s seat belts, instead
securing the child restraint using lower anchors and
upper tether straps from the child restraint to the vehicle
structure.
LATCH-compatible child restraint systems are now avail-
able. However, because the lower anchors are to be
introduced over a period of years, child restraint systems
82 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 85 of 603
having attachments for those anchors will continue to
have features for installation using the vehicle’s seat
belts. Child restraints having tether straps and hooks for
connection to the top tether anchors have been available
for some time. For some older child restraints, many
child restraint manufacturers offer add-on tether strap
kits or retrofit kits. You are urged to take advantage of all
the available attachments provided with your child re-
straint in any vehicle.
All three second-row passenger seating positions have
lower anchors that are capable of accommodating
LATCH-compatible child seats. You should never install
LATCH-compatible child seats so that two seats share a
common lower anchorage. If installing child seats in
adjacent seating positions, or if your child restraints are
not LATCH-compatible, install the restraints using the
vehicle’s seat belts.

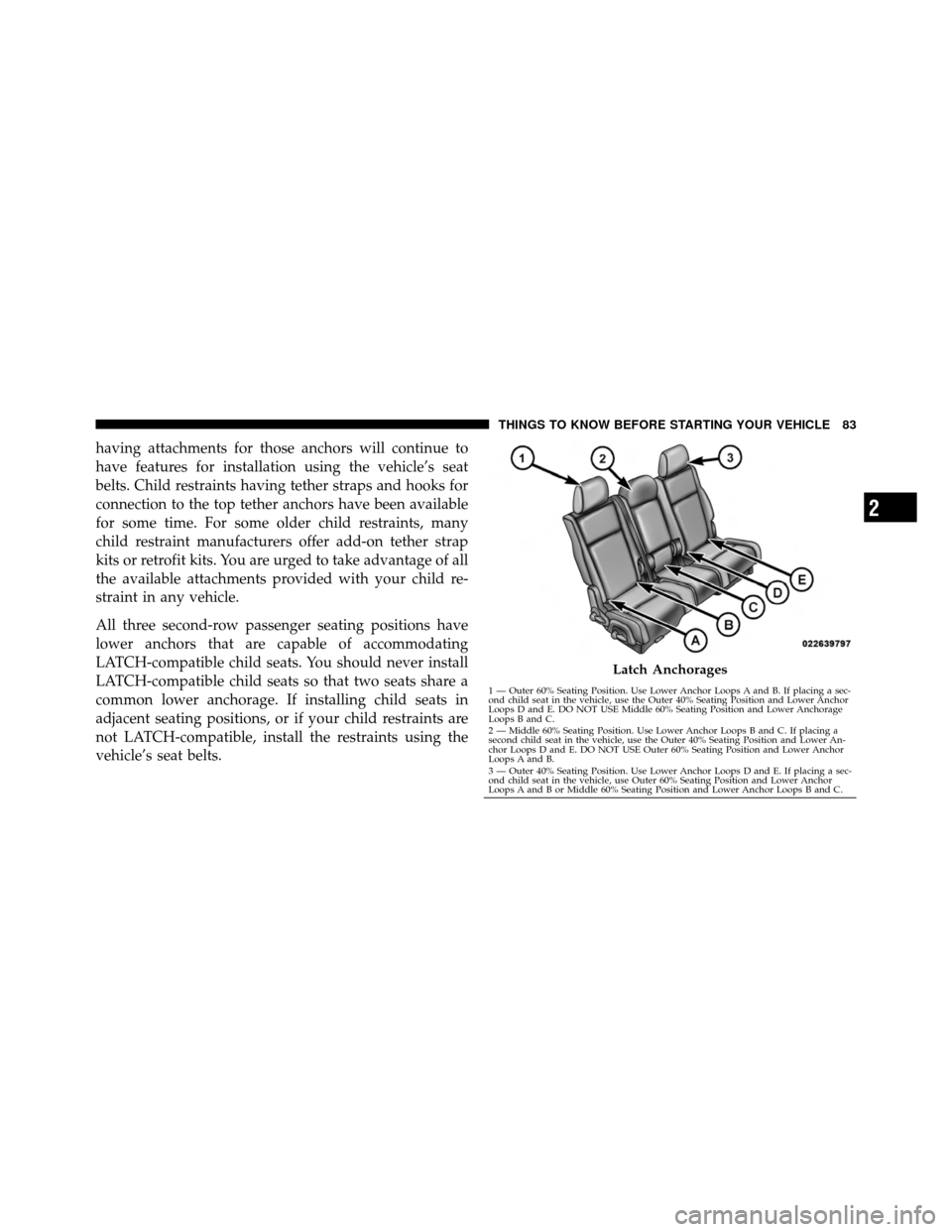

Latch Anchorages
1 — Outer 60% Seating Position. Use Lower Anchor Loops A and B. If placing a sec-
ond child seat in the vehicle, use the Outer 40% Seating Position and Lower Anchor
Loops D and E. DO NOT USE Middle 60% Seating Position and Lower Anchorage
Loops B and C.
2 — Middle 60% Seating Position. Use Lower Anchor Loops B and C. If placing a
second child seat in the vehicle, use the Outer 40% Seating Position and Lower An-
chor Loops D and E. DO NOT USE Outer 60% Seating Position and Lower Anchor
Loops A and B.
3 — Outer 40% Seating Position. Use Lower Anchor Loops D and E. If placing a sec-
ond child seat in the vehicle, use Outer 60% Seating Position and Lower Anchor
Loops A and B or Middle 60% Seating Position and Lower Anchor Loops B and C.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 83

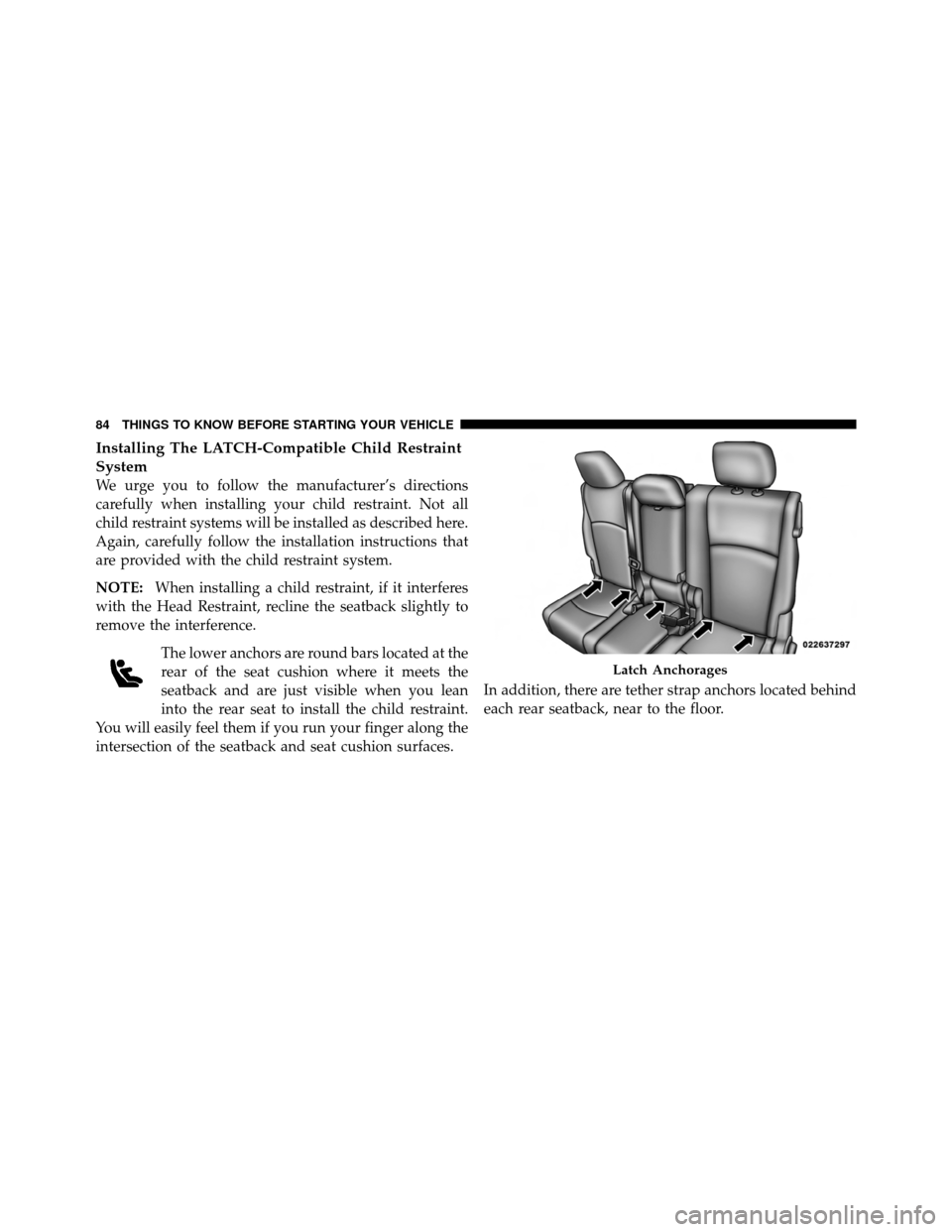

Page 86 of 603
Installing The LATCH-Compatible Child Restraint
System
We urge you to follow the manufacturer’s directions
carefully when installing your child restraint. Not all
child restraint systems will be installed as described here.
Again, carefully follow the installation instructions that
are provided with the child restraint system.
NOTE:When installing a child restraint, if it interferes
with the Head Restraint, recline the seatback slightly to
remove the interference.
The lower anchors are round bars located at the
rear of the seat cushion where it meets the
seatback and are just visible when you lean
into the rear seat to install the child restraint.
You will easily feel them if you run your finger along the
intersection of the seatback and seat cushion surfaces. In addition, there are tether strap anchors located behind
each rear seatback, near to the floor.
Latch Anchorages
84 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

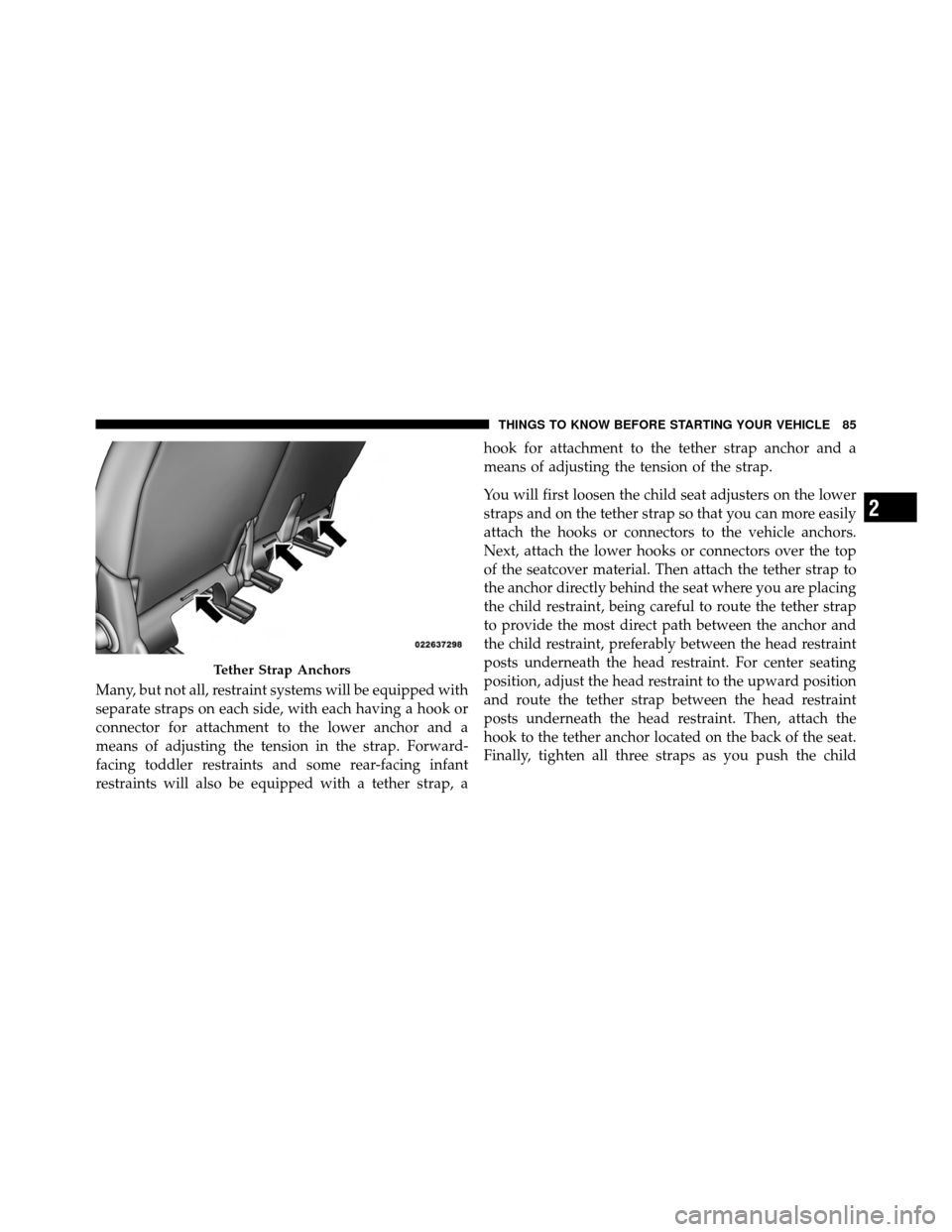

Page 87 of 603
Many, but not all, restraint systems will be equipped with
separate straps on each side, with each having a hook or
connector for attachment to the lower anchor and a
means of adjusting the tension in the strap. Forward-
facing toddler restraints and some rear-facing infant
restraints will also be equipped with a tether strap, ahook for attachment to the tether strap anchor and a
means of adjusting the tension of the strap.
You will first loosen the child seat adjusters on the lower
straps and on the tether strap so that you can more easily
attach the hooks or connectors to the vehicle anchors.
Next, attach the lower hooks or connectors over the top
of the seatcover material. Then attach the tether strap to
the anchor directly behind the seat where you are placing
the child restraint, being careful to route the tether strap
to provide the most direct path between the anchor and
the child restraint, preferably between the head restraint
posts underneath the head restraint. For center seating
position, adjust the head restraint to the upward position
and route the tether strap between the head restraint
posts underneath the head restraint. Then, attach the
hook to the tether anchor located on the back of the seat.
Finally, tighten all three straps as you push the child
Tether Strap Anchors
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 85

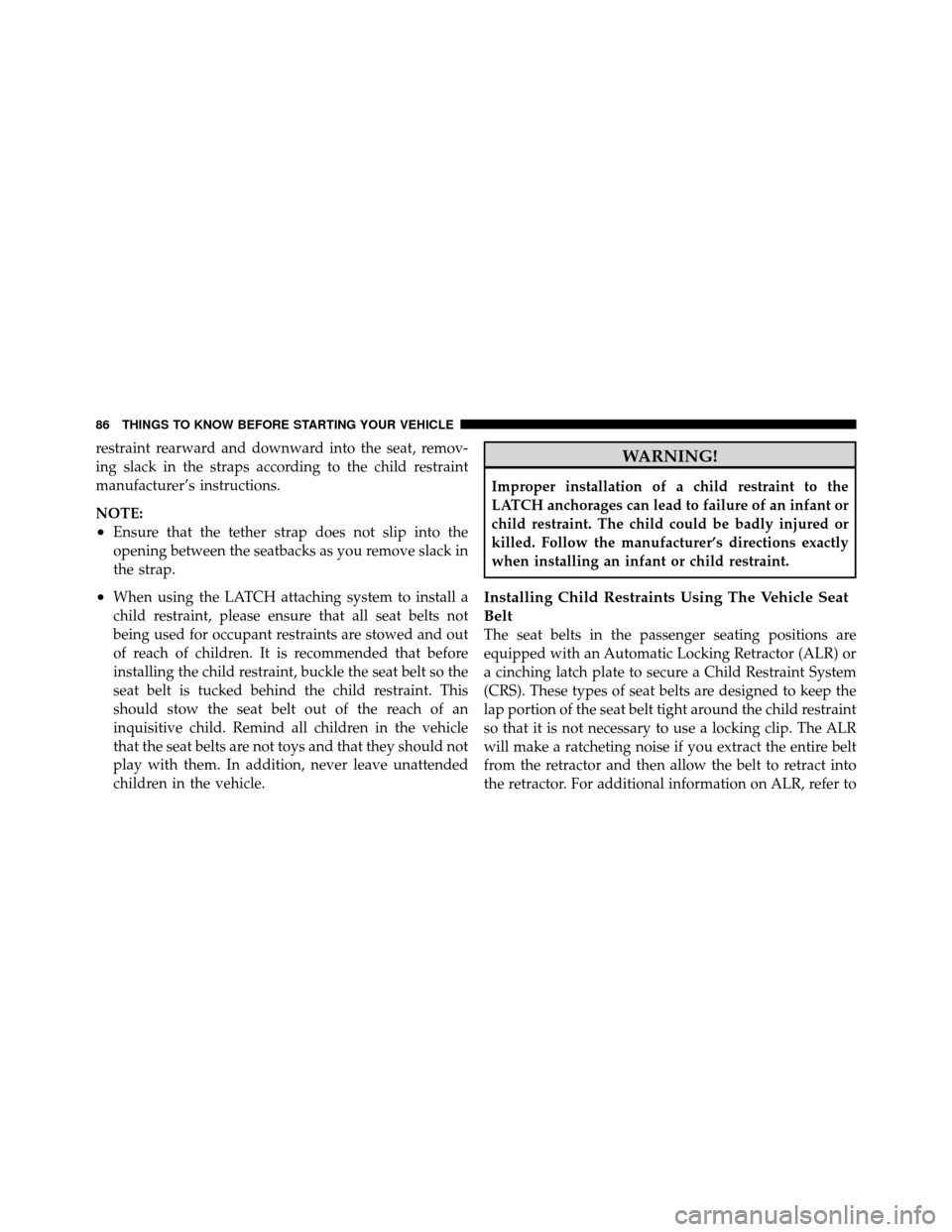

Page 88 of 603
restraint rearward and downward into the seat, remov-
ing slack in the straps according to the child restraint
manufacturer’s instructions.
NOTE:
•Ensure that the tether strap does not slip into the
opening between the seatbacks as you remove slack in
the strap.
•When using the LATCH attaching system to install a
child restraint, please ensure that all seat belts not
being used for occupant restraints are stowed and out
of reach of children. It is recommended that before
installing the child restraint, buckle the seat belt so the
seat belt is tucked behind the child restraint. This
should stow the seat belt out of the reach of an
inquisitive child. Remind all children in the vehicle
that the seat belts are not toys and that they should not
play with them. In addition, never leave unattended
children in the vehicle.
WARNING!
Improper installation of a child restraint to the
LATCH anchorages can lead to failure of an infant or
child restraint. The child could be badly injured or
killed. Follow the manufacturer’s directions exactly
when installing an infant or child restraint.
Installing Child Restraints Using The Vehicle Seat
Belt
The seat belts in the passenger seating positions are
equipped with an Automatic Locking Retractor (ALR) or
a cinching latch plate to secure a Child Restraint System
(CRS). These types of seat belts are designed to keep the
lap portion of the seat belt tight around the child restraint
so that it is not necessary to use a locking clip. The ALR
will make a ratcheting noise if you extract the entire belt
from the retractor and then allow the belt to retract into
the retractor. For additional information on ALR, refer to
86 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

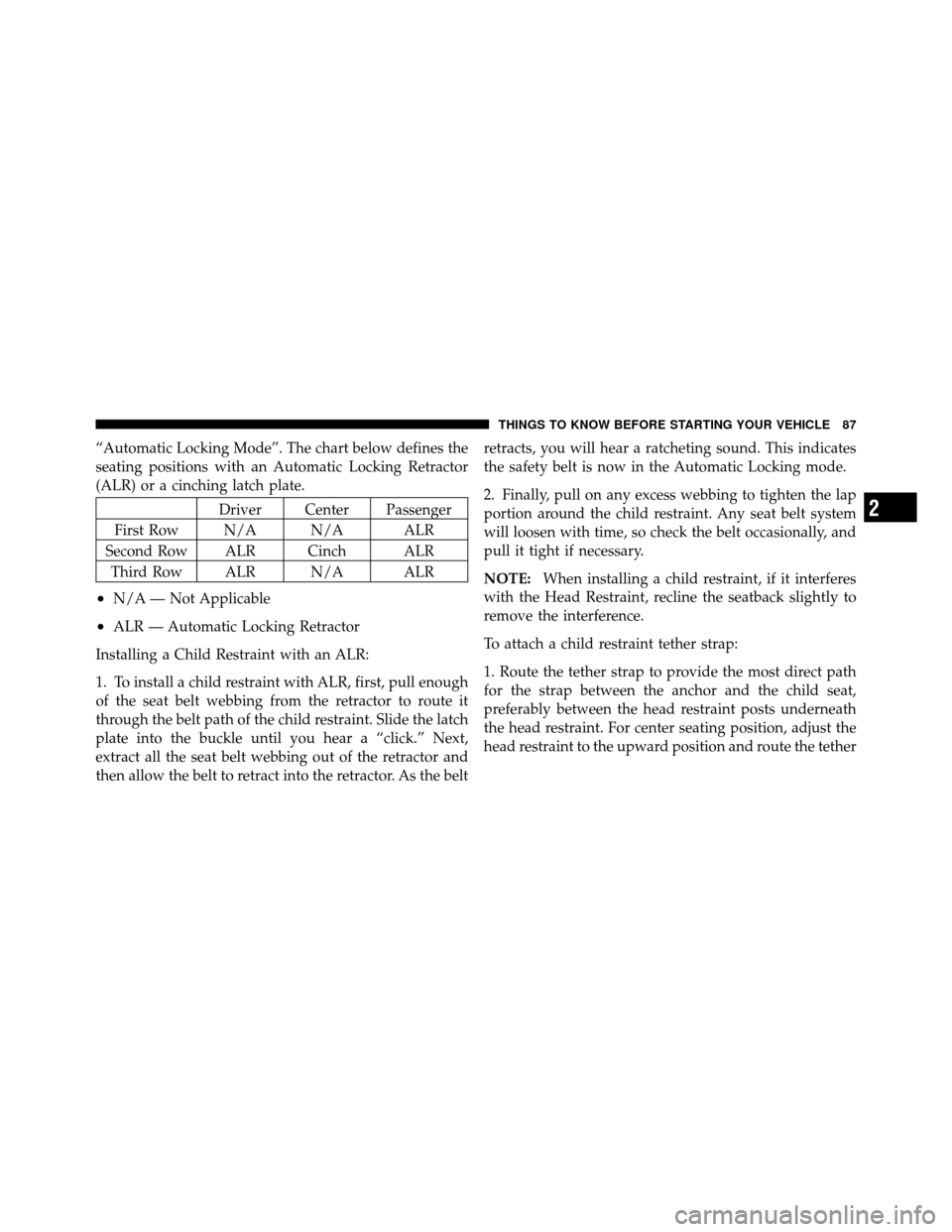

Page 89 of 603
“Automatic Locking Mode”. The chart below defines the
seating positions with an Automatic Locking Retractor
(ALR) or a cinching latch plate.
Driver Center Passenger
First Row N/A N/A ALR
Second Row ALR Cinch ALR Third Row ALR N/A ALR
•N/A — Not Applicable
•ALR — Automatic Locking Retractor
Installing a Child Restraint with an ALR:
1. To install a child restraint with ALR, first, pull enough
of the seat belt webbing from the retractor to route it
through the belt path of the child restraint. Slide the latch
plate into the buckle until you hear a “click.” Next,
extract all the seat belt webbing out of the retractor and
then allow the belt to retract into the retractor. As the belt retracts, you will hear a ratcheting sound. This indicates
the safety belt is now in the Automatic Locking mode.
2. Finally, pull on any excess webbing to tighten the lap
portion around the child restraint. Any seat belt system
will loosen with time, so check the belt occasionally, and
pull it tight if necessary.
NOTE:
When installing a child restraint, if it interferes
with the Head Restraint, recline the seatback slightly to
remove the interference.
To attach a child restraint tether strap:
1. Route the tether strap to provide the most direct path
for the strap between the anchor and the child seat,
preferably between the head restraint posts underneath
the head restraint. For center seating position, adjust the
head restraint to the upward position and route the tether
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 87
Page 90 of 603
strap between the head restraint posts underneath the
head restraint. Then, attach the hook to the tether anchor
located on the back of the seat.
2. If necessary, move the seat forward to provide better
access to the tether anchor.3. Attach the tether strap hook of the child restraint to the
tether anchor and remove slack in the tether strap
according to the child restraint manufacturer’s instruc-
tions.
Tether Strap Mounting
Seat Track Release Lever
88 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
