DODGE JOURNEY 2017 1.G Owners Manual

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
INSTRUMENT PANEL FEATURES ...........222
 INSTRUMENT CLUSTER ..................223
 WARNING AND INDICATOR LIGHTS ........225
▫ Red Telltale Indicator Lights ...............225
▫ Yellow Telltale Indicator Lights .............233
▫ Green Telltale Indicator Lights ..............240
▫ White Telltale Indicator Lights ..............242
▫ Blue Telltale Indicator Lights ...............242
 INSTRUMENT CLUSTER DISPLAY ...........243
▫ Instrument Cluster Display Location and
Controls ............................ .243
▫ Oil Change Due ...................... .244
▫ Fuel Economy ........................ .245
▫ Vehicle Speed ........................ .246▫
Trip Info ............................ .247
▫ Tire Pressure ......................... .248
▫ Vehicle Info (Customer Information Features) . . .248
▫ Messages ............................ .248
▫ Turn Menu OFF ....................... .248
▫ Battery Saver On/Battery Saver Mode Message —
Electrical Load Reduction Actions ...........248
 CYBERSECURITY ....................... .251
 UCONNECT SETTINGS ...................252
▫ Buttons On The Faceplate .................252
▫ Buttons On The Touchscreen ...............252
▫ Customer Programmable Features — Radio 4.3
Settings ............................. .253
▫ Customer Programmable Features — Radio 8.4
Settings ............................. .2654

UCONNECT MULTIMEDIA — VIDEO
ENTERTAINMENT SYSTEM (VES) — IF
EQUIPPED ........................... .280
▫ Getting Started ........................ .280
▫ Single Video Screen .....................281
▫ Play Video Games ..................... .281
▫ Listen To An Audio Source On Channel 2 While A
Video Is Playing On Channel 1 .............282
▫ Important Notes For Single Video Screen
System ............................. .283
▫ Play A DVD Using The Touchscreen Radio .....283
▫ VES Remote Control — If Equipped .........284
▫ Remote Control Storage ..................285
▫ Locking The Remote Control ...............286
▫ Replacing The Remote Control Batteries .......286▫
VES Headphones Operation ...............286
▫ Replacing The Headphone Batteries ..........287
▫ Controls ............................ .287
▫ Unwired Stereo Headphone Lifetime Limited
Warranty ............................ .288
▫ System Information .....................289
 IPOD/USB/MP3 CONTROL ................295
 STEERING WHEEL AUDIO CONTROLS .......296
▫ Right-Hand Switch Functions ..............296
▫ Left-Hand Switch Functions For Radio
Operation ........................... .296
▫ Left-Hand Switch Functions For Media (i.e., CD)
Operation ........................... .296
 CD/DVD DISC MAINTENANCE ............297
 RADIO OPERATION AND MOBILE DEVICES . . .297
220 UNDERSTANDING YOUR INSTRUMENT PANEL

CLIMATE CONTROLS ....................297
▫ Manual Three Zone Climate Controls With
Touchscreen — If Equipped ................298
▫ Rear Manual Temperature Control (MTC) — If
Equipped ........................... .304▫
Automatic Three Zone Temperature Control (ATC)
With Touchscreen — If Equipped ............307
▫ Rear Automatic Temperature Control (ATC) — If
Equipped ........................... .314
4
UNDERSTANDING YOUR INSTRUMENT PANEL 221

INSTRUMENT PANEL FEATURES
1 — Side Window Demist Outlet6 — Switch Bank11 — Engine Start/Stop Button
2 — Air Outlet 7 — Uconnect Hard Controls12 — Hood Release Lever
3 — Instrument Cluster 8 — SD Memory Card Slot13 — Dimmer Controls
4 — Uconnect System 9 — Power Outlet14 — Headlight Switch
5 — Glove Compartment 10 — CD/DVD Slot15 — USB/AUX Port
222 UNDERSTANDING YOUR INSTRUMENT PANEL

INSTRUMENT CLUSTER
Premium Instrument Cluster
4
UNDERSTANDING YOUR INSTRUMENT PANEL 223

1. Tachometer•Indicates the engine speed in revolutions per minute
(RPM x 1000).
2. Instrument Cluster Display •When the appropriate conditions exist, this display
shows the Instrument Cluster Display messages. Refer
to “Instrument Cluster Display” in “Understanding
Your Instrument Panel” for further information.
3. Speedometer •Indicates vehicle speed.
4. Fuel Gauge •The pointer shows the level of fuel in the fuel tank
when the Keyless Push Button Ignition is in the
ON/RUN position.
•
The fuel pump arrow symbol points to the side
of the vehicle where the fuel door is located.
5. Temperature Gauge
•The temperature gauge shows engine coolant tem-
perature. Any reading within the normal range indi-
cates that the engine cooling system is operating
satisfactorily. •
The gauge pointer will likely indicate a higher tem-
perature when driving in hot weather, up mountain
grades, or when towing a trailer. It should not be
allowed to exceed the upper limits of the normal
operating range.
CAUTION!
Driving with a hot engine cooling system could dam-
age your vehicle. If the temperature gauge reads “H”
pull over and stop the vehicle. Idle the vehicle with the
air conditioner turned off until the pointer drops back
into the normal range. If the pointer remains on the
“H”, turn the engine off immediately and call an
authorized dealer for service.
WARNING!
A hot engine cooling system is dangerous. You or
others could be badly burned by steam or boiling
coolant. You may want to call an authorized dealer for
service if your vehicle overheats. If you decide to look
under the hood yourself, see “Maintaining Your Ve-
hicle”. Follow the warnings under the Cooling System
Pressure Cap paragraph.
224 UNDERSTANDING YOUR INSTRUMENT PANEL

WARNING AND INDICATOR LIGHTS
IMPORTANT:The warning / indicator lights switch on in
the instrument panel together with a dedicated message
and/or acoustic signal when applicable. These indications
are indicative and precautionary and as such must not be
considered as exhaustive and/or alternative to the infor-
mation contained in the Owner ’s Manual, which you are
advised to read carefully in all cases. Always refer to the
information in this chapter in the event of a failure indica-
tion. All active telltales will display first if applicable. The
system check menu may appear different based upon
equipment options and current vehicle status. Some tell-
tales are optional and may not appear.
Red Telltale Indicator Lights
Seat Belt Reminder Warning Light
Red Telltale
Light What It Means
Seat Belt Reminder Warning Light
When the ignition is first placed in the ON/RUN position, if the driver ’s seat belt is unbuckled, a
chime will sound and the light will turn on. When driving, if the driver or front passenger seat
belt remains unbuckled, the Seat Belt Reminder Light will flash or remain on continuously and a
chime will sound. Refer to “Occupant Restraints” in “Things To Know Before Starting Your Ve-
hicle” for further information.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 225

Air Bag Warning Light
Red TelltaleLight What It Means
Air Bag Warning Light
This light will turn on for four to eight seconds as a bulb check when the ignition is placed in the
ON/RUN position. If the light is either not on during startup, stays on, or turns on while driv-
ing, have the system inspected at an authorized dealer as soon as possible. This light will illumi-
nate with a single chime when a fault with the Air Bag Warning Light has been detected, it will
stay on until the fault is cleared. If the light comes on intermittently or remains on while driving,
have an authorized dealer service the vehicle immediately.
Brake Warning Light
Red Telltale
Light What It Means
United States
Brake Warning Light
This light monitors various brake functions, including brake fluid level and parking brake appli-
cation. If the brake light turns on it may indicate that the parking brake is applied, that the brake
fluid level is low, or that there is a problem with the anti-lock brake system reservoir.
If the light remains on when the parking brake has been disengaged, and the fluid level is at the
full mark on the master cylinder reservoir, it indicates a possible brake hydraulic system mal-
function or that a problem with the Brake Booster has been detected by the Anti-Lock Brake Sys-
tem (ABS) / Electronic Stability Control (ESC) system. In this case, the light will remain on until
226 UNDERSTANDING YOUR INSTRUMENT PANEL

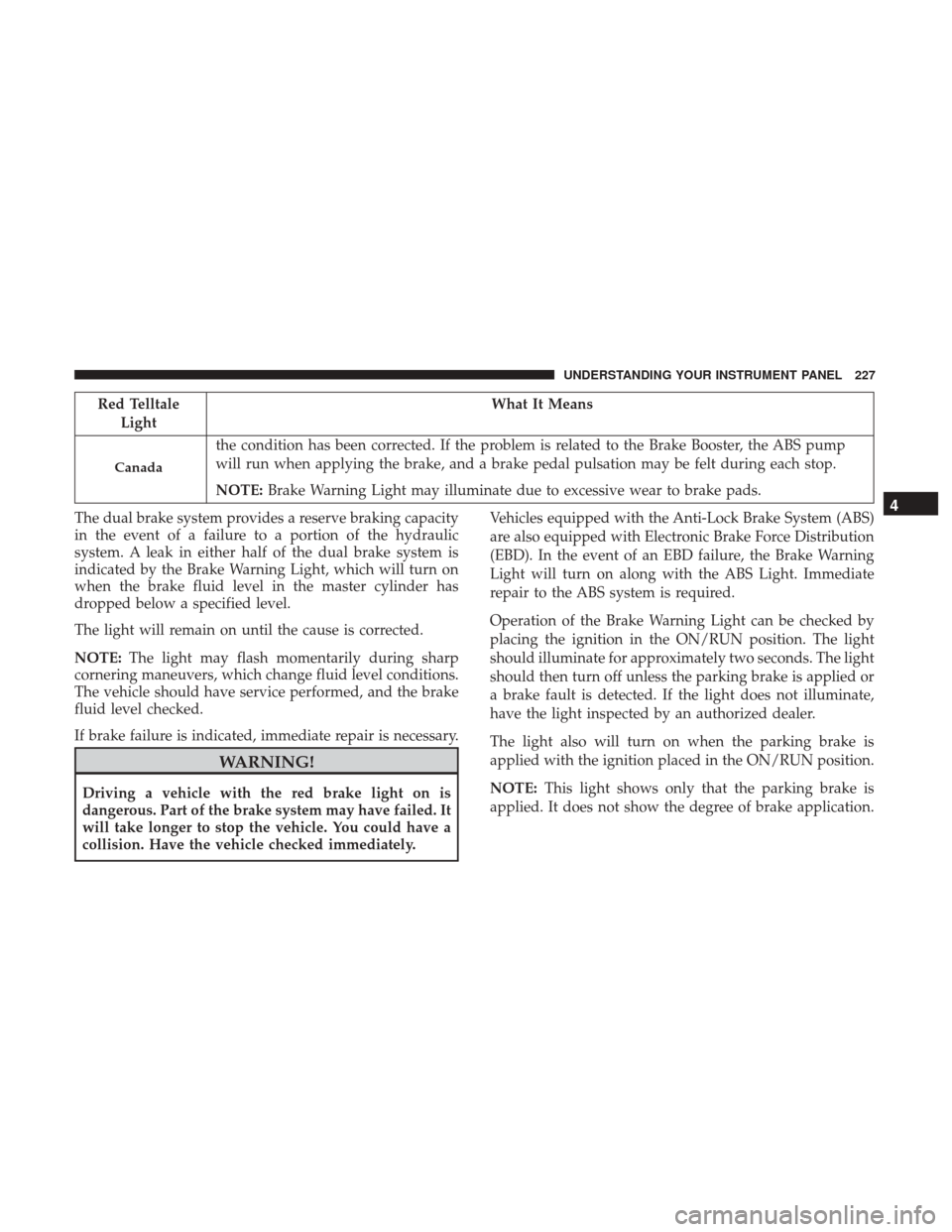

Red TelltaleLight What It Means
Canada
the condition has been corrected. If the problem is related to the Brake Booster, the ABS pump
will run when applying the brake, and a brake pedal pulsation may be felt during each stop.
NOTE:
Brake Warning Light may illuminate due to excessive wear to brake pads.
The dual brake system provides a reserve braking capacity
in the event of a failure to a portion of the hydraulic
system. A leak in either half of the dual brake system is
indicated by the Brake Warning Light, which will turn on
when the brake fluid level in the master cylinder has
dropped below a specified level.
The light will remain on until the cause is corrected.
NOTE: The light may flash momentarily during sharp
cornering maneuvers, which change fluid level conditions.
The vehicle should have service performed, and the brake
fluid level checked.
If brake failure is indicated, immediate repair is necessary.
WARNING!
Driving a vehicle with the red brake light on is
dangerous. Part of the brake system may have failed. It
will take longer to stop the vehicle. You could have a
collision. Have the vehicle checked immediately. Vehicles equipped with the Anti-Lock Brake System (ABS)
are also equipped with Electronic Brake Force Distribution
(EBD). In the event of an EBD failure, the Brake Warning
Light will turn on along with the ABS Light. Immediate
repair to the ABS system is required.
Operation of the Brake Warning Light can be checked by
placing the ignition in the ON/RUN position. The light
should illuminate for approximately two seconds. The light
should then turn off unless the parking brake is applied or
a brake fault is detected. If the light does not illuminate,
have the light inspected by an authorized dealer.
The light also will turn on when the parking brake is
applied with the ignition placed in the ON/RUN position.
NOTE:
This light shows only that the parking brake is
applied. It does not show the degree of brake application.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 227

Vehicle Security Warning Light — If Equipped
Red TelltaleLight What It Means
Vehicle Security Warning Light — If Equipped
This light will flash at a fast rate for approximately 15 seconds when the vehicle security alarm is
arming, and then will flash slowly until the vehicle is disarmed.
Engine Temperature Warning Light
Red Warning
Light What It Means
Engine Temperature Warning Light
This light warns of an overheated engine condition. As engine coolant temperatures rise and the
gauge approaches
H, this indicator will illuminate and a single chime will sound after reaching a
set threshold. Further overheating will cause a continuous chime sound for 4 minutes, or until
the engine is allowed to cool, whichever comes first.
If the light turns on while driving, safely pull over and stop the vehicle. If the A/C system is on,
turn it off. Also, shift the transmission into NEUTRAL and idle the vehicle. If the temperature
reading does not return to normal, turn the engine off immediately and call for service. Refer to
“If Your Engine Overheats” in “What To Do In Emergencies” for further information.
228 UNDERSTANDING YOUR INSTRUMENT PANEL
