The front wipers are operated by rotating a switch, located
at the end of the lever. For information on using the rear
window wiper/washer, refer to “Rear Window Wiper/
Washer” in this section.
Windshield Wiper Operation
Rotate the end of the lever upward, to the first detent past
the intermittent settings for low-speed wiper operation.
Rotate the end of the lever upward to the second detent
past the intermittent settings for high-speed wiper opera-
tion.NOTE:
The wipers will automatically return to the “park”
position if you turn OFF the ignition while they are
operating. The wipers will resume operation when you
turn the ignition back ON.
CAUTION!
• Turn the windshield wipers off when driving
through an automatic car wash. Damage to the wind-
shield wipers may result if the wiper control is left in
any position other than off.
• In cold weather, always turn off the wiper switch and
allow the wipers to return to the park position before
turning off the engine. If the wiper switch is left on
and the wipers freeze to the windshield, damage to
the wiper motor may occur when the vehicle is
restarted.
• Always remove any buildup of snow that prevents
the windshield wiper blades from returning to the
off position. If the windshield wiper control is
turned off and the blades cannot return to the off
position, damage to the wiper motor may occur.
Front Wiper Control
3
GETTING TO KNOW YOUR VEHICLE 69

Intermittent Wiper System
Use the intermittent wiper system when weather condi-
tions make a single wiping cycle, with a variable pause
between cycles, desirable. Rotate the end of the windshield
wiper/washer control lever to one of the first five detents
to select the desired delay interval.
There are five delay settings, which allow you to regulate
the wipe interval from a minimum of one cycle every twoseconds to a maximum of approximately 36 seconds be-
tween cycles at vehicle speeds below 10 mph (16 km/h). At
speeds greater than 10 mph (16 km/h), the delay varies
from a minimum of one cycle every second to a maximum
of approximately 18 seconds between cycles.
NOTE:
The wiper delay times depend on vehicle speed. If
the vehicle is moving less than 10 mph (16 km/h), delay
times will be doubled.
Windshield Washers
To use the windshield washer, push the washer knob,
located on the end of the multifunction lever, inward to the
second detent.
If you activate the washer while the wiper control is in the
delay range, the wipers will operate in low-speed for two
or three wipe cycles after releasing the lever and then
resume the intermittent interval previously selected.
If you activate the washer while the wiper control is in the
off position, the wipers will operate for two or three wipe
cycles and then turn off.
Front Wiper Control
70 GETTING TO KNOW YOUR VEHICLE

WARNING!
Sudden loss of visibility through the windshield could
lead to a collision. You might not see other vehicles or
other obstacles. To avoid sudden icing of the wind-
shield during freezing weather, warm the windshield
with the defroster before and during windshield
washer use.
Mist Feature
Push the washer knob, located on the end of the multifunc-
tion lever, inward to the first detent to activate a single
wipe cycle to clear the windshield of road mist or spray
from a passing vehicle. The wipers will continue to operate
until you release the lever.
NOTE:The mist feature does not activate the washer
pump; therefore, no washer fluid will be sprayed on the
windshield. The wash function must be used in order to
spray the windshield with washer fluid.
Rear Window Wiper/Washer
The rear window wiper/washer control is located on the
left side of the steering column.
Rotate the switch upward to the first detent position
for rear wiper operation.
Rotate the switch upward past the first detent
position to activate the rear washer. The washer
pump will continue to operate as long as the switch is held.
Upon release, the wiper will cycle three times before
returning to the set position.
Rear Wiper/Washer
3
GETTING TO KNOW YOUR VEHICLE 71

If the rear wiper is operating when the ignition is placed in
the OFF position, the wiper will automatically return to the
“park” position. When the vehicle is restarted, the wiper
will resume function at whichever position the switch is set
at.
CAUTION!
•Turn the windshield wipers off when driving
through an automatic car wash. Damage to the wind-
shield wipers may result if the wiper control is left in
any position other than off.
• In cold weather, always turn off the wiper switch and
allow the wipers to return to the park position before
turning off the engine. If the wiper switch is left on
and the wipers freeze to the windshield, damage to
the wiper motor may occur when the vehicle is
restarted.
• Always remove any buildup of snow that prevents
the windshield wiper blades from returning to the
off position. If the windshield wiper control is
turned off and the blades cannot return to the off
position, damage to the wiper motor may occur.
Rear Wiper/Washer Control
72 GETTING TO KNOW YOUR VEHICLE

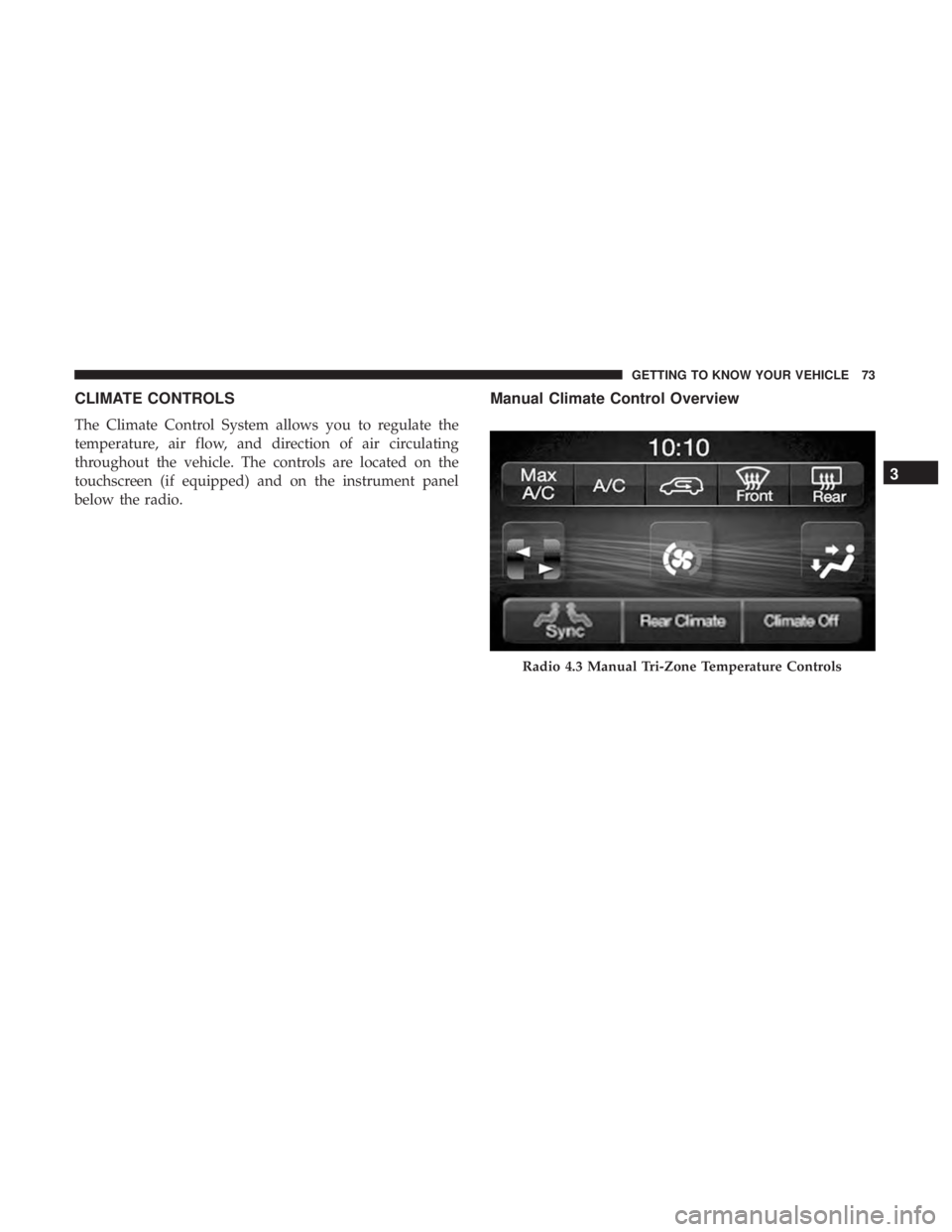

CLIMATE CONTROLS
The Climate Control System allows you to regulate the
temperature, air flow, and direction of air circulating
throughout the vehicle. The controls are located on the
touchscreen (if equipped) and on the instrument panel
below the radio.
Manual Climate Control Overview
Radio 4.3 Manual Tri-Zone Temperature Controls
3
GETTING TO KNOW YOUR VEHICLE 73

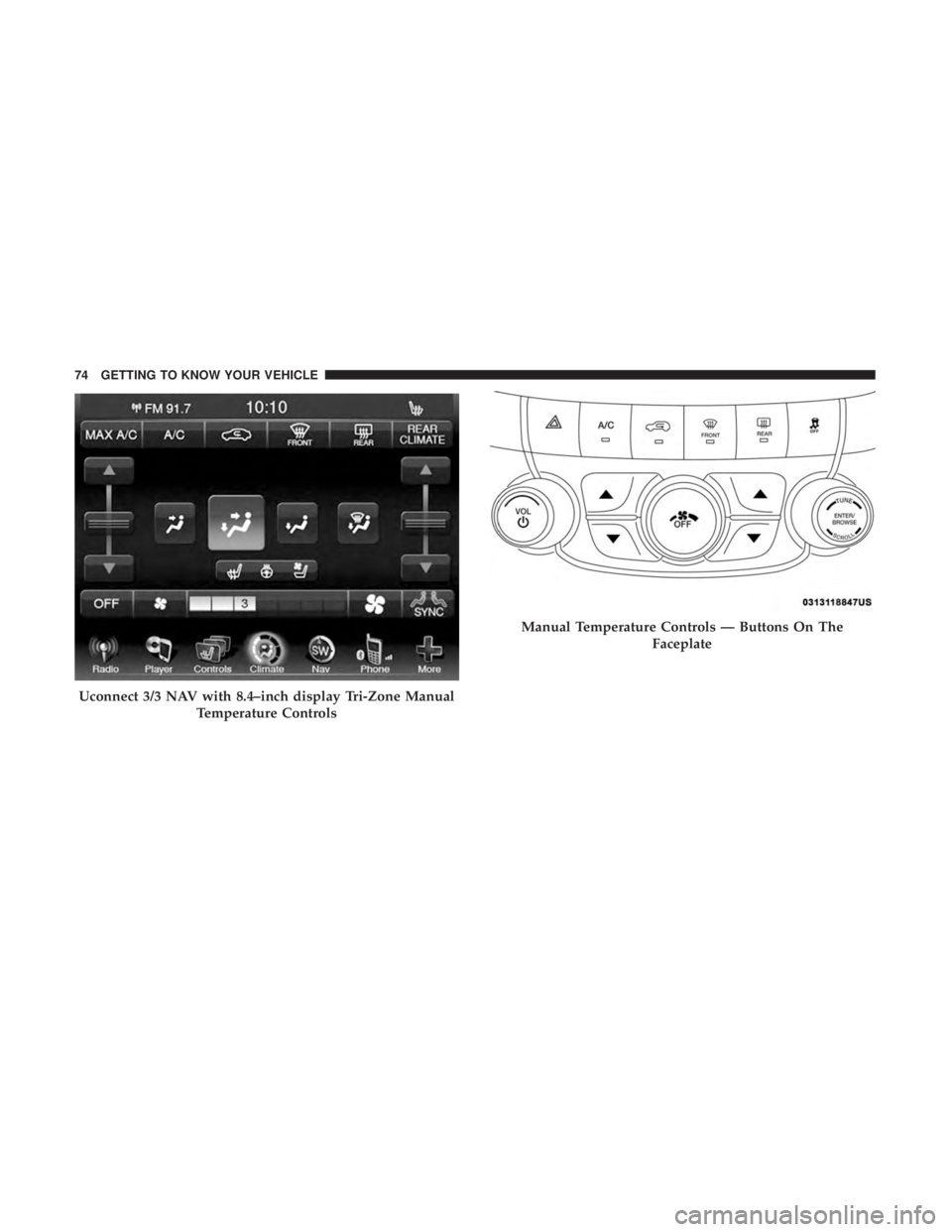

Uconnect 3/3 NAV with 8.4–inch display Tri-Zone ManualTemperature Controls
Manual Temperature Controls — Buttons On The Faceplate
74 GETTING TO KNOW YOUR VEHICLE

Manual Climate Control Descriptions
IconDescription
MAX A/C Button
Press the button on the touchscreen to change the current setting, the indicator illuminates when
MAX A/C is on. Pressing the button again turns the MAX A/C operation to switch into manual
mode and the MAX A/C indicator turns off.
NOTE:The MAX A/C button is only available on the touchscreen.
Faceplate Knob
Touchscreen Buttons
Blower Control
Blower Control is used to regulate the amount of air forced through the climate system. There
are seven blower speeds available. The speeds can be selected using either the blower control
knob on the faceplate or the buttons on the touchscreen.
• Faceplate: The blower speed increases as you turn the blower control knob clockwise from
the lowest blower setting. The blower speed decreases as you turn the blower control knob
counterclockwise.
• Touchscreen:
For Radio 4.3: use the circle around the blower icon by pressing on the circle spot where you
want the blower setting to be. To increase blower, the circle bar will go clockwise. To
decrease the blower, the circle bar will move counter-clockwise.
For Uconnect 3/3 NAV: Use the small blower icon to reduce the blower setting and the large
blower icon to increase the blower setting. The blower can also be selected by pressing the
blower bar area between the icons. 3
GETTING TO KNOW YOUR VEHICLE 75

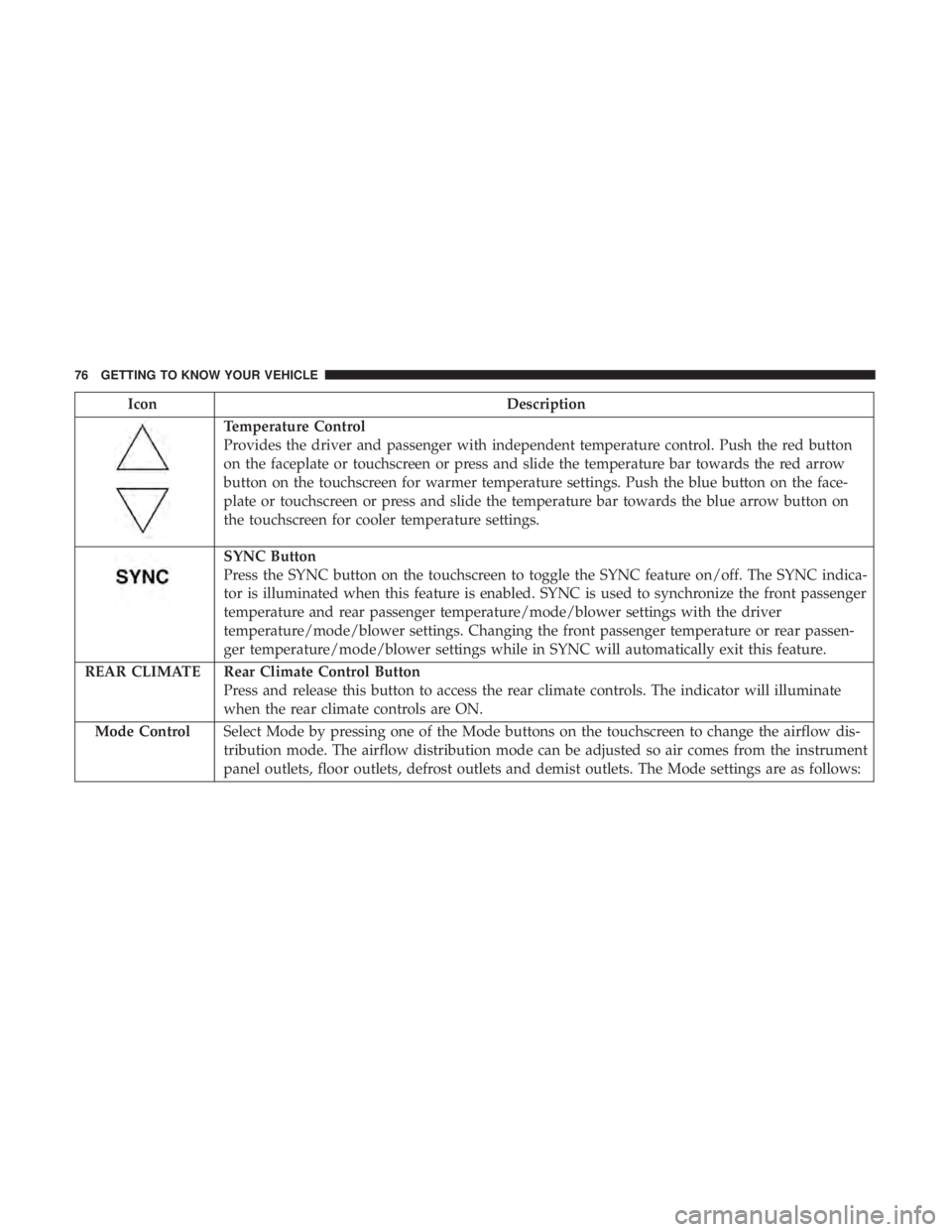

IconDescription
Temperature Control
Provides the driver and passenger with independent temperature control. Push the red button
on the faceplate or touchscreen or press and slide the temperature bar towards the red arrow
button on the touchscreen for warmer temperature settings. Push the blue button on the face-
plate or touchscreen or press and slide the temperature bar towards the blue arrow button on
the touchscreen for cooler temperature settings.
SYNC Button
Press the SYNC button on the touchscreen to toggle the SYNC feature on/off. The SYNC indica-
tor is illuminated when this feature is enabled. SYNC is used to synchronize the front passenger
temperature and rear passenger temperature/mode/blower settings with the driver
temperature/mode/blower settings. Changing the front passenger temperature or rear passen-
ger temperature/mode/blower settings while in SYNC will automatically exit this feature.
REAR CLIMATE Rear Climate Control Button Press and release this button to access the rear climate controls. The indicator will illuminate
when the rear climate controls are ON.
Mode Control Select Mode by pressing one of the Mode buttons on the touchscreen to change the airflow dis-
tribution mode. The airflow distribution mode can be adjusted so air comes from the instrument
panel outlets, floor outlets, defrost outlets and demist outlets. The Mode settings are as follows:
76 GETTING TO KNOW YOUR VEHICLE

IconDescription
Panel Mode
Panel Mode
Air comes from the outlets in the instrument panel. Each of these outlets can be individually
adjusted to direct the flow of air. The air vanes of the center outlets and outboard outlets can be
moved up and down or side to side to regulate airflow direction. There is a shut off wheel lo-
cated below the air vanes to shut off or adjust the amount of airflow from these outlets.
Bi-Level Mode
Bi-Level Mode
Air comes from the instrument panel outlets and floor outlets. A slight amount of air is directed
through the defrost and side window demister outlets.
NOTE: Bi-Level mode is designed under comfort conditions to provide cooler air out of the
panel outlets and warmer air from the floor outlets.
Floor Mode
Floor Mode
Air comes from the floor outlets. A slight amount of air is directed through the defrost and side
window demister outlets.
Mix Mode
Mix Mode
Air is directed through the floor, defrost, and side window demister outlets. This setting works
best in cold or snowy conditions that require extra heat to the windshield. This setting is good
for maintaining comfort while reducing moisture on the windshield.
A/C Button
Press and release to change the current setting, the indicator illuminates when A/C is on.
3
GETTING TO KNOW YOUR VEHICLE 77

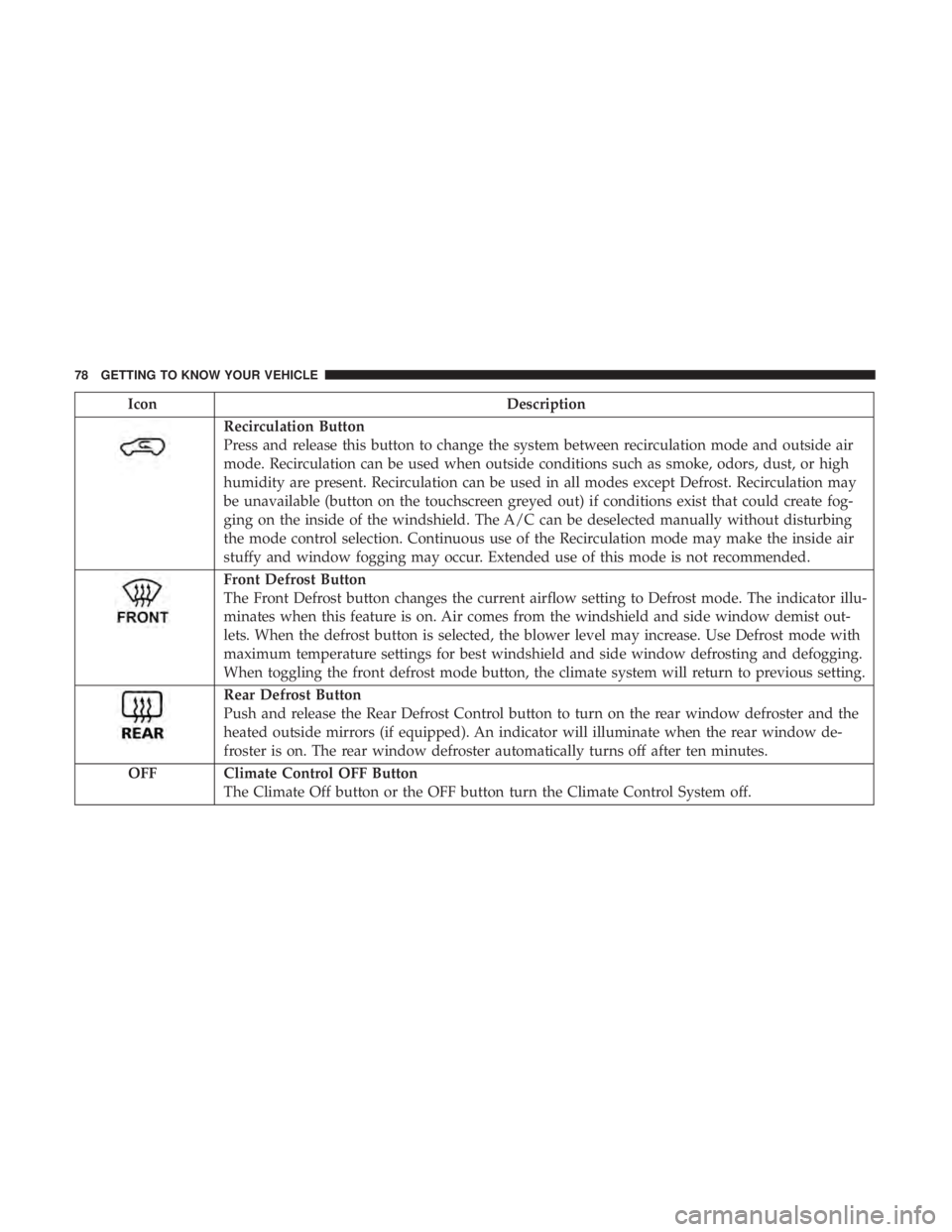

IconDescription
Recirculation Button
Press and release this button to change the system between recirculation mode and outside air
mode. Recirculation can be used when outside conditions such as smoke, odors, dust, or high
humidity are present. Recirculation can be used in all modes except Defrost. Recirculation may
be unavailable (button on the touchscreen greyed out) if conditions exist that could create fog-
ging on the inside of the windshield. The A/C can be deselected manually without disturbing
the mode control selection. Continuous use of the Recirculation mode may make the inside air
stuffy and window fogging may occur. Extended use of this mode is not recommended.
Front Defrost Button
The Front Defrost button changes the current airflow setting to Defrost mode. The indicator illu-
minates when this feature is on. Air comes from the windshield and side window demist out-
lets. When the defrost button is selected, the blower level may increase. Use Defrost mode with
maximum temperature settings for best windshield and side window defrosting and defogging.
When toggling the front defrost mode button, the climate system will return to previous setting.
Rear Defrost Button
Push and release the Rear Defrost Control button to turn on the rear window defroster and the
heated outside mirrors (if equipped). An indicator will illuminate when the rear window de-
froster is on. The rear window defroster automatically turns off after ten minutes.
OFF Climate Control OFF Button The Climate Off button or the OFF button turn the Climate Control System off.
