E) Coolant Level: Have the coolant level checked during each stop at the gasoline station. Add water to bring level to about 11,4' below the bottom of the filler neck. Overfilling will dilute the anti·freeze and also result in coolant loss through the overflow tube. CAUTION: Driving In heavy traffic, at high altitudes, or in very hot weather may build up pressure in the cooling system. When removing the cap place a cloth over the cap, turn left to first stop, allowing steam to escape through overflow tube, then remove cap.
Thermostat Your new car is equipped with 180 degree thermostat for use with perma· nenl-type anti-freeze. If you later prefer an lcohol type anti-freeze use only a 160 degree thormoslat.
Manifold Heal Control Valve_ A cold engine will warm up faster and accelerate more moothly if the valve that controls heat flow In the manifold works freely. It is normal for I d deposits to accumulate in time on the y lve shaft causing it to tighten up'. Manifold II t Control Valve Solvent, available from your dealer, should be applied a t six month lnt Iva Is. Slide shaft in and out and rotate a
, w times to distribute the solvent. Apply only when manifold is cool.
The Carburetor A ir Filter. The special easy to change fire-resistant filter installed in your carburetor should be cleaned and inspected every 6 months and replaced once every two years, to assure good fuel economy. Clean or replace more often when car is driven in dusty or sandy areas. Replace filter if damaged. DO NOT wash or oil. Simply remove the metal container, unscrew the wing nut and lift out filter. Clean with compressed air, holding nozzle about two inches from filter.
Fuel Filter. Your new car has a filter in the fuel tank to prevent water and foreign material from entering the fuel system. There is also a fuel filter in the fuel line at the fuel pump outlet. If this filter is plugged it can limit car speed and cause hard starling. Under normal operating conditions the filter should be changed at 20,000 mile intervals, or every two years.
011 Cap Filler. The cap on the oil filler tube is a combination ventilator and permanent filter. The filter inside the cap should be kept clean to allow clean air to remove combustion product s from the crankcase. To clean the filter wash the entire cap periodically in k ero sene and relubricate with SAE 30 engine oil.
ENGINE PERFORMANCE EVALUATION
Engine operation efficiency depends on correct ignition, carburetor adjustments, and on valve lash where applicable. To obtain best engine performance, Chrysler Corporation recommends that the engine be evaluated every 10,000 miles and tuned, if necessary. Services performed during this evaluation should include the following:
SPARK PLUGS-Remove and inspect each spark plug. Most plugs can be cleaned, adjusted, and reinstalled. Rough idle, hard starling, frequent engine miss at high speeds, or apparent physical deterioration, are indications that the spark plugs should be replaced.
DISTRIBUTOR-Clean and inspect the dis· tributor cap and rotor if required (wash cap in household detergent and water solution). Check breaker points for abnormal pitting. distributor secondary wires and tower caps are clean and connected properly. See that ignition timing is set to vehicle specifications.
CARBURETOR-Remove and clean air filter. Check operation of manifold heat control valve and choke diaphragms, use solvent recommended. Clean crankcase ventilator system. Check and adjust choke fast-idle cam and fuel mixture.
BATTERY-Check specific gravity. Clean and tighten terminals; apply grease to post and terminals. Check circuit voltages.
37
Page 42 of 46

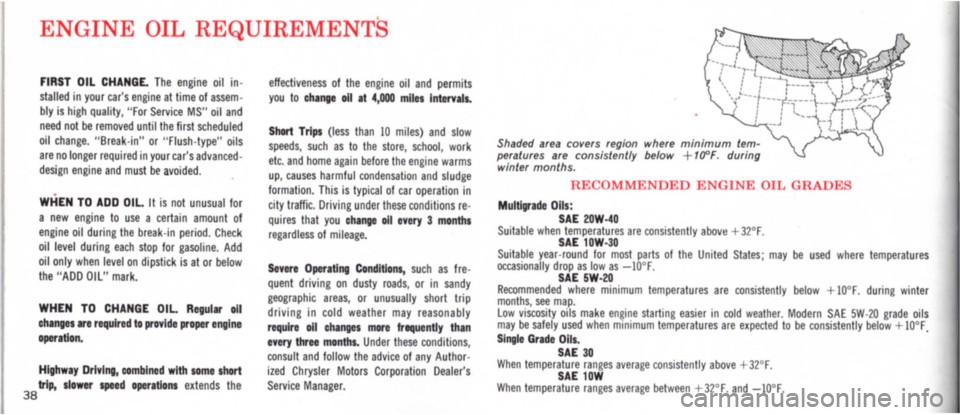

ENGINE OIL REQUIREMENTS
FIRST OIL CHANGE. The engine oil installed in your car's engine at time of assembly is h igh quality, "For Service MS" oil and
need not be removed until the first scheduled
oil change_ "Break-in" or "Flush-type" oils are no longer required in you r car's advanced
design engine and m ust be avoided.
WHEN TO ADD OIL It is not unusual for
a new engine to use a certain amount of engine oil during the break-in period. Check
oil level during each stop for gasoline. Add oil only when level on dipstick is al or below
the "ADD OIL" mark.
WHEN TO CHANGE OIL Regul.,. 011 changes .,.e required to provide proper engine operation.
Highway Driving, combined with some short
trip, slower speed operations extends the 38
effectiveness of the engine oil and permits you to change 011 at 4,000 miles Intervals.
Short Trips (less than 10 miles) and slow speeds, such as to the store, school, work
etc. and home again before the engine warms up, causes harmful condensation and sludge formation. This is typical of car operation in
city traffic. Driving under these conditions re
quires that you change 011 every 3 months regardless of mileage.
Severe Operating Conditions, such as fre
quent driving on dusty roads, or in sandy geographic areas, or unusually short trip
driving in cold weather may reasonably require 011 changes more frequently than
every three months. Under these conditions, consult and follow the advice of any Authorized Chrysler Motors Corporation Dealer's
Service Manager.
Shaded area covers region where minimum temperatures are consistently below + 10"F. during
winter months.
RE MMENDED ENGINE OIL GRADE
Multigrade Oils: SAE 20W-40 Suitable when temperatures are co nsistently abovl! + 32°F. SAE 10W·30 Suitable year-round for most parts of the United States; may be used where temperatures occasionally drop as low as -10°F . SAE 5W·20 Recommended where minimu m temperatures are consistently below + 10°F . durin g winter months, see map. Low viscosity o ils make en~ine starting easier in cold weather. Modern SAE 5W-20 grade oils may be safely used when minimum temperatures are expected to be consistently below + 10°F. Single Grade Oils. SAE 30 When temperature ranges averag e co nsistently above 32°F . SAE lOW When temperature ranges average between + 32° F . and -10°F .
Page 43 of 46

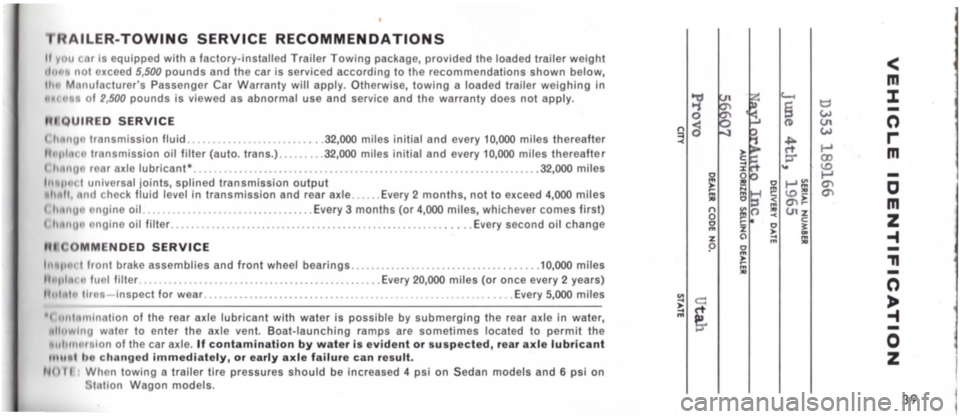

RAILER-TOWING SERVIICE RECOMMENDATIONS
II y"1I C r Is equipped with a factory-installed Trailer Towing package, provided the loaded trailer weight ,10.. not exceed 5,500 pounds and the car is serviced according to the recommendations shown below, ,II. M nufacture r's Passenger Car Warranty will apply. Otherwise, towing a loaded trailer weighing In I I of 2,500 pounds is viewed as abnormal use and service and the warranty does not apply.
I It IIIU' transmission fluid ........................... 32,000 miles initial and every 10,000 miles thereafter
"'111 H' Ir nsmissi on oil filter (auto . trans .) ......... 32,000 miles initial and every 10,000 miles thereafter
I It I" I' r r axle lubricant· ............................. , ............................ , ....... , .. 32,000 miles III P" I universal joints, splined transmission output "III, IIld check fluid level in transmission and rear axle ...... Every 2 months, not to exceed 4,000 miles
I I. 11111 nglne oil, , ........................... , .... Every 3 months (or 4,000 miles, whichever comes first)
I II 111' ngine oil filter ................ " .. " ..................................... Every second oil change
"' ( MMENDED SERVICE
III I"' I Iront brake assemblies and front wheel bearings ...... " ....... , .................. , , ,10,000 miles
'" "I I luel filter .......... " ... " ........... " .................. Every 20,000 miles (or once every 2 years) I .1 III IIr -Inspec t for wear ..................... , ...................................... Every 5,000 miles
I ""ittnllnation of the rear axle lubricant with water Is possible by submerging the rear axle in water, IlIlIwll, w ter to enter the axle vent. Boat-launching ramps are sometimes located to permit the 11111111 f Ion of the car axle . If contamination by water is evident or suspected, rear axle lubricant .,HI I II changed immediately, or early axle failure can result.
Hili Wh n towing a trailer tire pressures should be increased 4 psi on Sedan models and 6 psi on I tlon Wagon models.
"'d '1 0
~ n =I oo(
0 ~ 0 l!! '" ~ '" n '" 0 -c 0 0 m ~ z m 9
c::: ("t
< m c....., ::r: § t::l VJ n (1) Ol VJ r-~ ~ t-' m I:l'" (Xl .. \,0 t-' -t-'::: 0"1 C \,Ol!! 0"1 O"I~ m OlZ C Z '" .. -I !:l
'11
-n ,.
-f
-0
Z
39
Page 44 of 46
I 40
PERFECT
TEAMMATES
FOR
CHRVSLER
PARTS
YOUR m
CERTIFIED
CAR CARE
PROGRAM
For additional comfort and driving pleasure, your Dodge dealer
has available a full line of Air Conditioners , Radios, Mirrors, and many
o t
her accessories.
Your deale r, under the Certified Car Care Program, will keep your
car running
at utmost efficiency. For your protection he uses CHRYSLER
P A
RTS and MOPAR parts and accessories that are factory-approved
and enginee re d .
PARTS DIVISION, CHRYSLER MOTORS CORPORATION
Page 45 of 46

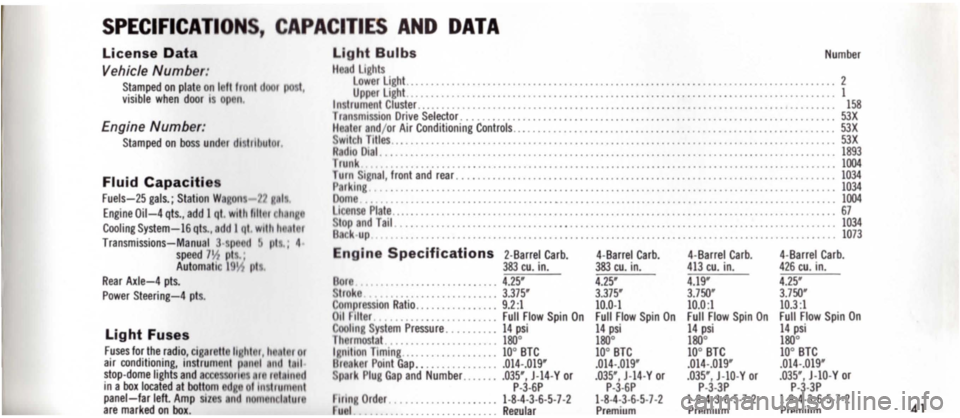

SPECIFICATIONS, CAPACITIES AND DATA
License Data
Vehicle Number:
Stamped on plate on I It Ir nl d r I, visible when door IS op n .
Engine Number :
Stamped on boss und r d lIibulol
Fluid Capacities
Fuels-25 gals.; Station Wagoll
Engine Oil-4 qts., add 1 ql. with IiII r h 11M Cooling System-16 qts., dd 1 ql with hi ,II I
Transmissions-Manual 3 p d ~ III speed 7~ pi ., Automat I'M pi . Rear Axle-4 pts. Power Steering-4 pts.
Light Bulbs Number
It d Lights ower Light. ............................................................................... .. " 2 Upper Light .................................................................................... 1 In Irument Cluster ........................................................................ '" . . .. . . . 158 f r n smisslon Drive Selector. . . . . . .. .. .. . .. .. . .. . .. .. .. .. . . .. .. . .. .. . .. . .. .. • . .. . .. .. . .. .. . . .. . . . .... S3X II t r and/or Air Conditioning Controls. .. . . . . . . . . . . . . . . . . . . . . . .• . . . . . . . . . . . • . . . . . . . . . . . . . . . . . . . . . . . .. 53X SWitch Tilles ....................................................................................... 53X R dlo 01 I......................................................................................... 1893 flunk ....................................................................................... 1004 Turn Signal, front and rear ... ....................................................................... 1034 P rking .......................................................................................... 1034 Dom .................................. _ ...................................................... 1004 LI nS8 Plate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 67 lOP nd Tail .................................. ... ................................................. 1034 13 k up ...................................................... .................. ........... ..... 1073
Engine Specifications 2·Barrel Carbo 4·Barrel Carbo 4 -Barrel Carbo 4 ·Barrel Carbo 383 cu. in. 383 cu. in. 413 cu. in. 426 cu. in.
Bor ... ...................... 4.25' 4.25' 4.19' 4.25' trok .................... '" 3.375' 3.375' 3.150' 3.750' Compr ssion Ratio ................ 9.2:1 10.0· 1 10.0:1 10.3:1 II rllter ....................... . Full Flow Spin On Full Flow Spin On Full Flow Spin On Full Flow Spin On oohng System Pressure .......... 14 psi 14 psi 14 psi 14 psi rh rmostal...................... 1SO° lS00 1SO° 1SO°
I nllion Timing ................... 10° BTC 10" BTC 10° BTC 10° BTC BI k r POlOt Gap ................. 014·.019' .014·.019' .014,.019' .014·.019' p rk Plug Gap and Number ........ 035', J -14-Y or .035', J ·14-Y or .035', J -I0·Y or .035', J-lO·Y or P -3 ·6P P -3 ·6P P -3 ·3P P -3 ·3P rllmg Order .................... 1·8·4·3·6·5-7·2 1·8 ·4 -3 ·6 ·5 ·7 ·2 1·8 ·4 ·3 -6 ·5 ·7·2 1·8·4·3 ·6 ·5 ·7·2 IILl • ........................ Relwlar Premium Prl!millm Prl>mium 41
Page 46 of 46
81-270-5270; 2ND EDITION; LITHO IN U.S .A.
•
DODGE DIVISION ~~ CHRYSLER ~ MOTORS CORPORATION
