DODGE NEON 2000 Service Repair Manual

Connector

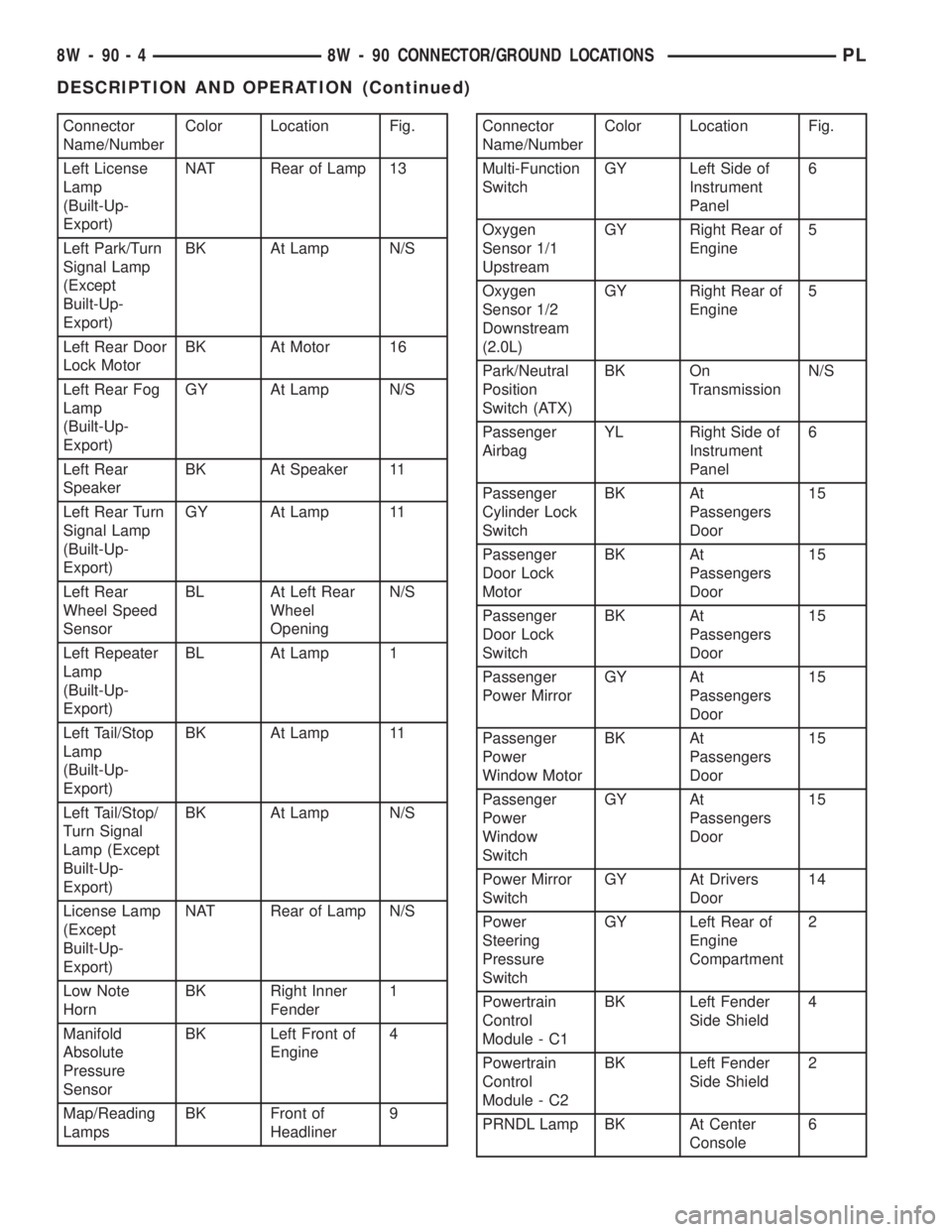

Name/NumberColor Location Fig.
Left License
Lamp
(Built-Up-
Export)NAT Rear of Lamp 13
Left Park/Turn
Signal Lamp
(Except
Built-Up-
Export)BK At Lamp N/S
Left Rear Door
Lock MotorBK At Motor 16
Left Rear Fog
Lamp
(Built-Up-
Export)GY At Lamp N/S
Left Rear
SpeakerBK At Speaker 11
Left Rear Turn
Signal Lamp
(Built-Up-
Export)GY At Lamp 11
Left Rear
Wheel Speed
SensorBL At Left Rear
Wheel
OpeningN/S
Left Repeater
Lamp
(Built-Up-
Export)BL At Lamp 1
Left Tail/Stop
Lamp
(Built-Up-
Export)BK At Lamp 11
Left Tail/Stop/
Turn Signal
Lamp (Except
Built-Up-
Export)BK At Lamp N/S
License Lamp
(Except
Built-Up-
Export)NAT Rear of Lamp N/S
Low Note
HornBK Right Inner
Fender1
Manifold
Absolute
Pressure
SensorBK Left Front of
Engine4
Map/Reading
LampsBK Front of
Headliner9Connector
Name/NumberColor Location Fig.
Multi-Function
SwitchGY Left Side of
Instrument
Panel6
Oxygen
Sensor 1/1
UpstreamGY Right Rear of
Engine5
Oxygen
Sensor 1/2
Downstream
(2.0L)GY Right Rear of
Engine5
Park/Neutral
Position
Switch (ATX)BK On
TransmissionN/S
Passenger
AirbagYL Right Side of
Instrument
Panel6
Passenger
Cylinder Lock
SwitchBK At
Passengers
Door15
Passenger
Door Lock
MotorBK At
Passengers
Door15
Passenger
Door Lock
SwitchBK At
Passengers
Door15
Passenger
Power MirrorGY At
Passengers
Door15
Passenger
Power
Window MotorBK At
Passengers
Door15
Passenger
Power
Window
SwitchGY At
Passengers
Door15
Power Mirror
SwitchGY At Drivers
Door14
Power
Steering
Pressure
SwitchGY Left Rear of
Engine
Compartment2
Powertrain
Control
Module - C1BK Left Fender
Side Shield4
Powertrain
Control
Module - C2BK Left Fender
Side Shield2
PRNDL Lamp BK At Center
Console6
8W - 90 - 4 8W - 90 CONNECTOR/GROUND LOCATIONSPL
DESCRIPTION AND OPERATION (Continued)

Connector

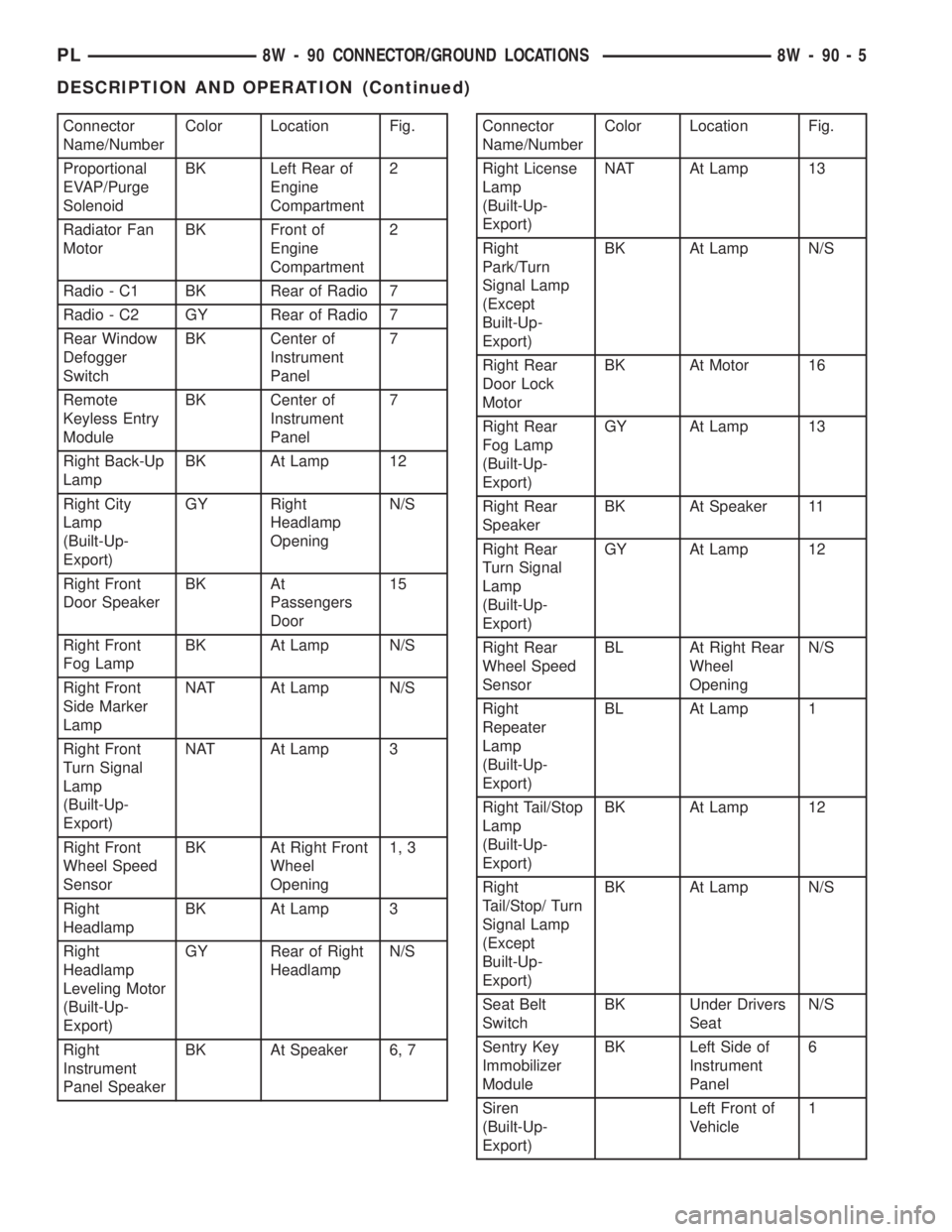

Name/NumberColor Location Fig.
Proportional
EVAP/Purge
SolenoidBK Left Rear of
Engine
Compartment2
Radiator Fan
MotorBK Front of
Engine
Compartment2
Radio - C1 BK Rear of Radio 7
Radio - C2 GY Rear of Radio 7
Rear Window
Defogger
SwitchBK Center of
Instrument
Panel7
Remote
Keyless Entry
ModuleBK Center of
Instrument
Panel7
Right Back-Up
LampBK At Lamp 12
Right City
Lamp
(Built-Up-
Export)GY Right
Headlamp
OpeningN/S
Right Front
Door SpeakerBK At
Passengers
Door15
Right Front
Fog LampBK At Lamp N/S
Right Front
Side Marker
LampNAT At Lamp N/S
Right Front
Turn Signal
Lamp
(Built-Up-
Export)NAT At Lamp 3
Right Front
Wheel Speed
SensorBK At Right Front
Wheel
Opening1, 3
Right
HeadlampBK At Lamp 3
Right
Headlamp
Leveling Motor
(Built-Up-
Export)GY Rear of Right
HeadlampN/S
Right
Instrument
Panel SpeakerBK At Speaker 6, 7Connector
Name/NumberColor Location Fig.
Right License
Lamp
(Built-Up-
Export)NAT At Lamp 13
Right
Park/Turn
Signal Lamp
(Except
Built-Up-
Export)BK At Lamp N/S
Right Rear
Door Lock
MotorBK At Motor 16
Right Rear
Fog Lamp
(Built-Up-
Export)GY At Lamp 13
Right Rear
SpeakerBK At Speaker 11
Right Rear
Turn Signal
Lamp
(Built-Up-
Export)GY At Lamp 12
Right Rear
Wheel Speed
SensorBL At Right Rear
Wheel
OpeningN/S
Right
Repeater
Lamp
(Built-Up-
Export)BL At Lamp 1
Right Tail/Stop
Lamp
(Built-Up-
Export)BK At Lamp 12
Right
Tail/Stop/ Turn
Signal Lamp
(Except
Built-Up-
Export)BK At Lamp N/S
Seat Belt
SwitchBK Under Drivers
SeatN/S
Sentry Key
Immobilizer
ModuleBK Left Side of
Instrument
Panel6
Siren
(Built-Up-
Export)Left Front of
Vehicle1
PL8W - 90 CONNECTOR/GROUND LOCATIONS 8W - 90 - 5
DESCRIPTION AND OPERATION (Continued)

Connector
Name/NumberColor Location Fig.

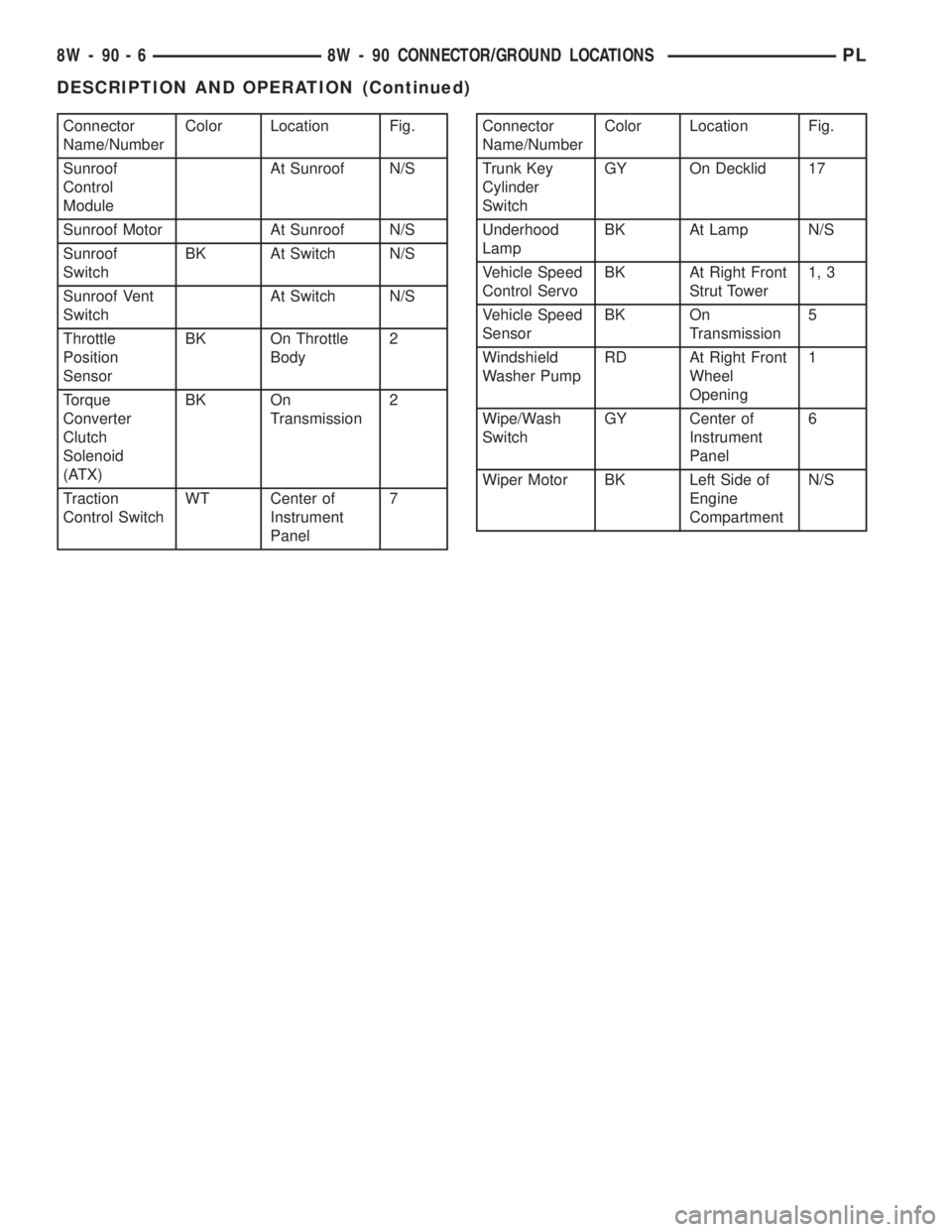

Sunroof
Control
ModuleAt Sunroof N/S
Sunroof Motor At Sunroof N/S
Sunroof
SwitchBK At Switch N/S
Sunroof Vent
SwitchAt Switch N/S
Throttle
Position
SensorBK On Throttle
Body2
Torque
Converter
Clutch
Solenoid
(ATX)BK On
Transmission2
Traction
Control SwitchWT Center of
Instrument
Panel7Connector
Name/NumberColor Location Fig.
Trunk Key
Cylinder
SwitchGY On Decklid 17
Underhood
LampBK At Lamp N/S
Vehicle Speed
Control ServoBK At Right Front
Strut Tower1, 3
Vehicle Speed
SensorBK On
Transmission5
Windshield
Washer PumpRD At Right Front
Wheel
Opening1
Wipe/Wash
SwitchGY Center of
Instrument
Panel6
Wiper Motor BK Left Side of
Engine
CompartmentN/S
8W - 90 - 6 8W - 90 CONNECTOR/GROUND LOCATIONSPL
DESCRIPTION AND OPERATION (Continued)

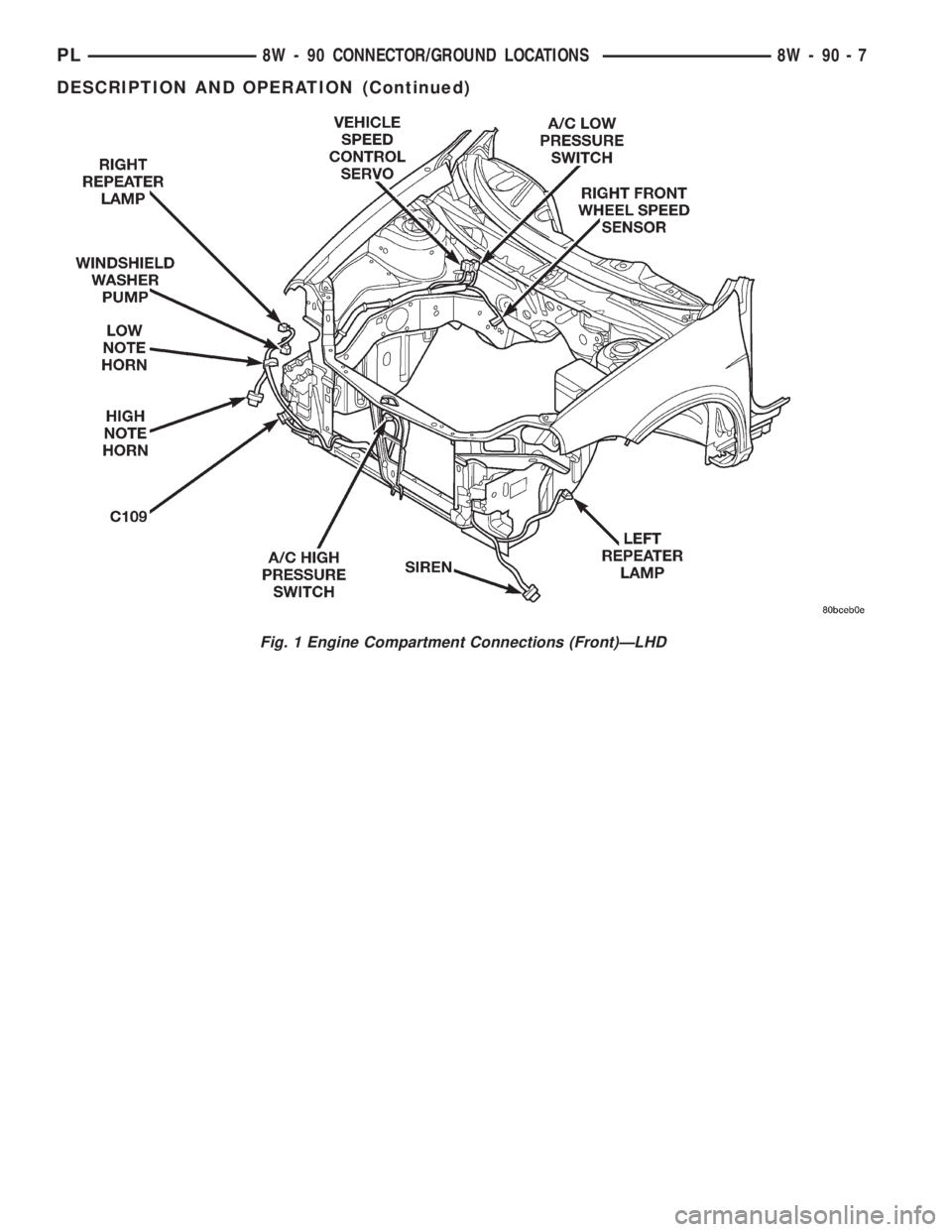

Fig. 1 Engine Compartment Connections (Front)ÐLHD
PL8W - 90 CONNECTOR/GROUND LOCATIONS 8W - 90 - 7
DESCRIPTION AND OPERATION (Continued)

Fig. 2 Engine Compartment Connections (Left Side)ÐLHD
8W - 90 - 8 8W - 90 CONNECTOR/GROUND LOCATIONSPL
DESCRIPTION AND OPERATION (Continued)

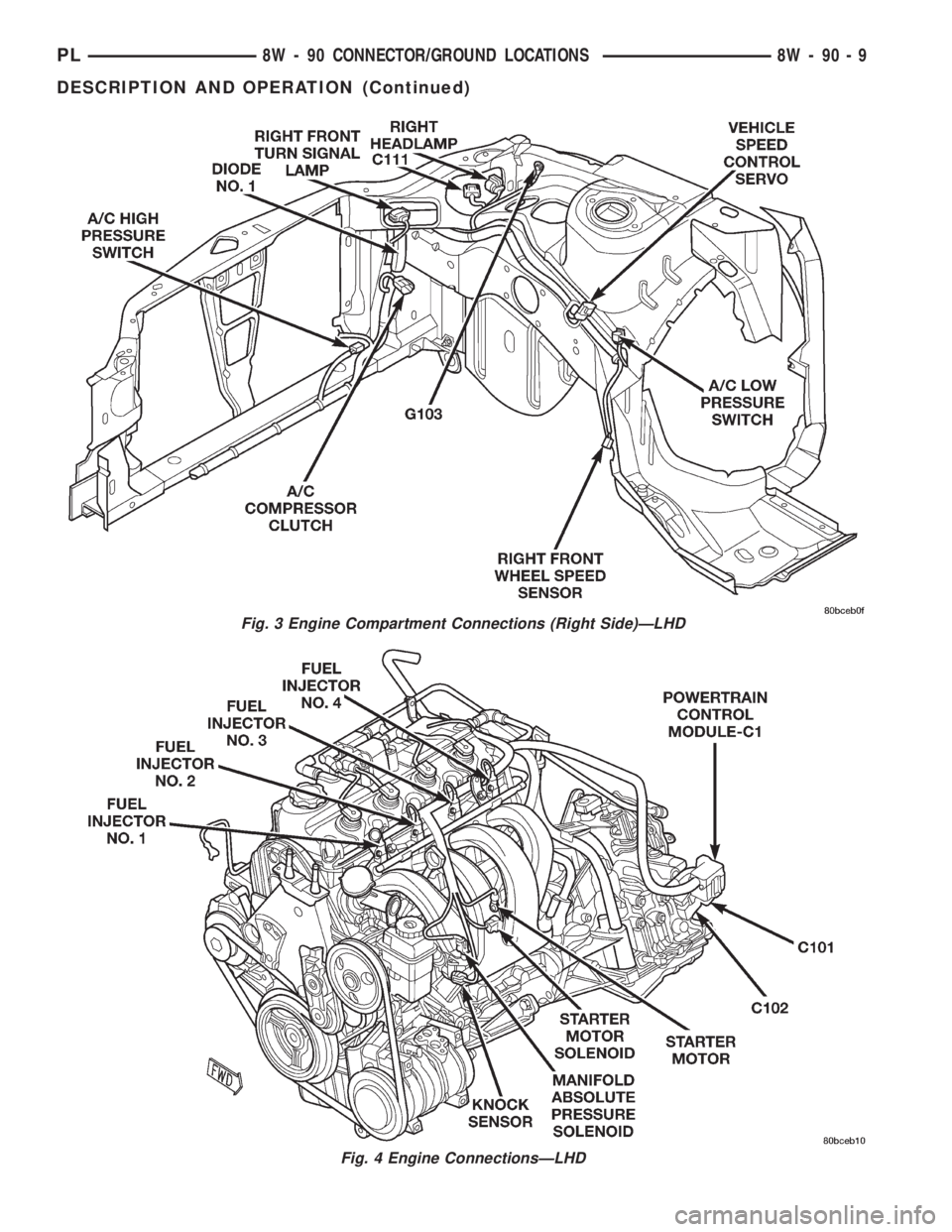

Fig. 3 Engine Compartment Connections (Right Side)ÐLHD
Fig. 4 Engine ConnectionsÐLHD
PL8W - 90 CONNECTOR/GROUND LOCATIONS 8W - 90 - 9
DESCRIPTION AND OPERATION (Continued)

Fig. 5 Engine ConnectionsÐLHD
8W - 90 - 10 8W - 90 CONNECTOR/GROUND LOCATIONSPL
DESCRIPTION AND OPERATION (Continued)

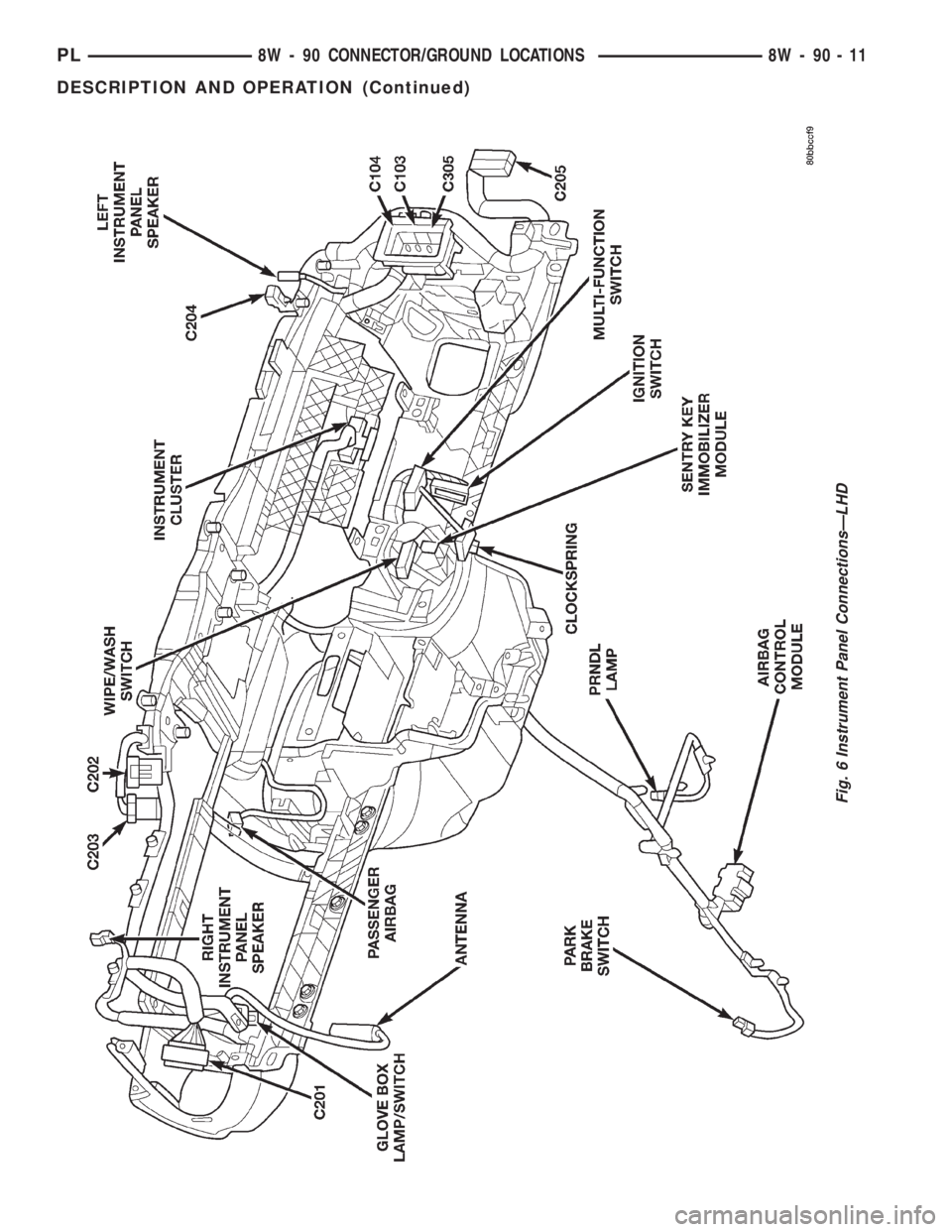

Fig. 6 Instrument Panel ConnectionsÐLHD
PL8W - 90 CONNECTOR/GROUND LOCATIONS 8W - 90 - 11
DESCRIPTION AND OPERATION (Continued)

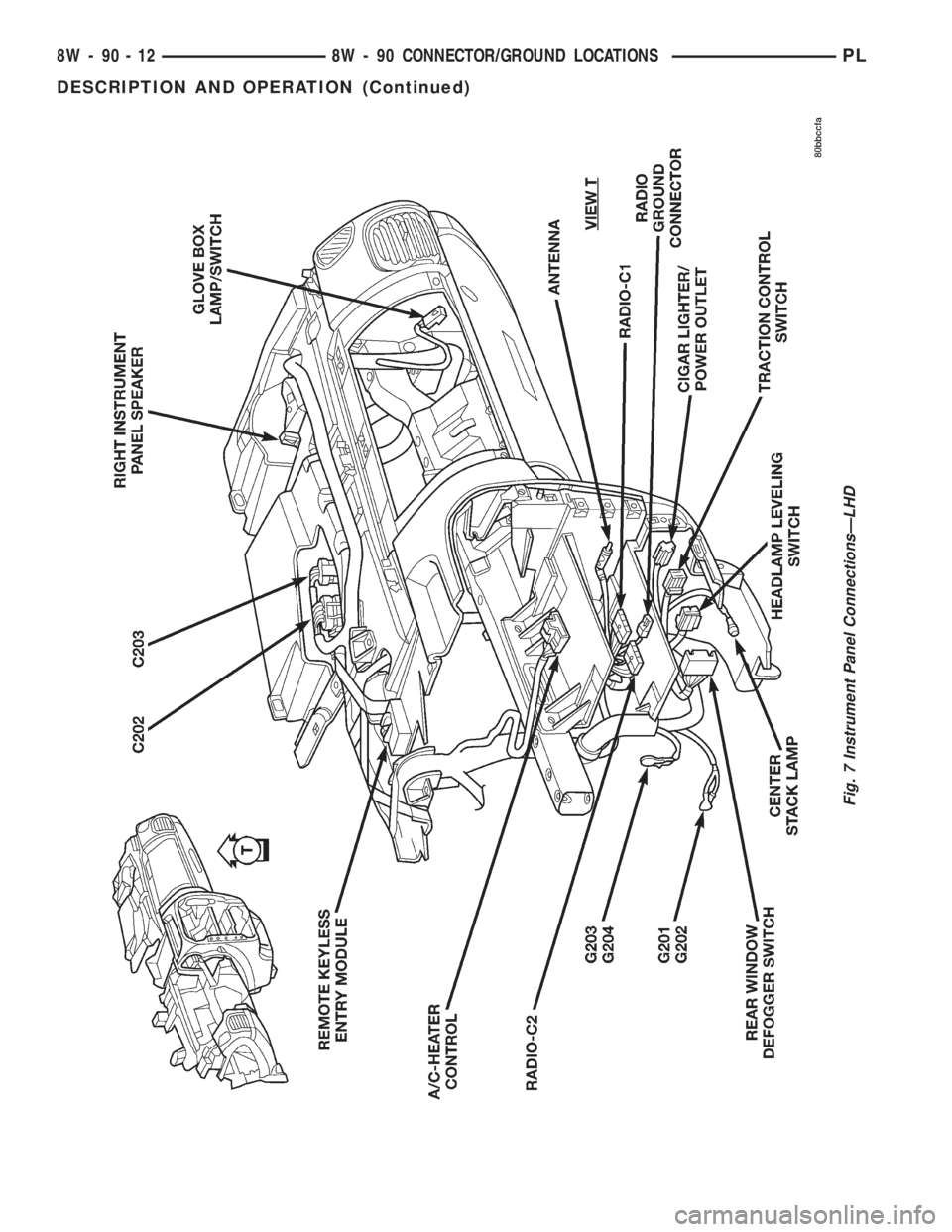

Fig. 7 Instrument Panel ConnectionsÐLHD
8W - 90 - 12 8W - 90 CONNECTOR/GROUND LOCATIONSPL
DESCRIPTION AND OPERATION (Continued)

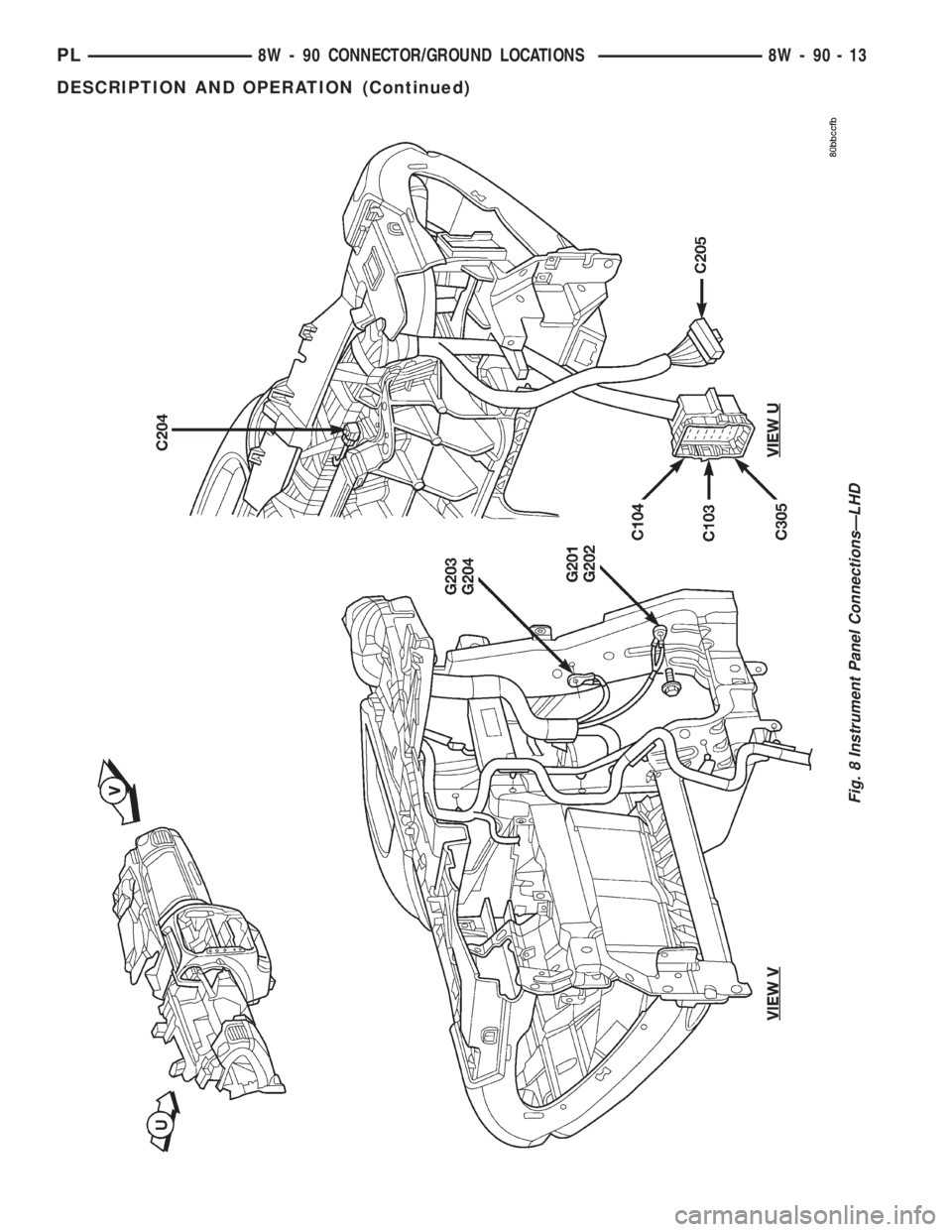

Fig. 8 Instrument Panel ConnectionsÐLHD
PL8W - 90 CONNECTOR/GROUND LOCATIONS 8W - 90 - 13
DESCRIPTION AND OPERATION (Continued)
