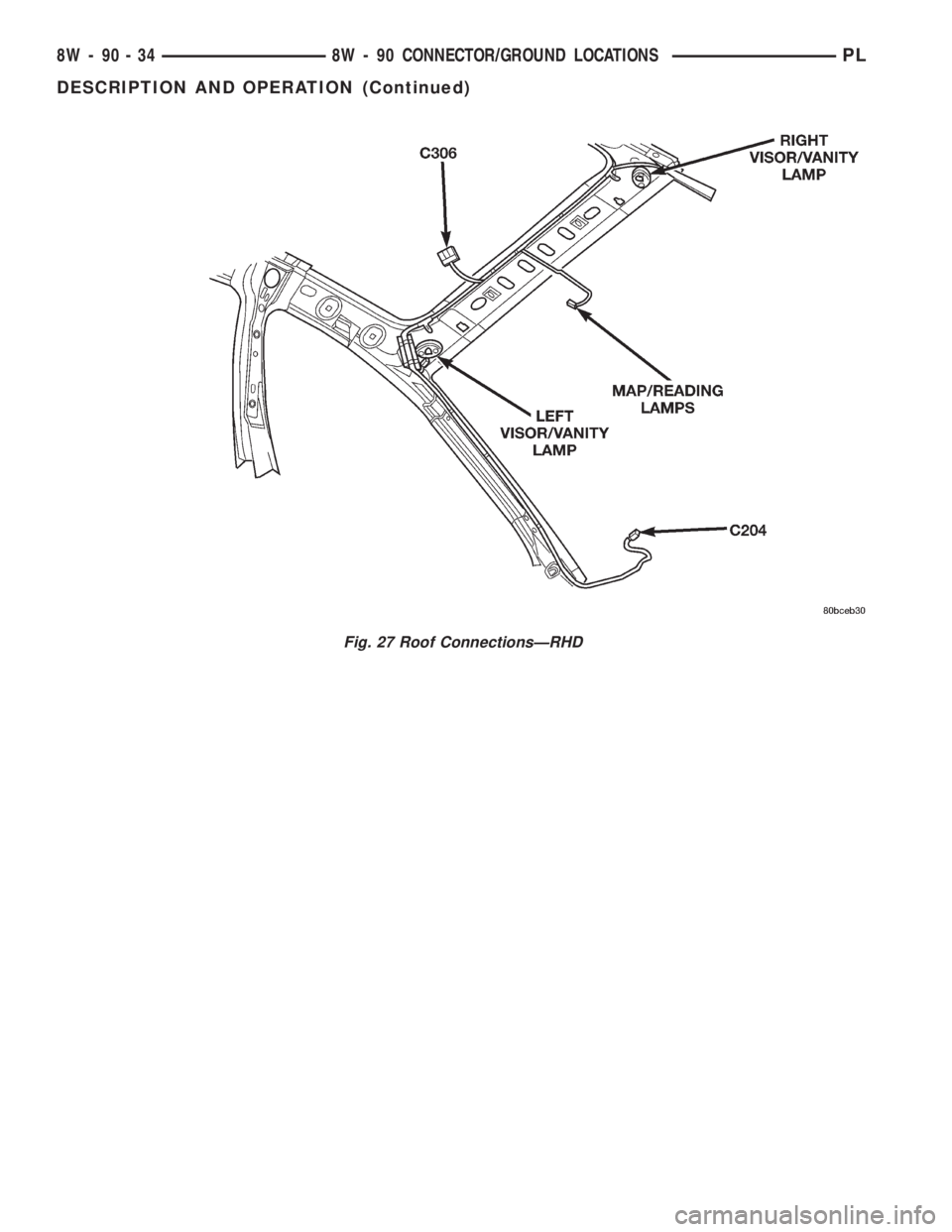

Fig. 27 Roof ConnectionsÐRHD
8W - 90 - 34 8W - 90 CONNECTOR/GROUND LOCATIONSPL
DESCRIPTION AND OPERATION (Continued)

Fig. 28 Body ConnectionsÐRHD
PL8W - 90 CONNECTOR/GROUND LOCATIONS 8W - 90 - 35
DESCRIPTION AND OPERATION (Continued)

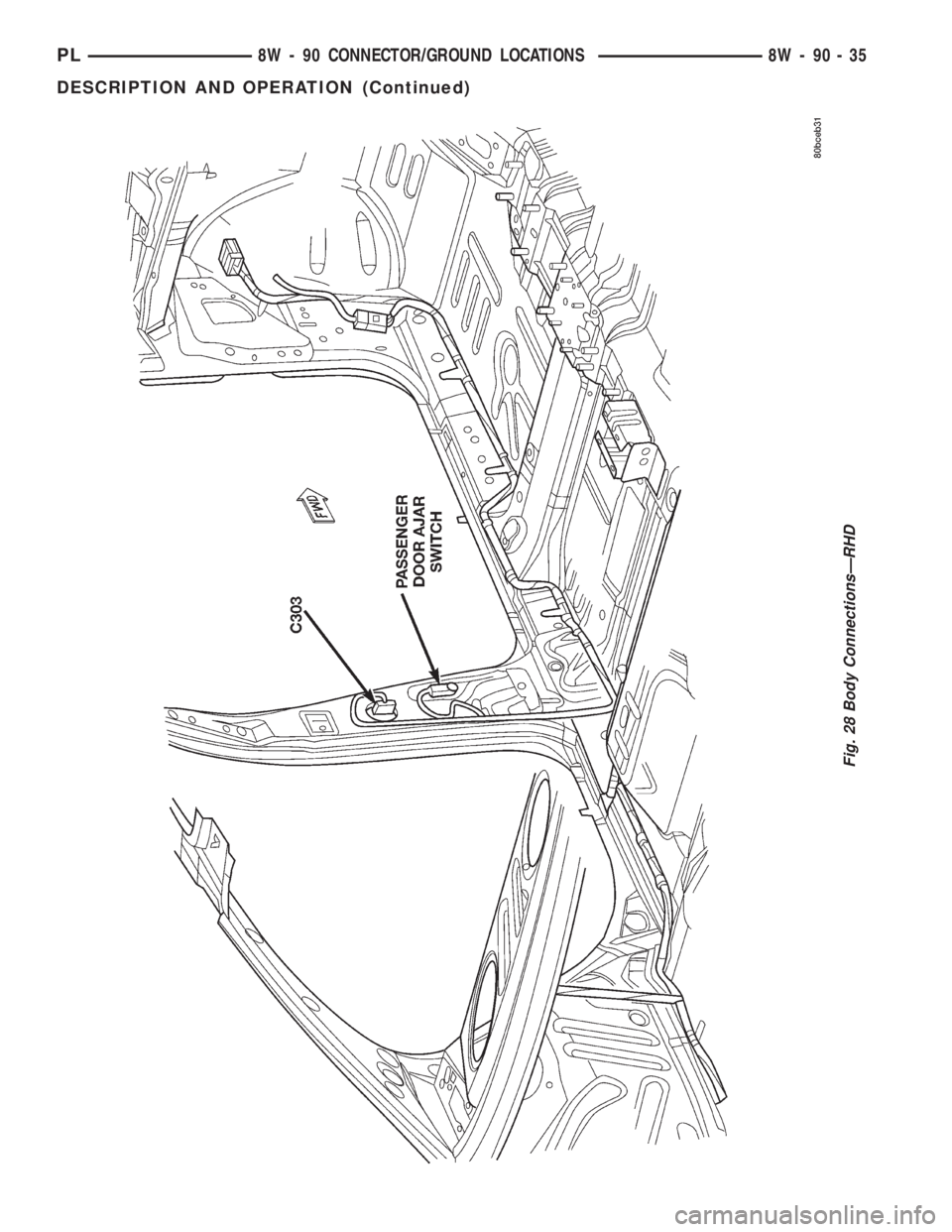

Fig. 29 Body ConnectionsÐRHD
8W - 90 - 36 8W - 90 CONNECTOR/GROUND LOCATIONSPL
DESCRIPTION AND OPERATION (Continued)

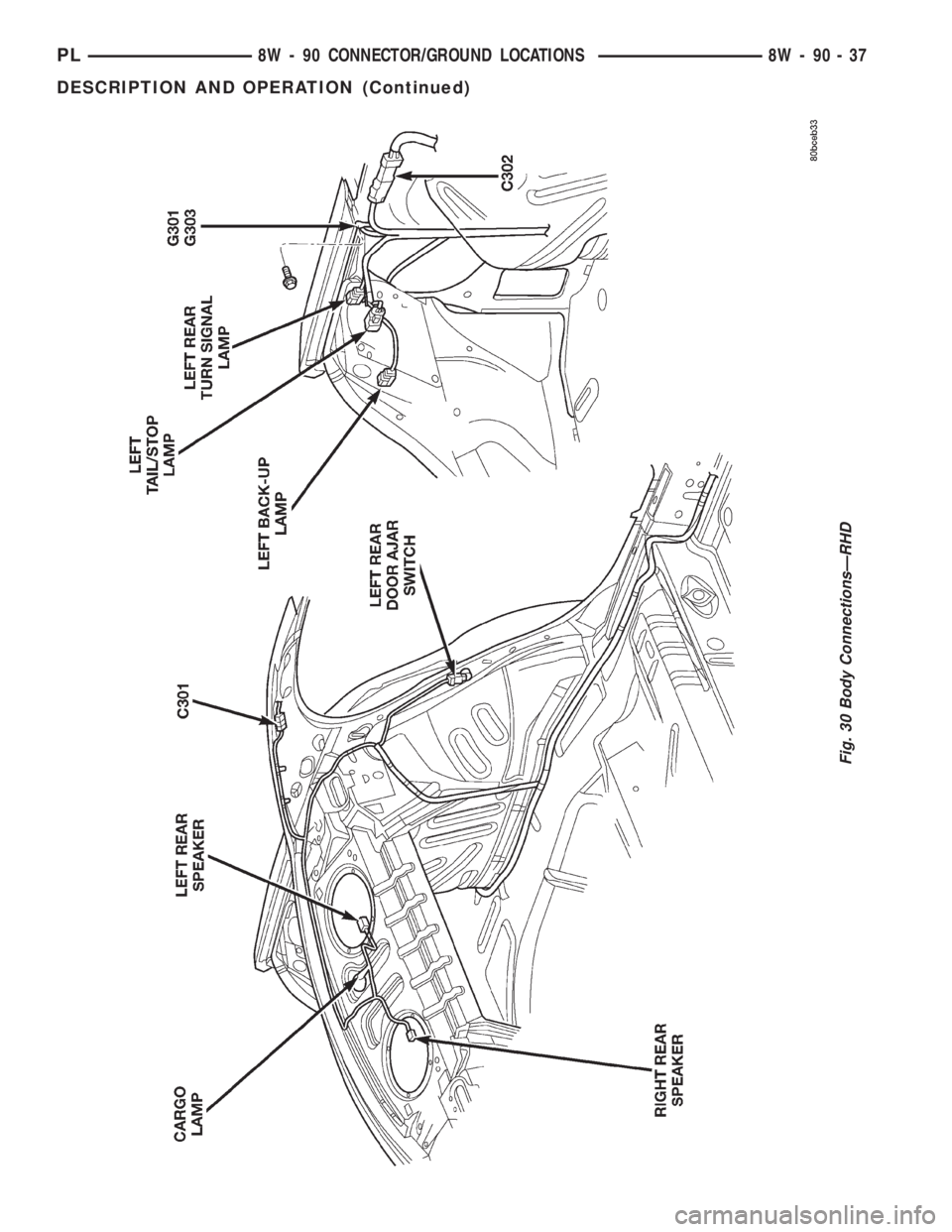

Fig. 30 Body ConnectionsÐRHD
PL8W - 90 CONNECTOR/GROUND LOCATIONS 8W - 90 - 37
DESCRIPTION AND OPERATION (Continued)

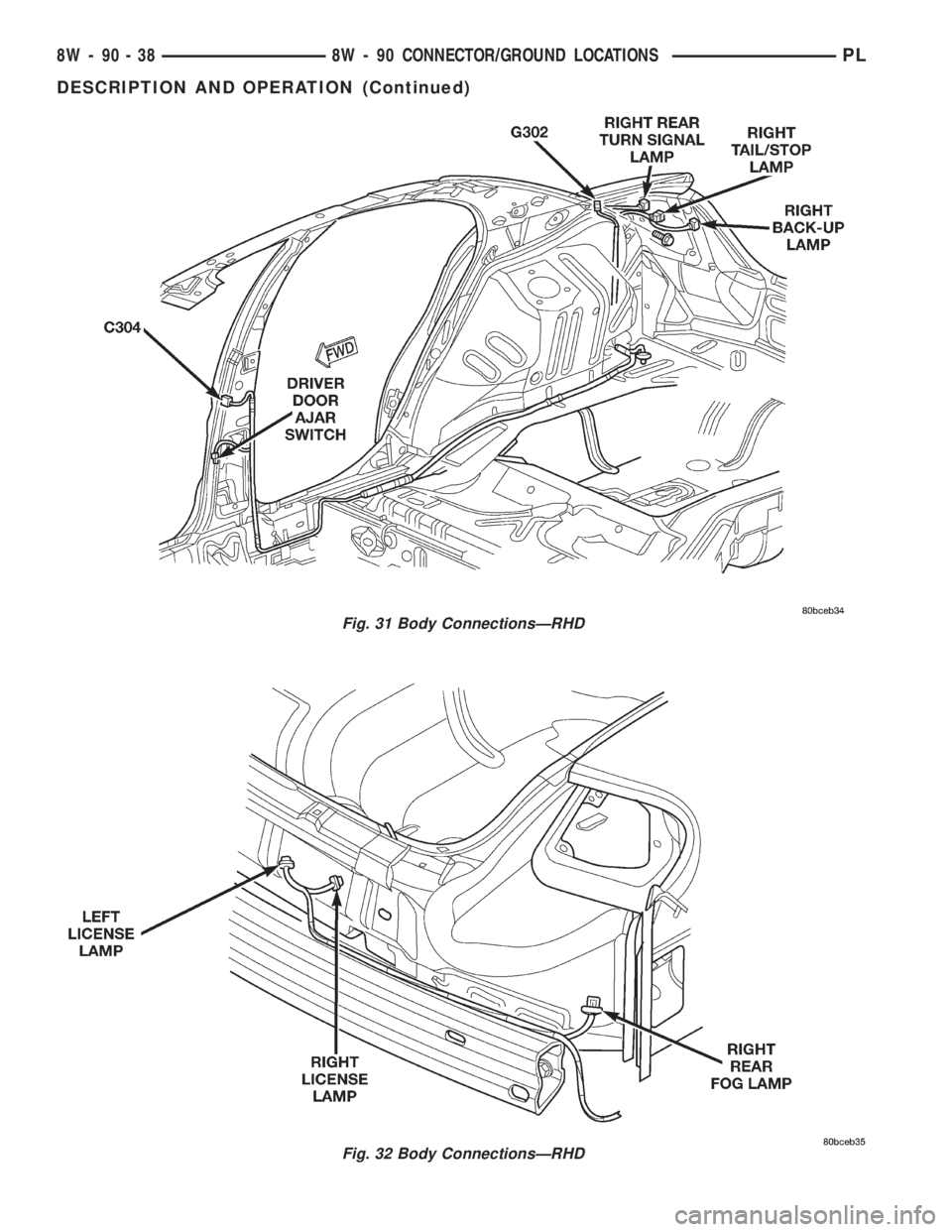

Fig. 31 Body ConnectionsÐRHD
Fig. 32 Body ConnectionsÐRHD
8W - 90 - 38 8W - 90 CONNECTOR/GROUND LOCATIONSPL
DESCRIPTION AND OPERATION (Continued)

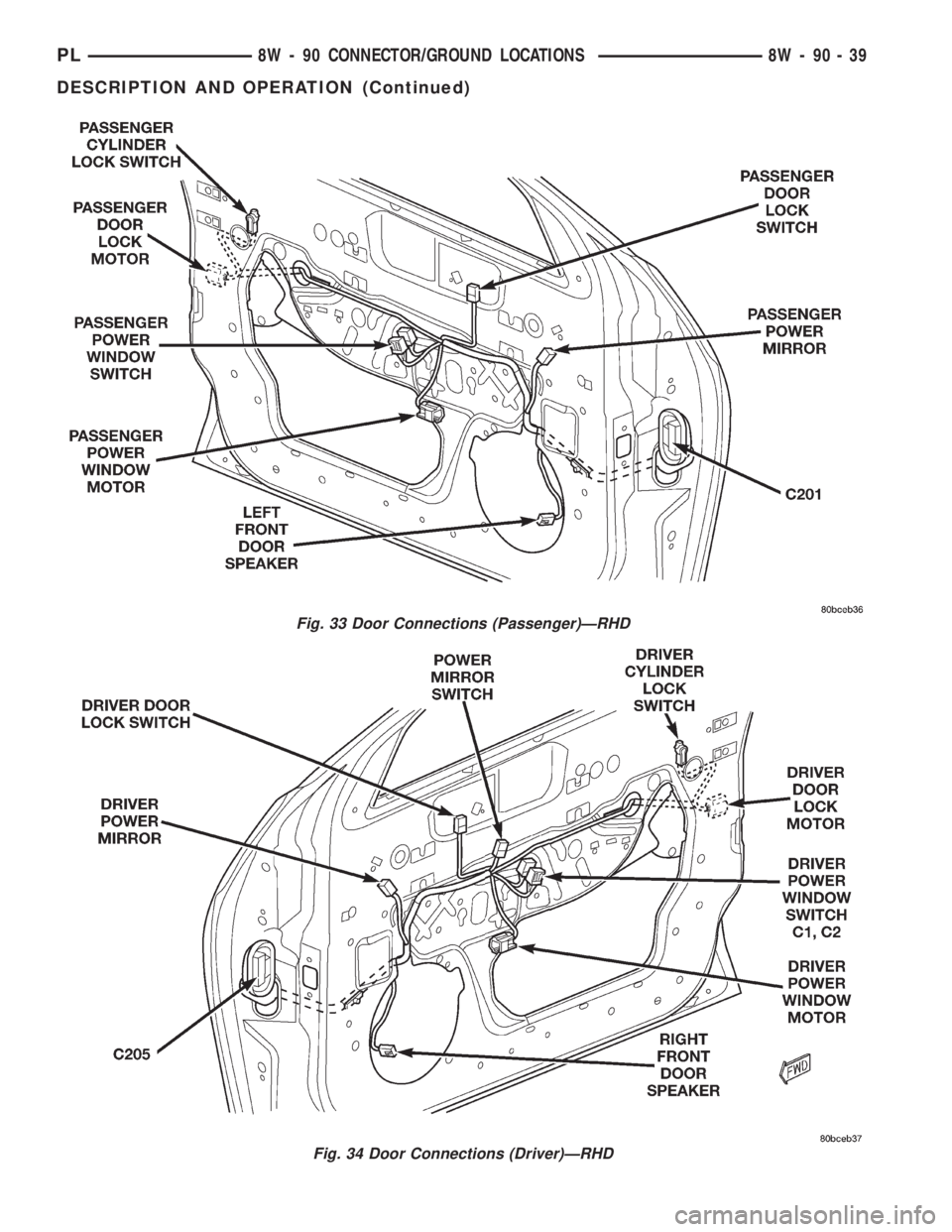

Fig. 33 Door Connections (Passenger)ÐRHD
Fig. 34 Door Connections (Driver)ÐRHD
PL8W - 90 CONNECTOR/GROUND LOCATIONS 8W - 90 - 39
DESCRIPTION AND OPERATION (Continued)

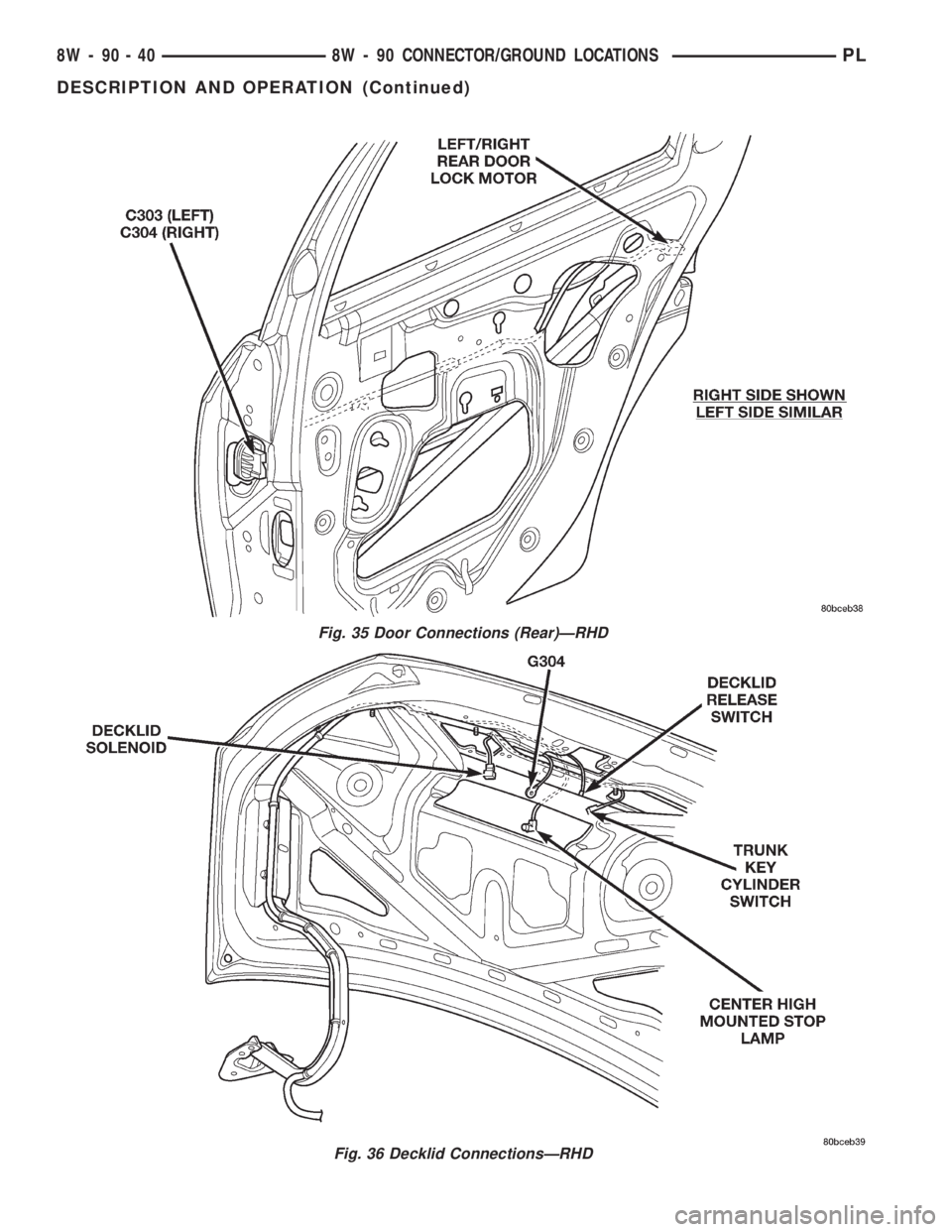

Fig. 35 Door Connections (Rear)ÐRHD
Fig. 36 Decklid ConnectionsÐRHD
8W - 90 - 40 8W - 90 CONNECTOR/GROUND LOCATIONSPL
DESCRIPTION AND OPERATION (Continued)

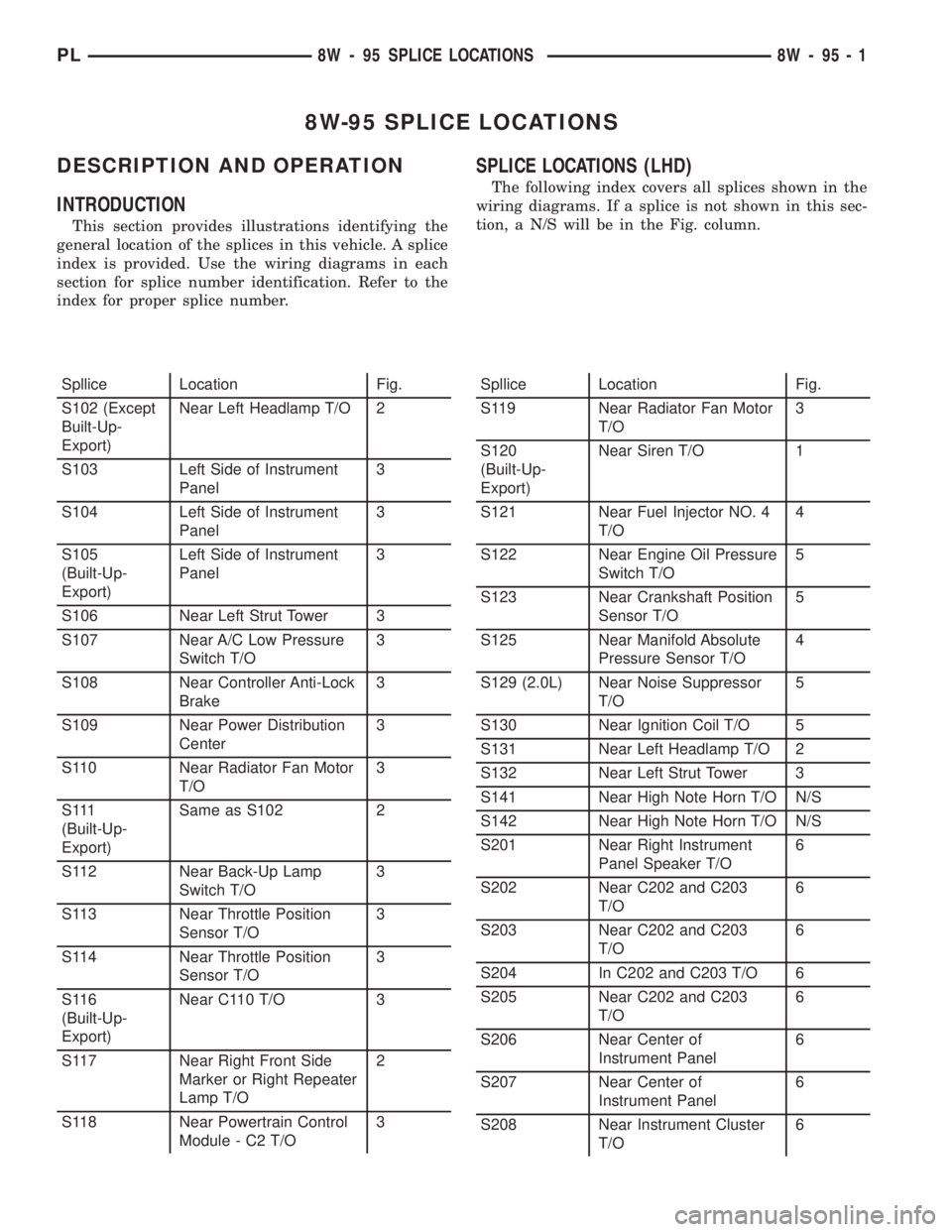

8W-95 SPLICE LOCATIONS
DESCRIPTION AND OPERATION
INTRODUCTION
This section provides illustrations identifying the
general location of the splices in this vehicle. A splice
index is provided. Use the wiring diagrams in each
section for splice number identification. Refer to the
index for proper splice number.
SPLICE LOCATIONS (LHD)
The following index covers all splices shown in the
wiring diagrams. If a splice is not shown in this sec-
tion, a N/S will be in the Fig. column.

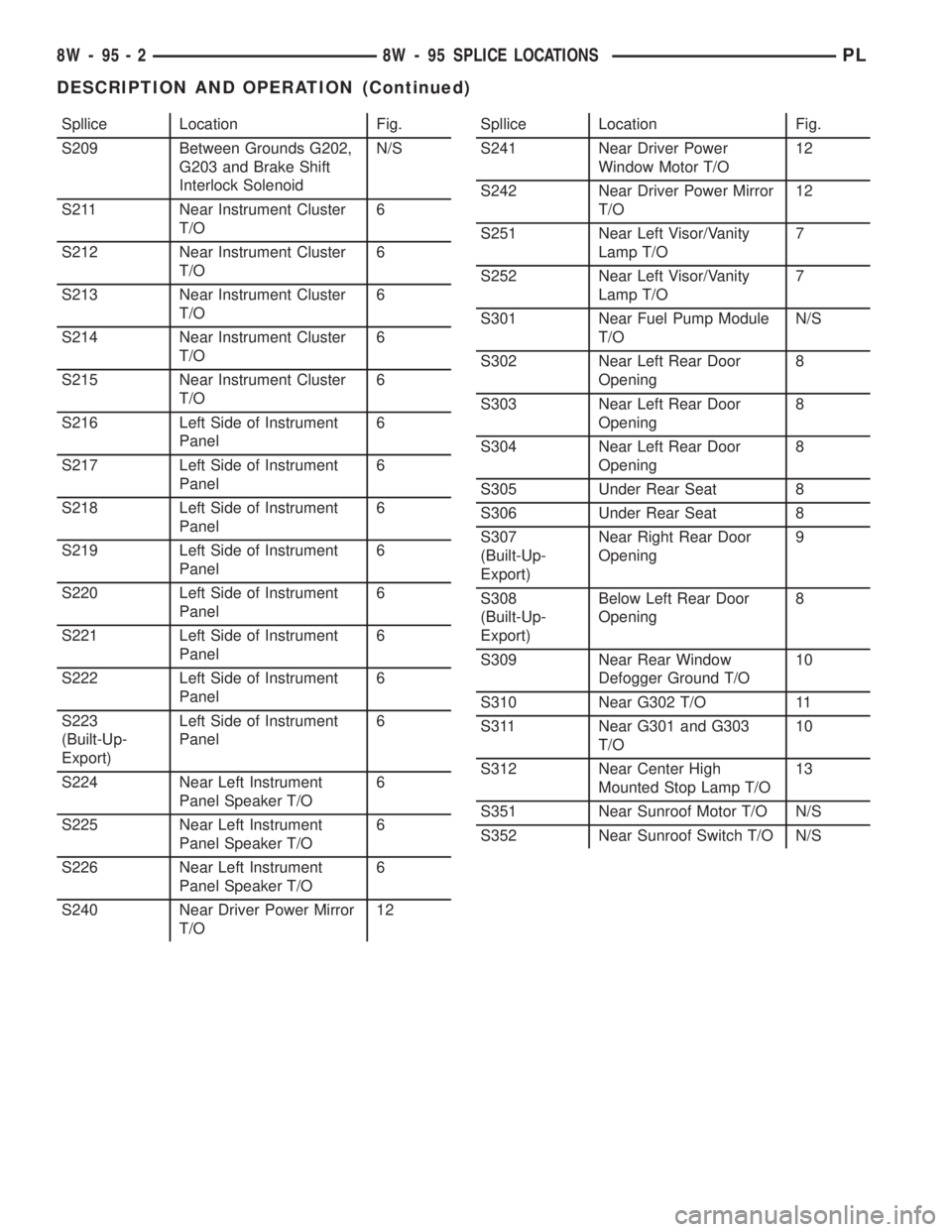

Spllice Location Fig.
S102 (Except
Built-Up-
Export)Near Left Headlamp T/O 2
S103 Left Side of Instrument
Panel3
S104 Left Side of Instrument
Panel3
S105
(Built-Up-
Export)Left Side of Instrument
Panel3
S106 Near Left Strut Tower 3
S107 Near A/C Low Pressure
Switch T/O3
S108 Near Controller Anti-Lock
Brake3
S109 Near Power Distribution
Center3
S110 Near Radiator Fan Motor
T/O3
S 111
(Built-Up-
Export)Same as S102 2
S112 Near Back-Up Lamp
Switch T/O3
S113 Near Throttle Position
Sensor T/O3
S114 Near Throttle Position
Sensor T/O3
S116
(Built-Up-
Export)Near C110 T/O 3
S117 Near Right Front Side
Marker or Right Repeater
Lamp T/O2
S118 Near Powertrain Control
Module - C2 T/O3Spllice Location Fig.
S119 Near Radiator Fan Motor
T/O3
S120
(Built-Up-
Export)Near Siren T/O 1
S121 Near Fuel Injector NO. 4
T/O4
S122 Near Engine Oil Pressure
Switch T/O5
S123 Near Crankshaft Position
Sensor T/O5
S125 Near Manifold Absolute
Pressure Sensor T/O4
S129 (2.0L) Near Noise Suppressor
T/O5
S130 Near Ignition Coil T/O 5
S131 Near Left Headlamp T/O 2
S132 Near Left Strut Tower 3
S141 Near High Note Horn T/O N/S
S142 Near High Note Horn T/O N/S
S201 Near Right Instrument
Panel Speaker T/O6
S202 Near C202 and C203
T/O6
S203 Near C202 and C203
T/O6
S204 In C202 and C203 T/O 6
S205 Near C202 and C203
T/O6
S206 Near Center of
Instrument Panel6
S207 Near Center of
Instrument Panel6
S208 Near Instrument Cluster
T/O6
PL8W - 95 SPLICE LOCATIONS 8W - 95 - 1

Spllice Location Fig.
S209 Between Grounds G202,
G203 and Brake Shift
Interlock SolenoidN/S
S211 Near Instrument Cluster
T/O6
S212 Near Instrument Cluster
T/O6
S213 Near Instrument Cluster
T/O6
S214 Near Instrument Cluster
T/O6
S215 Near Instrument Cluster
T/O6
S216 Left Side of Instrument
Panel6
S217 Left Side of Instrument
Panel6
S218 Left Side of Instrument
Panel6
S219 Left Side of Instrument
Panel6
S220 Left Side of Instrument
Panel6
S221 Left Side of Instrument
Panel6
S222 Left Side of Instrument
Panel6
S223
(Built-Up-
Export)Left Side of Instrument
Panel6
S224 Near Left Instrument
Panel Speaker T/O6
S225 Near Left Instrument
Panel Speaker T/O6
S226 Near Left Instrument
Panel Speaker T/O6
S240 Near Driver Power Mirror
T/O12Spllice Location Fig.
S241 Near Driver Power
Window Motor T/O12
S242 Near Driver Power Mirror
T/O12
S251 Near Left Visor/Vanity
Lamp T/O7
S252 Near Left Visor/Vanity
Lamp T/O7
S301 Near Fuel Pump Module
T/ON/S
S302 Near Left Rear Door
Opening8
S303 Near Left Rear Door
Opening8
S304 Near Left Rear Door
Opening8
S305 Under Rear Seat 8
S306 Under Rear Seat 8
S307
(Built-Up-
Export)Near Right Rear Door
Opening9
S308
(Built-Up-
Export)Below Left Rear Door
Opening8
S309 Near Rear Window
Defogger Ground T/O10
S310 Near G302 T/O 11
S311 Near G301 and G303
T/O10
S312 Near Center High
Mounted Stop Lamp T/O13
S351 Near Sunroof Motor T/O N/S
S352 Near Sunroof Switch T/O N/S
8W - 95 - 2 8W - 95 SPLICE LOCATIONSPL
DESCRIPTION AND OPERATION (Continued)

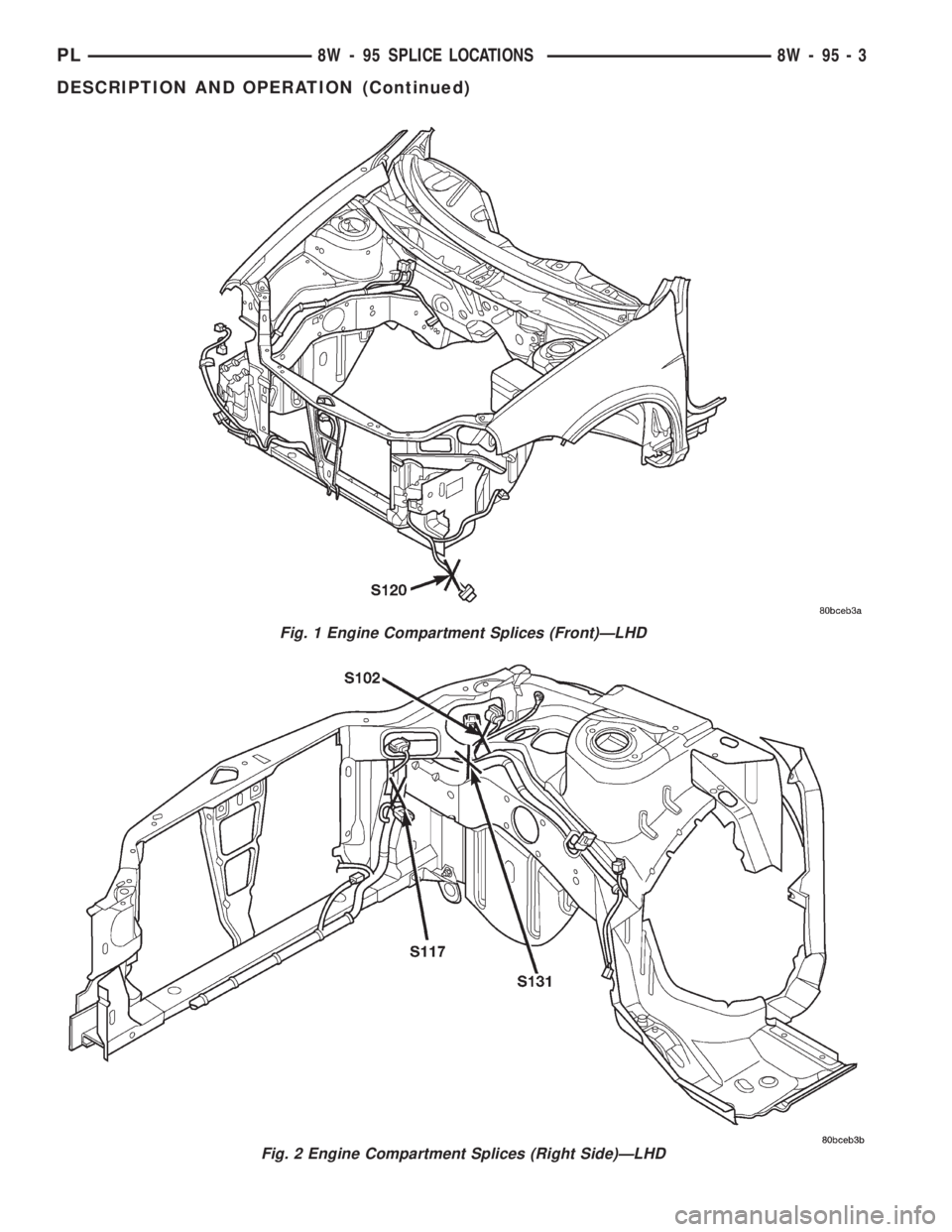

Fig. 1 Engine Compartment Splices (Front)ÐLHD
Fig. 2 Engine Compartment Splices (Right Side)ÐLHD
PL8W - 95 SPLICE LOCATIONS 8W - 95 - 3
DESCRIPTION AND OPERATION (Continued)
