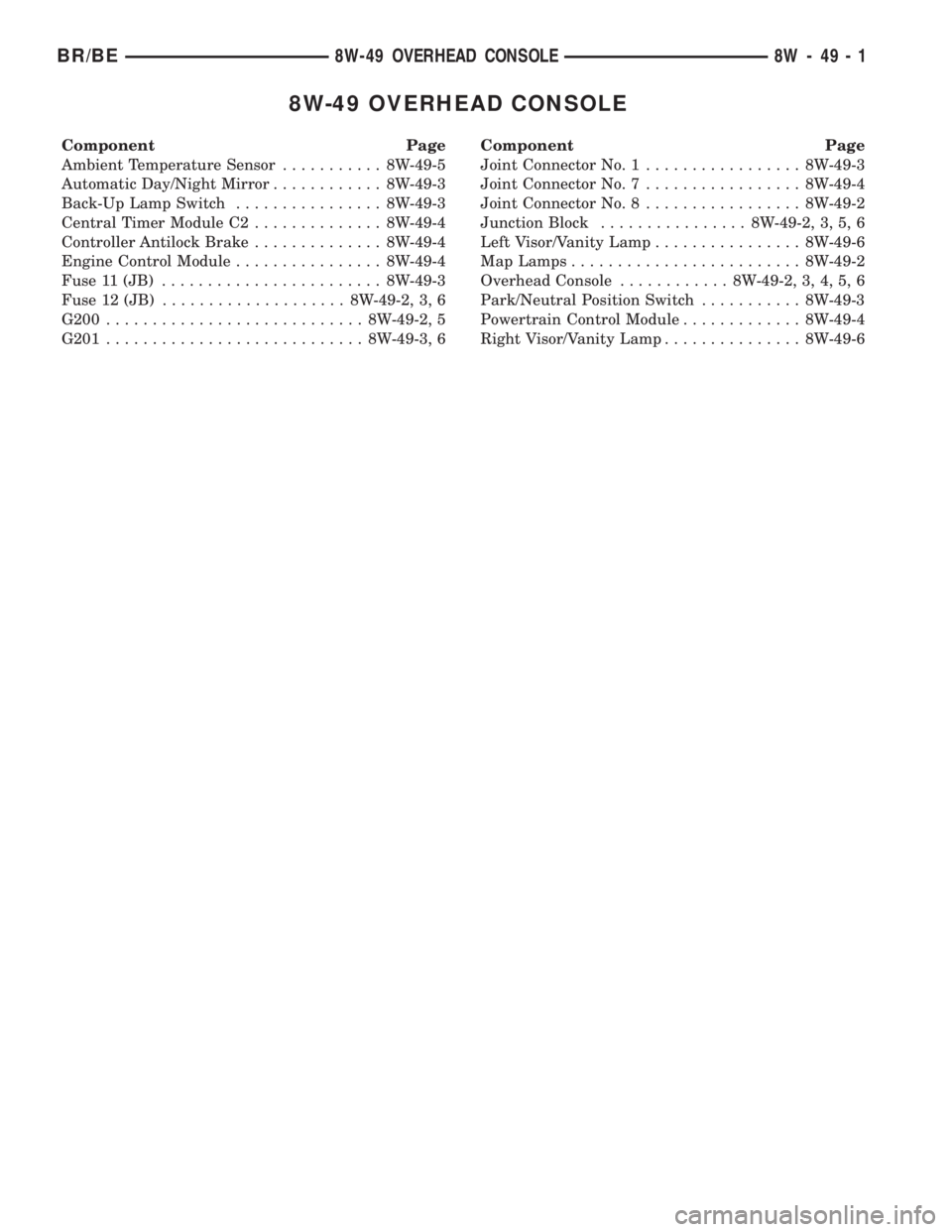

8W-49 OVERHEAD CONSOLE
Component Page
Ambient Temperature Sensor........... 8W-49-5
Automatic Day/Night Mirror............ 8W-49-3
Back-Up Lamp Switch................ 8W-49-3
Central Timer Module C2.............. 8W-49-4
Controller Antilock Brake.............. 8W-49-4
Engine Control Module................ 8W-49-4
Fuse 11 (JB)........................ 8W-49-3
Fuse 12 (JB).................... 8W-49-2, 3, 6
G200............................ 8W-49-2, 5
G201............................ 8W-49-3, 6Component Page
Joint Connector No. 1................. 8W-49-3
Joint Connector No. 7................. 8W-49-4
Joint Connector No. 8................. 8W-49-2
Junction Block................ 8W-49-2, 3, 5, 6
Left Visor/Vanity Lamp................ 8W-49-6
Map Lamps......................... 8W-49-2
Overhead Console............ 8W-49-2, 3, 4, 5, 6
Park/Neutral Position Switch........... 8W-49-3
Powertrain Control Module............. 8W-49-4
Right Visor/Vanity Lamp............... 8W-49-6
BR/BE8W-49 OVERHEAD CONSOLE 8W - 49 - 1
