8W-42 AIR CONDITIONING-HEATER
Component Page
A/C Compressor Clutch................ 8W-42-5
A/C Compressor Clutch Relay........... 8W-42-5
A/C Heater Temperature Select......... 8W-42-2

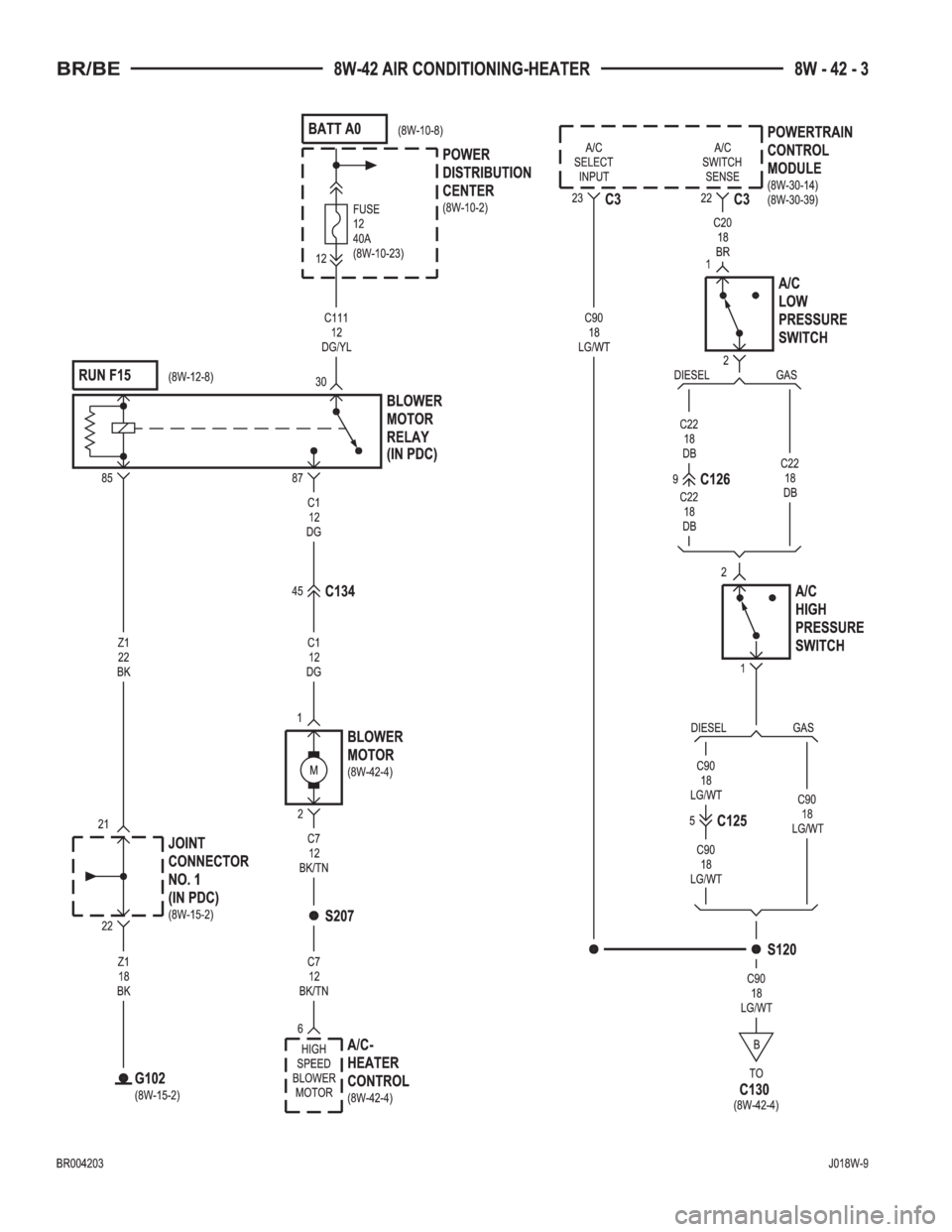

A/C High Pressure Switch............. 8W-42-3
A/C Low Pressure Switch.............. 8W-42-3
A/C-Heater Control................. 8W-42-3, 4
Blend Door Actuator.................. 8W-42-2
Blower Motor..................... 8W-42-3, 4
Blower Motor Relay.............. 8W-42-2, 3, 4

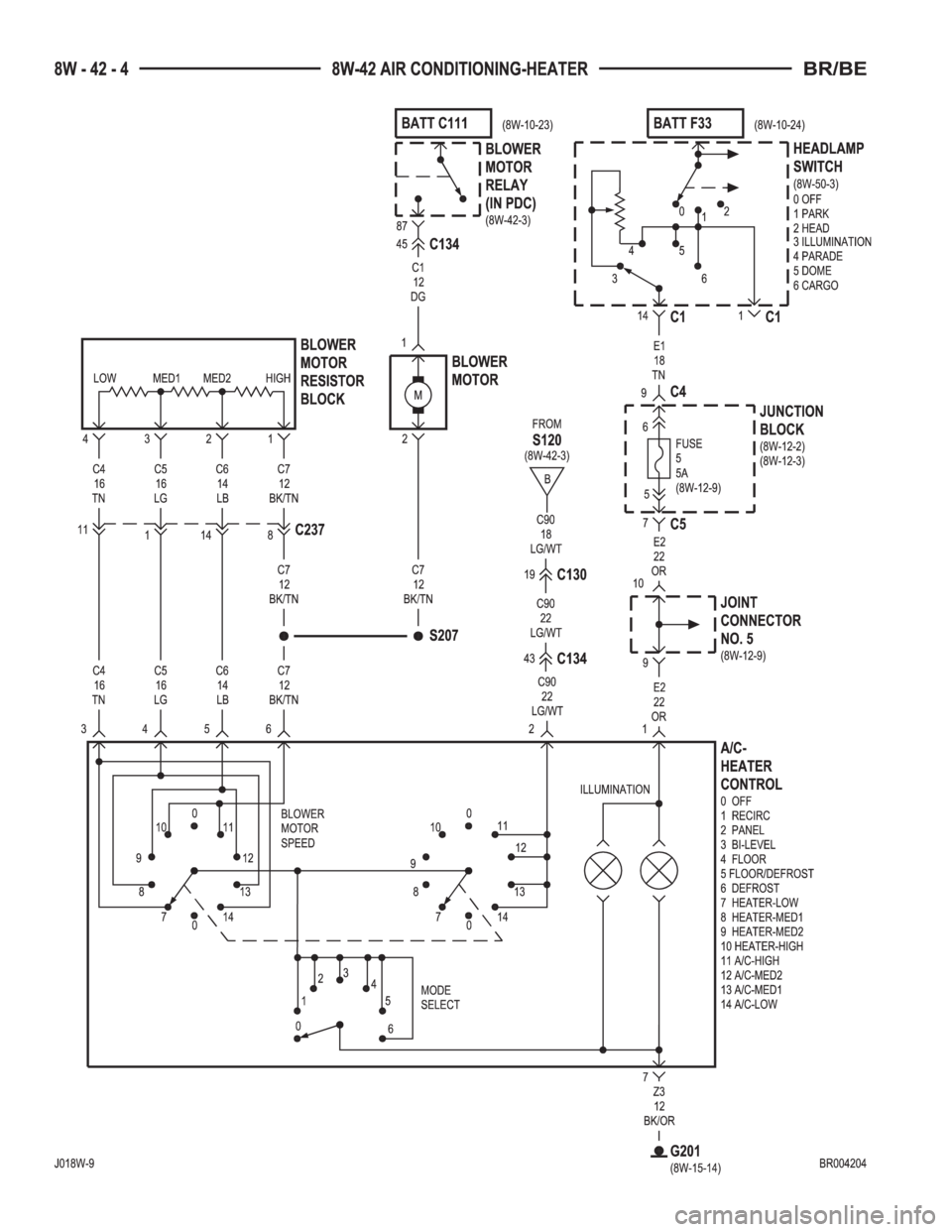

Blower Motor Resistor Block............ 8W-42-4
Fuse 2 (JB)......................... 8W-42-2
Fuse 5 (JB)......................... 8W-42-4
Fuse 11 (JB)........................ 8W-42-5
Fuse 12 (PDC)...................... 8W-42-3Component Page
Fuse J (PDC)....................... 8W-42-5
G102............................ 8W-42-2, 3
G105.............................. 8W-42-5
G107.............................. 8W-42-5
G200.............................. 8W-42-2
G201.............................. 8W-42-4
Headlamp Switch.................... 8W-42-4
Joint Connector No. 1............... 8W-42-2, 3
Joint Connector No. 5................. 8W-42-4
Joint Connector No. 8................. 8W-42-2
Junction Block.................. 8W-42-2, 4, 5
Power Distribution Center........... 8W-42-3, 5
Powertrain Control Module........... 8W-42-3, 5
BR/BE8W-42 AIR CONDITIONING-HEATER 8W - 42 - 1

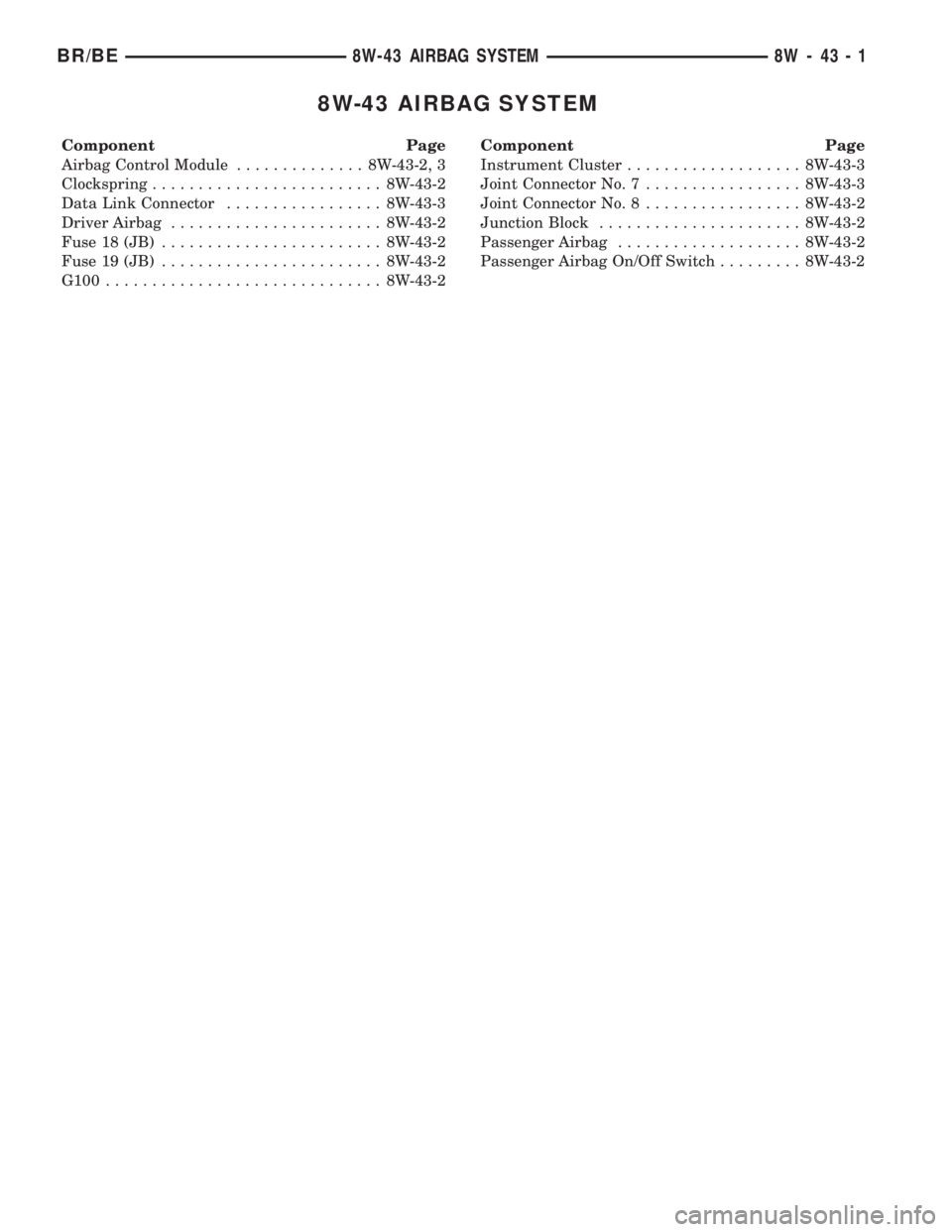

8W-43 AIRBAG SYSTEM
Component Page
Airbag Control Module.............. 8W-43-2, 3
Clockspring......................... 8W-43-2
Data Link Connector................. 8W-43-3
Driver Airbag....................... 8W-43-2
Fuse 18 (JB)........................ 8W-43-2
Fuse 19 (JB)........................ 8W-43-2
G100.............................. 8W-43-2Component Page
Instrument Cluster................... 8W-43-3
Joint Connector No. 7................. 8W-43-3
Joint Connector No. 8................. 8W-43-2
Junction Block...................... 8W-43-2
Passenger Airbag.................... 8W-43-2
Passenger Airbag On/Off Switch......... 8W-43-2
BR/BE8W-43 AIRBAG SYSTEM 8W - 43 - 1
