Page 631 of 2255

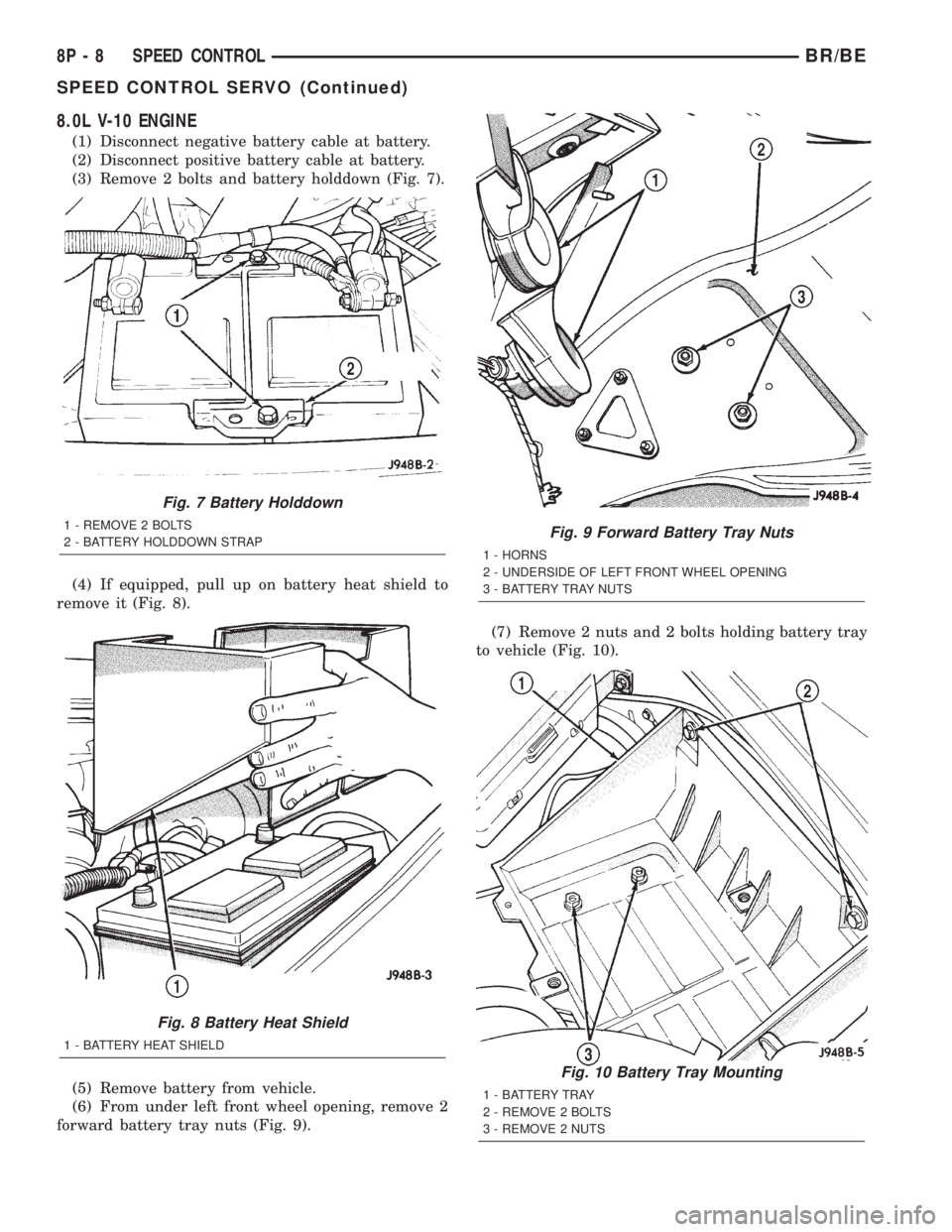

DODGE RAM 2002  Service Repair Manual 8.0L V-10 ENGINE
(1) Disconnect negative battery cable at battery.
(2) Disconnect positive battery cable at battery.
(3) Remove 2 bolts and battery holddown (Fig. 7).
(4) If equipped, pull up on batte

Page 632 of 2255

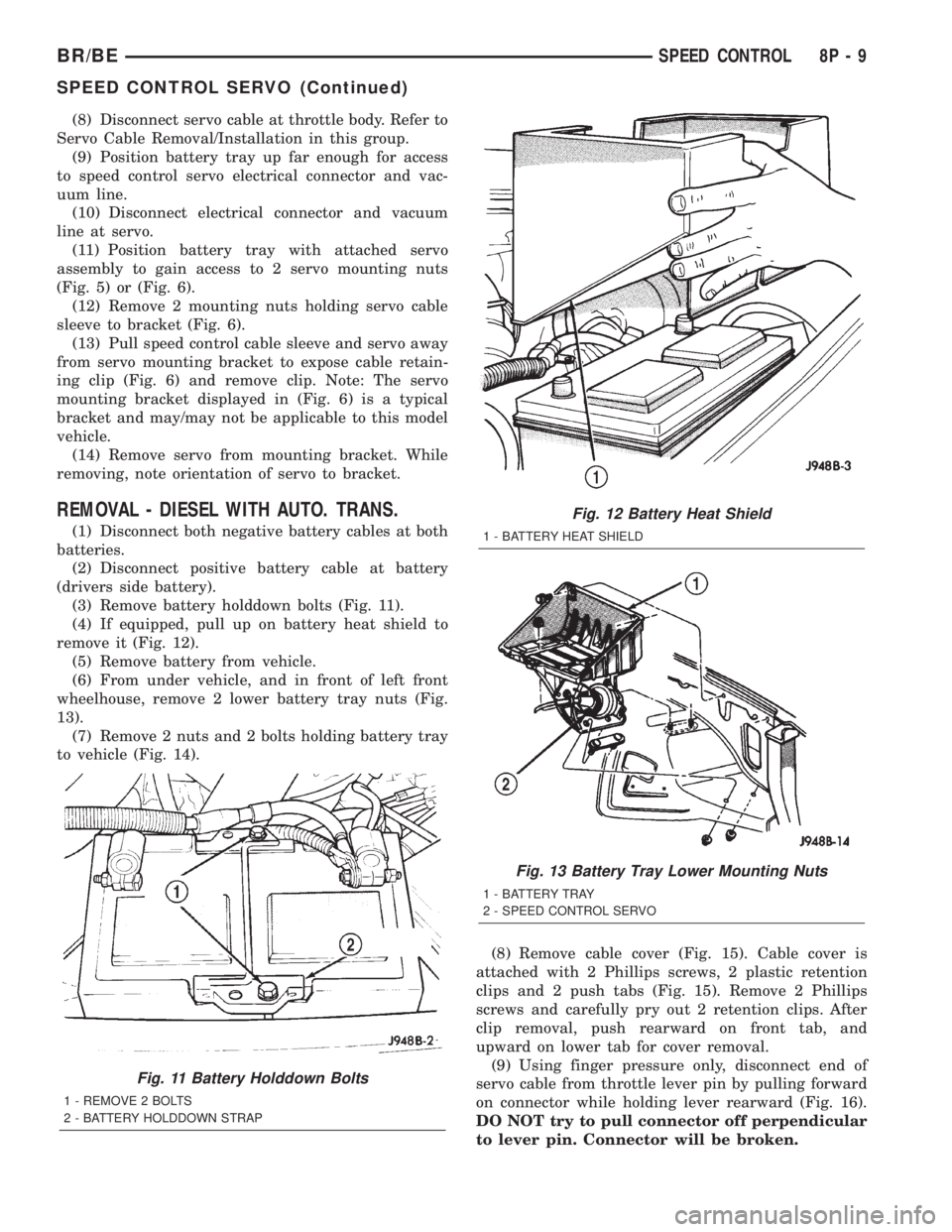

DODGE RAM 2002  Service Repair Manual (8) Disconnect servo cable at throttle body. Refer to
Servo Cable Removal/Installation in this group.
(9) Position battery tray up far enough for access
to speed control servo electrical connector and

Page 633 of 2255

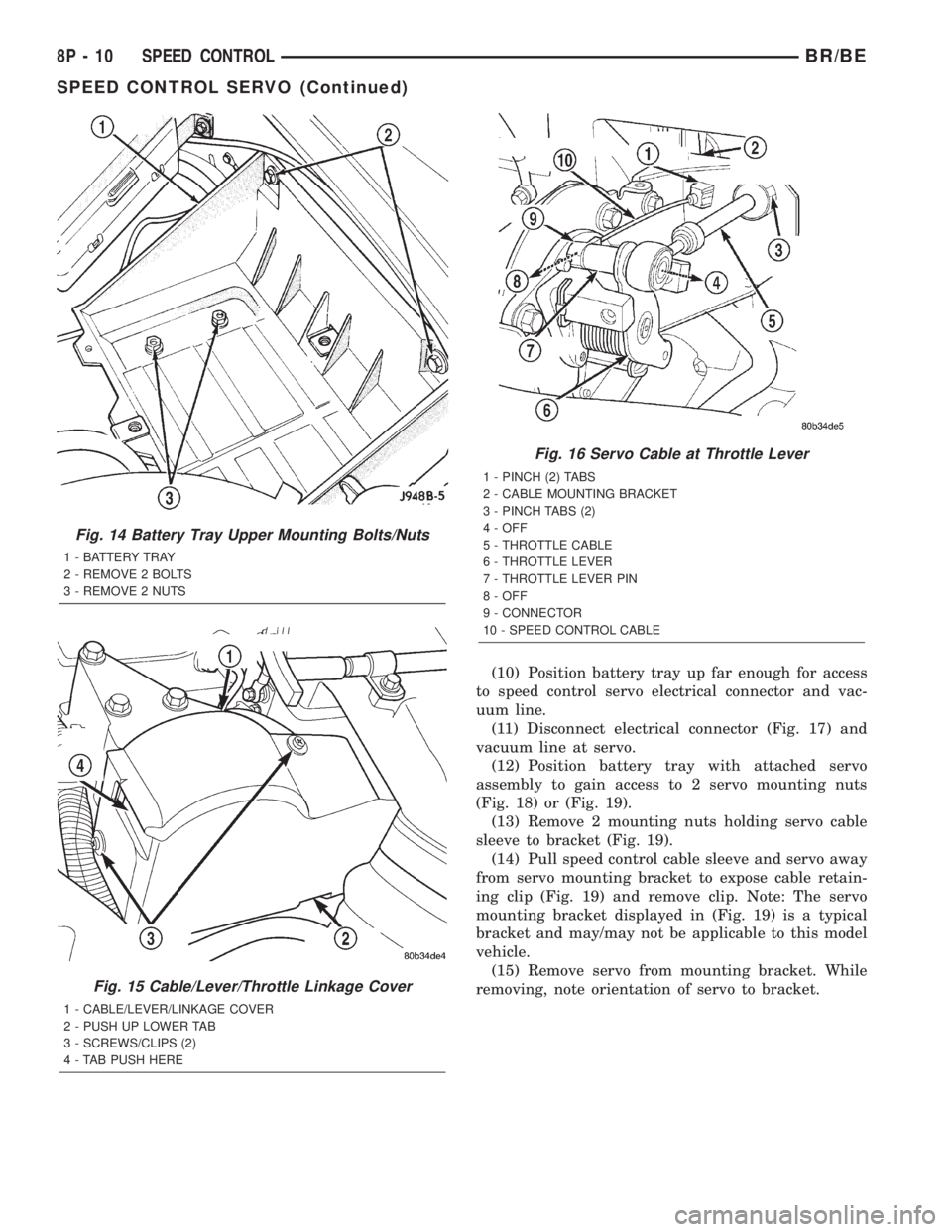

DODGE RAM 2002  Service Repair Manual (10) Position battery tray up far enough for access
to speed control servo electrical connector and vac-
uum line.
(11) Disconnect electrical connector (Fig. 17) and
vacuum line at servo.
(12) Positio

Page 634 of 2255

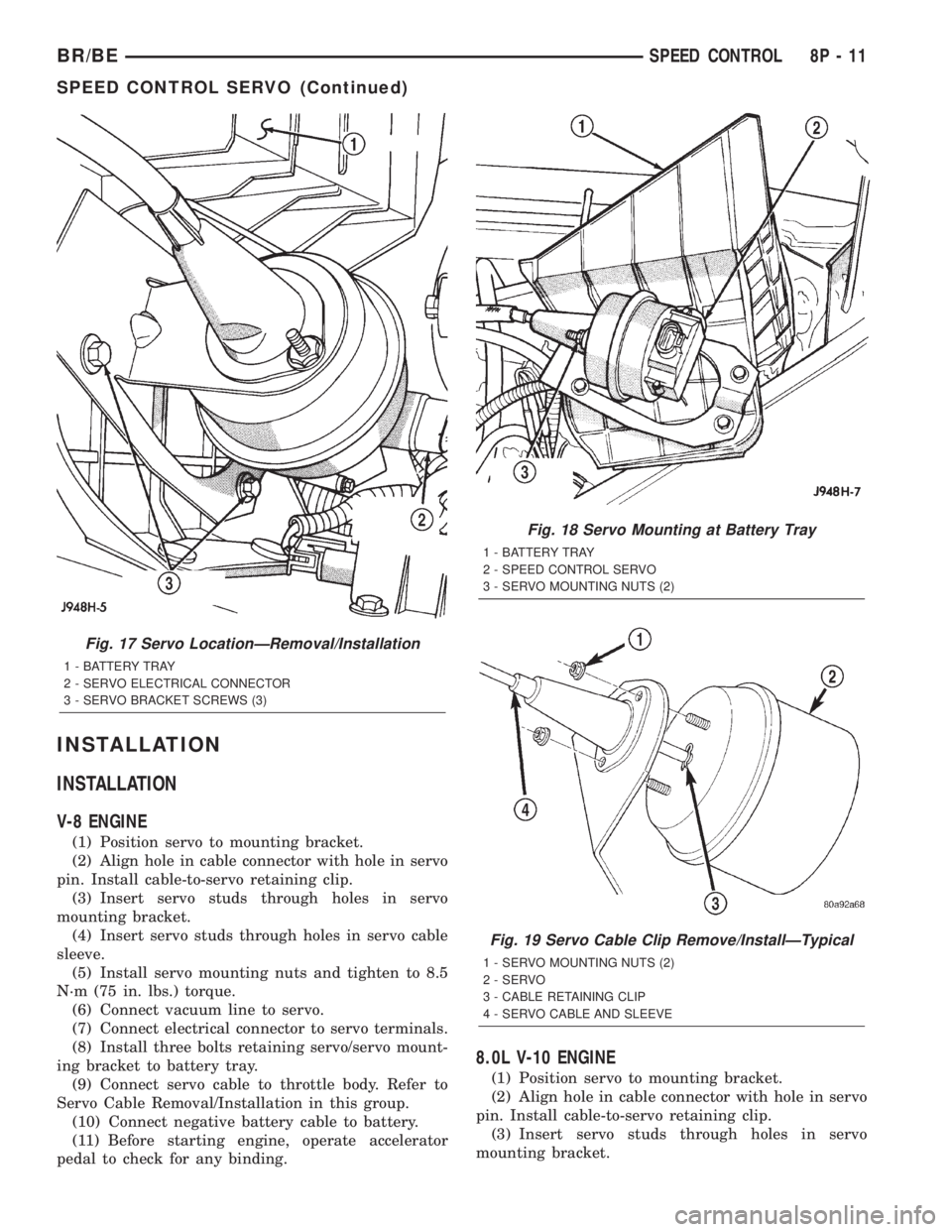

DODGE RAM 2002  Service Repair Manual INSTALLATION
INSTALLATION
V-8 ENGINE
(1) Position servo to mounting bracket.
(2) Align hole in cable connector with hole in servo
pin. Install cable-to-servo retaining clip.
(3) Insert servo studs thr

Page 635 of 2255

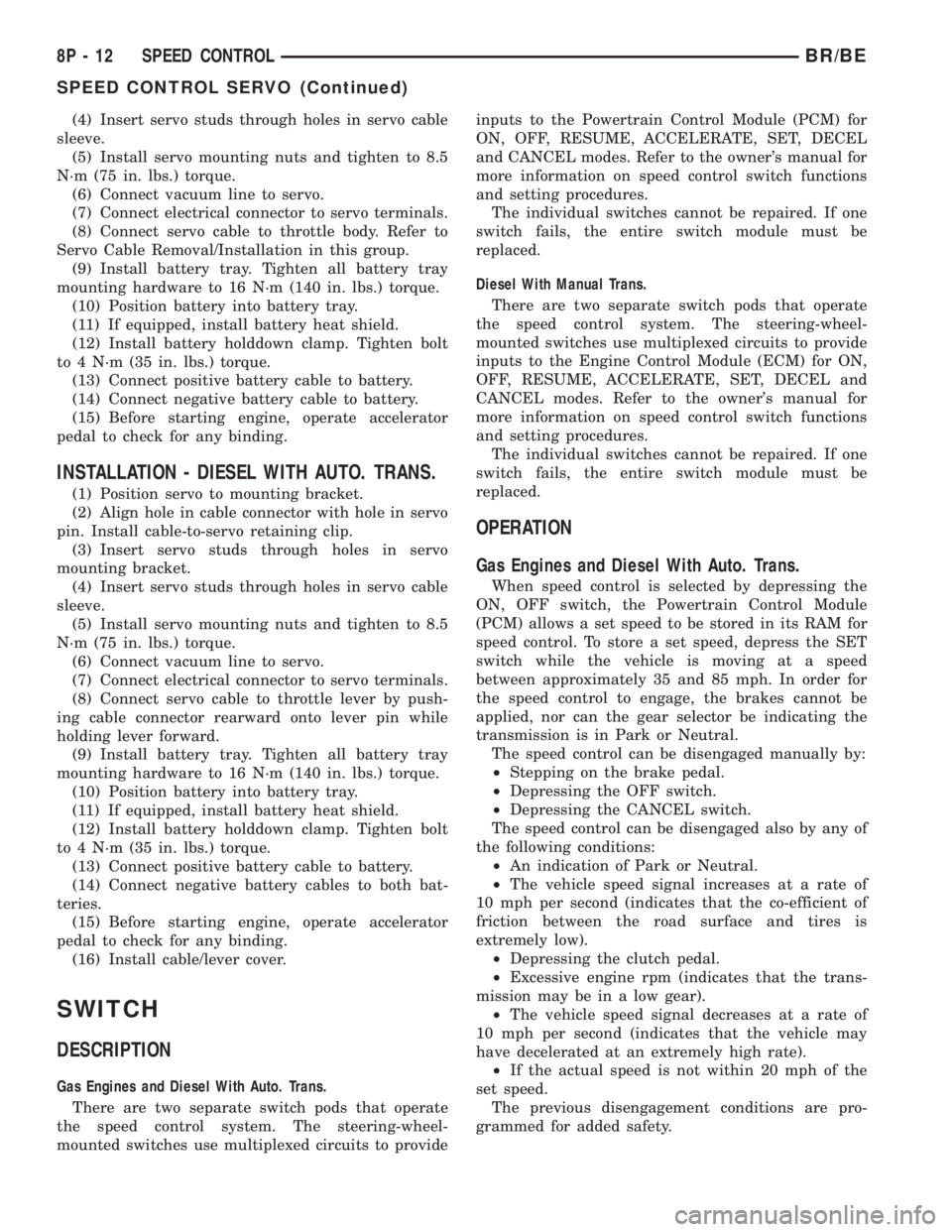

DODGE RAM 2002  Service Repair Manual (4) Insert servo studs through holes in servo cable
sleeve.
(5) Install servo mounting nuts and tighten to 8.5
N´m (75 in. lbs.) torque.
(6) Connect vacuum line to servo.
(7) Connect electrical conne

Page 636 of 2255

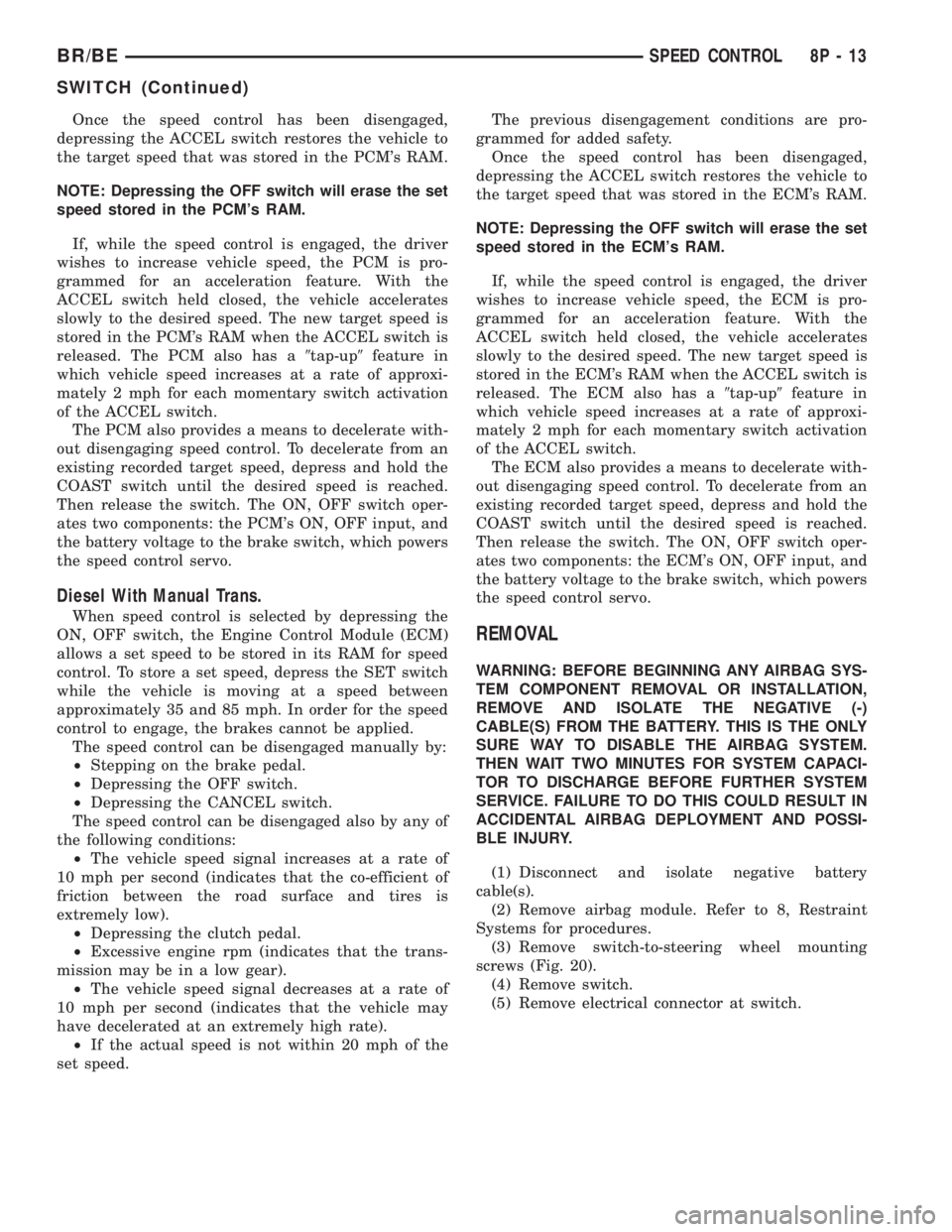

DODGE RAM 2002  Service Repair Manual Once the speed control has been disengaged,
depressing the ACCEL switch restores the vehicle to
the target speed that was stored in the PCMs RAM.
NOTE: Depressing the OFF switch will erase the set
sp

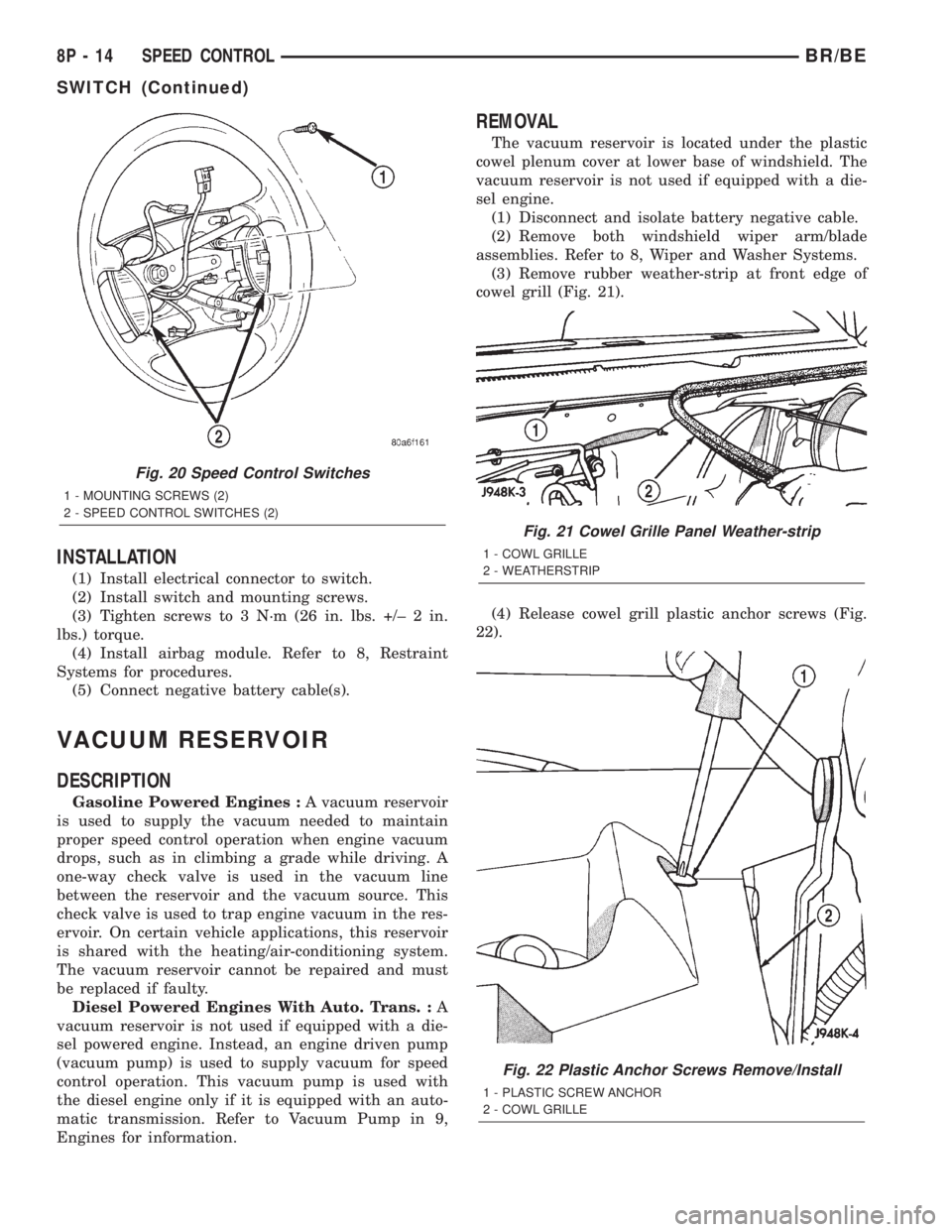

Page 637 of 2255

DODGE RAM 2002  Service Repair Manual INSTALLATION
(1) Install electrical connector to switch.
(2) Install switch and mounting screws.
(3) Tighten screws to 3 N´m (26 in. lbs. +/± 2 in.
lbs.) torque.
(4) Install airbag module. Refer to

Page 638 of 2255

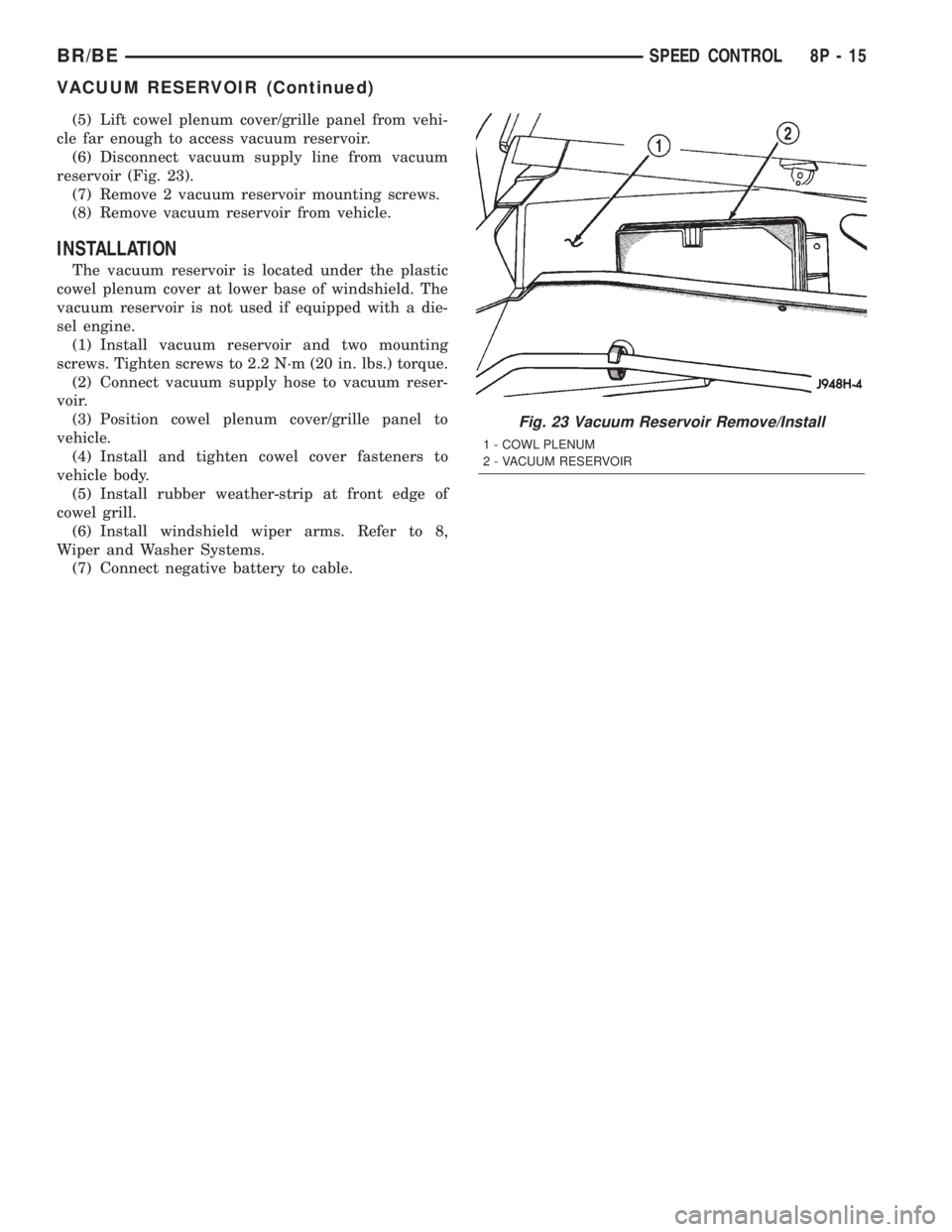

DODGE RAM 2002  Service Repair Manual (5) Lift cowel plenum cover/grille panel from vehi-
cle far enough to access vacuum reservoir.
(6) Disconnect vacuum supply line from vacuum
reservoir (Fig. 23).
(7) Remove 2 vacuum reservoir mounting

Page 639 of 2255

DODGE RAM 2002  Service Repair Manual

Page 640 of 2255

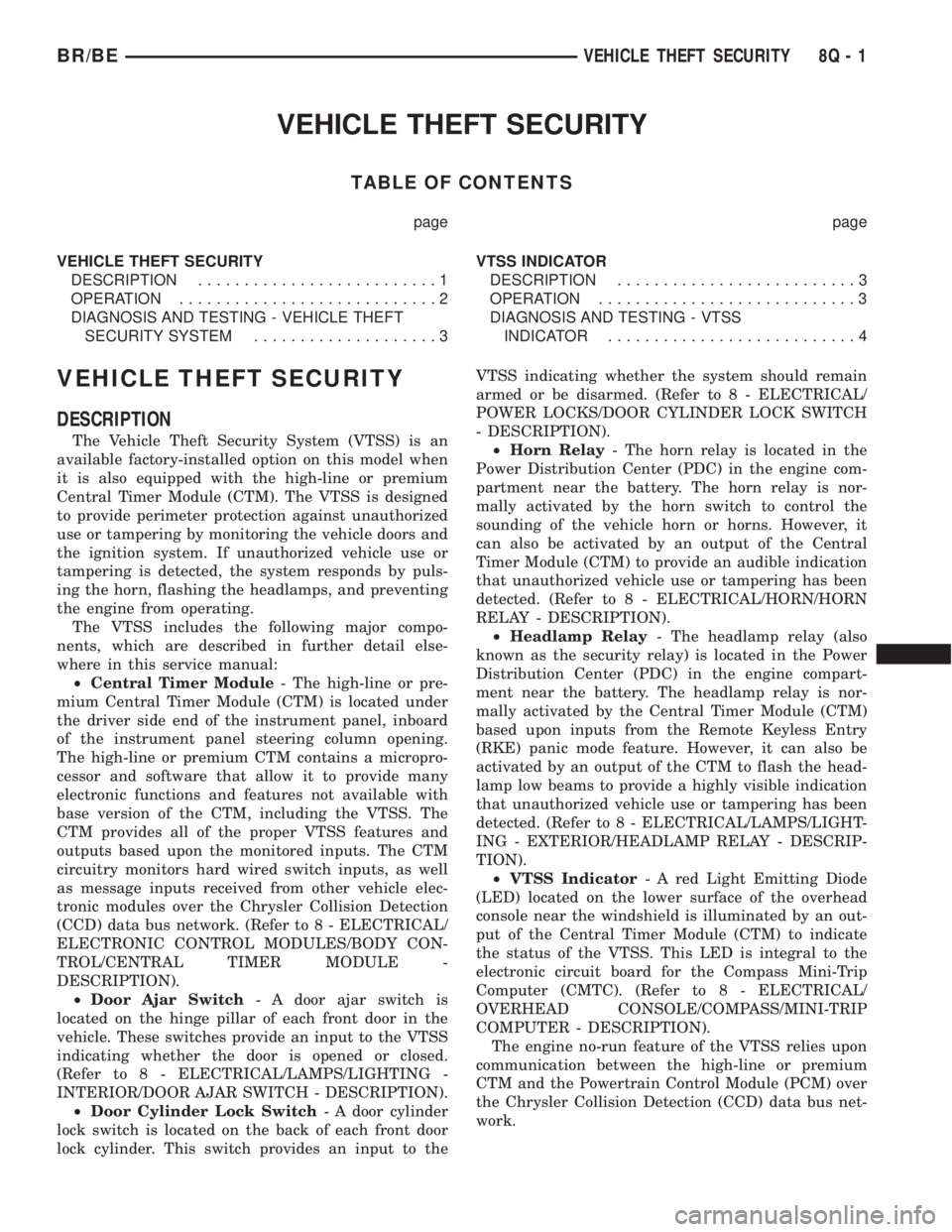

DODGE RAM 2002  Service Repair Manual VEHICLE THEFT SECURITY
TABLE OF CONTENTS
page page
VEHICLE THEFT SECURITY
DESCRIPTION..........................1
OPERATION............................2
DIAGNOSIS AND TESTING - VEHICLE THEFT
SECURITY S
