DODGE RAM 2002 Service Repair Manual

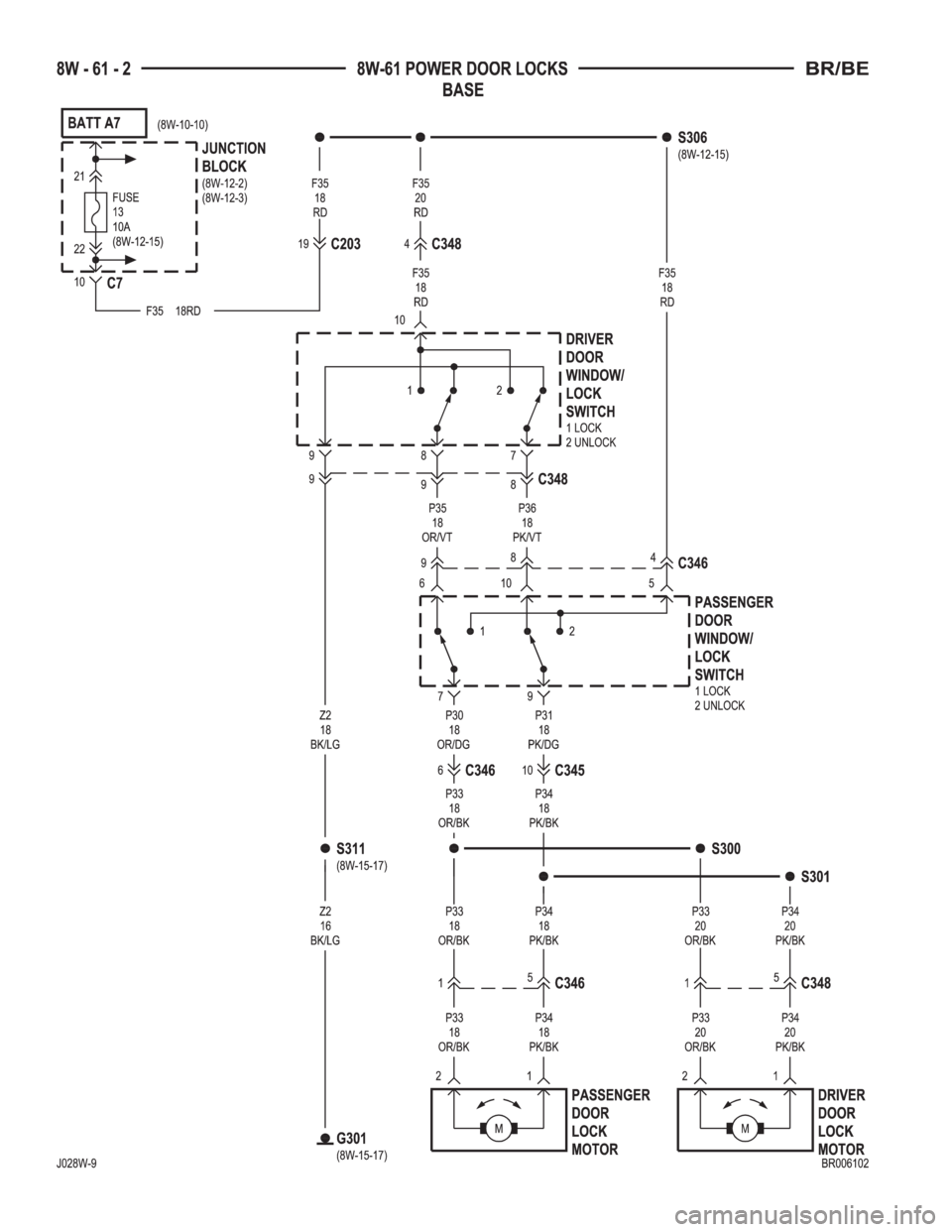

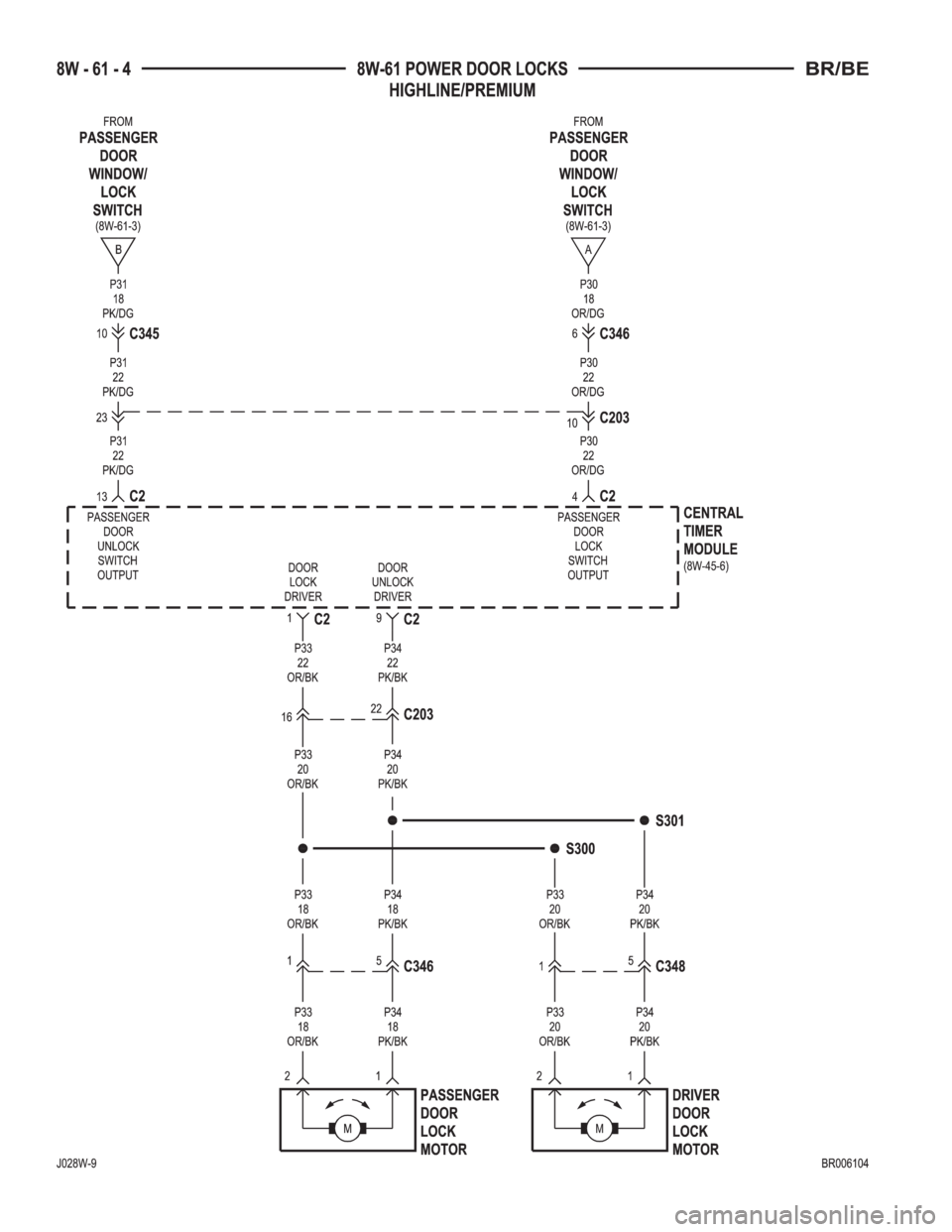

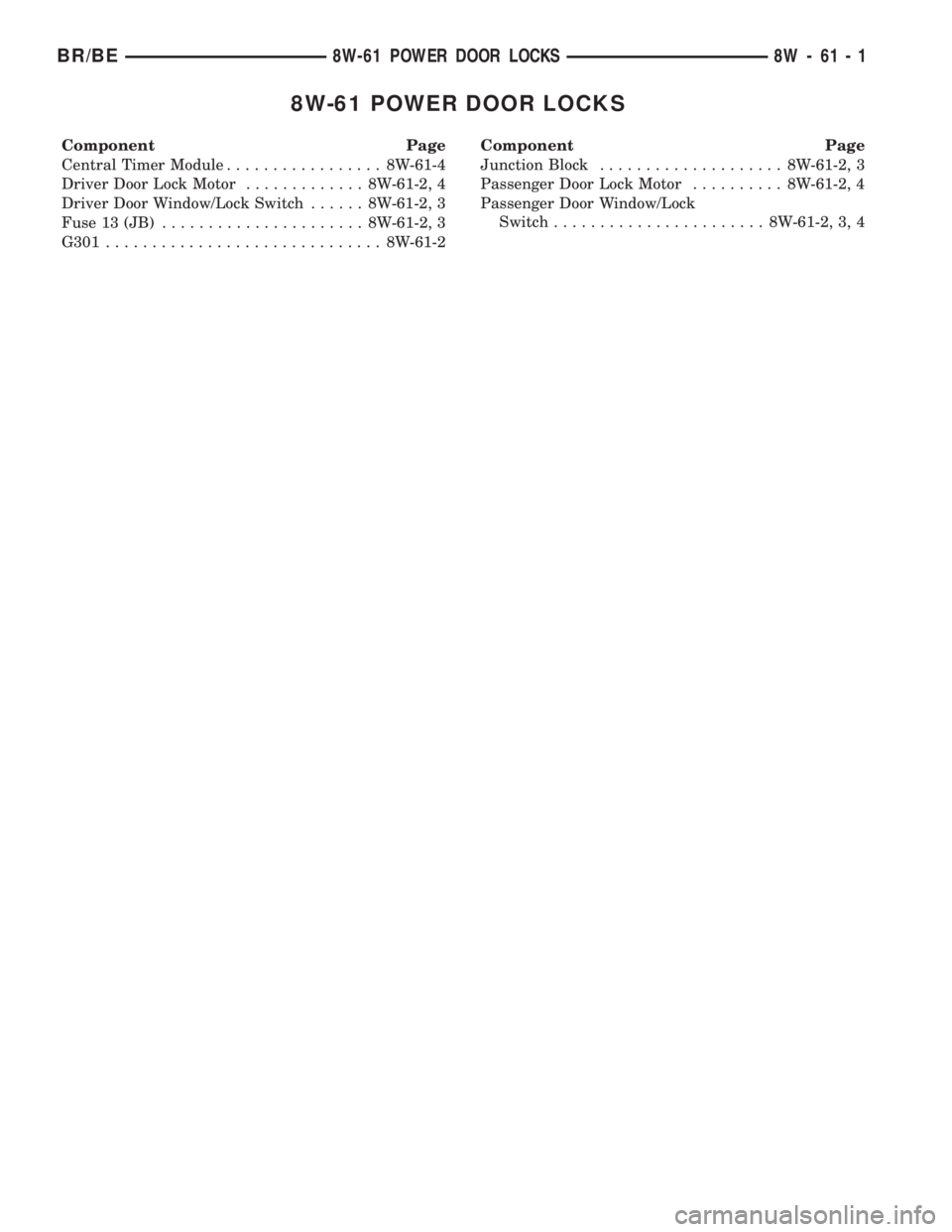

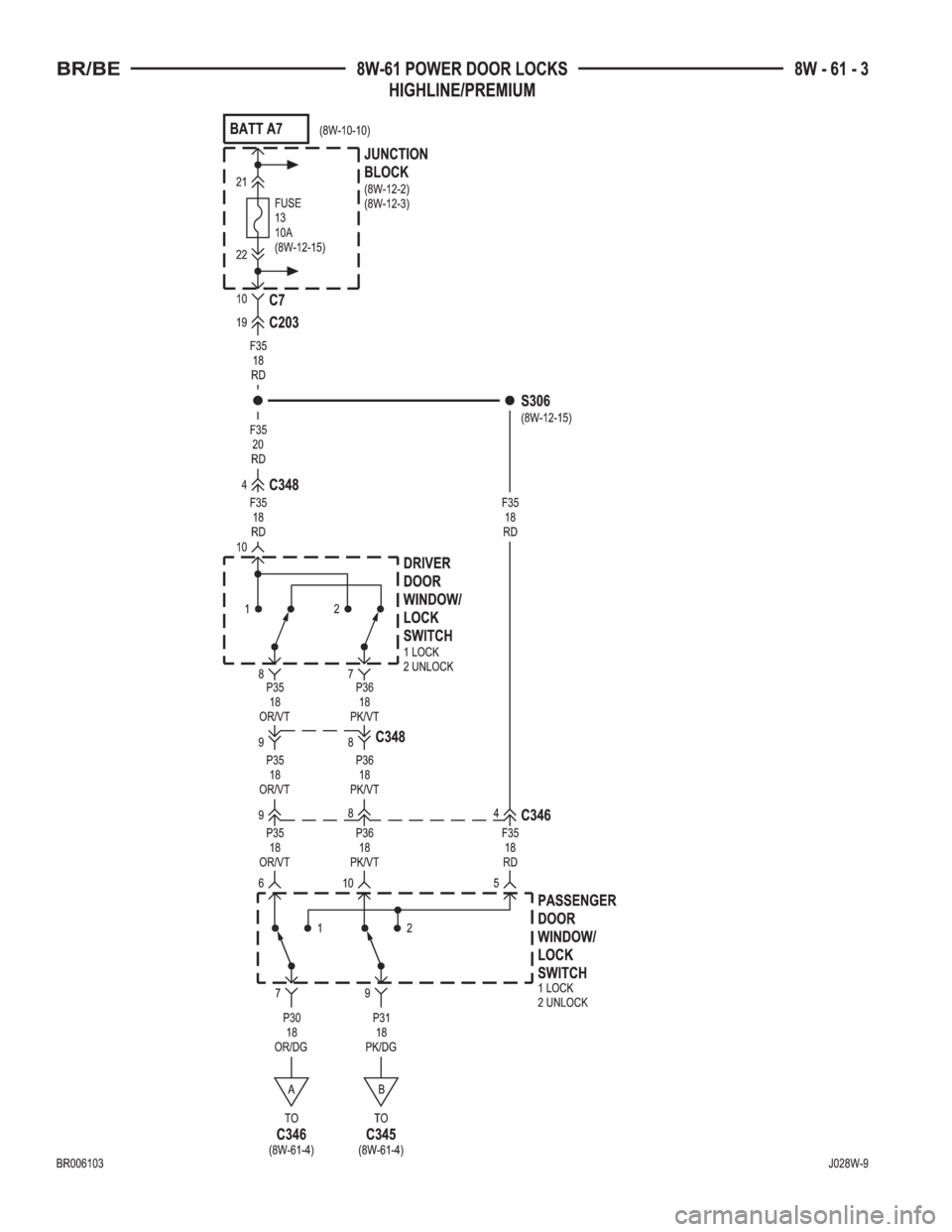

8W-61 POWER DOOR LOCKS
Component Page
Central Timer Module................. 8W-61-4
Driver Door Lock Motor............. 8W-61-2, 4
Driver Door Window/Lock Switch...... 8W-61-2, 3
Fuse 13 (JB)...................... 8W-61-2, 3
G301.............................. 8W-61-2Component Page
Junction Block.................... 8W-61-2, 3
Passenger Door Lock Motor.......... 8W-61-2, 4
Passenger Door Window/Lock
Switch....................... 8W-61-2, 3, 4
BR/BE8W-61 POWER DOOR LOCKS 8W - 61 - 1

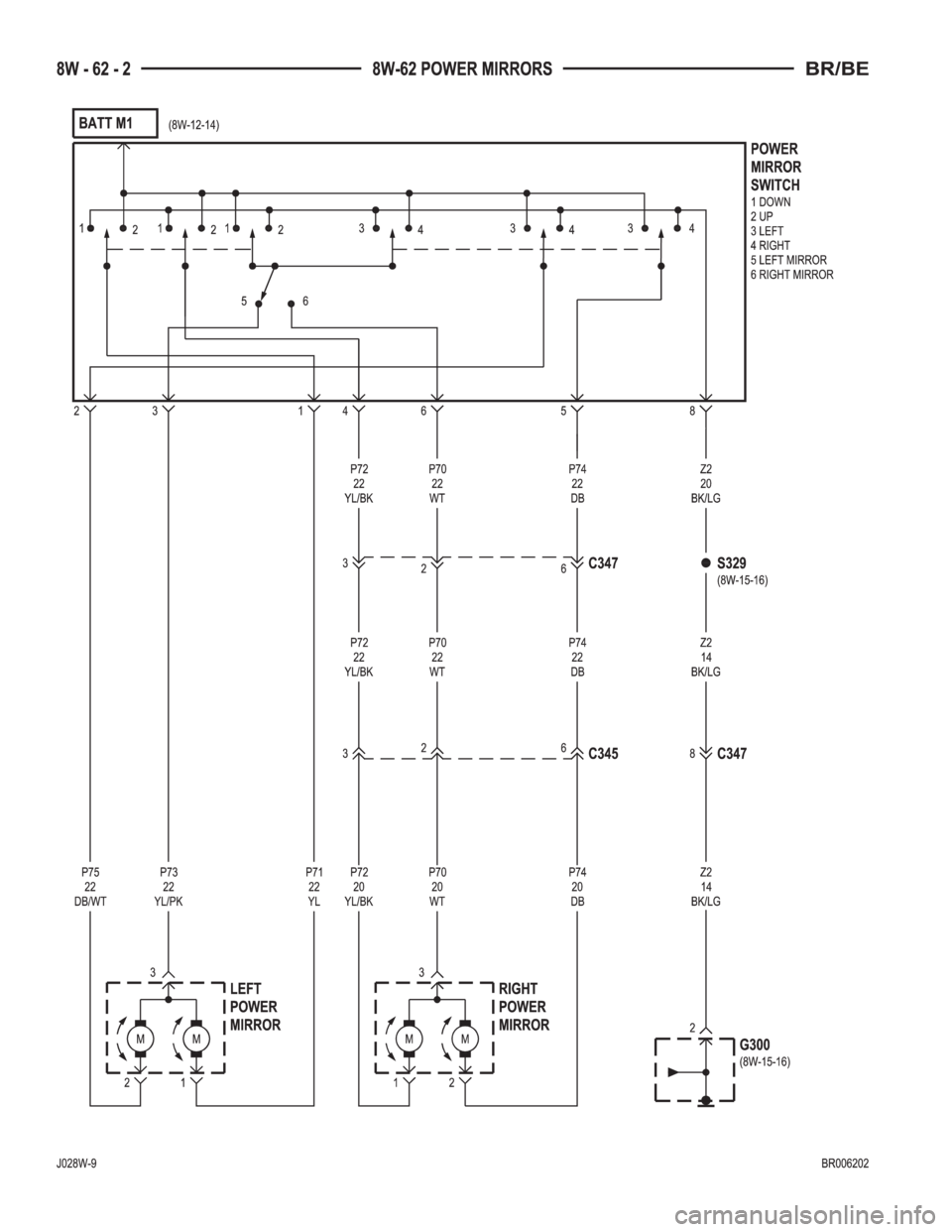

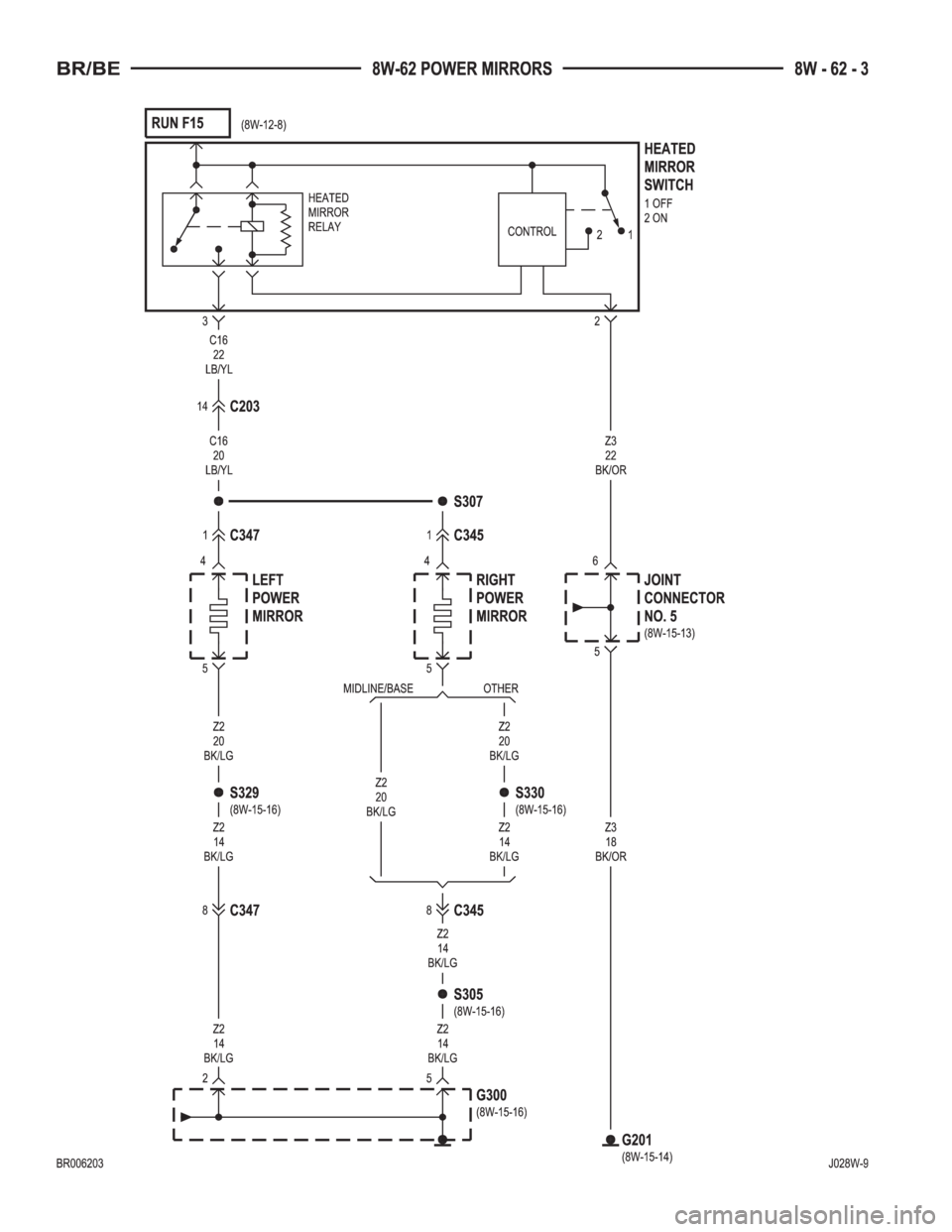

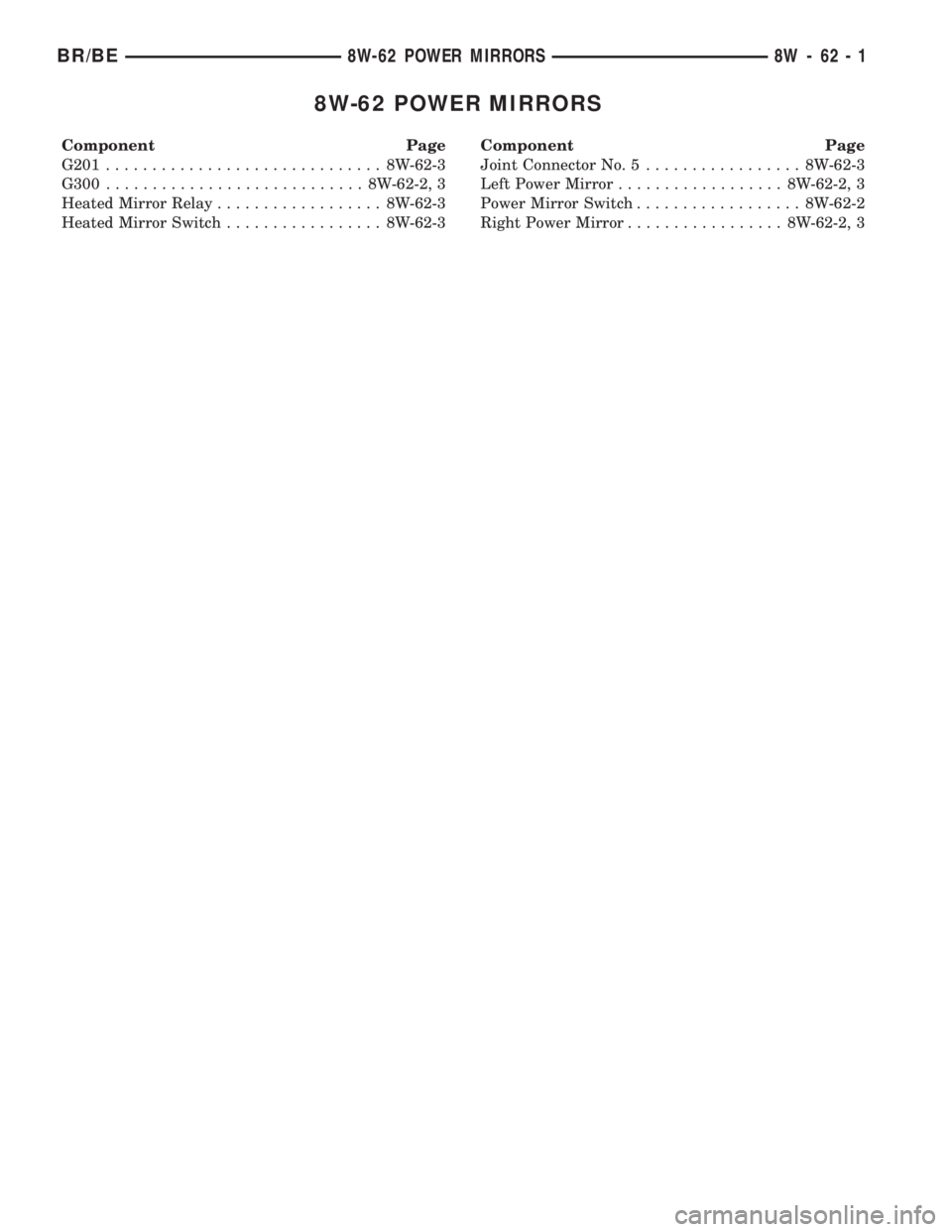

8W-62 POWER MIRRORS
Component Page
G201.............................. 8W-62-3
G300............................ 8W-62-2, 3
Heated Mirror Relay.................. 8W-62-3
Heated Mirror Switch................. 8W-62-3Component Page
Joint Connector No. 5................. 8W-62-3
Left Power Mirror.................. 8W-62-2, 3
Power Mirror Switch.................. 8W-62-2
Right Power Mirror................. 8W-62-2, 3
BR/BE8W-62 POWER MIRRORS 8W - 62 - 1

8W-63 POWER SEATS
Component Page
Circuit Breaker 2.................. 8W-63-2, 3
Driver Heated Seat Cushion.......... 8W-63-6, 8
Driver Heated Seat Switch............. 8W-63-5
Driver Lumbar Motor................. 8W-63-3
Driver Power Seat Front Vertical
Motor......................... 8W-63-2, 3
Driver Power Seat Horizontal Motor.... 8W-63-2, 3
Driver Power Seat Rear Vertical Motor . . 8W-63-2, 3
Driver Power Seat Switch............ 8W-63-2, 3
Fuse 1 (JB)....................... 8W-63-5, 7
Fuse 2 (JB)....................... 8W-63-5, 7
G201............................ 8W-63-5, 7
G300........................ 8W-63-3, 4, 6, 8
G301.............................. 8W-63-2Component Page
Heated Seat Relay................. 8W-63-5, 7
Joint Connector No. 5............... 8W-63-5, 7
Joint Connector No. 8............... 8W-63-5, 7
Junction Block................ 8W-63-2, 3, 5, 7
Passenger Heated Seat Cushion..... 8W-63-4, 6, 8
Passenger Heated Seat Switch.......... 8W-63-7
Passenger Lumbar Motor.............. 8W-63-4
Passenger Power Seat Front Vertical
Motor........................... 8W-63-4
Passenger Power Seat Horizontal Motor . . . 8W-63-4
Passenger Power Seat Rear Vertical
Motor........................... 8W-63-4
Passenger Power Seat Switch........... 8W-63-4
Seat Heat Interface Module...... 8W-63-5, 6, 7, 8
BR/BE8W-63 POWER SEATS 8W - 63 - 1
