DODGE RAM 2002 Service Repair Manual

FUEL INJECTOR NO. 10 (8.0L) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K116 18WT FUEL INJECTOR NO. 10 DRIVER
2 A142 16DG/OR AUTOMATIC SHUT DOWN RELAY OUTPUT
FUEL PUMP MODULE (GAS) - LT. GRAY 4 WAY
CAV CIRCUIT FUNCTION
1 Z13 16BK GROUND
2 K4 20BK/LB SENSOR GROUND
3 K226 20DB/WT FUEL LEVEL SENSOR SIGNAL
4 A61 16DG/BK FUEL PUMP RELAY OUTPUT
FUEL TANK MODULE (DIESEL) - LT. GRAY 4 WAY
CAV CIRCUIT FUNCTION
1- -
2 K4 20BK/LB SENSOR GROUND
3 K226 20DB/WT FUEL LEVEL SENSOR SIGNAL
4- -
FUEL TRANSFER PUMP (DIESEL)-2WAY
CAV CIRCUIT FUNCTION
1 K135 18YL/WT TRANSFER PUMP SUPPLY
2 Z11 18BK/WT GROUND
G300 - BLACK 5 WAY
CAV CIRCUIT FUNCTION
1 Z2 18BK/LG GROUND
2 Z2 14BK/LG GROUND
3 Z2 16BK/LG GROUND
4 Z2 16BK/LG GROUND
5 Z2 14BK/LG GROUND
8W - 80 - 46 8W-80 CONNECTOR PIN-OUTSBR/BE

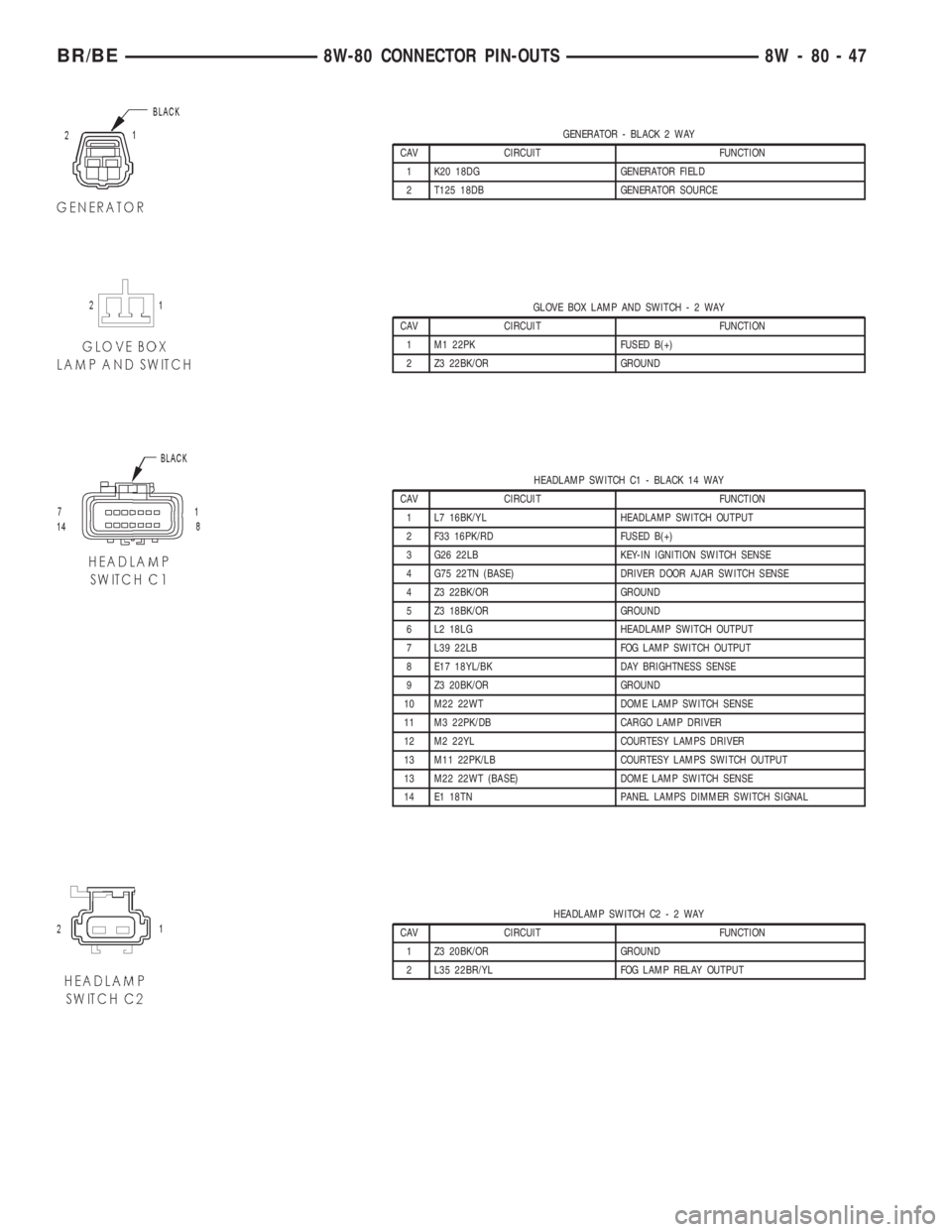

GENERATOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K20 18DG GENERATOR FIELD
2 T125 18DB GENERATOR SOURCE
GLOVE BOX LAMP AND SWITCH-2WAY
CAV CIRCUIT FUNCTION
1 M1 22PK FUSED B(+)
2 Z3 22BK/OR GROUND
HEADLAMP SWITCH C1 - BLACK 14 WAY
CAV CIRCUIT FUNCTION
1 L7 16BK/YL HEADLAMP SWITCH OUTPUT
2 F33 16PK/RD FUSED B(+)
3 G26 22LB KEY-IN IGNITION SWITCH SENSE
4 G75 22TN (BASE) DRIVER DOOR AJAR SWITCH SENSE
4 Z3 22BK/OR GROUND
5 Z3 18BK/OR GROUND
6 L2 18LG HEADLAMP SWITCH OUTPUT
7 L39 22LB FOG LAMP SWITCH OUTPUT
8 E17 18YL/BK DAY BRIGHTNESS SENSE
9 Z3 20BK/OR GROUND
10 M22 22WT DOME LAMP SWITCH SENSE
11 M3 22PK/DB CARGO LAMP DRIVER
12 M2 22YL COURTESY LAMPS DRIVER
13 M11 22PK/LB COURTESY LAMPS SWITCH OUTPUT
13 M22 22WT (BASE) DOME LAMP SWITCH SENSE
14 E1 18TN PANEL LAMPS DIMMER SWITCH SIGNAL
HEADLAMP SWITCH C2-2WAY
CAV CIRCUIT FUNCTION
1 Z3 20BK/OR GROUND
2 L35 22BR/YL FOG LAMP RELAY OUTPUT
BR/BE8W-80 CONNECTOR PIN-OUTS 8W - 80 - 47

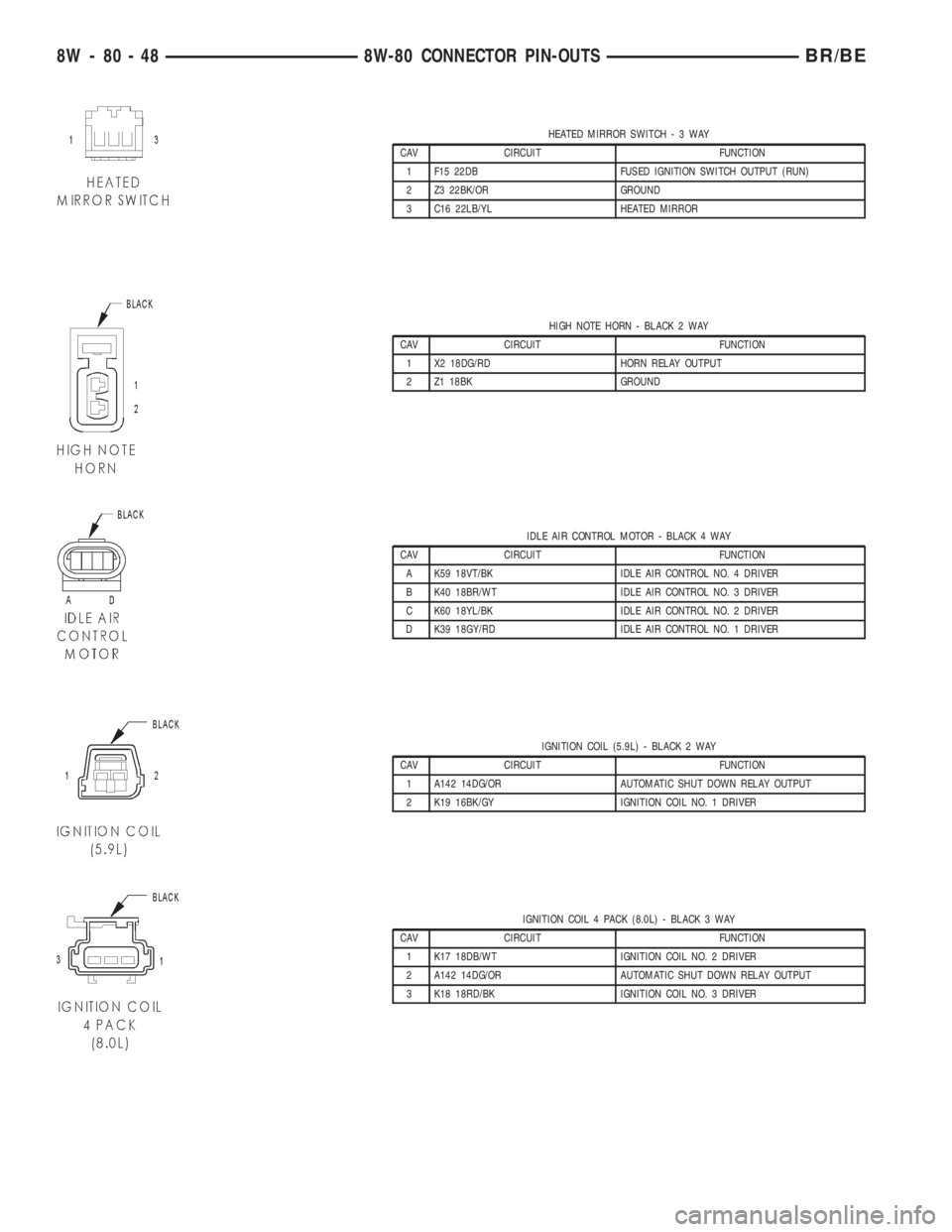

HEATED MIRROR SWITCH-3WAY
CAV CIRCUIT FUNCTION
1 F15 22DB FUSED IGNITION SWITCH OUTPUT (RUN)
2 Z3 22BK/OR GROUND
3 C16 22LB/YL HEATED MIRROR
HIGH NOTE HORN - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 X2 18DG/RD HORN RELAY OUTPUT
2 Z1 18BK GROUND
IDLE AIR CONTROL MOTOR - BLACK 4 WAY
CAV CIRCUIT FUNCTION
A K59 18VT/BK IDLE AIR CONTROL NO. 4 DRIVER
B K40 18BR/WT IDLE AIR CONTROL NO. 3 DRIVER
C K60 18YL/BK IDLE AIR CONTROL NO. 2 DRIVER
D K39 18GY/RD IDLE AIR CONTROL NO. 1 DRIVER
IGNITION COIL (5.9L) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 A142 14DG/OR AUTOMATIC SHUT DOWN RELAY OUTPUT
2 K19 16BK/GY IGNITION COIL NO. 1 DRIVER
IGNITION COIL 4 PACK (8.0L) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 K17 18DB/WT IGNITION COIL NO. 2 DRIVER
2 A142 14DG/OR AUTOMATIC SHUT DOWN RELAY OUTPUT
3 K18 18RD/BK IGNITION COIL NO. 3 DRIVER
8W - 80 - 48 8W-80 CONNECTOR PIN-OUTSBR/BE

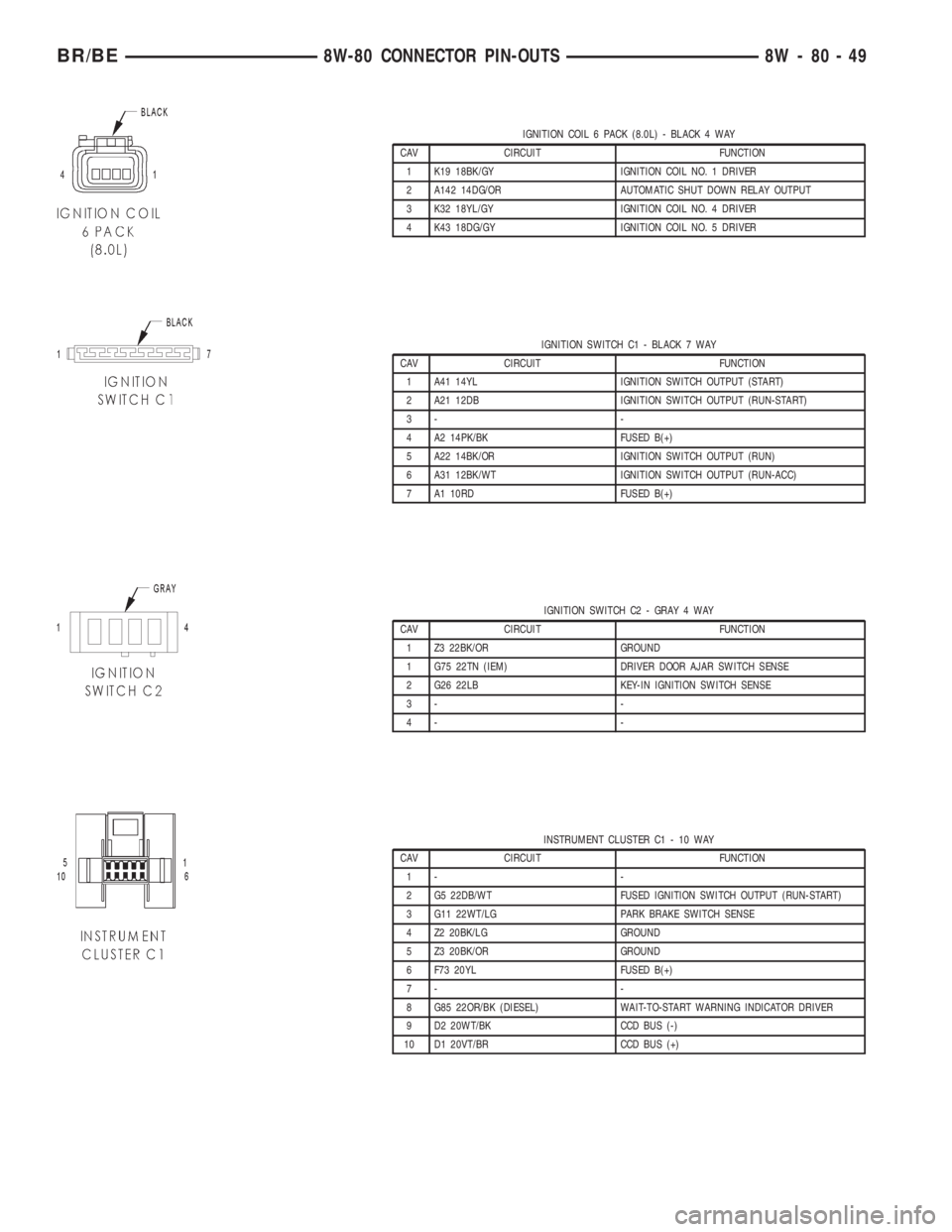

IGNITION COIL 6 PACK (8.0L) - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 K19 18BK/GY IGNITION COIL NO. 1 DRIVER
2 A142 14DG/OR AUTOMATIC SHUT DOWN RELAY OUTPUT
3 K32 18YL/GY IGNITION COIL NO. 4 DRIVER
4 K43 18DG/GY IGNITION COIL NO. 5 DRIVER
IGNITION SWITCH C1 - BLACK 7 WAY
CAV CIRCUIT FUNCTION
1 A41 14YL IGNITION SWITCH OUTPUT (START)
2 A21 12DB IGNITION SWITCH OUTPUT (RUN-START)
3- -
4 A2 14PK/BK FUSED B(+)
5 A22 14BK/OR IGNITION SWITCH OUTPUT (RUN)
6 A31 12BK/WT IGNITION SWITCH OUTPUT (RUN-ACC)
7 A1 10RD FUSED B(+)
IGNITION SWITCH C2 - GRAY 4 WAY
CAV CIRCUIT FUNCTION
1 Z3 22BK/OR GROUND
1 G75 22TN (IEM) DRIVER DOOR AJAR SWITCH SENSE
2 G26 22LB KEY-IN IGNITION SWITCH SENSE
3- -
4- -
INSTRUMENT CLUSTER C1 - 10 WAY
CAV CIRCUIT FUNCTION
1- -
2 G5 22DB/WT FUSED IGNITION SWITCH OUTPUT (RUN-START)
3 G11 22WT/LG PARK BRAKE SWITCH SENSE
4 Z2 20BK/LG GROUND
5 Z3 20BK/OR GROUND
6 F73 20YL FUSED B(+)
7- -
8 G85 22OR/BK (DIESEL) WAIT-TO-START WARNING INDICATOR DRIVER
9 D2 20WT/BK CCD BUS (-)
10 D1 20VT/BR CCD BUS (+)
BR/BE8W-80 CONNECTOR PIN-OUTS 8W - 80 - 49

INSTRUMENT CLUSTER C2 - 10 WAY
CAV CIRCUIT FUNCTION
1 E2 22OR PANEL LAMPS FEED
2 G29 22BK/WT WASHER FLUID SWITCH SENSE
3 G10 22LG/RD SEAT BELT SWITCH SENSE
4- -
5 E17 18YL/BK DAY BRIGHTNESS SENSE
6 L61 18LG LEFT TURN SIGNAL
7 G13 22DB/RD CHIME REQUEST SIGNAL
8 L60 18TN RIGHT TURN SIGNAL
9 G34 16RD/GY HIGH BEAM INDICATOR DRIVER
10 G107 22GY 4WD SWITCH SENSE
INTAKE AIR HEATER RELAYS (DIESEL)-4WAY
CAV CIRCUIT FUNCTION
1 S22 18OR/BK AIR INTAKE HEATER RELAY CONTROL NO. 2
2 Z12 18BK/TN GROUND
3 S21 18YL/BK AIR INTAKE HEATER RELAY CONTROL NO. 1
4 Z12 18BK/TN GROUND
INTAKE AIR TEMPERATURE SENSOR (DIESEL)-2WAY
CAV CIRCUIT FUNCTION
A K104 18BK/LB SENSOR GROUND
B K21 18BK/RD INTAKE AIR TEMPERATURE SENSOR SIGNAL
INTAKE AIR TEMPERATURE SENSOR (GAS) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K4 18BK/LB SENSOR GROUND
2 K21 18BK/RD INTAKE AIR TEMPERATURE SENSOR SIGNAL
JOINT CONNECTOR NO. 1 (IN PDC) - 28 WAY
CAV CIRCUIT FUNCTION
1 V40 20WT/PK BRAKE SWITCH SENSE
2 V40 22WT/PK BRAKE SWITCH SENSE
3 V40 22WT/PK BRAKE SWITCH SENSE
4 L4 18VT/WT DIMMER SWITCH LOW BEAM OUTPUT
5 L4 16VT/WT DIMMER SWITCH LOW BEAM OUTPUT
5 L4 16VT/WT(QUAD) DIMMER SWITCH LOW BEAM OUTPUT
8W - 80 - 50 8W-80 CONNECTOR PIN-OUTSBR/BE

JOINT CONNECTOR NO. 1 (IN PDC) - 28 WAY
CAV CIRCUIT FUNCTION
6 L4 20VT/WT(QUAD) DIMMER SWITCH LOW BEAM OUTPUT
6 L4 20VT/WT DIMMER SWITCH LOW BEAM OUTPUT
7 L4 20VT/WT DIMMER SWITCH LOW BEAM OUTPUT
8 L4 18VT/WT DIMMER SWITCH LOW BEAM OUTPUT
9 L1 18VT/BK BACK-UP LAMP FEED
10 L1 18VT/BK BACK-UP LAMP FEED
11 L1 18VT/BK BACK-UP LAMP FEED
12 X2 18DG/RD HORN RELAY OUTPUT
13 X2 18DG/RD HORN RELAY OUTPUT
14 X2 18DG/RD HORN RELAY OUTPUT
15 K4 22BK/LB SENSOR GROUND
16 K4 22BK/LB SENSOR GROUND
17 K4 20BK/LB SENSOR GROUND
18 K4 20BK/LB SENSOR GROUND
19 Z1 22BK GROUND
20 Z1 20BK (DIESEL) GROUND
21 Z1 18BK GROUND
22 Z1 18BK GROUND
23 Z1 18BK GROUND
24 Z1 22BK (DIESEL) GROUND
25 Z1 16BK GROUND
26 Z1 16BK GROUND
27 - -
28 Z1 18BK GROUND
JOINT CONNECTOR NO. 2 (IN PDC) - 18 WAY
CAV CIRCUIT FUNCTION
1 A16 14RD/LB FUSED B(+)
2 A16 14RD/LB FUSED B(+)
3 A16 14RD/LB FUSED B(+)
4 V5 16DG WIPER PARK SWITCH SENSE
5 V5 16DG WIPER PARK SWITCH SENSE
6 V5 16DG WIPER PARK SWITCH SENSE
7 A14 16RD/WT FUSED B(+)
8 A14 16RD/WT FUSED B(+)
9 A14 16RD/WT FUSED B(+)
10 A6 12RD/OR (TRAILER TOW) FUSED B(+)
11 A6 12RD/OR (TRAILER TOW) FUSED B(+)
12 A6 12RD/OR (TRAILER TOW) FUSED B(+)
13 A6 12RD/OR (TRAILER TOW) FUSED B(+)
14 - -
15 A142 14DG/OR (GAS) AUTOMATIC SHUT DOWN RELAY OUTPUT SENSE
16 A142 14DG/OR (GAS) AUTOMATIC SHUT DOWN RELAY OUTPUT SENSE
16 Z12 18BK/TN (DIESEL) GROUND
17 Z12 18BK/TN (DIESEL) GROUND
17 A142 14DG/OR (GAS) AUTOMATIC SHUT DOWN RELAY OUTPUT SENSE
18 Z12 18BK/TN (DIESEL) GROUND
BR/BE8W-80 CONNECTOR PIN-OUTS 8W - 80 - 51

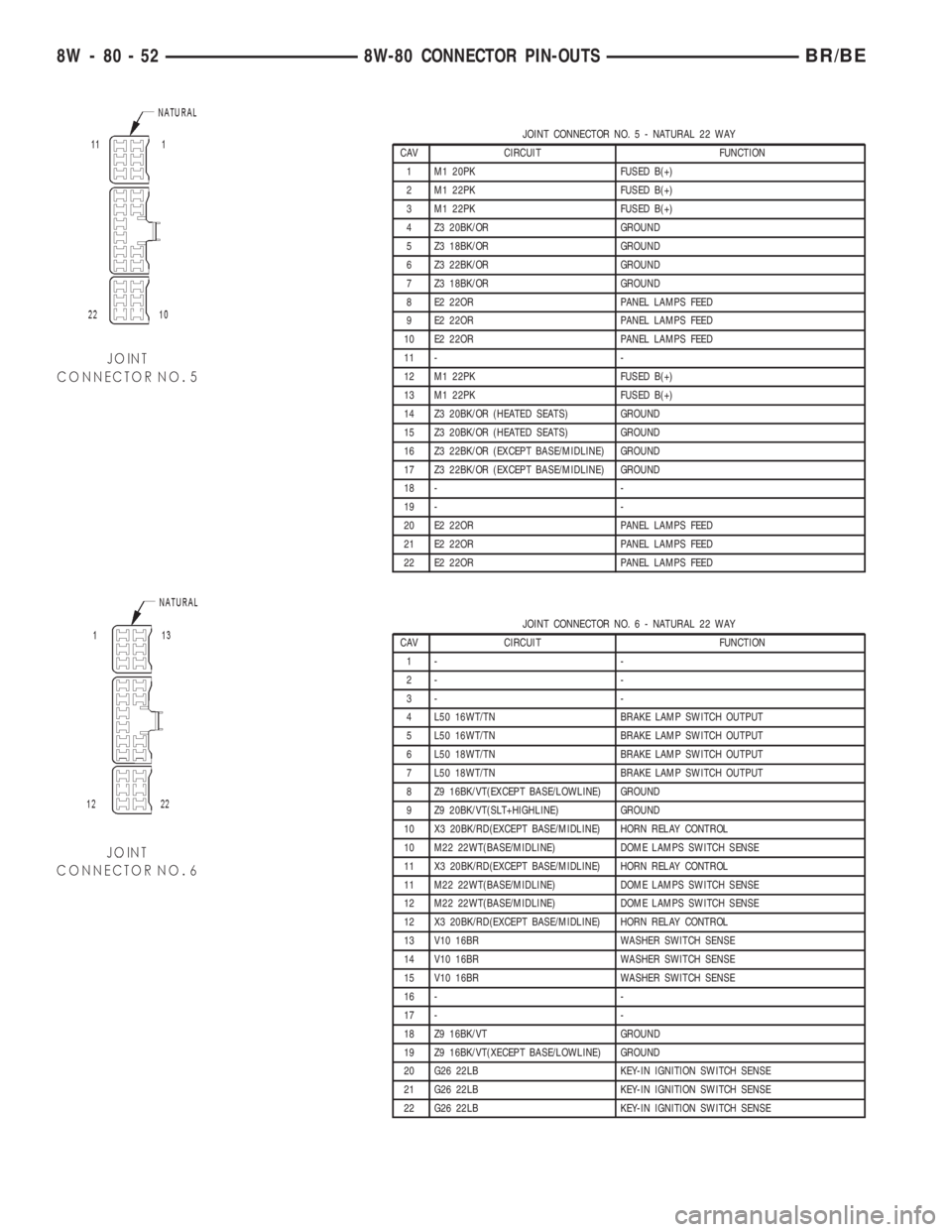

JOINT CONNECTOR NO.5-NATURAL 22 WAY
CAV CIRCUIT FUNCTION
1 M1 20PK FUSED B(+)
2 M1 22PK FUSED B(+)
3 M1 22PK FUSED B(+)
4 Z3 20BK/OR GROUND
5 Z3 18BK/OR GROUND
6 Z3 22BK/OR GROUND
7 Z3 18BK/OR GROUND
8 E2 22OR PANEL LAMPS FEED
9 E2 22OR PANEL LAMPS FEED
10 E2 22OR PANEL LAMPS FEED
11 - -
12 M1 22PK FUSED B(+)
13 M1 22PK FUSED B(+)
14 Z3 20BK/OR (HEATED SEATS) GROUND
15 Z3 20BK/OR (HEATED SEATS) GROUND
16 Z3 22BK/OR (EXCEPT BASE/MIDLINE) GROUND
17 Z3 22BK/OR (EXCEPT BASE/MIDLINE) GROUND
18 - -
19 - -
20 E2 22OR PANEL LAMPS FEED
21 E2 22OR PANEL LAMPS FEED
22 E2 22OR PANEL LAMPS FEED
JOINT CONNECTOR NO.6-NATURAL 22 WAY
CAV CIRCUIT FUNCTION
1- -
2- -
3- -
4 L50 16WT/TN BRAKE LAMP SWITCH OUTPUT
5 L50 16WT/TN BRAKE LAMP SWITCH OUTPUT
6 L50 18WT/TN BRAKE LAMP SWITCH OUTPUT
7 L50 18WT/TN BRAKE LAMP SWITCH OUTPUT
8 Z9 16BK/VT(EXCEPT BASE/LOWLINE) GROUND
9 Z9 20BK/VT(SLT+HIGHLINE) GROUND
10 X3 20BK/RD(EXCEPT BASE/MIDLINE) HORN RELAY CONTROL
10 M22 22WT(BASE/MIDLINE) DOME LAMPS SWITCH SENSE
11 X3 20BK/RD(EXCEPT BASE/MIDLINE) HORN RELAY CONTROL
11 M22 22WT(BASE/MIDLINE) DOME LAMPS SWITCH SENSE
12 M22 22WT(BASE/MIDLINE) DOME LAMPS SWITCH SENSE
12 X3 20BK/RD(EXCEPT BASE/MIDLINE) HORN RELAY CONTROL
13 V10 16BR WASHER SWITCH SENSE
14 V10 16BR WASHER SWITCH SENSE
15 V10 16BR WASHER SWITCH SENSE
16 - -
17 - -
18 Z9 16BK/VT GROUND
19 Z9 16BK/VT(XECEPT BASE/LOWLINE) GROUND
20 G26 22LB KEY-IN IGNITION SWITCH SENSE
21 G26 22LB KEY-IN IGNITION SWITCH SENSE
22 G26 22LB KEY-IN IGNITION SWITCH SENSE
8W - 80 - 52 8W-80 CONNECTOR PIN-OUTSBR/BE

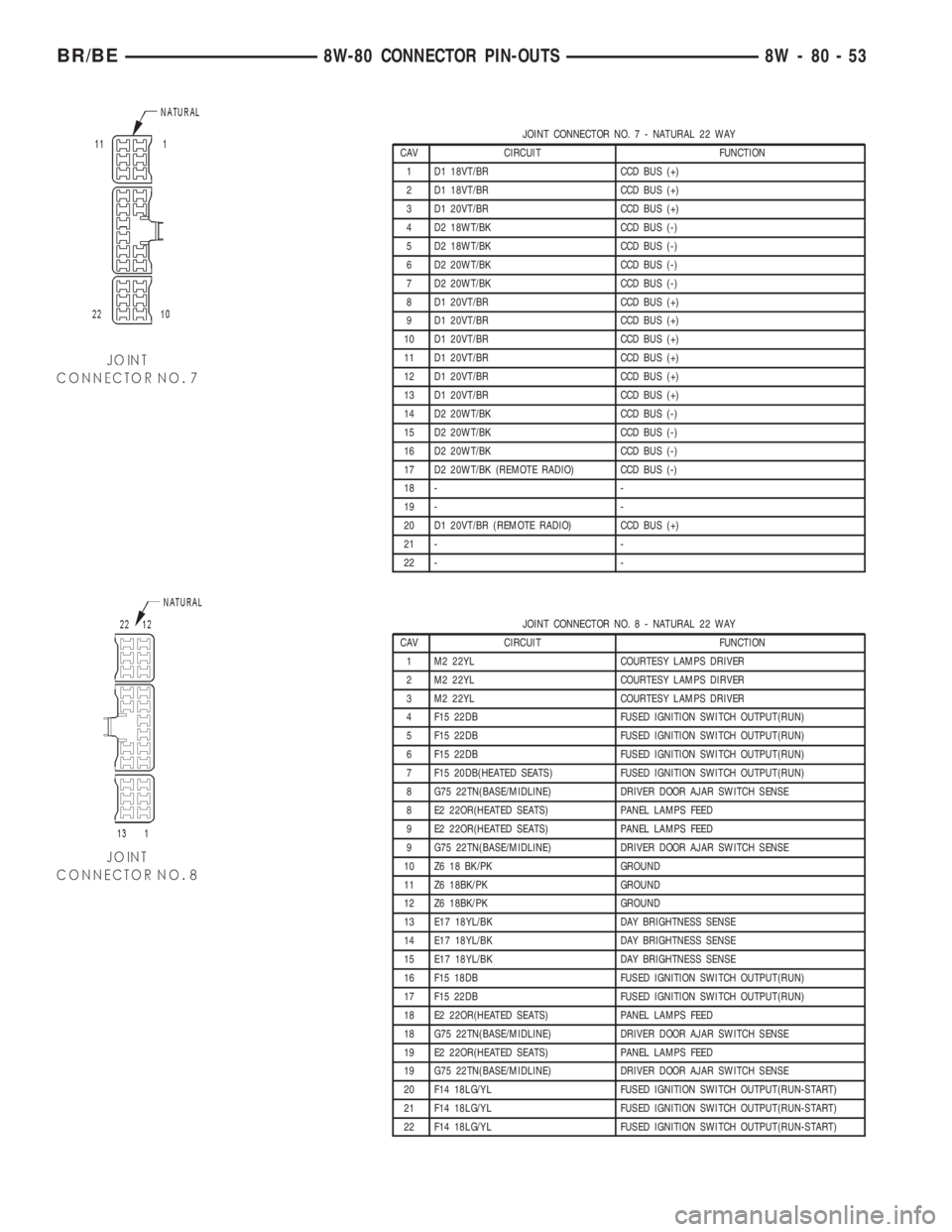

JOINT CONNECTOR NO.7-NATURAL 22 WAY
CAV CIRCUIT FUNCTION
1 D1 18VT/BR CCD BUS (+)
2 D1 18VT/BR CCD BUS (+)
3 D1 20VT/BR CCD BUS (+)
4 D2 18WT/BK CCD BUS (-)
5 D2 18WT/BK CCD BUS (-)
6 D2 20WT/BK CCD BUS (-)
7 D2 20WT/BK CCD BUS (-)
8 D1 20VT/BR CCD BUS (+)
9 D1 20VT/BR CCD BUS (+)
10 D1 20VT/BR CCD BUS (+)
11 D1 20VT/BR CCD BUS (+)
12 D1 20VT/BR CCD BUS (+)
13 D1 20VT/BR CCD BUS (+)
14 D2 20WT/BK CCD BUS (-)
15 D2 20WT/BK CCD BUS (-)
16 D2 20WT/BK CCD BUS (-)
17 D2 20WT/BK (REMOTE RADIO) CCD BUS (-)
18 - -
19 - -
20 D1 20VT/BR (REMOTE RADIO) CCD BUS (+)
21 - -
22 - -
JOINT CONNECTOR NO.8-NATURAL 22 WAY
CAV CIRCUIT FUNCTION
1 M2 22YL COURTESY LAMPS DRIVER
2 M2 22YL COURTESY LAMPS DIRVER
3 M2 22YL COURTESY LAMPS DRIVER
4 F15 22DB FUSED IGNITION SWITCH OUTPUT(RUN)
5 F15 22DB FUSED IGNITION SWITCH OUTPUT(RUN)
6 F15 22DB FUSED IGNITION SWITCH OUTPUT(RUN)
7 F15 20DB(HEATED SEATS) FUSED IGNITION SWITCH OUTPUT(RUN)
8 G75 22TN(BASE/MIDLINE) DRIVER DOOR AJAR SWITCH SENSE
8 E2 22OR(HEATED SEATS) PANEL LAMPS FEED
9 E2 22OR(HEATED SEATS) PANEL LAMPS FEED
9 G75 22TN(BASE/MIDLINE) DRIVER DOOR AJAR SWITCH SENSE
10 Z6 18 BK/PK GROUND
11 Z6 18BK/PK GROUND
12 Z6 18BK/PK GROUND
13 E17 18YL/BK DAY BRIGHTNESS SENSE
14 E17 18YL/BK DAY BRIGHTNESS SENSE
15 E17 18YL/BK DAY BRIGHTNESS SENSE
16 F15 18DB FUSED IGNITION SWITCH OUTPUT(RUN)
17 F15 22DB FUSED IGNITION SWITCH OUTPUT(RUN)
18 E2 22OR(HEATED SEATS) PANEL LAMPS FEED
18 G75 22TN(BASE/MIDLINE) DRIVER DOOR AJAR SWITCH SENSE
19 E2 22OR(HEATED SEATS) PANEL LAMPS FEED
19 G75 22TN(BASE/MIDLINE) DRIVER DOOR AJAR SWITCH SENSE
20 F14 18LG/YL FUSED IGNITION SWITCH OUTPUT(RUN-START)
21 F14 18LG/YL FUSED IGNITION SWITCH OUTPUT(RUN-START)
22 F14 18LG/YL FUSED IGNITION SWITCH OUTPUT(RUN-START)
BR/BE8W-80 CONNECTOR PIN-OUTS 8W - 80 - 53

JUNCTION BLOCK C1 - BLUE 15 WAY
CAV CIRCUIT FUNCTION
1- -
2 G31 20VT/LG AMBIENT TEMPERATURE SENSOR SIGNAL
3 A20 20RD/DB FUSED IGNITION SWITCH OUTPUT (RUN)
4 L61 18LG LEFT TURN SIGNAL
5 V6 16DB FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
6- -
7- -
8- -
9 L7 18BK/YL PARK LAMP RELAY OUTPUT
10 F18 20LG/BK FUSED IGNITION SWITCH OUTPUT (RUN-START)
11 L1 18VT/BK BACK-UP LAMP FEED
12 V6 16DB FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
13 V6 16DB FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
14 G32 20BK/VT SENSOR GROUND
15 - -
JUNCTION BLOCK C2 - NATURAL 6 WAY
CAV CIRCUIT FUNCTION
1 A7 10RD/BK FUSED B(+)
2 L9 16BK/VT FUSED FLASHER FEED
3 M1 20PK FUSED B(+)
4- -
5 L60 18TN RIGHT TURN SIGNAL
6- -
JUNCTION BLOCK C3 - 14 WAY
CAV CIRCUIT FUNCTION
1 G32 22BK/LB SENSOR GROUND
2 Z2 20BK/LG GROUND
3 M2 22YL COURTESY LAMPS DRIVER
4- -
5 G31 22VT/LG AMBIENT TEMPERATURE SENSOR SIGNAL
6 M1 22PK (BASE) FUSED B(+)
6 M1 20PK (HIGHLINE) FUSED B(+)
7- -
8 L7 18BK/YL PARK LAMP RELAY OUTPUT
9- -
10 - -
11 L1 20VT/BK BACK-UP LAMP FEED
12 - -
13 Z3 18BK (HIGHLINE) GROUND
14 F12 20DB/WT (HIGHLINE) FUSED IGNITION SWITCH OUTPUT (RUN-START)
8W - 80 - 54 8W-80 CONNECTOR PIN-OUTSBR/BE

JUNCTION BLOCK C4 - BROWN 11 WAY
CAV CIRCUIT FUNCTION
1 F14 18LG/YL FUSED IGNITION SWITCH OUTPUT (RUN-START)
2 F23 18DB/YL FUSED IGNITION SWITCH OUTPUT (RUN)
3 X12 16RD/WT FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
4 L61 18LG LEFT TURN SIGNAL
5 F12 22DB/WT FUSED IGNITION SWITCH OUTPUT (RUN-START)
6 F12 22DB/WT FUSED IGNITION SWITCH OUTPUT (RUN-START)
7- -
8- -
9 E1 18TN PANEL LAMPS DIMMER SWITCH SIGNAL
10 - -
11 - -
JUNCTION BLOCK C5 - GREEN 8 WAY
CAV CIRCUIT FUNCTION
1 V6 16DB (EXCEPT BASE/MIDLINE) FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
2 L61 18LG LEFT TURN SIGNAL
3 X60 16DG/RD FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
4 V6 16DB FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
5- -
6 M2 22YL COURTESY LAMPS DRIVER
7 E2 22OR PANEL LAMPS FEED
8 G5 22DB/WT FUSED IGNITION SWITCH OUTPUT (RUN-START)
JUNCTION BLOCK C6 - BLACK 6 WAY
CAV CIRCUIT FUNCTION
1 A35 16DB FUSED B(+)
2- -
3- -
4 L19 16PK HAZARD FLASHER SIGNAL
5 F235 16RD B(+) TO HEATED SEAT MODULE
6 L10 18BR/LG FUSED IGNITION SWITCH OUTPUT (RUN)
JUNCTION BLOCK C7 - LT. GRAY 13 WAY
CAV CIRCUIT FUNCTION
1 L60 18TN RIGHT TURN SIGNAL
2- -
3 Z3 18BK/WT GROUND
4 L60 18TN RIGHT TURN SIGNAL
5- -
6- -
BR/BE8W-80 CONNECTOR PIN-OUTS 8W - 80 - 55
