3.SENSOR SHORTED TO GROUND
Connect the C2 PCM harness connector and all the previously discon-
nected Sensor except for the CKP Sensor harness connector.
Ignition on, engine not running.
Measure the voltage on the (F855) Primary 5-volt Supply circuit at the
Throttle Body harness connector.
CAUTION: You must Turn the Ignition Off when disconnecting any
of the Sensor harness connectors and Turn the Ignition On to
check the voltage readings.
While monitoring the voltage, disconnect each Sensor harness connec-
tor that shares the (F855) Primary 5-volt Supply circuit, one at a time.
Does the voltage increase above 4.5 volts when disconnecting
any of the Sensor harness connectors?
Ye s>>
Replace the Sensor that causes the (F855) Primary 5-volt
Supply circuit voltage to increase when disconnected.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to
9 - ENGINE - STANDARD PROCEDURE)
No>>
Go To 4
4.5-VOLT SENSOR
Turn the ignition off.
Connect all the previously disconnected Sensors except for the CKP
Sensor harness connector.
Ignition on, engine not running.
Measure the voltage on the (F855) Primary 5-volt Supply circuit at the
CKP Sensor harness connector.
Is the voltage between 4.8 and 5.2 volts?
Ye s>>
Replace the Crank Position Sensor.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to
9 - ENGINE - STANDARD PROCEDURE)
No>>
Go To 5

5.(F855) PRIMARY 5-VOLT SUPPLY SHORTED TO BATTERY VOLTAGE
Turn the ignition off.
Disconnect the C2 PCM harness connector.
Disconnect all the Sensors that share the (F855) Primary 5-volt Supply
circuit.
Ignition on, engine not running.
Measure the voltage on the (F855) Primary 5-volt Supply circuit in the
CKP Sensor harness connector.
Is the voltage above 0 volts?
Ye s>>
Repair the short to battery voltage in the (F855) Primary
5-volt Supply circuit.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to
9 - ENGINE - STANDARD PROCEDURE)
No>>
Go To 6
6.(F855) PRIMARY 5-VOLT SUPPLY CIRCUIT OPEN
Turn the ignition off.
Reconnect all the sensors that were disconnected in the previous step
except for the CKP Sensor harness connector.
CAUTION: Do not probe the PCM harness connectors. Probing the
PCM harness connectors will damage the PCM terminals resulting
in poor terminal to pin connection. Install Miller Special Tool #8815
to perform diagnosis.
Measure the resistance in the (F855) Primary 5-volt Supply circuit from
the Sensor harness connector to the appropriate terminal of special tool
#8815.
It may be necessary to perform this test from every sensor that uses
the (F855) Primary 5-volt Supply circuit.
Is the resistance below 5.0 ohms?
Ye s>>
Go To 7
No>>
Repair the open in the (F855) Primary 5-volt Supply circuit.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to
9 - ENGINE - STANDARD PROCEDURE)

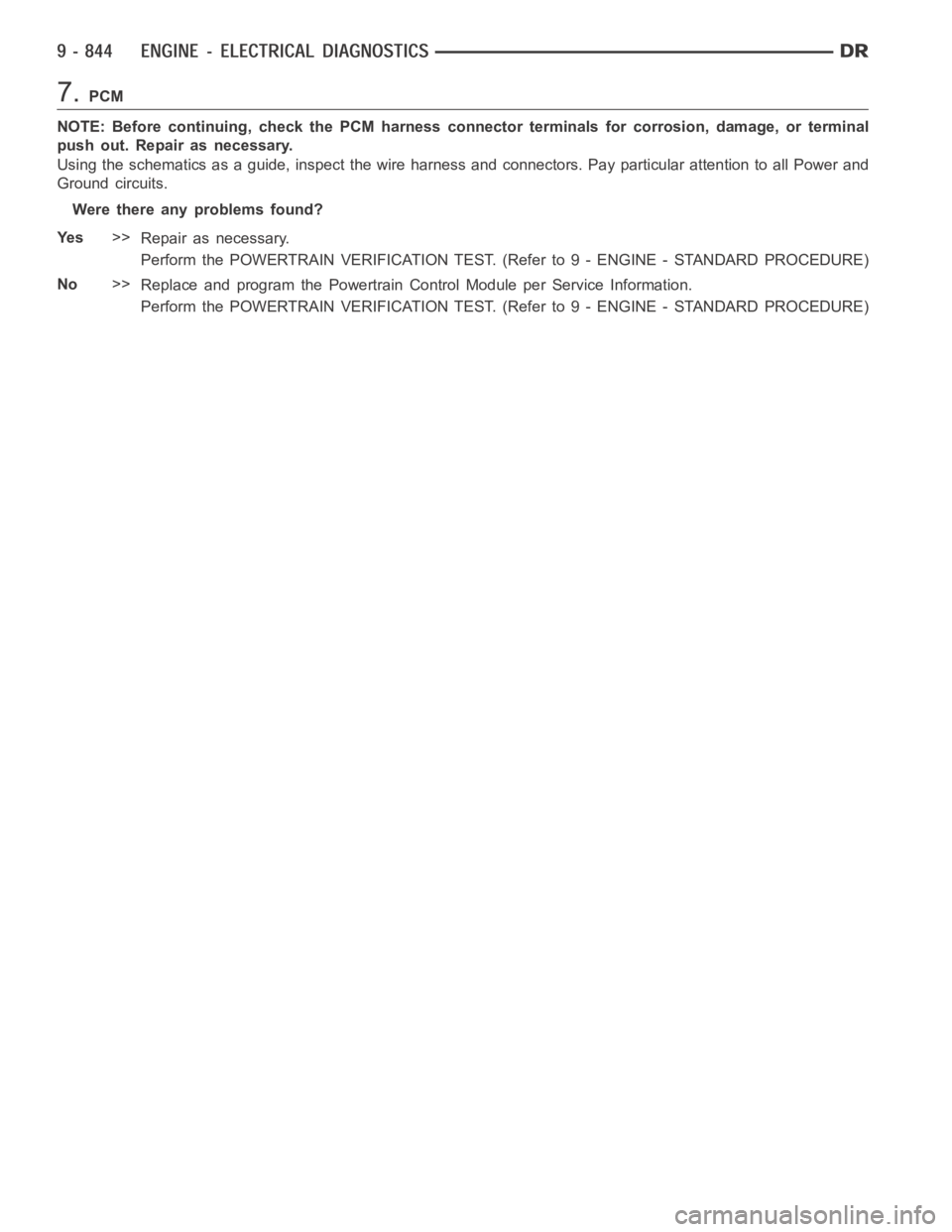

7.PCM
NOTE: Before continuing, check the PCM harness connector terminals for corrosion, damage, or terminal
push out. Repair as necessary.
Using the schematics as a guide, inspect the wire harness and connectors. Pay particular attention to all Power and
Ground circuits.
Were there any problems found?
Ye s>>
Repair as necessary.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
No>>
Replace and program the Powertrain Control Module per Service Information.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

P1628-SENSOR REFERENCE VOLTAGE 2 CIRCUIT ERRATIC
For a complete wiring diagramRefer to Section 8W.

When Monitored:
Ignition on.
Set Condition:
When the PCM recognizes the Auxiliary 5-volt Supply circuit voltage is varying too much too quickly. One Trip
Fault. ETC light is flashing.
Possible Causes
(F856) AUXILIARY 5-VOLT SUPPLY CIRCUIT SHORTED TO GROUND
(F856) AUXILIARY 5-VOLT SUPPLY CIRCUIT SHORTED TO BATTERY VOLTAGE
(F856) AUXILIARY 5-VOLT SUPPLY CIRCUIT OPEN
5-VOLT SENSOR
PCM
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
Diagnostic Test
1.ACTIVE DTC
Ignition on, engine not running.
With a scan tool, read DTCs.
Is the DTC active at this time?
Ye s>>
Go To 2
No>>
Refer to the INTERMITTENT CONDITION Diagnostic Procedure.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
2.(F856) AUXILIARY 5-VOLT SUPPLY CIRCUIT SHORTED TO GROUND
Turn the ignition off.
Disconnect the C1 PCM harness connector.
Disconnect all the Sensors that share the (F856) Auxiliary 5-volt Supply
circuit.
NOTE: This code can be caused by the improper installation of
after market accessories that may be causing excessive noise on
the (F856) 5-volt Supply circuit.
Measure the resistance between ground and the (F856) Auxiliary 5-volt
Supply circuit at the CMP Sensor harness connector.
Istheresistancebelow100ohms?
Ye s>>
Repair the short to ground in the (F856) Auxiliary 5-volt
Supply circuit.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to
9 - ENGINE - STANDARD PROCEDURE)
No>>
Go To 3

3.SENSOR SHORTED TO GROUND
Connect the C1 PCM harness connector and all the previously discon-
nected Sensor except for the CMP Sensor harness connector.
Ignition on, engine not running.
Measure the voltage on the (F856) Auxiliary 5-volt Supply circuit in the
CMP Sensor harness connector.
CAUTION: You must Turn the Ignition OFF when disconnecting any
of the Sensor harness connectors and Turn the Ignition On to
check the voltage readings.
While monitoring the voltage, disconnect each Sensor harness connec-
tor that shares the (F856) Auxiliary 5-volt Supply circuit, one at a time.
Does the voltage increase above 4.5 volts when disconnecting
any of the Sensor harness connectors?
Ye s>>
Replace the Sensor that causes the (F856) Auxiliary 5-volt
Supply circuit voltage to increase when disconnected.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to
9 - ENGINE - STANDARD PROCEDURE)
No>>
Go To 4
4.5-VOLT SENSOR
Turn the ignition off.
Connect all the previously disconnected Sensors except for the CMP
Sensor harness connector.
Ignition on, engine not running.
Measure the voltage on the (F856) Auxiliary 5-volt Supply circuit in the
CMP Sensor harness connector.
Is the voltage below 4.5 volts?
Ye s>>
Go To 5
No>>
Replace the Cam Position Sensor.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to
9 - ENGINE - STANDARD PROCEDURE)

5.(F856) AUXILIARY 5-VOLT SUPPLY CIRCUIT SHORTED TO BATTERY VOLTAGE
Turn the ignition off.
Disconnect the C1 PCM harness connector.
Disconnect all the Sensors that share the (F856) Auxiliary 5-volt Supply
circuit.
Ignition on, engine not running.
Measure the voltage on the (F856) Auxiliary 5-volt Supply circuit at the
CMP Sensor harness connector.
Is the voltage above 0 volts?
Ye s>>
Repair the short to battery voltage in the (F856) Auxiliary
5-volt Supply circuit.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to
9 - ENGINE - STANDARD PROCEDURE)
No>>
Go To 6
6.(F856) AUXILIARY 5-VOLT SUPPLY CIRCUIT OPEN
Turn the ignition off.
Reconnect all the sensors that were disconnected in the previous step
except the CMP Sensor harness connector.
CAUTION: Do not probe the PCM harness connectors. Probing the
PCM harness connectors will damage the PCM terminals resulting
in poor terminal to pin connection. Install Miller Special Tool #8815
to perform diagnosis.
Measure the resistance in the (F856) Auxiliary 5-volt Supply circuit from
the Sensor harness connector to the appropriate terminal of special tool
#8815.
It may be necessary to perform this test from every sensor that uses
the (F856) Auxiliary 5-volt Supply circuit.
Is the resistance below 5.0 ohms?
Ye s>>
Go To 7
No>>
Repair the open in the (F856) Auxiliary 5-volt Supply circuit.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to
9 - ENGINE - STANDARD PROCEDURE)
7.PCM
NOTE: Before continuing, check the PCM harness connector terminals for corrosion, damage, or terminal
push out. Repair as necessary.
Using the schematics as a guide, inspect the wire harness and connectors. Pay particular attention to all Power and
Ground circuits.
Were there any problems found?
Ye s>>
Repair as necessary.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
No>>
Replace and program the Powertrain Control Module per Service Information.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

P1696-EEPROM MEMORY WRITE DENIED/INVALID
For a complete wiring diagramRefer to Section 8W.
When Monitored:
Continuously with the ignition on.
Set Condition:
An attempt to program/write to the internal EEPROM failed, Also checks at power down. One Trip Fault. Three
good trips to turn off the MIL.
Possible Causes
PCM
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
Diagnostic Test
1.SCAN TOOL DISPLAYS A WRITE FAILURE
With a scan tool, perform the SRI Memory Test.
Does scan tool display Write Failure?
Ye s>>
Replace and program the Powertrain Control Module per Service Information.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
No>>
Go To 2
2.SCAN TOOL DISPLAYS A WRITE REFUSED
With the a scan tool, perform the SRI Memory Test.
Does the scan tool display Write Refused?
Ye s>>
Go To 3
No>>
Go To 4
3.PCM REFUSED 2ND TEST
With a scan tool, perform the SRI Memory Test a third time.
NOTE: Retest the SRI Memory two more times.
Does the scan tool display Write Refused again?
Ye s>>
Replace and program the Powertrain Control Module per Service Information.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
No>>
Te s t C o m p l e t e .
4.SCAN TOOL DISPLAYS SRI MILEAGE INVALID
With a scan tool, perform the SRI Memory Test.
Does the scan tool display SRI Mileage Invalid?
Ye s>>
Update the mileage and retest the SRI Memory.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
No>>
Go To 5

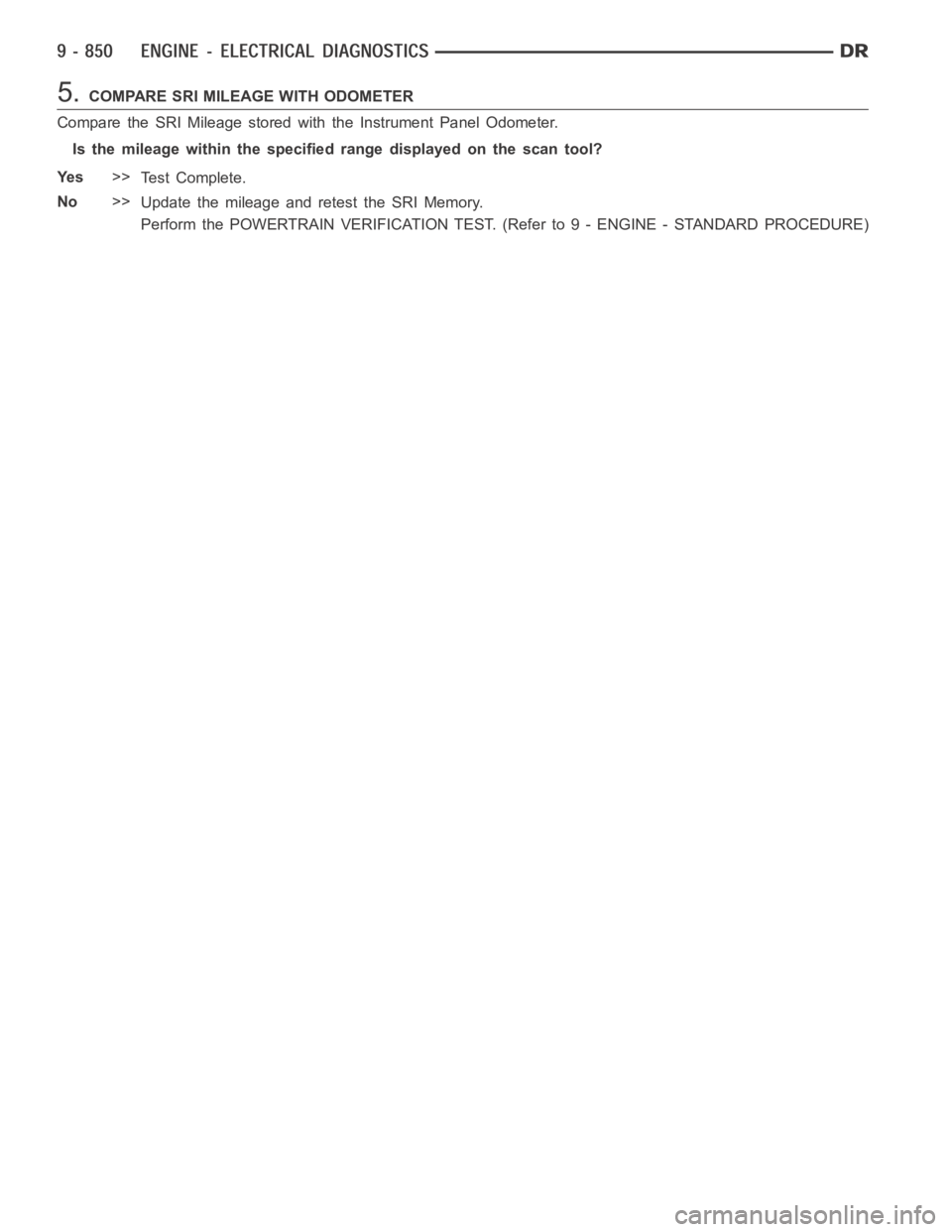

5.COMPARE SRI MILEAGE WITH ODOMETER
Compare the SRI Mileage stored with the Instrument Panel Odometer.
Is the mileage within the specified range displayed on the scan tool?
Ye s>>
Te s t C o m p l e t e .
No>>
Update the mileage and retest the SRI Memory.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)

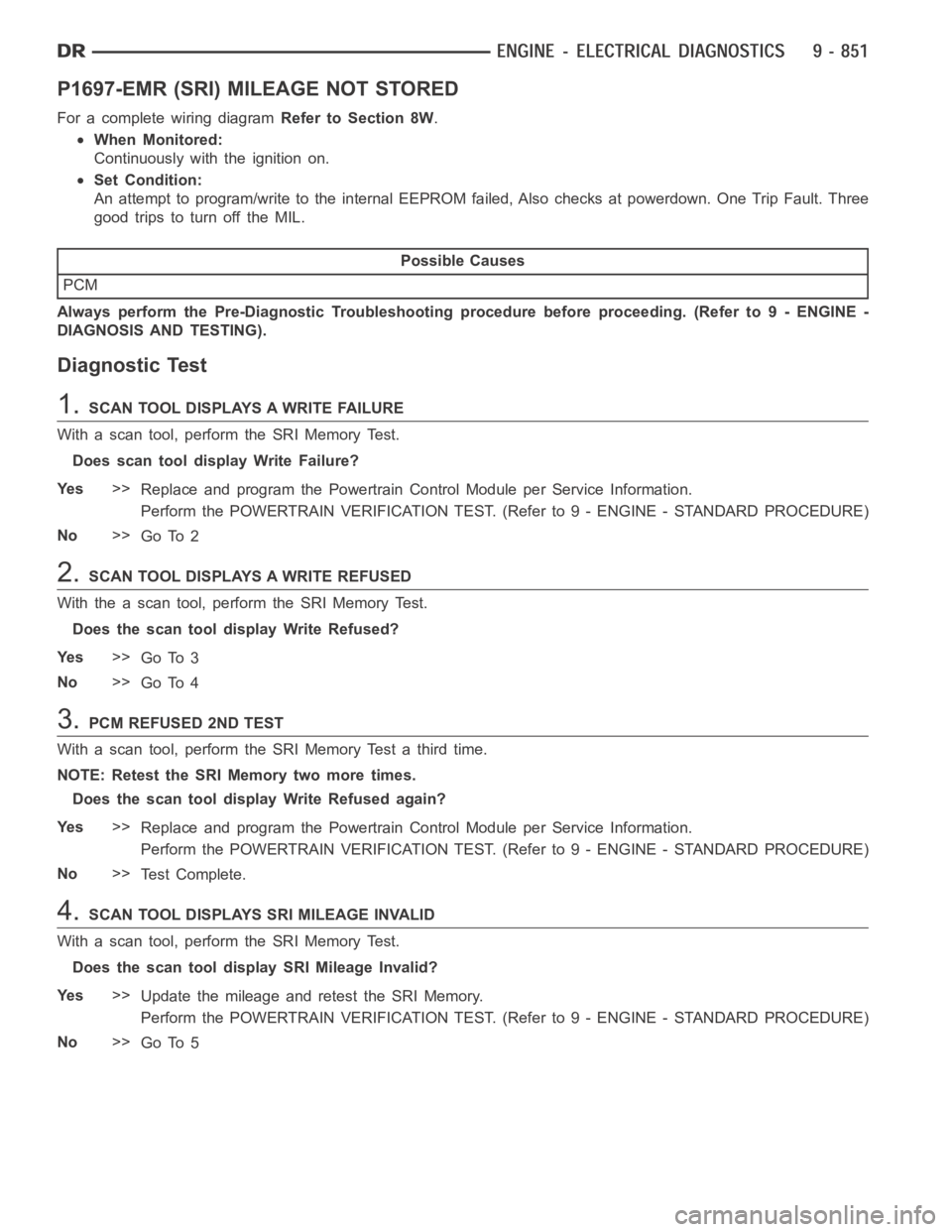

P1697-EMR (SRI) MILEAGE NOT STORED
For a complete wiring diagramRefer to Section 8W.
When Monitored:
Continuously with the ignition on.
Set Condition:
An attempt to program/write to the internal EEPROM failed, Also checks at powerdown. One Trip Fault. Three
good trips to turn off the MIL.
Possible Causes
PCM
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING).
Diagnostic Test
1.SCAN TOOL DISPLAYS A WRITE FAILURE
With a scan tool, perform the SRI Memory Test.
Does scan tool display Write Failure?
Ye s>>
Replace and program the Powertrain Control Module per Service Information.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
No>>
Go To 2
2.SCAN TOOL DISPLAYS A WRITE REFUSED
With the a scan tool, perform the SRI Memory Test.
Does the scan tool display Write Refused?
Ye s>>
Go To 3
No>>
Go To 4
3.PCM REFUSED 2ND TEST
With a scan tool, perform the SRI Memory Test a third time.
NOTE: Retest the SRI Memory two more times.
Does the scan tool display Write Refused again?
Ye s>>
Replace and program the Powertrain Control Module per Service Information.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
No>>
Te s t C o m p l e t e .
4.SCAN TOOL DISPLAYS SRI MILEAGE INVALID
With a scan tool, perform the SRI Memory Test.
Does the scan tool display SRI Mileage Invalid?
Ye s>>
Update the mileage and retest the SRI Memory.
Perform the POWERTRAIN VERIFICATION TEST. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
No>>
Go To 5
