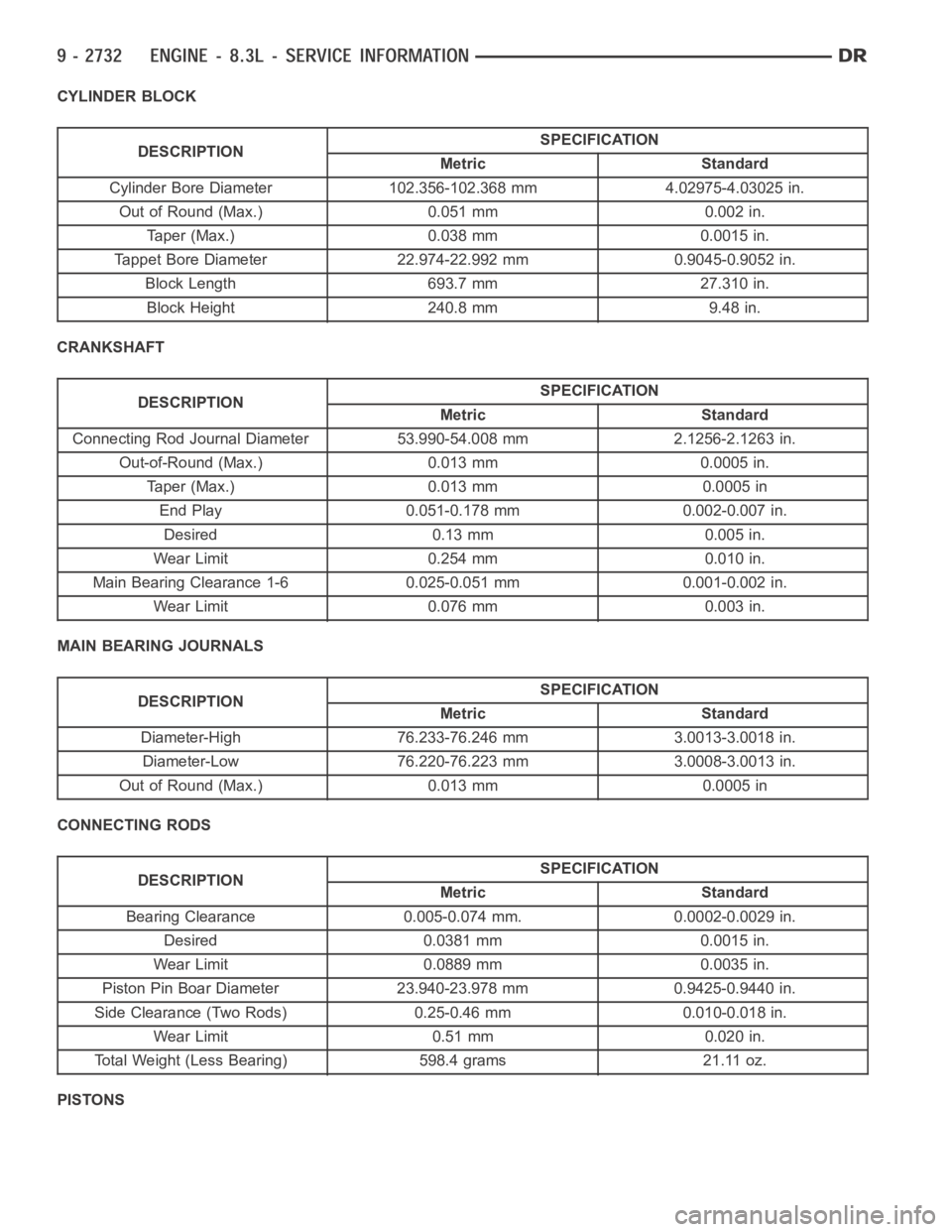

CYLINDER BLOCK
DESCRIPTIONSPECIFICATION
Metric Standard
Cylinder Bore Diameter 102.356-102.368 mm 4.02975-4.03025 in.
Out of Round (Max.) 0.051 mm 0.002 in.
Taper (Max.) 0.038 mm 0.0015 in.
Tappet Bore Diameter 22.974-22.992 mm 0.9045-0.9052 in.
Block Length 693.7 mm 27.310 in.
Block Height 240.8 mm 9.48 in.
CRANKSHAFT
DESCRIPTIONSPECIFICATION
Metric Standard
Connecting Rod Journal Diameter 53.990-54.008 mm 2.1256-2.1263 in.
Out-of-Round (Max.) 0.013 mm 0.0005 in.
Taper (Max.) 0.013 mm 0.0005 in
End Play 0.051-0.178 mm 0.002-0.007 in.
Desired 0.13 mm 0.005 in.
Wear Limit 0.254 mm 0.010 in.
Main Bearing Clearance 1-6 0.025-0.051 mm 0.001-0.002 in.
Wear Limit 0.076 mm 0.003 in.
MAIN BEARING JOURNALS
DESCRIPTIONSPECIFICATION
Metric Standard
Diameter-High 76.233-76.246 mm 3.0013-3.0018 in.
Diameter-Low 76.220-76.223 mm 3.0008-3.0013 in.
Out of Round (Max.) 0.013 mm 0.0005 in
CONNECTING RODS
DESCRIPTIONSPECIFICATION
Metric Standard
Bearing Clearance 0.005-0.074 mm. 0.0002-0.0029 in.
Desired 0.0381mm 0.0015in.
Wear Limit 0.0889 mm 0.0035 in.
Piston Pin Boar Diameter 23.940-23.978 mm 0.9425-0.9440 in.
Side Clearance (Two Rods) 0.25-0.46 mm 0.010-0.018 in.
Wear Limit 0.51 mm 0.020 in.
Total Weight (Less Bearing) 598.4 grams 21.11 oz.

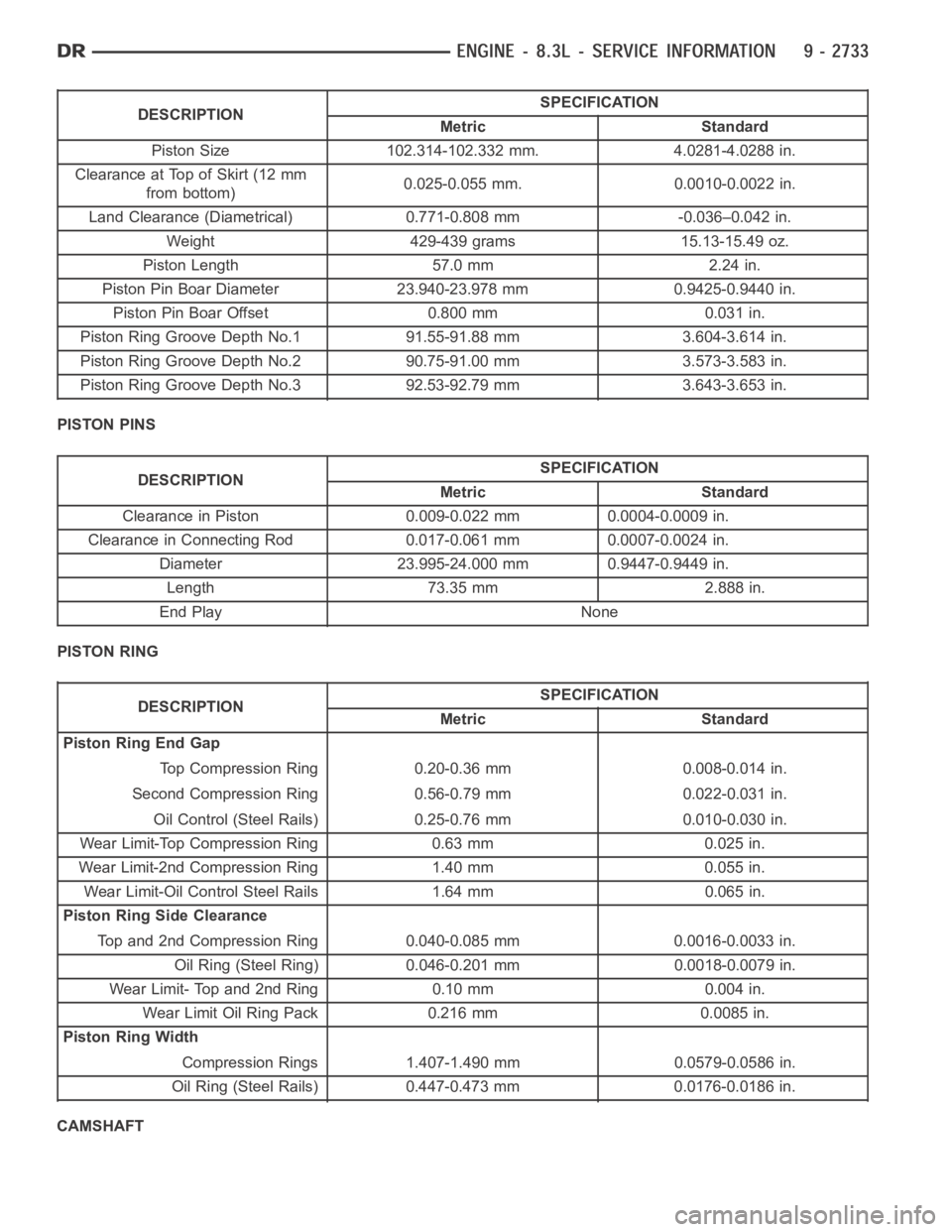

PISTONS

DESCRIPTIONSPECIFICATION
Metric Standard
Piston Size 102.314-102.332 mm. 4.0281-4.0288 in.
Clearance at Top of Skirt (12 mm
from bottom)0.025-0.055 mm. 0.0010-0.0022 in.
Land Clearance (Diametrical) 0.771-0.808 mm -0.036–0.042 in.
Weight 429-439 grams 15.13-15.49 oz.
Piston Length 57.0 mm 2.24 in.
Piston Pin Boar Diameter 23.940-23.978 mm 0.9425-0.9440 in.
Piston Pin Boar Offset 0.800 mm 0.031 in.
Piston Ring Groove Depth No.1 91.55-91.88 mm 3.604-3.614 in.
Piston Ring Groove Depth No.2 90.75-91.00 mm 3.573-3.583 in.
Piston Ring Groove Depth No.3 92.53-92.79 mm 3.643-3.653 in.
PISTON PINS
DESCRIPTIONSPECIFICATION
Metric Standard
Clearance in Piston 0.009-0.022 mm 0.0004-0.0009 in.
Clearance in Connecting Rod 0.017-0.061 mm 0.0007-0.0024 in.
Diameter 23.995-24.000 mm 0.9447-0.9449 in.
Length 73.35 mm 2.888 in.
End Play None
PISTON RING
DESCRIPTIONSPECIFICATION
Metric Standard
Piston Ring End Gap
Top Compression Ring 0.20-0.36 mm 0.008-0.014 in.
Second Compression Ring 0.56-0.79 mm 0.022-0.031 in.
Oil Control (Steel Rails) 0.25-0.76 mm 0.010-0.030 in.
Wear Limit-Top Compression Ring 0.63 mm 0.025 in.
Wear Limit-2nd Compression Ring 1.40 mm 0.055 in.
Wear Limit-Oil Control Steel Rails 1.64 mm 0.065 in.
Piston Ring Side Clearance
Top and 2nd Compression Ring 0.040-0.085 mm 0.0016-0.0033 in.
Oil Ring (Steel Ring) 0.046-0.201 mm 0.0018-0.0079 in.
Wear Limit- Top and 2nd Ring 0.10 mm 0.004 in.
Wear Limit Oil Ring Pack 0.216 mm 0.0085 in.
Piston Ring Width
Compression Rings 1.407-1.490 mm 0.0579-0.0586 in.
Oil Ring (Steel Rails) 0.447-0.473 mm 0.0176-0.0186 in.

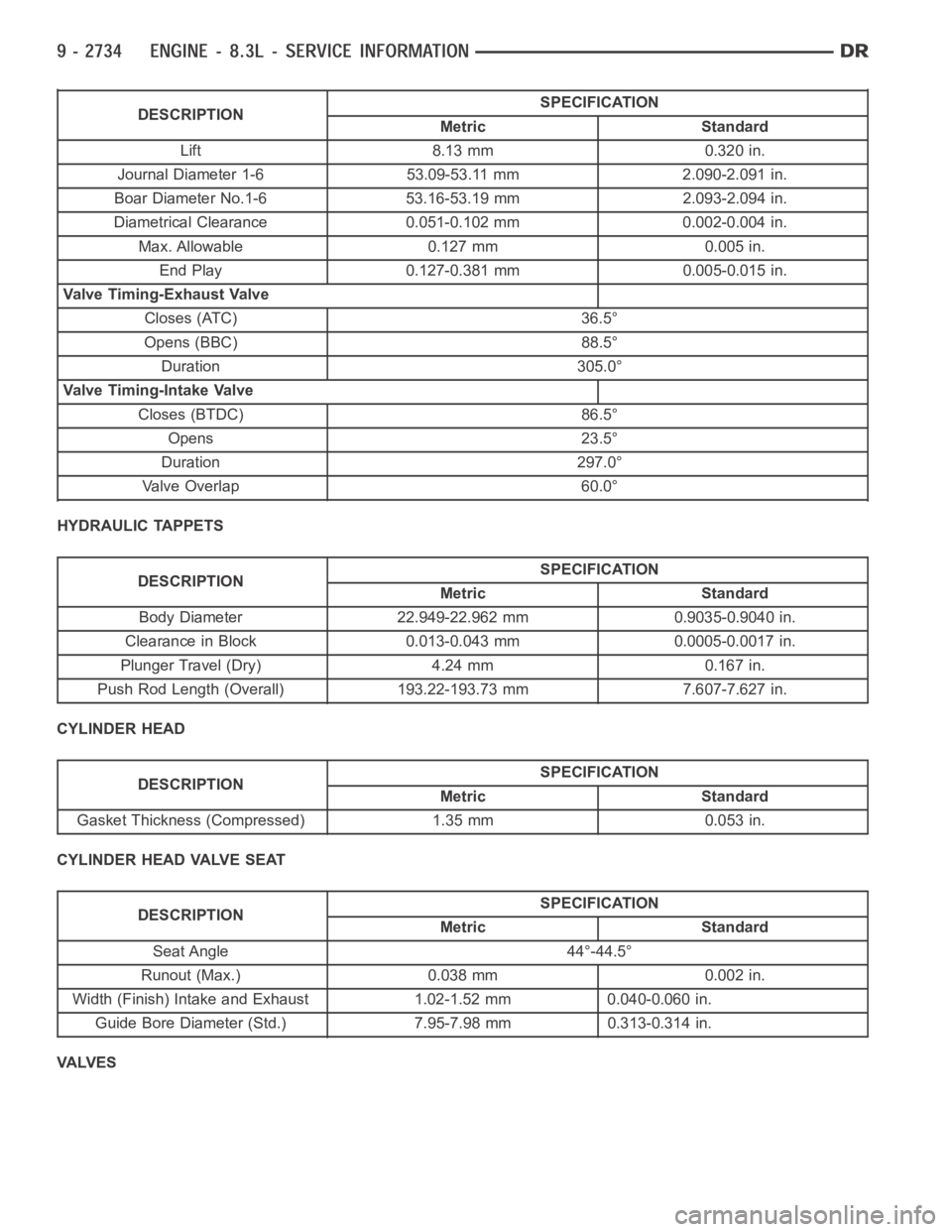

CAMSHAFT

DESCRIPTIONSPECIFICATION
Metric Standard
Lift 8.13 mm 0.320 in.
Journal Diameter 1-6 53.09-53.11 mm 2.090-2.091 in.
Boar Diameter No.1-6 53.16-53.19 mm 2.093-2.094 in.
Diametrical Clearance 0.051-0.102 mm 0.002-0.004 in.
Max. Allowable 0.127 mm 0.005 in.
End Play 0.127-0.381 mm 0.005-0.015 in.
Valve Timing-Exhaust Valve
Closes (ATC) 36.5°
Opens (BBC) 88.5°
Duration 305.0°
Valve Timing-Intake Valve
Closes (BTDC) 86.5°
Opens 23.5°
Duration 297.0°
Valve Overlap 60.0°
HYDRAULIC TAPPETS
DESCRIPTIONSPECIFICATION
Metric Standard
Body Diameter 22.949-22.962 mm 0.9035-0.9040 in.
Clearance in Block 0.013-0.043 mm 0.0005-0.0017 in.
Plunger Travel (Dry) 4.24 mm 0.167 in.
Push Rod Length (Overall) 193.22-193.73 mm 7.607-7.627 in.
CYLINDER HEAD
DESCRIPTIONSPECIFICATION
Metric Standard
Gasket Thickness (Compressed) 1.35 mm 0.053 in.
CYLINDER HEAD VALVE SEAT
DESCRIPTIONSPECIFICATION
Metric Standard
Seat Angle 44°-44.5°
Runout (Max.) 0.038 mm 0.002 in.
Width (Finish) Intake and Exhaust 1.02-1.52 mm 0.040-0.060 in.
Guide Bore Diameter (Std.) 7.95-7.98 mm 0.313-0.314 in.

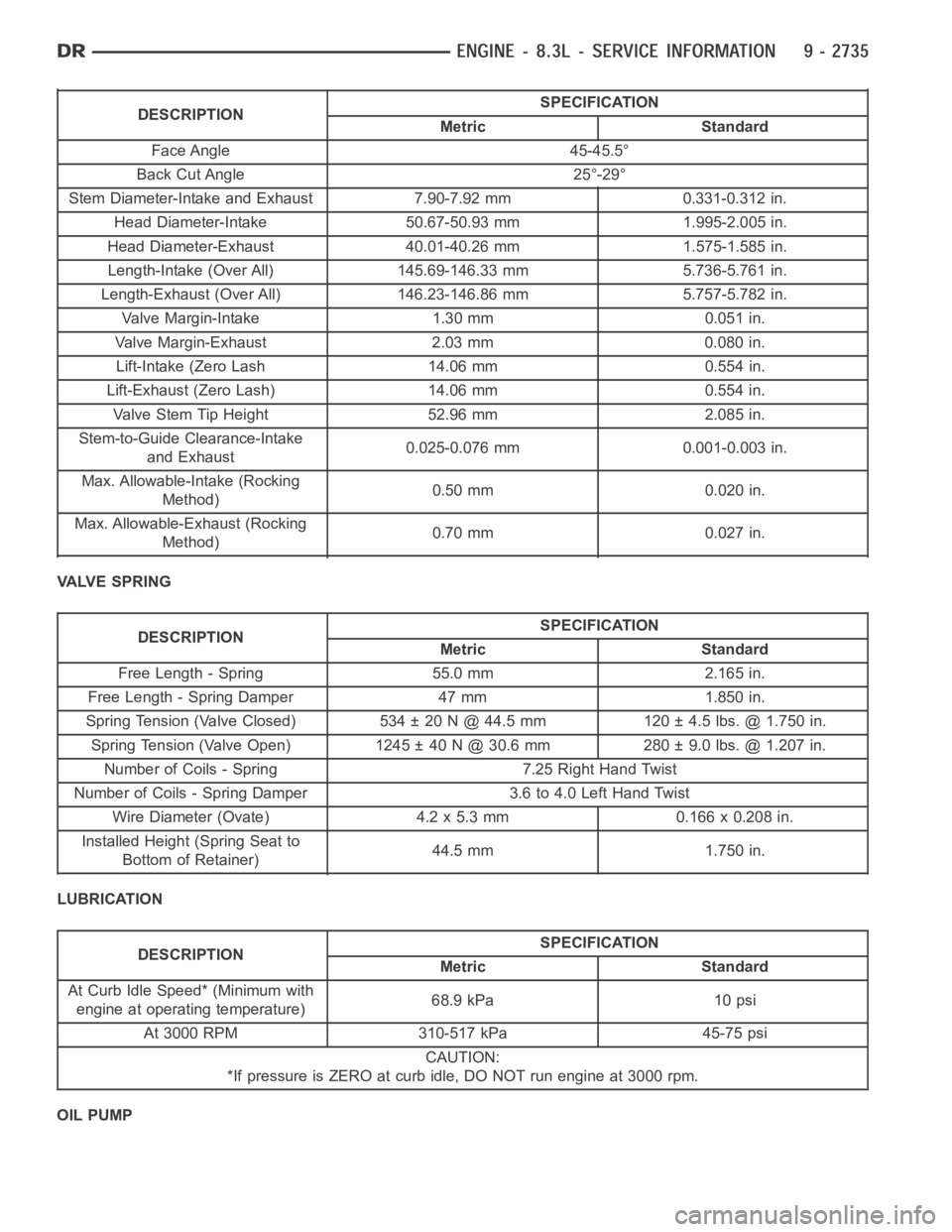

VA LV E S

DESCRIPTIONSPECIFICATION
Metric Standard
Face Angle 45-45.5°
Back Cut Angle 25°-29°
Stem Diameter-Intake and Exhaust 7.90-7.92 mm 0.331-0.312 in.
Head Diameter-Intake 50.67-50.93 mm 1.995-2.005 in.
Head Diameter-Exhaust 40.01-40.26 mm 1.575-1.585 in.
Length-Intake (Over All) 145.69-146.33 mm 5.736-5.761 in.
Length-Exhaust (Over All) 146.23-146.86 mm 5.757-5.782 in.
Valve Margin-Intake 1.30 mm 0.051 in.
Valve Margin-Exhaust 2.03 mm 0.080 in.
Lift-Intake (Zero Lash 14.06 mm 0.554 in.
Lift-Exhaust (Zero Lash) 14.06 mm 0.554 in.
Valve Stem Tip Height 52.96 mm 2.085 in.
Stem-to-Guide Clearance-Intake
and Exhaust0.025-0.076 mm 0.001-0.003 in.
Max. Allowable-Intake (Rocking
Method)0.50 mm 0.020 in.
Max. Allowable-Exhaust (Rocking
Method)0.70 mm 0.027 in.
VALVE SPRING
DESCRIPTIONSPECIFICATION
Metric Standard
Free Length - Spring 55.0 mm 2.165 in.
Free Length - Spring Damper 47 mm 1.850 in.
Spring Tension (Valve Closed) 534 ± 20 N @ 44.5 mm 120 ± 4.5 lbs. @ 1.750 in.
Spring Tension (Valve Open) 1245 ± 40 N @ 30.6 mm 280 ± 9.0 lbs. @ 1.207 in.
Number of Coils - Spring 7.25 Right Hand Twist
Number of Coils - Spring Damper 3.6 to 4.0 Left Hand Twist
Wire Diameter (Ovate) 4.2 x 5.3 mm 0.166 x 0.208 in.
Installed Height (Spring Seat to
Bottom of Retainer)44.5 mm 1.750 in.
LUBRICATION
DESCRIPTIONSPECIFICATION
Metric Standard
At Curb Idle Speed* (Minimum with
engine at operating temperature)68.9 kPa 10 psi
At 3000 RPM 310-517 kPa 45-75 psi
CAUTION:
*If pressure is ZERO at curb idle, DO NOT run engine at 3000 rpm.
OIL PUMP

DESCRIPTIONSPECIFICATION
Metric Standard
Clearance Over Rotors (Max.) 0.077 mm 0.003 in.
Cover Out-Of-Flat (Max.) 0.076 mm 0.003 in.
Inner Rotor Thickness (Min.) 18.92 mm 0.744 in.
Clearance (Max.) 0.19 mm 0.007 in.
Diameter (Min.) 82.45 mm 3.246 in.
Thickness (Min.) 18.92 mm 0.744 in.
Tip Clearance Between Rotors
(Max)0.150 mm 0.0068 in.
TORQUE
DESCRIPTION Nꞏm Ft. Lbs. In. Lbs.
Bolts-A/C Compressor Mounting 23 - 200
Bolts-A/C Compressor Bracket 23 - 200
Bolt-Camshaft Position Sensor 11 - 95
Bolts-Camshaft Sprocket 23 - 200
Bolts-Camshaft Thrust Plate 24 - 210
Bolts-Connecting Rod Cap 68 50 -
Bolts-Crankshaft Main Bearing Cap (Refer to CRANKSHAFT -
INSTALLATION)
Nuts-Crankshaft Oil Scraper 23 - 200
Bolts-Crankshaft Pulley 23 - 200
Bolt-Crankshaft Vibration Damper 176 130 -
Bolts-Cylinder Head (Refer to CYLINDER HEAD -
INSTALLATION)
Bolts/Studs-Cylinder Head Cover 11 - 95
Exhaust Manifold 23 - 200
Exhaust Pipe to Exhaust Manifold 34 25 -
Bolts-Engine Mount Bracket-to-Block 41 30 -
Nuts-Engine Mount Insulator 102 75 -
Bolts-Flywheel to Crankshaft 75 55 -
Bolts-Generator Mounting 41 30 -
Bolts-Intake Manifold 11 - 95
Bolts-Oil Cooler 5 - 40
Oil Cooler Line Fitting 68 50 -
Bolts-Oil Pan
1/4–20 11 - 95
5/16–18 23 - 200
Plug-Oil Pan Drain 34 25 -
Plug-Oil Pressure Relief Valve 34 25 -
Bolts-Oil Pump Cover 23 - 200
Oil Pump Pick-up Tube
Bolt 1/4–20 11 - 95
Nut 5/16–18 23 - 200

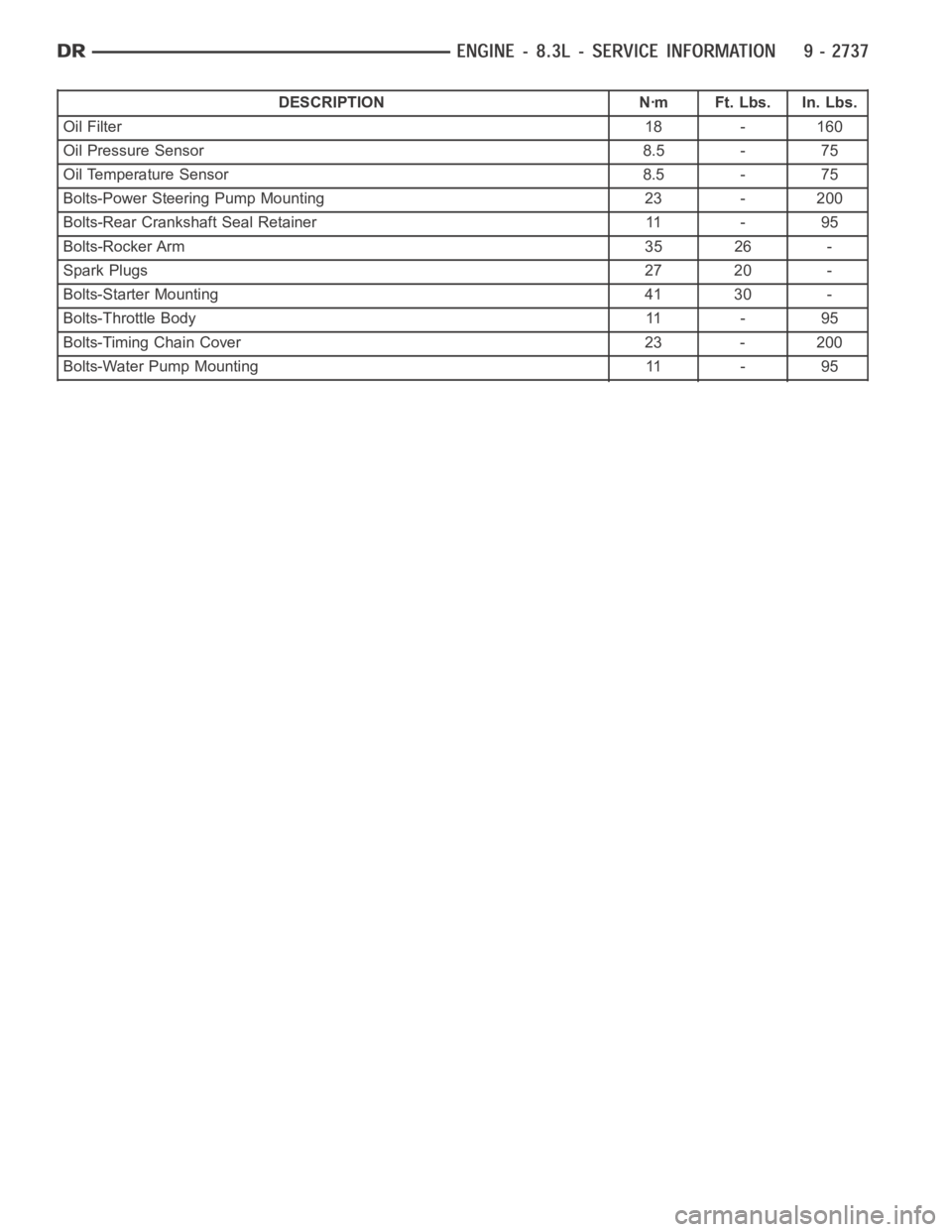

DESCRIPTION Nꞏm Ft. Lbs. In. Lbs.
Oil Filter18 - 160
Oil Pressure Sensor 8.5 - 75
Oil Temperature Sensor 8.5 - 75
Bolts-Power Steering Pump Mounting 23 - 200
Bolts-Rear Crankshaft Seal Retainer 11 - 95
Bolts-Rocker Arm 35 26 -
Spark Plugs27 20 -
Bolts-Starter Mounting 41 30 -
Bolts-Throttle Body 11 - 95
Bolts-Timing Chain Cover 23 - 200
Bolts-Water Pump Mounting 11 - 95

SPECIAL TOOLS
ENGINE
Crankshaft Insert 8194
Crankshaft Damper/Sprocket Installer 9055
Crankshaft Sprocket Remover 9056
Puller 5048
Bearing/Seal Remover Adapter - 8990
Puller, Slide Hammer C-3752
Crankshaft Pilot Bearing Installer 9058
Driver Handle C-4171

Front Crankshaft Seal Remover C-4679A
Front Crankshaft Seal Installer MD-998306
Rear Crankshaft Seal Installation Guide 9060
Valve Spring Compressor MD998772A
Valve Spring Tester C-647
Pressure Tester Kit 7700
Bloc–Chek–Kit C-3685–A
Clutch Hydraulic Line Disconnect Tool 6638A
Disconnect Tool 9005
ENGINE LIFTING FIXTURE 9363

DRB IIIwith PEP Module – OT-CH6010A
Pressure Transducer OT-CH7059
Adaptor 8116

SYSTEM-AIR INTAKE
DESCRIPTION
Air deflectors mounted to the hood and front grill route
the cool incoming air intothe right inner fender (3)
where the inlet for the air cleaner housing (4) resides.
Air passes through a filter element inside the housing,
through a air inlet duct (1), and into the throttle body.
