DODGE SPRINTER 2004 1.G Owners Manual

MAINTAININ G YOUR VEHICLE 221
7
A utomatic Car WashIf the vehicle is very dirty, prewash it before you drive
into the car wash.
Fold in the exterior mirrors before washing the vehicle
in an automatic car wash and make sure that the
windshield wiper switch is in position 0.
The exterior mirrors and windshield wipers could
otherwise be damaged.
Make sure that mirrors are fully folded out after
leaving the automatic car wash.
Tar StainsQuickly remove tar stains before they dry and become
more difficult to remove. A tar remover is
recommended.Paintwork, Painted Body ComponentsPaint care should be applied when water drops on the
paint surface do not "bead up", normally every 3 to
5 months, depending on climate and washing
detergent used.
Paint cleaner should be applied if paint surface shows
signs of dirt embedding (i.e. loss of gloss).
Do not apply any of these products or wax if your
vehicle is parked in the sun or if the hood is still hot.
Use the appropriate paint stick for quick and
provisional repairs of minor paint damage (i.e., chips
from stones, vehicle doors etc.).Engine Cleaning Prior to cleaning the engine compartment, make sure
to protect electrical components and connectors from
the intrusion of water and cleaning agents.
WARNING!
Smears impair visibility, which is impaired fur-
ther by unfavourable conditions (e.g. fog, dark-
ness, driving snow).
If a wax preservative is sprayed on after washing
the vehicle, wipe off the wax from the windshield
and the wiper blade rubbers. This will prevent
smears forming on the windshield.
Freightliner-all.book Pag e 221 Monday, December 1, 2003 2:54 PM

222 MAINTAINING YOUR VEHICLECorrosion protection, such as anticorrosion wax
should be applied to the engine compartment after
every engine cleaning. Before applying, all control
linkage bushings and joints should be lubricated. The
poly-V-belt and all pulleys should be protected from
any wax.Vehicle WashingDo not use hot water or wash your vehicle in direct
sunlight. Use only a mild car wash detergent.
Thoroughly spray the vehicle with a diffused jet of
water. Direct only a very weak spray towards the
ventilation intake. Use plenty of water and rinse the
sponge and chamois frequently.
Rinse with clear water and thoroughly wipe dry with a
chamois. Do not allow cleaning agents to dry on the
finish.
Due to the width of the vehicle, prior to running the
vehicle through an automatic car wash, fold back the
outside mirrors to prevent them from getting
damaged.
In the winter, thoroughly remove all traces of road salt
as soon as possible.When washing the underbody, do not forget to clean
the inner sides of the wheels.
Ornamental MoldingsFor regular cleaning and care of very dirty chrome-
plated parts, use a chrome cleaner.Headlamps, Taillamps, Turn Signal LensesUse a mild car wash detergent with plenty of water.
To prevent scratches, never apply strong force and use
only a soft, non-scratchy cloth when cleaning the
lenses. Do not attempt to wipe dirty lenses with a dry
cloth or sponge.
WARNING!
Dirty or iced-up steps and entrances create a risk
of slipping or falling.
Keep steps, entrances and footwear free from dirt
(e.g. mud, clay, snow and ice).
Freightliner-all.book Pag e 222 Monday, December 1, 2003 2:54 PM

MAINTAININ G YOUR VEHICLE 223
7
Window CleaningUse a window cleaning solution on all glass surfaces.
An automotive glass cleaner is recommended.

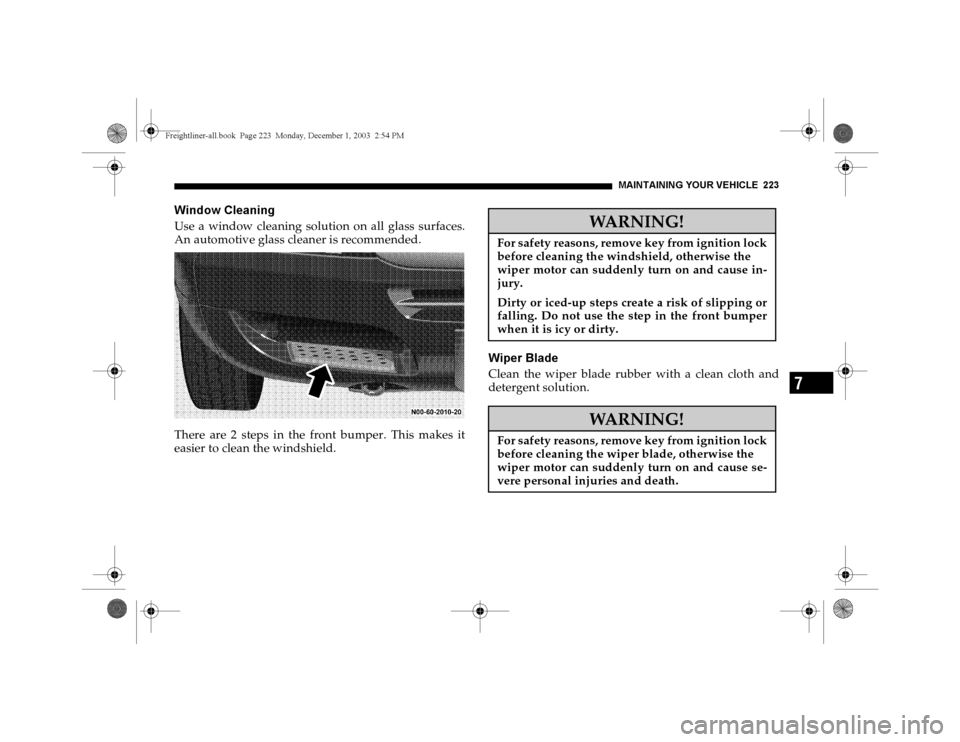

There are 2 steps in the front bumper. This makes it
easier to clean the windshield.
Wiper BladeClean the wiper blade rubber with a clean cloth and
detergent solution.
WARNING!
For safety reasons, remove key from ignition lock
before cleaning the windshield, otherwise the
wiper motor can suddenly turn on and cause in-
jury.
Dirty or iced-up steps create a risk of slipping or
falling. Do not use the step in the front bumper
when it is icy or dirty.
WARNING!
For safety reasons, remove key from ignition lock
before cleaning the wiper blade, otherwise the
wiper motor can suddenly turn on and cause se-
vere personal injuries and death.
Freightliner-all.book Pag e 223 Monday, December 1, 2003 2:54 PM

224 MAINTAINING YOUR VEHICLELight A lloy WheelsA wheel care product should be used for regular
cleaning of the light alloy wheels.
If possible, clean wheels once a week, using a soft
bristle brush and a strong spray of water.
Follow instructions on container.
NOTE: Use only acid-free cleaning materials. The acid
could lead to corrosion.Instrument ClusterUse a gentle dishwashing detergent or mild detergent
for delicate fabrics as a washing solution. Wipe with a
cloth moistened in lukewarm solution. Do not use
scouring agents.Steering Wheel and Gear Selector LeverWipe with a damp cloth and dry thoroughly or clean
with a leather care product.
Cup HolderUse a gentle dishwashing detergent or mild detergent
for delicate fabrics as a washing solution. Wipe with a
cloth moistened in lukewarm solution. Do not use
scouring agents.Seat BeltsThe webbing must not be treated with chemical
cleaning agents. Use only clear, lukewarm water and
soap. Do not dry the webbing at temperatures above
176
°F (+80
°C) or in direct sunlight.
Headliner and Shelf Below Rear WindowClean with soft bristle brush, or use a dry-shampoo
cleaner in case of excessive dirt.UpholsteryUsing aftermarket seat covers or wearing clothing that
have the tendency to give off coloring (e.g. when wet
WARNING!
Do not bleach or dye seat belts as this may severe-
ly weaken them. In a crash they may not be able to
provide adequate protection.
Freightliner-all.book Pag e 224 Monday, December 1, 2003 2:54 PM

MAINTAININ G YOUR VEHICLE 225
7
etc.) may cause the upholstery to become permanently
discolored. By lining the seats with a proper
intermediate cover, contact discoloration will be
prevented.
Leather Upholstery
Wipe leather upholstery with a damp cloth and dry
thoroughly or clean with a leather care product.
Exercise particular care when cleaning perforated
leather as its underside should not become wet.
Cloth Upholstery
Clean with soft bristle brush, or use a dry-shampoo
cleaner in case of excessive dirt.
Tex Upholstery
Pour an interior care product onto soft lint-free cloth
and apply with light pressure.Hard Plastic Trim ItemsPour an interior care product onto soft lint-free cloth
and apply with light pressure.Plastic and Rubber PartsDo not use oil or wax on these parts.
ELECTRICAL FUSESDamaged fuses are recognizable from their burnt-out
filament.
Prior to exchanging a fuse, turn the key in the ignition-
column lock to the 0 position and switch off the
consumer involved.
NOTE: Fuses must not be bridged. Replace fuses with
specified rated current. Only replace fuses when the
cause of the malfunction has been rectified.
NOTE: Fuses and relays (standard equipment) are on
the underside of the ignition column, refer to "Fuses
and Relays Standard Equipment".
Fuses, relays and diodes (optional equipment) are
below the driver’s seat, refer to "Optional Fuse and
Relay Equipment".
Freightliner-all.book Pag e 225 Monday, December 1, 2003 2:54 PM

226 MAINTAINING YOUR VEHICLE
Standard Fuse and Relay Equipment1. Locked
2. Unlocked
3. Detent spring – engage when the cover is fitted
CAUTION!
When replacing a blown fuse, it is important to
use only a fuse having the correct amperage
rating. The use of a fuse with a rating other than
indicated may result in a dangerous electrical
system overload. If a properly rated fuse
continues to blow, it indicates a problem in the
circuit that must be corrected.
Freightliner-all.book Pag e 226 Monday, December 1, 2003 2:54 PM

MAINTAININ G YOUR VEHICLE 227
7
Position of fuses and relays
4. Fuses
5. RelaysFreightliner-all.book Pag e 227 Monday, December 1, 2003 2:54 PM

228 MAINTAINING YOUR VEHICLE
Fuse Assignment, Standard Equipment
Freightliner-all.book Pag e 228 Monday, December 1, 2003 2:54 PM

MAINTAININ G YOUR VEHICLE 229
7
No. Rated Circuit
1. 10A Parking lamp right, taillamp right
2. 10A High beam head lamp,right
3. 10A High beam head lamp, left,
high beam indicator lamp
4. 10A Backup lamp
5. 10A Brake lamp
6. 20A Windshield wiper motor
7. 15A Horn, heated rear window,
air recirculation switch,
optional equipment relay (terminal 15)
8. 20A Interior lighting, cigarette lighter,
radio (terminal 30)
9. 15A Clock, hazard warning lamps,
parking lamps10. 10A Instrument lighting, license plate lamp
daytime driving lamps
11. 10A Side lamp, left; taillamp, left
12. 10A Low beam headlamp, right
13. 10A Low beam headlamp, left
14. 15A Fog lamp
15. 10A Radio (terminal 15)
16. 25A Engine control unit
17. 15A Engine control unit
18. 15A Ignition (terminal 15)
19. 15A Not in use
20. 15A Heater controls (terminal 30)
21. 30A Heater blower (terminal 30)Freightliner-all.book Pag e 229 Monday, December 1, 2003 2:54 PM

230 MAINTAINING YOUR VEHICLERelay A ssignment, Standard Equipment1. Windshield wiper motor (W)
2. Diesel engine control unit (M)
3. Turn signals (B)
Fuse and Relay Optional EquipmentThe cover is located below the driver’s seat.
Remove cover:
1. Press both detent springs down and remove cover.
Install cover:
2. Position cover at bottom and engage both detent
springs.
Freightliner-all.book Pag e 230 Monday, December 1, 2003 2:54 PM
